Russell Hobbs RH34WC1 User manual

34 Bottle Wine Cooler
Instruction Manual
Model number:
RH34WC1
For Customer Services & Spare Parts please call 0345 208 8750
Opening times: Monday - Friday 8am –8pm & Saturday 9am –
1pm or visit us at www.productcare.co.uk
IMPORTANT:
RETAIN FOR FUTURE REFERENCE

For Customer Services & Spare Parts please call 0345 2088750
Opening times: Monday - Friday 8am –8pm & Saturday 9am –1pm
or visit us at www.productcare.co.uk
Contents
Safety Instructions ………………………………………. 3-4
Electrical Safety ………………………………………. 4
Transportation & Handling ………………………………………. 5
Installing & Switch on your Appliance ………………………………………. 5
Before Switching On ………………………………………. 6
Product Overview ………………………………………. 7
Unit & Spare Parts ………………………………………. 7
Usage Information ………………………………………. 8-10
Energy Saving Advice ……………………………………….11
Cleaning and Maintenance ……………………………….……… 12
Bulb Replacement ……………………………………….13
Reversing the Door ……………………………………….13
Connection to the Mains Supply …………………………….………… 14
Troubleshooting ……………………………………….15-16
Guarantee ……………………………………….17
Technical Specification ……………………………………….18
Notes ……………………………………….19

Safety Instructions
Important note: Please read this booklet before installing and switching on this
appliance. The manufacturer assumes no responsibility for incorrect installation
and usage as described in this booklet.
•This model uses natural refrigerant gas as part of its cooling system. This
gas is known as R600a (Isobutene) and is environmentally friendly but can be
combustible. Care should therefore be taken when handling or transporting the
product to ensure that none of the refrigeration circuit components are
damaged,
•Do not obstruct ventilation openings in the appliance
•The appliance must not be placed or rested on its power cord.
•Do not use mechanical devices or other artificial means to accelerate the
defrosting process, such as a heater or a hair dryer.
•Do not use electrical appliances in the refrigerator compartment of the
appliance.
•If this appliance is to replace an old refrigerator with a lock, the lock must be
removed as a safety measure before storing it or disposing of it. This is to
protect children from locking themselves inside the appliance.
•Old refrigerators and freezers contain insulation gases and refrigerant, they
must be disposed of properly. Contact your local authority or your dealer if
you have any questions. Please ensure that you do not damage the scrapunit
prior to being picked-up by the relevant waste disposal service.
•Do not use adaptors or extension leads when connecting the appliance to the
electrical power supply
•Do not plug in damaged plugs
•Do not pull, twist or damage the power cable.
•Do not plug-in or un-plug the appliance with wet hands to prevent electrical
shock.
For Customer Services & Spare Parts please call 0345 208 8750
Opening times: Monday - Friday 8am –8pm & Saturday 9am –1pm
or visit us at www.productcare.co.uk
3

•This appliance can be used by childrenaged from 8 years and above and
persons with reduced physical, sensoryor mental capabilitiesor lack of
experience and knowledge if they have been given supervision or instruction
concerning use of the appliance in a safe way and understand the hazards
involved. Children should not play with the appliance.
•This appliance is designed to be used by adults, do not allow childrento play
with the appliance or letthem hang over the door.
•Do not place explosive or flammable material in your appliance for your own
safety.
•Do not cover the body or the top of the appliance
•Fix down the accessories in the appliance during transportation to prevent
damage to them.
Electrical Safety
THIS APPLIANCE MUST BE PLUGGED INTO AN EARTHED SOCKET
•Before switching on, make sure that the voltage of your electricity supply is the
same as that indicated on the rating plate. This product is designed to operate
on 220 –240V AC; 50Hz. Connection to any other power source may damage
the unit.
•This product may be fitted with a non re-wireable plug. If it is necessary to
change the fuse in the plug, the fuse cover must be refitted. If the fuse cover
becomes lost or damaged, the plug must not be used until a suitable
replacement is obtained.
•If the plug has to be changed because it is not suitable for your socket, or
becomes damaged in any way, it should be cut off and an appropriate plug
fitted following the wiring instructions below. This should be carried out by a
qualified electrician. The plug removed must be disposed of safely, as insertion
into a 13 Amp socket is likely to cause an electrical hazard.
For Customer Services & Spare Parts please call 0345 208 8750
Opening times: Monday - Friday 8am –8pm & Saturday 9am –1pm
or visit us at www.productcare.co.uk
4

Transportation and Handling
For safe lifting, tilt the appliance backwards by no more than 45 degrees, hold the
base and rear corners of cabinet. Lift the refrigerator carefully. Never use the door
handles for lifting. To move the refrigerator on a flat level surface, tilt it slightly
backwards and push backwards.
This unit is heavy and could cause injury –ensure there is adequate people
present to move the appliance.
Installing and Switching on Your Appliance
•Operating voltage for your appliance is 220-240Vat 50Hz.
•Before plugging in the power supply, ensure that the voltage on the rating label
corresponds to the working voltage of your electrical system in your home.
•Insert the plug into an efficient Ground (Earth) connection. If the socket hasno
Ground (Earth) contact or the plug does not match, we suggestyou call an authorised
electrician for assistance.
•Place your appliance in an area that is not exposed to direct sunlight.
•Your appliance should be placed at least 10cm away from stoves, ovens and other
heating cores.
•This appliance should never be used outdoors or left in the rain.
•When your appliance is placed nextto achest freezer or freezer, there should be at
least 10cms betweenthem to prevent humidityon the outer surface.
•Do not place anything on your appliance and install the unit in a suitable place so that
there is at least 30cm clearance above the appliance.
•If placing your appliance nextto kitchen cabinets, leave 5cm betweenthem.
•The rear of the appliance should be at least 6cm away from the back wall.
•The appliance must be used in the vertical position and on a flat surface.
•To level the appliance, use the adjustable feet on the appliance.
•Do not place your appliance on a carpeted surface as this will prevent adequate
ventilation.
For Customer Services & Spare Parts please call 0345 208 8750
Opening times: Monday - Friday 8am –8pm & Saturday 9am –1pm
or visit us at www.productcare.co.uk
5

•This appliance should only be placed on a flat, firm surface.
•Choose a dry and well-ventilated space.
•The appliance should be positioned so that the plug is easily accessible.
•If you need help or are unsure how to install the unit, please contact
Customer Services on 0345 208 8750 or visit www.productcare.co.uk.
Before Switching On
•Before using your appliance, add a teaspoon of bicarbonate of soda to warm
water and with a damp cloth wipe down all parts of the new appliance, then
repeat the process with a clean damp cloth and dry. (ensure the appliance is
not connected to the power when performing this task).
•Remove all transport tapes and foam protection pieces . Clean the interior with
a cloth dampened in lukewarm soap and water. Wipe with clean water and
wipe dry.
•There may be an odour when you first switch on the appliance, it will disappear
when the appliance starts to cool.
•When the appliance has been positioned, adjust the feet to ensure the unit is
stable. This is essential to ensure quiet running and proper door opening
/closing.
•Connect to the electrical socket but do not switch the power to the refrigerator
on for at least 3 hours. The coolant within the product needs time to settle after
it has been transported and put in to position, failure to do this will affect the
cooling performance of your appliance.
•Once the appliance has settled, switch on the power and the set the unit to the
required temperature. The compressor will begin to work. Close the door
•You may hear faint gurgling or bubbling sounds when the refrigerant is pumped
to the cooling system and through the coils or tubing at the rear of the
appliance. When the compressor is in operation you may hear a slight whirring
sound or pulsating noise. The thermostat controls the operation of the
compressor, and you may hear a slight click as it cycles in and out.
•To save energy, you should minimize the frequency and duration of door
opening.
For Customer Services & Spare Parts please call 0345 208 8750
Opening times: Monday - Friday 8am –8pm & Saturday 9am –1pm
or visit us at www.productcare.co.uk
6

Unit Parts & Spare Parts
Before installation, check that all parts detailed in the product overview are
present. If any parts are missing, please contact the Product Care Customer Service
team on 0345 208 8750 or visit us at www.productcare.co.uk
1. Light
2. Shelves
3. Rack
4. Adjustable feet
5. Door
6. Control panel
Your Appliance and the Compartments
Partsmay vary accordingto the appliance model.
3
6
5
For Customer Services & Spare Parts please call 0345 2088750
Opening times: Monday - Friday 8am –8pm & Saturday 9am –1pm
or visit us at www.productcare.co.uk
7
4
2
1

Usage Information
.
Control Panel
Note: If no button is pressed on the control panel for a period of 30
seconds, the display will disappear and the keypad will be locked. To see
the display you can press any button and to adjust the temperature you
will need to unlock the keypad first and use the temperature adjustment
controls.
The appliance has 4 touch controls and an LED display on the control panel,
the function of each touch control, the display and the meaning of each icon
is explained below:
Thermostat Setting
Note: The temperature of the freshly stored wine and how often the door
is opened affects the temperature in the compartment. If required,
change the temperature setting.
Note: You will need to unlock the keypad to set the temperature when
the product is first switched on.
For Customer Services & Spare Parts please call 0345 2088750
Opening times: Monday - Friday 8am –8pm & Saturday 9am –1pm
or visit us at www.productcare.co.uk
8

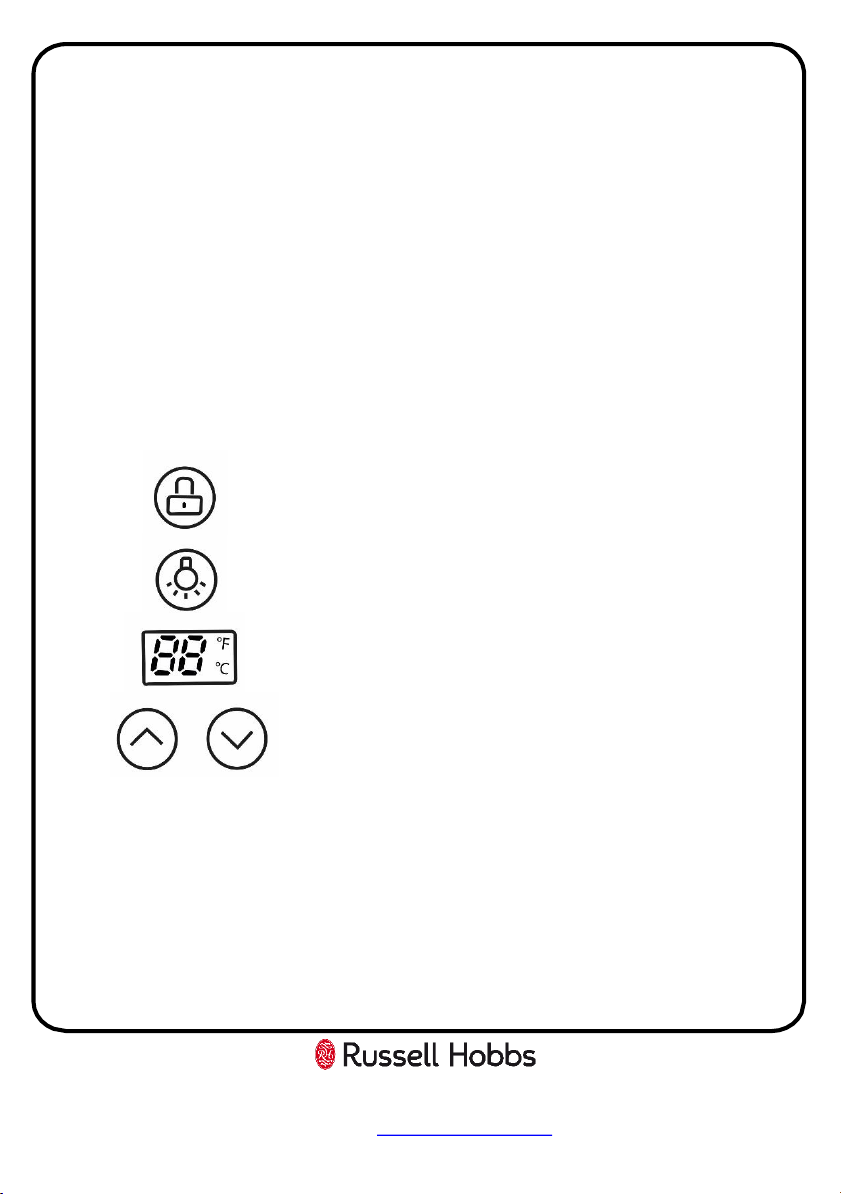

Keypad lock
Interior light control
Temperature display (LED display)
Temperature controls (up and down)

•When you first switch on the appliance, to enable suitable cooling, the
appliance should work for 24 hours continuously until it cools down to
sufficient temperature.
•During this time do not open the door frequently or place a lot of
bottles inside the appliance.
•If the unit is switched off or unplugged, you must allow at least 5
minutes before restarting or plugging the unit back in.

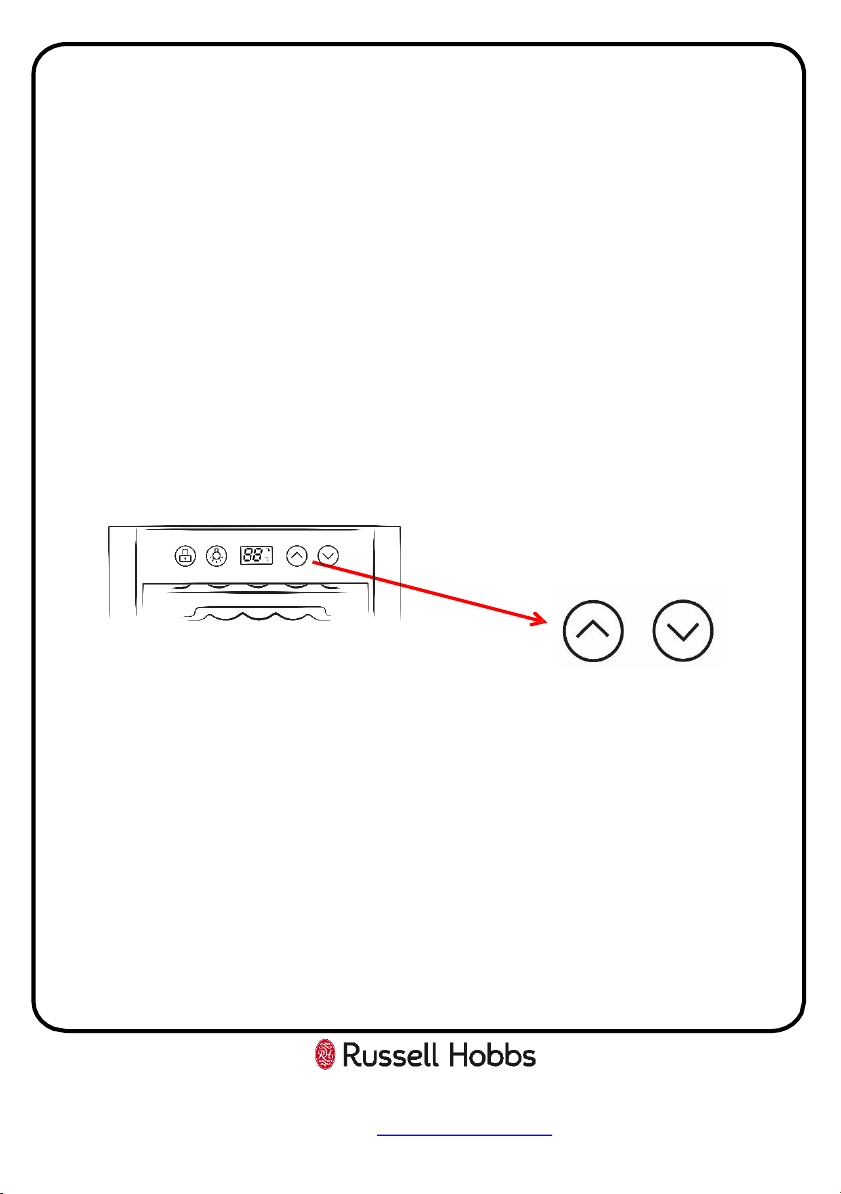

•Temperature selection - The temperature of the appliance is controlled
manually by the temperature adjustment arrow buttons. To alter the
temperature, press the up or down arrows on the control panel. The LED
display will increase or decrease by one degree at a time.
•The appliance has a temperature range of 5°C to 18°C and below are the
recommended temperatures for different types of wine:
•SPARKLING: 5 - 7°C
•WHITE: 8-12°C
•RED: 13-18°C
•To change the temperature display from Celsius (°C) to Fahrenheit (°F),
press and hold the temperature up and down controls at the same
time until you hear a beep and the °F indicator is lit on the display.
For Customer Services & Spare Parts please call 0345 2088750
Opening times: Monday - Friday 8am –8pm & Saturday 9am –1pm
or visit us at www.productcare.co.uk
9

•Your appliance is designed to operate in the ambient temperature
range stated in the associated standards, according to the climate class
stated on the information label. We do not recommend operating your
wine cooler out of the stated temperatures, as the appliance may
not operate to its optimum level .
Interior light
•The appliance has an interior light and this can be turned on and off, by
pressing the light button that is located on the control panel
Keypad lock
•The appliance has a keypad lock and this can be switched on and off, by
pressing the lock button which is located next to the light switch.
•To lock the keypad, press and hold the lock button until you hear a
beep and the keypad is locked. The only button that will not be locked
will be the light.
•To unlock the keypad, press and hold the lock button until you hear a
beep and the keypad will be unlocked. All buttons can now be pressed.
For Customer Services & Spare Parts please call 0345 2088750
Opening times: Monday - Friday 8am –8pm & Saturday 9am –1pm
or visit us at www.productcare.co.uk
10

Shelves
•Any of the shelves can be removed, to accommodate larger bottles.
•Removing a shelf –remove all of the bottles from the shelf that you
want to remove. Lift the shelf upwards and then gently pull the shelf
away from the appliance.
•Replacing a shelf - Place the shelf back into a supporting guide slot and
push it back as far as it will go.
Important: Whilst the wine cooler can store larger bottles, you must
make sure that they do not prevent the door from shutting properly.
•Always check that you can close the door without it touching or
hitting any of the bottles, before shutting it.
•When loading several beverages at once, it will take longer for the
appliance to cool the individual bottles or cans.
Energy Saving Advice
•Do not install the appliance close to sources of heat, such as a cooker,
dishwasher or radiator.
•Locate the appliance in a cool well-ventilated room and make sure that
the air vents are clear.
•Try to avoid keeping the doors open for a long time, warm air will enter
the cabinet and may cause a build-up of ice as well as affecting the
energy consumption. Ensure there are no obstructions preventing the
doors from closing properly.
•Ensure that the door seals are clean and there are no tears or splits.
•Do not overload the appliance: the cooling air that circulates to keep the
appliance cold gets blocked and pockets of warm air form.
For Customer Services & Spare Parts please call 0345 2088750
Opening times: Monday - Friday 8am –8pm & Saturday 9am –1pm
or visit us at www.productcare.co.uk
11

Maintenance & Cleaning
Disconnect the appliance from the power supply before cleaning.
Internal Cleaning
•Do not pour water over the appliance.
•The cavity should be cleaned periodically using a solution of bicarbonate
of soda and lukewarm water (5ml to 0.5 litre of water)
•Clean the accessories separately with soap and water. Do not put them in
the dishwasher.
•Do not use abrasive products or detergents.
•After washing, rinse with clean water and dry carefully.
•When you have finished cleaning reconnect the plug with dry hands.
External Cleaning
•Wash the outer cabinet with warm soapy water. Do NOT use abrasive
products.
•There are sharp edges on the underside of the product so care should be
taken when cleaning.
•Once or twice a year dust the rear of the appliance and the compressor
at the back of the appliance, with a brush or vacuum cleaner, as an
accumulation of dust will affect the performance of the appliance and
cause increased energy consumption.
When the appliance is not in use
When the appliance is not in use for long periods, disconnect from the
electricity supply, empty all of the contents and clean the inside. Leave the
door open to prevent the build-up of odours.
For Customer Services & Spare Parts please call 0345 2088750
Opening times: Monday - Friday 8am –8pm & Saturday 9am –1pm
or visit us at www.productcare.co.uk
12

Bulb Replacement
To replace the internal LED bulbs, please follow the below instructions.
The required rating is: (DC) 12V LED.
It recommended that a qualified engineer or electrician replaces the
bulb
1. Unplug the appliance.
2. Push and remove the cover from the light.
3. Then remove the screws and the back cover of the lamp. You will
now be able to remove the LED bulbs, but you must ensure the
bulbs are cool to touch.
4. Replace the LED bulbs and reassemble the back cover. Slot the
lampshade back into the appliance.
Reversing the Door
Door cannot be reversed.
Back cover
For Customer Services & Spare Parts please call 0345 2088750
Opening times: Monday - Friday 8am –8pm & Saturday 9am –1pm
or visit us at www.productcare.co.uk
13
LED bulbs
Transparent
cover

Connection to the mains supply
For UK use only –Plug fitting details (where applicable):
As the colours of the wires in the mains lead of this appliance
may not correspond with the coloured markings identifying the
terminals in your plug, proceed as follows:
The GREEN/YELLOW wire is the EARTH and must be connected to the
terminal which is marked with the letter E or by the earth symbol or
coloured GREEN or GREEN/YELLOW.
The BLUE wire is the NEUTRAL and must be connected
to the terminal marked with the letter N or coloured
BLACK. The BROWN wire is the LIVE wire and must be
connected to the terminal marked with the letter L or
coloured RED.
Always ensure that the plug cord grip is fastened correctly.
If a 13A (BS1363) fused plug is used it must be fitted with
a 13amp fuse conforming to BS1362 and be BSI or ASTA
approved.
For Customer Services & Spare Parts please call 0345 2088750
Opening times: Monday - Friday 8am –8pm & Saturday 9am –1pm
or visit us at www.productcare.co.uk
14

Troubleshooting
Problem
So
lution
The appliance doesn't work
Check
that the appliance is switched on.
Check
that there has not been a power cut.
Check that the plug is not faulty.
Check that the fuse has not blown.
Check that the voltage is correct for the appliance.
Check the keypad is not locked
The temperature inside the
appliance is not cold enough
Chec
k that there are not too many bottles in the
ap
pliance.
Chec
k that the temperature is setto a suitable
te
mperature.
Chec
k that the appliance is not placed in direct sunlig
ht,
or too
near to a heating source.
Chec
k that the ambient temperature is within the
op
eration limits of the appliance.
O
pening the doors frequently will also reduce the
te
mperature within the appliance.
Chec
k that the door has not been left open or check th
at
th
e door gasket is clean and undamaged.
The temperature within the
appliance is too cold.
Incr
ease the working temperature
The inner surfaces of the
appliance are wet
Ca
usedby condensation - dry the inside of the applianc
e.
The outer surfaces of the
appliance are wet
Ca
usedby condensation - dry the outer of the a
ppliance
care
fully.
Keypad buttons don’t work
Chec
k the keypad is not locked
For Customer Services & Spare Parts please call 0345 2088750
Opening times: Monday - Friday 8am –8pm & Saturday 9am –1pm
or visit us at www.productcare.co.uk
15

Troubleshooting
Problem
So
lution
Unusual noises
Chec
k that the appliance is on a flat, level surface and is
stabl
e.
Chec
k the spacing's around the appliance and ensure it
is
not
touching other items.
Smell/odour
Chec
k that no bottles have leaked or any stagnant liqu
id
is
at the bottom of the appliance. Clean if required.
Error code-E01
Temperature sensor of the refrigerator with fault
Error code-E04
Defrosting sensor of the refrigerator with fault
For Customer Services & Spare Parts please call 0345 2088750
Opening times: Monday - Friday 8am –8pm & Saturday 9am –1pm
or visit us at www.productcare.co.uk
16

Guarantee
This product is guaranteed for 12 months from the date of the original
purchase. If any defect arises due to faulty materials or workmanship the
faulty product must be returned to the place of purchase.
Refund or replacement is at the discretion of the retailer.
The following conditions apply:
•The product must be returned to the retailer with the original proof of
purchase.
•The product must be installed and used in accordance with the
instructions contained in this instruction guide and any other
instructions for use which have been supplied.
•It must be used for domestic purposes only and for its intended use.
•This warranty does not cover wear and tear, damage, misuse or
consumable parts.
This does not affect your statutory rights.
Produced for:
G2S Limited
Wigan
WN2 4AY
For Customer Services & Spare Parts please call 0345 2088750
Opening times: Monday - Friday 8am –8pm & Saturday 9am –1pm
or visit us at www.productcare.co.uk
17

For Customer Services & Spare Parts please call 0345 208 8750
Opening times: Monday - Friday 8am –8pm & Saturday 9am –1pm
or visit us at www.productcare.co.uk
18
Technical Specification
Model number RH34WC1
Rated Voltage 220V –240V ~ 50Hz
Capacity 93L/34 Bottles (75cl)
External Dimensions(HxWxD) 842mm x 490mm x 440mm

For Customer Services & Spare Parts please call 0345 2088750
Opening times: Monday - Friday 8am –8pm & Saturday 9am –1pm
or visit us at www.productcare.co.uk
19
Notes

Revision 1
This symbol is knownas the 'Crossed-out wheelie bin Symbol'. When this
symbol is marked on a product/batteries, it means that the product/batteries
should not be disposed of with your general household waste. Only discard
electrical/electronic/battery items in separate collection schemes, which cater
for the recovery and recycling of materials contained within. Your co-operation is
vital to make sure the success of these schemes and for the protection of the
environment. For your nearest disposal facility, visit www.recycle-more.co.uk or
ask in store for details.
We reserve the right due to possible changes to design to alter the
instruction manual without prior notice.
Revision 3
For Customer Services & Spare Parts please call
0345 208 8750
Opening times: Monday –Friday
8am –8pm
& Saturday
9am –1pm
or visit us at
www.productcare.co.uk
