Russell Hobbs RHGWC4B-LCK User manual

Model number(s):
RHGWC4B (SS) (-LCK)
For Customer Services & Spare Parts please call 0345 2088750
or visit us at mda.russellhobbs.com
IMPORTANT:
RETAIN FOR FUTURE REFERENCE
Glass Table Top Wine Cooler
Instruction Manual
- 1 -

Contents
Safety Instructions ………………………………………. 3-4
Electrical Safety ………………………………………. 5
Transportation & Handling ………………………………………. 5
Installing & Switch on your Appliance ………………………………………. 6-7
Before Switching On ………………………………………. 7
Product Overview ………………………………………. 8
Unit & Spare Parts ………………………………………. 8
Usage ………………………………………. 9
Temperature Selection ………………………………………. 9
Light ………………………………………. 10
Bulb replacement ………………………………………. 10
Door Reversal ………………………………………. 11-12
Lock & Keys (selected models) ………………………………………. 12
Energy Saving Advice ………………………………………. 13
Maintenance & Cleaning ………………………………………. 14
Internal Cleaning ………………………………………. 14
External Cleaning ………………………………………. 14
When not in Use ………………………………………. 14
Trouble Shooting ………………………………………. 15-16
Connection to the Mains Supply ………………………………………. 17
Guarantee ………………………………………. 18
Technical Specification ………………………………………. 19
Product Fiche ………………………………………. 20
Notes ………………………………………. 21-23
- 2 -

Safety Instructions
Important note: Please read this booklet before installing and switching on this
appliance. The manufacturer assumes no responsibility for incorrect installation
and usage as described in this booklet.
Warning: When positioning the appliance, ensure the supply cord is not
trapped or damaged.
Warning: Do not locate multiple portable socket-outlets or portable power
suppliers at the rear of the appliance.
•This model uses natural refrigerant gas as part of its cooling system. This
gas is known as R600a (Isobutene) and is environmentally friendly but can be
combustible. Care should therefore be taken when handling or transporting the
product to ensure that none of the refrigeration circuit components are
damaged,
•Do not obstruct ventilation openings in the appliance
•The appliance must not be placed or rested on its power cord.
•Do not use mechanical devices or other artificial means to accelerate the
defrosting process, such as a heater or a hair dryer.
•Donotuse electrical appliances in the cooler compartment of the appliance.
•Ifthis appliance is to replace an old cooler with a lock, the lock must be
removed as a safety measure before storing it or disposing of it. This is to
protect children from locking themselves inside the appliance.
•Old refrigerators, coolers and freezers contain insulation gases and refrigerant,
they must be disposed of properly. Contact your local authority or your
dealer if you have any questions. Please ensure that you do not damage the
scrapunit prior to being picked-up by the relevant waste disposal service.
•Do not use adaptors or extension leads when connecting the appliance to the
electrical power supply
- 3 -

•Do not plug in damaged plugs.
•Do not pull, twist or damage the power cable.
•Do not plug-in or un-plug the appliance with wet hands to prevent electrical
shock.
•This appliance can be used by childrenaged from 8 years and above and
persons with reduced physical, sensoryor mental capabilitiesor lack of
experience and knowledge if they have been given supervision or instruction
concerning use of the appliance in a safe way and understand the hazards
involved. Children should not play with the appliance.
•Children aged from 3 to 8 years are allowed to load and unload this appliance.
•This appliance is designed to be used by adults, do not allow childrento play
with the appliance or letthem hang over the door.
•Do not place explosive or flammable material in your appliance for your own
safety.
•Do not cover the body or the top of the appliance
•Fix down the accessories in the appliance during transportation to prevent
damage to them.
•If the appliance is left empty for long periods, switch off, defrost, clean, dry and
leave the door open to prevent mount developing within the appliance.
•This appliance is intended to be used exclusively for the storage of wine.
•This refrigerating appliances is not intended to be used as a built -in appliance.
•This refrigerating appliance is not suitable for freezing foodstuffs.
- 4 -

Electrical Safety
THIS APPLIANCE MUST BE PLUGGED INTO AN EARTHED SOCKET
•Before switching on, make sure that the voltage of your electricity supply is the
same as that indicated on the rating plate. This product is designed to operate
on 220 –240V AC; 50Hz. Connection to any other power source may damage
the unit.
•This product may be fitted with a non re-wireable plug. If it is necessary to
change the fuse in the plug, the fuse cover must be refitted. If the fuse cover
becomes lost or damaged, the plug must not be used until a suitable
replacement is obtained.
•If the plug has to be changed because it is not suitable for your socket, or
becomes damaged in any way, it should be cut off and an appropriate plug
fitted following the wiring instructions. This should be carried out by a qualified
electrician. The plug removed must be disposed of safely, as insertion into a 13
Amp socket is likely to cause an electrical hazard.
Transportation and Handling
For safe lifting, tilt the appliance backwards by no more than 45 degrees, hold the
base and rear corners of cabinet. Lift the cooler carefully. Never use the door
handles for lifting. To move the cooler on a flat level surface, tilt it slightly
backwards and push backwards.
This unit is heavy and could cause injury –ensure there are adequate people
present to move the appliance.
- 5 -

Installing and Switching on Your Appliance
•Operating voltage for your appliance is 220-240Vat 50Hz.
•Before plugging in the power supply, ensure that the voltage on the rating label
corresponds to the working voltage of your electrical system in your home.
•Insert the plug into an efficient Ground (Earth) connection. If the socket hasno
Ground (Earth) contact or the plug does not match, we suggestyou call an authorised
electrician for assistance.
•Place your appliance in an area that is not exposed to direct sunlight.
•Your appliance should be placed at least 10cm away from stoves, ovens and other
heating cores.
•This appliance should never be used outdoors or left in the rain.
•When your appliance is placed nextto achest freezer or freezer, there should be at
least 10cms betweenthem to prevent humidityon the outer surface.
•Do not place anything on your appliance and install the unit in a suitable place so that
there is at least 30cm clearance above the appliance.
•If placing your appliance nextto kitchen cabinets, leave 5cm betweenthem.
•The rear of the appliance should be at least 6cm away from the back wall.
•The appliance must be used in the vertical position and on a flat surface.
•To level the appliance, use the adjustable feet on the appliance.
•Do not place your appliance on a carpeted surface as this will prevent adequate
ventilation.
•This appliance should only be placed on a flat, firm surface.
•Choose a dry and well-ventilated space.
•The appliance should be positioned so that the plug is easily accessible.
•This appliance is not suitable for use in garages, outbuildings or rooms that do not
comply with the ambient temperature requirements set out in the Product Fiche.
•If you need help or are unsure how to install the unit, please contact Customer
Services on 0345 208 8750 or visit mda.russellhobbs.com.
- 6 -

Before Switching On
•Before using your appliance, add a teaspoon of bicarbonate of soda to warm
water and with a damp cloth wipe down all parts of the new appliance, then
repeat the process with a clean damp cloth and dry (ensure the appliance is not
connected to the power when performing this task).
•Remove all transport tapes and foam protection pieces. Clean the interior with
a cloth dampened in lukewarm soap and water. Wipe with clean water and
wipe dry.
•There may be an odour when you first switch on the appliance, it will disappear
when the appliance starts to cool.
•When the appliance has been positioned, adjust the feet to ensure the unit is
stable. This is essential to ensure quiet running and proper door opening
/closing.
•Connect to the electrical socket but do not switch the power to the refrigerator
on for at least 3 hours. The coolant within the product needs time to settle after
it has been transported and put in to position, failure to do this will affect the
cooling performance of your appliance.
•Once the appliance has settled, locate the thermostat dial on the product (this is
inside the appliance next to the light) and set between position “6” and “7” and
switch on the power. The compressor will begin to work. Close the door.
•You may hear faint gurgling or bubbling sounds when the refrigerant is pumped
to the cooling system and through the coils or tubing at the rear of the
appliance. When the compressor is in operation you may hear a slight whirring
sound or pulsating noise. The thermostat controls the operation of the
compressor, and you may hear a slight click as it cycles in and out (this is
normal).
•To save energy, you should minimize the frequency and duration of door
opening.
- 7 -
WARNING! During use, service and disposal of the appliance,
please pay attention to symbol similar to the one shown, which is
located on rear of the appliance (rear panel or compressor) and
with a yellow or orange colour. It’s risk of fire warning symbol.
There are flammable materials in refrigerant pipes and compressor.
Please be far away from fire source during use, service and disposal.

Unit Parts & Spare Parts
Before installation, check that all parts detailed in the product overview are
present. If any parts are missing, please contact the Customer Service team on
0345 208 8750 or visit us at mda.russellhobbs.com
Product Overview
1. Thermostat & light
2. Upper hinge & cover
3. Glass door
4. Handle recess
5. Door seal
6. Bottle rack
7. Adjustable feet
8. Shelf
- 8 -

Allow to stand for a minimum of 3 hours before plugging in to the mains
The temperature in the appliance is controlled by the temperature control dial
located inside the appliance next to the light. Rotate the control dial left or right
to regulate the temperature inside the cooler.
On the temperature control, 0 is off, 1 is the warmest setting and 7 is the coldest
setting. Under normal conditions the temperature control should be set
between setting 6 and 7.
Once the temperature control has been set, close the door and plug in the
appliance. We recommend that the door is not opened for a minimum of 4
hours to allow the appliance to reach the standard operating temperature.
Note: The standard operating temperature for the cooler compartment should
be between 5ºC and 18ºC.
•Note: The temperature of items stored in the appliance and how often
the door is opened affects the temperature in the cooling
compartment. If required, change the temperature setting.
Usage
Temperature
control
Light ON/OFF
switch
Light
Temperature
control
- 9 -

Light
The appliance has an interior light and this can be turned on and off, by
switching the light button that is located inside the appliance at the top.
Bulb Replacement
The light is an energy efficient, long life LED. Therefore should not need
replacing throughout the life of the product however if it does it has to be
replaced by a qualified engineer.
Please call the service team on 0345 208 8750.
The following symbol indicates that the light source in this appliance should only
be replaced by a qualified engineer:
Light ON/OFF
switch
Temperature
control
Light
-10 -

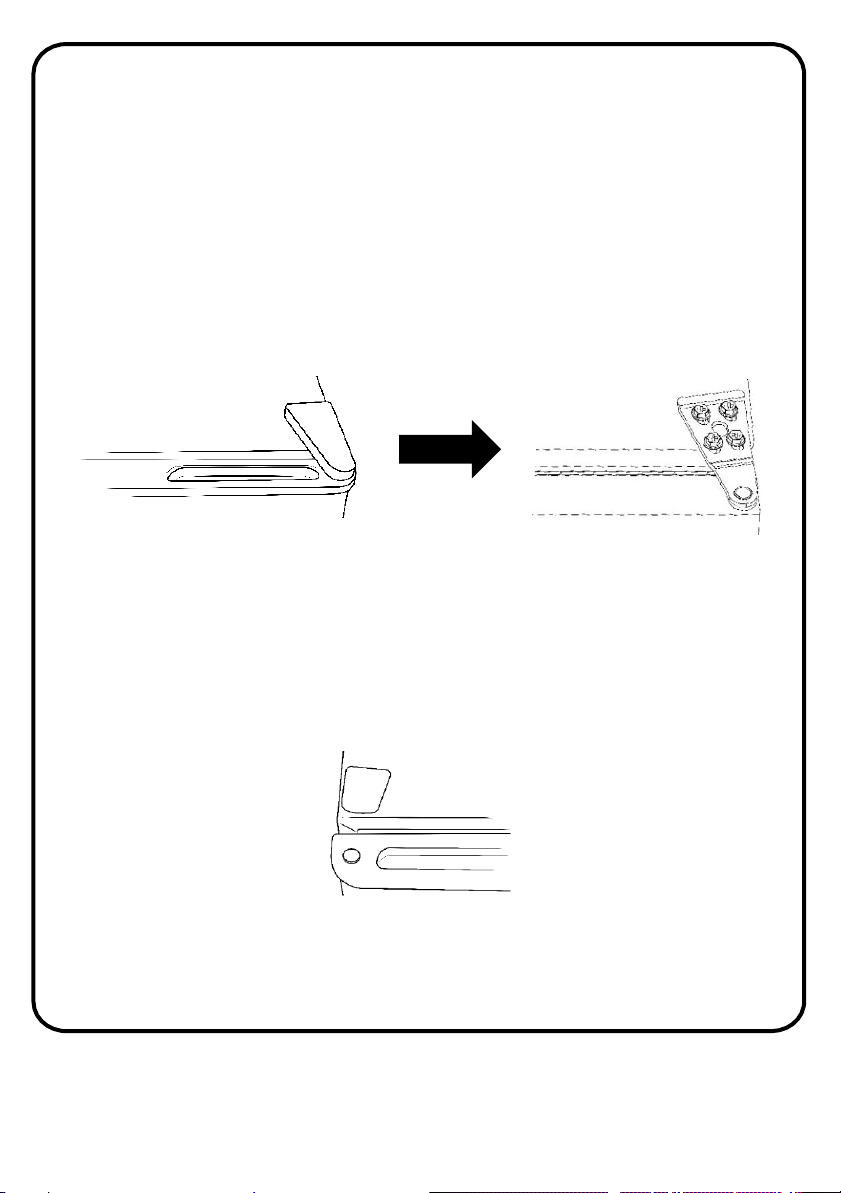

Door Reversal
You will need to tilt the cooler backward to access the lower hinge which holds
screws. Do not tilt more than 45 degrees and do not lay the cooler flat on its side.
Tools Required: Philip head screwdriver, flat headed screwdriver and hexagonal
spanner.
1. Remove the top plastic hinge cover and set aside, then unscrew the 4 screws
from the metal bracket and set aside. Carefully remove the door and place it on
a cushioned surface.
2. Remove the hinge plug and plastic insert from the top of the door and fix them
to the opposite sides. For the RHGWC4SS & RHGWC4SS-LCK you will need to
remove the hinge stopper from the bottom of the door and fix it to the
opposite side of the door, ensuring it is fixed securely. For all other versions
this part is not applicable.
3. Remove the plastic insert on the left side of the cooler and fix it to the opposite
side.
4. Tilt the appliance no more than 45 degrees and remove the screw on the left
side of the cooler and set it aside. Then unscrew the 4 screws holding the
bottom door hinge in place, move it across to the opposite side and fix it into
position. Now fix the screw that you set aside to the right side of the cooler.
-11 -

Door Reversal
5. Place the door back on to the bottom hinge, put the pin of the top hinge into
the top of the door and fix the hinge in to place by screwing it to the top of the
cabinet (use a spanner to tighten it if necessary). Ensure the door is aligned
horizontally and vertically so that the seals are closed on all sides before
finally tightening the top hinge.
Note:
•The appliance must now be upright for a minimum of 3 hours before turning
it on.
Lock & Keys (selected models)
•Some models are provided with a lock and 2 keys. The lock will be on the
front of the unit/door at the bottom. The keys are packaged with the
instruction manual inside the appliance.
•To lock the appliance insert 1 of the keys into the lock and turn it clockwise
until the metal pin is fully engaged and the door is locked. Remove the key
and place it in a secure place.
•To unlock the appliance insert 1 of the keys in to the lock and turn the key
counter clockwise until the metal pin is fully released and the door is
unlocked. Remove the key and place it in a secure place.
•If required the locking plate at the bottom of the unit (this is where the
locking pin locates when the unit is locked) can be adjusted. To do this
loosen the 2 screws, adjust the plate and retighten the screws. Check the
locking pin locates correctly.
-12 -

Energy Saving Advice
•Do not install the appliance close to sources of heat, such as a cooker,
dishwasher or radiator.
•Locate the appliance in a cool well-ventilated room and make sure that the air
vents are clear.
•Try to avoid keeping the doors open for a long time, warm air will enter the
cabinet and may cause a build-up of ice as well as affecting the energy
consumption. Ensure there are no obstructions preventing the doors from
closing properly.
•Ensure that the door seals are clean and there are no tears or splits.
•Do not overload the appliance: the cooling air that circulates to keep the
appliance cold gets blocked and pockets of warm air form.
•Do not put hot items into the cooler –let them cool down first.
•The shelves are placed in factory mode this delivers the most energy efficient
usage for this appliance.
-13 -

Maintenance & Cleaning
Disconnect the appliance from the power supply before cleaning.
Internal Cleaning
•Do not pour water over the appliance.
•The cavity should be cleaned periodically using a solution of bicarbonate of
soda and lukewarm water (5ml to 0.5 litre of water)
•Clean the accessories separately with soap and water. Do not put them in the
dishwasher.
•Do not use abrasive products, detergents or soaps.
•After washing, rinse with clean water and dry carefully.
•When you have finished cleaning reconnect the plug with dry hands.
External Cleaning
•Wash the outer cabinet with warm soapy water. Do NOT use abrasive products.
•There are sharp edges on the underside of the product so care should be taken
when cleaning.
•Once or twice a year dust the rear of the appliance and the compressor at the
back of the appliance, with a brush or vacuum cleaner, as an accumulation of
dust will affect the performance of the appliance and cause increased energy
consumption.
When the appliance is not in use
When the appliance is not in use for long periods, disconnect from the electricity
supply, empty all of the items and clean the inside. Leave the door open to
prevent the build-up of odours.
-14 -

Trouble shooting
Problem
Solution
The cooler doesn't work
Check that the appliance is switched on.
Check that there has not been a power cut.
Check that the plug is not
faulty.
Check that the fuse has not blown.
Check that the voltage is correct for the appliance.
Are there any faults with the socket? For this purpose, try
the plug of your appliance by connecting it to a socket
which you are sure is working.
The temperature inside the
appliance is not cold enough
Check that the appliance is not overloaded
Check that the thermostat is set to a suitable
temperature.
Check that the appliance is not placed in direct sunlight,
or too near to a heating source.
Check that the ambient temperature is within the
operation limits of the appliance.
Are the doors of the appliance opened frequently? Once
the door is opened, the humidity found in the air in the
room enters the appliance, especially if the humidity
levels in the room are very high. The more frequently the
door is opened in humid conditions the more chance of
the build up of moisture.
The temperature within the
appliance is too cold
Increase the working temperature by adjusting the
thermostat to a lower setting.
The
highest setting should only be used as a rapid cool
setting and should only be set 2 hours before a large
amount of food is placed in the cooler. If this is not done
the temperature in the cooler compartment could fall
below
0ºC as the compressor will run continuously.
The inner surfaces of the
appliance are wet
Caused by condensation
-
dry the inside of the appliance.
The outer surfaces of the
appliance are wet
Caused by condensation
-
dry the outer of the appliance
carefully.
-15 -

Trouble shooting
Problem
Solution
Smell/odour
Check all
the items that are in the cooler are in date and
correctly packaged. If it isn’t then it should be removed
immediately or repackaged.
Check for spillages on each shelf and rack. You may need
to remove the shelf and rack to check that no spillages
have settled underneath them. Spillages that have not
been cleaned and have been left can cause smells and
unwanted odours.
The doors do not close properly
Ensure there are no obstructions preventing door closure.
Check the door compartments and shelves are correctly
in place.
Check the door seal is not warped or torn.
Check the appliance is level.
Unusual noises
Check that the appliance is on a flat, level surface and is
stable.
Check the spacing's around the appliance and ensure it is
not touching other items.
Bubbling and gurgling sound:
• This noise is emitted as
the coolant fluid flows through the pipes within the
system. This is normal.
Water flowing sound: • This is the normal sound of water
flowing into the drain trough during the defrosting
process.
If the appliance is operating noisily (compressor noise):
This is normal. This noise indicates that the compressor is
operating normally. As the compressor is being energized,
it might run a bit more noisily for a short period of time.
-16 -

WARNING- THIS APPLIANCE MUST BE EARTHED
This appliance is designed to operate from a mains supply of AC220V - 240V; 50HZ.
Check that the voltage marked on the product corresponds with your supply voltage.
For UK use only –Plug fitting details (where applicable):
As the colours of the wires in the mains lead of this appliance may not correspond
with the coloured markings identifying the terminals in your plug, proceed as follows:
The GREEN/YELLOW wire is the EARTH and must be connected to the terminal which
is marked with the letter E or by the earth symbol or coloured GREEN or
GREEN/YELLOW.
The BLUE wire is the NEUTRAL and must be connected to
the terminal marked with the letter N or coloured BLACK.
The BROWN wire is the LIVE wire and must be connected
to the terminal marked with the letter L or coloured RED.
Always ensure that the plug cord grip is fastened correctly.
If a13A (BS1363) fused plug is used it must be fitted with a 13amp fuse conforming
to BS1362 and be BSI or ASTA approved.
Connection to the Mains Supply
-17 -

Guarantee
This product is guaranteed for 12 months from the date of the original
purchase. If any defect arises due to faulty materials or workmanship you
must contact Product Care with the original proof of purchase so a
replacement or refund can be arranged.
Refund or replacement is at the discretion of Product Care.
The following conditions apply:
•Product Care will require a valid proof of purchase at the point of
replacement or refund.
•The product must be installed and used in accordance with the
instructions contained in this instruction guide and any other
instructions for use which has been supplied.
•It must be used for domestic purposes only and for its intended use.
•This guarantee does not cover wear and tear, damage, misuse or
consumable parts.
This does not affect your statutory rights.
-18 -

Technical Specification
Model number RHGWC4B (SS) (-LCK)
Rated Voltage 220V –240V ~ 50Hz
Capacity 20 bottles (75cl) / L
External Dimensions(HxWxD) 630mm x 430mm x 480mm
-19 -

Product Fiche
Model
RHGWC4B/SS/-LCK
Fresh Food Storage Compartment Volume (L)
N/A
Frozen Food Storage Volume (L)
N/A
Storage Temperature (
°C) 5 -18
Energy Consumption (kWh/per year)
135
Energy Consumption (kWh/per year), based on standard test results for 24 hours
Energy Rating
G
Light Energy Efficiency Class
Exempt
The light source in this appliance should only be replaced by a qualified engineer
Defrosting Type
Static
Climate Class
SN/N
This appliance is intended to be used at an ambient temperature between 10°c and 32°c
Airborne Acoustical Noise (dB)
40
Temperature Rise Time
N/A
Freezing Capacity
N/A
Compartment Humidity Range
50%-80%
Rated voltage
220- 240V / 50Hz
Rated Current
0.55A
Product Dimensions CMs (H x W x D)
63 x 43 x 48
Total Storage Volume (L)
62L
Wine Bottle Capacity
20
This appliance is intended to be used
exclusively for the storage of wine
Yes
Built in appliance
No
Net Weight (KG)
21.3 /22.3
Class Symbol
Ambient temperature
range (°C) Information
Extended
temperate SN +10 to +32
Extended temperate: 'this refrigerating appliance is
intended to be used at ambient temperatures ranging
from 1o
°c to 32°c;
Temperate N +16 to +32
Temperate: 'this refrigerating appliance is intended to
be used at ambient temperatures ranging from 16
°c to
32
°c;
Subtropical ST +16 to + 38
Subtropical: 'this refrigerating appliance is intended to
be used at ambient temperatures ranging from 16
°
c to
38
°c;
Tropical T +16 to+ 43
Tropical: 'this refrigerating appliance is intended to be
used at ambient temperatures ranging from 16
°c to
43
°c;
-20 -
