RUSTIBUS® 25 AIR
Miniblaster
OPERATION MANUAL

© COPYRIGHT 2015
© Copyright 2015 by DSS.
All rights reserved printed in the United States of America. No part of this manual may be used or
reproduced in any form or by any means, stored in data base or retrieval system, without prior written
permission from Dalseide Shipping Services (DSS).
Making copies of this manual for any purpose other than your own personal use is a violation of the
United States copyright laws.
February 1, 2015 issue 1.0
Specications subject to changes without notice!
If you have any questions, please contact us:
Rustibus INC (DSS)
2901 West Sam Houston Pkwy, North
Suite e-325
Houston, TX 77043 USA
Email: [email protected]om
Phone: [phone]
Fax: [phone]
www.rustibus.com

INTRODUCTION
This operation and maintenance manual is furnished with each Rustibus® 25 Miniblaster unit. It outlines
general equipment use and the operation and maintenance requirements for ecient and safe
operation.
READ ALL INSTRUCTIONS AND DATA IN THIS OPERATION AND MAINTENANCE MANUAL PRIOR TO
OPERATION OF THIS EQUIPMENT.
These instructions are for your protection and convenience. Please read them carefully since failure to
follow the precautions could result in injury.
Whenever using powered equipment, basic safety precautions should be followed.
If after reading this manual anything seems unclear, contact a Rustibus INC (DSS) directly by dialing
[phone].
GENERAL DESCRIPTION

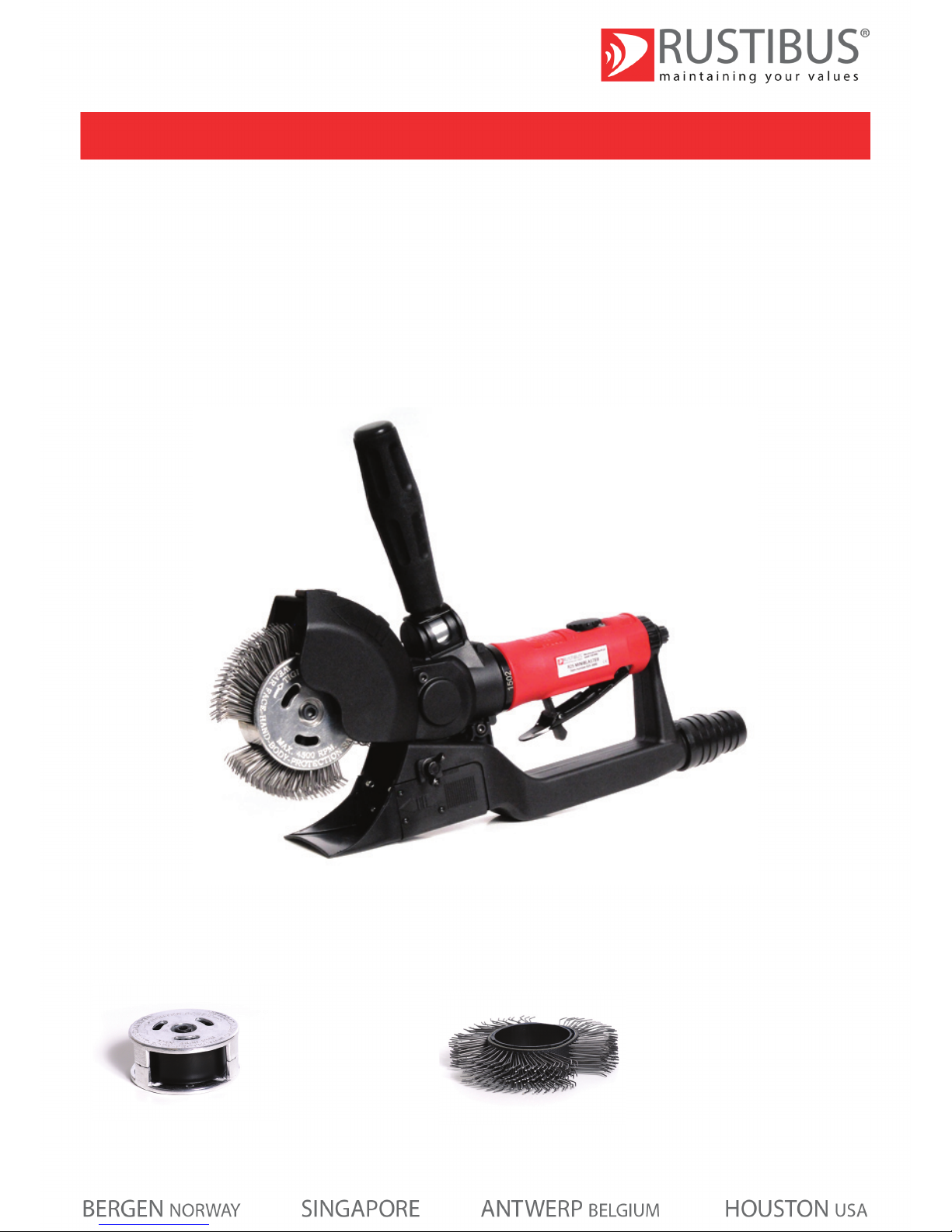

The Rustibus® 25 Miniblaster is an easy to handle, light weight surface preparation tool with a lot of
power. This versatile piece of equipment utilizes a variety of abrasives from wire brushes, coating removal
discs to erasers for removal of adhesive products.
TECHNICAL DETAILS
Length: 275 mm / 11”
Length w/wheel: 325 mm / 13”
Height: 150 mm / 6”
Height w/handle: 240 mm / 9,45”
Width: 80 mm / 3,15”
Width w/handle: 175 mm / 6,89”
Total Weight: 1,5 kg / 3,2 lbs
Air Cons: 113 LPM / 4 CFM
Work press: 6,3 bar / 90 psi
Air inlet: 1/4”
RPM: 3500
Noise level*:83 dB
Vibration: 2,42 m/s²
*Noise level dependent on surface.

HELPFUL IDENTIFIERS
In addition to information on installation and operation, this instruction manual may contain WARNINGS
and CAUTIONS pertaining to user safety, and NOTES on important, useful operating guidelines.
A WARNING indicates a potentially hazardous situation, which if not avoided, could result in death or
serious injury.
A CAUTION indicates a potentially hazardous situation, which, if not avoided may result in minor or
major injury.
A NOTE is to alert the operator to important operating information.
IMPORTANT
The safeguards and instructions in this manual cannot cover all possible conditions and situations, which
may occur. As we cannot control the correct mounting, usage and utilization of this product, we can not
be responsible or liable for any injuries, damages, losses or costs, which result from using our products in
any way.
Do not attempt to operate this tool until you have read and understood all safety precautions and
instructions listed in this manual.
It is your responsibility to make this safety information available to others that will operate this product.
Incorrect operation of this unit can cause serious injury.
Maintain your company’s re and safety procedures while operating this tool.

WARNING
Rotating equipment may cause serious injury – protect hands, feet, eyes and hearing.
Debris from scraping action may be scattered.
Rustibus® 25 may produce low energy sparks.
Respiratory protection should be considered depending on material being removed.
Before starting Rustibus® 25, be sure all hoses and ttings are the correctly sized and secured.
Never attempt to de-scale areas when its mechanical integrity is in doubt, according to applicable
codes and standards.
Never install, remove or perform any maintenance on the Rustibus® 25 when
the air supply is connected.
Always keep both hands on handles when operating the Rustibus® 25.
Never use non Ex/Atex certied machines in potentially explosive atmospheres.
Never operate the Rustibus® 25 while wearing loose hanging chains, hanging
ID/security badges or garments that may be caught in the rotating parts.
On vertical sections, work with the Rustibus® 25 between knee and shoulder
height to avoid strain. If used over prolonged periods for vertical work, lifting assistance
should be considered to prevent accidents, fatigue etc.
Rustibus® 25 should be properly maintained and stored when not in use to
avoid damage to parts.
Rustibus® 25 accessories are designed for use on the Miniblaster and therefore should not be
utilized on or in conjunction with any other machines.
CAUTION

PLEASE READ THE WARNINGS BEFORE OPERATION
WARNINGS:
When connecting, changing, or repairing the Rustibus® 25,
the air supply MUST ALWAYS be disconnected.
IMPORTANT:
Do not push down on your machine. This only damages the tool, it does not improve results.
• Ear & face protection should be used for your own safety.
It is recommended to use a safety screen
when operating the Rustibus® 25.
Wear protective gloves and safety shoes.
WORKING SAFELY WITH THIS MACHINE IS POSSIBLE ONLY WHEN THE OPERATING AND SAFETY
INFORMATION ARE READ COMPLETELY AND THE INSTRUCTIONS CONTAINED THEREIN ARE STRICTLY
FOLLOWED. IN ADDITION, THE GENERAL SAFETY INSTRUCTIONS IN THE ENCLOSED BOOKLET MUST
BE FOLLOWED. BEFORE USING FOR THE FIRST TIME, TAKE A LOOK AT THE MACHINE TO UNDERSTAND
THE PRACTICAL WORKINGS OF IT.

SAFETY PRECAUTIONS TO FOLLOW
• Always install, operate, inspect and maintain this product in accordance with all applicable standards
and regulations (local, state, country, federal, etc.).
• Compressed air models always use clean, dry air at 90 psi (6.2 bar/620 kPa) maximum air pressure at
the inlet. Higher pressure may result in hazardous situations including excessive speed, rupture, or
incorrect output torque or force.
• Be sure all hoses and ttings are the correctly sized and secured.
• Ensure an accessible emergency shut o has been installed. Make others aware of its location.
• Do not use damaged, frayed, or deteriorated air hoses and ttings.
• Keep clear of whipping air hoses. Shut o the compressed air before approaching a whipping hose.
• Check the compressed air at regular intervals to ensure the compressed air is clean and oiled. If it is
necessary integrate a service until into the compressed air line.
• If the tool is not in use, disconnect it from the air supply and store it in a suitable clean/dry location to
prevent any unauthorized use.
• Keep in mind that brushes can create sparks while running on hard surfaces. Take precautions while
in use.
• Always turn o and disconnect the tool from its power supply before installing, removing or
adjusting any accessory, or before performing any maintenance on the tool.
• Do not lubricate tools with ammable or volatile liquids such as kerosene, diesel or jet fuel. Use only
recommended lubricants.
• Keep work area clean, uncluttered, ventilated and illuminated.
• Do not operate the machine while ammable or volatile liquids such as gasoline, diesel or jet fuel are
present. Failure to do so can result in explosion. (When applicable.)
• Do not remove any labels. Replace any damaged label.

SAFETY PRECAUTIONS TO FOLLOW
• Always wear protection when operating or performing maintenance on this tool.
• Always wear hearing protection when operating this tool.
• Always use Personal Protective Equipment appropriate to the tool used and material worked. This
may include dust mask or other breathing apparatus, safety glasses, ear plugs, gloves, apron, safety
shoes, hard hat and other equipment.
• Prevent exposure and breathing of harmful dust and particles created by power tool use:
- Some dust created by power sanding, sawing, and grinding, drilling, and other construction
activities contains chemicals known to cause cancer, birth defects or other reproductive harm.
Some examples of these chemicals are:
- Lead from lead based paints,
- Crystalline silica from bricks and cement and other masonry products, and
- Arsenic and chromium from chemically treated lumber.
Your risk from these exposures varies, depending on how often you do this type of work. To
reduce your exposure to these chemicals: work in a well ventilated area, and work with approved
safety equipment, such as those dust masks that are specially designed to lter out microscopic
particles.
• Keep others a safe distance from your work area, or ensure they use appropriate Personal Protective
Equipment.
• This tool is not designed for working in explosive environments, including those caused by fumes
and dust, or near ammable materials.
• Be aware of buried, hidden or other hazards in your work environment. Do not contact or damage
cords, conduits, pipes, or hoses that may contain electrical wires, explosive gases or harmful liquids.
• Keep hands, loose clothing, long hair and jewelry away from working end of tool.
• Do not indulge in horseplay. Distraction can cause accidents.
• Power tools can vibrate in use. Vibration, repetitive motions or uncomfortable positions may be
harmful to your hands and arms. Stop using any tool if discomfort, tingling feeling or pain occurs.
Seek medical advices before resuming use.
• Keep body stance balanced and rm. Do not overreach when operating this tool. Anticipate and be
alert for sudden changes in motion, reaction torques, or forces during startup and operation.
• Tool and/or accessories may briey continue their motion after throttle is released.

USING THE TOOL
• To avoid accidental starting – ensure tool in“o”position before applying air pressure. Avoid throttle
when carrying, and release throttle with loss of air.
• Ensure work pieces are secure. Use clamps or vises to hold work piece whenever possible.
• Make sure the hex socket wrench is removed before you start up!
• Make sure you have a rm grip on the tool before you begin.
• Do not carry or drag the tool by the hose.
• Do not use power tools when tired, or under the inuence of medication, drugs, or alcohol.
• Never us a damaged or malfunctioning tool or accessory.
• Do not modify the tool, safety devices, or accessories.
• Do not use this tool for purposed other than those recommended.
• Never operate a tool with an accessory unless it is properly installed and the tool is held rmly against
the work.
• Always use a retainer, when furnished, in addition to proper barriers to protect persons in surround-
ing or lower areas from possible ejected accessories.
• When wearing gloves and operating models with inside trigger, always be sure that the gloves will
not prevent the trigger from being released.
• Keep hands and ngers away from the throttle lever until it is time to operate the tool.
• Never rest the tool on your foot.
• Never point the tool at anyone.
• Compressed air is dangerous. Never point an air hose at yourself or others.
• Never blow clothes free of dust with compressed air.
• Be sure all hose connections are tight. A loose hose not only leaks but can come completely o the
tool and while whipping under pressure, can injure the operator and other in the area. Attach safety
cables to all hosed to prevent injury in case a hose is accidentally broken.

USING THE TOOL
• Never disconnect a pressurized air hose. Always turn o the air supply and bleed the tool before
disconnecting a hose.
• Use only proper cleaning solvents to clean parts. Use only cleaning solvents which meet current
safety and health standards. Use cleaning solvents in a well ventilated area.
• Do not ush the tool or clean any parts with diesel fuel. Diesel fuel residue will ignite in the tool when
the tool is operated, causing damage to internal parts. When using models with outside triggers or
throttle levers, take care when setting the tool down to prevent accidental operation.
• Do not operate the tool with broken or damaged parts.
• Never start the tool when it is lying on the ground.
• ALWAYS hold both the tool body and the vertical handle while in use.
• This tool is not designed for working in explosive atmospheres.

OPERATING THE RUSTIBUS® 25
The Rustibus® 25 is easy to operate and leaves the surface clean to St 3 +++.
This tool is used for the removal of rust, corrosion, mill scale, protective coatings, body ller, adhesive
labels, etc.
1. ALWAYS use suitable sealing material to fasten the connection of the pneumatic hose to the
Rustibus® 25.
2. There are two sizes of abrasive brushes to choose from; 11mm or 23mm straight or bent bristle
brushes along with 23mm erasers and coating removal wheels.
3. NEVER place an 11mm abrasive into a 23mm hub or vice versa. This can cause damage to the
machine and operator.
4. Start the tool by moving the safety stop forward and depressing the throttle level. The throttle level
will return to its initial position when it is released.
5. NEVER operate the tool while not in contact with the work surface or if there is the possibility of
bodily contact with the rotating hub.
6. Hold the tool by the body and the vertical handle at the same time. This is to ensure proper substrate
removal and secure handling of the tool during operation.
7. Work only with minimum surface pressure and even movements across surface. Excess pressure can
reduce the desired results and wear abrasives prematurely.
11 mm bent bristle, coarse 23 mm bent bristle, coarse Coating removal wheel

REPLACING THE BRUSH
1. 2.
3. 4.
5. 6. 7.
8. 9.
Plastic ring is optional.
For Coating removal wheel only step 7. through 9.

SERVICE / TROUBLESHOOTING
SERVICE INSTRUCTIONS
The tool is to be serviced only by a Rustibus Technician. Improper use of service of the Rustibus® 25 can
also result in injury or damage to the machine. Unauthorized parts or services of the Rustibus® 25 will
void the warranty.
TROUBLESHOOTING
A. If the abrasive hub is not turning or turning slowly.
a. Check the power source.
b. Check air hose for cracks or any imperfections.
c. Clean tool thoroughly with compressed air and a clean cloth.
d. Increase compressor pressure and verify compressor can produce enough SCFM.
e. Add a few drops of oil to the compressed air connection and air inlet of pneumatic tool.
B. If the machine is making an unusual sound.
a. Check the same connections as listed above.
b. Make sure hub assembly is together properly.
c. Check to ensure hub is attached properly to drive motor.
d. Make sure there are no obstructions near moving parts.
e. Check and replace any worn abrasives or parts.
C. Heavy vibration of the Rotating Abrasive.
a. Check hub assembly for proper t and wear.
b. Replace with new hub assembly.
D. Hub Assembly comes undone during operation.
a. Check to ensure hub screw is tight.
b. Use a separate lock washer and tighten screw to secure connections.
IF AFTER FOLLOWING THESE PROCEDURES REGULAR OPERATION IS NOT RESTORED CONTACT RUSTIBUS
INC.

PARTS AND SPARES
WHEN CONNECTING, CHANGING, OR REPAIRING THE RUSTIBUS® 25, THE POWER SUPPLY MUST
ALWAYS BE DISCONNECTED.
RUSTIBUS® 25 MINIBLASTER
GENERAL OVERVIEW
025-3000 Rustibus® 25 MINIBLASTER
Incl. 23mm Hub and 23 mm Steel bent belt, coarse (installed on machine)
025-0401: R25 23 mm HUB assembly 025-0423: R25 23 mm steel bent belt, coarse

MAIN CONSUMABLES  RUSTIBUS®25 AIR
025-0400 R25 11 mm HUB assembly
025-0401 R25 23 mm HUB assembly
025-0405 R25 Replaceable eraser
025-0406 R25 Eraser wheel assembly
025-0410 R25 Coating removal wheel assembly
025-0413 R25 11 mm steel bent belt, coarse
025-0414 R25 11 mm steel bent belt, medium
025-0415 R25 11 mm steel straight belt, medium
025-0423 R25 23 mm steel bent belt, coarse
025-0424 R25 23 mm steel bent belt, medium
025-0425 R25 23 mm steel straight belt, medium
025-0433 R25 11 mm stainless steel bent, coarse
025-0434 R25 11 mm stainless steel bent, medium
025-0435 R25 11 mm stainless steel straight, medium
025-0443 R25 23 mm stainless steel bent, coarse
025-0444 R25 23 mm stainless steel bent, medium
025-0445 R25 23 mm stainless steel straight, medium
025-0400: R25 11 mm HUB assembly 025-0410: R25 Coating removal 025-0413: R25 11 mm steel
wheel assembly bent belt, coarse

PARTS  RUSTIBUS® 25 AIR
*To locate the part on the schematic, please take the last 2 digit of the part#.
025-0008 R25 O-Ring (3,5 *1,4)
025-0009 R25 Air inlet
025-0012 R25 Cone muer
025-0013 R25 Protecting rubber
025-0014 R25 Housing
025-0015 R25 Spring pin
025-0016 R25 Lever
025-0017 R25 Bearing (696ZZ)
025-0018 R25 Rear plate
025-0019 R25 Rotor Blade (4 pcs)
025-0020 R25 Rotor
025-0021 R25 Pin (2 pcs)
025-0022 R25 Cylinder
025-0023 R25 Front plate
025-0024 R25 Bearing (608ZZ) (5 pcs)
025-0025 R25 Washer
025-0026 R25 Bearing (600ZZ)
025-0027 R25 Thread ring gear
025-0028 R25 Idler gear (3 pcs)
025-0029 R25 Needle Bearing (3 pcs)

PARTS  RUSTIBUS® 25 AIR
025-0030 R25 Idler gear pin (3 pcs)
025-0031 R25 Gear plate
025-0032 R25 Sliding key
025-0033 R25 Bearing (6200ZZ)
025-0034 R25 Clamp nut
025-0035 R25 Bevel gear
025-0036 R25 Washer
025-0037 R25 Screw (M4*6)
025-0038 R25 Plastic housing
025-0040 R25 Toothed pulley (2 pcs)
025-0041 R25 Key (3*13) (3 pcs)
025-0042 R25 Belt drive shaft
025-0043 R25 Toothed belt
025-0044 R25 Left bevel gear (20T)
025-0045 R25 Belt drive shaft (1/4”)
025-0046 R25 Screw (3*18L) (11 pcs)
025-0047 R25 Nut
025-0048 R25 Handle Ring
025-0049 R25 Handle
025-0050 R25 Vacuum adapter (3 pcs)
025-0051 R25 Nut (M4) (3 pcs)
025-0052 R25 Screw (M4*27L)
025-0053 R25 Screw
025-0054 R25 Cover
025-0056 R25 Screw (1/4”*1”L)
025-0058 R25 Hex (3/16”)
025-0059 R25 Washer
025-0060 R25 Washer
025-0061 R25 Screw (M4*6)
025-0064 R25 Pin (3*5)
025-0075 R25 Regulator (2 pcs)
025-0076 R25 O-Ring (P9) (3 pcs)
025-0077 R25 O-Ring (P10)
025-0078 R25 Snap Ring
025-0079 R25 Valve Stem
025-0080 R25 Spring
025-0081 R25 Valve
025-0082 R25 Washer

RUSTIBUS® 25 WARRANTY/REPLACEMENT PLAN
DALSEIDE SHIPPING SERVICES WILL REPLACE OR REPAIR ANY TOOL OR COMPONENT THAT FAILS DUE TO
DEFECTS IN MATERIAL OR WORKMANSHIP FOR A PERIOD OF ONE (1) YEAR (12 MONTHS) FROM THE DATE
OF SHIPMENT OF THIS PRODUCT FROM OUR FACILITY. A WARRANTY CLAIM WILL NOT BE HONOURED IF
DEFECTS ARE NOT REPORTED WITHIN THE WARRANTY PERIOD, OR IF DALSEIDE SHIPPING SERVICES
DETERMINES THAT DEFECTS OR DAMAGES ARE DUE TO NORMAL WEAR, MISAPPLICATION, LACK OF
MAINTENANCE, ABUSE, IMPROPER INSTALLATION, ALTERATION, OR ABNORMAL CONDITIONS.
Dalseide Shipping Services is the original owner and manufacturer of Rustibus®.
We deliver GENUINE Rustibus® PARTS ONLY!
Dalseide Shipping Services cannot be held liable for any damages (to Rustibus® machines or
personnel) as a result of use of non genuine parts. We reserve the right to refuse any claims on parts
or Rustibus® machinery unless it can be proven that genuine parts only have been used on Rustibus®
machines.
Dalseide Shipping Services will always seek to improve the Rustibus® machines design, specications and
production. Therefore, alterations may take place at any time. While every eort is made to produce up-to-
date literature, the descriptions, specications, illustrations and photographs in this manual should not be
regarded as the denitive guide to current specications; though all manuals are considered concise at the
time of their production.

CONTACT INFORMATION
HOUSTON TX: Rustibus INC.
2901 West Sam Houston Pkwy
North Suite E-325
Houston, TX 77043
USA
Ph: + 1 832 203 7170
Fax: + 1 832 203 7171
E-mail: [email protected]om
NORWAY: Dalseide Shipping Services AS
Bekkjarviksundet 1
NO - 5397 Bekkjarvik
Norway
Ph: + 47 5618 1200
E-mail: [email protected]om
ANTWERP: Rustibus N.V.
Noordersingel 7
2140 Antwerpen
Belgium
Ph: + 32 3227 2096
Fax: + 32 3227 2097
E-mail: [email protected]om
SINGAPORE: Rustibus PTE LTD
18 Boon Lay Way
#08-145 TradeHub 21
Singapore 609966
Ph: [phone]
Fax: [phone]
E-mail: [email protected]om
[email protected]
www.rustibus.com
