Ryobi BT3100-1 User manual

OPERATOR'S MANUAL
10 in. (254 mm) TABLE SAW
BT3100-1
SAVE THIS MANUAL FOR FUTURE REFERENCE
YournewTableSawhasbeenengineeredandmanufacturedtoRyobi'shighstandardsfordependability,easeofoperation,
and operator safety. Properly cared for, it will give you years of rugged, trouble-free performance.
WARNING: To reduce the risk of injury, the user must read and understand the operator's manual.
Thank you for buying a Ryobi Table Saw.

Page 2
■Product Specifications .............................................. 2
■Rules for Safe Operation ........................................3-6
■Electrical ..................................................................... 7
■Glossary of Terms For Woodworking ...................... 8

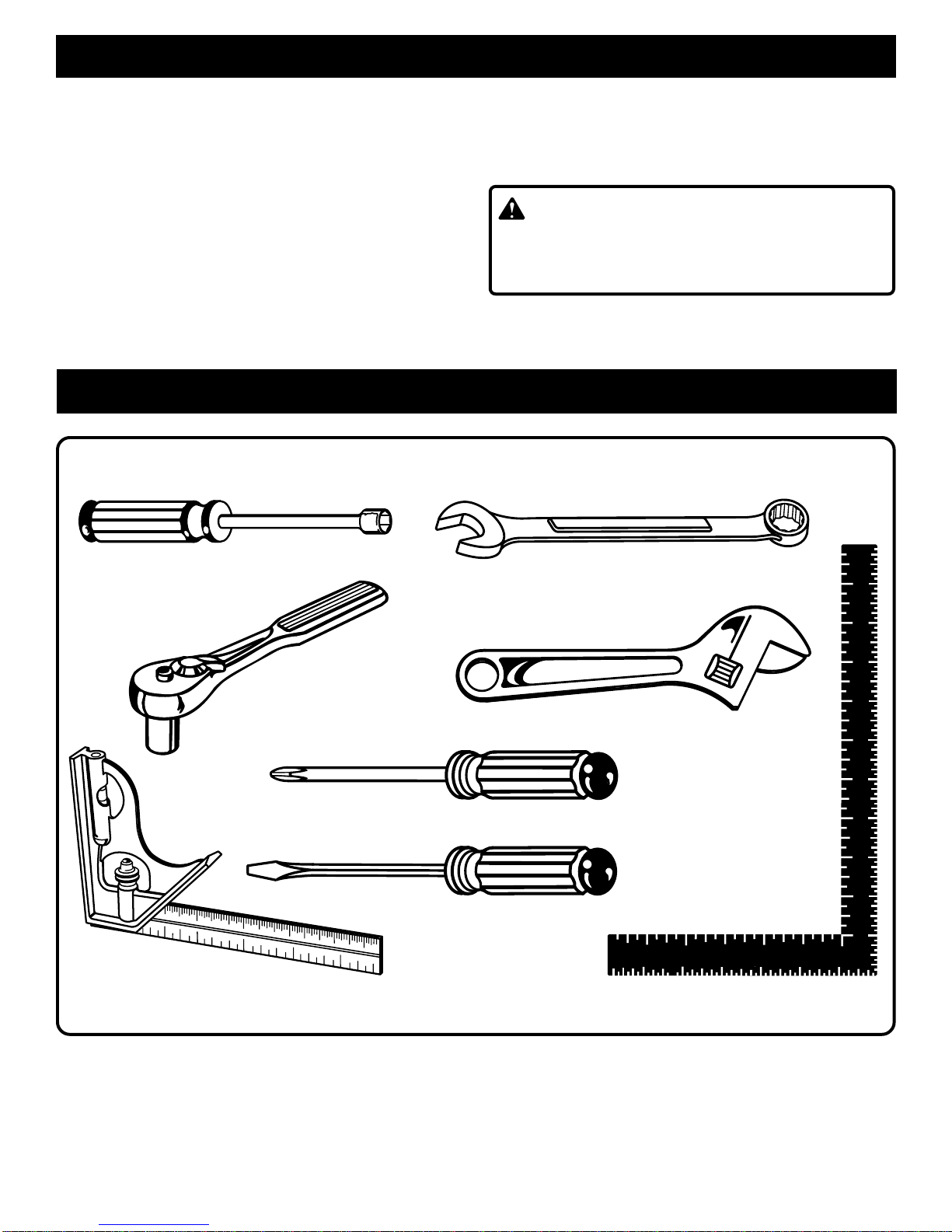

■Unpacking and Tools Needed ................................... 9
■Loose Parts List ..................................................10-11

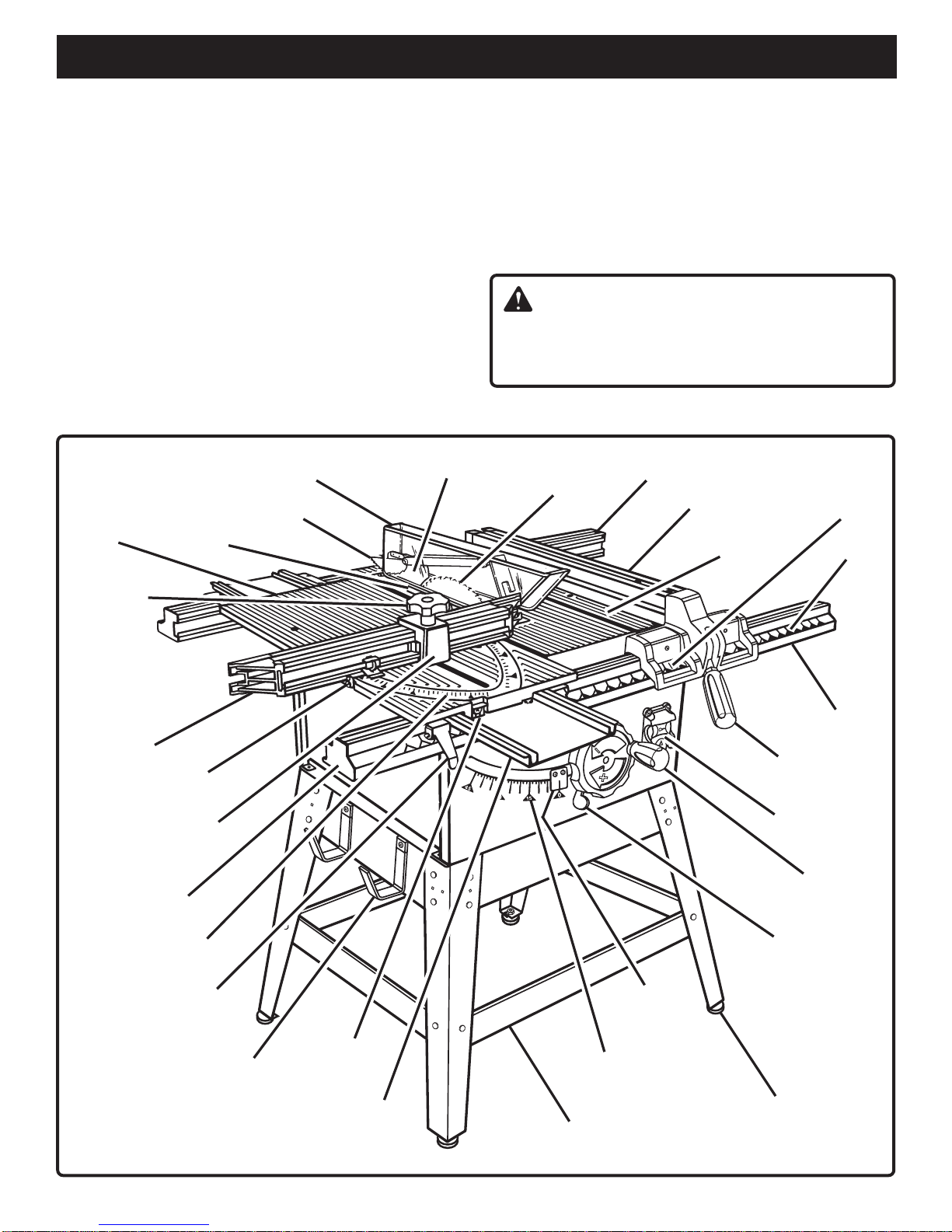

■Features ...............................................................12-14
Operating Components .............................................. 13
Power Switch ............................................................. 13
Turn Your Saw On ..................................................... 13
To Turn Your Saw Off ................................................ 13
To Lock Your Saw Switch .......................................... 13
Blades ........................................................................ 14
■Assembly .............................................................15-20

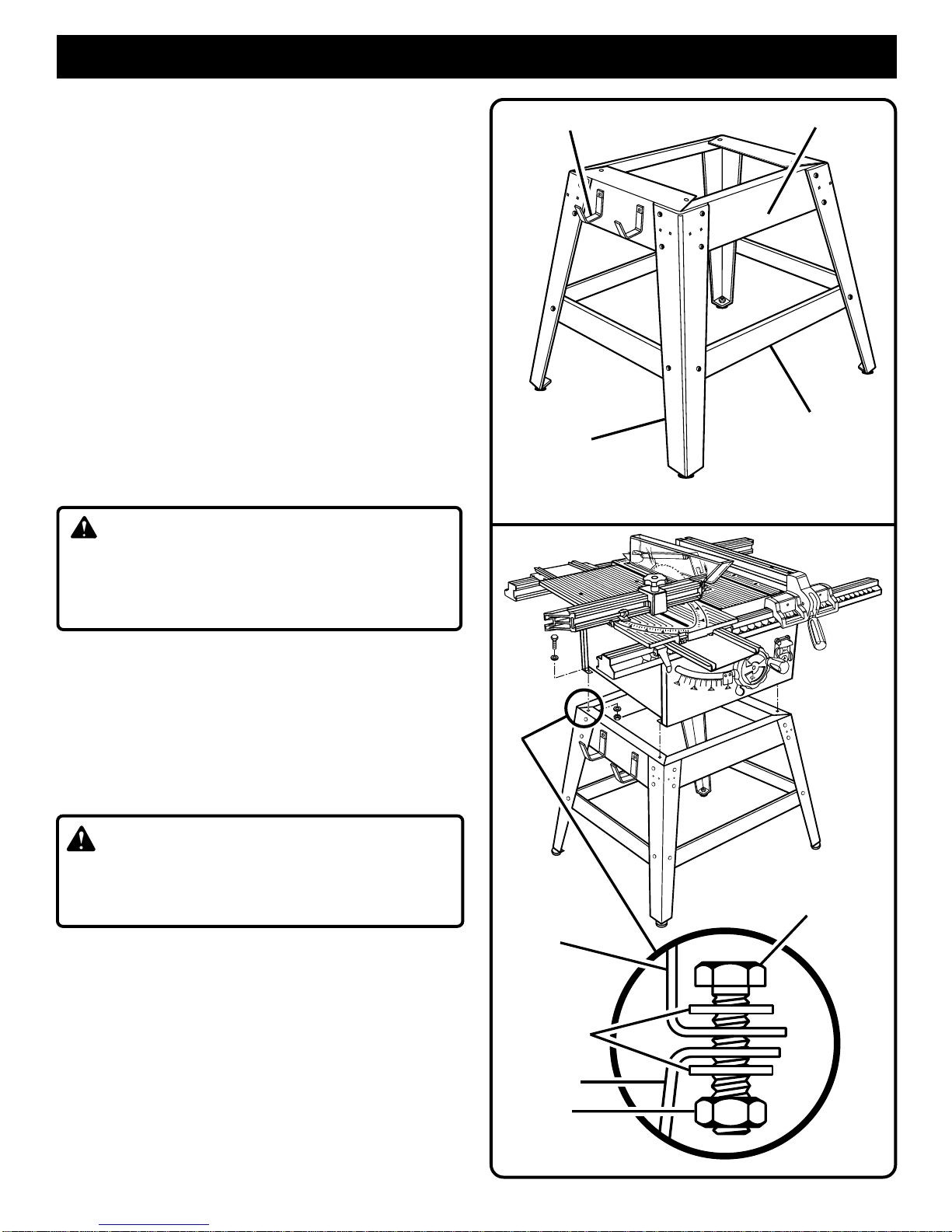

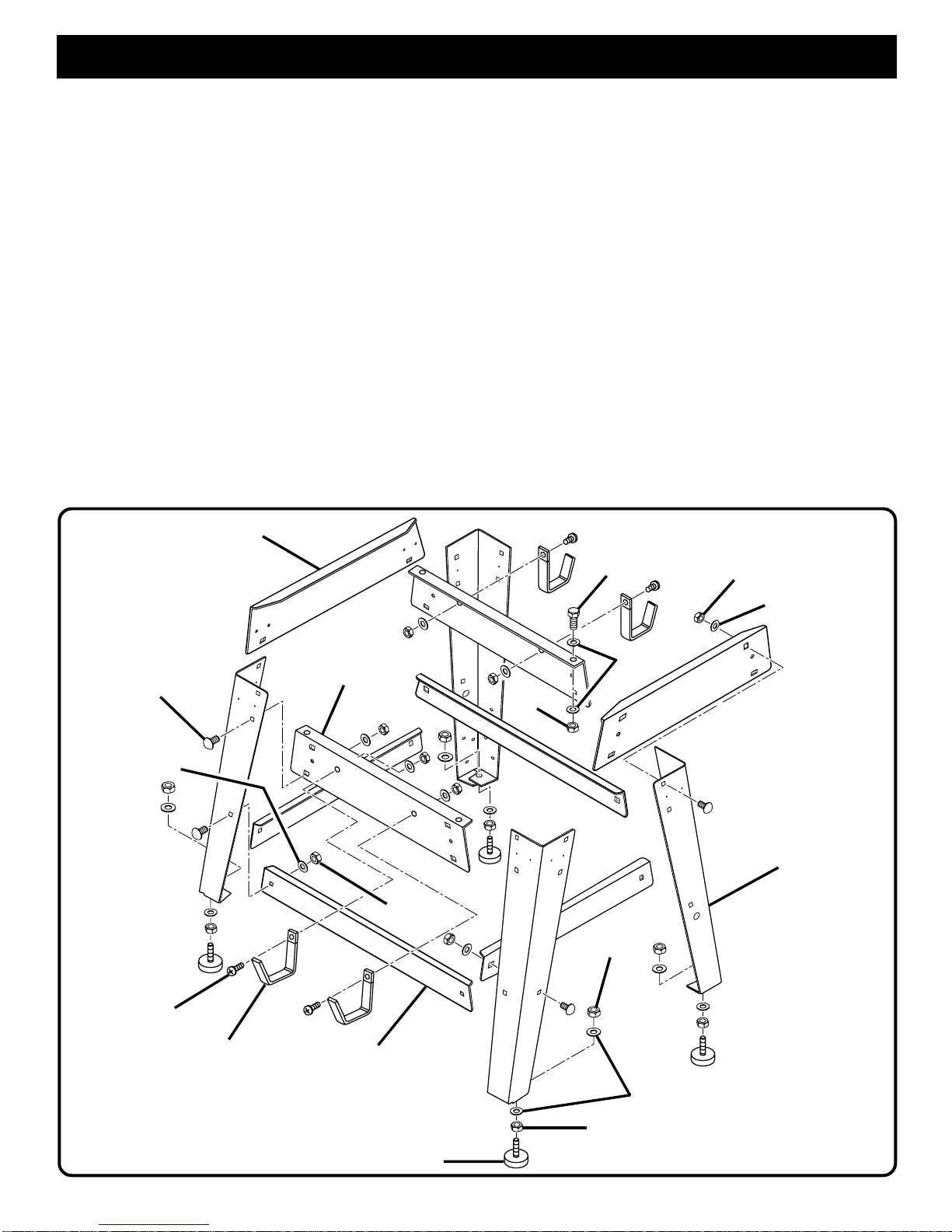

Assembly Leg Stand .................................................. 15
Assembly Storage Brackets ....................................... 16
Mounting Leg Stand to the Table Saw Base.............. 16
To Install Front and Back Rails .............................16-17

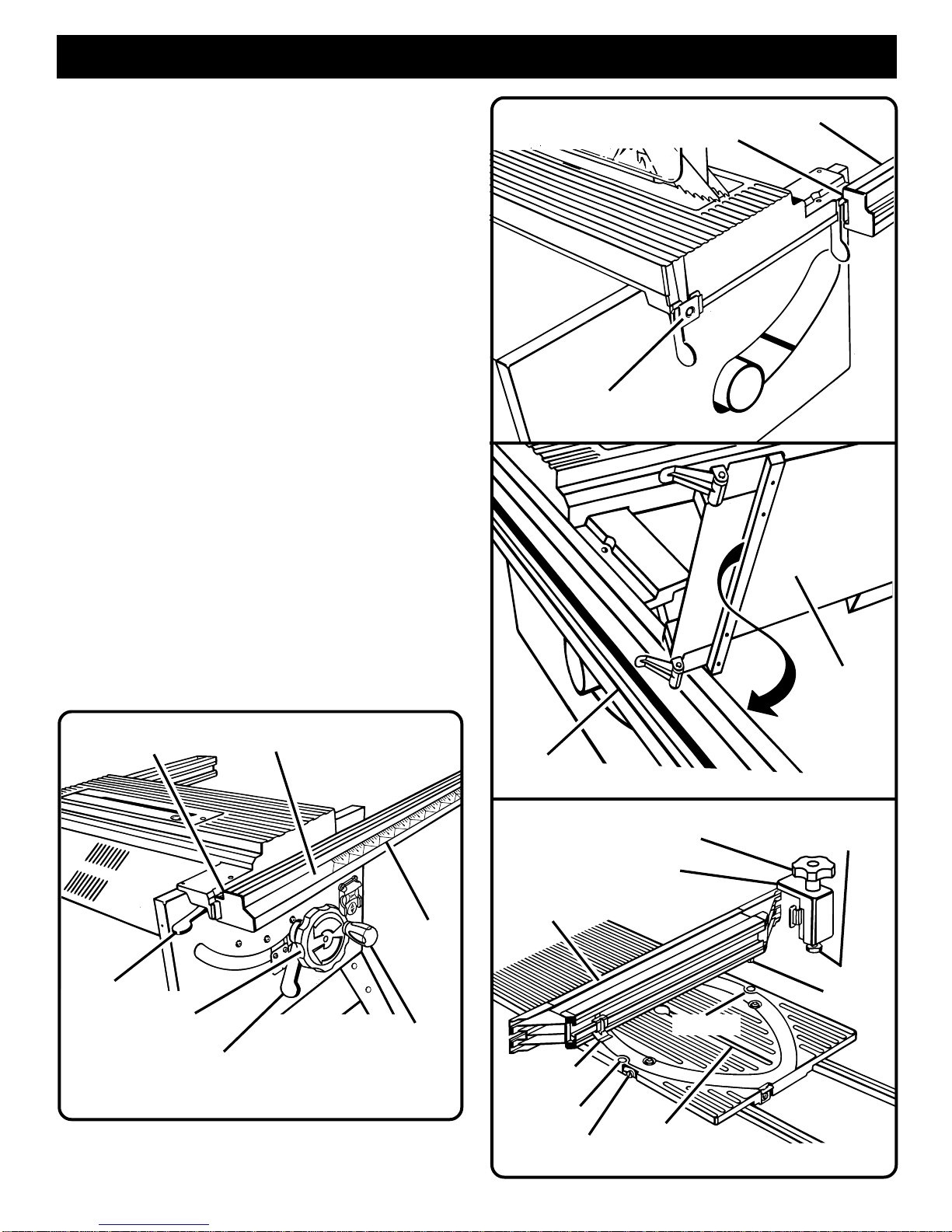

To Install Miter Table and Fence................................ 17
To Install Accessory Table and Rip Fence................. 18

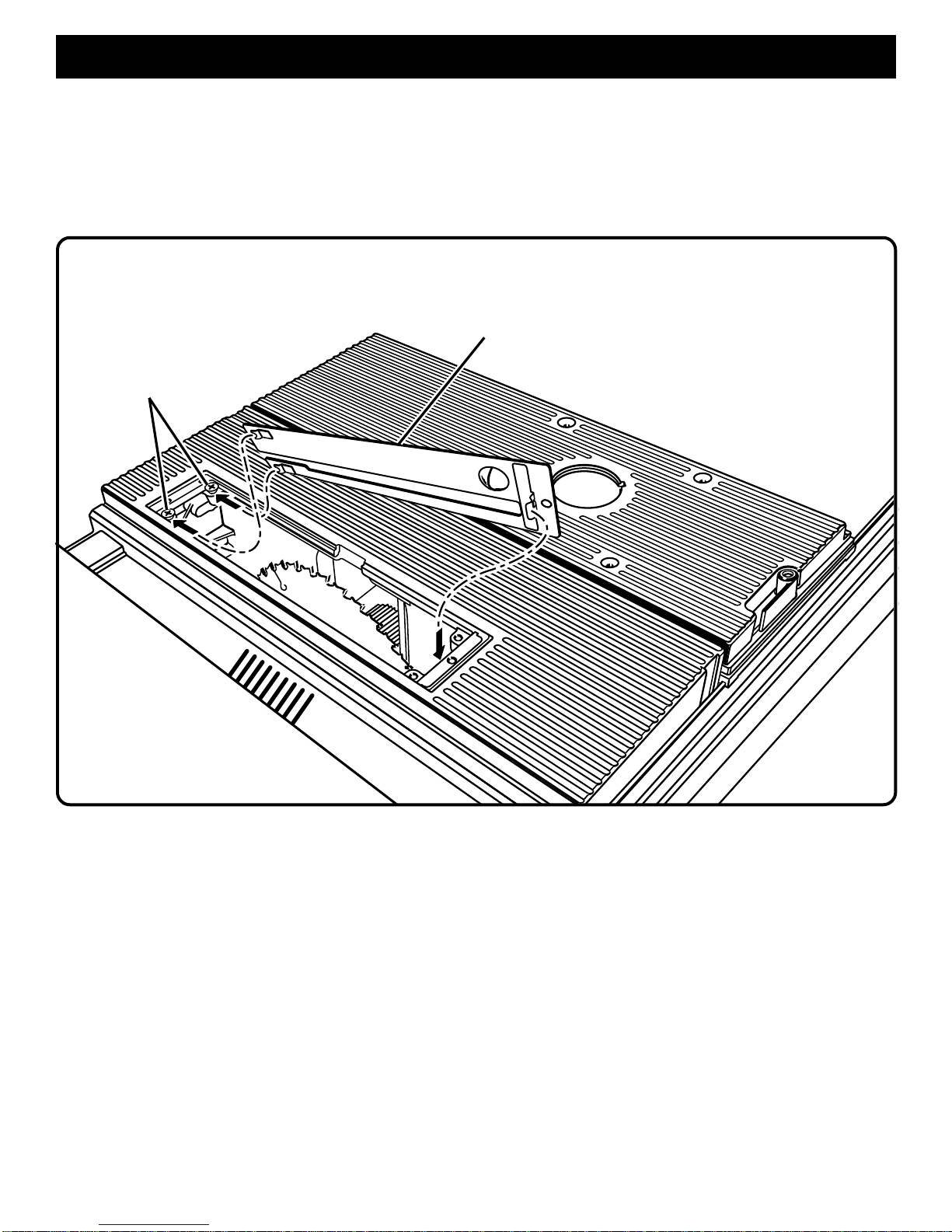

Removing/Replacing the Throat Plate ....................... 18
Blade and Guard Assembly ....................................... 19
To Check Saw Blade Installation ............................... 20
To Install Blade Guard Assembly............................... 20
■Operation .............................................................21-32
Basic Operation.......................................................... 21
Causes of Kickback and Avoiding Kickback .............. 21
Cutting Aids................................................................ 21
Types of Cuts ............................................................. 22
Featherboard.............................................................. 23
How To Make a Featherboard............................... 23
How To Mount a Featherboard ............................. 23
Settings And Adjustments .....................................24-27
To Remove The Blade .......................................... 24
TABLE OF CONTENTS
PRODUCT SPECIFICATIONS
Blade Diameter 10 in. (254 mm)
Blade Arbor 5/8 in. (16 mm)
Cutting Depth at 0°3-9/16 in. (90.5 mm)
Cutting Depth at 45°2-1/2 in. (63.5 mm)
Rating 120 Volts, 60 Hz-AC Only, 15 Amperes
Output Speed 4,800 RPM
Net Weight Without Workstand 75 lbs. (34.1 kg.)
Net Weight With Workstand 107 lbs. (48.6 kg.)
To Check, Replace or Adjust The Riving Knife
and Blade Guard Assembly............................... 25
To Adjust the Blade Depth .................................... 26
To Adjust the Blade Angle..................................... 26
To Set the Scale to the Blade................................ 26
To Lock the Miter Table......................................... 27
Making Cuts ..........................................................27-32
To Make a Straight Cross Cut ............................... 27
To Make a Miter Cut.............................................. 28
To Make a Straight Rip Cut ................................... 28
To Make a Bevel Cross Cut .................................. 29
To Make a Bevel Rip Cut ...................................... 29
To Make a Compound Miter Cut ........................... 30
To Make a Large Panel Cut .................................. 30
To Make Non-Through Cuts.................................. 31
To Make Dado Cuts .............................................. 32
■Maintenance ........................................................33-39
General Maintenance ................................................. 33
Lubrication
Locker Bracket Assembly...................................... 33
Tilt / Elevating Mechanism .................................... 33
To Set Blade to 0 or 45 Degrees................................ 34
To Check Alignment of the Rip Fence to
the Blade .......................................................... 34-35
To Adjust the Bevel Locking Lever............................. 35
To Align the Miter Locking Clamps ............................ 35
To Adjust the Front and Rear Rail Clamps ................ 36
To Adjust the Accessory Table .................................. 36
To Adjust the Sliding Miter Table Assembly............... 36
Checking Sliding Miter Table Assembly................37-38
Making Adjustments to Sliding Miter Fence Table
Assembly..........................................................38-39
■Troubleshooting .................................................. 40-41
■Exploded View and Parts List ............................43-51
■Parts Ordering / Service .......................................... 52

Page 3
IMPORTANT
Servicing requiresextremecareandknowledgeandshould
be performed only by a qualified service technician. For
servicewesuggestyoureturnthetooltoyournearestRyobi
AUTHORIZED SERVICE CENTER forrepair.When servic-
ing, use only identical Ryobi replacement parts.
WARNING:
Do not attempt to use the tool until you have read
thoroughly and understand completely the operator’s
manuals.Paycloseattentiontothesafetyrules,including
Dangers, Warnings, and Cautions. If you use this tool
properly and only for what it is intended, you will enjoy
years of safe, reliable service.
Lookforthissymboltopointoutimportantsafetyprecautions.
It means attention!!! Your safety is involved.
WARNING:
RULES FOR SAFE OPERATION
The operation of any power tool can result in foreign objects being thrown into your eyes, which
can result in severe eye damage. Before beginning tool operation, always wear safety goggles or
safety glasses with side shields and a full face shield when needed. We recommend Wide Vision
SafetyMaskforuseovereyeglassesorstandardsafetyglasseswithsideshields.Alwaysweareye
protection which is marked to comply with ANSI Z87.1.
WARNING:
Do not attempt to use the tool until you have read thor-
oughlyandunderstandcompletelytheoperator’smanual.
Paycloseattentiontothesafetyrules,includingDangers,
Warnings, and Cautions. If you use this tool properly and
only for what it is intended, you will enjoy years of safe,
reliable service.
WARNING:
Observeallnormalsafetyprecautionsrelatedtoavoiding
electrical shock.
The purpose of safety symbols is to attract your attention to possible dangers. The safety symbols, and the
explanations with them, deserve your careful attention and understanding. The safety warnings do not by themselves
eliminate any danger. The instructions or warnings they give are not substitutes for proper accident prevention
measures.
Symbol Meaning
DANGER: Indicates an imminently hazardous situation which, if not avoided, will result in death or
serious injury.
WARNING: Indicates a potentially hazardous situation which, if not avoided, could result in death or
serious injury.
CAUTION: Indicates a potentially hazardous situation which, if not avoided, may result in minor or
moderate injury. It may also be used to alert against unsafe practices that may cause property damage.
NOTE: Advises you of information or instructions vital to the operation or maintenance of the equipment.

Page 4
Safe operation of this power tool requires that you read and
understand this operator's manual and all labels affixed to
the tool. Safety is a combination of common sense, staying
alert, and knowing how your table saw works.
READ ALL INSTRUCTIONS
■KNOW YOUR POWER TOOL. Read the operator's
manual carefully. Learn the saw's applications and
limitationsaswellasthespecificpotentialhazardsrelated
to this tool.
■GUARD AGAINST ELECTRICAL SHOCK BY
PREVENTING BODY CONTACT WITH GROUNDED
SURFACES. For example; pipes, radiators, ranges,
refrigerator enclosures.
■KEEP GUARDS IN PLACE and in working order. Never
operate the tool with any guard or cover removed. Make
sure all guards are operating properly before each use.
■REMOVEADJUSTINGKEYSANDWRENCHES. Form
habitofcheckingtoseethatkeysandadjustingwrenches
are removed from tool before turning it on.
■KEEP WORK AREA CLEAN. Cluttered areas and
benches invite accidents. DO NOT leave tools or pieces
of wood on the saw while it is in operation.
■AVOIDDANGEROUSENVIRONMENT.Don'tusepower
tools in damp or wet locations or expose to rain. Keep
work area well lit.
■KEEP CHILDREN AND VISITORS AWAY. All visitors
should wear safety glasses and be kept a safe distance
fromworkarea.Donotletvisitorscontacttoolorextension
cord while operating.
■MAKE WORKSHOP CHILDPROOF with padlocks or
master switches, or by removing starter keys.
■DON'T FORCE TOOL. It will do the job better and safer
at the feed rate for which it was designed.
■USE RIGHT TOOL. Don't force tool or attachment to do
ajobitwasnotdesignedfor.Don'tuseitforapurposenot
intended.
■MAKE SURE YOUR EXTENSION CORD IS IN GOOD
CONDITION. When using an extension cord, be sure to
use one heavy enough to carry the current your product
will draw. An undersized cord will cause a drop in line
voltageresultinginlossofpowerandoverheating.Awire
gage size (A.W.G.) of at least 14 is recommended for an
extensioncord25feetorlessinlength.Ifindoubt,usethe
next heavier gage. The smaller the gage number, the
heavier the cord.
■DRESSPROPERLY.Donotwearlooseclothing,gloves,
neckties, or jewelry. They can get caught and draw you
into moving parts. Rubber gloves and nonskid footwear
are recommended when working outdoors. Also wear
protective hair covering to contain long hair.
■ALWAYS WEAR SAFETY GLASSES WITH SIDE
SHIELDS. Everyday eyeglasses have only impact-
resistant lenses; they are NOT safety glasses.
■SECUREWORK.Useclampsoravisetoholdworkwhen
practical. It's safer than using your hand and frees both
hands to operate tool.
■DON'T OVERREACH. Keepproperfootingandbalance
at all times.
■MAINTAIN TOOLS WITH CARE. Keep tools sharp and
cleanforbetterandsaferperformance.Followinstructions
for lubricating and changing accessories.
■DISCONNECTTOOLS.Whennotinuse,beforeservicing,
orwhenchangingattachments,blades,bits,cutters,etc.,
all tools should be disconnected.
■AVOID ACCIDENTAL STARTING. Be sure switch is off
when plugging in.
■USE RECOMMENDED ACCESSORIES. The use of
improper accessories may cause risk of injury.
■NEVER STAND ON TOOL. Serious injury could occur if
the tool is tipped or if the cutting tool is unintentionally
contacted.
■CHECK DAMAGED PARTS. Before further use of the
tool, a guard or other part that is damaged should be
carefullycheckedtodeterminethatitwilloperateproperly
and perform its intended function. Check for alignment of
moving parts, binding of moving parts, breakage of parts,
mounting and any other conditions that may affect its
operation. A guard or other part that is damaged must be
properly repaired or replaced by an authorized service
center to avoid risk of personal injury.
■USE THE RIGHT DIRECTION OF FEED. Feed work into
a blade or cutter against the direction of rotation of blade
or cutter only.
■NEVERLEAVETOOLRUNNINGUNATTENDED.TURN
POWEROFF.Don'tleavetooluntilitcomestoacomplete
stop.
■PROTECT YOUR LUNGS. Wear a face or dust mask if
the cutting operation is dusty.
■PROTECT YOUR HEARING. Wear hearing protection
during extended periods of operation.
■DON'T ABUSE CORD. Never yank cord to disconnect
from receptacle. Keep cord from heat, oil, and sharp
edges.
■USE OUTDOOR EXTENSION CORDS. When tool is
used outdoors, use only extension cords with approved
groundconnectionthatareintendedforuseoutdoorsand
so marked.
■ALWAYS KEEP THE BLADE GUARD AND RIVING
KNIFE (SPLITTER) IN PLACE and in working order.
■KEEP BLADES CLEAN AND SHARP. Sharp blades
minimize stalling and kickback.
■KEEP HANDS AWAY FROM CUTTING AREA. Keep
hands away from blades. Do not reach underneath work
oraroundoroverthebladewhilebladeisrotating. Donot
attempt to remove cut material when blade is moving.
RULES FOR SAFE OPERATION

Page 5
■BLADES COAST AFTER TURN OFF.
■NEVERUSEINANEXPLOSIVEATMOSPHERE. Normal
sparking of the motor could ignite fumes.
■INSPECT TOOL CORDS PERIODICALLY. If damaged,
have repaired by a qualified service technician at an
authorized service facility. The conductor with insulation
havinganoutersurfacethatisgreenwithorwithoutyellow
stripes is the equipment-grounding conductor. If repair or
replacement of the electric cord or plug is necessary, do
not connect the equipment-grounding conductor to a live
terminal. Repair or replace a damaged or worn cord
immediately. Stay constantly aware of cord location and
keep it well away from the rotating blade.
■INSPECT EXTENSION CORDS PERIODICALLY and
replace if damaged.
■KEEPTOOLDRY,CLEAN,ANDFREEFROM OIL AND
GREASE. Always use a clean cloth when cleaning.
Never use brake fluids, gasoline, petroleum-based
products, or any solvents to clean tool.
■STAY ALERT AND EXERCISE CONTROL. Watch what
youaredoingandusecommonsense.Donotoperatetool
when you are tired. Do not rush.
■DO NOT USE TOOL IF SWITCH DOES NOT TURN IT
ON AND OFF. Have defective switches replaced by an
authorized service center.
■GUARD AGAINST KICKBACK. Kickback occurs when
the blade stalls rapidly and workpiece is driven back
towards the operator. It can pull your hand into the blade
resultingin serious personalinjury.Stayoutof bladepath
and turn switch off immediately if blade binds or stalls.
■USE RIP FENCE. Always use a fence or straight edge
guide when ripping.
■SUPPORT LARGE PANELS. To minimize risk of blade
pinching and kickback, always support large panels.
■BEFORE MAKING A CUT, BE SURE ALL
ADJUSTMENTS ARE SECURE.
■USEONLYCORRECTBLADES.Donotusebladeswith
incorrectsizeholes.Neverusebladewashersorboltsthat
aredefectiveorincorrect.Themaximumbladecapacityof
your saw is 10 in. (254 mm).
■AVOIDCUTTINGNAILS.Inspectforandremoveallnails
from lumber before cutting.
■NEVER TOUCH BLADE or other moving parts during
use.
■NEVER START A TOOL WHEN ANY ROTATING
COMPONENTISINCONTACTWITHTHEWORKPIECE.
■DO NOT OPERATE THIS TOOL WHILE UNDER THE
INFLUENCE OF DRUGS, ALCOHOL, OR ANY
MEDICATION.
■GROUND ALL TOOLS. If tool is equipped with three-
prongplug,itshouldbepluggedintoathree-holeelectrical
receptacle.
■WHENSERVICINGuseonlyidenticalRyobireplacement
parts. Use of any other parts may create a hazard or
cause product damage.
■REMOVE ALL FENCES AND AUXILIARY TABLES
before transporting saw. Failure to do so can result in an
accident causing possible serious personal injury.
■ALWAYS USE BLADE GUARD, RIVING KNIFE, AND
ANTI-KICKBACK PAWLS on all "through-sawing" op-
erations. Through-sawing operations are those in which
the blade cuts completely through the workpiece as in
ripping or crosscutting. Keep the blade guard down, the
anti-kickback pawls down, and the riving knife in place
over the blade.
■ALWAYS SECURE WORK firmly against rip fence or
miter fence.
■ALWAYSUSEAPUSHSTICKFORRIPPINGNARROW
STOCK.Apushstickisadeviceusedtopushaworkpiece
through the blade instead of using your hands. Size and
shape can vary but the push stick must always be nar-
rower than the workpiece to prevent the push stick from
contacting the saw blade. When ripping narrow stock,
always use a push stick, so your hand does not come
close to the saw blade. Use a featherboard and push
blocks for non-through cuts.
■NEVER perform any operation "freehand" which means
using only your hands to support or guide the workpiece.
Always use either the rip fence or miter fence to position
and guide the work.
■NEVERstandorhaveanypartofyourbodyinlinewiththe
path of the saw blade.
■NEVER reach behind, over, or within three inches of the
blade or cutter with either hand for any reason.
■MOVETHERIPFENCEoutofthewaywhencrosscutting.
■NEVER use rip fence as cutoff gage when crosscutting.
■NEVER attempt to free a stalled saw blade without first
turning the saw OFF and disconnecting the saw from the
power source.
■PROVIDE ADEQUATE SUPPORT to the rear and sides
ofthesawtableforwideorlongworkpieces.Useasturdy
"outrigger" support if a table extension more than 24
inches long is attached to the saw.
■AVOID KICKBACKS (work thrown back toward you) by:
A. Keeping blade sharp.
B. Keeping rip fence parallel to the saw blade.
C. Keepingrivingknife,anti-kickbackpawls,and blade
guard in place and operating.
D. Notreleasingtheworkbeforeitispushedalltheway
past the saw blade using a push stick.
E. Notrippingworkthatistwistedorwarpedordoesnot
have a straight edge to guide along the fence.
■AVOID AWKWARD OPERATIONS AND HAND POSI-
TIONS where a sudden slip could cause your hand to
move into the cutting tool.
RULES FOR SAFE OPERATION

Page 6
■CHECK WITH A QUALIFIED ELECTRICIAN or service
personnelifthegroundinginstructionsarenotcompletely
understoodor if indoubtas towhetherthetool isproperly
grounded.
■USE ONLY CORRECT ELECTRICAL DEVICES: 3-wire
extensioncordsthathave3-pronggroundingplugsand3-
pole receptacles that accept the tool's plug.
■DO NOT MODIFY the plug provided. If it will not fit the
outlet, have the proper outlet installed by a qualified
electrician.
■USE ONLY RECOMMENDED ACCESSORIES listed in
this manual or addendums. Blades must be rated for at
least5,500rpm.Useofaccessoriesthatarenotlistedmay
cause the risk of personal injury. Instructions for safe use
of accessories are included with the accessory.
■DOUBLECHECKALLSETUPS.Makesurebladeistight
and not making contact with saw or workpiece before
connecting to power supply.
■SECURETHESAW TOTHELEGSTAND ORAWORK-
BENCHcapableofsupportingtheloadofthesawplusany
workpiece. This is necessary to avoid any risk of the saw
tipping over.
■MAKE SURE THE WORK AREA HAS AMPLE LIGHT-
ING to see the work and that no obstructions will interfere
with safe operation BEFORE performing any work using
the table saw.
■ALWAYS TURN OFF SAW before disconnecting it, to
avoid accidental starting when reconnecting to power
supply.
RULES FOR SAFE OPERATION
■SAVETHESEINSTRUCTIONS.Refertothemfrequently
and use to instruct other users. If you loan someone this
tool, loan them these instructions also.
WARNING:
Somedustcreatedbypowersanding,sawing,grinding,
drilling, and other construction activities contains
chemicals known to cause cancer, birth defects or
other reproductive harm. Some examples of these
chemicals are:
• lead from lead-based paints,
• crystalline silica from bricks and cement and other
masonry products, and
• arsenic and chromium from chemically-treated
lumber.
Your risk from these exposures varies, depending on
how often you do this type of work. To reduce your
exposure to these chemicals: work in a well ventilated
area, and work with approved safety equipment, such
asthosedustmasksthatarespeciallydesignedtofilter
out microscopic particles.
SAVE THESE INSTRUCTIONS
SAFETY AND INTERNATIONAL SYMBOLS
This operator's manual describes safety and international symbols and pictographs that may appear on this
product. Read the operator's manual for complete safety, assembly, operating and maintenance, and repair
information.
MEANING
•Do not expose to rain or use in damp locations.
NO HANDS SYMBOL
•Failure to keep your hands away from the blade will
result in serious personal injury.
SYMBOL

Page 7
ELECTRICAL
ELECTRICAL CONNECTION
Your Ryobi Table Saw is powered by a precision built
electric motor. It should be connected to a power supply
that is 120 volts, 60Hz, AC only (normal household
current). Do not operate this tool on direct current (DC). A
substantial voltage drop will cause a loss of power and the
motor will overheat. If the saw does not operate when
plugged into an outlet, double check the power supply.
GROUNDING INSTRUCTIONS
In the event of a malfunction or breakdown, grounding
provides a path of least resistance for electric current to
reducetheriskofelectricshock.Thistoolisequippedwithan
electriccordhavinganequipment-groundingconductorand
agroundingplug. The plug mustbepluggedintoamatching
outlet that is properly installed and grounded in accordance
with all local codes and ordinances.
Donotmodifytheplugprovided.Ifitwillnotfittheoutlet,have
theproperoutletinstalledbyaqualifiedelectrician.Improper
connectionoftheequipment-groundingconductorcanresult
in a risk of electric shock. The conductor with insulation
having an outer surface that is green with or without yellow
stripes is the equipment-grounding conductor. If repair or
replacement of the electric cord or plug is necessary, do not
connect the equipment-grounding conductor to a live termi-
nal.
Check with a qualified electrician or service personnel if the
groundinginstructionsarenotcompletelyunderstood,orifin
doubt as to whether the tool is properly grounded.
Repair or replace a damaged or worn cord immediately.
Thistoolisintendedforuseonacircuitthathasanoutletlike
theoneshownin Figure1. Italsohasagroundingpinlikethe
one shown.
EXTENSION CORDS
Use only 3-wire extension cords that have 3-prong ground-
ing plugs and 3-pole receptacles that accept the tool's plug.
Whenusingapowertoolataconsiderabledistancefromthe
powersource, use anextensioncordheavy enough tocarry
the current that the tool will draw. An undersized extension
cord will cause a drop in line voltage, resulting in a loss of
power and causing the motor to overheat. Use the chart
providedbelowtodeterminetheminimumwiresizerequired
in an extension cord. Only round jacketed cords listed by
Underwriter's Laboratories (UL) should be used.
Length of Extension Cord Wire Size (A.W.G.)
Up to 25 feet 14
26-50 feet 12
Whenworking withthetool outdoors,usean extensioncord
that is designed for outside use. This is indicated by the
letters WA on the cord's jacket.
Before using an extension cord, inspect it for loose or
exposed wires and cut or worn insulation. Repair or replace
a damaged or worn cord immediately.
CAUTION:
Keepthecordawayfromthe cuttingareaandpositionthe
cord so that it will not be caught on lumber, tools, or other
objects during cutting.
COVER OF GROUNDED
OUTLET BOX
GROUNDING
PIN
MOTOR CORD
POWER CORD
SAW RECEPTACLE
Fig. 1

Page 8
Anti-Kickback Pawls (Fingers)
Device which, when properly installed and maintained, is
designed to stop the workpiece from being kicked back
toward the front of the saw during a ripping operation.
Arbor
The shaft on which a blade or cutting tool is mounted.
Bevel Cut
A cutting operation made with an angled blade.
Compound Cut
A cut with both a miter angle and a bevel angle.
Crosscut
A cutting or shaping operation made across the grain of the
workpiece.
Dado
A non-through cut which produces a square sided notch or
trough in the workpiece.
Featherboard
A device used to help control the workpiece by guiding it
securelyagainstthetableorfenceduringanyripcutoperation.
Freehand
Performing a cut without using a fence, miter gauge, fixture,
holddownclamp,orotherproperdevicetokeeptheworkpiece
from twisting during the cut.
Gum
A sticky, sap based residue from wood products.
Heel
Misalignment of the blade.
Kerf
The amount of material removed by the blade in a through
cut or the slot produced by the blade in a non-through or
partial cut.
Kickback
An uncontrolled grabbing and throwing of the workpiece
back toward the front of the saw. Associated with the
workpiececlosingthekerfandpinchingthebladeorotherwise
placing tension on the blade.
Leading End
Theend ofthe workpiece which,during a riptype operation,
is pushed into the cutting tool first.
Miter Cut
A cutting operation made with the wood at any angle other
than 90 degrees.
Molding
Acutwhichproducesaspecialshapeintheworkpiece,used
for joining or decoration.
Non-Through Cuts
Any cutting operation where the blade does not extend
completely through the thickness of the workpiece.
Push Block
Adeviceusedtofeedtheworkpiecethroughthesaw,except
during narrow ripping type operations where a push stick
should be used. It also helps keep the operator's hands well
away from the blade.
Push Stick
Adeviceusedtofeedthe workpiece through the sawtohelp
keep the operator's hands well away from the blade.
Rabbet
A notch in the edge of a workpiece.
Resin
A sticky, sap base substance that has hardened.
Ripping Or Rip Cut
Acuttingorshapingoperationmadealongthelengthorwith
the grain of the workpiece.
Riving Knife
Also known as a spreader or splitter. A metal piece, slightly
thinner than the saw blade which helps keep the kerf open
and prevent kickback.
Revolutions Per Minute (RPM)
The number of turns completed by a spinning object in one
minute.
Saw Blade Path
The area over, under, behind, or in front of the blade. As it
appliestotheworkpiece,thatareawhichwillbe,orhasbeen,
cut by the blade.
Set
Thedistancethatthetipofthesawbladetoothisbent(orset)
outward from the face of the blade.
Throw-Back
Throwing of a workpiece in a manner similar to a kickback.
Usually associated with a cause other than the kerf closing,
such as a workpiece being dropped onto the blade or being
placed inadvertently in contact with the blade.
Through Sawing
Any cutting operation where the blade extends completely
through the thickness of the workpiece.
Trailing End
Theworkpieceendlastcutbythebladeinarippingoperation.
Workpiece
The item on which the cutting operation is being done. The
surfaces of a workpiece are commonly referred to as faces,
ends, and edges.
GLOSSARY OF TERMS

Page 9
The saw is factory set for accurate cutting. After assem-
bling it, check for accuracy. If shipping has influenced the
settings, refertospecificproceduresexplainedintheopera-
tion and maintenance sections of this manual.
YourModelBT3100-1TableSawisshippedcompleteinone
cartonandincludestwotableextensions,aripfence,amiter
fence with adjusting clamp, a blade guard, rails, and leg
stand.
Separate all parts from packing materials and check each
one with the illustration and the list of Loose Parts to make
sure all items are accounted for, before discarding any
packing material.
Ifanypartsaremissing,donotattempttoassemblethetable
saw, plug in the power cord, or turn the switch on until the
missing parts are obtained and are installed correctly. Call
1-800-525-2579 for assistance if any parts are missing or
damaged.
#2 PHILLIPS
SCREWDRIVER
ADJUSTABLE
WRENCH
FRAMING SQUARE
SOCKET WRENCH
WITH 7/16 i .
SOCKET
COMBINATION
SQUARE
3/4 i .
WRENCH
Fig. 2
3/8 i . NUT DRIVER
FLAT BLADE
SCREWDRIVER
UNPACKING
TOOLS NEEDED
WARNING:
If any parts are missing, do not operate this tool until the
missing parts are replaced. Failure to do so could result
in possible serious personal injury.

Page 10
1
2
3
45
6
9
10
12
13
14
15 11
8
Fig. 3
Key
No. Description Quan.
1 Rip Scale Indicator.......................................... 1
2 Screw .............................................................. 1
3 Hex Nut ........................................................... 1
4 End Plug ......................................................... 4
5 Rip Fence........................................................ 1
6 Sliding Miter Table .......................................... 1
7 Accessory Table ............................................. 1
8 Blade Guard With Riving Knife
and Anti-Kickback Pawls................................. 1
9 Large Wrench ................................................. 1
10 Small Wrench.................................................. 1
11 Rear Rail ......................................................... 1
12 Front Rail ........................................................ 1
13 Screw .............................................................. 1
14 Washer............................................................ 1
15 Knob................................................................ 1
16 Adjusting Clamp.............................................. 1
17 Miter Fence With Miter Indicator and Locator
Pin Pivot...................................................... 1
18 3/32 in. Hex Key (Included)............................. 1
19 1/8 in. Hex Key (Included)............................... 1
20 5/32 in. Hex Key (Included)............................. 1
21 3/16 in. Hex Key (Included)............................. 1
22 Instructional Video (Not Shown)
23 Operator's Manual (Not Shown)
24 Warranty Registration Card (Not Shown)
Key
No. Description Quan.
7
LOOSE PARTS LIST
8
15
16
17
18
19
20
21

Page 11
The following items are included with your table saw leg stand.
LOOSE PARTS LIST
Fig. 4
B
C
D
E
EDK
K
J
L
K
F
D
E
I
M
D
J
E
D
H
A
H
E
D
C
D
E
M
C
B
A
I
G
G
H
D
E
E
D
F
C
E
D
F
E
D
F
G
A. Storage Bracket .....................................................4
B. Screw (1/4-20 x 1/2 in. Pan Hd.)............................4
C. Lower Brace ...........................................................4
D. Hex Nut (5/16-18) ................................................32
E. Washer (5/16 in.)..................................................32
F. Leveling Foot .........................................................4
G. Leg .........................................................................4
H. Carriage Bolt (5/16-18 x 3/4 in.) ..........................24
I. Upper Brace ...........................................................2
J. Hex Nut (1/4-20) ....................................................8
K. Washer (1/4 in.)....................................................12
L. Bolt (1/4-20 x 3/4 in. Hex Hd.) ...............................4
M. Upper Side Brace...................................................2
G
E
J
J
K

Page 12
GETTING TO KNOW YOUR SAW
Your saw is designed to perform as a versatile, accurate,
precision cutting tool that is easy to operate.
It is equipped with the following features for convenience,
ease of use, and high-quality performance:
•acombination saw blade
•abevel indicator to set the exact angle of the blade, with
locking lever
•an adjustable and reversible sliding miter table
•an adjustable miter fence with miter indicator
•an adjustable accessory table
•an adjustable rip fence with scale indicator
•an adjustable riving knife (splitter) and blade guard with
anti-kickback pawls
•front and rear guide rails with an easy-to-read scale on
front rail
•adust exhaust that can be adapted to a standard shop
vacuum
•blade adjusting handle to set depth of cut
•switch with lockable cover plate to help prevent
unauthorized use
These features provide ease of cutting with all types of wood.
WARNING:
Before attempting to use your table saw, familiarize
yourself with all operating features and safety
requirements.
Fig. 5
ADJUSTING
CLAMP
QUICK-STOP
END PLUG (4)
MITER SCALE
MITER
LOCKING CLAMPS
RIP FENCE
LOCKING HANDLE
FRONT RAIL
SCALE
SLIDING
MITER TABLE THROAT
PLATE
ANTI-KICKBACK
PAWLS
BLADE GUARD
ASSEMBLY RIVING KNIFE
SAW BLADE
REAR RAIL
RIP FENCE
ACCESSORY
TABLE
BLADE
ADJUSTING HANDLE
BEVEL
LOCKING LEVER
MITER FENCE
MITER
FENCE HOLDER SWITCH
BEVEL
INDICATOR
BEVEL SCALE
MITER
SLIDE LOCK
MITER
TABLE BASE
FEATURES
LEG STAND
LEVELING FOOT
STORAGE
BRACKETS
SCALE
INDICATOR

Page 13
Fig. 6
FEATURES
WARNING:
Although some of the illustrations in this manual are
shown with the blade guard removed for clarity, do not
operatethesawwithoutthebladeguardunlessspecifically
instructed to do so.
OPERATING COMPONENTS
Theupperportionof the blade projectsupthroughthetable,
surrounded by an insert called the throat plate. To cut wood
at a bevel, the blade must be tilted, using the blade adjust-
menthandle, scale, andbevelindicatorfound on thefrontof
thecabinet.Insidethecabinet, adjustable positive stopsare
provided for 0ºand 45º.
The sliding miter table assembly is used for all crosscutting
operations.The miter fenceiseasilyadjusted to cutwoodat
anangleby looseningtheadjustingclamp,settingthefence
to the miter scale, and retightening the clamp. The sliding
miter table, which rests on a base mounted on the rails, can
be repositioned along the rails for wide work. It can be
reversed so the projecting base is in the back. It can also be
movedfromtherightsidetotheleftsideasneeded.Withthe
miterfenceremovedthemitertableoffersadditionalsupport
for other operations such as ripping.
Your saw includes a rip fence and an accessory table. The
accessorytable canbemoved from therightside of thesaw
to the left side as needed. The rip fence is used to position
work that will be cut lengthwise. A scale on the front rail
shows the distance between the rip fence and the blade.
The riving knife is a metal device directly behind and above
the blade. It is used to help keep the cut wood from binding
together and causing possible kickback. It is very important
tousethe riving knifeforallthrough-sawingoperations. The
anti-kickbackpawlsaretoothedplatesmountedontheriving
knife. Their teeth point away from the work in case the work
should be pulled back, toward the operator. Then the teeth
dig into the wood to help prevent or reduce the possibility of
kickback.
YourRyobiBT3100-1tablesawfeaturesareceptacleonthe
rightsideofthecabinetthatpermitsuseofaccessories. Use
only accessories that are listed for use with this tool. When
usingalistedaccessory,unplugthesawmotorcordanduse
the receptacle and BT3100-1 main power switch to operate
the accessory.
POWER SWITCH
Your table saw is equipped with a power switch that has a
built-in locking feature. This feature is intended to prevent
unauthorized and possible hazardous use by children and
others.
TO TURN YOUR SAW ON:
1. With the switch key inserted into the switch, lift the switch
button to turn on ( ).
TO TURN YOUR SAW OFF:
1. Press the switch button down to turn off ( ).
TO LOCK YOUR SAW :
1. Press the switch button down.
2.Removetheswitchkeyfromtheswitchandstoreinasafe,
secure location.
WARNING:
Always remove the switch key when the tool is not in use
andkeep itina safeplace.In the eventof a powerfailure,
turn the switch off ( ) and remove the key. This action
willpreventthetoolfromaccidentallystartingwhenpower
returns.
WARNING:
ALWAYS make sureyour workpiece isnot in contactwith
the blade before operating the switch to start the tool.
Failure to heed this warning may cause the workpiece to
be kicked back toward the operator and result in serious
personal injury.
WARNING:
To reduce the risk of accidental starting, ALWAYS make
sure the switch is in the off ( ) position before plugging
tool into the power source .

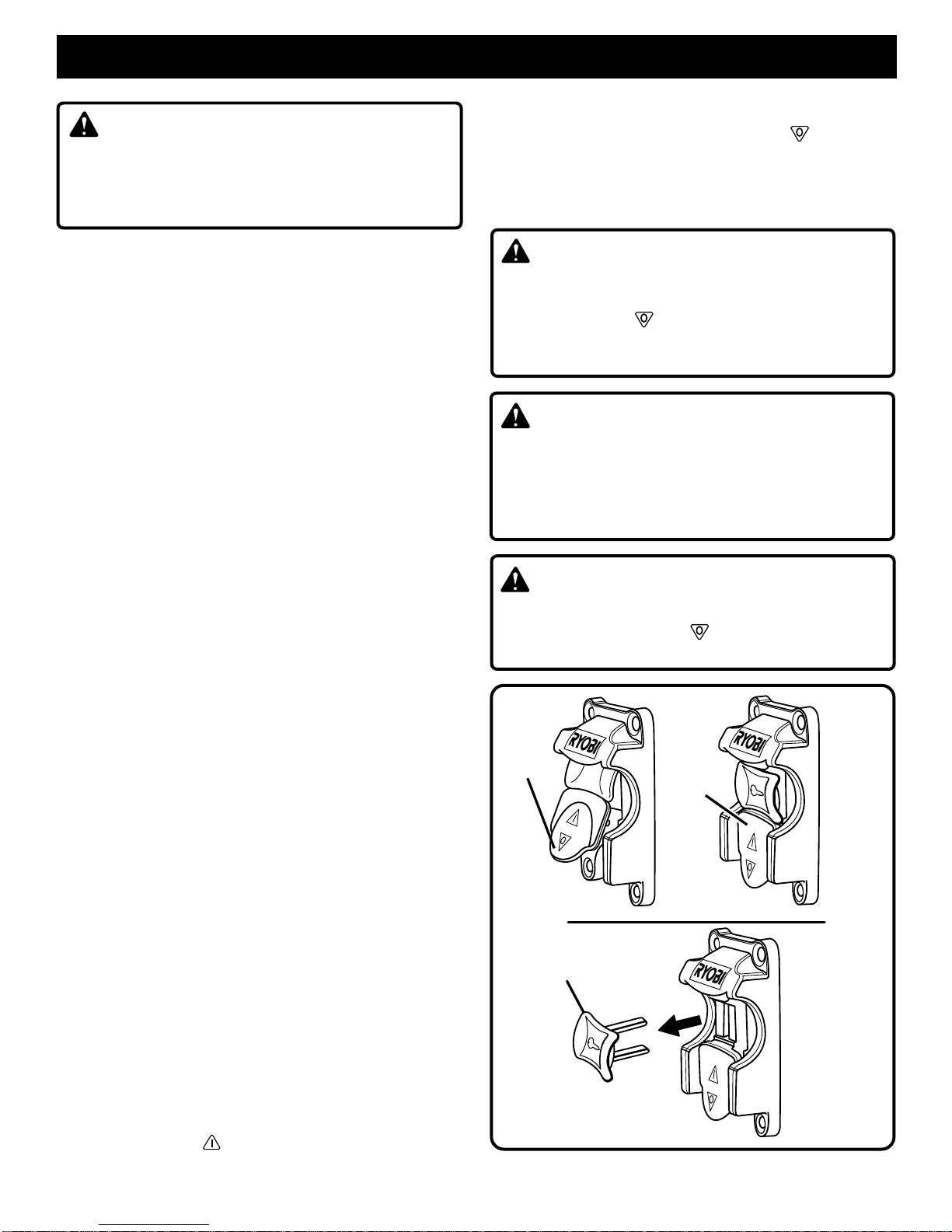

SWITCH
KEY
SWITCH IN LOCKED POSITION
SWITCH
BUTTON
IN OFF
POSITION
SWITCH
BUTTON
IN ON
POSITION

Page 14
BLADES
Itis recommended thatyouuseonly the RYOBI10in.(254 mm) CombinationBlade,which isfor use withtheBT3100Table
Saw. You will get maximum performance with the following features:
• 36 precision ground, micro-grain carbide teeth • laser-cut expansion slots
• kerf width of 2.5 mm + .02 • tensioning for 4,800 rpm
Thisbladeisprovidedwiththesaw.Additionalbladestylesofthesamehighqualityare availableforspecificoperationssuch
as ripping. Your local RYOBI dealer can provide you with complete information.
CAUTION:
Be sure to use only blades that are rated for at least 5,500 RPM and recommended for use on this saw.
Fig. 7
BLADE ROTATION
PRECISION GROUND
MICRO-GRAIN
CARBIDE TEETH
LASER-CUT BODY
AND EXPANSION SLOTS
SPEED AND WIRING
Theno-load speedofyour tablesawis approximately4,800
rpm. The speed will not remain constant but will be less
under a load. The wiring in a shop is as important as the
motor's horsepower rating. A line intended for lights only
WILLNOTPROPERLYCARRYAPOWERTOOLMOTOR.
Wirethatisheavyenoughforashortdistancewillbetoolight
foragreaterdistance.Alinethatcan support onepowertool
may not be able to support two or three tools.
WARNING:
To prevent possible electrical hazards, have a qualified
electrician check the line if you are not certain that it is
properly wired.
FEATURES

Page 15
ASSEMBLY
Assembly is best done in the area where the saw will be used. When you remove the table saw base, loose parts, and
hardware from the packing materials, check all items with the loose parts list and drawing. If you are unsure about the
description of any part, refer to the drawing. If any parts are missing, delay assembling until you have obtained the missing
part(s).
ASSEMBLING LEG STAND
See Figures 8 and 9.
■Takethefollowinghardwarefromthelegstandhardware
bag:
24 carriage bolts (5/16-18 x 3/4 in.)
4 leveling feet
32 flat washers (5/16 in.)
32 hex nuts (5/16-18)
Note: Remaininghardware fromthisbag is usedfor mount-
ing leg stand on the table saw base and mounting
storage brackets to upper brace.
■Take 4 legs and 8 braces from loose parts.
■Placean upper sidebraceinsidetwo of thelegs,with the
legs wide end up. (Upper side braces have two large
holes in each end.) Make sure the two posts on the leg
align with the small holes on the brace.
Fig. 8
LEVELING FOOT
CARRIAGE
BOLT
WASHER
BOLT
HEX NUT
UPPER BRACE
LOWER BRACE
STORAGE
BRACKET(S)
HEX NUT
LEG
SCREW
WASHER
HEX
NUT
WASHER
HEX NUT
WASHER
HEX NUT
■Alignthetwolargeholesonthebraceandthelegs.Insert
the carriage bolts. Add flat washers and hex nuts and
handtighten.Repeatfortheotherupperbrace.Theseare
the front and back sets.
■For the side sets, install a upper brace on two legs. Add
hardware and finger tighten. Repeat for the other upper
brace.
■Usethesamestepstoinstallthelowerbraces.Tightenall
hex nuts with a wrench.
■Place a hex nut and flat washer on each leveling foot.
Install the leveling feet from the bottom of each leg with
theboltspointingup.Capwiththeremainingflatwashers
and hex nuts but do not tighten.
■Move the leg set to desired location. Adjust the leveling
feet with a wrench, then tighten the top hex nut.
UPPER
SIDE BRACE

Page 16
ASSEMBLY
ASSEMBLING STORAGE BRACKETS
See Figure 9.
■Take storage brackets from loose parts.
■Takethefollowinghardwarefromthelegstand hardware
bag:
4 screws (1/4-20 x 1/2 in. Pan Hd.)
4 hex nuts (1/4-20)
4 washers (1/4 in.)
■Secure storage brackets to upper braces of leg stand as
shown in figures 8 and 9.
MOUNTING THE LEG STAND ON THE TABLE
SAW BASE
See Figure 10.
■Take the following from a small hardware bag:
4 hex bolts (1/4-20 x 3/4 in.)
4 hex nuts (1/4-20)
8 flat washers (1/4 in.)
Note: This hardware was in the bag with hardware for
assembling the leg stand and leveling feet.
WARNING:
Do not lift the saw without help. The saw base weighs
approximately75lbs.Holditclosetoyourbody.Keepyour
knees bent and lift with your legs, not your back. Ignoring
these precautions can result in back injury.
■Placethelegstandonthetablesawbase.Aligntheholes
in the table with the holes in the end braces.
■Placeaflatwasheronaboltandinsertthroughhole.Add
aflatwasherandahexnut.Handtighten. SeeFigure10.
■Repeatfor threeremainingholes. Tighten allhardware
withawrench.Youmayfindithelpfultouseonewrench
to hold the head of the bolt and one to tighten the hex
nut.
WARNING:
Donotconnecttopowersupplyuntilassemblyiscomplete.
Failure to comply could result in accidental starting and
possible serious injury.
TO INSTALL FRONT AND BACK RAILS
See Figures 11 and 12.
■Position end plugs on both rails and secure in place by
tapping with a block of wood or a rubber mallet.
■Loosenthefrontrailclampsonehalfturnfromthetightened
position. Loosen the square rail holder nut one-fourth
(1/4)turntoallowthefrontrailtoslideoverit. SeeFigures
11 and 12.
■Mount the front rail with the scale facing the outside
toward the operator.
LEG STAND ASSEMBLED
LEG
LOWER BRACE
UPPER BRACE
STORAGE BRACKET(S)
Fig. 9
Fig. 10
HEX BOLT
HEX NUT
FLAT
WASHER
SAW BASE
LEG STAND

Page 17
Fig. 12
Fig. 11
RAIL
HOLDER NUT
■Check to make sure the rail clamps will securely clamp
the rail before sliding the entire assembly into position. If
not,tightenthesquarerailholdernutone-fourth(1/4)turn
and recheck.
■Slide the rail into position over both clamps and secure.
■Mounttherearrail,followingthesameclampingprocedure
asshownfor the frontrail.Orienttherear rail asshownin
Figure 12.
TO INSTALL MITER TABLE AND FENCE
See Figures13 and 14.
■Install the sliding miter table assembly over the front and
rearrails. SeeFigure13. Checkthatitslideseasilyonthe
rails. Push both front miter locking clamps down evenly
oneachsidetosecure.Repeatforbothrearmiterlocking
clamps.
Note: DO NOT force miter locking clamps fully down.
Tighten only to flat "seated" position.
■Toinstallthemiterfenceholdertothemiterfence,loosen
the attachment bolt by turning the adjusting clamp (the
knob on top) counterclockwise. Make sure the adjusting
clamp is loose enough so the bolt has enough clearance
to slide in the table slot. Slide the tabs into the grooves
in the miter fence.
See Figure 14.
■Mount the miter fence to the miter table by installing the
locator pin (below the miter fence) into hole “A” or “B”.
(Hole"A" isclosesttothe blade.)Atthe same time,place
the attachment bolt in the slot. Secure the adjusting
clamp, but do not tighten.
■Adjust the miter indicator to the scale.
■Securely tighten the adjusting clamp.
ASSEMBLY
REAR RAIL
MITER
TABLE BASE
REAR RAIL Fig. 13
END PLUG
SCALE
BEVEL
LOCKING LEVER
END PLUG FRONT RAIL
HANDWHEEL BLADE
ADJUSTING
HANDLE
FRONT
RAIL CLAMP
LOCATOR
PIN
ADJUSTING
CLAMP
MITER
FENCE HOLDER
MITER FENCE
MITER
INDICATOR
HOLE "B"
TABLE
SLOT
ATTACHMENT
BOLT
HOLE "A"
Fig. 14
QUICK
STOP

Page 18
Fig. 15
TO INSTALL ACCESSORY TABLE AND RIP
FENCE
■Place the accessory table on the front and back rails,
fitting the lips into the top slot of the rear rail. Position the
slotontheundersideoftheaccessorytableontothefront
rail and tighten the lever securely.
■Removethescaleindicatorassemblyfromtheplasticbag
and install on either side of the rip fence. The pan head
screw (#8-32 x 1/2 in.) goes on the outside of the front
block. The scale indicator and hex nut (#8-32) go
immediately behind the front lip of the front block.
■To install the rip fence, place the rear lip on the rear rail
and pull slightly toward the front of the unit. Lower front
endontotheguidesurfacesontopof thefrontrail.Check
for a smooth gliding action. Swing the locking handle
down to automatically align and secure the fence.
REMOVING/REPLACING THE THROAT PLATE
See Figure 16.
WARNING:
Makesuretheswitchisoffandtheplugisoutoftheoutlet.
Failuretodosocouldresult in accidental starting,result-
ing in serious personal injury.
WARNING:
Drop blade below saw table when reinstalling the throat
plate.Failuretoheedthiswarningcould resultinserious
personal injury.
■Toremovethethroatplate,firstremovethescrewholding
thethroatplatewithaphillipsscrewdriverandliftthefront
end. Pull throat plate out toward the front of the saw.
■To reinstall the throat plate, drop blade below saw table
and place throat plate in the opening. Push throat plate
toward the rear of saw base to engage the spring clip.
■Securely tighten throat plate screw.
ASSEMBLY
SCREW FRONT
BLOCK
MOUNTING
HOLE
RIP FENCE
HEX NUT
SCALE
INDICATOR FRONT LIP
REAR LIP
REAR RAIL
ACCESSORY
TABLE
REAR RAIL
FIT LIP OF TABLE
INTO REAR RAIL
LEVER
THROAT
PLATE
SCREW
Fig. 16
TO
LOCK
TO
UNLOCK

Page 19
BLADE AND GUARD ASSEMBLY
WARNING:
Donotconnecttopowersupplyuntilassemblyiscomplete.
Failure to comply could result in accidental starting and
possible serious injury.
TO CHECK SAW BLADE INSTALLATION
■To check the saw blade, first remove the screw holding
the throat plate in place. Remove the throat plate. See
Figures 16 and 17.
■Make sure the bevel locking lever is securely pushed to
the left. Raise the blade arbor to its full height by turning
the blade adjusting handle clockwise.
■Usingthesmallerhexwrench,inserttheflatopenendinto
theflatsonthearborshaftasshown.Insertthelargerhex
wrench over the hex nut, and, holding both wrenches
firmly, pull the larger wrench forward to the front of the
machine to loosen and push to tighten. Make sure the
blade nut is securely tightened. Do not overtighten.
Note: Arbor shaft has left hand threads.
■Check all clearances for free blade rotation.
■See To Set the Scale to the Blade in the
Operation
Section. In cutting operations, the scale will be set to the
side of the blade where the cut will be measured and
made.
TO INSTALL BLADE GUARD ASSEMBLY
■Move the bevel locking lever to the right for angle mode.
Slowly turn the blade adjustment handle to put the blade
at30˚.Thehandle will "popout"slightlyasit engages the
clutch.
■Holdingthebladeadjustinghandlewithonehand,usethe
otherhandtopushthebevellockingleverfirmlytotheleft
to lock the bevel angle.
■Raise the blade by turning the blade adjustment handle
clockwise.
■Using the small hex wrench, install the blade guard
assembly by loosening the two attachment hex nuts
enough to slide the riving knife down between the shims.
See Figure 19. Partially retighten the two attachment
nuts. Check the blade and riving knife alignment. Make
sure riving knife clears blade by 1/8 in. See Figure 29.
■Correctly align the blade and riving knife as shown,
repeating above step as needed. Tighten attachment
nutssecurely.Ifrivingknifeisnotpositionedcorrectlywith
bladeup,itcouldcontactsawtablewhenbladeislowered
and restrict blade elevation.
Fig. 18
Fig. 17
LARGE HEX
WRENCH
SMALL
SPACER
SMALL
HEX WRENCH
OUTER
BLADE WASHER
LARGE
SPACER
INNER
BLADE WASHER
TO
TIGHTEN
ARBOR NUT
TO
LOOSEN
NOTE: PLACE BLADE BETWEEN
INNER AND OUTER BLADE WASHER
LARGE
HEX WRENCH THROAT PLATE
ARBOR
Fig. 19
ASSEMBLY
SMALL HEX
WRENCH
SHIMS
MOUNTING PLATE
RIVING
KNIFE
DO NOT REMOVE HEX NUTS
HEX NUTS

Page 20
ASSEMBLY
■Blade alignment with the riving knife can be adjusted for
differentbladewidths.RefertoSettingsandAdjustments
in the Operations Section. Before continuing, read To
Check, Replace or Adjust the Riving Knife and Blade
Guard Assembly on page 25 to make sure of proper
riving knife alignment.
■Checkthe bladeguardassembly for clearancesand free
movement. Reinstall the throat plate into the opening,
lowerthebladeandsecuretheattachmentscrew.Tighten
the screw securely.
Fig. 20
REPLACING THE THROAT PLATE
THROAT PLATE
SCREWS
