SAC ROTO-PRESS 1095 Programming manual

877 1st Ave. N.W. | Sioux Center, IA 51250 | Toll Free: 1.866.722.1488 | siouxautomation.com
OPERATION
REPLACEMENT PARTS
READ complete manual CAREFULLY
BEFORE attempting operation.
RP89007 REV E 06/06/14
ROTO-PRESS
MODEL 1095
OPERATORS/PARTS MANUAL

Page # 2
REV DATE BILL OF MATERIALS DESCRIPTION
C1/28/14 RP89006 UPDATE MANUAL WITH NEW LOGO
GRAPHICS. ALSO UPDATED ALL BOM’S AND
PICTORIAL GRAPHICS.
D 5/13/14 ADD AUGER ASSEMBLY PRINT W/ BOM
PAGE 30 (REFERENCE RP300272)
E 6/06/14 ADDED RP090347 TO DRIVELINES

Page # 3
Table of Contents
Introduction...................................................................................................................................................3
Model and Serial Number ID ...................................................................................................................4
Safety and Signal Words............................................................................................................................6
Before and During Operations.............................................................................................................7-11
Performing Maintenance.........................................................................................................................12

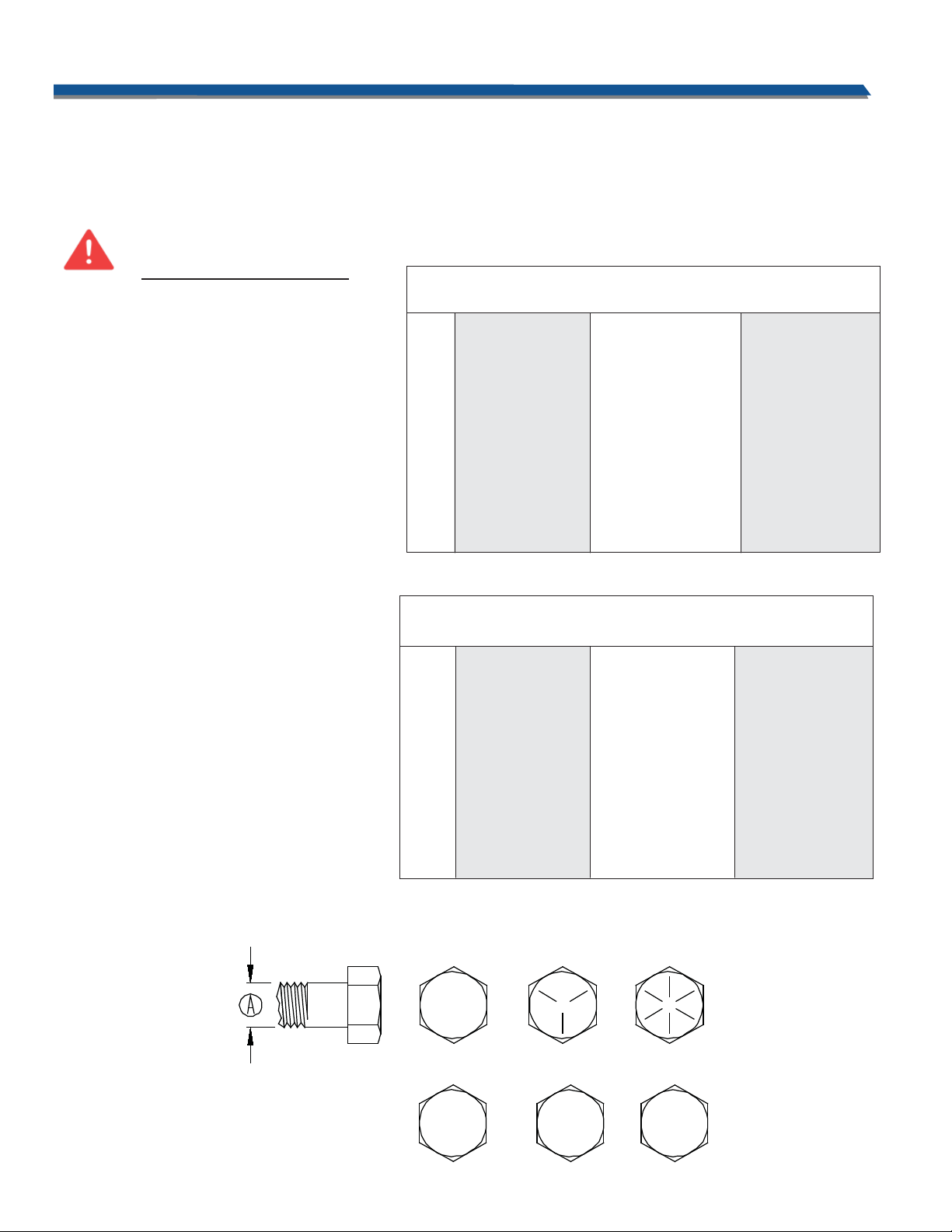

Bolt Torque....................................................................................................................................................13
Using Your Roto-Press ........................................................................................................................... 14-24
Bag Installation........................................................................................................................................ 16-22
Braking Chain and Star Operations.................................................................................................. 23-24
Lubrication Schedule ................................................................................................................................25
Decal Locations ...........................................................................................................................................26
Roto-Press Final Assembly.......................................................................................................................27
1090 Roto-Press Base Assembly........................................................................................................ 28-29
General Assemblies................................................................................................................................ 30-36
Drive Assemblies..................................................................................................................................... 37-40
PTO Assemblies ...........................................................................................................................................41
Self Contained Hydraulic Kits...............................................................................................................42-43
Light Wiring Kit ...........................................................................................................................................44
Shell Corn Kit................................................................................................................................................45
Bag Boom Lift...............................................................................................................................................46
Trolley Assembly .........................................................................................................................................47
Roller Mill, Auger, & Hopper Options............................................................................................... 48-49
Granular Innoculant Kit ...........................................................................................................................50
Warranty & Registration ...................................................................................................................... 52-53
Never overload the bagger. Follow rating of gear or rating of tires, whichever is less.
Ensure that anybody present is clear before applying power to any machinery used
in conjunction with the bagger.
Do not exceed 20 miles per hour when towing bagger.
GENERAL INFORMATION
1. Unless otherwise specied, high-strength (grade5) (3 radial-line head markings) hex head bolts are used
throughout assembly of this piece of equipment.
2. Whenever terms “LEFT” and “RIGHT” are used in this manual it means from a position behind the bagger
and facing forward.
3. When placing a parts order, refer to this manual for proper part numbers and place order by PART NO. and
DESCRIPTION.
4. Read assembly instructions carefully. Study assembly procedures and all illustrations before you begin assem-
bly. Note which parts are used in each step.This unit must be assembled in proper sequence or complications
will result.
WARNING: TO AVOID PERSONAL INJURY OR DEATH, OBSERVE FOLLOWING
INSTRUCTIONS:
Thank you for purchasing a Sioux Automation ROTO-PRESS crop bagger. The purpose of the ROTO-PRESS is to give
the agricutural industry the ability to use economical, fast, and unlimited storage for their dierent types of crops. The
ROTO-PRESS is the result of many years of eld testing and design and is built to a high level of quality that will give you
many years of dependable service if properly used, maintained and serviced. We feel you have made a wise choice and
hope you are completely satised with your new piece of equipment. Your new ROTO-PRESS is a durable, ecient, and
easy to use unit.
In addition to reading and completely understanding this owner’s manual, please take the time to ll out the warranty
registration sheet so that we may process your warranty, as well as anticipate your futrure needs. With the purchase of
your new ROTO-PRESS you have become part of a ne family of agricultural equipment, and a fully equipped and knowl-
edgeable service sta that can help you with all of your future needs.

Page # 4
MODEL AND SERIAL NUMBER IDENTIFICATION
Yourmodelandserialnumberscanbelocatedonthefrontlefthandsideoftheunitjustbehindthedriveoilbath.
Please copy this information and write them down inside of this manual. This will allow easy reference if the
ordering of parts should become necessary.

t
OPERATION
REPLACEMENT PARTS
READ complete manual CAREFULLY
BEFORE attempting operation.
_____________________________________________________________________________________________
_____________________________________________________________________________________________
_____________________________________________________________________________________________
_____________________________________________________________________________________________
_____________________________________________________________________________________________
_____________________________________________________________________________________________
_____________________________________________________________________________________________
_____________________________________________________________________________________________
_____________________________________________________________________________________________
_____________________________________________________________________________________________
_____________________________________________________________________________________________
_____________________________________________________________________________________________
_____________________________________________________________________________________________
_____________________________________________________________________________________________
_____________________________________________________________________________________________
_____________________________________________________________________________________________
_____________________________________________________________________________________________
_____________________________________________________________________________________________
_____________________________________________________________________________________________
_____________________________________________________________________________________________
_____________________________________________________________________________________________
_____________________________________________________________________________________________
_____________________________________________________________________________________________
_____________________________________________________________________________________________
_____________________________________________________________________________________________
_____________________________________________________________________________________________
_____________________________________________________________________________________________
_____________________________________________________________________________________________
_____________________________________________________________________________________________
_____________________________________________________________________________________________
_____________________________________________________________________________________________
_____________________________________________________________________________________________
_____________________________________________________________________________________________
_____________________________________________________________________________________________
_____________________________________________________________________________________________
_____________________________________________________________________________________________
NOTES
Page # 5

Page # 6
TAKE NOTE! THIS SAFETY ALERT SYMBOL FOUND THROUGHOUT THIS
MANUAL IS USED TO CALL YOUR ATTENTION TO INSTRUCTIONS INVOLVING
YOUR PERSONAL SAFETY AND SAFETY OF OTHERS. FAILURE TO FOLLOW THESE
INSTRUCTIONS CAN RESULT IN INJURY OR DEATH!
THIS SYMBOL MEANS
ATTENTION
BECOME ALERT
YOUR SAFETY IS INVOLVED!
SIGNAL WORDS
Note: use of following signal words DANGER,
WARNING, and CAUTION with safety messages.
Appropriate signal word for each has been selected
using following guidelines:
DANGER:
Indicates an imminently hazardous situation that,
if not avoided, will result in serious injury or death.
This signal word is to be limited to most extreme
situations typically for machine components which,
for functional purposes, cannot be guarded.
WARNING:
Indicates a potentially hazardous situation that, if not
avoided, could result in serious injury or death, and
includes hazards that are exposed when guards are
removed. It may also be used to alert against unsafe
practices.
CAUTION:
Indicates a potentially hazardous situation that, if not
avoided, may result in minor or moderate injury. It may
also be used to alert against unsafe practices.
If you have questions not answered in this manual , require additional copies, or if your manual is damaged,
please contact your dealer or Sioux Automation Center, Inc., 877 1st Ave NW, Sioux Center, IA 51250,
ph: [phone] or
Toll Free: 1-866-722-1488, Fax: [phone] http://www.siouxautomation.com
SAFETY: YOU CAN LIVE WITH IT!

Page # 7
EQUIPMENT SAFETY GUIDELINES
Every year many accidents occur which could have been avoided by a few seconds of thought and
a more careful approach to handling equipment. You, the operator, can avoid many accidents by
observing the following precautions in this section. To avoid personal injury, study the following
precautions and insist those working with you, and you yourself, follow them.
In order to provide a better view, certain illustrations in this manual may show an assembly with
a safety shield removed. However, equipment should never be operated in this condition.
Keep all shields in place. If shield removal becomes necessary for repairs, replace shield prior to
use.
Replace any CAUTION, WARNING, DANGER or instruction safety decal that is not readable or is
missing. Location of such decals is indicated in this manual. The part numbers for the decals are
located in the lower right hand corner of the decal, and listed in this manual on the following pages.
Do not attempt to operate this equipment under the inuence of alcohol or drugs.
Review safety instructions with all users annually.
Operator should be a responsible adult. DO NOT ALLOW PERSONS TO OPERATE OR ASSEMBLE
THIS UNIT UNTIL THEY HAVE READ THIS MANUAL AND HAVE DEVELOPED A THOROUGH
UNDERSTANDING OF THE SAFETY PRECAUTIONS AND PROPER OPERATIONAL PROCEDURES.
Do not paint over, remove, or deface any safety signs or warning decals on your equipment.
Observe all safety signs and practice the instructions on them.
Never exceed limits of a piece of machinery. If its ability to do a job, or to do so safely is in question
DON’T TRY IT.
LIGHTING AND MARKING
Itisthe responsibilityof customertoknowlightingandmarking requirementsofthelocalhighway
authorities and to install and maintain the equipment to provide compliance with the regulations.
Add extra lights when transporting at night or during periods of limited visibility. Lighting kits
are available from your dealer or from manufacturer.
SAFETY SIGN CARE
• Keep safety signs clean and legible at all times.
• Replace safety signs that are missing or have become illegible.
• Replaced parts that displayed safety signs should also display current safety sign.
• Safety signs are available from your distributor, dealer parts department, or the factory.
How to install safety signs:
• Be sure that installation area is clean and dry.
• Decide on exact position before you remove backing paper.
• Remove smallest portion of split backing paper.
• Align decal over specied area and carefully press small portion with exposed sticky
backing in place.
• Slowly peel back remaining paper and carefully smooth remaining portion of decal into place.
• Small air pockets can be pierced with a pin and smoothed out using piece of decal backing paper.
SAFETY: YOU CAN LIVE WITH IT!

Page # 8
TIRE SAFETY
• Failure to follow proper procedures when mounting a tire on a rim can produce an explosion
which may result in a serious injury or death.
• Do not attempt to mount a tire unless you have proper equipment and experience to do the
job.
• Inating or servicing tires can be dangerous. Whenever possible, trained personnel should be
called to service and/or mount tires.
• Always order and install tires and wheels with appropriate type and load capacity to meet or
exceed anticipated weight to be placed on the equipment.
REMEMBER
Yourbestassuranceagainstaccidentsisacarefulandresponsibleoperator. Ifthereisany
portion of this manual or function you do not understand, contact your local authorized
dealer or manufacturer.
BEFORE OPERATION:
• Carefully study and understand this manual.
• Do not wear loose-tting clothing which may catch in moving parts.
• Always wear protective clothing and substantial shoes.
• It is recommended that suitable hearing and eye protection be worn.
• Operator may come in contact with certain materials which may require specic safety
equipment relative to handling of such materials.
• Keep wheel and lug nuts tightened to specied torque.
• Assure that agricultural implment tires are inated evenly.
• Give unit a visual inspection for any loose bolts, worn parts or cracked welds, and make necessary
repairs. Follow the maintenance safety instructions included in this manual.
• Be sure there are no tools lying on or in equipment.
• Do not use unit until you are sure that area is clear, especially around children and animals.
• Don’t hurry the learning process or take the unit for granted. Ease into it and become familiar
with your new equipment.
• Practiceoperationofyourequipmentanditsattachments.Completelyfamiliarizeyourselfand
other operators with its operation before using.
• UseatractorequippedwithRollOverProtectionSystem(ROPS)andfastenyourseatbeltprior
to starting the engine.
• Manufacturer does not recommend usage of a tractor with the ROPS removed.
• Move tractor wheels to widest recommended settings to increase stability.
• Do notallowanyonetostandbetweentongueor hitchandtowingvehiclewhenbackingup
to equipment.
SAFETY

Page # 9
DURING OPERATION
• Be aware of bystanders, PARTICULARLY CHILDREN! Always look around to make sure that it is
safe to start the engine or to move the unit. This is particularly important with higher noise
levels and quiet cabs, as you may not hear people shouting.
• NO PASSENGERS ALLOWED- Do not allow anyone to ride on or inside the mixer at any time!
• Keep hands and clothing clear of moving parts.
• Do not clean, lubricate, or adjust your equipment while it is moving.
• When halting operation, even periodically, set parking brakes, disengage PTO, shut o
engine, and remove ignition key.
• Be especially observant of the operating area and terrain. Watch for holes, rocks, or other
hidden hazards. Always inspect area prior to operation.
- DO NOT operate near edge of drop-os or banks.
- DO NOT operate on steep slopes as overturn may result.
- Operate up and down (not across) intermediate slopes. Avoid sudden starts and stops.
• Pick the most level possible route when transporting across elds. Avoid edges of ditches,
gullies, and steep hillsides.
• Be extra careful when working on inclines.
• Maneuver tractor or towing vehicle at safe speeds.
• Avoid overhead wires or other obstacles. Contact with overhead lines could cause serious
injury or death.
• Avoid loose gravel, rocks, and holes; they can be dangerous for equipment operation or movement.
• Allow for unit length when making turns.
• Donot walk or work under raised components or attachments unlesssecurely positioned and blocked.
• Keep all bystanders, pets, and livestock clear of work area.
• Operate towing vehicle from operators seat only.
• Never stand alongside of unit with engine running or attempt to start engine and/or operate
machine while standing alongside of unit.
• Never leave running equipment unattended.
SAFETY

Page # 10
• Never attempt to release jammed materials or clean materials from any area of the bagger
without stoppingengineandremovingdrivelinerst.Movingpartscanbehiddenbymaterials,
and stopped parts can start unexpectedly, causing severe injury.
• Never put arms or feet inside unit or on the conveyor belt. Always stop tractor engine and
remove the PTO driveline so that the mixer cannot be accidentally turned on while inspecting,
servicing, repairing, or cleaning.
• Followingoperation,orwhenunhitching,stoptractorortowingvehicle,setbrakes,shuto
engine and remove the ignition key.
• Store unit in an area away from human activity.
• Donotparkequipmentwhereitwillbeexposedtolivestockforlongperiodsoftime.Damage
and livestock injury could result.
• Do not permit children to play on or around stored unit.
• Make sure all parked machines are on a hard, level surface and engage all safety devices.
• Wheel chocks may be needed to prevent unit from rolling.
FOLLOWING OPERATION
HIGHWAY AND TRANSPORT OPERATIONS
• SAFETY CHAINS: If equipment is going to be transported on a public highway, always follow
state and local regulations regarding safety chains and auxiliary lighting. Be sure to check with local
law enforcement agencies for your own particular regulations. If required, safety chains should be
obtained and installed. Only safety chains (not elastic or nylon/plastic tow straps) should be used
to retain connection between towing and towed machines in the event of separation of primary
attaching system. Use a high strength, appropriately sized hitch pin with a mechanical retainer and
attach safety chains. Criss cross chains under tongue and secure to draw bar cage, mounting loops,
or bumper frame.
SAFETY
• Asaprecaution,alwaysrecheckhardwareonequipmentfollowingevery100hoursofoperation.
Correct all problems. Follow maintenance safety procedures.
• Neverhandfeedmaterialsintobaggerwhileitisrunning.Therotatingauger insidemixermaynot
be visible from the loading point, and may cut or grab hands, clothing, or material being loaded,
causing severe injury.
• Do not allow operation of this unit by inexperienced or unqualied people.
DURING OPERATION

Page # 11
• Adopt safe driving practices:
- Keep brake pedals latched together at all times. NEVER USE INDEPENDENT BRAKING WITH
MACHINE IN TOW, LOSS OF CONTROL AND/OR UPSET OF UNIT CAN RESULT.
- Always drive at a safe speed relative to local conditions, ensure that your speed is low
enough for an emergency stop. Keep speed to a minimum.
- Reduce speed prior to turns to avoid risk of overturning.
- Always keep tractor or towing vehicle in gear to provide engine braking when going downhill.
Do not coast.
- Do not drink and drive!
• Comply with state and local laws governing highway safety and movement of farm machinery
on public roads.
• Use approved accessory lighting, ags and necessary warning devices to protect operators of
other vehicles on highway during transport. Various safety lights and devices are available from
your dealer.
• Use of ashing amber lights is acceptable in most localities. However, some localities prohibit
their use. Local laws should be checked for all highway lighting and marking requirements.
• When driving tractor and equipment on road under 20 m.p.h. (40 kph) at night or during day,
use ashing amber warning lights and a slow moving vehicle (SMV) identication emblem.
• Plan your route to avoid heavy trac.
• Be a safe and courteous driver. Always yield to oncoming trac in all situations, including narrow
bridges, intersections, etc.
• Be observant of bridge load ratings. Do not cross bridges rated lower than gross weight at which
you are operating.
• Watch for obstructions overhead and side to side while transporting.
• Always operate equipment in a position to provide maximum visibility. Make allowances for
increased length and weight of equipment when making turns, stopping unit, etc.
SAFETY
HIGHWAY AND TRANSPORT OPERATIONS

Page # 12
• Good maintenance is your responsibility. Poor maintenance is an invitation for trouble.
• Make sure there is plenty of ventilation. Never operate engine in a closed building. Exhaust
fumes may cause asphyxiation.
• Before working on this machine, stop towing vehicle, set brakes, shut o engine and remove
ignition key.
• Always use safety support and block wheels. Never use a jack to support machine.
• Always use proper tools or equipment for job at hand.
• Use extreme caution when making adjustments.
• Follow torque chart in this manual when tightening bolts and nuts.
• Never use your hands to locate a hydraulic leak on attachments. Use a small piece of cardboard
or wood. Hydraulic uid escaping under pressure can penetrate skin.
• Openings in skin and minor cuts are susceptible to infection from hydraulic uid.
Without immediate medical treatment, serious infection and reactions can occur.
• When disconnecting hydraulic lines, shut o hydraulic supply and relieve all hydraulic pressure.
• Replace all shields and guards after servicing and before moving equipment.
• After servicing, be sure all tools, parts, and service equipment are removed.
• Do not allow grease or oil to build up on any step or platform.
• When replacing bolts, refer to owner’s manual.
• Refer to bolt torque chart for head identication marking.
• Where replacement parts are necessary for periodic maintenance and servicing, genuine factory
replacement parts must be used to restore your equipment to original specications. Manufac-
turer will not claim responsibility for use of unapproved parts or accessories and other damages
as a result of their use.
• If equipment has been altered in any way from original design, manufacturer does not accept
any liability for injury or warranty.
• A re extinguisher and rst aid kit should be kept readily accessible while performing mainte-
nance on this equipment.
PERFORMING MAINTENANCE
SAFETY

Page # 13
TORQUE DATA FOR STANDARD NUTS, BOLTS, AND CAP SCREWS.
Tighten all bolts to torques specied in chart unless otherwise noted. Check tightness of bolts periodically, using bolt
chart as guide. Replace hardware with same grade bolt.
NOTE: Unless otherwise specied, high-strength Grade 5 hex bolts are used throughout assembly of equipment.
Bolt Torque for Standard bolts *
GRADE 2 GRADE 5 GRADE 8
“A” lb-ft (N.m) lb-ft (N.m) lb-ft (N.m)
1/4” 6 (8) 9 (12) 12 (16)
5/16” 10 (13) 18 (25) 25 (35)
3/8” 20 (27) 30 (40) 45 (60)
7/16” 30 (40) 50 (70) 80 (110)
1/2” 45 (60) 75 (100) 115 (155)
9/16” 70 (95) 115 (155) 165 (220)
5/8” 95 (130) 150 (200) 225 (300)
3/4” 165 (225) 290 (390) 400 (540)
7/8” 170 (230) 420 (570) 650 (880)
1” 225 (300) 630 (850) 970 (1310)
Torque gures indicated are valid for non-greased
or non-oiled threads and heads unless otherwise
specfied. Therefore, do not grease or oil bolts
or capscrews unless otherwise specied in this
manual. When using locking
elements, increase torque values
by 5%.
* GRADE or CLASS value for bolts and capscrews
are identied by their head markings.
Torque Specications
CLASS 8.8 CLASS 9.8 CLASS 10.9
“A” lb-ft (N.m) lb-ft (N.m) lb-ft (N.m)
6 9 (13) 10 (14) 13 (17)
7 15 (21) 18 (24) 21 (29)
8 23 (31) 25 (34) 31 (42)
10 45 (61) 50 (68) 61 (83)
12 78 (106) 88 (118) 106 (144)
14 125 (169) 140 (189) 170 (230)
16 194 (263) 216 (293) 263 (357)
18 268 (363) -- -- 364 (493)
20 378 (513) -- -- 515 (689)
22 516 (699) -- -- 702 (952)
24 654 (886) -- -- 890 (1206)
Bolt Torque for Metric bolts *
GRADE-2 GRADE-5 GRADE-8
CLASS 8.8 CLASS 9.8 CLASS 10.9
8.8 10.9 9.8
BOLT TORQUE

Page # 14
SETUP
1.) When you receive your new ROTO-PRESS from the factory, it is not immediately necessary
to check the machine for bearing lubrication, or chain tightness as these items have been fac-
tory serviced. It is recommended to walk around the machine and familiarize yourself with the
location of all moving parts, caution decals, the general operating dimensions, and the basic
working features of the ROTO-PRESS.
CAUTION! BEFORE OPERATING THIS MACHINE, READ AND
UNDERSTAND THIS OWNER’S MANUAL AND ALL CAUTION, WARNING AND
DANGER SYMBOLS LOCATED ON THE MACHINE AND IN THIS MANUAL.
2.) All lubrication has been completed at the factory prior to delivery, and will not be imme-
diately necessary. The oil bath has been lled to the proper level. Take note that the oil does
not run any higher than approximately halfway up the very lowest part of the drive chain. All
bearings should be greased according to the enclosed lubrication schedule.
IMPORTANT! DO NOT OVER GREASE BEARINGS, SEAL FAILURE AND
SUBSEQUENT PREMATURE BEARING FAILURE COULD RESULT.
OPERATION
CAUTION! BEFORE ATTEMPTING TO RUN THE ROTO-PRESS CHECK THE
AUGER CHAMBER FOR FOREIGN MATERIAL. MAKE SURE THAT All
SHIELDS ARE IN PLACE, AND THAT ALL SAFETY DECALS ARE
UNOBSTRUCTED.
1.) Pick a tractor large enough for your application. Too big is better than too small. Hay or
cracking requires 130 hp. Ground ear corn or snaplage requires 115 hp. Shell corn requires 80
hp. Fuel tank on tractor should be full before starting. Hook up the tractor to the bagger.
2.) Before you begin to set-up the ROTO-PRESS, pick a suitable location for the bag(s). The
location should be well drained, smooth, fairly solid; long enough for the size bags you are
using and easily accessible for both lling and unloading. Check the length and remember
that the tractor and bagger take approximately 40-50 feet extra. Also, a slight uphill incline
is preferred; however, you should not be on a side hill. If there is a choice of bagging uphill or
downhill, always bag uphill. Remember that these are only recommendations, it can be done
almost anywhere.
READ CAREFULLY
USING YOUR ROTO-PRESS

Page # 15
3.) Position the ROTO-PRESS in a straight line with the tractor in the direction that you want
to bag, making sure that the wheels of the tractor are pointed straightforward. See Figure
1. Keep checking the tractor wheels while lling the bag, making sure they are straight at all
times. Many people will grab the steering wheel when getting out of the cab. Try not to do
this. Also, when positioning the tractor and bagger, leave enough room to put the bag on. This
requires 10 to 15 feet.
TRANSPORT LIGHTING
1.) When you receive your ROTO-PRESS, the transport lighting should be in the open position.
This means that the lights are visible from the rear of the machine. Once you have positioned
the machine for bagging, you must change the lights.
From the front of the machine, located behind the wheels is where you will nd the light
assembly. Pull the pin holding the light assembly and pull the assembly toward you until it
bumps against the stop. Replace the pin back into the additional hole in the light assembly
bracket to hold the light assembly in the closed position.
2.) Before transporting the machine to a new location, reverse the process as described
above. It is very important to reposition the lights each time the machine is transported.

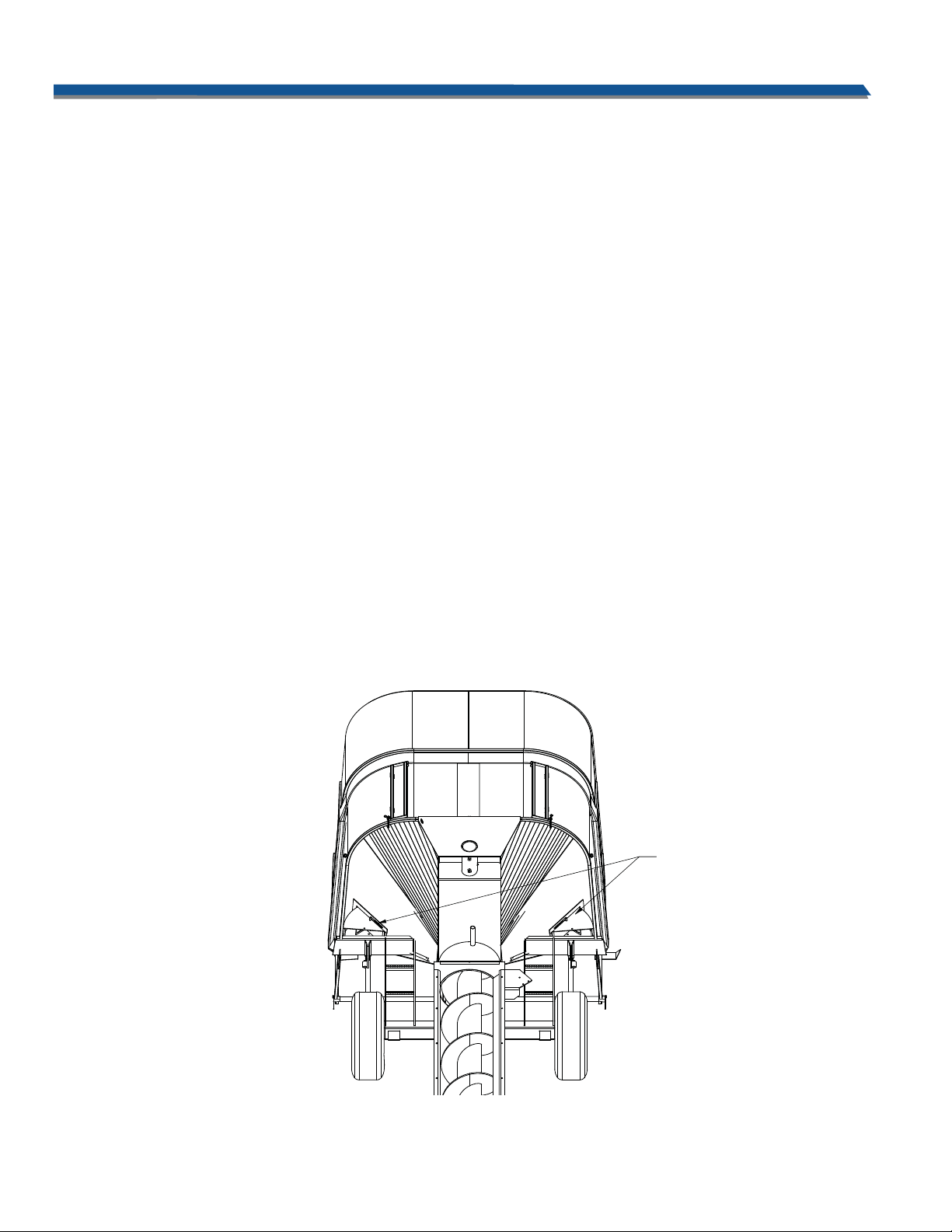

LIGHT ASSEMBLIES
USING YOUR ROTO-PRESS

Page # 16
BAG INSTALLATION
1.) Disconnect the yellow rope with hooks from the bagger’s front shroud. Lower the bag apron
to the ground by using the jack located on the right side of the machin
Figure 1-2
WARNING! ALL WORK TO INSTALL THE BAG SHOULD BE
DONE FROM THE GROUND & BY STEPPING ONLY ON
THE AXLE. DO NOT CLIMB ON THE ROTO-PRESS.
CLIMBING ON UNIT MAY RESULT
IN INJURY OR DEATH FROM A FALL.
2.) Winch the trolley\bag lift (if so equipped), pulling it along on both sides while standing on
the ground and lower to approximately 3’ o the ground. (Figures 1 & 2) Note: 3 or more people
should be present at this point.
3.) Position the box containing the proper size bag for your bagger behind the bag lift. Making
sure the arrow is toward the machine. Cut the straps around the box and remove the top por-
tion, discard the top half. Unfold the remaining box aps. Remove the two (2) blue straps that are
holding the bag together. Leave the rest alone for now. Make sure the black side is toward the
machine. Having one person on each side of the bag, take a ap, lift and lay the top half out and
pull the bottom half out so the bag lays at. Two (2) people should put their arms between the
top aps, put the bag around the bag lift. (Figure 3) Remember to position the bag so the bars
and lettering used to measure the stretch of bag are easily reached (approximately 3’to 4’ from
ground).
4.) Using the two (2) blue straps cut earlier, lift and place around bottom position of the bag.
Slide the cardboard so that the aps will just go up onto the apron. (Figure 3) Then slide the bag
onto the bag apron. Raise the bag lift and roll it forward all the way to the front, sliding the bot-
tom of the bag along onto the bag apron. Slide the cardboard just o of the apron.
%$*$3521
%$*$3521-$&.
5,*+76,'(9,(:
:,7+7,5($1'%5$.(
5(029(')25&/$5,,7<
USING YOUR ROTO-PRESS

Page # 17
READ complete manual CAREFULLY
Bag Installation Instructions

Page # 18
5.) Put the bag around and under bottom of the shroud. And be sure to put the bag on so
that the bottom bag folds come o rst. Then winch the bag lift up and move trolley\bag lift
back over shroud. (Figure 4)
Caution: Do not over tighten bag lift cable as to bow bag lift ends. Be careful not to
pinch the bag.
ROPE
BUNGEE CORD
6.) Being careful not to cut the bag, cut the remaining straps and remove them. Carefully
pull the inside layer of the bag o. A gentle tugging action works well. Make sure you don’t
pull the rest of the bag o the bag lift. Pull the bag o to 6 feet behind the machine. With
one person on each side, pull the main part of the bag out and forward on the apron. This
will get the wrinkles out and avoid getting the bag caught between the bag apron and the
machine.
7.) Raise the bag apron up. Put the bungee cord over the bag just behind the main bag yet
ahead of the tube. Place ropes with the bottom side of the bag apron and the hook into the
holes in the front tube (keep the hook to the outside so it does not catch on the bag) about
half way up to begin. (Figure 6) Do the same on both sides. The cord must be tight and
go on the front side of the apron. This is very important. Tie the ropes on the bungee cord
forward to their appropriate hook.
8.) Now to close the bag, pull enough o of the shroud so that you can close o the one
end. Pull a little more o of the bottom to start out. It is important not to allow wrinkles
and to keep the bag fold lines straight. Take the opening of the bag and fold in both sides
to form a pleat. Also requires the use of (2) 10’2 x 4’s. (Figure 3) Place the blank board on
top and roll the bag around it four (4) times. Place the pre-nailed board on top to sandwich
the plastic and nail them together.
USING YOUR ROTO-PRESS

Page # 19
9.) Let the boards hang down or prop them up against a bale or by backing a truck, tractor or
skidloader to act as a back stop to hold them securely for the rst three loads. This is to com-
pensate for the bag coming o the top later. Check that the apron is just loose enough to let
o one fold at a time. Also check for tearing at the bottom. If this occurs loosen the bungee
cord and tape the tear.
10.) Read directions and information sheet in the bag box completely. Measure for proper
stretching of the bag. The ROTO-PRESS does have the ability to over stretch and burst the bag.
WARNING! DO NOT STAND UNDERNEATH THE CONVEYOR
WHILE IT IS BEING LET DOWN.
11.) Let the conveyor down. This is done by raising the conveyor up and pulling down on the
safety, if so equipped. Lower down to just o the ground, or to the desired height. Make sure
the conveyor never comes in contact with the ground. Flip the hopper end chute over into
its operating position. Hook up the tractor hydraulics, and check the belt rotation to make
sure the belt is moving in the right direction. If available, adjust the tractor hydraulic ow to
as slow as possible, and then adjust the ROTO-PRESS ow control to the desired speed. This
will decrease the amount of heat created by pushing the excess oil over the bypass of the ow
control.
12.) The ROTO-PRESS conveyor is equipped with a safety stop bar located across the width of
the conveyor, and is easily accessible from either side. Pulling the safety bar down will instant-
ly shut the conveyor o. Pushing it up will resume operation. Always check the operation of
the safety stop bar before beginning to ll the bag.
13.) Auger units need to be mounted at this time using a loader and a chain to raise the au-
ger up.
USING YOUR ROTO-PRESS

Page # 20
14.) To set the brakes on the ROTO-PRESS, remove the keeper pin on top of the brake assembly.
Take the brake handle\wrench and insert into the tube and then pull down. Tension is adjusted by
using brake\wrench handle on center portion of turnbuckle and turning, or (older units) turning
the nut located on the threaded portion of the connecting rod.
ATTENTION! DO NOT SET THE BRAKES ON THE ROTO-PRESS SO TIGHT THAT IT CAUSES THE BAG TO
SLIDE ON THE GROUND, THIS WILL TEAR THE BAG! SET THE BRAKES ON THE BAGGER LIGHTLY FOR
THE FIRST THREE LOADS!
Adjust the ROTO-PRESS brakes as necessary after the rst three loads.
15.) Start the tractor and place it in neutral, but not in park!. This is very important! Run at PTO
speed. Lock in the hydraulic lever to run the conveyor.
BAG FILLING
1.) The bag lls in direct relationship to the machine lling it. Watch the bag and the folds
as they come o of the cone, as they must come o evenly. If either the top or bottom gets
ahead, then pull o whatever is necessary to straighten them out, or it will only continue to get
worse. The unfolding bag must be regularly checked, because with certain conditions such as
temperature, bag apron position, or improper bungee cord tension the bag may come o two
or more folds at a time. If the bag is regularly checked this will not be a problem as the extra fold
can be retucked into place. If not regularly watched, the whole bag could come o the end
of the bagger.
2.) Start lling. As the bag is lling, pull the bag toward the rear to avoid wrinkles on the
ground. It may be necessary to adjust the position of the bag pan and bungee cord, after some of
the bag has come o.
3.) An overow door placed just behind the conveyor tells you if you need to slow the conveyor
down. On the front side of the conveyor is a ow control to regulate the speed of the conveyor.
On roller mill units, adjust the slide control on the top so that the corn is getting to the entire
roller. It should be mounded up just a little to make this happen.
On auger units, do not overll the hopper. If it is full at the tube opening, that is good enough.
USING YOUR ROTO-PRESS
