SAEVO BIO FREE 6L User manual

2
PRESENTATION OF MANUAL
INSTRUCTIONS FOR USE
CAUTION
Technical Name: Ultrasound Instrument Cleaning Device
Trade Name: Ultrasonic Cleaner
Model: Bio Free 6L
Brand: Saevo
Manufacturer / Distribuitor:
Alliage S/A Indústrias Médico Odontológica
Rodovia Abrão Assed, Km 53 + 450m - CEP 14097-500
Ribeirão Preto - SP - Brasil
Tel: [phone]
Technical Duties: Daniel R. de Camargo
CREA-SP: 5062199650
Registration ANVISA nº: 10069210083
For improved safety:
Read and understand all the instructions contained in the Instructions for Use before installation
or operation of this equipment.
Note: The Instructions for Use must be read by all persons that operate this equipment.
77000001227 - Rev.: 02 - October/21
Document originally written in Portuguese.

3
INDEX
02 PRESENTATION OF MANUAL
04 IDENTIFICATION OF EQUIPMENT
04 Indication of Equipment
05 Description of Equipment
06 MODULES, ACCESSORIES, OPTIONS AND MATERIALS OF CONSUMPTION
07 APPLICATIONS
08 TECHNICAL SPECIFICATIONS
08 General features
10 Symbology
12 EQUIPMENT OPERATION
19 PRECAUTIONS, RESTRICTIONS AND WARNINGS
20 Recommendations for preserving the equipment
20 Transportation, storage and operation
20 Sensitivity to predictable environmental conditions in ordinary situations of use
20 Precaution and warnings “during the installation” of the equipment
21 Precautions and warnings “during the use” of equipment
21 Precautions and warnings “after” the use of equipment
21 Precautions and warnings during the “cleaning and disinfection” of equipment
22 Precautions in case of alteration in the functioning of equipment
22 Precautions to be adopted against foreseeable or uncommon risks, related to the deactivation
and abandoning of equipment
22 CORRECTIVE AND PREVENTIVE MAINTENANCE AND PRESERVATION
22 Additional procedures for reuse
22 Cleaning
22 Disinfection
23 Preventive Maintenance
23 Corrective Maintenance
24 UNFORESEEN EVENTS – SOLUTION OF PROBLEMS
24 EQUIPMENT’S WARRANTY
24 FINAL CONSIDERATIONS

4
IDENTIFICATION OF EQUIPMENT
Dear Customer
This manual is a general presentation of your product and it will give you important details to help
you to solve possible problems.
Please, read it and keep this with you.
Indication of Equipment
Medical, dental and laboratory instruments and supplies cleaning "removal of blood and small
particles on the instruments prior to disinfection". It should be used and handled by qualied
person (professional properly regulated, according to local legislation of the country) following
the instructions contained herein.
It is the user's obligation to use only the equipment in perfect conditions and protect himself/
herself, patients and others from possible dangers.
This equipment performs the cleaning of instruments and does not perform disinfection
and/or sterilization processes.

5
Principles and fundamentals applied to the product functioning
Cleaning occurs by cavitation, reaching uniformly throughout the material to be clean, even in
hard to reach places.
This occurs through an ultrasonic vibration generator, where a eld test is subjected to a vibration
in high frequency when immersed in liquid solution.
The vibration generates a negative pressure causing the emergence of micro bubbles in the liquid
and a positive pressure providing the collapse of these bubbles on the surface of the proof body
forming micro jets that are responsible for erosion and cleaning eect.
Description of Equipment
Ultrasound equipment for cleaning medical and dental instruments and accessories composed of:
Injected body in ABS;
Control panel with digital display;
Transparent and removable viewer cover,
Tank made of stainless steel bowl and plastic basket;
Ultrasonic vibration generators;
Power cord.
IDENTIFICATION OF EQUIPMENT

6

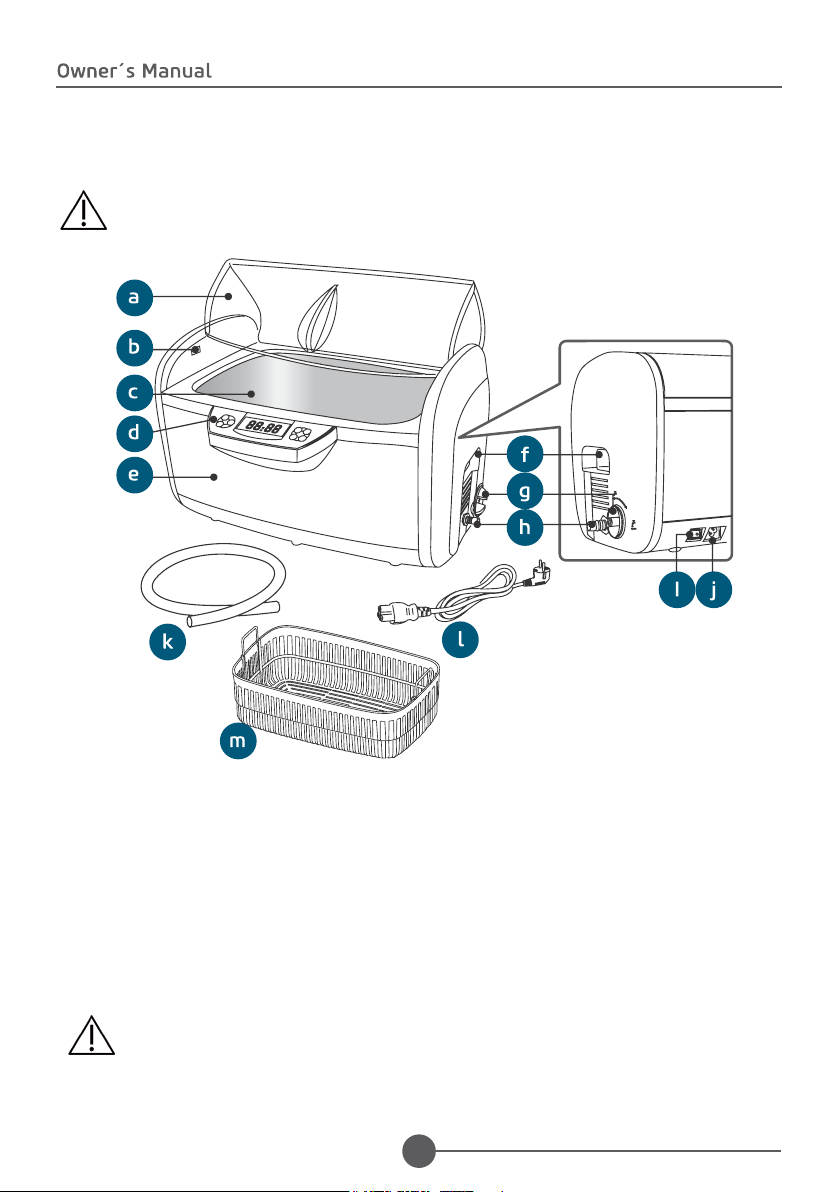

A - Cover
B - LED Lights
C - Stainless steel bowl
D - Control Panel
E - Cleaner Body
F - Handles
G - Drain Valve
H - Drain tube
I - Power Switch
J - Power cord input
K - Hose
L - Input power cord
M - Plastic basket
MODULES, ACCESSORIES, OPTIONS AND MATERIALS OF CON-
SUMPTION
The content of this page is for information purposes, and the equipment can be shown
dierent. So, when purchasing, check the technical compatibility between the equipment,
couplings and accessories.
Attention
- The use of any part, accessory or material not specied or provided in these use
instructions is of entire responsibility of the user.

7
APPLICATIONS
Application examples
Debris left in small holes and cracks are dicult to clean, where bacteria and fungi can develop.
Use ultrasonic cleaning to deep clean items prior to disinfection.
Articles that use PCBs
PCBs cell phones, MP4, ink
cartridges, etc.
Precision parts
Bearings, gears, valves, fuel
injectors, etc.
Personal items
Glasses and sunglasses.
Laboratory articles
Test tubes, beakers, bottles,
etc.
Medical / dental
instruments
Surgical instruments, pliers,
drills, hand pieces, etc.
Mild jewelry, pearls, emeralds, ivory, coral, agate, tortoise shells, etc.
These objects have little strength, and scratches may occur during the cleaning.
Welded items, chromed and pasted:
Weld metal, galvanized metal, connections.
The ultrasonic cleaner can increase the spacing of welds, plated or glued items, and can cause
separation.
Other: Glassware, ceramics, lters, preexisting cracks.
The ultrasonic cleaner can increase the preexisting cracks in the coating of glasses and ceramics.
If the items do not have preexisting cracks, so there is no problem.
Items not suitable for ultrasonic cleaner

8
Cleaning Tank
Tank capacity 6000 ml
Two industrial ultrasonic transducers
More even distribution of sound waves, deep cleaning and high durability
Two-color LED display
Clock with a range from 10 to 30 minutes, ve temperature settings, operating status indicators
Two ceramic heaters
Modern, safe, ecient and durable
Independent control circuits for each ultrasonic transducer
High eciency, not susceptible to interference
Multiple circuits protectors
When overloaded or misused, the guards stop the power supply protecting the equipment
Cooling fan
Improves heat dissipation and benets continuous operations
Degassing feature
Dissolves the solution quickly
Drain Valve
Easy to empty
Model
Bio Free Ultrasonic Cleaner 6L
Electric shock protection
Class one equipment
Operating Mode
Not continuous ("ON") 45 minutes. ("OFF") 20 minutes.
Power Supply
127 or 220 V~
Frequency
50/60 Hz
General
TECHNICAL SPECIFICATIONS
Technical specications of the product and its accessories
Features:

9
TECHNICAL SPECIFICATIONS
Number of stages
Monophasic / Biphasic
Power
310W (220V) / 290W (127V)
Ultrasonic Frequency
35.000Hz
Tank capacity
6000 ml
Tank Dimensions
32,3 x 20,5 x 9,9 cm
Longer object allowed in the tank
34 cm
Digital clock setting
Clock with 1-30 minute interval
Tank material
Stainless Steel
Temperature settings
40ºC - 45ºC - 50ºC - 55ºC - 60ºC
Body Material (housing)
ABS
Net weight
5,4 kg
Gross weight
6,8 kg
Unit Dimensions
43,8 x 30 x 35 cm
Packaging dimensions
50,5 x 36,0 x 32,4 cm
Pay attention while using this equipment together with other movable equipment, in order
to avoid collisions.
The materials used to produce the equipment are Biocompatible.

10
TECHNICAL SPECIFICATIONS
SYMBOLOGY
The following symbols are used both throughout this manual and on the product. Make sure you
fully understand each symbol and follow the instructions that come with it.
Fragile, handle with care Maximum stacking
Protect from rain Temperature limit
This side Up Protect from sunlight
Attention General warning
Protective ground wire Catalog number
Model number Model
Serial number Manufacturer
Manufacturing date Follow the instructions for use

11
TECHNICAL SPECIFICATIONS
Quick clock setting button Function button - Functions
(Degassing/Normal)
Digital display Degassing status
Normal cleaning status Heater status
Clock quick setup button Time setting button
Heater power button Temperature setting button
Indicator Light - Working Status On/O button

12
1. Indicator light – Working status
Green - Normal operating status, ready for use.
Red - Under the protection of overheating, it takes 15 minutes of waiting for the light changes from
red to green. The operation can be resumed later.
2. On/O button – on/o switch on the unit
After turning on, the LED display, with standard time , and the unit will be ready and with
normal operating status.
Press the On/O button once to start the operation of the machine. Cleaning stops when the
countdown stops . If the device needs to be stopped before the time runs out, press the
On/O button.
3. Function button - Functions (Degassing/Normal)

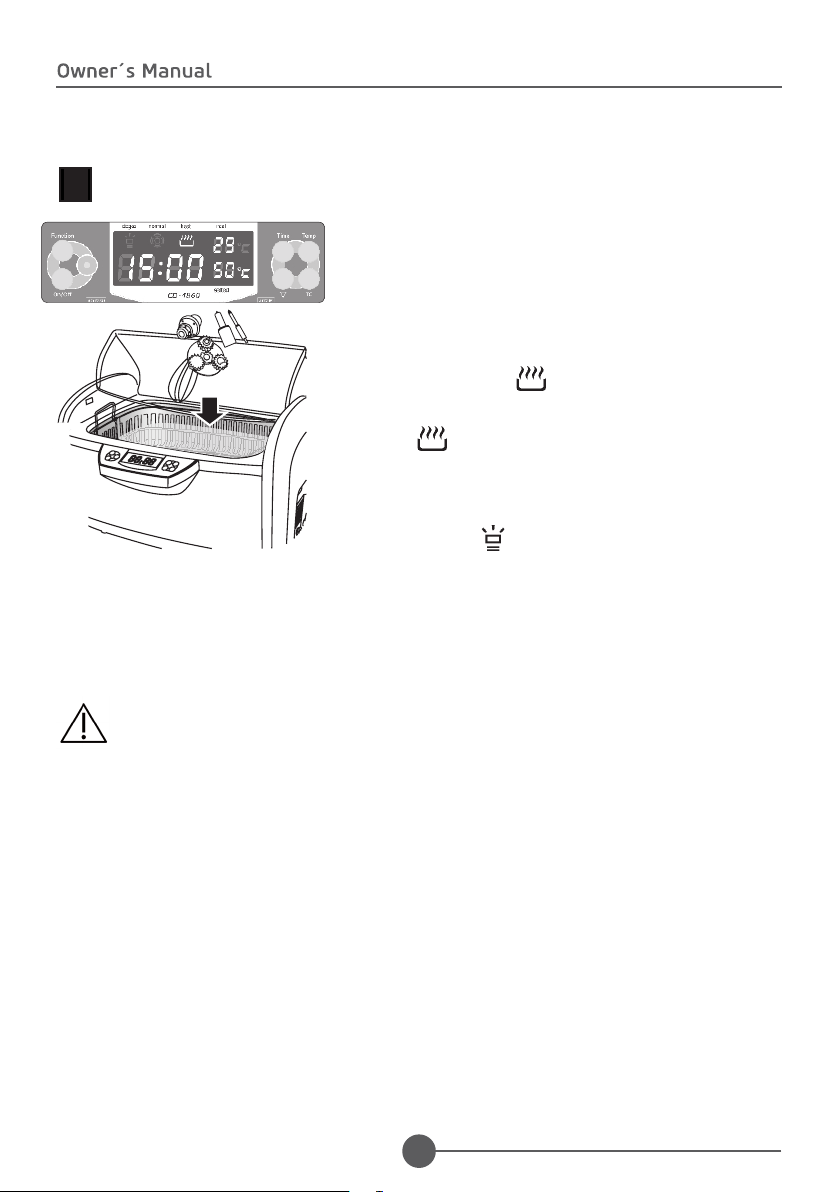

Press the Function Button (03), , it lights up, indicating that the degassing function has been
selected. Press the On/O button to start the degassing function . It illuminates for about 2
minutes, then the unit will return to the normal cleaning function (05). Pressing the On/O button
before the end will cause the degassing to be interrupted. If you need additional degassing, press
the Function Button again (03), .
Degassing
The newly added water can generate many air bubbles on the walls of the tank. This circumstance
reduces the eect of cleaning in the early phase of the ultrasonic cleaning.
Turning on the degassing function dissipates the droplets and bubbles of air, improving the eciency
of cleaning (approximate time, 2 minutes).
4. Degassing status
Illuminated , the degassing function is selected. — Blinking, the degassing is in progress.
EQUIPMENT OPERATION
Control panel and operations

13
5. Normal cleaning status
- Illuminated, normal cleaning is in progress.
6. Heater status
Press the TC button, it ashes , indicating that the heater is on. Press the TC button again, it
turns o , indicating that the heater is o.
7. Water temperature display
Displays actual water temperature in the tank.
8. Operating time display.
It counts down, after the work is started.
9. Water temperature display (conguration).
Press the "Temp" button to select one of ve temperature settings.
10. TIME button (conguration). Clock quick setup button.
Press the TIME button, the LED displays . Press the button again to set the clock. Each
time pressed, the button adds 5 minutes.
11. Button - Clock decrease button
Each time pressed, reduces the clock in 1 minute.
12. CT Button – Heater button
Press the TC button, when ashing , i, indicates that the heater is on. To cancel the heat, press
TC again, it turns o indicating that the heater is o.
13. TEMP button - Temperature adjustment button
5 Temperature settings can be selected. The standard temperature is 40°C. Press the "TEMP" button
to select the temperature in the following sequence:
When the water temperature reaches 60°C, the system turns o automatically.
Attention
EQUIPMENT OPERATION

14
Cleaning methods
Indirect clearing
Regular cleaning Appropriate places: Optical stores, laboratories chemical
and dental clinics.
Cleaning methods:
1. Add water to the cleaning tank to a level between the
lines "MIN" and "MAX" and above the object.
2. Place the objects to be cleaned inside the basket and
place the basket inside the tank.
3. Turn the main switch on. Press the TIME button to set the
clock between 5 and 10 minutes.
Press the On/O button once to start the cleaning.
Notes on the use of the basket:
1. The basket reduces friction between the objects and the
tank, but absorbs about 30% of ultrasonic energy reducing
the cleaning eect.
2. A metal basket absorbs less ultrasonic energy (about 8%).
Use tap water, chemical solutions are unnecessary in most
cases.
Place objects in a separate container. Use ultrasonic waves
to penetrate the container and to clean.
Appropriate places: Print shops, dental clinics, technical
assistance of mobile phones and electronics.
Dierent industries use dierent uids to be used inside the
containers:
1. Sterilization of medical instruments - Special Solution
(cleaning before sterilization).
2. Precision parts - Hexane (to dissolve fat to evaporate
quickly).
3. Technical assistance for mobile phones and electronics -
pure alcohol (to evaporate quickly).
4. Print shops - Acetone is often used (for dissolvingthe paint).
Do not allow contact between acetone and the plastic parts
of the equipment to avoid corrosion.
Use indirect clean and a glass or metal container for acetone.
We inform that the Bio Free Ultrasonic Washing Machines present outstanding results when
it is used only water in the cleaning process, however, in case any customer wishes to use
enzymatic detergents during the process there is no contraindication of it.
This model is equipped with a large tank. When cleaning small objects, the method of
"indirect cleaning" can be used with satisfactory results. Ultrassonic cleaners can also
do the job.
Attention
1
2
EQUIPMENT OPERATION

15
Cleaning methods:
1. Place the object inside a container. Add the proper uid to submerge the object.
2. Place the container directly into the tank. Add water to a level between MIN and MAX, without
covering the container.
3. Press the TIME button to set the clock to 10 minutes. Press the On/O button once to start
cleaning. The ultrasonic waves will penetrate the container and clean the object.
Choose the container:
1. Plastic packaging - plastics are soft, and absorb about 30% of ultrasonic energy reducing the
eect of ultrasonic cleaning.
2. Aluminum containers - absorb about 20% of ultrasonic energy.
3. Stainless steel containers - absorb about 8% of ultrasonic energy.
5. When it stops, open the drain valve to release the dirty water. Close the valve later.
6. Clean the tank and replace the water. Wash objects for more 3 minutes to remove residual debris
and detergent.
Advanced cleaning
3Debris accumulated over a long period of time, very dirty
or greasy objects.
Appropriate places: Automotive repair and hardware
manufacturers stores.
Cleaning methods:
1. Large objects can be placed directly into the tank. Small
objects can be placed in the basket and then into the tank.
Do not place objects on each other, to avoid friction during
cleaning.
2. Add water to a level between MIN and MAX and above
the objects.
3. Turn the main switch on. Press the TEMP button to set
the temperature of the water to 45ºC.
Press TC to turn on the heater, it ashes. Close the lid.
The LED display shows the actual temperature of water.
When the water reaches the set temperature, it turns
o indicating that the device is o.
4. Press the TIME button to set the clock to 10 minutes.
Press the On/O button once to start cleaning. The fat
will be dissipated and appears to be something as a black
smoke on the water.
EQUIPMENT OPERATION

16
Special cleaning
4Objects made of silver, copper or brass darkened by
oxidation need special cleaning.
Appropriate places: Manufacturers of products made of
copper, silver or bronze.
Cleaning methods:
1. Place the objects in the basket and then in the tank; add
water to a level between MIN and MAX above the objects.
2. Turn the main switch on. Press the TEMP button to set
the temperature of the water to 50ºC. Press the TC button
to turn on the heater, it blinks.
Close the lid. The LED display shows the actual temperature
of water. When the water reaches the set temperature, it
turns o o indicating that the device is o.
The heater has dual protection. It will be disconnected
automatically after 50 minutes.
3. Press the TIME button to set 15 minutes for the clock.
4. Press the function button to select the degassing function.
The button lights . Press the On/O button to start the
degassing. After 2 minutes the device switches the mode
for normal cleaning automatically.
5. When cleaning is complete, remove the basket and objects. If there are many objects and some
debris remaining, add 5 minutes and repeat the cleaning.
6. Follow steps 5 and 6 in the advanced cleaning section to drain the dirty water, add clean water,
wash objects for more 3 minutes to remove the residual chemicals.
During cleaning the debris separate from the objects as "smoke”. The water becomes
blurred. This method will remove the rust and will cause objects to appear as new.
Attention
EQUIPMENT OPERATION

17
Operating guidelines
1
2
3
Open the lid, as shown, place the objects in the basket and
then place them in the cleaning tank. Add water to a level
between “MIN” and “MAX” and above the objects.
If the device is switched on without water, the ultrasonic
energy will not be absorbed. After more than15 seconds,
this procedure can damage the device or drastically
reduce its lifetime.
The extension of the cleaning period can result in:
a. Loosening the screws (if used).
b. Increased preexisting cracks.
c. Peeling on the lining of the object.
Press the On/O button once to start the cleaning.
During cleaning, the two blue LEDs from the unit will light,
a humming can be heard coming from the cleaning tank,
indicating that cleaning is in progress.
Closing the lid will reduce the noise level.
The LED display will count down, showing the remaining
cleaning time. When the display reads 0:00, the cleanup is
complete. To interrupt the cleaning at any time, press the
On/O button.
Connect the power cord into a power outlet and turn the
switch on. The LED display shows .
This is the most common conguration of the clock and or
operating status. If the clock needs to be adjusted, press the
TIME button . (As required) The clock can be set between
1 and 30 minutes.
The periods of common cleaning are 5, 10 and 15 minutes.
The unit is designed with overheating protection, to avoid extended and continuous
operation for long time. When the red light is on, the device cannot be activated, even if
it is forced to do so. The unit remain idle for about 20 minutes and can be restarted after
the green light illuminates.
Attention
EQUIPMENT OPERATION

18
4
5
Select one of four cleaning methods previously
recommended.
a. When the heater is needed, press the TEMP button to
select one of ve preset temperature settings.
Press the TC button, it will ash , indicating that
the heater is on. The LED display shows the actual
temperature of water. When the water reaches the set
temperature, it turns o , indicating that the heater
is o.
To ensure safety, the unit is designed with double
protection.
The heater will automatically shut down if running for
50 minutes.
When cleaning is complete, disconnect the power cord,
open the cover and remove the basket and objects.
Connect the hose to the drain pipe, as previously
recommended.
- Open the drain valve to drain the dirty water.
- Clean and dry the tank.
- Close the drain valve.
b. The degassing function can be used. Press the TIME button to set the clock to 10 minutes, and
then press the function button, it will light up . Press the On/O button to start degassing. The
device switches to the normal cleaning mode after 2 minutes.
c. When the "smoke" of the waste is no longer visible, the cleanup is complete. If further cleaning
is required, set the clock again and repeat the above steps.
EQUIPMENT OPERATION

19
19
PRECAUÇÕES, RESTRIÇÕES E ADVERTÊNCIAS
Não ligue o aparelho sem que haja água no tanque.
Mesmo que a unidade tenha sido projetada com múltiplas
proteções, se ela estiver ligada há mais de 15 segundos sem água
no tanque, isso poderá danicá-la ou reduzir drasticamente a sua
vida útil.
Não deixe a unidade em funcionamento por tempo prolongado ou
de forma contínua.
A unidade foi projetada com proteção contra superaquecimento.
Se a unidade tiver sido executada por 45 minutos, recomenda-se
a sua interrupção por aproximadamente 20 minutos.

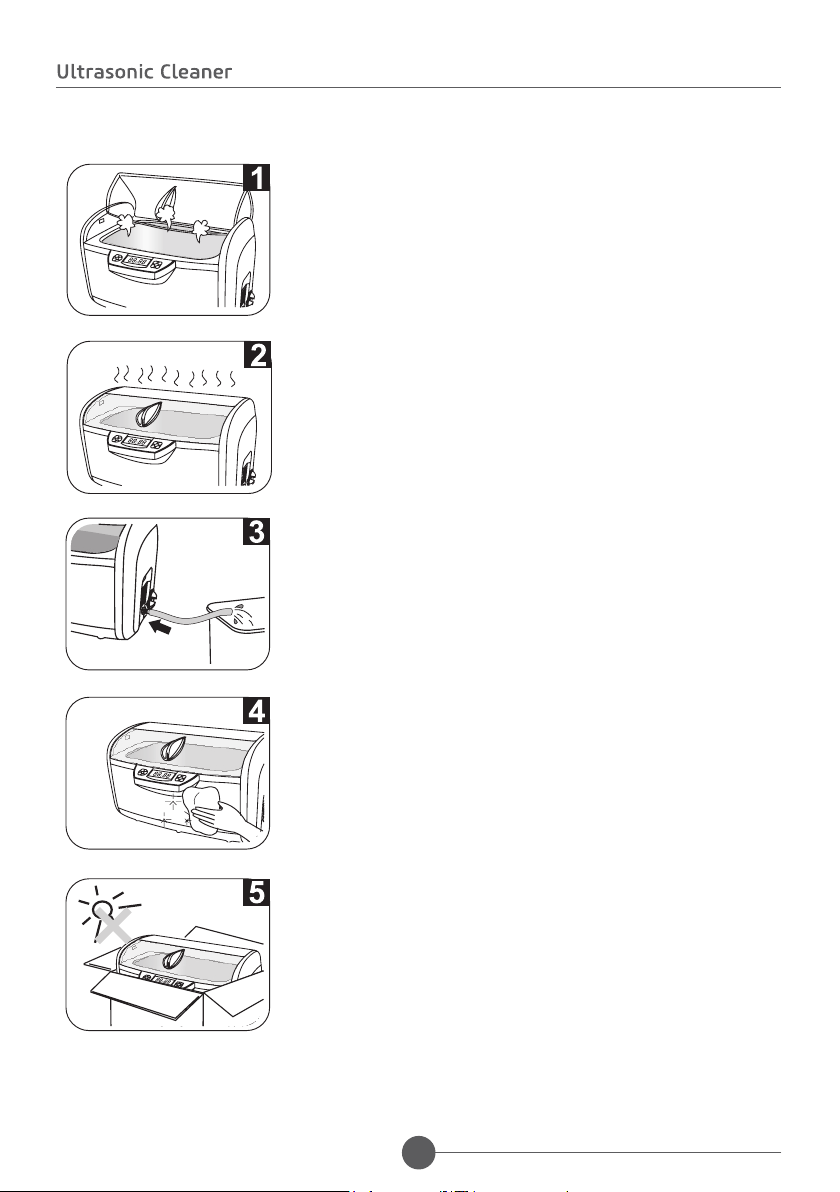

Não mantenha água no tanque de limpeza por tempo prolongado.
Após a limpeza ter sido concluída, abra a válvula de drenagem
para escoar a água suja. Limpe e seque o tanque.
Não borrife água sobre o equipamento.
Use uma toalha para secar o tanque e o corpo do equipamento.
Não exponha o aparelho à luminosidade solar direta por um longo
período.
Mantenha o aparelho em local seco, fresco e ventilado.
PRECAUTIONS, RESTRICTIONS AND WARNINGS
Do not connect the device without water in the tank.
Even if the unit has been designed with multiple protections, if it
is turned on for more than 15 seconds without water in the tank, it
could damage it or reduce dramatically its lifetime.
Do not leave the unit in operation for long time or continuously.
The unit is designed to protect against overheating. If the unit
has been running for 45 minutes, it is recommended to stop it for
about 20 minutes.
Do not keep water in the cleaning tank for long time.
After cleaning is nished, open the drain valve to drain the dirty
water. Clean and dry the tank.
Do not spray water on the equipment.
Use a towel to dry the tank and the equipment body.
Do not expose the device to direct sun light for a long period.
Keep the unit in a dry, cool and ventilated place.

20
Recommendations for preserving the equipment
Your equipment has been designed and developed according to the standards of modern techology.
Similarly to other kinds of equipment, it requires special care, which is many times neglected due
to several reasons and circunstances. Therefore, here are some important reminders for your daily
routine. Try to follow these simple rules, which will save you a lot of time and will avoid unnecessary
expenses once they start making part of your working procedure.
PRECAUTIONS, RESTRICTIONS AND WARNINGS
Transportation, storage and operation
This equipment must be transported and stored observing the following directions:
- Avoid falls and impacts;
- Keep it dry, do not expose it to rain, water drops or wet oor;
- Keep it away from water and direct sunlight, and in it original wrapping;
- Don’t move it over irregular surfaces, protect it from rain and observe the maximum stack quantity
specied in the packaging;
Environmental condition for transportation or storage:
- Room temperature range for transportation or storage -29ºC to +60ºC.
- Relative humidity range for transportation or storage 20% to 90%.
- Atmospheric pressure range 500hPa to 1060 hPa (375 mmHg to 795 mmHg).
Environmental operation condition:
- Room temperature range for functioning +10ºC to +40ºC.
- Recommended room temperature range +21ºC to +26ºC.
- Relative humidity range for functioning 30% to 75%.
- Atmospheric pressure range 700 hPa to 1060 hPa (525 mmHg to 795 mmHg).
- Operation altitude: ≤2000m.
Attention
The Equipment maintains its condition of safety and ecacy, provided that it is maintained (stored)
as mentioned in this instruction of use. Thus, the equipment will not lose or alter its physical and
dimensional features.
Sensibility to predictable environmental conditions in regular use conditions
- The equipment has been planned not to be sensitive to interference such as magnetic elds,
external electrical factors, electrostatic discharge, pressure or variance of pressure, provided that
the equipment is installed, maintained, clean, preserved, transported and operated as per this
instruction for use.
Precaution and warnings “during the installation” of the equipment
- Make sure that the voltage of the equipment is in accordance with the local network (127 or 220V).
- Position the equipment in a place where it will not get wet.
- Install the equipment in a place where it will not be damaged by pressure, temperature, humidity,
direct sunlight, dust, salts, or sulfur compounds.
- The unit should not be submitted to inclination, excessive vibrations, or blows (including during
transportation and handling).
- This equipment was not planned for use in an environment where vapors, anesthetic mixtures in
ammable with air, or oxygen and nitrous oxide can be detected.
- Before the rst use and/or after long interruptions from work such as vacations, clean and disinfect
the equipment.
