C8Q2PD Forward-facing Bracket
Quick Installation Guide
For use with camera model C8Q2PD03AF.
Installation
You can mount the bracket/camera from
above or below (inverted). Some mounting
surfaces may require reinforcement to
minimize camera vibration. In such cases,
place a tapping plate behind the mounting
surface.
Kit Components
Check components for visible damage. If any
parts are damaged or missing, contact the Safe
Fleet Service team and request an RMA (Return
Material Authorization).
• Mounting bracket (MVC-9100-FF-BRKT)
• Bracket set-screw kit (020-1080)
•
(600-1033)
•
• Bracket adapter plate (660-1098)*
•
mounting screws (600-1030)*
•
mounting screws (600-1031)*
*Shipped with C8Q2PD03AF camera
Introduction
Read these instructions before installing this
product. A qualied service person, complying
with all applicable codes, should perform the
installation.
To use this document, you must have the
• Basic knowledge of electronic surveillance
systems and components
• Familiarity with electrical wiring and low
voltage electrical hookups
Support
• 1.844.899.7366
• PTsupport@safeeet.net
Service
If your bracket is to be returned for service, please call toll free 1.877.630.7366, or 1.844.899.7366,
and provide the model and/or serial# of your unit.
Ask for a Return Merchandise Authorization (RMA) number. An RMA# allows the Service
Technicians to better track your product when it comes in for service. Please show the RMA# on
the outside of the package. ANY PRODUCT SENT WITHOUT AN RMA# MAY BE REFUSED.
Documentation
Additional copies of this guide, along with other supporting
• https://community.safeeet.net
Warranty
www.seon.com/documents/Seon-Warranty.pdf
municipal waste in the European Union. For proper recycling, return the product to
your local supplier upon the purchase of equivalent new equipment, or dispose of it at
designated collection points, for more information, see www.recyclethis.info.

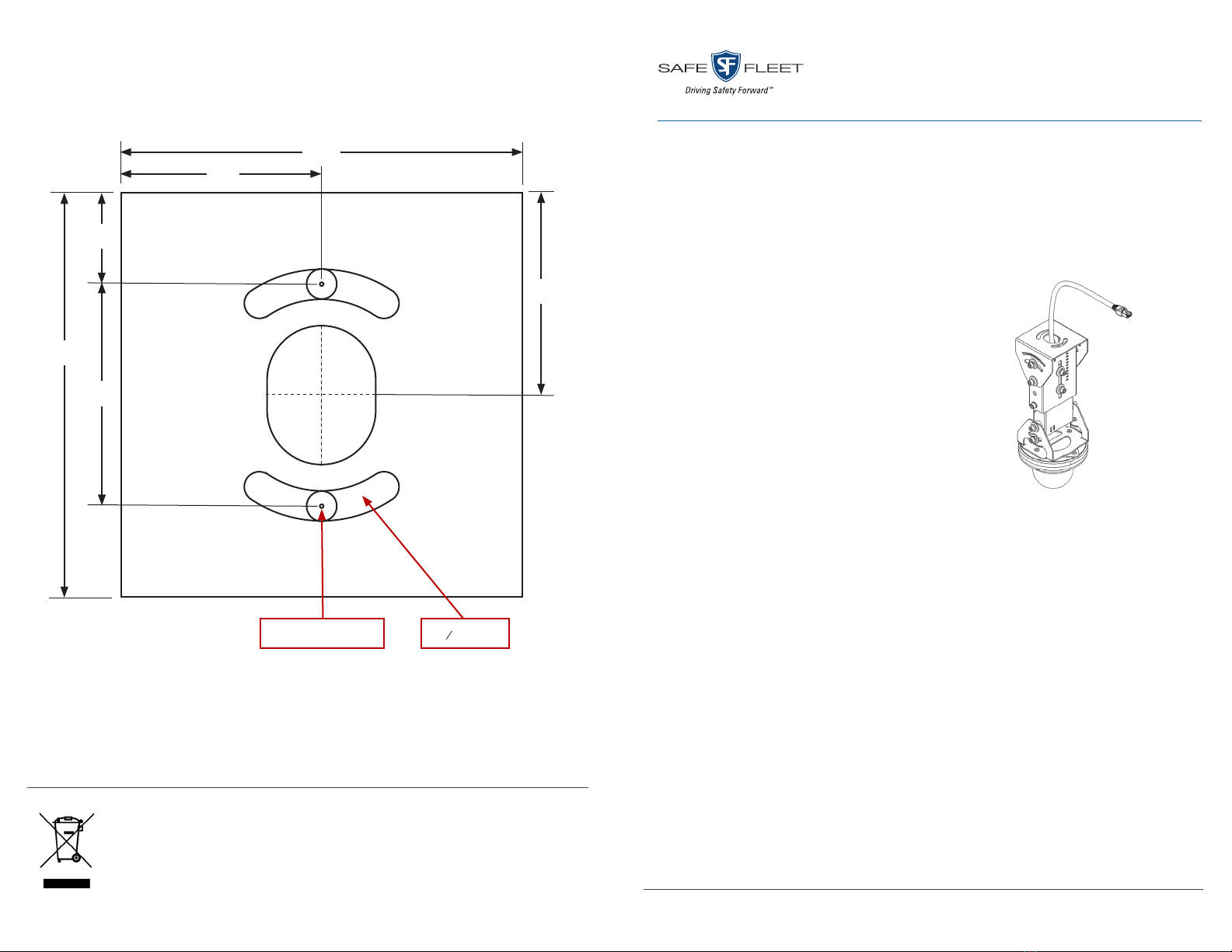

Drilling template
Use the following template to mark the positions of the mounting and cable entry holes on the
mounting surface.
1.81”
2x Mounting Holes
2”
.81”
2x 0 .27” Slots
3.62”
3.6”
1.8”
Bracket Assembly and Camera
Wiring
Run the camera harness from the switch,
recorder, or PoE Injector and feed through
the cable entry hole and the mounting
bracket.
For more information, see “Mounting
the C8Q2PD Quick Installation Guide
(700-1236).
Fold Here
Mounting the Bracket
1. Choose a mounting location away from access panels, hatches, or doors which may block
the camera view.
2.
positions of the mounting and cable entry holes on the mounting surface.
3. Following local codes, cut the cable entry hole, then drill and prepare the mounting holes for
the type of surface and fasteners you are using.
4. Feed the cable through the entry hole and into the mounting bracket.
Mount the bracket to the surface.
Camera proximity to windshield
Install the camera close enough to the windshield to prevent glare, and far away
Fasteners
We recommend using Rivnuts, #10-32 screws, and lock washers to mount the
bracket. Consider applying blue Loctite to the screws.
1.
Adjusting the Bracket
Installing the Camera on the Bracket
Before installing the camera, loosen the three captive screws and
detach the dome cover from the camera base. For details, see the
C8Q2PD Quick Installation Guide (700-1236).
1. Attach the adapter plate (660-1098) to the bracket using the
toward the bracket.
2. Connect the network cable to the camera.
3.
mount the camera base to the adapter plate.
4. If any slack cable is left in the bracket/camera assembly,
push it back out through the cable entry hole.
See camera guide for cable routing instructions
To avoid damaging components and to minimize
cable strain/kinking, follow the steps provided in
C8Q2PD Quick
Installation Guide (700-1236).
Installing the Camera on the Bracket (continued)
1. Make adjustments to the camera as necessary to obtain the desired view. For more
Installation Guide (700-1236).
2. Re-install the dome cover using the cover screws.
2. Set the bracket assembly to the desired length and angle.
3.
pivot screws and both length adjustment screws. Consider using blue Loctite.
Pivot: use 3/16” Allen
wrench for adjustment
(both sides) Length: use 3/16” Allen
wrench for adjustment
8.08”
Collapsed
4.
set screw (600-1033) and thread the screws
into the inner slide bracket, as shown.
Tighten the screws until they are fully
inserted.
Install bracket set
screw and washer
(one per side)
