Safeline EVAC User manual

www.safeline-group.com
01.2022 © 2022 SafeLine and all the SafeLine products and
accessories are copyrighted by law.
TALK
LIFT EVACUATION
INTERCOM
Complies to EN81–28 and EN81–70 standards.
PATENT 08163634.2
Fire Communication
SafeLine EVAC v.2.1.0 EN
EVAC manual

2SafeLine EVAC v.2.1.0 EN
Technical data
Technical data main unit
Power: 24 VDC
In standby: 40 mA
Active: 120 mA
Inputs: 4 x 24 VDC, max 200 mA in total, optically isolated
Outputs: 3 x 24 VDC, max 200 mA
Size: Surface mounted: 418 x 116 x 40 mm (L x W x H)
Flush mounted: 400 x 110 x 40 mm (L x W x H)
Weight: 300 g - without frontplate
IP code: IP43
Technical data Floor station/car station
Power: 24 VDC
In standby: 30 mA
Active: 60 mA
Inputs: 2 x 24 VDC, max 100 mA, optically isolated
Outputs: 2 x 24 VDC, max 100 mA in total
IP code: IP43
Technical data LMS Unit
Power: 230 VAC
Inputs: 2 x 24 VDC, max 200 mA in total, optically isolated
Relay outputs: Max. 2 A/30 VDC, 0,5 A/125 VAC potential free relay contacts
PSU: max. 4 A at 24 VDC
Technical data bus cable
Max cable length: 200 meters - using 0,5 mm2 twisted pairs, shielded (recom-
mended).

3SafeLine EVAC v.2.1.0 EN
Content General information 4
Overview 5
Mounting dimensions 5
Overview EVAC entrance station (ES) 6
Entrance station, backside 7
Overview EVAC oor station 8
Floor station back 9
Overview EVAC car station 10
Overview connection board 11
System overview 11
Overview LMS unit 12
Installation 13
Cutting the cable 13
Heartbeat message 13
Address selection 14
Quick set-up guide 15
Wiring diagram 16
Operating 18
Entering menus 18
Connect menu 19
EVAC menu 19
Connect to a unit 19
Setup menu 19
Operating EVAC 20
Floor stations (FS) 21
Entrance station (ES) 22
Conguration 23
Setup menu structure 23
Conguring EVAC 27
Log le 29
Service 30
Error list 30
Declaration of Conformity 31

4SafeLine EVAC v.2.1.0 EN
This unit was built with state-
of-the-art technology and to
generally recognised safety
related technical standards
currently applicable. These
installation instructions are
to be followed by all people
working with the unit, in both
installation and maintenance.
It is extremely important that
these installation instructions
are made available at all times
to the relevant technicians,
engineers or servicing and
maintenance personnel. The
basis prerequisite for safe
handling and trouble free
operation of this system is a
sound knowledge of the basic
and special safety regulations
concerning conveyor techno-
logy, and elevators in particular.
The unit may only be used for
its intended purpose. Note in
particular that, no unauthorised
changes or additions may be
made inside the unit or indivi-
dual components.
Exclusion of liability
The manufacturer is not liable
with respect to the buyer of
this product or to third parties
for damage, loss, costs or work
incurred as a result of accidents,
misuse of the product, incorrect
installation or illegal changes,
repairs or additions. Claims
under warranty are likewise
excluded in such cases. The
technical data is the latest
available. The manufacturer
accepts no liability arising from
printing errors, mistakes or
changes.
Declaration of conformity
Download ”The declaration of
conformity” at our website:
www.safeline-group.com
Safety Precautions!
- Only trained professionals,
who are authorised to work on
the equipment, should install
and con gure this product.
- This quality product is dedi-
cated for the lift industry. It has
been designed and manufactu-
red to be used for its speci ed
purpose only. If it is to be used
for any other purpose, SafeLine
must be contacted in advance.
- It should not be modi ed
or altered in any way, and
should only be installed and
con gured strictly following the
procedures described in this
manual.
- All applicable health and
safety requirements and
equipment standards should be
considered and strictly adhered
to when installing and con -
guring this product.
- After installation and con -
guration this product and the
operation of the equipment
should be fully tested to ensure
correct operation before the
equipment is returned to
normal use.
Electrical and electronic
products may contain materials,
parts and units that can be
dangerous for the environment
and human health. Please
inform yourself about the local
rules and disposal collection
system for electrical and
electronic products. The correct
disposal of your old product
will help to prevent negative
consequences for the environ-
ment and human health.
General
information

5
366
400
110
29
2,5 88
366
383
2 x 4
210
90
22,5
25,2
176
17
2 x 6
87
4
56 18
33,7
35
3
226
182
214
54
2 x 9
2 x 5
SafeLine EVAC v.2.1.0 EN
Overview
Mounting
dimensions
Car stationFloor station
Entrance station LMS Unit

6
0 1
TALK
SafeLine EVAC v.2.1.0 EN
Overview
EVAC entrance
station (ES)
The master unit of the system. All commands and logic is handled
by the entrance station. There can only be one entrance station
in an EVAC system. The engraved text on the entrance station is
available in english, german and swedish.
SwitchSwitch
For activation of EVAC system.For activation of EVAC system.
SpeakerSpeaker
MicrophoneMicrophone
DisplayDisplay
Function keysFunction keys
KeypadKeypad
PTT (Push To Talk)PTT (Push To Talk)
with LED halo lightingwith LED halo lighting

7SafeLine EVAC v.2.1.0 EN
Entrance
station,
backside

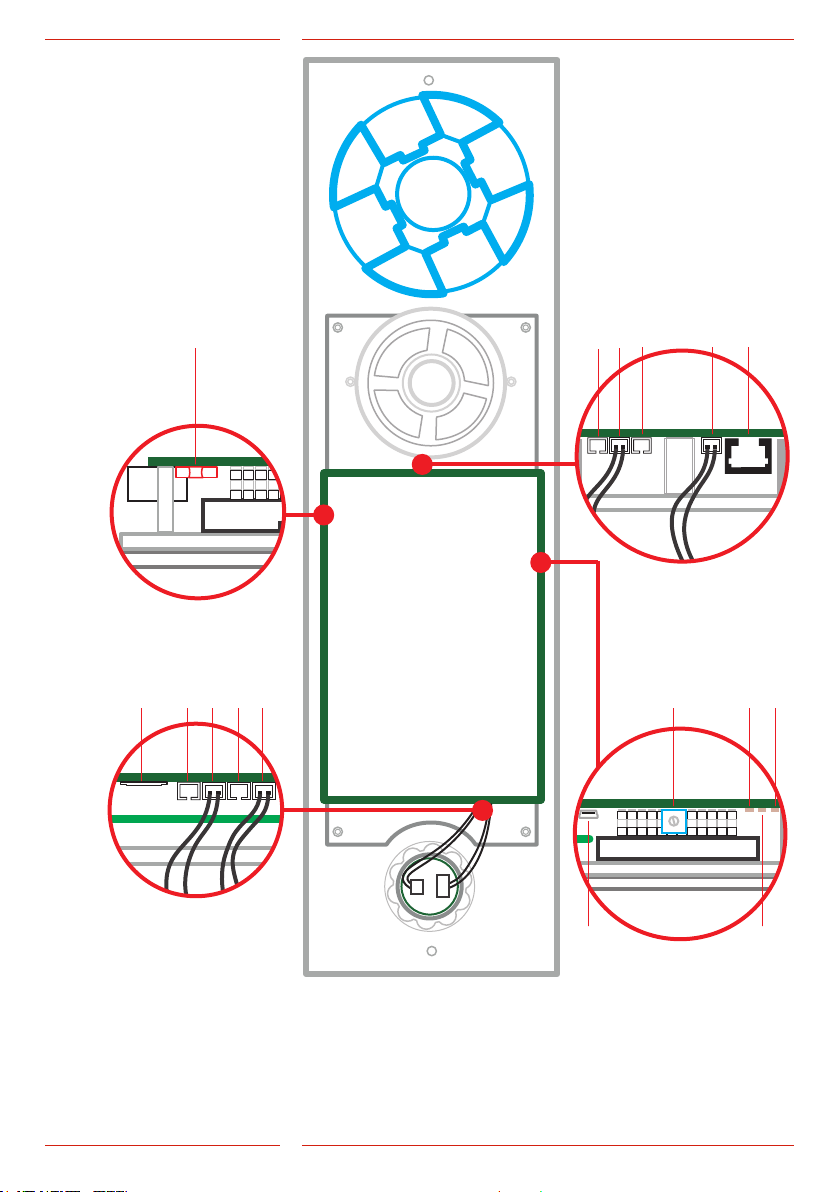

RJ45RJ45 for Powerfor Power andand CommunicationCommunication SpeakerSpeaker Input no.4Input no.4 Input no.3Input no.3 Output no.3Output no.3
Display contrastDisplay contrast
USBforrmUSBforrm ware updateware update
LED SystemLED System
LED CANLED CAN
LED CAN ERRLED CAN ERR
CAN terminationCAN termination switch ON/OFFswitch ON/OFF
SDcard(micro)SDcard(micro) Output2Output2 Output 1Output 1 Input2Input2 Input 1Input 1

8
LIFT EVACUATION
INTERCOM
SafeLine EVAC v.2.1.0 EN
Overview
EVACoor
station
There can be up to 98 oor stations in one system. The engraved
text on the oor station is available in english, german and swedish.

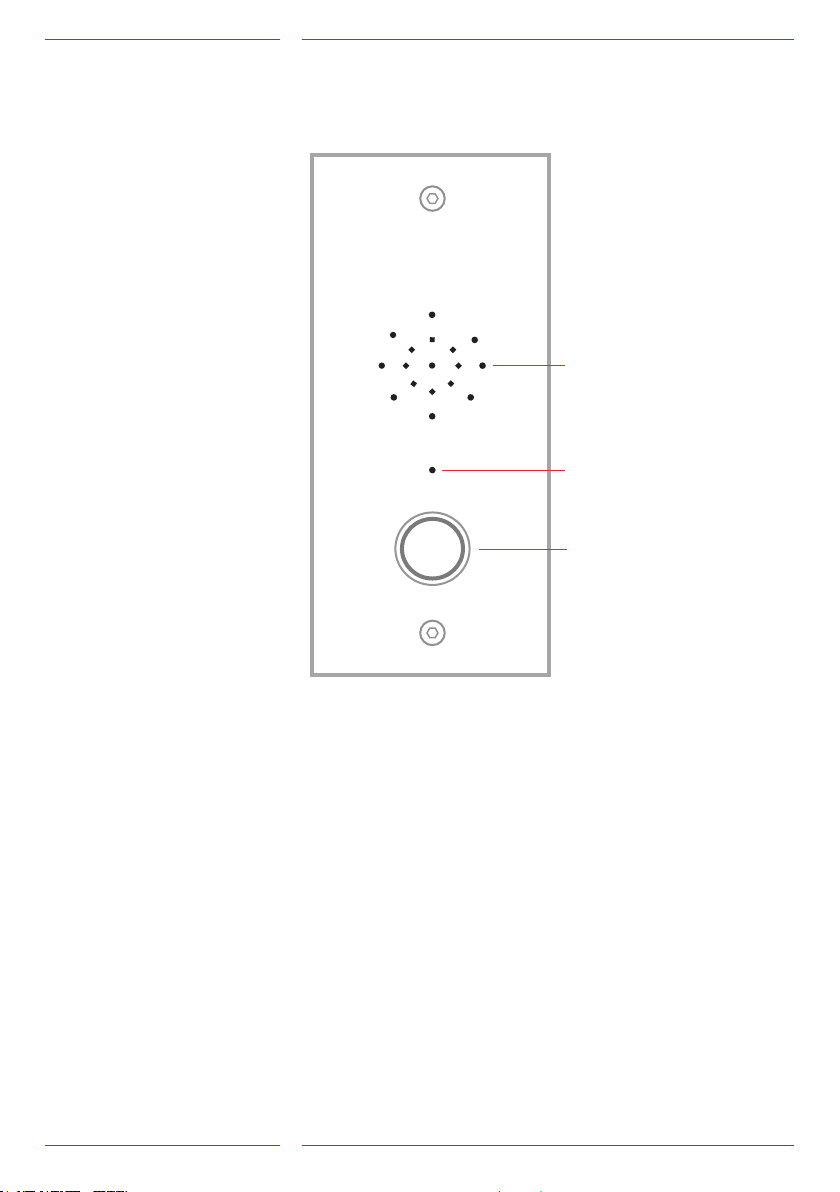

Speaker
Microphone
Alarm button with LED halo
lighting. NOTE: Only required
to initiate an alarm call, and
not push to talk (PTT).

9SafeLine EVAC v.2.1.0 EN
Floor station
back
SD card (micro)SD card (micro)
Bus Address, TensBus Address, Tens
Bus Address, SinglesBus Address, Singles
RJ45RJ45 for Power and Communicationfor Power and Communication
CAN termination switch ON/OFFCAN termination switch ON/OFF
Inputno.2Inputno.2
Outputno.2Outputno.2
USBUSB forfor rmwarermware updateupdate
Alarm buttonAlarm button
Output no.1Output no.1
Input no.1Input no.1

10
0
1
2
3
4
5
6
7
8
9
0
1
2
3
4
5
6
7
8
9
SafeLine EVAC v.2.1.0 EN
Note:Carstationadress
0,0(Car1)or99(Car2)
Overview EVAC
car station
Microphone
Speaker
Bus Address, TensBus Address, Tens
Bus Address, SinglesBus Address, Singles
SD card (micro)SD card (micro)
LED CAN*LED CAN*
LED CAN*ERRLED CAN*ERR
RJ45RJ45 for Power and Communicationfor Power and Communication
CAN termination switch ON/OFFCAN termination switch ON/OFF
Inputno.2Inputno.2
Outputno.2Outputno.2
USBUSB for rmware update for rmware update
Input no.1Input no.1
Output no.1Output no.1

11
7 6 5 4 3 2 1
1 2 3 4 5 6 7
SafeLine EVAC v.2.1.0 EN
Connection board
Overview
connection
board
1. +24 VDC
2. 0 V
3. CAN H
4. CAN L
5. GND (Shield)
6. Audio bus (A)
7. Audio bus (B)
RJ45
To  oor station (FS)
or car station (CS)
LMS unit
Sends an LMS message through a SafeLine telephone. LMS
messages are triggered by events de ned in the entrance station.
The EVAC system is powered by the LMS unit. For relay information,
see "Setup menu structure"
Entrance station
The master unit of the system. All commands and logic is handled
by the entrance station. There can only be one entrance station in
an EVAC system.
System
overview

12
N L -V +V
44553
1000
6E
44553
1000
6E
44553
1000
6E
44553
1000
6E
7.1
7.2
7.3
8.1
8.2
8.3
12 3 4 5
4.1
4.2
5.1
5.2
6
7
8
9.1 9.2 9.39
SafeLine EVAC v.2.1.0 EN
Overview

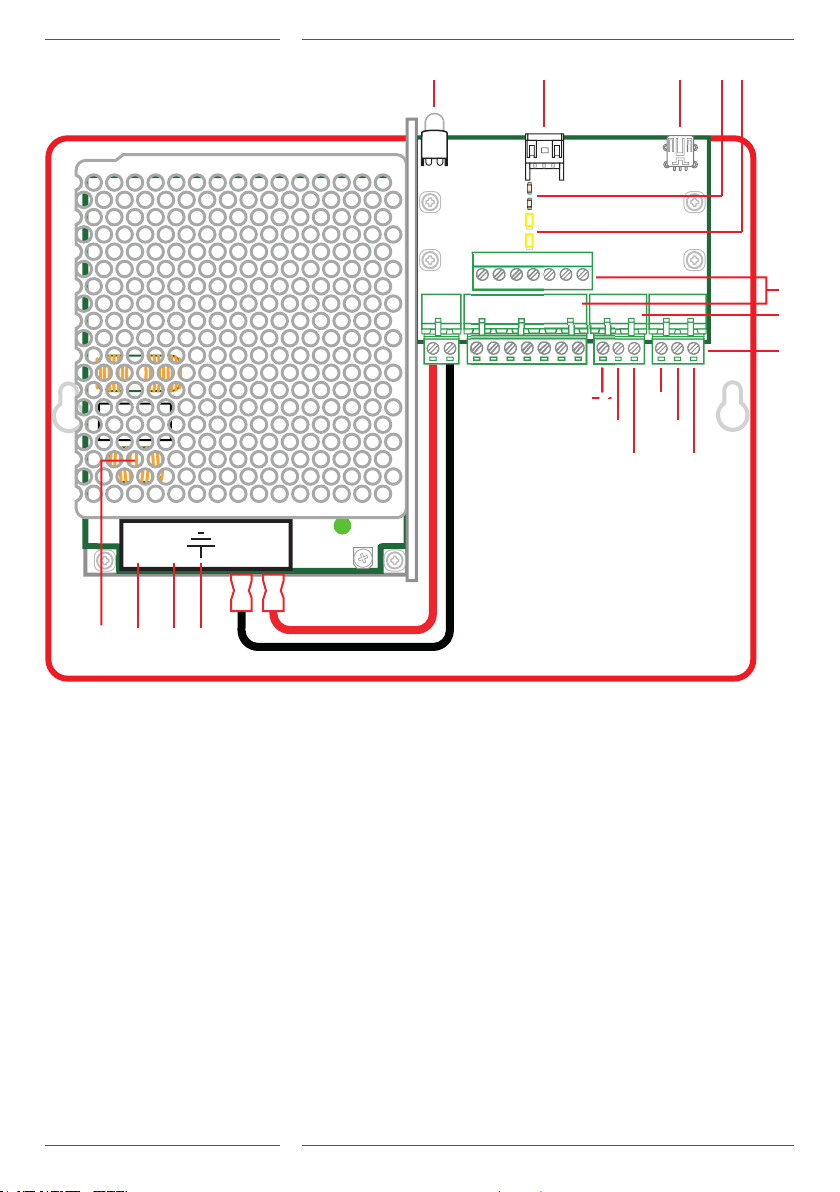

LMS unit
1. LED
Power indication
Continuous Green = Power on
Flashing Green = Sending LMS
Flashing Red = LMS failure
2. RS232connectiontoSafeLine(telephone).
If used for LMS (Lift Monitoring System).
3. USBforupdatingthermware
4. CAN LED
4-1. CAN
4-2. CAN ERR
5. Termination switch
5-1. CAN2 - Shaft
5-2. CAN1 - Car
6. Connectors for Communication
1. +24 V
2. 0 V
3. CAN2H - on the top terminal
CAN1H - on the bottom terminal
4. CAN2L - on the top terminal
CAN1L - on the bottom terminal
5. GND
6. Audio bus (A)
7. Audio bus (B)
7. Inputs
7-1. +24 VDC (common)
7-2. Input 1
7-3. Input 2
8. RelayOutputchangeovercontact
8-1. N/C
8-2. Common
8-3. N/O
9. PowerSupplyUnit(PSU)230VAC/24VDC
9-1. 230 VAC N
9-2. 230 VAC L
9-3. Mainpower GND

13
10 mm
SafeLine EVAC v.2.1.0 EN
Cutting the
cable
Make sure that the modular
plugs (RJ45) on the ends
of the cable are facing the
opposite way (see picture).
Installation
The connection cable is used between the connection board (CB)
and all oor station (ES and FS) in the shaft.
Heartbeat
message
The heartbeat is a message sent continuously by all units in an
EVAC intercom system.
The message contains only the sending node’s id. It is used by the
system master (entrance station) to identify and keep track of the
units in the system.
The master’s heartbeat is used by all other units to make sure the
system is working and that the bus is working properly. When the
entrance station receives a heartbeat from a CAN-bus node for the
rst time, it sets the node to the current system mode, i.e. EVAC,
FIRE or STANDBY. Any inactive CAN-bus node (parameter can be
congured in the entrance station) is set to standby and is ignored
by the system.
When a node nds the master’s heartbeat, the CAN LED stops
ashing and is turned on fully.
A node that loses the master’s heartbeat will enter into STANDBY
mode and starts ashing the CAN-error LED.
If the master loses any active unit, the unit is removed from the
system and an error is logged.
1. Cutting1. Cutting
2. Fixing2. Fixing

14
LMS
CAN 1CAN 2
TERM ON
TERM ON TERM ON
TERM ON
TERM OFF
TERM OFF
TERM OFF
SafeLine EVAC v.2.1.0 EN
Unit address
Each unit, except the LMS unit
and the entrance station, needs
a set address. The addresses
on the CAN 1 bus start with the
 rst car station which should
be set to 00. If two car stations
are used, the second car station
should be set to 99.
The unit furthest from the LMS
unit on the CAN 2 bus should
be set to 01, the second furthest
from the LMS unit to 02 and so
on. The entrance station and the
LMS unit does not have a set
address.
CAN termination
The two CAN buses in the LMS
unit must be terminated on the
last units of each CAN bus.
The last unit on the bus (the
unit furthest from the LMS unit)
should have the TERM switch
set to OFF. All other units
between the last unit and the
LMS unit should have TERM
ON.
If the system has two car
stations, the car station furthest
from the LMS unit (car 1) should
be set to TERM ON while the
other car station (car 2) shoud
be set to TERM OFF.
Inside the LMS unit, both CAN 1
and CAN 2 should be set to off.
Address
selection
Connector
board
Connector
board
Connector
board
Connector
board
Entrance station
TERM: OFF
No address
Floor station
TERM: ON
Address: 01
Floor station
TERM: OFF
Address: 02
Floor station
TERM: OFF
Address: 03
Car station
TERM: ON*
Address: 00*
*Car 2 (optional) if
used set to TERM
OFF and Address 99.
LMS unit
CAN 1: CAN 2:

15
SETUP MENU
SYSTEM
SafeLine EVAC v.2.1.0 EN
Quicksetup
guide
Enter the setup
menu
Setting up unit
volumes
Relay functions
Exit setup
Setting up
node labels
To enter the menu, press the following keys on the Entrance
station: left arrow, right arrow, enter, enter.
When "CONNECT PIN" is displayed on the ES screen, press the
right function key for 2 seconds until "SETUP PIN" is displayed.
Enter the admin PIN (default is set to 0000) in order to access the
setup menu.
Press the right arrow key until the option "Entrance station" is
shown, press enter to select. Press the right arrow key until the
option "Volume" is shown, press enter to select. Set the speaker
volume by using the up and down arrow and then conrming
with the return key. Press the left function key to return to the main
menu.
Press the right arrow key until the option "Car" is shown, press
enter to select. Press the right arrow key until the option "Volume"
is shown, press enter to select. Set the speaker volume by using the
up and down arrow and then conrming with the return key.Press
the left function key to return to the main menu.
Press the right arrow key until the option "Nodes" is shown, press
enter to select. Press the right arrow key until the option "Volume"
is shown, press enter to select. Set the speaker volume by using the
up and down arrow and then conrming with the return key.
Right arrow key
Right function key
Up arrow key
Left arrow key
Left function key
Down arrow key
Return key
While still in the menu "Nodes", press the right arrow key until the
option "Label" is shown, press enter to select. Set how the node is
shown by using the up and down arrow and then conrming with
the return key.
Press the left function key to return to the main menu.
Press the right arrow key until the option "LMS" is shown, press
enter to select. Press the right arrow key until the option "Relay
functions" is shown, press enter to select. Select the relay function
by pressing the right arrow key until the correct function is shown,
press the return key to select the function.
Press the left function key to return to the main menu. Press the left
function key again to exit the setup menu. Make sure to press the
key in order to save the changes.

16
CAN 2
CAN 1
76 5 4 3 2 1
1 2 3 4 5 6 7
76 5 4 3 2 1
1 2 3 4 5 6 7
76 5 4 3 2 1
1 2 3 4 5 6 7
76 5 4 3 2 1
1 2 3 4 5 6 7
LIFT EVACUATION
INTERCOM
LIFT EVACUATION
INTERCOM
LIFT EVACUATION
INTERCOM
0 1
TALK
TERM OFF
TERM ON
TERM OFF
TERM OFF
N L -V +V
230 VA C N
230 VA C L
Mainpower GND
+24 VDC 0 VDC CAN H CAN L
+24 VDC 0 VDC +24 VDC 0 VDC CAN H CAN L
SHIELD
BUS A
BUS B
SHIELD
BUS A
BUS B
+24 VDC 0 VDC CAN H CAN L
+24 VDC 0 VDC +24 VDC 0 VDC CAN H CAN L
SHIELD BUS A BUS B
SHIELD BUS A BUS B
76543211 2
7654321
LMS
TERM ON
76 5 4 3 2 1
1 2 3 4 5 6 7
1234567
1234567
LMS
SafeLine EVAC v.2.1.0 EN

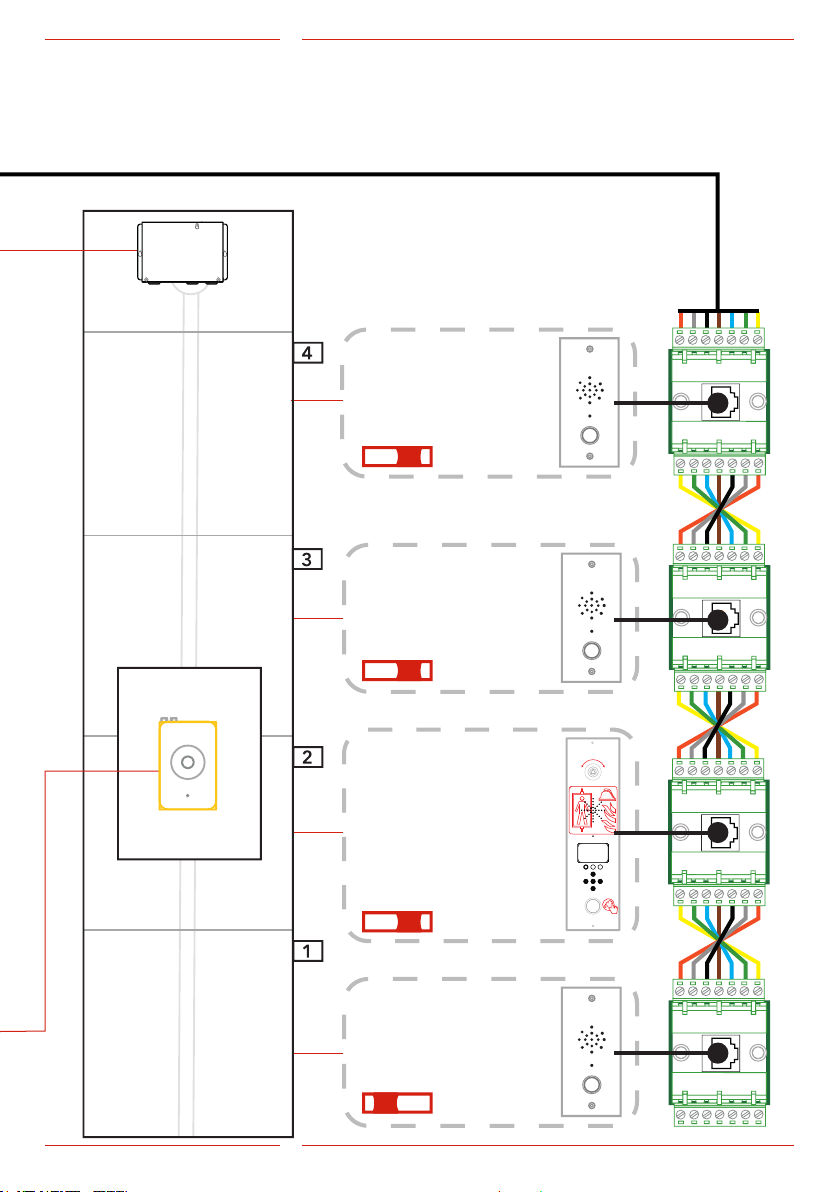

Wiring diagram The 7 PIN connectors on the LMS board are located
above/below each other. Screened/shielded/ twisted
pair cables are recommended.
Adress selector (tens) car 1: 0
Adress selector (singles) car 1: 0
(Car 1 only, Car 2 set to OFF)
Adress selector (tens) car 2: 9
Adress selector (singles) car 2: 9
Upto2carunits
Machine room
Inputs Relay
or 
CAN2 - Termination on
CAN1 - Termination on
Not in use

17
CAN 2
CAN 1
76 5 4 3 2 1
1 2 3 4 5 6 7
76 5 4 3 2 1
1 2 3 4 5 6 7
76 5 4 3 2 1
1 2 3 4 5 6 7
76 5 4 3 2 1
1 2 3 4 5 6 7
LIFT EVACUATION
INTERCOM
LIFT EVACUATION
INTERCOM
LIFT EVACUATION
INTERCOM
0 1
TALK
TERM OFF
TERM ON
TERM OFF
TERM OFF
N L -V +V
230 VA C N
230 VA C L
Mainpower GND
+24 VDC
0 VDC CAN H CAN L
+24 VDC 0 VDC +24 VDC 0 VDC CAN H CAN L
SHIELD
BUS A
BUS B
SHIELD
BUS A
BUS B
+24 VDC 0 VDC CAN H CAN L
+24 VDC 0 VDC +24 VDC 0 VDC CAN H CAN L
SHIELD BUS A BUS B
SHIELD BUS A BUS B
76543211 2
7654321
LMS
TERM ON
76 5 4 3 2 1
1 2 3 4 5 6 7
12345671234567
LMS
SafeLine EVAC v.2.1.0 EN
Please note that the colours of wiring cables are only
for illustration purposes. Actual colors of cables may be
different.
Floor station
Adress selector (tens): 0
Adress selector (singles): 3
Floor station
Adress selector (tens): 0
Adress selector (singles): 2
Entrance station
Floor station
Adress selector (tens): 0
Adress selector (singles): 1
Connector boardConnector boardConnector boardConnector board
No address.

18
SETUP MENU
SYSTEM
SETUP MENU
SYSTEM
SafeLine EVAC v.2.1.0 EN

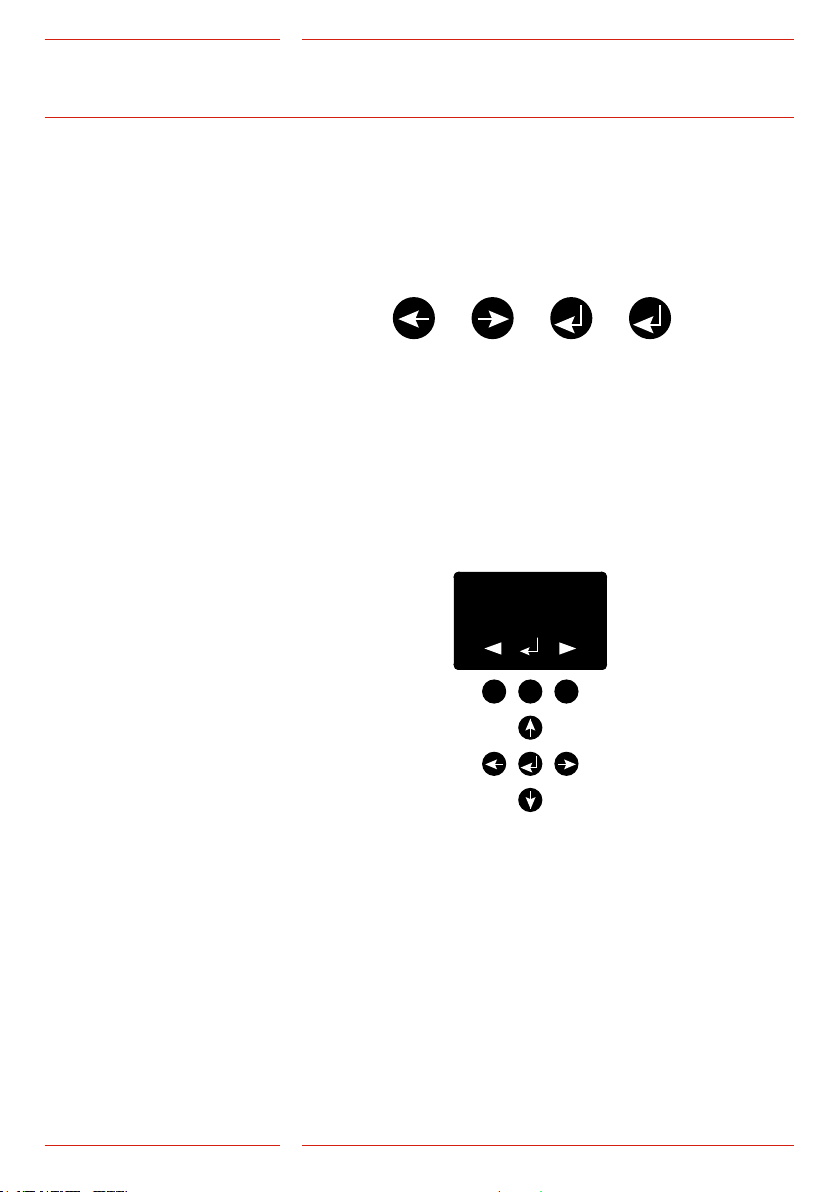

Entering menus To enter the menus, a “secret” key sequence is needed.
The following keys need to be pressed in the following order: “Left
arrow, right arrow, enter, enter”.
Then the “CONNECT PIN” access window appears. To enter the
“CONNECT” menu enter the correct PIN.
To get to the setup menu:
• Press the “secret” key sequence.
• When the “CONNECT PIN” appears, press the right func-
tionkey (the highlighted key in the illustration below) for 2 sec.
until the “SETUP PIN” access window appears.
• Enter the ADMIN PIN to get to setup menu.
You can only enter the
“SETUP” and “CONNECT”
menus when in STANDBY
mode.ThePINcodeisset
to ”0000” as the default
value.
It is possible to change the
default language (English)
to German.
Select:SetupMenu>
System>Languages>
Deutsch
Operating

19 SafeLine EVAC v.2.1.0 EN
Connect menu
Setup menu
Connect to a
unit
EVAC menu
In the “CONNECT” menu it is possible to connect to the car station
and all oor station registered in the system. Please note that it is
not possible to connect nodes without a node ID or nodes that
have been inactivated in the setup menu on the CAN-bus.
In the EVAC menu, the alarms received are displayed with the
current alarm oor name displayed and the current number of
queued alarms. The number of queued alarms is updated as new
alarms are received.
The alarms are queued in the order they are received. To connect
to an alarm, move to the alarm you want to connect to with the
arrow up/down, and press “ENTER” to connect. When a connection
to the alarm has been made, the alarm will be removed from the
queue.
It is always possible to connect to the car station in the EVAC menu
by pressing the left function key.
There are two ways to connect to a unit. In STANDBY mode it is
possible to connect to a unit by entering the connect menu. In
EVAC mode it is always possible to connect to the car, the oor
stations can only be connected to if an alarm has been registered
from the unit.
Connection can only be made between the entrance station and a
oor/car station.
By default the connected oor/car station will have the microphone
activated and will transmit audio onto the audio bus. The entrance
station receives audio and the speaker is activated. If the PTT
input is activated on the entrance station, the microphone will be
activated and the speaker inactivated. All other units’ speakers are
then activated and their microphones deactivated. This means that
the entrance station has priority to speak at all times.
All parameters in the EVAC system can be setup in the entrance
station’s “SETUP” menu.
All changes (apart from the real time clock) are only made in RAM.
Only when exiting the setup menu and answering “YES” to saving
the settings, the parameters will be saved into the unit.
To exit the “SETUP” menu, press and hold the left functionkey.

20 SafeLine EVAC v.2.1.0 EN
Operating
EVAC
The system has three main modes; STANDBY, EVAC and FIRE.
Which mode to be used are switched via inputs, usually connected
and triggered by key switches.
STANDBY mode
STANDBY mode is the default mode, where the system is idle. This
is used during most times and when turned off. On the entry station
you can enter the setup menu and the connect menu.
EVAC mode
In case of emergency where there is need to evacuate persons
from different locations (oor levels), the system can be used as an
evacuation intercom by switching it into EVAC mode. The EVAC
mode is normally triggered by the main key switch on the front of
the entry station operation panel (but other set ups are possible).
The key switch should be operated by trained personnel on
location.
When in EVAC mode, persons needing rescue can call for assis-
tance from the oor station by pushing the button. The call will then
be connected (or put in queue) to the entry station where trained
personnel can give instructions. All conversations will also be
transmitted in the car station.
Please note: The EVAC system can be congured to operate the lift
in any way.
You can congure an input to trigger the EVAC mode in the setup
menu. The system will be in EVAC mode as long as the input is set
to a high value (16 to 30 V) and the FIRE mode is not activated.
FIRE mode has a higher priority than EVAC mode. If the input is
activated while the system is in EVAC mode, it will automatically
switch to FIRE mode. When FIRE mode is deactivated, the system
will return to EVAC mode if the input is set to “high”.
FIRE mode
The FIRE mode is entered by activate an input, typically connected
to a “re ghters key” strategically placed in the building. This will
turn the system into a “push to talk” type intercom between the
entry station and the car station. It is also possible to add 2 more
pre-dened oor stations to the intercom if needed. This makes it
possible to have a constant communication with e.g. a re ghter
inside the lift car, and a team/rescue leader on the entry oor.
You can congure an input to trigger FIRE mode in the setup menu.
As long as the input is active, the system will be in FIRE mode.
Floor stations and car stations that are congured as re units in the
setup menu will switch into FIRE mode. All other units will remain in
STANDBY mode, the default mode.
