SAIGE E5-C User manual

1
Electric Tricycle User Manual E5-C

2
Catalogue
Catalogue ............................................................................................................................... 1
Preface..................................................................................................................................... 3
Main Parameters and Specifications ........................................................................... 4
Motor Vehicle Safe Driving Instructions..................................................................... 5
Motor Vehicle Number ..................................................................................................... 6
Operating Parts.................................................................................................................... 7
Checking List before driving .........................................................................................10
Electric Motor Use Method ...........................................................................................11
Maintenance .......................................................................................................................12
Fastener torque specifications.....................................................................................15
Common Failure Method...............................................................................................18

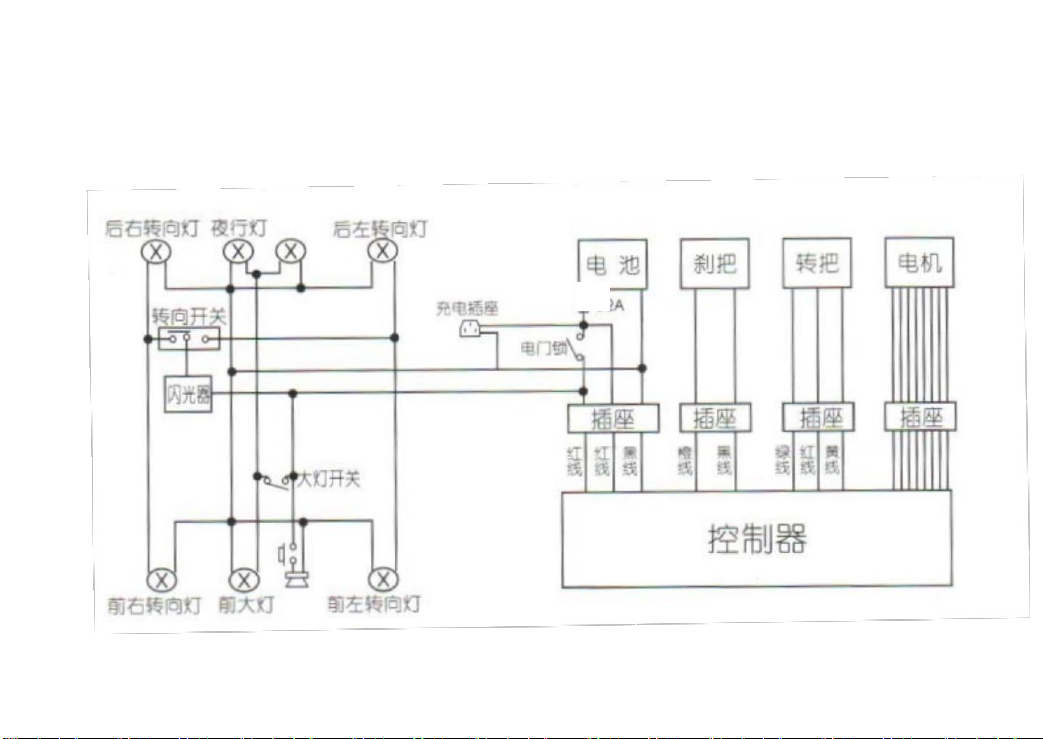

Electric Tricycle Wire Drawing .....................................................................................24
Guarantee Rules.................................................................................................................25
Maintenance Card.............................................................................................................26

3
Preface
Dear E5L1500 electric vehicle users: Thank you for choosing E5L1500! The
E5L1500 electric tricycle has reasonable structure, simple operation, reliable
quality, safe and comfortable riding, and is deeply loved by users.
The car is designed in strict accordance with the requirements of national
standards. It has a smooth and perfect appearance, a safe and reasonable
structure design, a luxurious and complete functional configuration, a
continuously variable speed handle, a high-quality maintenance-free battery
and a high-performance motor. The tricycle is also equipped with night running
lights, battery voltage display, and electronic horn, high-performance control
system, with automatic protection functions for under-voltage, over-current, and
overload. At the same time, it is equipped with a high-performance charger that
can be charged in sections according to the battery voltage. Ensure the best
performance of the battery.
In order to facilitate your use, please read the manual carefully. Before you know
the performance of the electric tricycle, please do not rush to use it, let alone
lend it to someone who can't operate this for riding.

4
Main Parameters and Specifications of E5 - C
Parameter Item
Lithium Battery Version
Dimension
2800*1250*1780mm
Curb Weight
310kg without battery
Tyre
Front & Rear400-12
Brake
Front Disc Rear oil Drum
Motor
60V/1500W
Controller
30 T
Battery General
60V 100A-120ALithium
Max Speed
≤40KM
Passenger
1driver+5passengers
Mileage
90-100km
Suspension
Front: ∅43 hydraulic shocker Rear: semi-
independent
Ground Clearance
320mm

5
Wheel Base
2220mm
Multimedia
Reverse Camera, USD multimedia, Anti-theft alarm
Motor Vehicle Safe Driving Instructions
1. Read the manual first to understand the performance and usage of the vehicle
before using the electric tricycle.
2. Please do not lend the tricycle to someone who can't operate an electric
vehicle for riding.
3. When the vehicle is riding normally, the braking distance in dry state is less
than 5 meters, and it will increase to 10 meters in wet state.
When riding in rain or snow, you should slow down, and if you need to brake,
please brake in advance.
4. This car has safe and reliable rainproof performance and can be used with
confidence in rainy days, but it cannot be driven in water. When the water level
floods the motor, it will cause a short circuit and damage the controller and
other electrical appliances.
5. For your safe riding, be sure to slow down when turning.
6. It is forbidden to inject oil into the brake part, so as to avoid brake failure and
danger.
7. For the safety of you and others, please consciously abide by the traffic rules.

6
Motor Vehicle Number
The number of the frame and the electric motor is essential when you apply for
an electric vehicle license. When you order components or entrust special
For special services, this number can enable our company's sales unit to provide
you with good service.

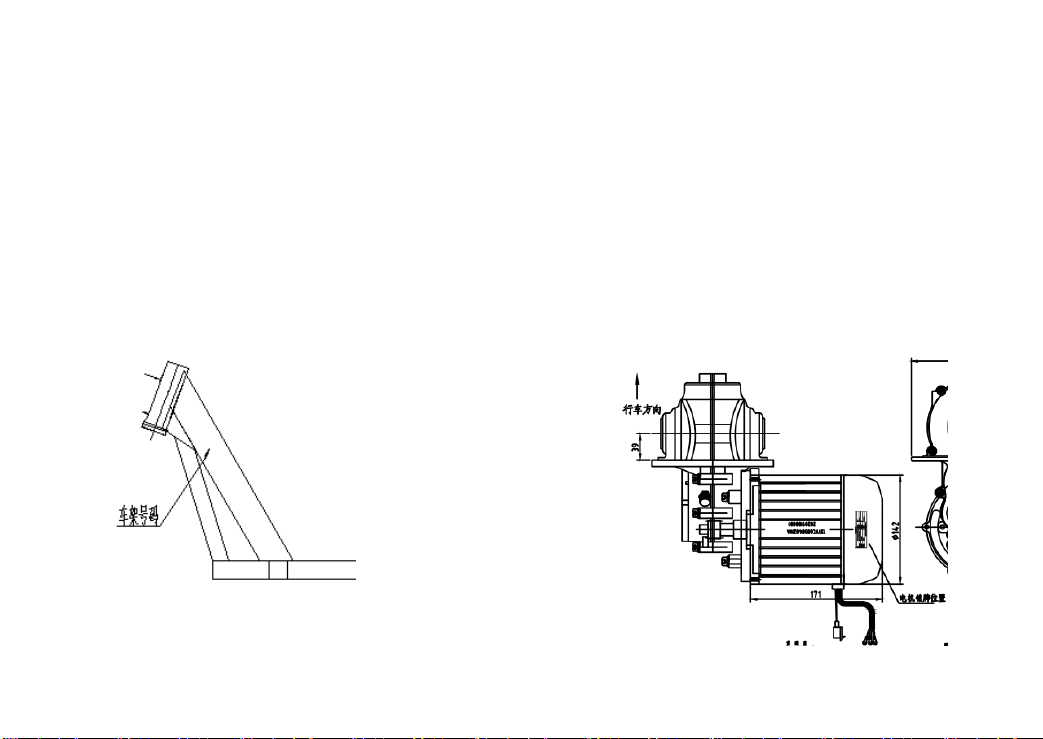

1. Frame number: engraved on the frame lifting beam (see Figure 1).
2. Motor number: marked on the motor shell. (See Figure 2)
1 Chassis Number 2 Motor Number

7

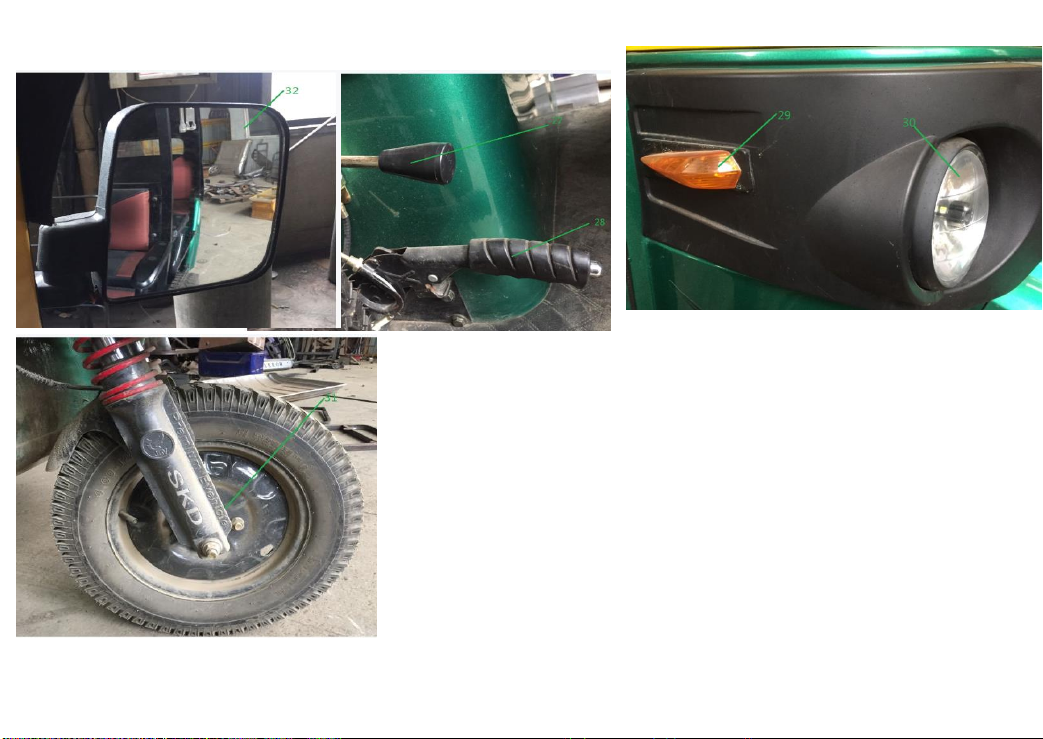

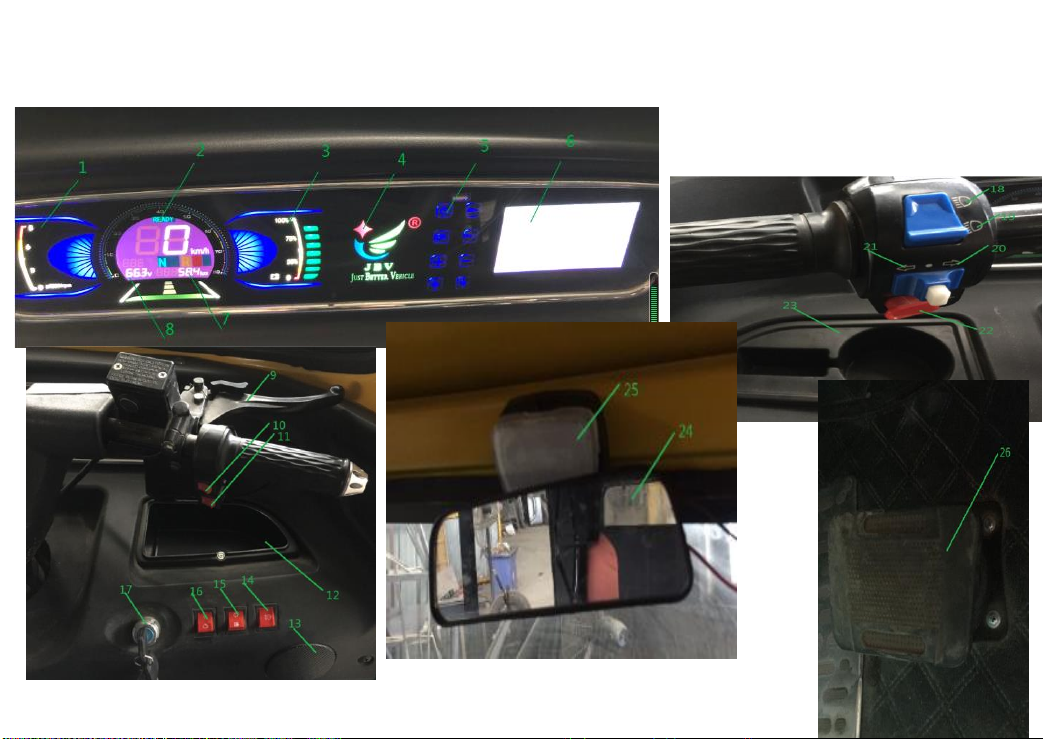

Operating Parts

8

9
1. Vehicle speed 2. Vehicle speed 3. Vehicle power 4. Manufacturer LOGO 5.
Multimedia buttons 6. Multimedia display 7. Vehicle mileage 8. Vehicle power
ratio 9. Vehicle manual braking 10.Vehicle speed control 11. Forward and reverse
gears 12. Storage box 13.Multimedia horn in the car 14. Light switch 15. Fog light
switch 16.Wiper switch 17. Main circuit switch 18. Low beam switch 19.High
beam switch 20. Right turn signal switch 21. Left turn signal switch 22.Horn
button 23. Teacup storage box 24. Rearview mirror 25. Interior lights 26. Foot
brake 27. Variable speed adjustment 28.Handbrake 29. Turn signal 30. Headlight
31. Normal tire pressure 32. Rearview mirrors on both sides
If it can be operated and maintained in strict accordance with the above methods,
this system will extend its life and be handy in use, bringing you greater economic
benefits.
Checking List before driving
Before using the motorcycle, be sure to check the following items
Item
Details
Brake
Check operation, status and free travel. Make adjustments if necessary.
Indeed Check whether the brake's working performance is good or not,
which can be detected at low speed.
Speed Gear
Check the operation, status and clearance of the speed control handle, and adjustif
necessary.

10
Brake Gear
Check whether the operation is flexible and stable, and lubricate/adjust if necessary.
Tyre/Wheel
Check tire pressure, wear and damage.
Fastener
Check all chassis parts and fasteners. Tighten and adjust if necessary.
Lights and
Indicators
Check whether the car lights and indicator lights are correct, and whether the
horn performance is good.
Note:
Carry out a pre-driving inspection every time you use this vehicle. If there is a bad condition in the
above items, repairs should be carried out in time before driving to avoid serious damage to the car or
accidents.
Electric Motor Use Method
1. When the motor is in use, it is not allowed to run without any load.
2. When the motor is used, it is strictly forbidden to overload it for a long time.
3. When using the motor, keep the environment clean and the airflow dry and
unobstructed.
4. When using the motor (with brush), keep the surface of the commutator smooth
and clean, the carbon brushes are in good contact, and the motor test connection is
reliable.

11
5. When using the motor, prevent debris and soil from entering the motor and
causing damage.
6. After the motor has been running for one month, please open the rear cover, check
the commutator, and remove the carbon brush powder.
7. When using the (chain drive) motor, always check the fastening of the top wire and
anchor screw of the motor. If there is any looseness, it should be tightened in time.
Solid.
Maintenance
1. Keep the battery clean and dry to prevent dirty and damp; the connection line
is not loose and the electrolyte does not leak, and use it in time. The insulator
cleans the electrolyte stains on the upper surface of the battery to prevent
leakage of electricity from damaging electrical components.
2. The first time the battery is powered on shall not be less than 13 hours,
normally 5-12 hours, and the longest shall not exceed 18 hours; When the battery
is low, stop using it and charge it in time to avoid deep discharge.
3. Vehicles that have not been used for a long time should be charged twice a
month.

12
4. The machine rotates, and the lubricating oil is added to the running parts in
time to ensure the flexible operation of all parts and reduce wear.
5. Frequently check the contact points of each circuit (such as wire connection,
controller, reverse switch (combination switch), speed control
Whether the connection between the controller and the motor is reliable, and
there should be no looseness. Especially the main circuit part (motor
—Controller—reverse switch (combination switch)—speed control handle—thick
wire of the motor) because of the relatively high current flowing through it
Make sure that the contact points of each circuit are in good contact.
6. In normal use, if there are any problems that cannot be solved, please send the
car to the seller or designated repair station for repair. If the car is disassembled
without authorization, the company will not repair it for free if it causes
malfunctions and damages.
7. Please return the used batteries to our company’s dealers, after-sales
maintenance department, or directly to our company.

13
Recycling by a certified recycling agency.
8. After the vehicle has run in for 100km, replace the lubricating oil. In the future,
add oil and butter to the differential and the axle shafts every month.
9. If it is a water-cooled motor, always check whether the motor coolant is lacking.
If it is missing, please add coolant in time. Winter
Antifreeze should be added every day to prevent the motor from being damaged
by freezing. If not used for a long time, the coolant should be drained

14
Maintenance schedule
Item
Method
Required Mileage（km）
200
500
800
1200
1600
1500
Brake
Inspection/adjustm
ent/repair
○
○
○
○
○
Motor
Check/adjust
○
○
○
○
○
Tyre
Check/inflate
○
○
○
○
○
Fastener
Check/tighten
○
○
○
○
○

15
【torque
specifications】

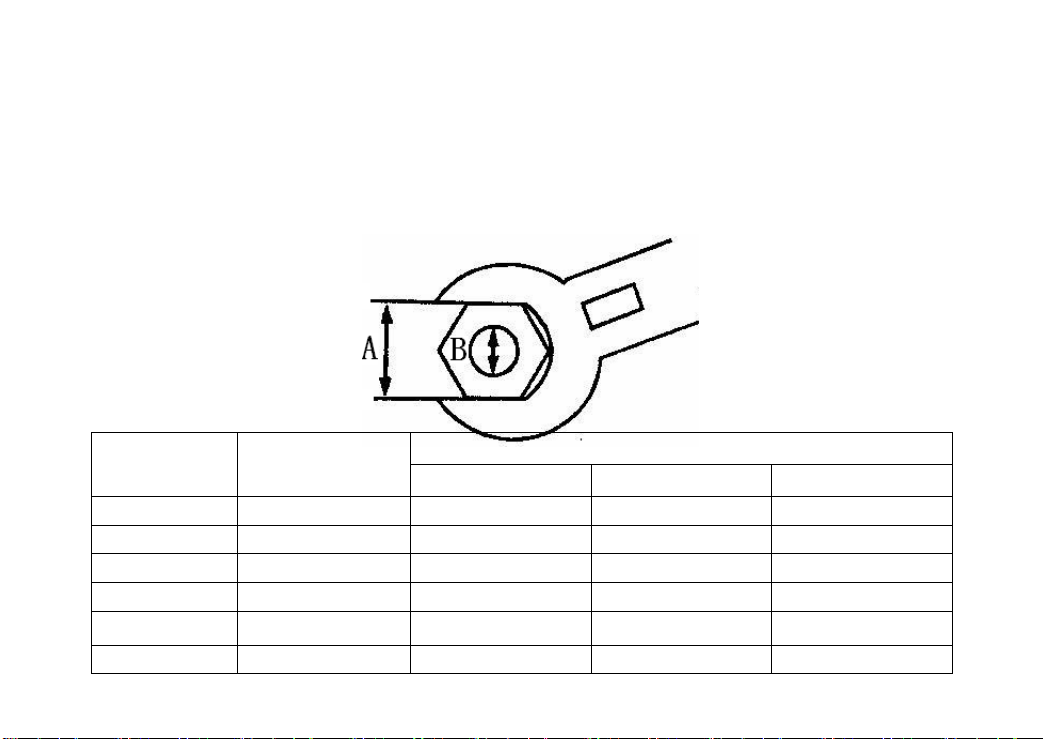

Fastener torque specifications
Use a torque wrench to tighten each part, and users are expected to check these tightened parts at any time.
Especially before long-distance driving, it cannot be ignored. The tightening torque of nuts and bolts of various
specifications (see Figure 11) and Table 5。
Table 5 Figure 11
A
（Nut）
B
（Bolt）
General Torque Specs
N·M
M·KG
F·P
10mm
6mm
6
0.6
4.3
12mm
8mm
15
1.5.
11
14mm
10mm
30
3.0
22
17mm
12mm
55
5.5
40
19mm
14mm
85
8.5
61
22mm
16mm
130
13.0
94

16
Common Failure Method
S/
N
Failure phenomenon
Failure Reason
Resolve Method
1
T u r n o n a s
“ ”but lights not on
1. Whether the fuse is blown or
loose.
2. The power contacts are loose.
1. Replace the fuse of the same
specification.
2. Fasten the power contacts.
2
T u r n o n a s “”，
and turn the accelerator
but motor not working
1. The vehicle is under braking.
2. The wire in the speed control
handle is loose.
3. The motor cable is loose or
damaged.
4. Insurance damage.
5. The switch is damaged.
1. Release the brake.
2. Re-tighten the handle wire.
3. Re-tighten the motor cable
4. Replace the insurance of the same
specification.
5. Repair or replace the same
specification upside down
关。
3
Speed control fails.
1. The battery voltage is too low.
2. The wire in the speed control
handle is loose.
3. The spring in the speed
control handle fails.
4. The governor is damaged.
1. Fully charge the battery.
2. Tighten or weld the wires firmly.
3. Replace the spring.
4. Replace the governor.

17
Common Failure Method
S/
N
Failure
Failure Reason
Resolve Method
4
Mileage not
enough per
charge
1. Insufficient tire air.
2. Insufficient charging or malfunction of
the charger.
3. The battery is damaged.
4.Too frequent brake and overload
1. Adequate air pressure.
2. Recharge or repair the motor.
3. Repair the battery.
4. Use the vehicle correctly.
5
Charger not
Charging
1. The power supply is dead.
2. The plug is loose.
3. The fuse of the charger is blown.
4. The battery cable is disconnected.
1. Replace the power supply.
2. Fasten sockets and connectors.
3. Replace the insurance of the
same specification.
4. Tighten the battery cable.
6
There are
abnormal noises
while driving.
1. The screws and nuts are loose.
2. Wheels rub against the frame or front
fork.
3. The bearing part lacks lubricating oil.
1. Tighten the screws and nuts.
2. Adjust the front and rear
wheels.
3. Add lubricating oil to the
bearing part.
7
If it is not the case above, please send it to our company's customer service department or special
sales office for repair by professionals.

24
Electric MotorTricycle Wire Drawing
（No Inform is Any Update）

25
Guarantee Rules (For Reference Only)
◆No free exchange under the following circumstances:
1. The warranty period has expired;
2. The parts replaced during the warranty period will lose the warranty at the
same time as the warranty period expires;
3. Caused by improper use, such as: water shortage of the battery, unclear
date of the battery, unauthorized modification, motor, charging
The motor and controller are disassembled privately, and the inner tube has
a patch, etc.;
4. Normal wear and tear: light bulbs, mileage cables, switches, lamps,
standard parts;
5. Changing the condition of the original product without authorization;
6. Damage caused by overload.
◆The following accessories, batteries, motors, controllers, chargers, rear axle
bearings, rim packs for three months, shock absorption and leakage
If the oil does not bounce, the tires will be reversed and blistered for one
month.
1. If the battery or motor is replaced two months before the loss of insurance,
if it is related to improper repair or maintenance by the user, each

26
The accumulator or electric motor will be charged 100 yuan each (unit) for
joint liability compensation.
2. During the warranty period, if the battery (above 48V) travels no less than
30 kilometers, it is not included in the replacement list and belongs to the
maintenance
Protect the scope of repair.
◆Maintenance method:
When repairing, please bring the repair manual to the after-sales service
department of our company. It can be repaired free of charge or
Free replacement parts.
Note: Return the first "factory stub" of the user's file card to the factory for
the record within one month from the date of car sale. Please be detailed
Fill in, otherwise the whole vehicle will not receive three guarantees.
