SAIGE E5L1500W User manual

1
Electric Tricycle User Manual E5L1500W

2
Catalogue
Catalogue ............................................................................................................................... 1
Preface..................................................................................................................................... 3
Main Parameters and Specifications ........................................................................... 4
Motor Vehicle Safe Driving Instructions..................................................................... 5
Motor Vehicle Number ..................................................................................................... 6
Operating Parts.................................................................................................................... 7
Checking List before driving .........................................................................................10
Electric Motor Use Method ...........................................................................................11
Maintenance .......................................................................................................................12
Fastener torque specifications.....................................................................................15
Common Failure Method...............................................................................................18
Electric Tricycle Wire Drawing .....................................................................................24
Guarantee Rules.................................................................................................................25
Maintenance Card.............................................................................................................26

3
Preface
Dear E5L1500 electric vehicle users: Thank you for choosing E5L1500! The
E5L1500 electric tricycle has reasonable structure, simple operation, reliable
quality, safe and comfortable riding, and is deeply loved by users.
The car is designed in strict accordance with the requirements of national
standards. It has a smooth and perfect appearance, a safe and reasonable
structure design, a luxurious and complete functional configuration, a
continuously variable speed handle, a high-quality maintenance-free battery
and a high-performance motor. The tricycle is also equipped with night running
lights, battery voltage display, and electronic horn, high-performance control
system, with automatic protection functions for under-voltage, over-current, and
overload. At the same time, it is equipped with a high-performance charger that
can be charged in sections according to the battery voltage. Ensure the best
performance of the battery.
In order to facilitate your use, please read the manual carefully. Before you know
the performance of the electric tricycle, please do not rush to use it, let alone
lend it to someone who can't operate this for riding.

4
Main Parameters and Specifications of E5 - 1500
Parameter Item
Lithium Battery Version
Dimension
2800*1250*1780mm
Curb Weight
310kg without battery
Tyre
Front & Rear400-12
Brake
Front Disc Rear oil Drum
Motor
60V/1500W
Controller
30 T
Battery General
60V 100A-120ALithium
Max Speed
≤40KM
Passenger
1driver+5passengers
Mileage
90-100km
Suspension
Front: ∅43 hydraulic shocker Rear: semi-
independent
Ground Clearance
320mm

5
Wheel Base
2220mm
Multimedia
Reverse Camera, USD multimedia, Anti-theft alarm
Motor Vehicle Safe Driving Instructions
1. Read the manual first to understand the performance and usage of the vehicle
before using the electric tricycle.
2. Please do not lend the tricycle to someone who can't operate an electric
vehicle for riding.
3. When the vehicle is riding normally, the braking distance in dry state is less
than 5 meters, and it will increase to 10 meters in wet state.
When riding in rain or snow, you should slow down, and if you need to brake,
please brake in advance.
4. This car has safe and reliable rainproof performance and can be used with
confidence in rainy days, but it cannot be driven in water. When the water level
floods the motor, it will cause a short circuit and damage the controller and
other electrical appliances.
5. For your safe riding, be sure to slow down when turning.
6. It is forbidden to inject oil into the brake part, so as to avoid brake failure and
danger.
7. For the safety of you and others, please consciously abide by the traffic rules.
Motor Vehicle Number
The number of the frame and the electric motor is essential when you apply for

6
an electric vehicle license. When you order components or entrust special
For special services, this number can enable our company's sales unit to provide
you with good service.

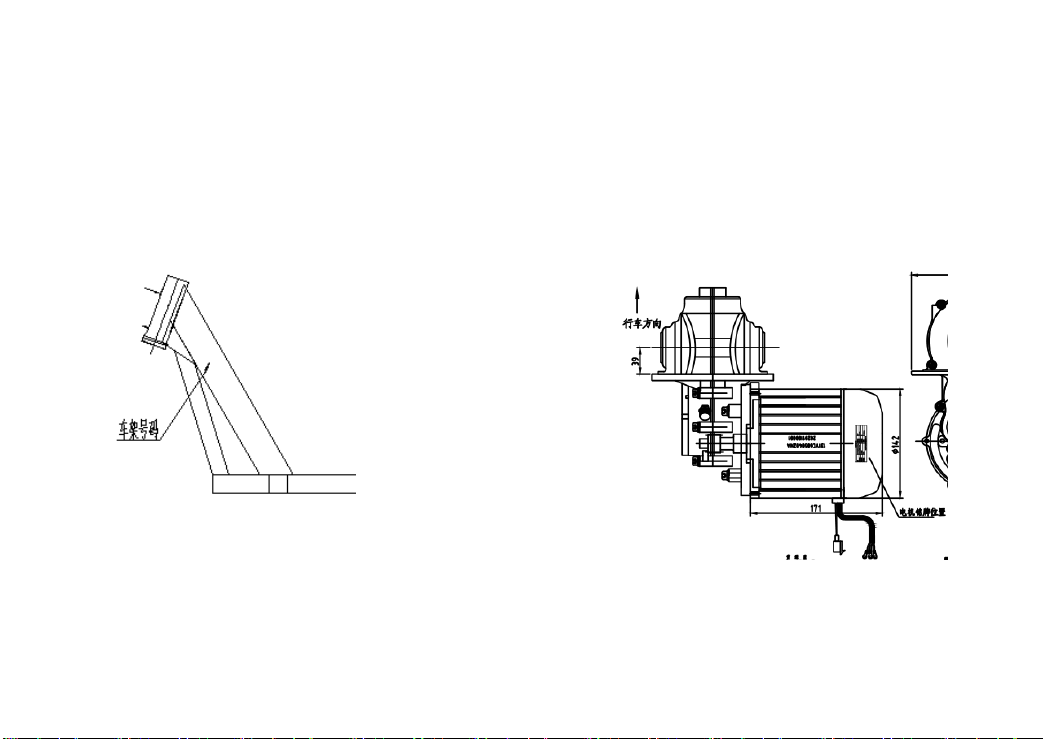

1. Frame number: engraved on the frame lifting beam (see Figure 1).
2. Motor number: marked on the motor shell. (See Figure 2)
1 Chassis Number 2 Motor Number

7
Operating Parts

8

9
1. Vehicle speed 2. Vehicle speed 3. Vehicle power 4. Manufacturer LOGO 5.
Multimedia buttons 6. Multimedia display 7. Vehicle mileage 8. Vehicle power
ratio 9. Vehicle manual braking 10.Vehicle speed control 11. Forward and reverse
gears 12. Storage box 13.Multimedia horn in the car 14. Light switch 15. Fog light
switch 16.Wiper switch 17. Main circuit switch 18. Low beam switch 19.High
beam switch 20. Right turn signal switch 21. Left turn signal switch 22.Horn
button 23. Teacup storage box 24. Rearview mirror 25. Interior lights 26. Foot
brake 27. Variable speed adjustment 28.Handbrake 29. Turn signal 30. Headlight
31. Normal tire pressure 32. Rearview mirrors on both sides
If it can be operated and maintained in strict accordance with the above methods,
this system will extend its life and be handy in use, bringing you greater economic
benefits.
Checking List before driving
Before using the motorcycle, be sure to check the following items
Item
Details
Brake
Check operation, status and free travel. Make adjustments if necessary.
Indeed Check whether the brake's working performance is good or not,
which can be detected at low speed.
Speed Gear
Check the operation, status and clearance of the speed control handle, and adjustif
necessary.

10
Brake Gear
Check whether the operation is flexible and stable, and lubricate/adjust if necessary.
Tyre/Wheel
Check tire pressure, wear and damage.
Fastener
Check all chassis parts and fasteners. Tighten and adjust if necessary.
Lights and
Indicators
Check whether the car lights and indicator lights are correct, and whether the
horn performance is good.
Note:
Carry out a pre-driving inspection every time you use this vehicle. If there is a bad condition in the
above items, repairs should be carried out in time before driving to avoid serious damage to the car or
accidents.
Electric Motor Use Method
1. When the motor is in use, it is not allowed to run without any load.
2. When the motor is used, it is strictly forbidden to overload it for a long time.
3. When using the motor, keep the environment clean and the airflow dry and
unobstructed.
4. When using the motor (with brush), keep the surface of the commutator smooth
and clean, the carbon brushes are in good contact, and the motor test connection is
reliable.
