Salus ERT50 User manual

Instruction Manual

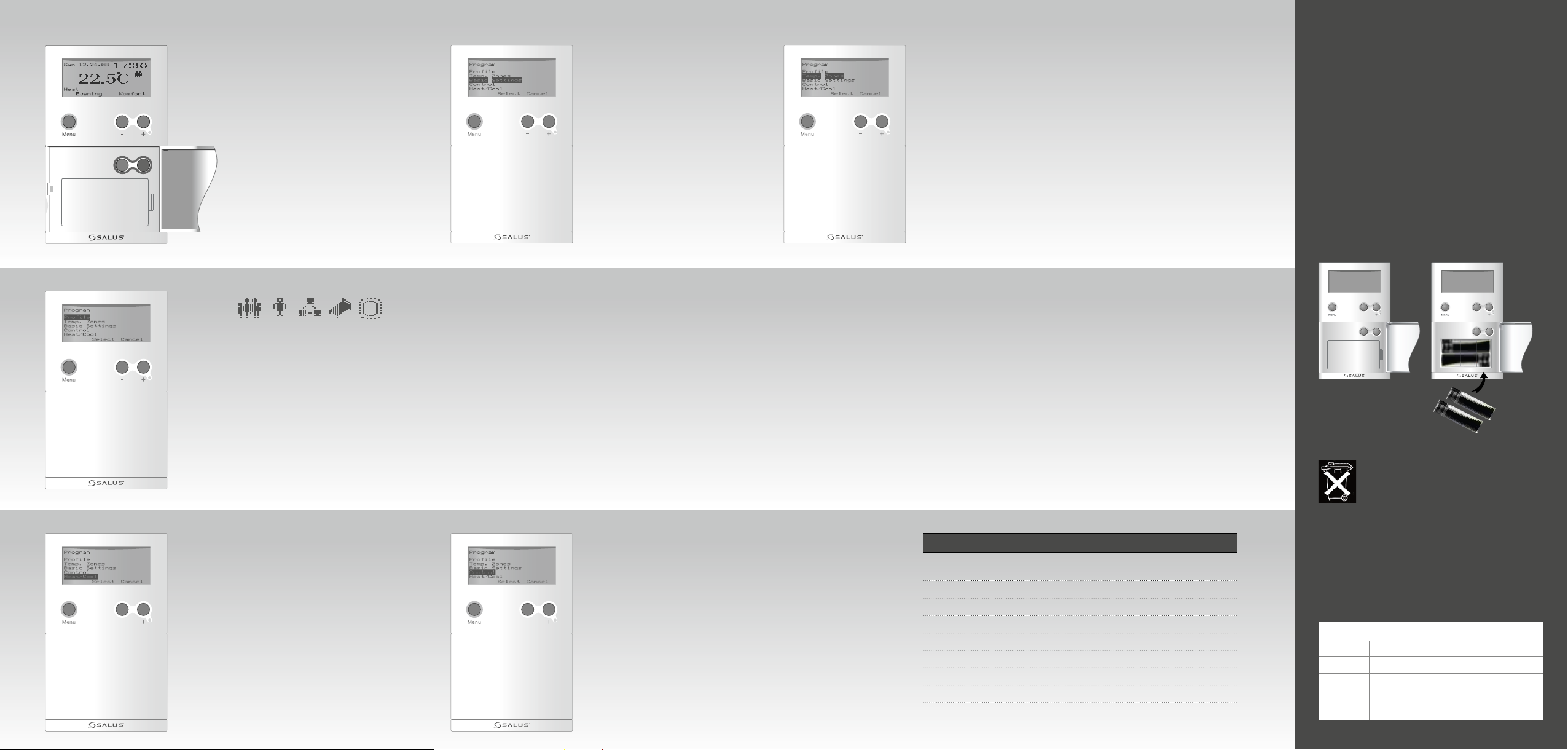

NAVIGATION
BASIC OPERATION
Access the Main Menu
by pressing the Menu
Button.
Change Display
The Change Display-Menu offers
the Full Screen, Selected Screen
and Basic Screen view.
Program On/Off
In the Program-Menu you can
choose between Program or
Manual operation mode.
Navigate through the menu by press-
ing –for lower and +for higher
entries.
Enter the selected topic by press-
ing the select Button or leave to
the previous menu without any
changes by pressing
cancel.
1 2 3
ERT 50 Programmable room-thermostat
Change Profile
In the Change Profile-Menu you
can choose between the Family,
Single, Office, Name 1 and
Name 2 Profile.
Change Holiday
In the Change Holiday-Menu you
can make your holidays settings
and turn them On or Off.
Key Lock
By pressing the –and +button
for three seconds, a Key Lock can
be activated to protect the device
from failure operation.
Manual operation
By pressing the –or +buttons,
the manual operation mode will
be activated. Current Programs
will be overwritten until the next
daytime starts.
SALUS Controls GmbH D-63165 Mühlheim am Main Tel.: [phone] Mail: [e-mail]
Dieselstr. 34 Germany Fax: [phone] Web: www.salus-controls.de

WIRING PLAN
Terminal
Supply for temperature reduction
N Neutral wire
L 230 VAC supply
Switch output (actuator, terminal strip)
PROGRAM-MENU
Program Menu
To access the program-menu press
the –or +button, open the hatch and
press select and cancel at the same
time for three seconds.
Heat/Cool
Enter the Heat/Cool-Menu to activate the
Heat or Cool function of the device.
Control
Enter the Control-Menu to make changes on the
Span, SetBack, Frost*, Output and VP settings.
* Thermostat serves as protection against frost
and keeps temperature constant at 5°C.
Daytimes Time Family Single Office Name 1 Name 2
Mon - Fri
Eearly Morning
Morning
Noon
Afternoon
Evening
Night
06:00 - 08:00
08:00 - 12:00
12:00 - 14:00
14:00 - 18:00
18:00 - 23:00
23:00 - 06:00
Comfort
Standard
Comfort
Standard
Comfort
Reduced
Comfort
Standard
Comfort
Standard
Comfort
Reduced
Comfort
Standard
Comfort
Standard
Comfort
Reduced
Comfort
Standard
Comfort
Standard
Comfort
Reduced
Comfort
Standard
Comfort
Standard
Comfort
Reduced
Sat - Sun
Eearly Morning
Morning
Noon
Afternoon
Evening
Night
06:00 - 08:00
08:00 - 12:00
12:00 - 14:00
14:00 - 18:00
18:00 - 23:00
23:00 - 06:00
Comfort
Standard
Comfort
Standard
Comfort
Reduced
Comfort
Standard
Comfort
Standard
Comfort
Reduced
Comfort
Standard
Comfort
Standard
Comfort
Reduced
Comfort
Standard
Comfort
Standard
Comfort
Reduced
Comfort
Standard
Comfort
Standard
Comfort
Reduced
Basic Settings
Enter the Basic Settings-Menu to
adjust Date/Time, Language and
Maintenance settings.
Temp. Zones
Enter the Temp. Zones-Menu to adjust the temperatures of the Com-
fort, Standard and Reduced zones.
The three temperature zones can be allocated to the six day times.
If you modify a temperature zone, the temperature-settings within
the profiles will change as well. The zones are preinstalled with these
temeratures:
Comfort 24°C Standard 20°C Reduced 16°C
Purpose and correct use:
This standalone mounted electronic device
serves as a temperature control system only in
dry and closed living and office spaces. Clean
device only with a dry and soft cloth. Do not
use solvents or aggressive cleaning agents!
The manufacturer accepts no responsibility
for damage caused by non-observance of
these instructions.
Changing the batteries
2 x +AA Batteries
Do not dispose of batteries with
general household refuse. Please take
battery to municipal collection point
or dispose with trade waste.
Profile
Enter the Profile-Menu to adjust the detailed settings of the Family, Single, Office, Name 1 and Name 2 Profiles.
You can adjust the profiles to your needs, by varying the 6 daytimes and allocate them new temerature zones. This
can be done for a single day or week and weekend. You can rename profiles and copy settings inside a profile and
from one profile to an other. In the following table, you can find the preinstalled settings:
DATA SPECIFICATION
Supply: 2 x Batteries Type AA (intern)
230V AC / 50Hz (extern)
Electronic switch output
Switching current max.: 10 (2) A
Number of actuators, max.: 5 units - 3W
Hysteresis: 0.5K
Protective class: IP 30
Dimensions W/H/D in mm: 75/130/30
Temperature range: 5°C - 30°C
Storage temperature: -25°C - 65°C
