SaMASZ P4-420 User manual

SaMASZ Sp. z o.o.
Poland, 16-060 Zabłudów, ul. Trawiasta 1
Established
–
1984
NIP PL-966-159-29-76
tel. (+48) (85) 664 70 31
fax (+48) (85) 664 70 41
e-mail: [e-mail]
www.samasz.pl

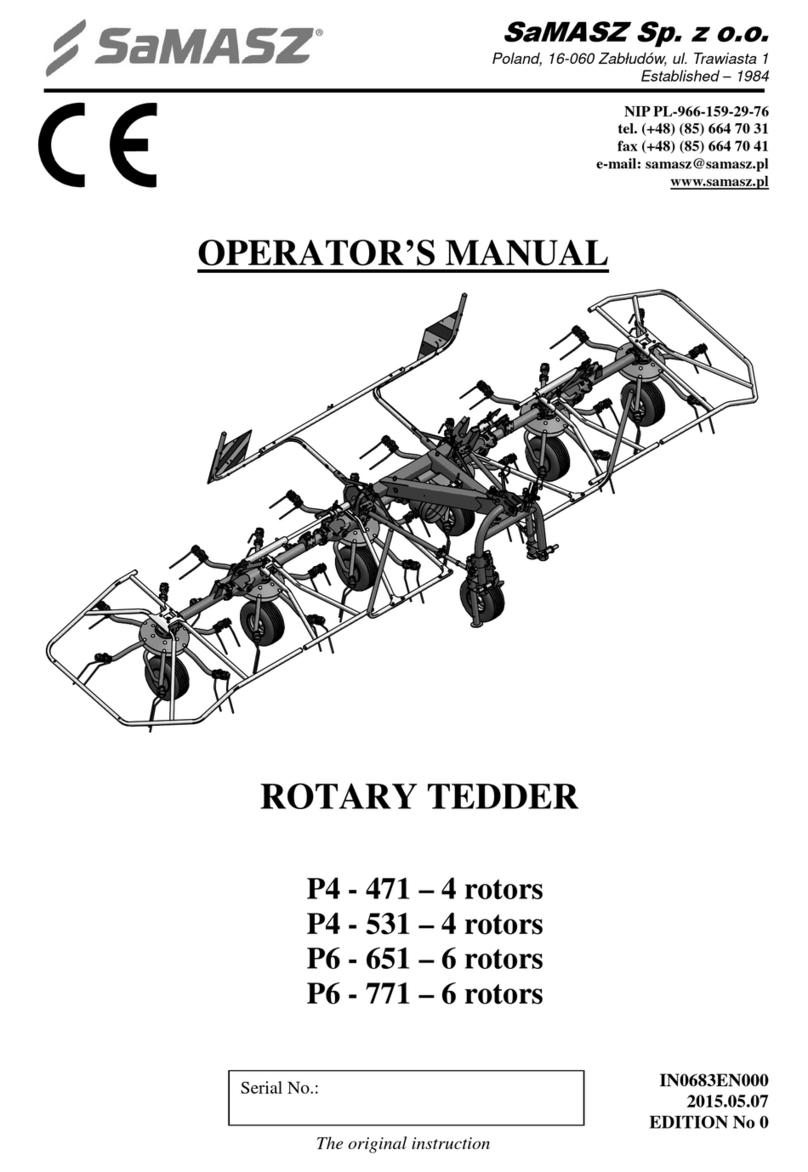

OPERATOR’S MANUAL
ROTARY TEDDER
P4-420 – 4 rotors
P4-471 – 4 rotors
P4-531 – 4 rotors
P6-651 – 6 rotors
P6-771 – 6 rotors
P8-790 – 8 rotors
P8-890 – 8 rotors
IN0683USA001
2018-10-31
EDITION No 1
The original instruction
Serial No.:

IT IS FORBIDDEN
TO START THE DRIVE OF THE
TEDDER BEFORE PUTTING THE
MACHINE INTO WORKING
POSITION
.
LIFTING THE TEDDER
BEFORE THE WORKING UNITS
HAVE COME TO
A COMPLETE STANDSTILL
IS FORBIDDEN.
OPERATING IS
FORBIDDEN
WHEN ANY PERSON
IS WITHIN THE DANGER AREA
OF
1
70'.
NOTICE :
Keep this manual for future reference.
Well-proven design with thousands of machines in regular use in many countries and quality
materials ensure high durability and reliability of SaMASZ tedders.
We congratulate you on the purchase of your new SaMASZ tedder and wish you much pleasure
and the very best work results through the years to come.

Operator’s manual
Rotary tedder P4-420, P4-471 and P4-531
Rotary tedder P6-651 and P6-771
Rotary tedder P8-790 and P8-890
- 1 -
Contents page
1. IDENTIFYING THE MACHINE..............................................................................................................2
2. INTRODUCTION.......................................................................................................................................2
3. PROPER AND INTENDED USE..............................................................................................................3
3.1. Technical data...........................................................................................................................................3
3.2. Design and working principle...................................................................................................................4
3.2.1. 4- rotary tedder...................................................................................................................................4
3.2.2. 6- rotary tedder...................................................................................................................................5
3.2.3. 8- rotary tedder...................................................................................................................................6
3.3. Standard equipment and spare parts ......................................................................................................7
4. SAFETY PRECAUTIONS .........................................................................................................................8
4.1. General safety rules and regulations......................................................................................................8
4.2. Qualifications of operator .......................................................................................................................10
4.3. Conditions of mounting tedder on tractor............................................................................................10
4.4. Transport..............................................................................................................................................10
4.4.1. Putting the tedder onto another vehicle for transport .....................................................................11
4.5. Working parts ......................................................................................................................................12
4.6. PTO shaft.............................................................................................................................................12
4.7. Hydraulic assembly .............................................................................................................................12
4.8. Residual risk ...........................................................................................................................................13
4.8.1. Residual risk evaluation ...................................................................................................................14

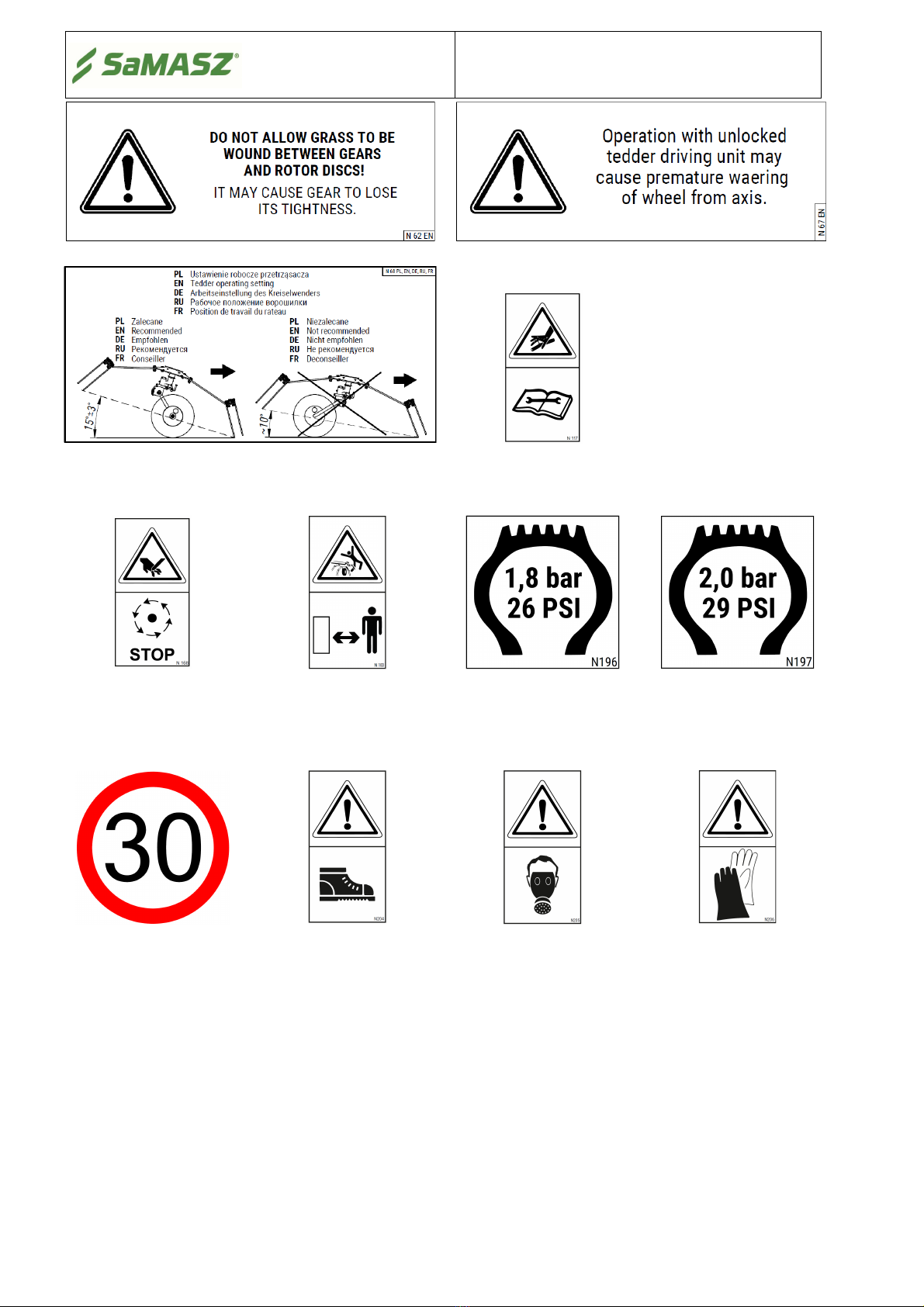

4.8. Safety labels and their meaning...........................................................................................................15
5. OPERATION.............................................................................................................................................17

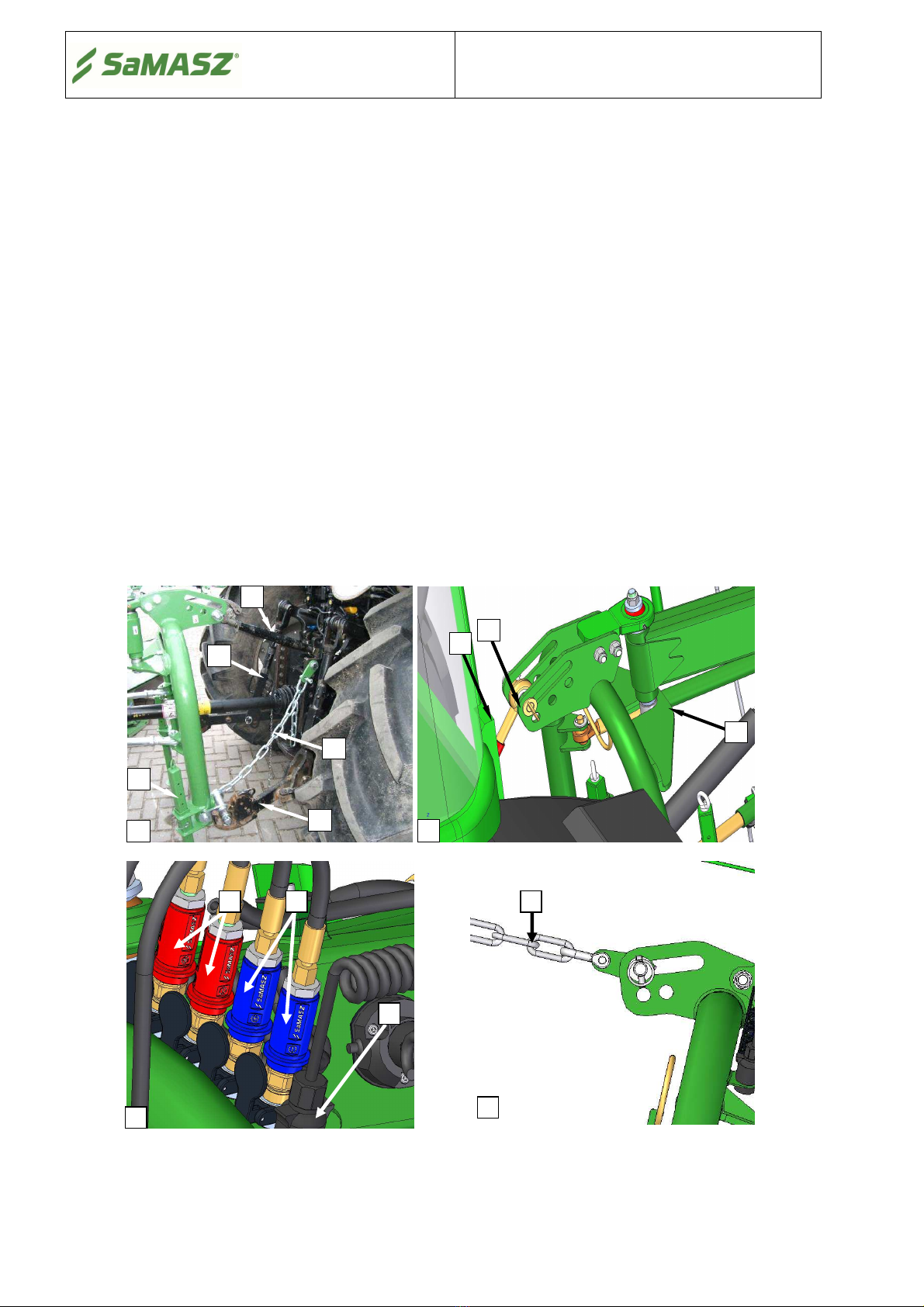

5.1. Attaching the tedder to the tractor .......................................................................................................17
5.2. Preparing the tedder for transport........................................................................................................19
5.3. Preparing the tedder for transport on public roads ..............................................................................20
5.4. Mounting PTO shaft ............................................................................................................................21
5.5. Switching from transport to working position.....................................................................................22
5.6. Switching 6-rotary tedder from transport position (for loading) to working position.........................25
5.7. Preparing the tedder for work..............................................................................................................26
5.8. Operation .............................................................................................................................................28
5.8.1. Tedding on left and right side ..........................................................................................................29
5.8.2. Headland position.............................................................................................................................31
5.8.3. Removing clogging and jams..........................................................................................................32
5.9. Dismounting machine from tractor......................................................................................................33
6. MOUNTING AND ADJUSTMENTS......................................................................................................33
6.1. Mounting of the tines...........................................................................................................................33
6.2. Daily maintenance...............................................................................................................................34
6.3. After-season maintenance and storing.................................................................................................34
7. LUBRICATION ........................................................................................................................................35
7.1. Main gears (central).............................................................................................................................35
7.2. Angular gearboxes for carousels .........................................................................................................35
7.3. Joints....................................................................................................................................................36
7.4. Risks present when lubricating............................................................................................................37
8. MALFUNCTION AND THEIR REPAIRS ............................................................................................37
9. DISASSEMBLY AND WITHDRAWAL FROM USE ..........................................................................38
9.1. Repair ..................................................................................................................................................38
9.2. Disassembly and scrapping .................................................................................................................38
10. WARRANTY CARD ................................................................................................................................38
11. WARRANTY TERMS..............................................................................................................................39
11.1. Warranty claims procedures ................................................................................................................39
11.2. Warranty repairs record.......................................................................................................................40

Operator’s manual
Rotary tedder P4-420, P4-471 and P4-531
Rotary tedder P6-651 and P6-771
Rotary tedder P8-790 and P8-890
- 2 -
1. IDENTIFYING THE MACHINE
Data plate (Fig. 2) is mounted to the tedder’s main frame in the place shown below in Fig. 1.
Fig. 1. Data plate place Fig. 2.Data plate
Data plate includes
:
-
name and address of the manufacturer,
-
model year,
-
CE marking means, that the produce conforms
-
version number,
to 2006/42/EC Directive and harmonized standards,
-
machine weight,
-
machine symbol,
-
id number,
-
date of manufacture,
-
barcod
e.
2. INTRODUCTION
 This operator’s manual is essential for safe and proper use of this tedder and should be read
before anyone operates this tedder . It should be kept near the tedder for future use. If the tedder
is used by another operator, it should be in working condition and include this operator’s
manual and all other basic equipment.
 Operator’s manual is attached to every machine in order that the operator can familiarize
himself with design, working principles, service and adjustment of the tedder. The operator
should be familiar with common safety rules and procedures.
 The tedder is manufactured according to international safety rules.
 Compliance with the safety precautions in this operator’s manual will help to enable safe
operation.
 Please contact your dealer if you have any queries relating to the operation and service of
the tedder.

Operator’s manual
Rotary tedder P4-420, P4-471 and P4-531
Rotary tedder P6-651 and P6-771
Rotary tedder P8-790 and P8-890
- 3 -
3. PROPER AND INTENDED USE
Rotary tedder is designed for tedding cut forage and dry hay in order to make drying faster.
WARNING:
Use of the tedder for purposes other than described above is forbidden. Improper use
can be dangerous and may lead to voiding of the warranty. Tedder should be
operated and repaired only by people familiar with its detailed specifications and
with all applicable safety rules and regulations and with the relative dangers.
Unauthorized modifications to the tedder will lead to voiding the warranty.
3.1. Technical data
Tab. 1. Technical data
Tedder’s type: P4-420 P4-471 P4-531 P6-651 P6-771 P8-790 P8-890
Working width
[ft. in]
13' 9"
15' 5"
17' 5"
21' 4"
25' 3"
25' 11"
29' 2"
Transport width [ft. in]
9' 2"
9' 8"
9' 8"
9' 8"
9' 8"
9' 10"
9' 10"
Transport height [ft. in]
7' 5"
8' 2"
8' 10"
12'
13' 1"
10' 4"
11' 4"
RPM
540
3
-
point linkage categ
ory
I/II
II
Tractor’s power [HP]
22
30
40
50
Number of rotors [pcs]
4
6
8
Number of arms [psc]
5
6
5
6
Max. working speed [mph]
10
Tires
Recommended pressure [bar]
15 x 6,00-
6 – 2,0 bar
16 x 6,50-8 – 1,8 bar (road wheels)
15 x 6,00-6 – 2,0 bar (ground following wheel)
16x6,50-8
– 1,8 bar
(road
wheels)
18×8,5-8 –
1,8 bar
(main road
wheels)
16x6,5-8 –
1,8 bar
(road
wheels)
16x6.5-8 –
1,8 bar
(ground
following
wheel)
Weight [lbs.]
1116
1466
1499
2073
2084
2267
2910
Noise level L
pA
6
6,3 ± 3,2 dB
L
Amax
69,5 ± 3,2 dB
L
Cpeak
92,0 ± 3,2 dB
LpA – noise level related to 8 hour working time. Averaged in time acoustic pressure level corrected by frequency
characteristic A.
LAmax – maximum value corrected by frequency characteristic A of acoustic pressure level.
LCpeak – peak level of acoustic pressure corrected by frequency characteristic C.

Operator’s manual
Rotary tedder P4-420, P4-471 and P4-531
Rotary tedder P6-651 and P6-771
Rotary tedder P8-790 and P8-890
- 4 -
3.2. Design and working principle
3.2.1. 4- rotary tedder
Overview of 4- rotary tedder is provided in Fig. 3. 3-point linkage frame (1) with catch (2)
enables connecting tedder to the tractor 3-point linkage suspension. Drive with tractor PTO is
transmitted by intersectional gears onto rotors. The tedder comprises of three drive units: left and
right (4and 5) as well as main one (3), onto which rotors are set with arms (6) and fingers (7).
Safety guards (8) are mounted on the frame and lateral drive units. For transport the two lateral
units with rotors are folded by hydraulics to vertical position and locked with a locking pawl (9).
Fig. 3. Parts of 4- rotary tedder
1 – 3-point linkage frame
2 – Catch
3 – Main drive unit
4 – Left drive unit
5 – Right drive unit
6 – Raking arms
7 – Spring tines
8
–
Safety guards
9 – Locking pawl
10 – Ground following mechanism
11 – Plates with luminous and reflecting elements
12 – Chain for operating position adjustment
13 – Additional chain for ground following
14 – Ground following wheel (optional)
The tedder has been equipped with ground following mechanism (10) enabling for following
the ground unevenness by the machine with use of 3-point linkage suspension stiff connector.
The tedder may be equipped with (optional) ground following wheel (14). Chain for operating
position adjustment (12) is used for operation on very uneven ground to be used instead of the stiff
connector. Chain (13) is used when adaptation range of the mechanism (10) is not sufficient.
When driving on public roads the tedder should be equipped with a plate with luminous and
reflecting elements (11), and a warning triangle for a slow driving vehicle.
1
2 5
4 6 7
8
9
10
11
12 13
14 3

Operator’s manual
Rotary tedder P4-420, P4-471 and P4-531
Rotary tedder P6-651 and P6-771
Rotary tedder P8-790 and P8-890
- 5 -
3.2.2. 6- rotary tedder
Overview of 6- rotary tedder is provided in Fig. 4. 3-point linkage frame (1) with catch (2)
enables connecting tedder to the tractor 3-point linkage suspension. Drive with tractor PTO is
transmitted by intersectional gears onto rotors. The tedder comprises of five lateral drive (4), (5),
(6), (7) as well as main one (3), onto which rotors are set with arms (8) and fingers (9). Safety
guards (10) are mounted on the frame and lateral drive units. For transport the two lateral units with
rotors are folded by hydraulics to vertical position and locked with a locking pawl (11).

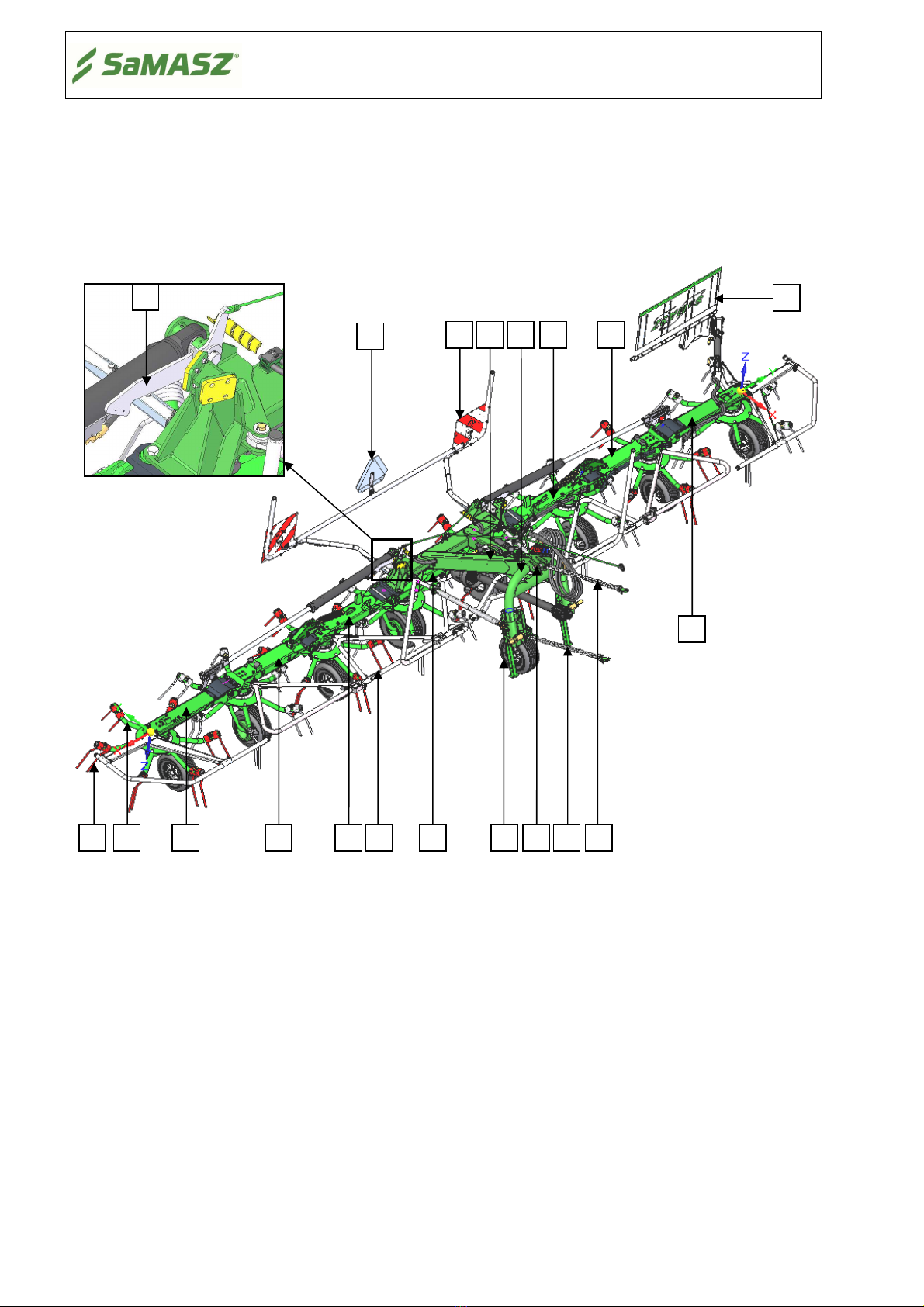

Fig. 4. Parts of 6-rotary tedder
1 – 3-point linkage frame
2 – Catch
3 – Main dive unit
4,5 – Left drive units
6,7 – Right drive units
8 – Raking arms
9 – Spring tines
10
–
Safety guards
11 – Locking pawl
12 – Ground following mechanism
13 – Plates with luminous and reflecting elements
14 – Chain for operating position adjustment
15 – Additional chain for ground following
16 – Ground following wheel (optional)
The tedder has been equipped with ground following mechanism (12) enabling for following
the ground unevenness by the machine with use of 3-point linkage suspension stiff connector.
The tedder may be equipped with (optional) ground following wheel (16). Chain for
operating position adjustment (14) is used for operation on very uneven ground to be used instead
of the stiff connector. Chain (15) is used when adaptation range of the mechanism (12) is not
sufficient.
When driving on public roads the tedder should be equipped with a plate with luminous and
reflecting elements (13), and a warning triangle for a slow driving vehicle.
4
1 2
3 5 7 6
8 9
10 11 12 13 15 14
16

Operator’s manual
Rotary tedder P4-420, P4-471 and P4-531
Rotary tedder P6-651 and P6-771
Rotary tedder P8-790 and P8-890
- 6 -
6 2
10
5
13
17 11 3
1
4
7 8 9
18
14
15
16
20
19 12
3.2.3. 8- rotary tedder
Overview of 8- rotary tedder is provided in Fig. 5. 3-point linkage frame (1) with catch (2)
enables connecting tedder to the tractor 3-point linkage suspension. Drive with tractor PTO is
transmitted by intersectional gears onto rotors. The tedder comprises of six lateral drive (4), (5), (6),
(7), (8), (9) as well as main one (3), onto which rotors are set with arms (10) and fingers (11). Safety
guards (12) are mounted on the frame and lateral drive units. For transport the two lateral units with
rotors are folded by hydraulics to vertical position and locked with a locking pawl (13).
Fig. 5. Parts of 6-rotary tedder
1 – 3-point linkage frame
2 – Catch
3 – Main dive unit
4,5,6 – Left drive units
7,8,9 – Right drive units
10 – Raking arms
11 – Spring tines
12
–
Safety guards
13 – Locking pawl
14 – Ground following mechanism
15 – Plates with luminous and reflecting elements
16 – Chain for operating position adjustment
17 – Additional chain for ground following
18 – Warning triangle for a slow driving vehicle (optional)
19 – Ground following wheel (optional)
20
–
Windrow curtain “field edge”
(
optional
)
The tedder has been equipped with ground following mechanism (14) enabling for following
the ground unevenness by the machine with use of 3-point linkage suspension stiff connector.
The tedder may be equipped with (optional) ground following wheel (19) and windrow
curtain for tedding on the field edge (20) (optional). Chain for operating position adjustment (16)
is used for operation on very uneven ground to be used instead of the stiff connector. Chain (17)
is used when adaptation range of the mechanism (14) is not sufficient.
When driving on public roads the tedder should be equipped with a plate with luminous and
reflecting elements (15), and a warning triangle for a slow driving vehicle (18).

Operator’s manual
Rotary tedder P4-420, P4-471 and P4-531
Rotary tedder P6-651 and P6-771
Rotary tedder P8-790 and P8-890
- 7 -
3.3. Standard equipment and spare parts
The tedders are sold with the following standard equipment:
 warranty card,
 operator’s manual with spare parts list and Declaration of Conformity,
 PTO shaft (Tab. 2) ,
 spray paint (150 ml).
Tab. 2. Recommended PTO shafts for rotary tedders
Model Power Length Moment Symbol Clutch Manufacturer Notes
KM mm Nm
P4-420
P4-471
P4
-
531
21 3' 12"-
5' 8" 270 8G2N121CE007002
friction Bondioli & Pavesi
P6-651
P6-771
P8-790
P8
-
890
35 3' 11"-
5' 8" 460 8G4N121CE007003
Fig. 6. PTO shaft lubrication points (8G2N121CE007002)
Fig. 7. PTO shaft lubrication points (8G4N121CE007003)
NOTE:
The frequency of lubrication of the articulated telescoping shaft should be carefully adhered
to. Points shown in Fig. 6 and Fig. 7 should be lubricated every 50 hours. The articulated
telescoping shaft should also be lubricated before and after longer periods of disuse.
PTO shafts of other brands with equivalent parameters could be used after first obtaining SaMASZ
permission.
PTO shaft’s end
without clutch –
To be
mounted on the
tractor’s side
PTO shaft’s end with
friction clutch –
To be
mounted on tedder’s
side
PTO shaft’s end
without clutch –
To be
mounted on the
tractor’s side
PTO shaft’s end with
friction clutch –
To be
mounted on tedder’s
side

Operator’s manual
Rotary tedder P4-420, P4-471 and P4-531
Rotary tedder P6-651 and P6-771
Rotary tedder P8-790 and P8-890
- 8 -
4. SAFETY PRECAUTIONS
The following precautions are for your safety. They must be read carefully
and followed by every person who operates or maintains the machine. Failure to follow these
safety precautions could result in serious injury or death to the operator, maintenance person or
bystanders and property damage to the machine and surrounding property.
Safety Signal Words
This manual and the safety labels attached to this equipment utilize signal words that signify
safety hazards with different levels of severity. Below are the words used and the definitions for
these words:
 DANGER indicates a hazardous situation which, if not avoided, will result in death
or serious injury
 WARNING indicates a hazardous situation which, if not avoided, could result in
death or serious injury
 CAUTION indicates a hazardous situation which, if not avoided, could result in
minor or moderate injury
 NOTICE is used to address practices not related to physical injury
4.1. General safety rules and regulations
The following descriptions are for your safety: They must therefore be read
carefully and applied every time you use the machine.
 The machine has been designed for use by one single operator.
 When using, servicing, repairing, moving or storing the machine, the operator must wear safety
footwear, safety gloves plus ear protection and dusk mask if necessary.
 During use, the machine may give rise to dust, especially if the soil is dry. You are advised to
use a tractor with a cab fitted with filters in the ventilation system. Failing this, wear a dust
mask with filter to protect your respiratory tract.
 Front axis of the tractor should be weighted to keep the balance. If need be, use front wheel
weights.
 In order to keep steering conditions, impact on front axis should be at least 20% of the complete
tractor.
 Be extremely careful whenever using hydraulic lift lever or buttons. Any operation with
hydraulic lift lever should be done from operator’s seat; DO NOT move the lever from outside
of a tractor.
 In case of tractors equipped with EHR, operating with hydraulic lift is done by the buttons
mounted outside the tractor’s cabin. When operating be extremely careful.
 Locking pawl line and “field edge” mechanism line (in the case of the P4-420 tedder) should be
mounted with relevant tolerance in the tractor cabin
 When moving from work to transport position, remove the entire PTO shaft or at least one end
of the shaft from the tractor’s PTO so it cannot turn.
 When attaching the tedder to a tractor, the operator should wear protective gloves.
