Sammy Mighty Driver User manual

Ver.1.0
3 Sarnmy usA Gorporation
901 Cambridge Drive
Elk Grove Village, lL 60007-2434
Phone: [phone]
FAX: [phone]
I nternet: www.sam myusa.com

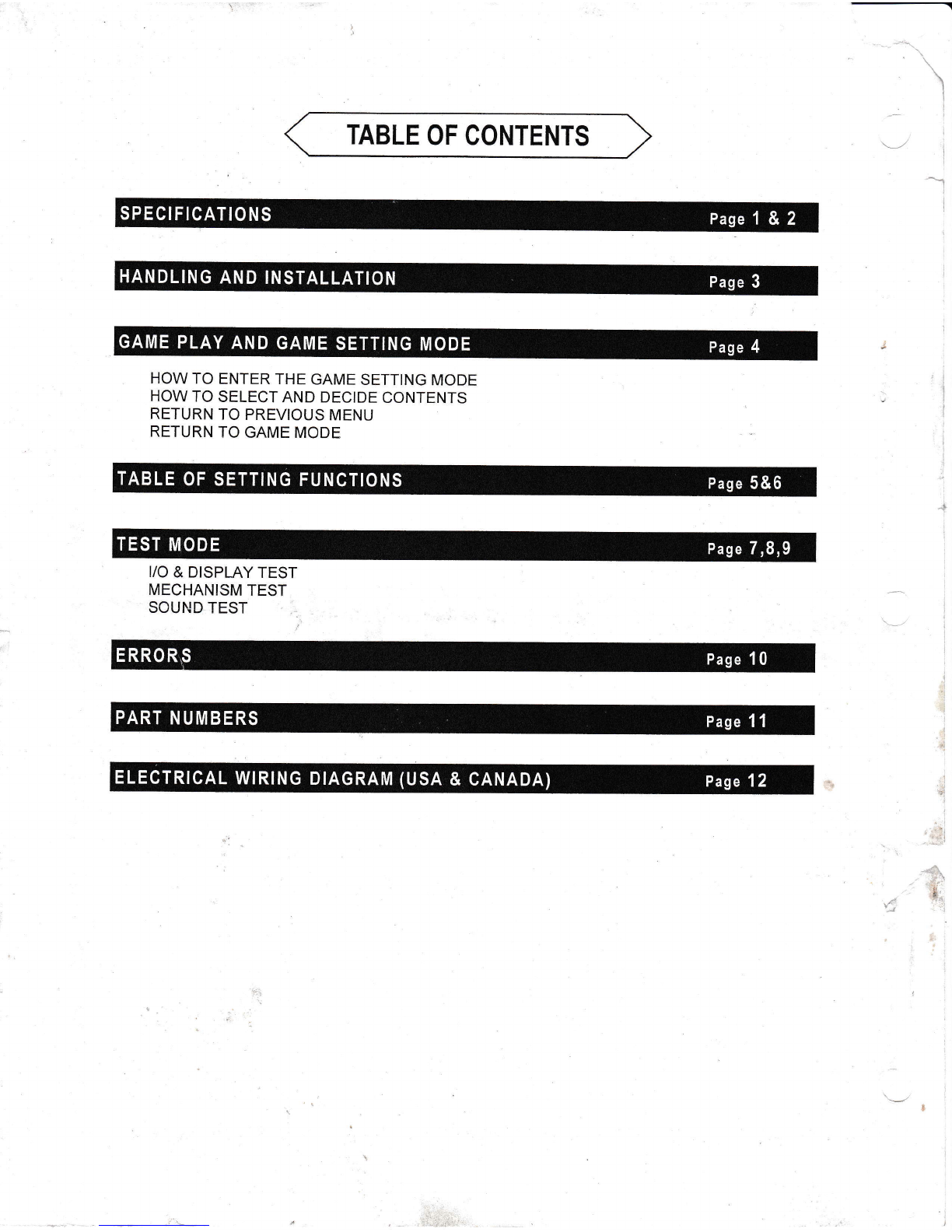

HOW TO ENTER THE GAME SETTING MODE
HOW TO SELECT AND DECIDE CONTENTS
RETURN TO PREVIOUS MENU
RETURN TO GAME MODE
I/O & DISPLAY TEST
MECHANISM TEST
SOUND TEST

POWER
DIMENSIONS
WEIGHT
120VAC @60H2 USA&CANADA
Width: 24' (600 mm)
Height 48" (1215 mm)
Depth: 38" (960 mm)
146 lb (66 kg)
l
H=48"
(1215 mm)
D=38"
(960 mm)
With Steering Wheel:
45" (1130 mm)
'- -.--
W=24"
(600 mm)
Playfield Dome, MD
Par.#'.41-70-450
&r
*'*""

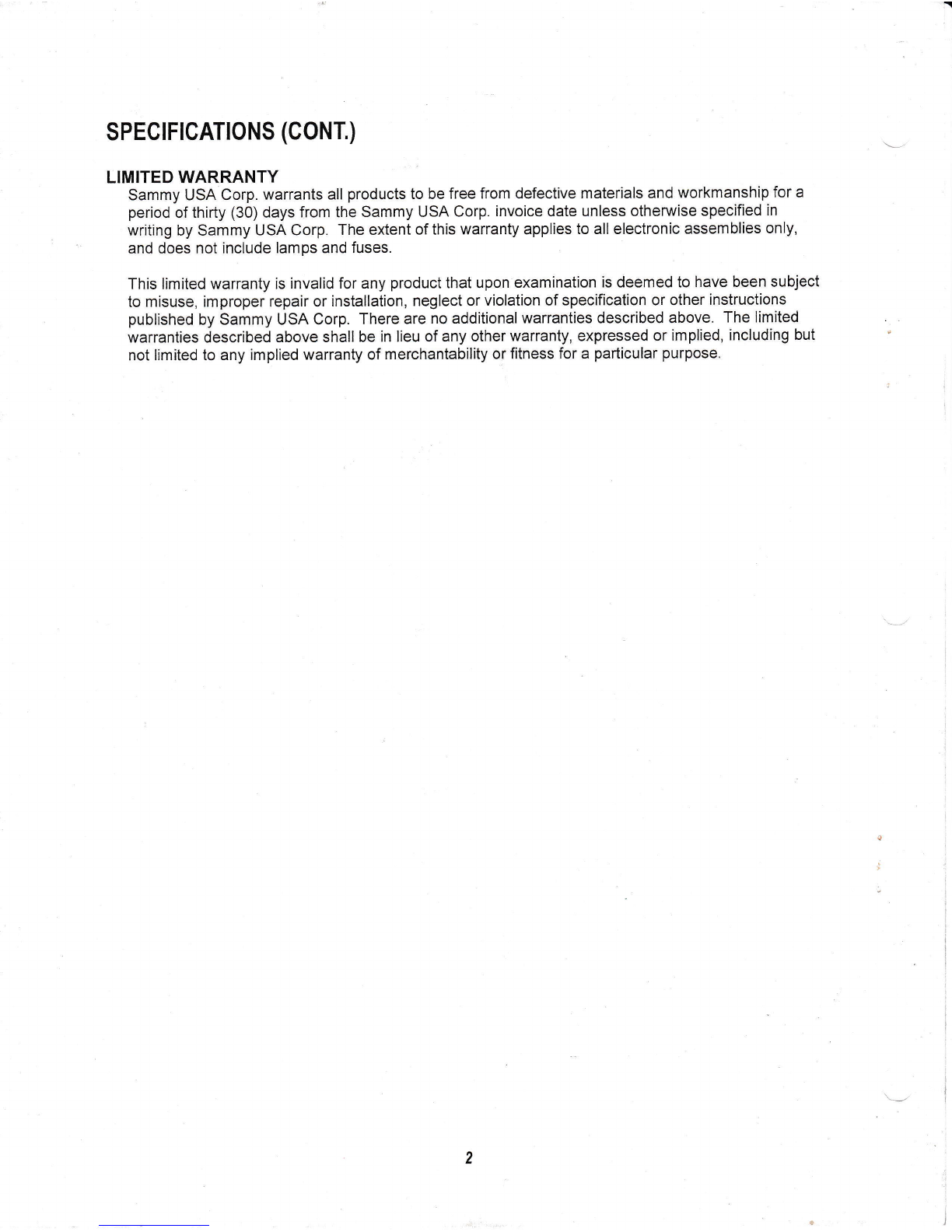

SPECIFTCATTONS (GONT.) \--
LIMITED WARRANTY
Sammy USA Corp. warrants all products to be free from defective materials and workmanship for a
period of thirty (30) days from the Sammy USA Corp. invoice date unless othenrvise specified in
writing by Sammy USA Corp. The extent of this warranty applies to all electronic assemblies only,
'' and does not include lamps and fuses.
This limited warranty is invalid for any product that upon examination is deemed to have been subject
to misuse, improper repair or installation, neglect or violation of specification or other instructions
published by Sammy USA Corp. There are no additionalwarranties described above. The limited
warranties described above shall be in lieu of any other warranty, expressed or implied, including but
not limited to any implied wananty of merchantability or fitness for a particular purpose.

The Mighty Driver redemption game is an indoor game machine- lt is not designed for outdoor use"
Avoid installing the game in the following locations:
a Locations subject to rain or water damage
a Locations in direct sunlight
a Locations subject to extreme heat
a Locations near hazardous or flammable liquids or chemicals
You will need the following minimum dimensions for egress into your location:
60 inches in height
25 inches in width
INSTALLATION
Unpack your game carefully. Be careful of the shipping staples. They can be sharp.
Your game is assembled and should not need any assembly.
Levelyour game using enclosed Leg levelers. Prizes willthen fall properly.
The standard voltage for U.S. and Canada 120V I 125V - 3A; Europe 220V 1240V -24.
Use of extension cords is prohibited.
Use only a grounded outlet. YOUR GAME MUST BE GROUNDED!!!
The minimum space required for operation in your locations should be:
. 80,,high
a 30" wide
t 60" depth
THE GAME MUST BE LEVEL. IF THE GAME IS NOT ON A LEVEL SURFACE, THE TILT
SYSTEM WILL MALFUNCTION. USE A LEVEL TO AVOID NEEDLESS ADJUSTMENTS.
SAFETY PRECAUTIONS
a Be sure to turn the power off or unplug the game before working on the unit.
a Do not unplug game by pulling on the line cord.
a Replace line cord if the insulation is damaged in any way with one of equal quality.
t Replace open fuses with same type and rating.
t Re-check and re-seat all harness connections.
i
a

GAME PLAY
t Insert coin(s) or token(s) .
. Control the Car using steering wheel to hit the FLAGS.
. More FLAGS, more tickets.
GAME SETTING MODE
HOW TO ENTER THE GAME SETTING MODE
Re-power on while pressing and holding the RESET Switch which
is located inside of front door. Digits of 88 are shown first. Then
release the RESET switch OFF to show the -1 on 2 digits LED
display on Marquee box" EE)TH
HOW TO SELECT AND DEGIDE EAGH CONTENTS
After entering GAME SETTING mode, press SERVICE switch to move the number of
FUNGTIqTS. (2 digits will be changed by pressing the SERVICE switch.) Press RESET switch to
select it. After selecting, display shows each setting numbers.
Press SERVIGE switch to move the number of SETTINGS. (2 digits will be changed by pressing
the SERVICE switch) Press RESET switch to select it.
RETURN TO PREVIOUS MENU
Change FUNCTIONS and SETTINGS to selection "oo". Select these Digits then press RESET
switch to return to previous menu.
RETURN TO GAME MODE
After selecting any SETTINGS, re-power on the game.
For the FUNCTIONS and SETTINGS, please refer to the setting table on next page.
DIP SW SETTING
Payout setting is set by DIPSW on Main PCB. Please refer below table.
PAYOUT
SETTING Use Asahi Seiko Card Dispenser.
No Ticket, No Card Payout. Extend game play
Only game play. No payout.
ATTEMTION!!! PLEASE KEEP OFF OTHER SWITCHES. (SW 4, 5,6,7 AND 8}

-1 COIN CHUTE 11 lGOIN/1PLAY 80.25 per play (or $1.00 coin per 1 play)
80.50 per play
10.75 per play
!0.25 per 2 plays (or $1.00 coin per 2 plays)
l0 75 per 2 plays
10.50 per 3 plays
10.75 per 4 plays
E0 75 per 5 plays
3pin the Steering Wheel to start the game
13 3COINS/1PLAY
14 lCOIN/2PLAYS
15 3COINS/2PLAYS
16 2COINS/3PLAYS
17 3COINS/4PLAYS
18 3COINS/5PLAYS
19 FREE PLAY
oo RETURN TO PREVIOUS
-2 DIFFICULTY
LEVEL
Number of LAPS
and speed of
control
21 EASY 5 LAPS, EASIER
5 LAPS, EASY
5 LAPS, NORMAL
5 LAPS, HARD
5 LAPS, HARDER
4 LAPS, EASIER
4 LAPS, EASY
4 LAPS, NORMAL
4 LAPS, HARD
4 LAPS, HARDER
3 LAPS, EASIER
3 LAPS, EASY
3 LAPS, NORMAL
3 LAPS, HARD
3 LAPS, HARDER
22
24
25
26
27
28
29
2A
2b
2C
2d
2E V
2F HARD
oo RETURN TO PREVIOUS
-3 AUTO START 31 O SECOND
33 1O SECONDS
34 15 SECONDS
35 20 SECONDS
36 25 SECONDS
37 30 SECONDS
oo RETURN TO PREVIOUS
tt
-6 ATTRAGT
CAR MOVING
(Waiting time)
61 OFF
62 3 MINUTES
64 1O MINI.JTES
oo RETURN TO PREVIOUS
CARD PAYOUT
SETTING

ayout after game over.
CARD PAYOUT
SCORE SETTING PAYOUT EVERY TIME
lll -A SCORE SETTING
PER 1 TICKET
PAYOUT
A1 1 FLAG
A2 2 FLAGS
A4 4 FLAGS
A5 5 FLAGS
A6 6 FLAGS
A7 7 FLAGS
A8 8 FLAGS
A9 9 FLAGS
AA {O FLAGS
Ab 11 FLAGS
AC {2 FLAGS
Ad 13 FLAGS
AE 14 FLAGS
AF 15 FLAGS
oo RFTIIRN TO PRFVIO1JS
-b MERCY TICKET b't OFF Payout when game is over"
b3 2 TICKETS
b4 3 TICKETS
b5 4 TICKETS
b6 5 TICKETS
b7 6 TICKETS
b8 7 TICKETS
b9 8 TICKETS
bA 9 TICKETS
bb 1O TICKETS
oo RETTJRN TO PREVIOUS
Used when player gets 30 flags
EXTEND GAME
PLAY SETTING
Not used when
Ticket & Card payout
is active"
Uo to 4 GAMES
f r ---f--Do '
I

You can check 3 tests in this mode.
HOW TO ENTER THE TEST MODE
Re-power on while pressing and holding the SERVICE Switch
which is located inside of front door. Digits of 88 are shown first.
Then release the SERVIGE switch OFF to show the 1- on 2
digits LED display on Marquee box. EE)ET
HOW TO SELECT AND DECIDE GONTENTS
After entering TEST MODE, press SERVICE switch to move the number of contents. (2 digits will
be changed by pressing the SERVICE switch.) Press RESET switch to select it. After selecting,
display shows each function numbers.
TEST MENU FUNCTION NUMBER
. I/O & DISPLAY TEST
. MECHANISM TEST
. SOUND TEST
RETURN TO PREVIOUS MENU
Each test function has the number "oo", select this and press RESET switch.
lf you want to quit the test during testing, press RESET switch when the LED Display does not
show any numbers.
r I/O & DISPLAY TEST
Display shows 1- then press SERVICE switch to select following TEST menu. There are 3 kinds
as below. (1, 12 ana 131
STEERING WHEEL TEST (Press SERVICE switch to select 11 ttren press RESET switch)
Check the Optic sensor functions on Steering WheelAssy. LED Display shows digits from 0 to 48
when the Optic sensor is activate. Spin the wheel to move the digits, this means the Optic sensor
works fine.
SWITCH TEST (Press SERVICE switch to select 12 tfren press RESET switch)
Check the Coin switch and Magnet under the CAR Assy.
lf the Magnet is positioned properly and Coin Switch is OFF, Display shows "0".
When the Coin Switch is ON, Display shows "l" then Lamp #1 on the Marquee will be ON. Lock
out coin of Coin mech will work, too.
when the Magnet is oFF, Display shows "2" and Lamp #3 on the Marquee will be oN.
LAMP TEST (Press SERVICE switch to select 13 tfren press RESET switch)
Check the 9 Lamps and LED Display PCB on the Marquee" They automatically Light up and count
up.

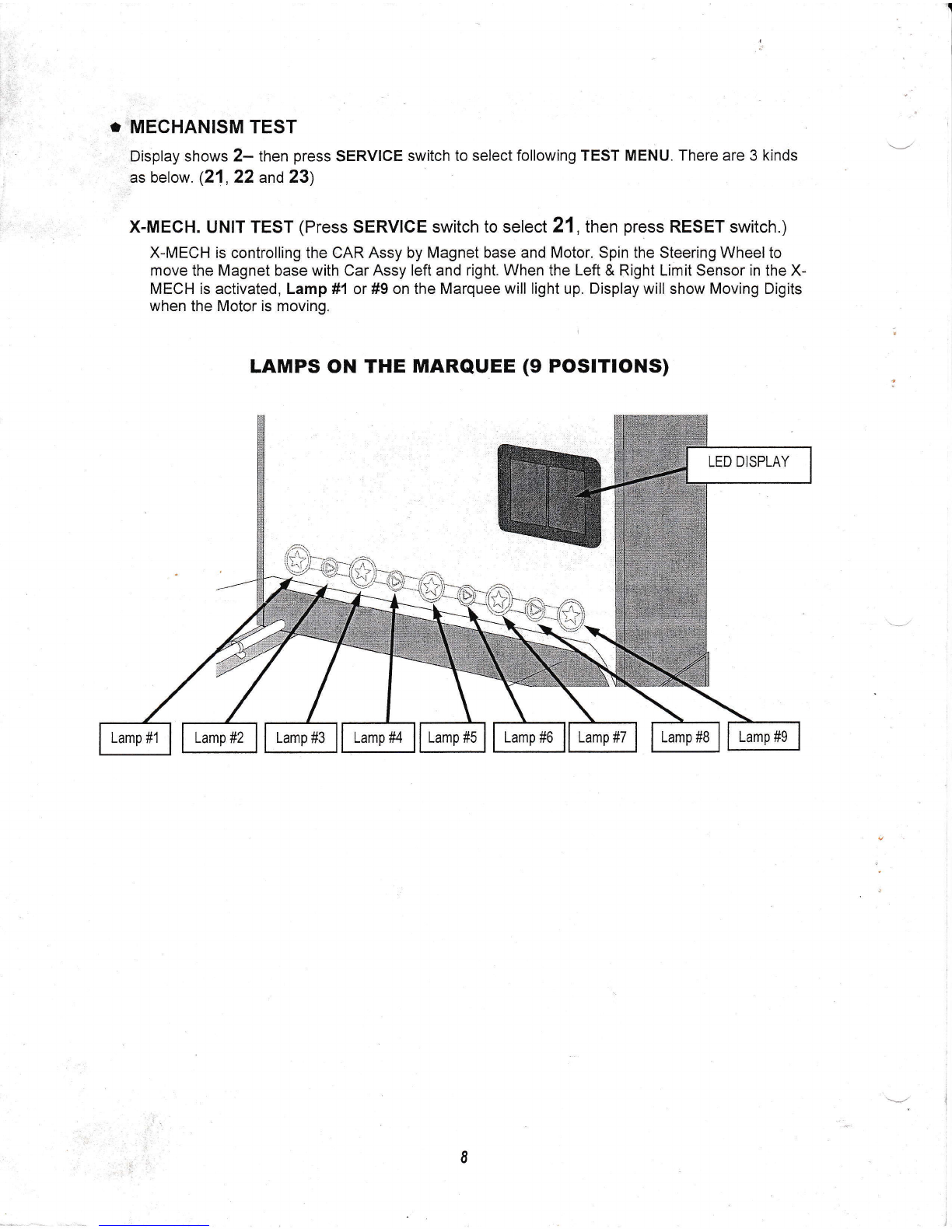

MECHANISM TEST
Display shows 2- then press SERVICE switch to select following TEST MENU. There are 3 kinds
as below. (21,22 and 23)
X-MECH. UNIT TEST (Press SERVICE switch to select 21, then press RESET switch.)
X-MECH is controlling the CAR Assy by Magnet base and Motor. Spin the Steering Wheelto
move the Magnet base with Car Assy left and right. When the Left & Right Limit Sensor in the X-
MECH is activated, Lamp #1or#9 on the Marqueewill light up. Displaywillshow Moving Digiis
when the Motor is moving.
LAMPS ON THE MARQUEE (9 POSTTTONS)

raj- BELT MECH. TEST (Press SERVICE switch to select 22,lhen press RESET switch.)
Spin the Steering Wheel clockwise to move the BELT forward. Spin the Steering Wheelcounter
clockwise to move the BELT backward. Spin more to make the BELT move faster. Each Lamp on
Marquee shows the function of each Sensor on BELT MECH.
Lamp #1: Positioning sensor
Located Right bottom of BELT from back side view. 2 pcs per set. (Receiver and Sender.)
Count the hole on left side of Belt.
Lamp #3: Adjusting sensor
Located Left bottom of BELT from back side view. Counts the 5 Holes on the Belt.
Lamp #5 & 7: Photo. Reflector
Located Left top of BELT from back side view. Reading the Black and White marks on
Right side of Belt.
Photo Reflector
KR291-AA
Part #: 41-60-559
BACK VIEW OF CABINET
Positioning Sensor
Photo Sensor, K81240-AA
Part #: 41-60-558
VENDTNG DEVICE TEST (Press SERVICE switch to select 23, then press RESET switch.)
Press SERVICE switch to payout Ticket or Card when the setting is Ticket or Card Payout.
. SOUND TEST
Display shows 3- tnen press SERVICE switch to go to SOUND TEST.
Press RESET switch to count up the number on Display and output the sound. Press & hold to
skip thru the numbers faster.
Press SERVIGE Switch and Display shows oo, then press SERVIGE Switch again to return to
previous menu.
RETURN TO GAME MODE
After TESTING, re-power on the game.
Adjusting Sensor
Photo Sensor, KB1240-AA
Part #: 41-60-558

CE Card or Ticket Empty Check the Card or Ticket Dispenser. lf
empty, re-fill the Cards or Tickets and
press RESET switch to payout remaining
number of Cards or Tickets. Do not power
off because remaining number will be
cleared.
CJ Jamming of Card or Ticket Dispenser Check the Card or Ticket Dispenser, clear
the jam of Cards or Tickets and re-power
on the game.
E1 Coin Switch Error Check the Coin Mech. Any jamming in the
coin or token in there or no[? Correit and
re-power on the game.
E2 Magnet Error This is error code when the Magnet base is
off from the X-Mech. Unit. Open Playfield
dome and check the Car Assy mounting.
E3 EP-ROM Error Data writing Error. Press RESET switch to
clear. lf error is not cleared, need to
exchange the Main PCB.
E4 Malfunction of X Mech. Check wiring and pin connection of X-
Mech. connector. Or Check output for
Power supply assy.
E5 Malfunction of Belt Unit Problem with Belt Unit" Check if motor is
turning or not. Check harness of Belt motor
Assy.
E6 Card or Ticket Dispenser Error Check the Card or Ticket Dispenser harness, connection... etc. Or exchange
the Unit.
E7 Belt Home positioning or Adjustment Sensor
Error Check the sensor connector, harness and
wiring. Or exchange those sensors.
EB X-Limit Sensor Error Check the Harness or Limit switch of X- mech. Unit. Or exchange the X-Limit
Sensor.
E9 Switch Error This error code appears when the
SERVICE and RESET switches are kept
on over '10 sec. after powering on the
game. Check those switches continuity.
EA Belt speed Error lf EA error appears after game over, check
Photo Reflector. (Dirty, scratch on Sensor
or broken.)
Press RESET switch to clear error code. lf Error still exists, check above again.
10

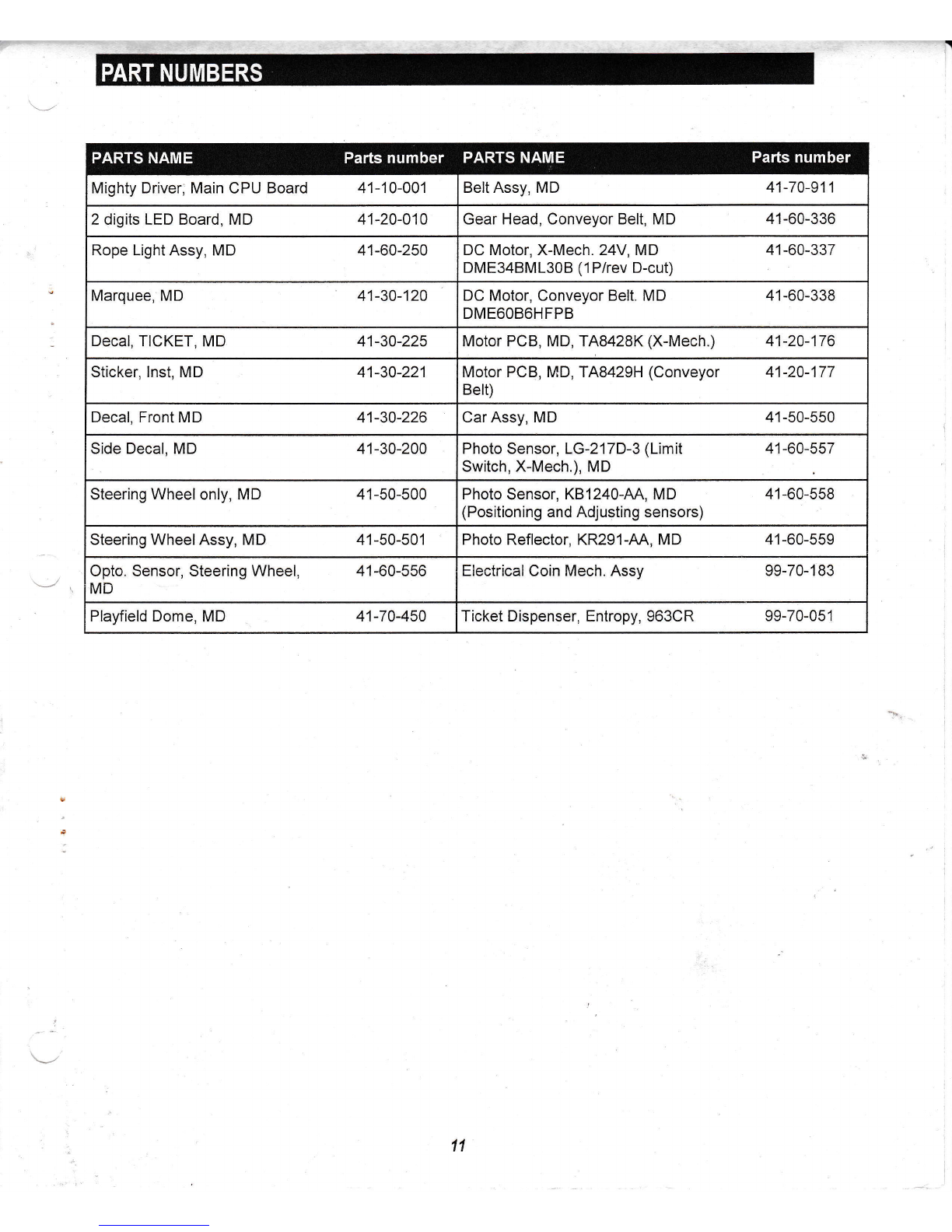

Mighty Driver, Main CPU Board 41-10-001 Belt Assy, MD 41-70-911
2 digits LED Board, MD 41-20-010 Gear Head, Conveyor Belt, MD 41-60-336
Rope Light Assy, MD 41-60-250 DC Motor, X-Mech. 24V, MD 41-60-337
DME34BML30B (1 P/rev D-cut)
Marquee, MD 41-30-120 DC Motor, Conveyor Belt. MD 41-60-338
DME6OB6HFPB
Decal, TICKET, MD 41-30-225 Motor PCB, MD, TA8428K (X-Mech.) 41-20-176
Sticker, lnst, MD 41-30-221 Motor PCB, MD, TAB429H (Conveyor 41-20-177
Belt)
Decal, Front MD 41-30-226 Car Assy, MD 4'1-50-550
Side Decal, MD 41-30-200 Photo Sensor, LG-217D-3 (Limit 41-60-557
Switch, X-Mech.), MD
Steering Wheelonly, MD 41-50-500 Photo Sensor, KB1240-AA, MD 41-60-558
(Positioning and Adjusting sensors)
Steering WheelAssy, MD 41-50-501 Photo Reflector, KR291-AA, MD 41-60-559
EiectricalCoin Mech. Assy 99-70-183
Opto" Sensor, Steering Wheel, 41-60-556
MD
Playfield Dome, MD 41-70-450 Ticket Dispenser, Entropy, 963CR 99-70-051
11

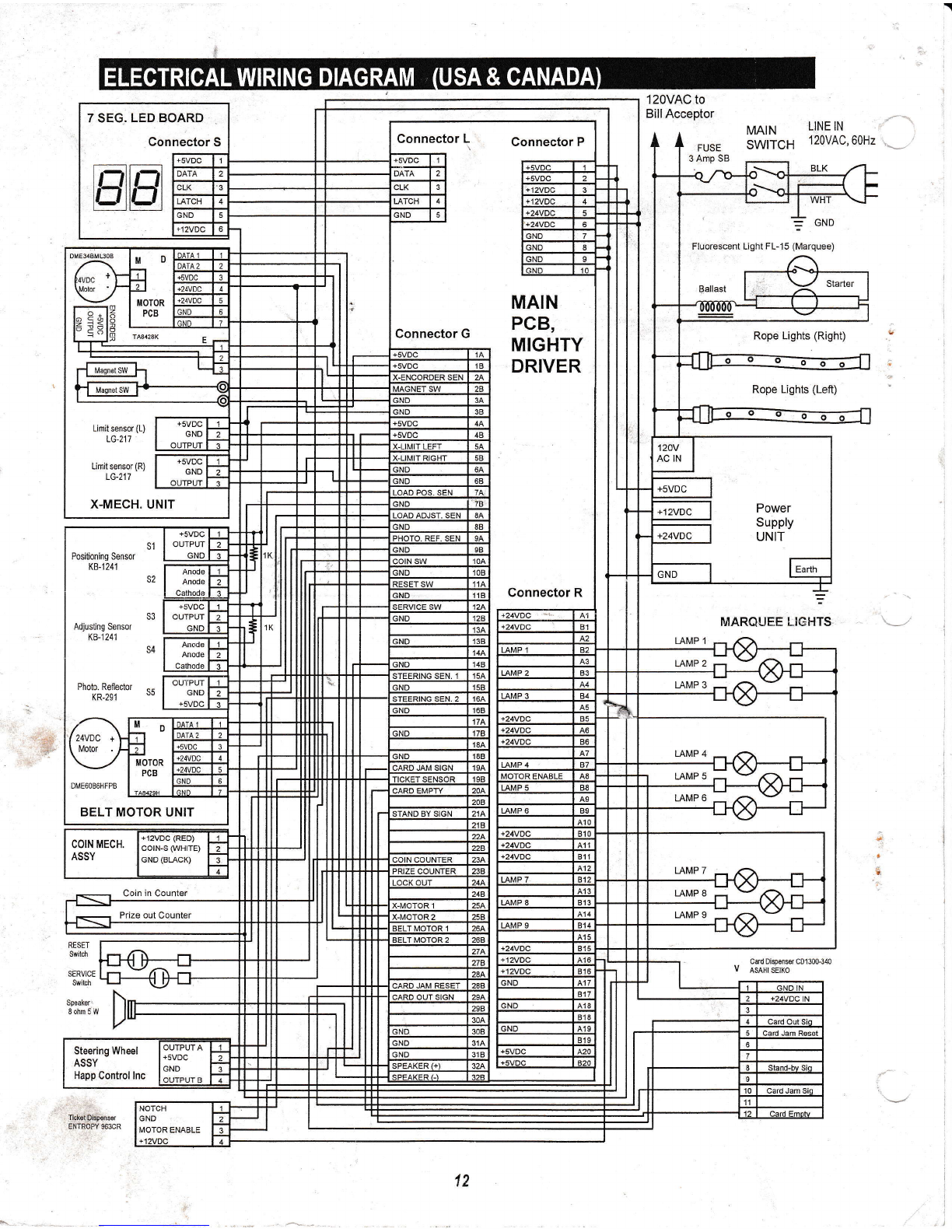

7 SEG. LED BOARD
Connector S
EE
X-MECH. UNIT
sl
Posiiioning Sensor
KB-1241 5l
s3
Adjustjng Sensor
KB-1241 s4
BELT MOTOR UNIT
OUTPUT A
+sVDC
GND
OUMUT B
NOTCH
GND
[,llOTOR ENABLE
}12VDC
Coin in Counter
120VAC to
Bill Acceptor
FUSE
3 Amp SB
MAIN
SWITCH
BLK
= GND
Fluorescent Light FL-'1 5 (Marquee)
Rope Lights (Right)
Rope Lights (Lefi)
Cad Diqen$rCD1300-340
ASAHI SEIKO
LINE IN
12OVAC,6OHZ
Tickgt oispenser
ENTROPY 953CR
12
