Congratulations on purchasing the C control, Control Room Matrix by Samson Audio! The C control is
a compact, high-quality device that provides the extensive control room monitoring features previously
only found in expensive large format recording consoles. The C control is the perfect solution for inter-
facing all your stereo line sources including mixers, hard-disk recorders, 2-tracks, along with multiple
sets control room monitors. The C control provides four sets of stereo line inputs, a headphone amplifi-
er with level control and switching for three sets of control room monitors. The C control also provides a
sophisticated Talkback section, which includes an internal condenser microphone with the ability to
route the Talkback signal to the 2-Track outputs and to the External Que for headphones. Providing
silent switching and superb audio fidelity, the C control’s signal path will impress the most critical listen-
ers.
Although this unit is designed for easy operation, we suggest you take some time out first to go through
these pages so you can fully understand how we’ve implemented a number of unique features. In this
manual, you’ll find a more detailed description of the features of the C control, as well as a guided tour
through the front and rear panels, step-by-step instructions for using the C control and full specifica-
tions. You’ll also find a warranty card enclosed—please don’t forget to fill it out and mail it so that you
can receive online technical support and so we can send you updated information about other Samson
products in the future.
With proper care and adequate air circulation, your C•control will operate trouble free for many years.
We recommend you record your serial number in the space provided below for future reference.
Serial number:
Date of purchase:
Should your unit ever require servicing, a Return Authorization number (RA) must be obtained before
shipping your unit to Samson. Without this number, the unit will not be accepted. Please call Samson at
1-800-3SAMSON (1-800-372-6766) for a Return Authorization number prior to shipping your unit.
Please retain the original packing materials and if possible, return the unit in the original carton and
packing materials.
Introduction
2

C•control Features
The Samson C•control headphone amplifier utilizes the latest technology in gain management design. Here are
some of it’s features:
•Speaker and input source selector providing a convenient centralized point for routing and listening to
stereo sources over various monitor speakers.
•3-way line level speaker selector providing A/B or A/B plus C switching.
•Three 2-track / Stereo Inputs can be used to connect DAT, CD, MINIDISK, sub-mixers, MIDI rigs or any
other stereo line level source.
•Four stereo Source switches are used to route any of the connected stereo sources to the monitor out-
put.
•Headphone Output with Level control for listening.
•Control Room VOLUME knob is used to adjust the overall level of the connected monitor speakers.
•SPEAKER 2 VOLUME control is used to level match SPEAKER 1 and SPEAKER 2 so that they are at
the proper level when switched.
•Talkback Mic with momentary TALK switch and LEVEL control picks up conversation from the engineer
and/or producer to talent over the CUE output.
•TALK TO CUE switch, when engaged, routes the internal TALKBACK microphone to the CUE output
allowing the engineer and/or producer to talk to the talent on the other side of the glass.
•TALK TO 2-TR switch, when engaged, routes the internal TALKBACK microphone to the 2-track outputs
allowing the engineer and/or producer to print a cue like “ soda jingle track seven” to the final two-track
mix.
•Mono switch is used to check mixes for mono compatibility, and when engaged, all the input sources are
summed to a mono signal.
•Mute switch provides a single button to silence all inputs and outputs.
•Dim switch, when engaged, will lower the level of all outputs by 20dB.
•Main Mix Stereo Input for connecting to main mixing console.
•Three speaker Outputs, one 1/4 inch balanced line level and two RCA unbalanced line level output.
•Four 2-track/Stereo inputs, three 1/4 inch balanced line level and one RCA unbalanced line level input.
•Oversized, rubber bumpers with tilting feet allow several Samson C class units to be stacked and tilted in
an ergonomically correct operating position.
•Three year extended warranty.
010
010
010 010
SAMSON
3

MIX 2TK A
2TK C
2TK B
OL
+6
0
-6
-18
-30
LR SPEAKER A SPEAKER C
MUTE
SPEAKER B
SUB
DIM
MONO
HEADPHONE
VOLUME
SPK B
VOLUME
HEADPHONE
VOLUME
010
010
010
TAL KB A CK
LEVEL
MIC
TAL K TO
2TK
TALK TO
CUE
010
CONTROL ROOM
MATRIX
SAMSON
SOURCE DESTINATION
LEVEL
CONTROL ROOM TALKBACK
12 34567 89
10 11 12 13 14 15 16 17 18 19

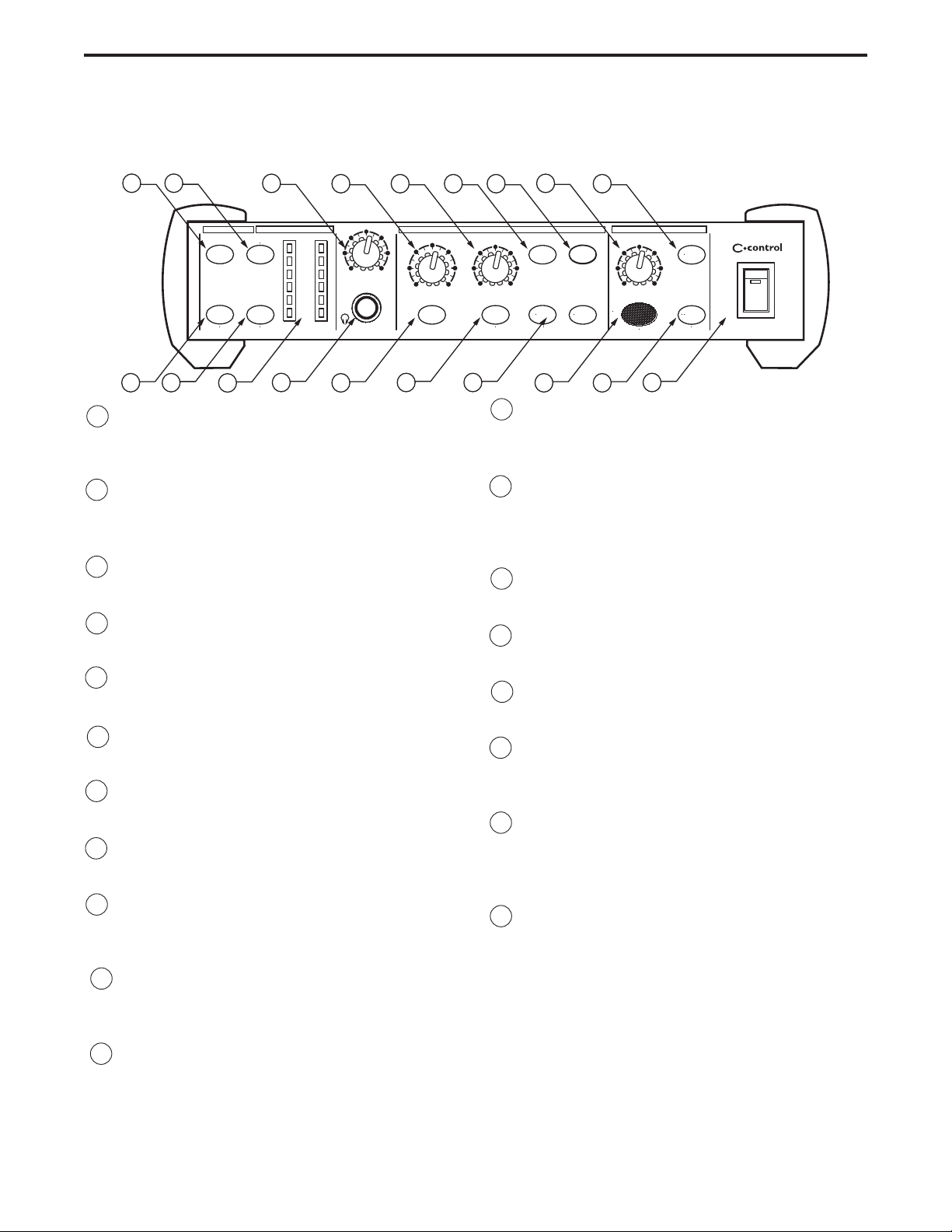

1MIX SOURCE SWITCH - Used to assign the
main MIX input to the C controls SPEAKER,
CUE and HEADPHONE outputs.
22TK A SOURCE - Used to assign the 2-track A
input to the C controls SPEAKER, CUE and
HEADPHONE outputs.
3HEADPHONE VOLUME - Adjusts the output
level of the internal headphone amplifier.
4CONTROL ROOM VOLUME - Master level con-
trol for all speaker outputs.
5SPEAKER B VOLUME - Used to adjust and bal-
ance the SPEAKER B output level.
6MUTE SWITCH - When engaged, all of C con-
trol’s outputs are turned off.
7DIM SWITCH - When engaged, the Control
Room output level is lowered by 20dB.
8TALKBACK LEVEL - Used to control the output
level of the internal Talk-back microphone.
9TALK TO CUE - When pressed down, the inter-
nal microphone is active and the output signal
of the microphone is routed to the CUE output.
10 2 TK B SOURCE - Used to assign the 2-track B
input to the C controls SPEAKER, CUE and
HEADPHONE outputs.
11 2 TK C SOURCE - Used to assign the 2-track C
input to the C controls SPEAKER, CUE and
HEADPHONE outputs.
12 LEVEL METER - Six segment LED bar VU
meter displaying the Input Level from –30db
to OL (peak)
13 HEADPHONE JACK - Standard, 1/4-inch
stereo headphone jack allowing headphone
monitoring from C control’s internal head-
phone amplifier.
14 SPEAKER A - When pressed, the switch turns
on the SPEAKER A outputs.
15 SPEAKER B - When pressed, the switch turns
on the SPEAKER B outputs.
16 SPEAKER C/SUB - When pressed, the switch
turns on the SPEAKER C outputs.
17 TALKBACK MICROPHONE - Internal con-
denser microphone used to record or send
cues from the control room.
18 TALK TO 2-TRACK - When pressed down, the
internal microphone is active and the output
signal of the microphone is routed to the 2-
track outputs.
19 POWER - Main power switch.
Controls and Functions
FRONT PANEL LAYOUT
4

+-

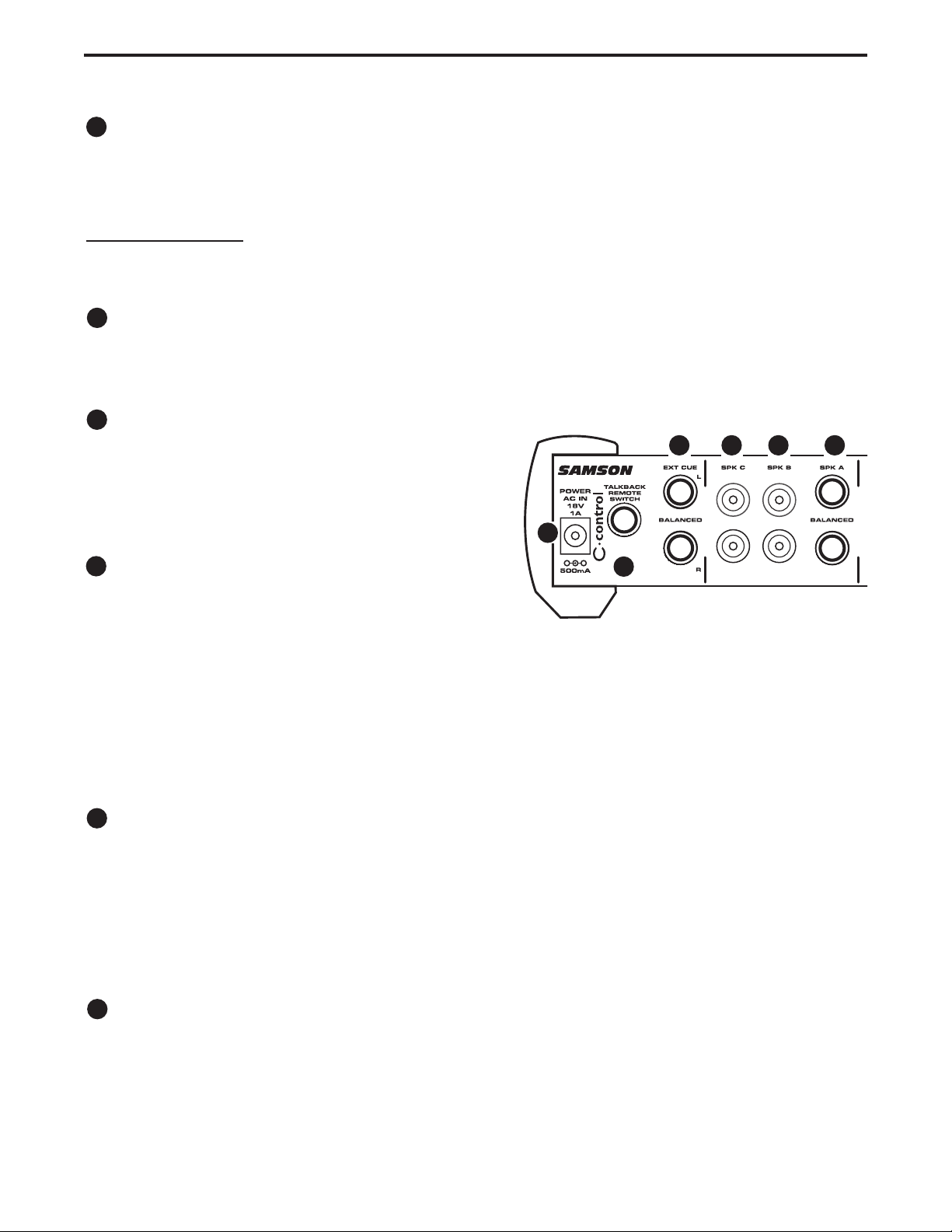

ADC INLET - The included AC/DC power supply
is connected here.
BREMOTE TALK - 1/4-inch phone connector used
to connect external TALKBACK switch.
CEXTERNAL CUE - Stereo output on two 1/4-inch
balanced phone connectors for sending C con-
trol left and right mix to a headphone amplifier.
DSPEAKER C - Stereo RCA outputs for connecting
monitor power amplifier or powered monitors.
Also can be used to connect an external pow-
ered subwoofer.
ESPEAKER B - Stereo RCA outputs for connecting
a monitor power amplifier or pair of powered
monitors.
FSPEAKER A - Stereo 1/4-inch balanced outputs
for connecting a monitor power amplifier or pair
of powered monitors.
G2-TRACK C OUTPUT - Stereo RCA outputs for
connecting any –10dBu level recording devices,
such as a computer sound card, minidisk or
consumer cassette recorder.
H2-TRACK B OUTPUT - Stereo 1/4-inch balanced
outputs for connecting any +4dBu level record-
ing devices, such as a DAT recorder, computer
sound card or CD burner.
Controls and Functions
REAR PANEL LAYOUT
I2-TRACK A OUTPUT - Stereo 1/4-inch bal-
anced outputs for connecting any +4dBu
level recording devices, such as a DAT
recorder, computer sound card or CD
burner.
J2-TRACK C INPUT - Stereo RCA inputs for
connecting any –10dBu level recording
devices, such as a computer sound card,
minidisk, CD player or consumer cassette
recorder.
K2-TRACK B INPUT - Stereo 1/4-inch bal-
anced inputs for connecting any +4dBu
level stereo sources, such as a DAT
recorder, computer sound card, CD burn-
er or sub-mixer.
L2-TRACK A INPUT - Stereo 1/4-inch bal-
anced inputs for connecting any +4dBu
level stereo sources, such as a DAT
recorder, computer sound card, CD burn-
er or sub-mixer.
MMIX INPUT - Stereo 1/4-inch balanced
inputs for connecting any +4dBu level
stereo sources, such as your main mixer
or hard disk.
5

Quick Start
QUICK SET-UP
Setting up your C control is a simple procedure, which takes only a few minutes. There are many ways to inter-
face the C control with various recording set-ups, so take some time to decide which audio devices you want to
connect. The following section shows a simple set-up for a typical recording studio with an analog console and
two sets of powered studio monitors.
Remove all packing materials (save them in case of need for future service) and plug the provided AC adapter in
to the rear AC power inlet, but don’t plug the power pack into a wall outlet just yet.
• Set the controls to the following positions:
MIX SWITCH - IN (LED ON)
2TK A SWITCH - OUT (LED OFF)
2TK B SWITCH - OUT (LED OFF)
2TK C SWITCH - OUT (LED OFF)
HEADPHONE VOLUME - 0
CONTROL ROOM VOLUME - 0
CONTROL ROOM SPKR B VOLUME - 0
MUTE SWITCH - OUT (LED OFF)
DIM SWITCH - OUT (LED OFF)
SPEAKER A SWITCH - IN (LED ON)
SPEAKER B SWITCH - OUT (LED OFF)
SPEAKER C SWITCH - OUT (LED OFF)
TALKBACK LEVEL - O
TALK TO CUE SWITCH - OUT (LED OFF)
TALK TO 2TK SWITCH - OUT (LED OFF)
SAMSON
• Connect your mixer’s control room outputs, or the main stereo source that you want monitored, to the
Left/Right MIX input jacks on the C control’s rear panel. The C control accepts both balanced and unbal-
anced signals. Generally, a balanced signal is preferable because it provides better signal-to-noise ratio
and reduced extraneous noise. For a detailed wiring guide, see page 17 in this manual.
• Connect the C control’s SPEAKER A left and right outputs to the inputs of your main powered monitors.
The SPEAKER A outputs are balanced, however it is possible to use balanced and unbalanced cables.
Generally, a balanced signal is preferable because it provides better signal-to-noise ratio and reduced
extraneous noise. For a detailed wiring guide, see page 17 in this manual.
• Connect the C control’s SPEAKER B left and right outputs to the inputs of your power amp or powered
monitors.
•Plug the C control’s power pack into a wall outlet and switch the unit on by pressing the power switch.
•Now, turn on your power amps or powered studio monitors and set the level control to their normal posi-
tions.
6

Quick Start
•Run a stereo signal (like the output a CD player) into your mixer and raise the master level to about
“0dB”.
•Once you have a good level set, turn your mixer’s control room volume control until the C control’s
LEVEL meter reaches about “0dB”.
•Slowly raise the C control’s Control Room VOLUME knob until your main studio monitors reach the
desired listening level.
•To select the secondary monitors, press the Speaker B switch in so that the green LED is illuminated.
•Now, when you press the SPEAKER B switch off, you are selecting the secondary monitors and also
switching off the main monitors.
•Slowly raise the SPK B LEVEL control until you reach the level you like.
Note: If you want to set the two pairs of monitors to the same level, switch the A/B and use the SPK B
LEVEL control to adjust the balance.
QUICK SET-UP - Continued
POWER
AC IN
18V
1A
SAMSON
+-
500mA
MIX IN
2TK A2TK B2TK C2TK A2TK B2TK C
L
R
L
RR
L
SPK AEXT CUE
TALKBACK
REMOTE
SWITCH
SPK B
SPK C
BALANCEDBALANCED BALANCEDBALANCED BALANCEDBALANCED BALANCED
INPUT
OUTPUT
®
®
®
®
PAN
0
LR
HF
12K
0
15
1010
55
15
MF
2.5K
15
1010
5
15
0
5
0
LF
80Hz
0
15
1010
5
15
5
0
30
5
-26 5 -26
60
+26 60 +26
CHANNEL 1CHANNEL 1 CHANNEL 2CHANNEL 2 CHANNEL 3/4CHANNEL 3/4 CHANNEL 5/6CHANNEL 5/6 LLRRMIXMIX
MIX
MONO
MONO OUT
AUX OUT
LINE IN
LINE IN
AUX RET
LEFT/MONO
RIGHT
CR OUT
LEFT
RIGHT
MIX OUT
LEFT
RIGHT
LINE IN
LINE IN
AUX RETURN
C/ROOM
+PHONES
MIC/LINE 1 MIC/LINE 2
MIC/LINE 2
MIC/LINE 3/4
MIC/LINE 3/4
MIC/LINE 5/6
MIC/LINE 5/6
PHONES
LEFT RIGHT LEFT RIGHT
2T IN 2T OUT
HDR
MIX/2T
PAN
0
LR
HF
12K
0
15
1010
55
15
MF
2.5K
15
1010
5
15
0
5
0
LF
80Hz
0
15
1010
5
15
5
0
30
BAL
0
LR
HF
12K
0
15
1010
55
15
MF
2.5K
15
1010
5
15
0
5
0
LF
80Hz
0
15
1010
5
15
5
0
BAL
0
LR
HF
12K
0
15
1010
55
15
MF
2.5K
15
1010
5
15
0
5
0
LF
80Hz
0
15
1010
5
15
5
0
5
010
5
010
2TK TO MIX
5
010
5
010
AUX
010
AUX
010
AUX
010
AUX
010
GAIN
CLIP
GAIN
GAIN
CLIP
CLIP
REC REC
RECREC
3/L
4/R
5/L
6/R
MASTER SECTIONMASTER SECTION
MASTER SECTION
MASTER SECTION
10
10
5
0
10
10
5
20
20
30
30
40
40
10
10
5
0
10
10
5
20
20
30
30
40
40
15 15
10
10
5
0
10
10
5
20
20
30
30
40
40
10
10
5
0
10
10
5
20
20
30
30
40
40
15 15
10
10
5
0
10
10
5
20
20
30
30
40
40
10
10
5
0
10
10
5
20
20
30
30
40
40
15 15
10
10
5
0
10
10
5
20
20
30
30
40
40
10
10
5
0
10
10
5
20
20
30
30
40
40
15 15
10
10
5
0
10
10
5
20
20
30
30
40
40
10
10
5
0
10
10
5
20
20
30
30
40
40
10
10
5
0
10
10
5
20
20
30
30
40
40
15 15 15
MAXIMUM DYNAMIC RANGE
M A X I M U M D Y N A M I C R A N G E
PEAK
+6
0
-6
-20
POWER
48V
_
_
_
_
_
_
_
_
_
_
_
_
_
_
_
_
_
_
_
_
_
_
_
_
_
_
_
_
_
_
_
_
_
_
_
_
_
_
_
_
_
_
_
_
_
_
_
_
LINE OUTPUTS
LINE INPUTS
MIX OUTPUTS
SIGNAL FLOW SIGNAL FLOW
SIGNAL FLOW
SIGNAL FLOW
SIGNAL FLOW SIGNAL FLOW
SIGNAL FLOW
SIGNAL FLOW
SIGNAL FLOW
SIGNAL FLOW
7

Setting-Up the C•control
8
Connecting Stereo Recorders and Sound Sources
C control Inputs
The C control features four 2-track /Stereo inputs for connecting a variety of sounds sources including
the output of the main mixing console or computer sound card, a DAT recorder, Open Reel Half-track
(dust them off, they still sound great), Cassette recorder, CD player, MIDI workstation or sub mixers to
name some. Each of the C controls stereo inputs can be turned on or off from the front panel assign
switches. For added flexibility, it is possible to have any or all of the 2-track /Stereo inputs on at the
same time. This is particularly useful when connecting the outputs of a main mixing console or comput-
er sound card, and the outputs of a sub-mixer or MIDI workstation allowing you to monitor both sound
sources and control them as if they were one. Because the C control provides many inputs and outputs
for connecting your gear, there are many ways the unit can be interfaced. The following section
describes the 2-track /Stereo inputs and how they can be used with equipment commonly found in a
recording studio. There is also a “Typical Set-up” diagram on page 15 of this manual and a wiring guide
on page 17 to help you choose the correct cables for your set-up.
MIX Inputs
The MIX inputs are C control’s main Left and Right stereo
inputs. These inputs are balanced, 1/4-inch, TRS (Tip/Ring/
Sleeve) phone connectors which accept +4dB line level
sources. You should connect the outputs of your mixing
console or computer sound card here.
2-track A Inputs
The 2-Track A inputs are balanced, 1/4-inch, TRS (Tip/
Ring/ Sleeve) phone connectors which accept +4dB line
level sources. You can interface a professional DAT
machine or CD recorder here.
2-track B Inputs
The inputs labeled 2-Track B are balanced 1/4 inch,TRS (Tip/Ring/Sleeve) connectors which accept
+4dB line level sources. You can connect the outputs of a sub mixer, a professional DAT machine, or a
CD recorder here.
2-track C Inputs
The 2-Track C inputs are unbalanced, RCA connectors which accept -10dB line level sources. You can
connect the outputs of a sub mixer, cassette recorder or CD player here.
1
2
3
4
1234

Setting-up the C•control
9
C control 2-Track Line Outputs
The C control features three 2-track /Stereo outputs allowing you to connect the inputs of a variety of
recording devices such as DAT recorders, Open Reel Half-tracks, Cassette recorders or CD
players/burners. The signal that is assigned in the C controls Source section is always present at all
the 2-track outputs, and is always at full strength and not affected by the Control Room level knob. To
avoid feedback loop problems, be sure to match the 2-track outputs with the associated 2-track inputs.
In other words, if you connect your DAT recorder to the 2-track A inputs, be sure to connect 2-track A
outputs to the DAT recorder’s inputs. C control provides many inputs and outputs for connecting your
gear, so there are many ways the unit can be interfaced. The following section describes the 2-Track
outputs and how they can be used with equipment commonly found in a recording studio. There is also
a “Typical Set-up” diagram on page 15 of this manual and a wiring guide on page 17 to help you
choose the correct cables for your set-up.
2-track A Outputs
The 2-Track A outputs are balanced, 1/4-inch, TRS (Tip/ Ring/ Sleeve) phone connectors which output
a +4dB line level signal. You can interface a professional DAT machine, Open Reel Half-track or CD
burner here.
2-track B Outputs
The outputs labeled 2-Track B are balanced, 1/4 inch, TRS(Tip/Ring/Sleeve)
connectors which output +4dB line level signal. You can use these outputs to
connect the inputs of a consumer cassette or CD recorder here.
2-track C Outputs
The 2-Track C inputs are unbalanced, RCA connectors which accept -10dB
line level sources. You can use these outputs to connect the inputs of a con-
sumer cassette or CD recorder here.
Connecting Line Level Speaker Outputs
The C control provides three sets of line level outputs for connecting up to three pairs of studio moni-
tors. The Speakers outputs are selected from the front panel speaker selection switches. Speaker
Outputs A and B are switched and are typically used to switch between a pair of near-field and far or
mid-field monitors. Speaker Output C/Sub can be independently turned on or off, so it is ideal for con-
necting a sub woofer that you may want to turn on for a big “hyped club” sound, but turn off for critical
mixing. There is more information on the speaker switching feature in the section “Operating C control”
following later in this manual. There is also a “Typical Set-up” diagram on page 15 of this manual and a
wiring guide on page 17 to help you choose the correct cables for your set-up.
5
6
7
567

Setting-up the C•control
10
Speaker A
The Speaker A outputs are balanced, 1/4-inch, TRS (Tip/ Ring/ Sleeve) phone connectors which out-
put a +4dB line level signal. You can connect to an active studio monitor or power amplifier here.
IMPORTANT NOTE: In order to maintain the best gain structure and signal to noise ratio, we highly
recommend that only balanced cables be used on the SPEAKER A outputs. For detailed balanced
cable wiring diagrams, please see page 17 in this manual.
Speaker B
The Speaker B outputs are unbalanced, RCA connectors which output -10dB line level signal. You can
connect to an active studio monitor, multimedia speaker or power amplifier here.
Speaker C
The Speaker C outputs are unbalanced, RCA connec-
tors, which output -10dB line level signal. You can con-
nect to an active studio monitor, multimedia speaker
or power amplifier here.
External Cue Output
The External Cue outputs are balanced, 1/4-inch,
TRS (Tip/ Ring/ Sleeve) phone connectors which out-
put a +4dB line level signal. This output is used to
connect the signal from the Talkback microphone to your headphone cue mix. Many good headphone
amplifiers such as the Samson C cue 8 or Samson S phone provide an auxiliary input so that you can
mix in the signal from the talkback mic with the stereo cue mix from your mixing console. This conve-
nient feature allows the engineer and/or producer to talk to the talent over the headphone mix. There is
more information on the Talkback feature in the section “Operating C control” following later in this
manual.
TALK REMOTE

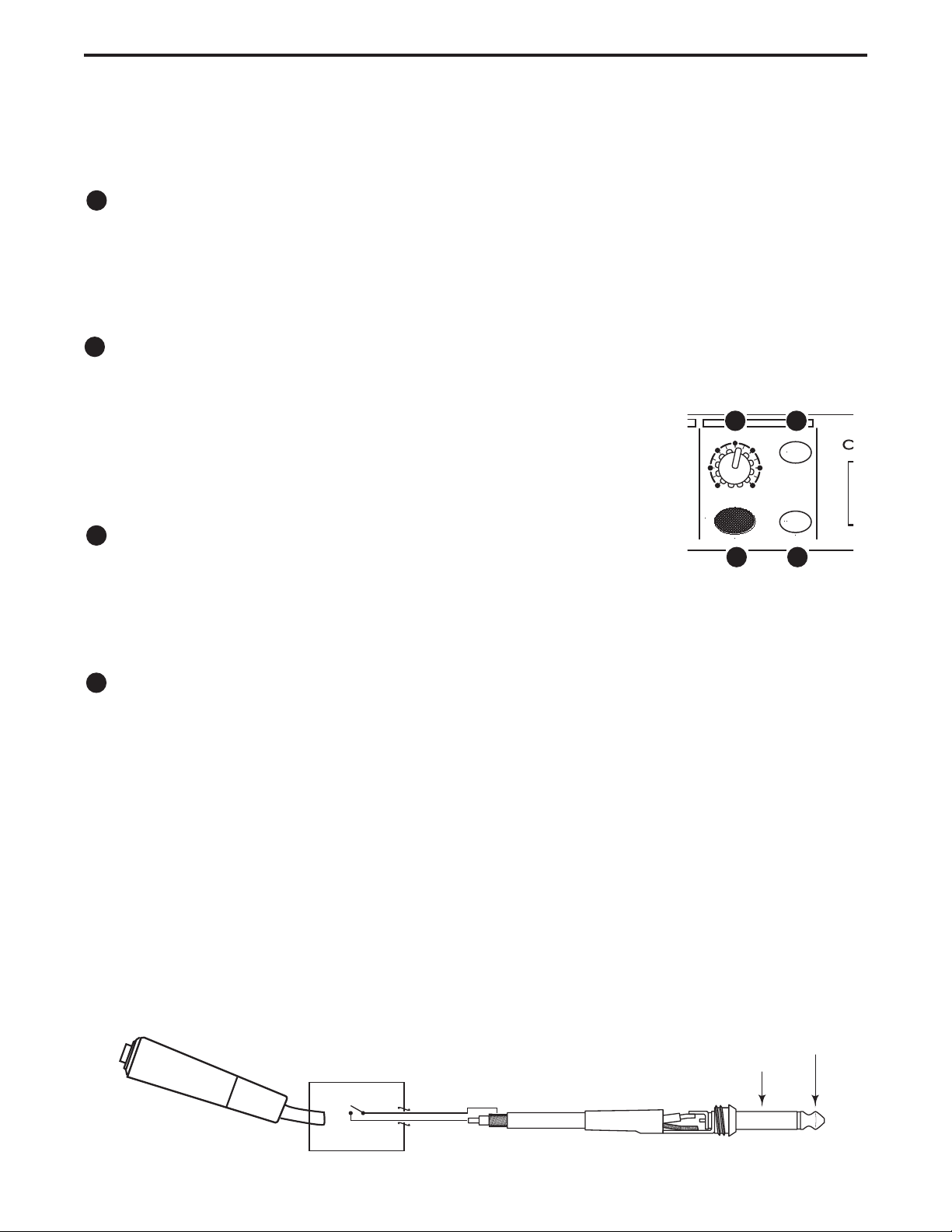

The C control’s TALKBACK microphone can be turned on and off from an external switch connected to
the TALK REMOTE input. The 1/4-inch phone jack is wired, “normally-open”, so a switch that shorts
the TALK REMOTE jack’s TIP to its SLEEVE will turn the TALKBACK microphone on and off in a
momentary action. This will allow the producer to move freely about the studio while talking to the tal-
ent.
AC INLET
The AC Inlet is where the C control receives it power from the included 18-volt AC power supply. Be
sure to use only the Samson AC1800 when operating the C control.
.
+-
9
10
8
11
12
13
910 811
12
13

Operating the C•control
11
Operating the C Control
Once you have connected your stereo recorders, stereo sound sources and studio monitor speakers
you can begin to use, and enjoy the powerful features of the C control. The following section will take
you through the operation of the C control’s switches, control knobs and operating functions.
Controls and Functions
POWER switch
Use the POWER switch to turn the C control on and off. When the POWER
switch is set to the on position, the unit will power up and the green LED on the
POWER switch will illuminate indicating the unit is ready for operation.
Source Assignment Switches
When you engage any of the Source assignment switches, their associated LED’s will illuminate indi-
cating the signal connected to that Source input is on and will now be heard on all outputs including the
selected SPEAKER outputs, the HEADPHONE and the EXTERNAL CUE outputs. C control allows you
to monitor more than one stereo Source at the same time, therefore a Source assignment switch will
stay on when another is selected. Simply press the source assignment button a second time and the
Source will turn off.

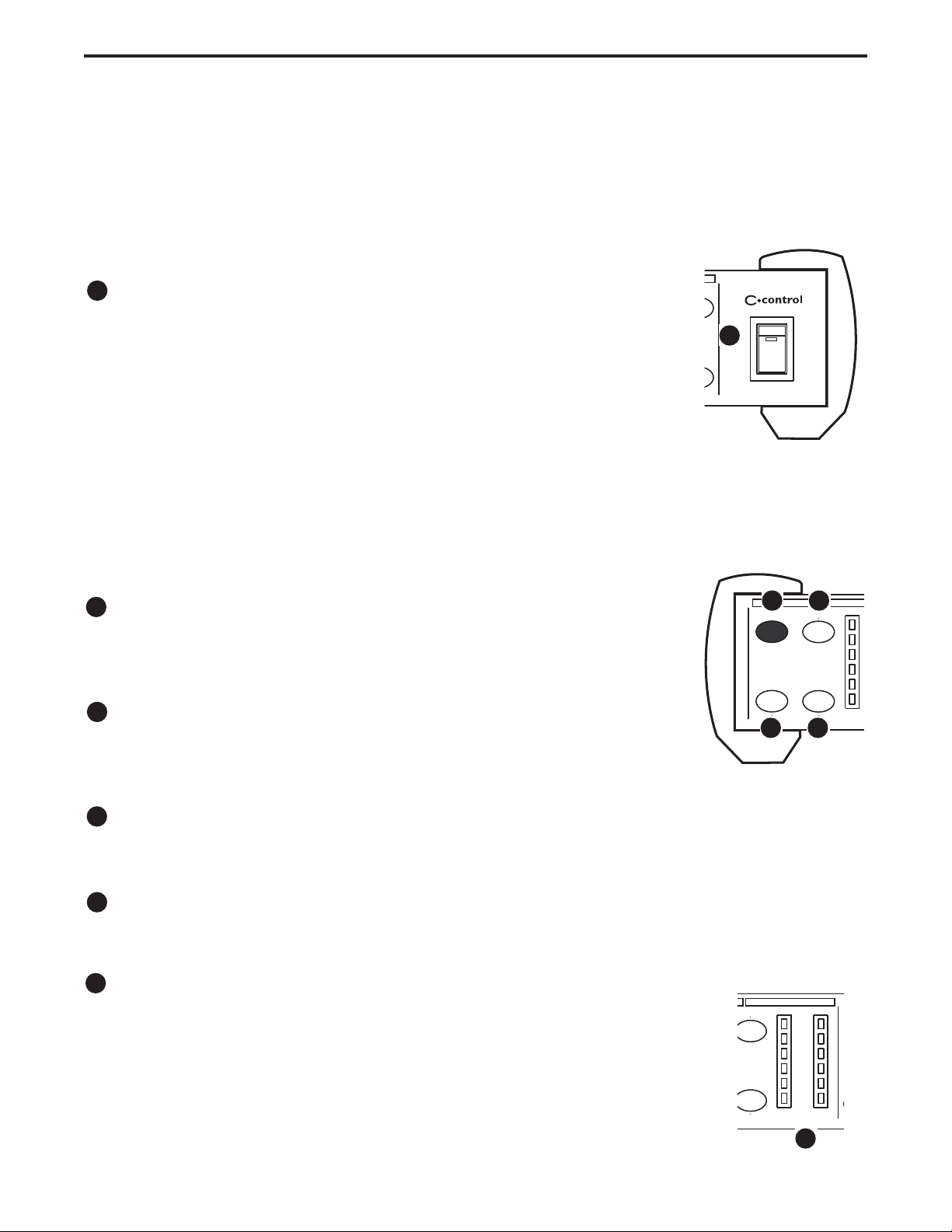

MIX Switch
The MIX switch is used to assign the audio signal from the device connected to
the left and right MIX inputs to the monitor bus.
2 TK A Switch
Use the 2TK A switch to assign the signal connected to the left and right 2-
track A inputs to the main stereo monitor bus.
2 TK B Switch
Used to assign the signal connected to the left and right 2 TK B inputs to the monitor bus.
2 TK C Switch
Used to assign the signal connected to the left and right 2 TK C inputs to the monitor bus.
Master Level Meter
The C control’s master section includes an 6-segment LED LEVEL meter, which
displays the input level of the main left and right bus in decibels (dBs) from –30 to
Overload(OL). The signal displayed on the LEVEL meter shows the level of the
combined signals of all of the two track inputs. If the LEVEL meter displays a
clipped signal, then turn down the signal or signals being sent into the stereo bus.
MIX 2TK A
2TK C
2TK B
L
SOURCE DESTIN
A
L
E
2TK A
2TK C
OL
+6
0
-6
-18
-30
LR
DESTINATION
LEVEL
TO
K
TO
E
CONTROL ROOM
MATRIX
SAMSON
14
15
16
17
18
14
15 16
17 18
19
19

Operating the C•control
12

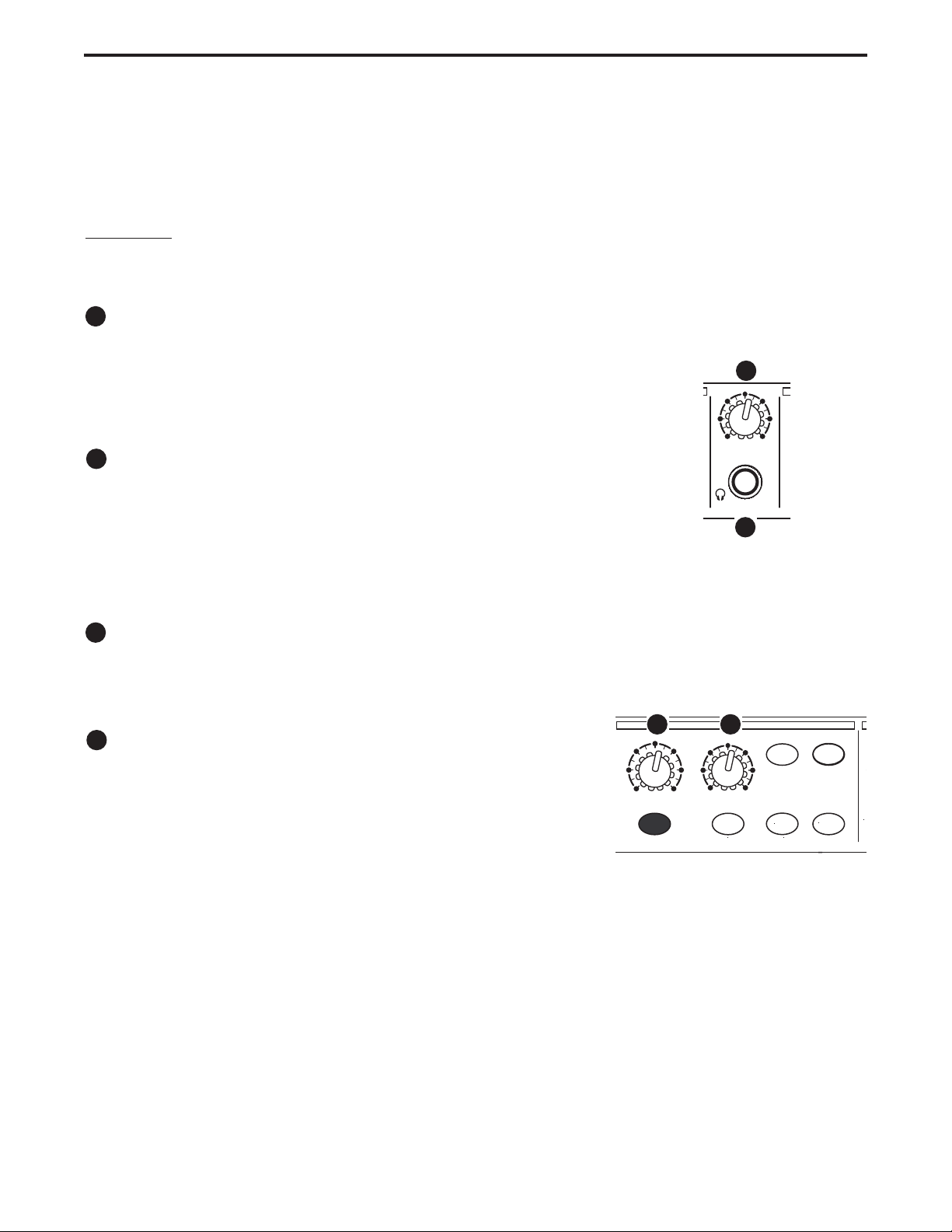

Using the Headphone Amplifier
The C control includes an internal headphone amplifier for monitoring the mix and/or any of the
assigned two-track inputs.
WARNING: Because the C control is capable of generating high volume levels, always start with the
HEADPHONE VOLUME knob at minimum and then slowly turn it up until you reach a comfortable lis-
tening level.
Headphone Volume
The HEADPHONE VOLUME control is used to adjust the level of the head-
phones connected to the front panel HEADPHONE jack. The signal feeding
the headphone is picked up before the MUTE switch, therefore it is possible to
listen to the headphones while the connected monitors are off.
Headphone Jack
The C control’s HEADPHONE output accepts standard 1/4-inch, stereo TRS
(Tip/ Ring/ Sleeve) phone plugs for connecting headphones. You can connect
any standard headphone from 8 through 240 Ohms.
Control Room Section
Volume
The C control’s VOLUME knob is the master control for the Control Room level. Use the VOLUME knob
to adjust the overall level of all the SPEAKER outputs.
Speaker B Volume
The SPEAKER B volume control is used to adjust the level of the
SPEAKER B output and works in conjunction with the Control
Room VOLUME knob. This means if the Control Room Volume is
set all the way off (fully counter clockwise), there will be no output
on Speaker B, regardless of the level set on the SPEAKER B con-
trol knob. Use the SPEAKER B control knob to adjust the balance
between the monitors connected to the SPEAKER A outputs and the monitors connected to SPEAKER
B outputs.
To set the balance between the monitors connected to the SPEAKER A and SPEAKER B outputs, first
turn the Control Room VOLUME to a low level and set the SPEAKER B level all the way off (fully
counter clockwise). Be sure that the SPEAKER B output is active by engaging the SPEAKER B switch
(the green LED will illuminate). Now, press the SPEAKER A switch on and off while adjusting the
SPEAKER B Volume Control, matching the level of the two sets of monitors. Once you have matched
the balance, use the Control Room VOLUME knob to adjust the overall level of either set of monitors.
SPEAKER A SPEAKER C
MUTE
SPEAKER B
SUB
DIM
MONO
VOLUME
SPK B
VOLUME
0 10
010
CONTROL ROOM
HEADPHONE
HEADPHONE
VOLUME
0 10
20
21
20
21
22
23
22 23

Operating the C•control
13
Setting the SPEAKER C/SUB Level
The Control Room VOLUME knob is used to adjust the level of the
SPEAKER C output exclusively. To set the balance between the
SPEAKER A/B, use the input level control on your power amp, pow-
ered monitor or sub woofer amplifier.
MUTE switch
The mute switch provides a convenient way to shut off any and all
of the SPEAKER outputs with a single button push. When the
MUTE switch is engaged, the red LED will illuminate indicating that
there is no signal present at the SPEAKER outputs. While all of the speaker outputs are off when the
MUTE switch is engaged, the HEADPHONE output and EXTERNAL CUE outputs are still active.
Dim switch
The C control offers a useful feature, DIM, allowing you to lower the overall Control Room level with the
press of a single button. When the DIM switch is pressed to the on position, the yellow LED will illumi-
nate and the overall level of any and all of the connected monitors will be lowered by 20dB. This allows
you quickly turn the speaker levels down to talk to someone in the control room or on the phone, with-
out having to shut the speakers completely off.
Mono switch
With C control, it’s easy to check your mixes for mono compatibility thanks to the Mono function. To lis-
ten to your mix in mono, simply press the MONO switch and the yellow LED will illuminate indicating all
the outputs are receiving a mono signal.
SPEAKER A Assign Switch
The speaker A switch can operated in two different ways depending on the position of the Speaker B
switch. If the SPEAKER B switch is not assigned (LED off), then the SPEAKER A switch simply turns
the SPEAKER A output on and off. When the LED is illuminated, the output is active and you will hear
the monitors connected to the SPEAKER A outputs. If the SPEAKER B assign switch is engaged (LED
is illuminated), the SPEAKER A switch will function as an A/B toggle switch selecting between the mon-
itors connected to the SPEAKER A and SPEAKER B outputs.
SPEAKER B Assign Switch
When the SPEAKER B switch is engaged (LED is on), the SPEAKER B outputs can be turned on by
using the SPEAKER A switch to toggle between the SPEAKER A and SPEAKER B outputs. See the
previous section “SPEAKER A Assign Switch” for more information on selecting between SPEAKER A
and SPEAKER B.
Speaker C Assign Switch/SUB
The SPEAKER C/SUB switch is used to turn on the monitors or subwoofer connected to the SPEAKER
C outputs. The SPEAKER C assign switch works independently from the SPEAKER A and/or SPEAK-
ER B switch, so it is an ideal output to use for a subwoofer. Since the SPEAKER C switch works inde-
pendently, you can leave a subwoofer on while listening to either the SPEAKER A or SPEAKER B
monitors, and easily turn it on or off.
SPEAKER A SPEAKER C
MUTE
SPEAKER B
SUB
DIM
MONO
VOLUME
SPK B
VOLUME
0 10
010
CONTROL ROOM
24 25
26
27 28
24
25
26
27
28
29
29

14
Operating the C•control
TALKBACK SECTION
TALKBACK MICROPHONE
The C control features an internal condenser microphone located on the front panel, which can be
used to record an audio cue on the connected 2-tracks, or to communicate with other musicians, or
other talent, listening to the mix on the EXTERNAL CUE outputs. The following sections detail how to
route the signal, and control the level of the TALKBACK MICROPHONE.
Talk To 2-Track
The TALK TO 2-Track switch is used to assign the TALKBACK MIC to the 2-
Track outputs. This allows the engineers and producers in the studio control
room to record an audio cue on the any of the connected 2-Track recorders.
The TALK TO 2-track switch has a “momentary” action, so you must press
and hold the switch while talking or recording the TALKBACK MIC to the 2-
tracks.
Talk To Cue
The TALK TO CUE switch is used to assign the TALKBACK MIC to the EXTERNAL CUE output. This
allows the engineers and producers in the studio control room to communicate with the musicians in
the recording room. The TALK TO CUE switch has a “momentary” action, so you must press and hold
the switch while talking or recording the TALKBACK MIC.
Talkback Level
The TALKBACK LEVEL control is used to adjust the volume of the signal that is picked up from the
internal TALKBACK MICROPHONE. Keep in mind that there is more than likely someone monitoring
the EXTERNAL CUE output on headphones when you press TALK TO CUE, so be sure to start at a
low level. When using the Talk to 2-track switch, adjust the level of the TALKBACK MICROPHONE by
checking the connected 2-tracks input level meters.
Using The Remote Talkback Function
You can remote control the Talkback switch by using a momentary switch connected to the TALK
REMOTE jack located on the rear panel. A standard footswitch, available at your local music retailer, or
wired remote switches like the Switchcraft SERIES ED900 can be used to conveniently engage the
talkback circuit without actually touching the C control. Below is a wiring diagram for the REMOTE
TALK switch.
TAL K BACK
LEVEL
MIC
TALK TO
2TK
TALK T O
CUE
0 10
CO
N
S
A
TALKBACK
29
31
30
29
31
30
32
32
NORMALLY
OPEN MOMENTERY
SWITCH
REMOTE TALKBACK SWITCH WIREING
Tip (+)
Sleeve (common)

15

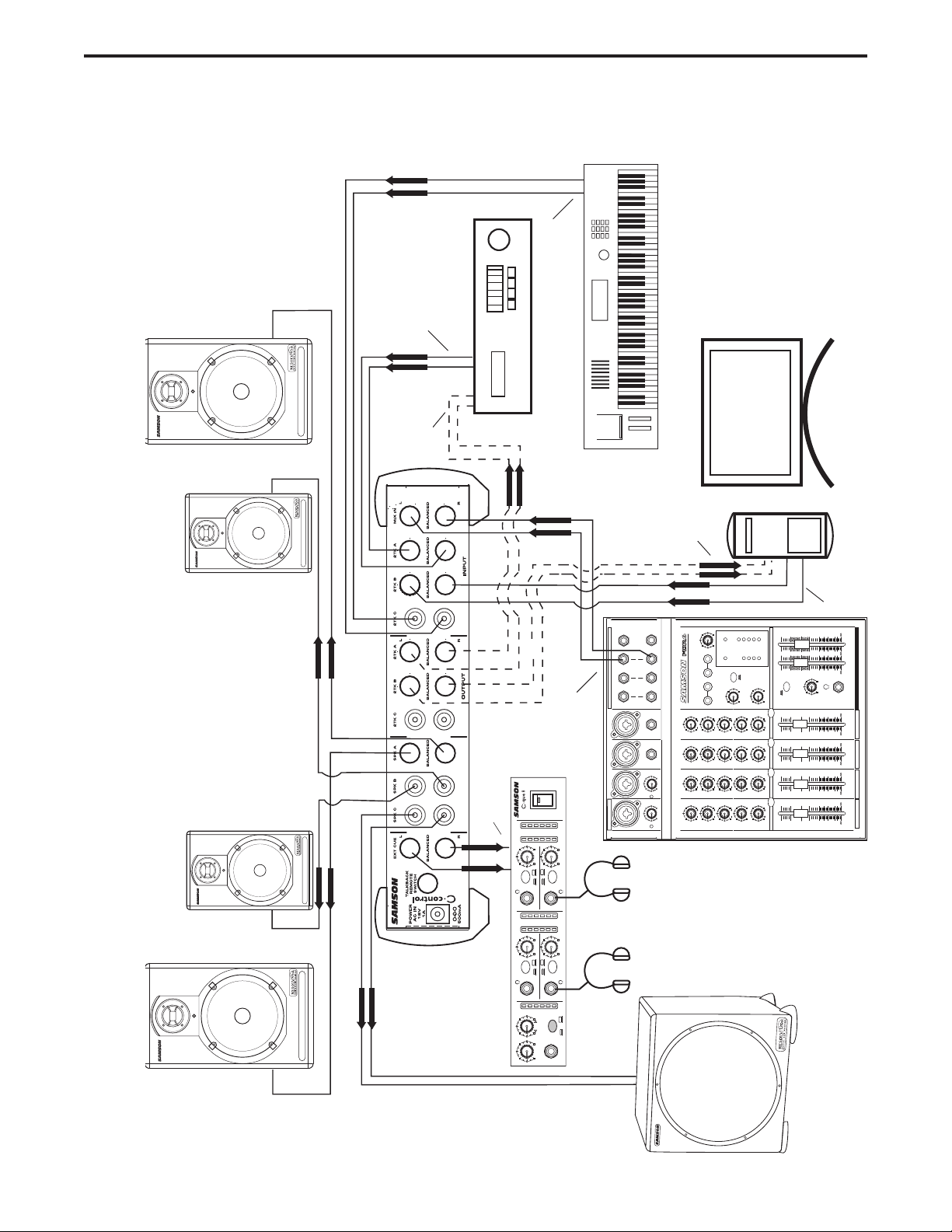

C•control Typical Set-up
+-
MAIN
INJECT
2 CH STEREO
SHAPE OUT SHAPE OUT
010
10
010
10
CH 1
OL
0
-6
-12
-18
-24
OL
0
-6
-12 -18 -24
CH 1 CH 2
SHAPE OUT SHAPE OUT
OL
0
-6
-12 -18 -24
CH 3 CH 4
4 CHANNEL
HEADPHONE AMP
CH 2
CH 3 CH 4
VOLUME
VOLUME VOLUME
VOLUME
VOLUME
010
BALANCE
LR 010
010
010 010
®
®
®
®
PAN
0
LR
HF
12K
0
15
1010
55
15
MF
2.5K
15
1010
5
15
0
5
0
LF
80Hz
0
15
1010
5
15
5
0
30
5
-26 5
-26
60 +26 60
+26
CHANNEL 1CHANNEL 1 CHANNEL 2CHANNEL 2 CHANNEL 3/4CHANNEL 3/4 CHANNEL 5/6CHANNEL 5/6 LLRRMIXMIX
MIX
MONO
MONO OUT
AUX OUT
LINE IN
LINE IN
AUX RET
LEFT/MONO
RIGHT
CR OUT
LEFT
RIGHT
MIX OUT
LEFT
RIGHT
LINE IN
LINE IN
AUX RETURN
C/ROOM
+PHONES
MIC/LINE 1 MIC/LINE 2
MIC/LINE 2
MIC/LINE 3/4
MIC/LINE 3/4
MIC/LINE 5/6
MIC/LINE 5/6
PHONES
LEFT RIGHT LEFT RIGHT
2T IN 2T OUT
HDR
MIX/2T
PAN
0
LR
HF
12K
0
15
1010
55
15
MF
2.5K
15
1010
5
15
0
5
0
LF
80Hz
0
15
1010
5
15
5
0
30
BAL
0
LR
HF
12K
0
15
1010
55
15
MF
2.5K
15
1010
5
15
0
5
0
LF
80Hz
0
15
1010
5
15
5
0
BAL
0
LR
HF
12K
0
15
1010
55
15
MF
2.5K
15
1010
5
15
0
5
0
LF
80Hz
0
15
1010
5
15
5
0
5
010
5
010
2TK TO MIX
5
010
5
010
AUX
010
AUX
010
AUX
010
AUX
010
GAIN
CLIP
GAIN
GAIN
CLIP
CLIP
REC REC
RECREC
3/L 4/R
5/L
6/R
MASTER SECTIONMASTER SECTION
MASTER SECTION
MASTER SECTION
10
10
5
0
10
10
5
20
20
30
30
40
40
10
10
5 0
10
10
5
20
20
30
30
40
40
15 15
10
10
5
0
10
10
5
20
20
30
30
40
40
10
10
5 0
10
10
5
20
20
30
30
40
40
15 15
10
10
5
0
10
10
5
20
20
30
30
40
40
10
10
5 0
10
10
5
20
20
30
30
40
40
15 15
10
10
5
0
10
10
5
20
20
30
30
40
40
10
10
5 0
10
10
5
20
20
30
30
40
40
15 15
10
10
5
0
10
10
5
20
20
30
30
40
40
10
10
5
0
10
10
5
20
20
30
30
40
40
10
10
5
0
10
10
5
20
20
30
30
40
40
15 15 15
MAXIMUM DYNAMIC RANGE
M A X I M U M D Y N A M I C RA N G E
PEAK
+6
0
-6
-20
POWER
48V
_ _ _
_ _ _ _
_
_ _ _
_ _ _ _
_
_ _ _
_ _ _ _
_
_ _ _
_ _ _ _
_
_ _ _
_ _ _ _
_
_ _ _
_ _ _ _
_
LINE OUTPUTS
LINE INPUTS
LINE INPUTS
MIX OUTPUTS
LINE OUTPUTS
SIGNAL FLOW
SIGNAL FLOW
SIGNAL FLOW
SIGNAL FLOW
SIGNAL FLOW SIGNAL FLOW
SIGNAL FLOW
SIGNAL FLOW
SIGNAL FLOW
SIGNAL FLOW
SIGNAL FLOW
SIGNAL FLOW
SIGNAL FLOW
SIGNAL FLOW
SIGNAL FLOW SIGNAL FLOW
SIGNAL FLOW
SIGNAL FLOW
SIGNAL FLOW
SIGNAL FLOW
SOUND CARD INPUTS
SOUND CARD OUTPUTS
CUE MIX SET-UP FOR MULTITRACK VOCAL RECORDING

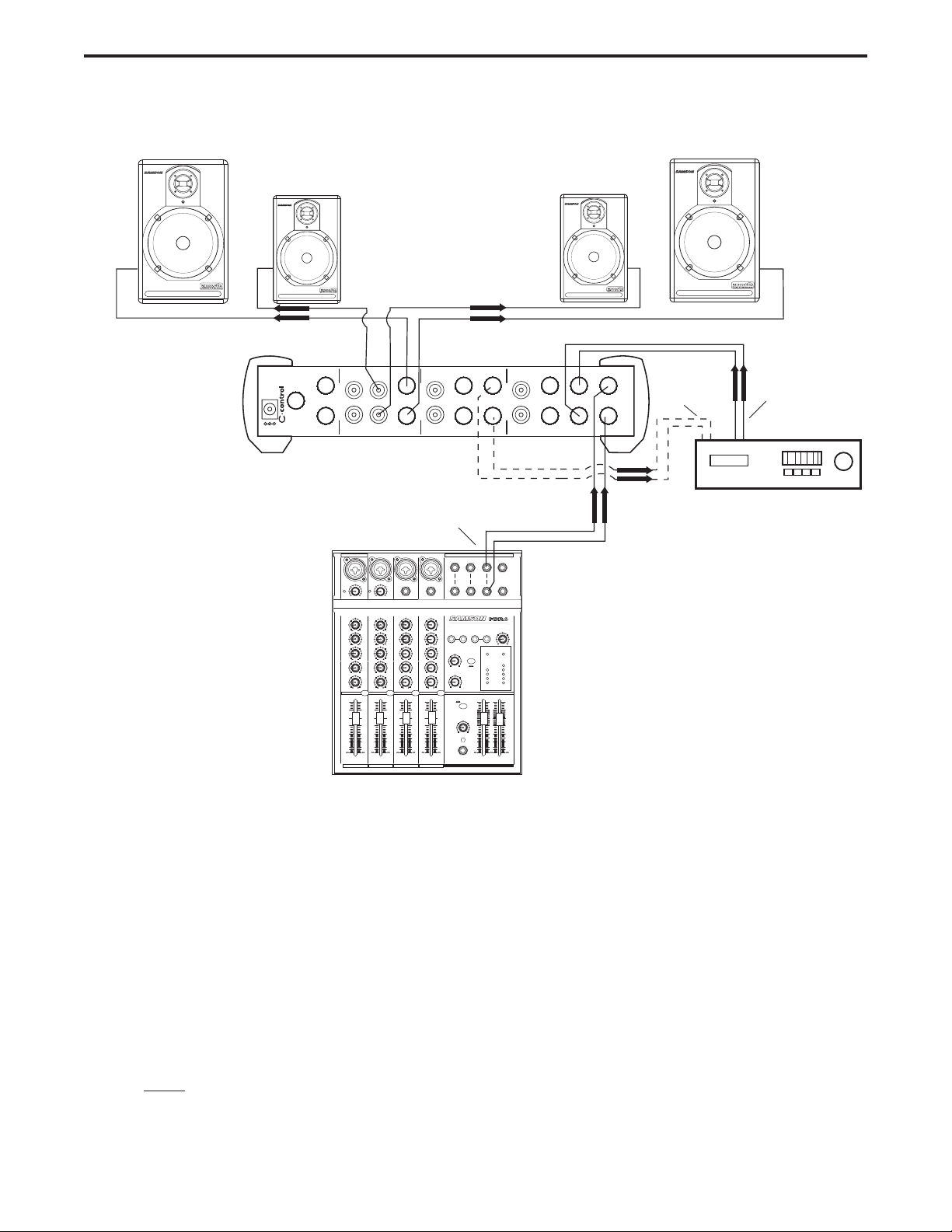

The following diagram shows a typical studio set up with C control interfaced to a mixer, two sets of studio monitors with subwoofer, a DAT machine, MIDI workstation, headphone amplifier and computer hard-disk recorder. Remember, there are many different ways to interface your C control, so your set-up will more than likely be different.

16
Stacking and Tilting the C•control
Installing the Tilting Feet
You can install the tilting rubber feet included with
your C control so that you can set the unit at a
comfortable operating angle on a workstation or
desktop. Follow the simple instructions below to
install the tilting feet.
•Remove the bottom screw from right front
bumper.
•Identify the right tilting foot by the locating
“R” marking on the inside top.
•Position the angled foot under the right
bumper as shown in the drawing.
•Use the included 4 x 10mm screw to attach
the foot.
•Repeat the steps above for the front left
bumper.
K
M
IC
TALK TO
2TK
TALK TO
CUE
1
0
CONTROL ROOM
MATRIX
SAMSON
B
ACK
Stacking the C•control
You can stack one C control,
or any other Samson C Class
units, on top of each other by
simply lining up the bumpers.
Important Note: When stacking
the C control, be sure that only
the bottom unit has the tilting
feet installed.
•Remove the bottom screw from right front bumper.
•Identify the right tilting foot by the locating “R” marking on the inside top.
•Position the angled foot under the right bumper as shown in the drawing.
MIX 2TK A
2TK C
2TK B
OL
+6
0
-6
-18
-30
LR SPEAKER A SPEAKER C
MUTE
SPEAKER B
SUB
DIM
MONO
HEADPHONE
VOLUME
SPK B
VOLUME
HEADPHONE
VOLUME
010
010
010
TAL KBACK
LEVEL
MIC
TALK TO
2TK
TALK TO
CUE
010
CONTROL ROOM
MATRIX
SAMSON
SOURCE DESTINATION
LEVEL
CONTROL ROOM TALKBACK
MIX 2TK A
2TK C
2TK B
OL
+6
0
-6
-18
-30
LR SPEAKER A SPEAKER C
MUTE
SPEAKER B
SUB
DIM
MONO
HEADPHONE
VOLUME
SPK B
VOLUME
HEADPHONE
VOLUME
010
010
010
TAL KBACK
LEVEL
MIC
TALK TO
2TK
TALK TO
CUE
010
CONTROL ROOM
MATRIX
SAMSON
SOURCE DESTINATION
LEVEL
CONTROL ROOM TALKBACK

17
C•control Wiring Guide
Tip (signal)
Sleeve (ground) Tip (signal)
Sleeve (ground)
Tip (signal)
Sleeve (ground)
Tip (signal)
Sleeve (ground)
2
3
1
Male XLR
Hot (2)
Cold (3)
Common (1)
End View Solder Points
12
3
Tip (signal)
Cold (Pin 3)
(no connection)
Tip (signal)
Sleeve (ground)
Tip (signal)
Sleeve (ground)
Tip (signal)
Sleeve (ground)
1
3
2
2
3
1
Hot
Cold Female XLR
Male XLR
Hot (2)
Cold (3)
Common (1)Common
Hot
Cold
Hot (2)
Cold (3)
Common (1) Common
Solder Points End View
End View Solder Points
12
3
21
3
Tip (signal)
Signal (tip)
Signal (ring)
Signal (tip)
Signal (ring)
Ring (signal)
Sleeve (ground)
Ground Ground
Tip (signal)
Signal (tip)
Signal (ring)
Signal (tip)
Signal (ring)
Ring (signal)
Sleeve (ground)
Ground
Ground
Tip (signal) Signal
Signal
Sleeve (ground) Ground
Ground
Tip (signal)Signal Signal
Sleeve (ground)
Ground Ground
Unbalanced 1/4” to RCA Cable
Un-Balanced XLR to RCA Cable
Ccontrol Wiring Guide
There are several ways to interface the C control, depending on your exact monitoring set-up. Follow the cable
diagrams below for connecting your monitor system.
Balanced XLR to XLR Cable
Balanced 1/4” to 1/4” Cable
Un-Balanced 1/4” to 1/4” Cable
RCA to RCA Cable

18
Specifications
Specifications
Global Specifications
Frequency response 10 Hz to 32 kHz, +0/- 3 dB
Noise > 90 dB, unweighted, 22 Hz to 22 kHz
THD 0.008 % typ. @ +4 dBu, 1 kHz
Control Knobs
Control Room Level Rotary Variable Resistor, Audio Taper
Speaker B Level Rotary Variable Resistor, Audio Taper
Headphone Level Rotary Variable Resistor, Audio Taper
Talkback Level Rotary Variable Resistor, Audio Taper
Function switches
MIX Assignment Switch Push Switch, Green LED indicator
2TK A Assignment Switch Push Switch, Green LED indicator
2TK B Assignment Switch Push Switch, Green LED indicator
2TK C Assignment Switch Push Switch, Green LED indicator
SPEAKER A Switch Push Switch, backlit Green LED indicator
SPEAKER B Switch Push Switch, backlit Green LED indicator
SPEAKER C/SUB Switch Push Switch, backlit Green LED indicator
TALK TO CUE Switch Push Switch, backlit Green LED indicator
TALK TO 2TK Switch Push Switch, backlit Green LED indicator
MUTE Switch Push Switch, backlit Red LED indicator
DIM Switch Push Switch, backlit Yellow LED indicator
Mono Switch Push Switch, backlit Yellow LED indicator
Power Switch Rocker, backlit Green LED
Front Panel Connectors
Headphone Output 1/4-Inch Phone, TRS
Rear Panel Connectors
Inputs
MIX IN Left and Right 1/4-Inch Phone, balanced, TRS
2TK A IN Left and Right 1/4-Inch Phone, balanced, TRS
2TK B IN Left and Right 1/4-Inch Phone, balanced, TRS
2TK C IN Left and Right RCA, unbalanced
Line Outputs
2TK A OUTPUT Left and Right 1/4-Inch Phone, balanced, TRS
2TK B OUTPUT Left and Right 1/4-Inch Phone, balanced, TRS
2TK C OUTPUT Left and Right RCA, unbalanced
Speaker Outputs
SPEAKER A OUTPUT Left and Right 1/4-Inch Phone, balanced, TRS
SPEAKER B OUTPUT Left and Right RCA, unbalanced
SPEAKER C/SUB OUTPUT Left and Right RCA, unbalanced
