Samsung AM27A1C07 User manual

SERVICE
Manual
CONTENTSAIR CONDITIONER
1. Installation
2. Disassembly and Reassembly
3. Troubleshooting
4. Exploded Views and Parts List
5. Refrigerating Cycle Block Diagrams
6. Wiring Diagrams
7. Schematic Diagrams
ROOM AIR CONDITIONER
INDOOR UNIT
AM27A1C07
AM27A1C13
OUTDOOR UNIT
UM27A1C3
E DB68-31039A(5)
1-31039A(5)-CO 4/17/01 5:35 PM Page 1
Index

1
1. Installation
1-1 Refrigerant Refill Procedure
¥ Refill the refrigerant according to the criteria for pipeline lengths of the unit A and B as
shown in the right table at the time of initial installation.
¥ Refill an air-conditioner with refrigerant when refrigerant has been leaked at installing or using.
1. Remove the valve stem cap and service port of 3-way
valve.
3. Operate the unit at the cooling mode.
4. Slowly open the valve of the low pressure side of
Manifold gauge counterclockwise until the low pressure
of manifold gauge indicates 4.8 to 5.5 kg/cm2(68 a
78psi) at the high cool operation (1-unit operation) and
the standard temperature.
It is recommend that refrigerant should be slowly put in.
If the refrigerant is put in too quickly, compressor will be
damaged.
5. Stop operation of the air conditioner.
6. Disconnect the charge hose of manifold gauge.
7. Close the cap of each valve.
2. Connect the charging hose of low pressure side of
Manifold gauge to the packed valve having a charging
port(1/2Ó Packed valve) as shown at the right figure.
¥ Piping length and the height
Additional refrigerant charge
(R22,g)
¥ When length of the pipe is
over 5u by the unit, you
should charge
the refrigerant Formulas
A-UNIT : 10gx(L1-10)/m
B-UNIT : 10gx(L2-10)/m
(L1:the length of A-unitÕs
pipe L2 : the total length of
B & C unitÕs pipe)
INDOOR UNIT
OUTDOOR UNIT
A
B
A-UNIT 15m(49ft 3in)
15m(49ft 3in)
15m(49ft 3in)
3m(9ft 10in)
3m(9ft 10in)
3m(9ft 10in)
Max.piping
length
A
Max
height
BLIQUID GAS
1/4Ó 1/2Ó
1/4Ó 3/8Ó
1/4Ó 3/8Ó
B-UNIT
C-UNIT
Pipe Size
INDOOR
A-UNIT
INDOOR
B-UNIT
INDOOR
C-UNIT
31039A(5)-All 4/17/01 5:36 PM Page 1
Index

2
1-2 ÒPump downÓ Procedure
1. Confirm that both the 2-way and 3-way valves are set to
the open position.
(1) Remove the valve stem caps.
(2) Be sure to use a hexagonal wrench to operate the Gas side
valve stems.
2. Operate the unit for 10 to 15 minutes.
3. Stop operation and wait for 3 minutes, then connect the
charge set to the service port of the 3-way valve.
(1) Connect the charge hose with the push pin to the
service port.
4. Air purging of the charge hose.
(1) Open the low-pressure valve on the charge set
slightly to air purge from the charge hose.
5. Set the liquid side 2-way valve to the closed position.
6. Operate the air conditioner at the cooling cycle and stop
operation immediately after setting the 3-way valve to
the closed position when the gauge indicates 0
kg/cm2G.
If the unit can not be operated at the Cooling
Mode(weather is rather cool), operate the unit at the
Trubo Mode. So that the unit can be operated.
7. Disconnect the charge set, and mount the both 3-way valveÕs
stem nuts and the service port cap.
Relocation of the air conditioner
¥ Refer to this procedure when the unit is relo-
cated.
1. Carry out the pump down procedure
(refer to the details of Ôpump downÕ).
2. Remove the power cord.
3. Disconnect the assembly cable from the
indoor and outdoor units.
4. Remove the flare nut connecting the indoor
unit and the pipe.
At this time, cover the pipe of the indoor
unit and the other pipe using a cap or vinyl
plug to avoid foreign material entering.
5. Disconnect the pipe connected to the outdoor
unit.
At this time, cover the valve of the outdoor
unit and the other pipe using a cap or vinyl
plug to avoid foreign material entering.
6. Make sure you do not bend the connection
pipes in the middle and store together with
the cables.
7. Move the indoor and outdoor units to a new
location.
8. Remove the mounting plate for the indoor
unit and move it to a new location.
2-Way Valve
3-Way Valve
31039A(5)-All 4/17/01 5:36 PM Page 2
Index

3
2. Disassembly and Reassembly
2-1 Indoor Unit
Stop operation of the airconditioner and remove the power plug from the wall outlet before repairing
the unit
No Parts Procedure Remark
1Front Grille 1) Stop the air conditioner operation and block the
main power.
2) Seperate the tape of front.
Panel upper.
3) Contract the second finger to the left and right
handle and pull to open the inlet grille.
4) Take the left and right filter out.
5) Loosen one of the right fixing screw and seper-
ate the terminal cover.
6) Open the cover screw and loosen three fixing
screws of front grille.
7) Pull the upper left and right of discharge softly
for the outside cover to be pulled out.
8) Pull softly the lower part of discharge and push
it up
Caution:
Assemble the front panel and fix the hooks of
left and right.
31039A(5)-All 4/17/01 5:36 PM Page 3
Index

4
No Parts Procedure Remark
Filter Frame
Ass'y Tray Drain
Main PCB
1) Loosen the left and right screw of the Holder
Filter, and Separate the Holder Filter.
1) Do , above.
Separate the holder at the rear side of Indoor
unit.
2) Take the display PCB out.
(Center of indoor unit).
3) Loosen three fixing screws of left and right.
4) Pull tray drain out from the back body.
1) Do " ", above
2) Take all the connector of PCB upper side out.
(Inclusion Power cord)
3) Separate the outdoor unit connection wire from
the terminal block.
4) If pulling the Main PCB up, it will be taken out.
(Separate the TRANS hook, it before).
2
1 2
1 2
3
4
31039A(5)-All 4/17/01 5:36 PM Page 4
Index

5

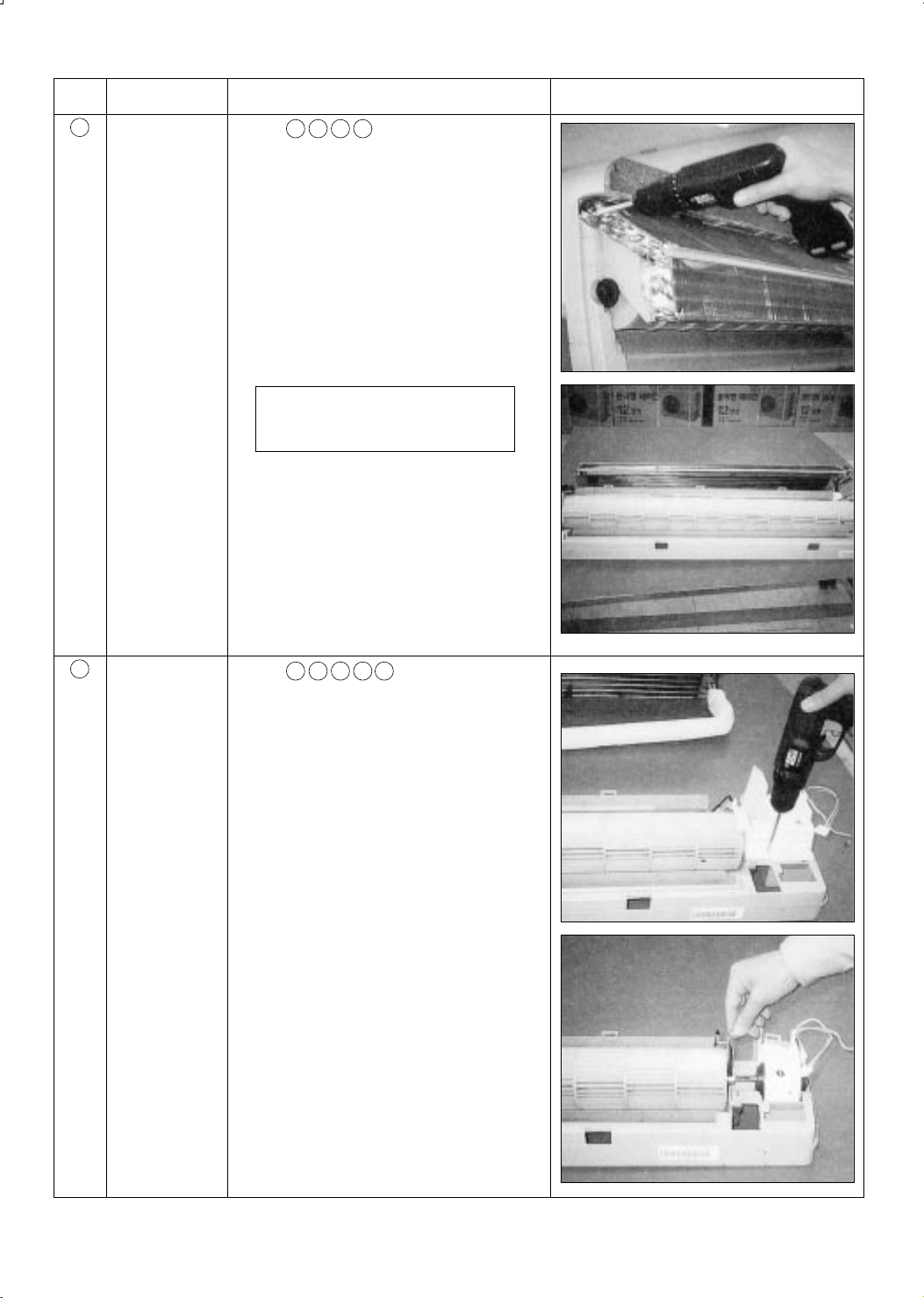

No Parts Procedure Remark
Heat Exchanger
Fan Motor and
Cross Fan
1) Do " ", above.
2) Loosen the left screws of the heat exchanger.
1) Do " ", above.
2) Loosen the fixing two screws and separate the
motor holder.
3) Loosen the fixing screw of motor fan.
(By use of M3 wrench)
Separate the motor from the fan.
Separate the fan motor the left holder bearing.
51 2 3 4
1 2 3 4 5
6
Lifting the heat exchanger up a little to
push the up side for separation from the
indoor unit
31039A(5)-All 4/17/01 5:36 PM Page 5
Index

6

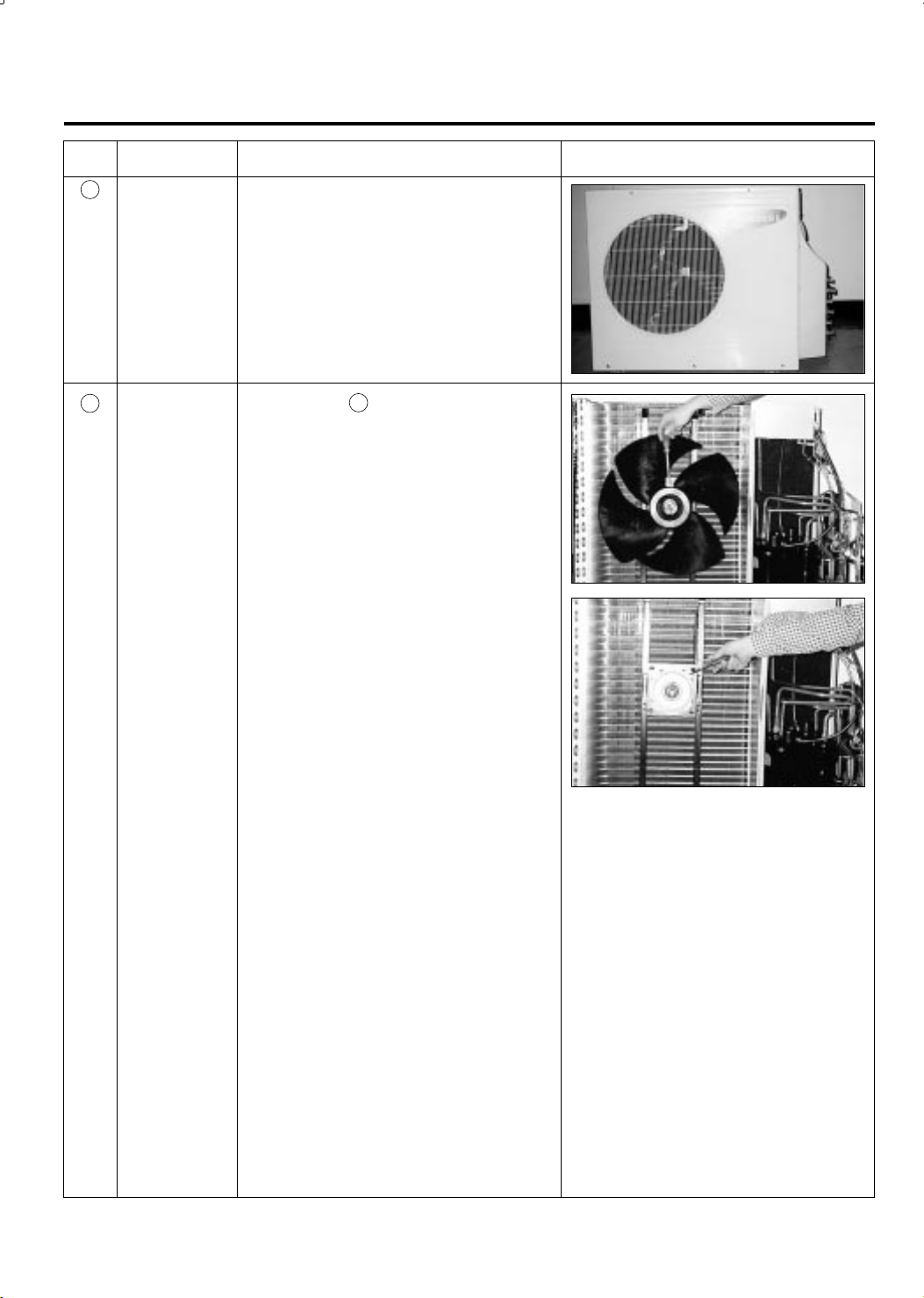

2-2 Outdoor Unit
No Parts Procedure Remark
Cabinet
Fan Motor &
Propeller Fan
1) Turn off the unit and remove the power cable
2) Remove the top cover.
3) Remove the control box cover.
4) Unplug the ass'y cable.
5) Remove the cabi-side.
6) Remove the cabi-front.
* When you assemble the parts, check if the
each parts and electric connectors are fixed
firmly.
1) Do Procedure above.
2) Remove the nut flange.
(Turn to the right to remove as it is a left turned
screw)
3) Disassemble the propeller fan.
1
1
2
31039A(5)-All 4/17/01 5:36 PM Page 6
Index

7
3. Troubleshooting
3-1 Items to be checked first
1) The input voltage should be rating Voltage ±10% range.
The air conditioner may not operate properly if the voltage is out of this range.
2) The indoor unit and the outdoor unit shall be linked by 4 cables.
Check the terminals if the indoor unit and outdoor unit are properly linked by the same num-
ber of cables. Otherwise the air conditioner may not operate properly.
3) If a problem occurs as described in the table below, it is a symptom not related to the mal-
function of the air conditioner.
4) Indoor unit observes operation condition of the air conditioner, and displays self diagnosis details
on the display panel.
NO Operation of air conditioner
The operation indication LED (Green) blinks when a power
plug of the indoor unit is plugged in for the first time.
¥ In a COOL operation mode, the compressor does not operate
at a room temperature than the setting temperature that the
compressor should operate.
Fan speed setting is not allowed in AUTO or DRY mode.
Compressor stops operation intermittently in DRY mode.
Timer LED only of the indoor unit lights up and the air condi-
tioner does not operate.
The compressor stops intermittently in a COOL mode or DRY
mode, and fan speed of the indoor unit decreases.
1
2
3
4
5
6
It indicates power is on. The LED stops blinking if the operation
ON/OFF button on the remote control unit is pushed.
¥Inhappensafteradelayof 3minuteswhen thecompressorisreop-
erated. The same phenomenon occurs when a power is on.
¥ As a phenomenon that the compressor is reoperated after a delay
of 3 minutes, the indoor fan is adjusted automatically with refer-
ence to a temperature of the air blew
¥ The speed of the indoor is changed automatically in DRY mode.
¥ Fan speed is 4 steps is selected automatically in AUTO mode.
Compressor operation is controlled automatically in DRY mode
depending on the room temperature.
Timer is being activated and the unit is in ready mode.
The unit operates normally if the timer operation is cancelled.
The compressor stops intermittently or the fan speed of the indoor
unit decreases to prevent inside/outside air frozen depending on
Explanation
NO Display
1 OPERATING LED (GREEN) blinking (1Hz)
2 TIMER LED (YELLOW) blinking (5Hz)
3 OPERATING (GREEN), TIMER LED (YELLOW) blinking (5Hz)
4 FAN (GREEN) LED blinking (5Hz)
Restore from power failure (input initial power)
Temperature sensor defective (open, short)
Indoor heat exchanger sensor defective (open, short)
Indoor fan malfunction (inoperative within 15 sec -
less than 600rpm)
Self Diagnosis
31039A(5)-All 4/17/01 5:36 PM Page 7
Index

8
3-2 Fault Diagnosis by Symptom
3-2-1 No Power(completely dead)-Initial diagnosis
1) Checklist :
(1) Is input voltage normal?
(2) Is AC power linked correctly?
(3) Are connections between primary side, secondary side of the power transformer
and PCB good.
(4) Is output voltage of DC regulator IC KA7812(IC01) normal? (11.5VDC-12.5VDC)
(5) Is output voltage of DC regulator IC KA7805(IC02) normal? (4.5VDC-5.5VDC)
2) Troubleshooting procedure
Y
N
Y
Y
N
N
N
N
Y
N
Y
Y
Remove power cord and plug in again in approx. 5 seconds.
Is operating lamp lights on for
three minutes, and then goes off?
Check whether the fuse is normal? (F701)
Check whether the output voltage of the trans
is normal? (AC 15V±3V)
Check whether the DC 12V is normal?
(DC12±0.5V between "G" and "O" of the IC01)
Check whether the DC 5V is normal?
(DC 5V±0.5V between "G" and "O" of the IC02)
Check whether the display PCB is normal?
(Check the DC 5V, DC12V, wire, etc.)
Replace the assembly main PCB.
Normal
Replace the fuse (250V, 3.15A)
Replace the trans.
Replace the IC01.
Replace the IC02.
Replace the assembly display PCB
31039A(5)-All 4/17/01 5:36 PM Page 8
Index

9
3-2-2 When the Indoor Unit Fan Does Not Operate. (Initial Diagnosis)
1) Checklist :
(1) Is input voltage normal?
(2) Is the indoor unit fan properly connected(CN73)(CN43)?
(3) Is the starting codenser CR 71 properly soldered?
(4) Is HALL IC in indoor fan motor properly connected(CN43)?
(5) When in operation mode, does the indoor unit fan operate?
2) Troubleshooting procedure
Y
N
Y
N
Y
N
Y
Y
N
N
Y
Y
N
Remove power cord and plug in again in approx. 5 seconds.
Is operating lamp lights on for
three minutes, and then goes off?
Check whether the indoor fan turns with the operation
lamp being turned on when the start/stop button of the
remote control is pressed?
¥Is a voltage of above rating voltage ± 10%applied to
both ends of theindoor fan connector (CN73)?
¥Is pin #3 of the CN43 a square wave?
Check the indoor fan motor or fan motor capacitor.
Check the Q401 (KSC945Y).
Replace the IC07.
Replace the SS71 (G3MB202PL).
Go to the item of "No power
parts" (Refer to page 8.)
No problem (Normal)
Is pin #63 of the micom (IC04)
a square wave?
Is pin #16 of the IC07 a square wave?
Is pin #24 of the micom (IC04)
a square wave?
Replace the micom (IC04).
31039A(5)-All 4/17/01 5:36 PM Page 9
Index

10
3-2-3 When the Outdoor Unit Does Not Operate. (Initial Diagnosis)
1) Checklist :
(1) Is input voltage normal?
(2) Is the set temperature of the remote control higher than room temperature in COOL
mode?
(3) Is the CONNECTOR-WIRE OUTDOOR linked correctly?
(4) Is the indoor unit wire properly connected with the outdoor unit wire?
2) Troubleshooting procedure
Y
N
N
Y
N
N
N
N
Y
Y
Y
Y
Remove power cord and plug in again in approx. 5 seconds.
Is operating lamp lights on for
three minutes, and then goes off?
Check whether the compressor is activated in three
minutes after the operation lamp comes on when you press
the ON/OFF button of the remote control?
Is the wave of the micom (IC04) pin #62 high?
Is the wave of the IC07 pin #12 low?
Is the rating voltage between the skyblue wire and
Brown wire of the Terminal Block?
Replace the compressor.
Go to the item of "No power parts."
Refer to page 8.
No problem (Normal)
Replace the micom (IC04).
Replace the IC07.
Check the outdoor power.
Replace the magnetic contactor
Is the outdoor unit magnetic contactor operate?
31039A(5)-All 4/17/01 5:36 PM Page 10
Index

11
3-2-4 When the UP/DOWN Louver Motor Does Not Operate. (Initial Diagnosis)
1) Checklist :
(1) Is input voltage normal?
(2) Is the UP/DOWN louver motor properly connected with the connector (CN61)?
2) Troubleshooting procedure
Remove power cord and plug in again in approx. 5 seconds.
Is operating lamp blinking in 3 minutes and then lamp off?
Does operation start when swing button of the remote
control unit pushed?
Voltage at pin #33-#36 of micom (IC04) change?
(Squarewave)
Volatge at pin #10-#13 of IC05
KID65003AP change? (Squarewave)
UP/DOWN louver motor is faulty.
Check as in the procedure
"No Power parts". Refer to page 8.
Normal
Micom (IC04) is faulty.
Driver IC05 is faulty.
31039A(5)-All 4/17/01 5:36 PM Page 11
Index

12
3-2-5 If Operation By Remote Control Unit Is Impossible. (Initial Diagnosis)
1) Checklist :
(1) Is operation selector switch of the indoor unit set at "REMOTE"?
2) Troubleshooting procedure
Y
N
Y
Y
N
Y
N
N
N
N
Y
Y
Remove power cord and plug in again approx. 5 Seconds.
Is operating lamp blinking in 3 minutes and then lamp off? Check as in the procedure "No Power
parts". Refer to page 8.
Normal
Replace battery.
LCD is faulty.
Replace button.
Check the receiver module?
"Beep" sound heard from the indoor unit when ON/OFF
button on the remote control unit pushed?
Voltage of battery less than 2.5V?(Remote Control Unit)
LCD display status of REMOCON normal?
Voltage at pin #26 of micom (IC04) change?
Micom (IC04) is faulty.
Transmission display lamp ( ) blinking when
ON/OFF button on the remote control unit pushed?
31039A(5)-All 4/17/01 5:36 PM Page 12
Index

13
MEMO
31039A(5)-All 4/17/01 5:36 PM Page 13
Index

14

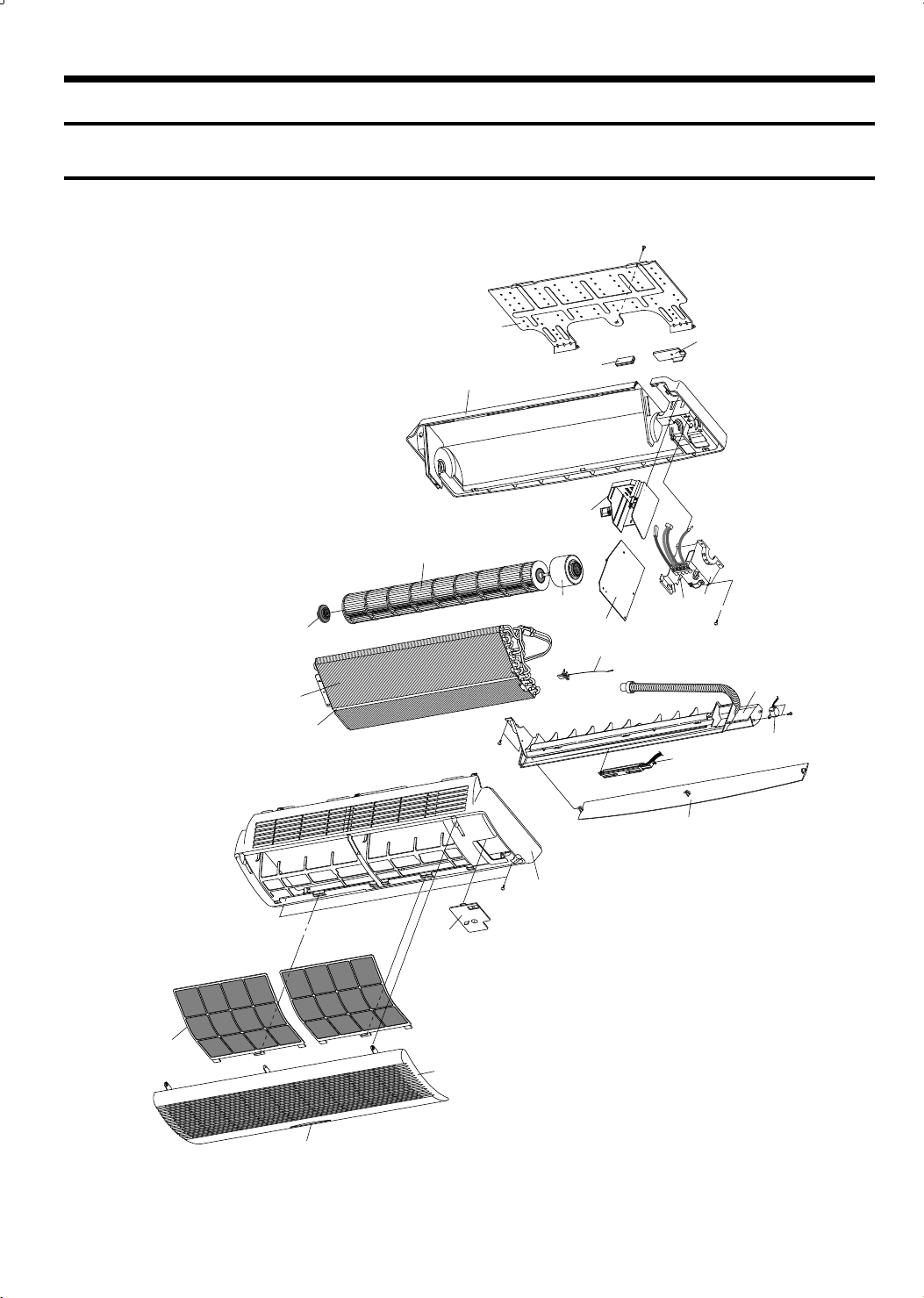

4. Exploded Views and Parts List
4-1 Indoor Unit
1-1
2
3
4
6-2
14
17
19
11
10
13
9-1 9
56
7
12
8
1
6-1
15
16
18
31039A(5)-All 4/17/01 5:36 PM Page 14
Index

15
■Parts List
No.
1
1-1
2
3
4
5
6
6-1
6-2
7
8
9
9-1
10
11
12
13
14
15
16
17
18
19
CODE NO
DB64-10140A
DB64-70073A
DB63-30131A
DB63-10472B
DB92-70075E
DB93-10560B
DB94-10088B
DB95-20138A
DB66-30153A
DB75-40095A
DB75-40095B
DB67-30058C
DB61-00011B
DB65-00007A
DB31-10078H
DB94-30141A
DB94-40017A
DB93-10626A
DB93-10626B
DB32-10008D
DB63-10427B
DB61-60093A
DB94-20030C
DB61-40247A
DB70-10618A
GRILLE AIR INLET
PANEL CENTER DISPLAY
GUARD AIR FILTER
COVER TERMINAL
ASS«Y FRONT PANEL
ASS«Y DISPLAY PCB
ASS«Y TRAY DRAIN
ASS«Y STEP MOTOR U/D
BLADE-H
ASS«Y EVAP
ASS«Y EVAP
SPACER EVAP
ASS«Y HOLDER MOTOR
ASS«Y TERMINAL BLOCK
MOTOR FAN IN
ASS«Y-C-F-FAN
ASS«Y BEARING
ASS«Y MAIN PCB
ASS«Y MAIN PCB
ASS«Y-THERMISTOR
COVER TERMINAL
BODY-BUSH
ASS«Y BACK BODY
HOLDER PIPE
PLATE HANGER
ABS
PC
PP
HIPS
ASS«Y
ASS«Y(EDGE)
ASS«Y
DC12V.600GR
HIPS
ASS«Y
ASS«Y
PVC
ASS«Y
ASS«Y
AMPFS040WTVB
¯95 X 619.4mm
ASS«Y
ASS«Y
ASS«Y
ASS«Y
ABS
HIPS
ASS«Y
HIPS
SGCC-M
1
1
2
1
1
1
1
1
1
-
1
1
1
1
1
1
1
1
-
1
1
1
1
1
1
1
1
2
1
1
1
1
1
1
1
-
1
1
1
1
1
1
-
1
1
1
1
1
1
1
Description Specification Remark
QÕTY
AM27A1C07 AM27A1C13
!
!
!
!
!
!
!
!
!
!
!
!
!
!
31039A(5)-All 4/17/01 5:36 PM Page 15
Index

16
4-2 Outdoor Unit
12
1(1-1)
2
7
9
14
4
3
11(11-1~11-2) 10(10-1~10-5)
13(13-1~13-5)
8-1
8-2
8-3
5(5-1)
15
8
6(6-1~6-2)
31039A(5)-All 4/17/01 5:36 PM Page 16
Index

17
■Parts List
No.
1
1-1
2
3
4
5
5-1
6
6-1
6-2
7
8
8-1
8-2
8-3
8-4
8-5
8-6
8-7
8-8
8-9
9
10
10-1
10-2
10-3
10-4
10-5
10-6
10-7
11
11-1
11-2
12
13
13-1
13-2
13-3
13-4
13-5
14
15
CODE NO
DB90-10163D
DB72-50520A
DB67-50067A
DB31-00095A
DB61-20094A
DB64-60134B
DB72-60053A
DB90-40120A
DB63-10433A
DB63-10434A
DB90-20207A
DB99-10176A
DB62-40102A
DB62-40099A
DB62-40074C
DB62-40073B
DB96-10724A
DB96-10725A
DB27-10034A
DB27-10034B
DB96-10586B
DB63-30027C
DB93-40890A
DB61-10199A
DB65-10015A
2501-001158
DB65-40072C
2501-000398
DB62-10063C
DB93-10617A
DB94-50041A
DB72-60099A
DB67-30083A
DB63-10213C
DB95-10062W
DB73-10004A
DB60-30029A
DB60-30018A
DB63-10165B
DB47-20001G
DB75-30108A
DB63-30110J
ASS'Y-WELD FRONT
INSUL FRONT OUT
FAN-PROPELLER
MOTOR-FAN OUT
BASE-MOTOR
CABINET-SIDE
INSUL SIDE CABI
ASS'Y COVER VALVE
COVER-CONTROL
COVER-VALVE
ASS'Y-BASE OUT
ASS'Y-VALVE
VALVE-PACKED 1/4"
VALVE-PACKED 1/4"
VALVE-PACKED 1/2"
VALVE-PACKED 3/8"
ASSÕY-TUBE CAPI B
ASSÕY-TUBE CAPI C
SCLENOID VALUE B
SCLENOID VALUE C
ASSÕY-TUBE CAPI A
GUARD-COND
ASS'Y CONTROL OUT
CASE CONTROL OUT
CLIP-CAPACITOR
C-OIL
TERMINAL BLOCK
C-OIL
TRANS-POWER
ASSÕY-MAIN PCB OUT
ASSÕYPARTITION
INSUL PARTITION
PARTITION
COVER-TOP
ASS'Y-COMP
GROMMET-ISOLATOR
NUT-WASHER
NUT-FLANGE
COVER-TERMINAL
OLP
CONDENSER
SCREEN-GUARD
SC-90073T
Foam pu + Foam pE
AS+G/F20%
OSM-738SRC
SGCC-M
SECC-P
FOAM PU + FOAM PE
ASS'Y
p.p
P.P
ASSÕY
AM27A1C2
1/4"
1/4"
1/2"
3/8"
ASSÕY
ASSÕY
ASSÕY
ASSÕY
ASSÕY
SC-90073T
AM27A1C3
SGCC-M
SGCC-M
25µF X ¿450V
8P
4µF X ¿450V
ASSÕY
ASSÕY
ASSÕY
FOAM PU + FOAM PE
SGCC-M
SECC-P
48A135IV1E5
EPDM
M8
P10.8
NORYL
MRA12002-9200
ASS'Y
P.E.H 100%
1
1
1
1
1
1
1
1
1
1
1
1
2
1
1
2
1
1
1
1
1
1
1
1
2
2
1
1
1
1
1
1
1
1
2
6
6
2
2
2
1
1
Description Specification RemarkQÕTY
!
!
!
!
!
31039A(5)-All 4/17/01 5:36 PM Page 17
Index

18
4-3 Romote Control & PCB Box
4-3-1 Remote Control
■Parts List
5
1
7
8
3
10 17
614
13 16
4
9
11
2
12
No
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
CODE NO
DB61-10144A
DB61-10145A
DB64-20054A
DB63-10477A
DB74-10084A
DB73-20110B
DB64-40166B
DB68-10775A
DB68-10777A
PH-M2
DB67-60061A
DB67-60062A
DB67-60063A
90 x 250
DB93-40179B
DB61-40243A
DB93-30052L
DB93-30067N
Description
CASE UP
CASE LOW
DOOR REMOCON
COVER BATTERY
FILTER REMOCON
RUBBER REMOCON
INLAY LCD
INLAY REMOCON
LABEL REMOCON
LABEL DOOR
SCREW TAP
SPRING BATTERY
SPRING BATTERY
SPRING BATTERY
PE BAG
ASSÕY PCB REMOCON
HOLDER REMOCON
ASSÕY REMOCON
REMOCON + HOLDER
Specification
ABS
ABS
ABS
ABS
PC
SILICON
PC
PC
ART 90
ART 90
PH-M2
SUS 304
SUS 304
SUS 304
90 x 250
ABS
Cooling Only
Cooling Only
QÕTY
1
1
1
1
1
1
1
1
1
1
6
1
1
1
1
1
1
Remark
31039A(5)-All 4/17/01 5:36 PM Page 18
Index

19
4-3-2 PCB Box
■Parts List
1
2-4
2-6
2-2 2-1
2
3
2-5
2-3
No
1
2
2-1
2-2
2-3
2-4
2-5
2-6
3
CODE NO
DB61-10136A
DB93-10626A
DB93-10626B
DB09-10149A
DB32-10008D
DE26-20154A
2306-000294
3501-001058
DE32-10037A
DB93-10560B
Description
CASE-CONTROL
Ass'y main PCB
Ass'y main PCB
Micom
Thermistor-EVAP
Trans-power
C-film
Power-relay
Fuse
Ass'y Display PCB
Specification
-
-
MB89635R-466
103AT
AC230V DC17V 300mA
CFS 99N 450VAC 155K
DI1U DC12V
250V 3.15A
EDGE
QÕTY
AM27A1C07 AM27A1C13
1
1
-
1
1
1
1
1
1
1
1
-
1
1
1
1
1
1
1
1
Remark
31039A(5)-All 4/17/01 5:36 PM Page 19
Index
