Samsung APC4082E User manual

ENGLISH
Split-type Packged Air Conditioner (Cool)
Grieta de Colmado de Aire Acondicionado (Refrigeración)
Climatiseur Monobloc de Type Split (Refroidissement)
E S F A DB98-04436A(1)
INSTALLATION MANUAL
MANUAL DE INSTALACIÓN
MANUEL D’INSTALLATION
Indoor Unit
APC4082E
APC4082EC
Outdoor Unit
UPC4082E
UPC4082EC
ESPAÑOL
FRANÇAIS

▼
E-2
➧Be sure to read the installation manual carefully to ensure
sufficient realization of the excellent performance of the unit.
➧Be sure to drill a hole in the wall necessary for installation
before attempting to install the unit.
➧After completion of installation, be sure to perform a test
operation of the unit to check for any problem, and then
deliver the unit to the customer if the test results are acceptable.
➧After completion of test operation, hand over the owner’s manual,
installation manual, and warranty card to the customer.
❈As the installation work requires special skill, be sure to request a
qualified dealer to take care of the installation of your unit; the user
should not attempt to install his/her unit by himself/herself.
❈Do not attach any electric heating device or
electric heater to the unit.
Do not attempt to disassemble or modify the unit by yourself.
(It may cause machine trouble, electric shock or fire.)
Ø 60mm
Less than
200mm
TABLE OF CONTENTS

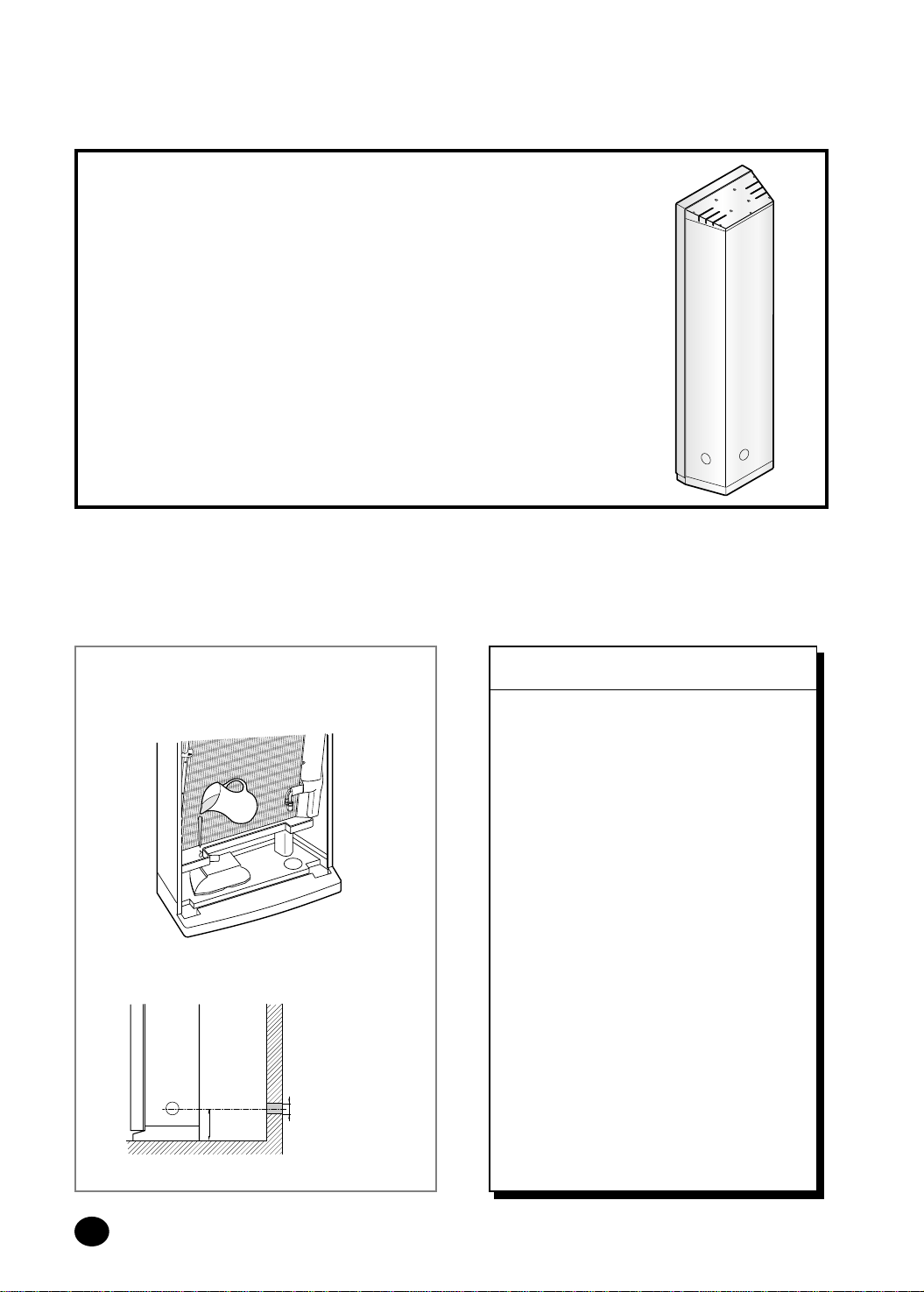

Absolute Checkpoints
Refer to page 12 for detailed procedures.
▼
1. Drain check
2. Drilling a hole in the wall
ACCESSORY PARTS LIST
• Connection Parts . . . . . . . . . . . . . . . 3
• Others . . . . . . . . . . . . . . . . . . . . . . . 3
SELECTION OF INSTALLATION PLACE
• Indoor Unit . . . . . . . . . . . . . . . . . . . . 4
• Outdoor Unit . . . . . . . . . . . . . . . . . . 4
ELECTRICAL WORK . . . . . . . . . . . . . . 5
INSTALLATION METHOD
• Outdoor Unit . . . . . . . . . . . . . . . . . . 8
• Installation Procedures . . . . . . . . . . 9
• Connection of Refrigerant Piping . . 10
• Drilling a Hole in the Wall . . . . . . . . 12
• Drain Hose . . . . . . . . . . . . . . . . . . 12
• Connecting the Pipe . . . . . . . . . . . 13
AIR PURGE . . . . . . . . . . . . . . . . . . . . 14
REFRIGERANT CHARGING . . . . . . . 15
CHECK AND TEST OPERATION . . . 16
INSTALLATION OF DIGITAL
TELECOMMUNICATOR . . . . . . . . . . 18

Putty
Insulation for drain hose
Cable-tie
Insulation tape
Connecting wire (4 strand)
Digital telecommunicator
E-3
ENGLISH

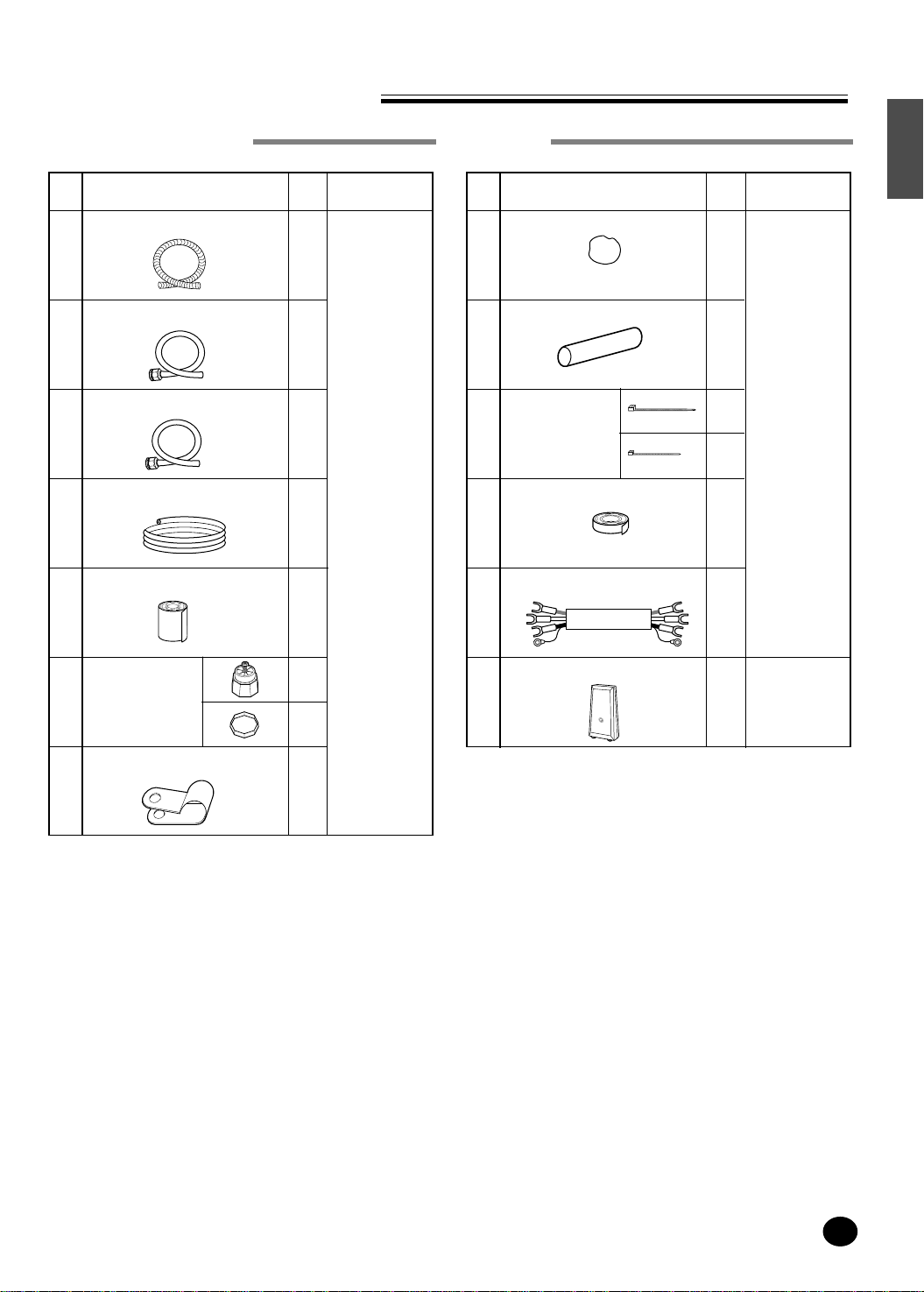

ACCESSORY PARTS LIST
Connection Parts Others
1
2
3
4
5
6
7
Drain hose
Connection pipe
Connection pipe
Insulation for piping
Finishing tape
Leg holder for
outdoor unit/
Foot holder
Cable clamp
1
1
1
2
4
4
1
No. Q’ty Remarks
Piping Box
Part Name
3/8
"
(ø9.52mm)
3/4 "
(ø19.05mm)
8
9
10
11
12
13
1
1
4
4
1
1
1
No. Q’ty Remarks
Piping Box
Indoor Unit
Part Name

E-4

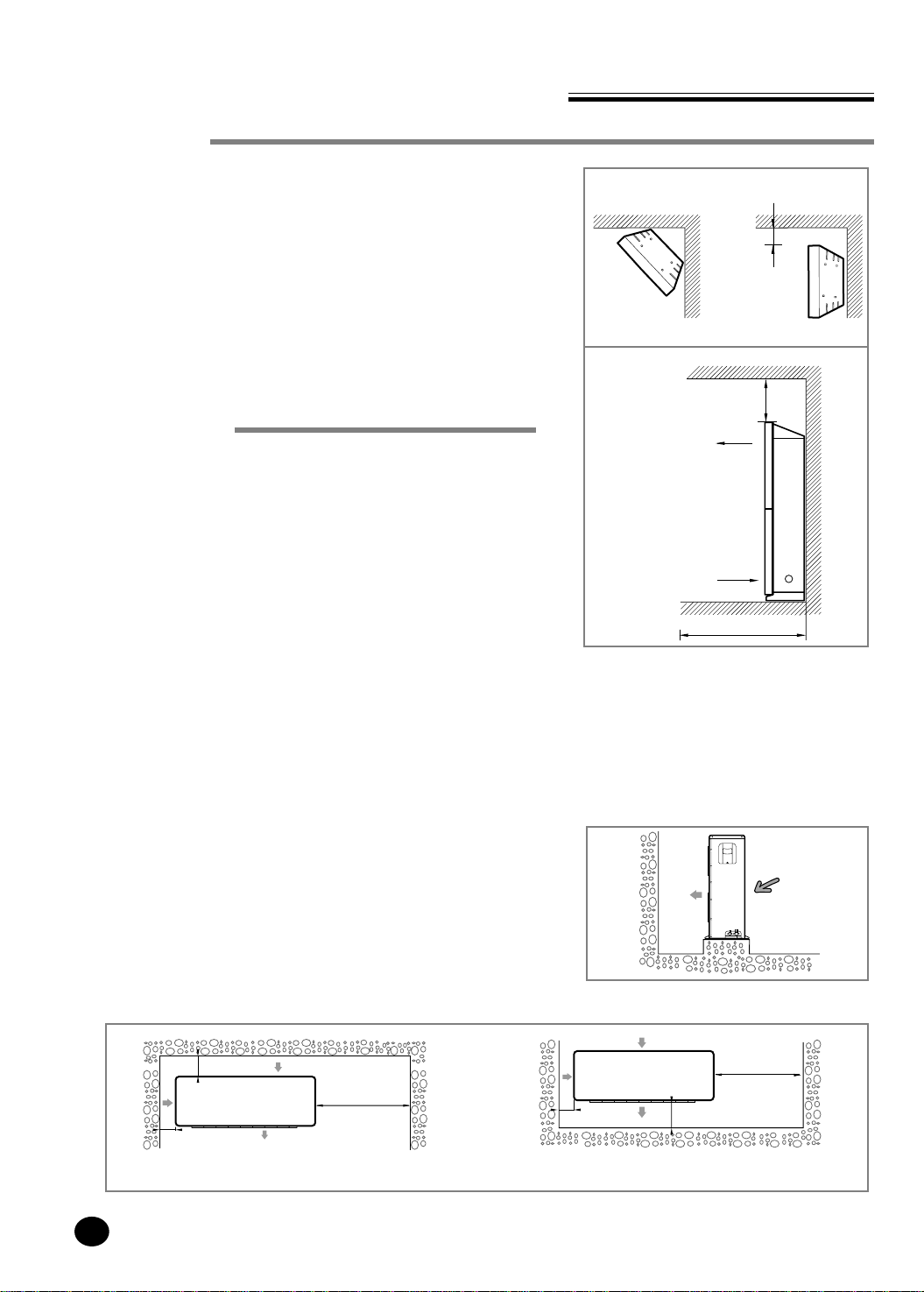

SELECTION OF INSTALLATION PLACE
Indoor Unit
Outdoor Unit
❈If there is any unavoidable reason to install the unit at such
a place, take the following measures against the wind;
1. When installing the unit at a roadside concentrated
with buildings, install it parallel with the road.
2. Install the unit so that the air outlet faces toward the wall at a
place such as rooftop, which may be subjected to strong wind.
◆ The outdoor unit should be installed in accordance with the service space.
◆ A place free from the risk of combustible gas leakage.
◆ A place which can bear the weight of the unit.
◆ A place which can bear the fixing strength of the outdoor unit.
◆ Avoid a place subject to oil (including machine oil).
◆ Avoid a saline place.
◆ Avoid a place subject to sulfide gas (hot spring zone).
(When installing the unit at such special environmental conditions,
it may cause machine trouble. When it is unavoidable to use
such places. It requires special maintenance.)
◆ A place where the discharge air and noise of the outdoor unit
do not disturb the neighborhood.
(Take special care not to cause any inconvenience to your neighbors when installing the unit on the borderline
with your neighborhood.)
◆ A place where strong wind does not head against the air outlet of the outdoor unit.
(If a strong wind heads directly against the air outlet at the time of cool operation,
a safety device can be operated.)
◆ Do not install the outdoor unit at an unstable place such as outer wall of an apartment or building.
The outdoor unit may fall down, causing severe personal or property damage or loss.
◆ Install the unit at a place close to the wall facing the outside as
it is necessary to perform piping connection with the outdoor unit.
- It is effective to install the unit at a window side to ensure
uniform distribution of indoor temperature.
◆ Install the unit at a place where there is no obstacle against the
wind around the air inlet and air outlet.
◆ Install the unit horizontally at a stable, rigid place.
(When installing the unit at a place subjected to
oscillation, noise may occur.)
◆ Avoid a place near the door which is frequented by people.
◆ Avoid a place subject to direct sunlight.
Above 60cm
Above
30cm
Above 50cm
Above 30cm
Above 50cm
Above 30cm
The air inlet faces toward the wall. The air outlet faces toward the wall.
Space for piping
and wiring
Space for piping
and wiring
Wall
Strong wind
Roof top
Air outlet
Above
60cm
Above 100cm
Above 50cm
Air outlet
Air inlet
Top view
Side view

E-5
ENGLISH
ELECTRICAL WORK
The electrical work should be performed by a specialist qualified for the work.
◆ Use the three phase power supply, and be sure to install the sub power distributing board for
exclusive use with the unit(separately purchased by the user).
❈Avoid octopus-type wiring as it can cause a drop in voltage, thus resulting in poor performance
of the automatic control circuit.
◆ Be sure to install circuit breaker (separately purchased by the user).
◆ Be sure to connect the grounding wire.
❏ Electric power spec
Model
Power
Sub switch
Electric wire
Allowable voltage
SPEC
APC4082E/APC4082EC
Single phase 220-240V, 50Hz
50A
4.0mm2 (separately purchased by the user)
198V~264V
ITEM

E-6
ELECTRICAL WORK
1. When connecting the wiring harness between the indoor and outdoor unit, align the outdoor side with the
terminal board No., and fix it securely by using the anchorage.
2. Connect the indoor side wire.
1) Disassemble the cover control by unfastening two ⑧ screws.
2) Disassemble ① anchorage by removing ②and ③ screws.
3) Connect ⑦assembly cable to same number in ⑤ terminal block.
4) Secure ⑥ earth wire by tightening ④ screw.
5) Align the A with B part, then secure ① anchorage by tightening ② and ③ screws.
6) Reinstall the cover control and ⑧ screws.
(Wires must pass through C and D.)
❏ Indoor and Outdoor Connection Wiring
Indoor unit Outdoor unit
Circuit breaker
Cover control
Indoor unit terminal block
Control box

E-7
ENGLISH

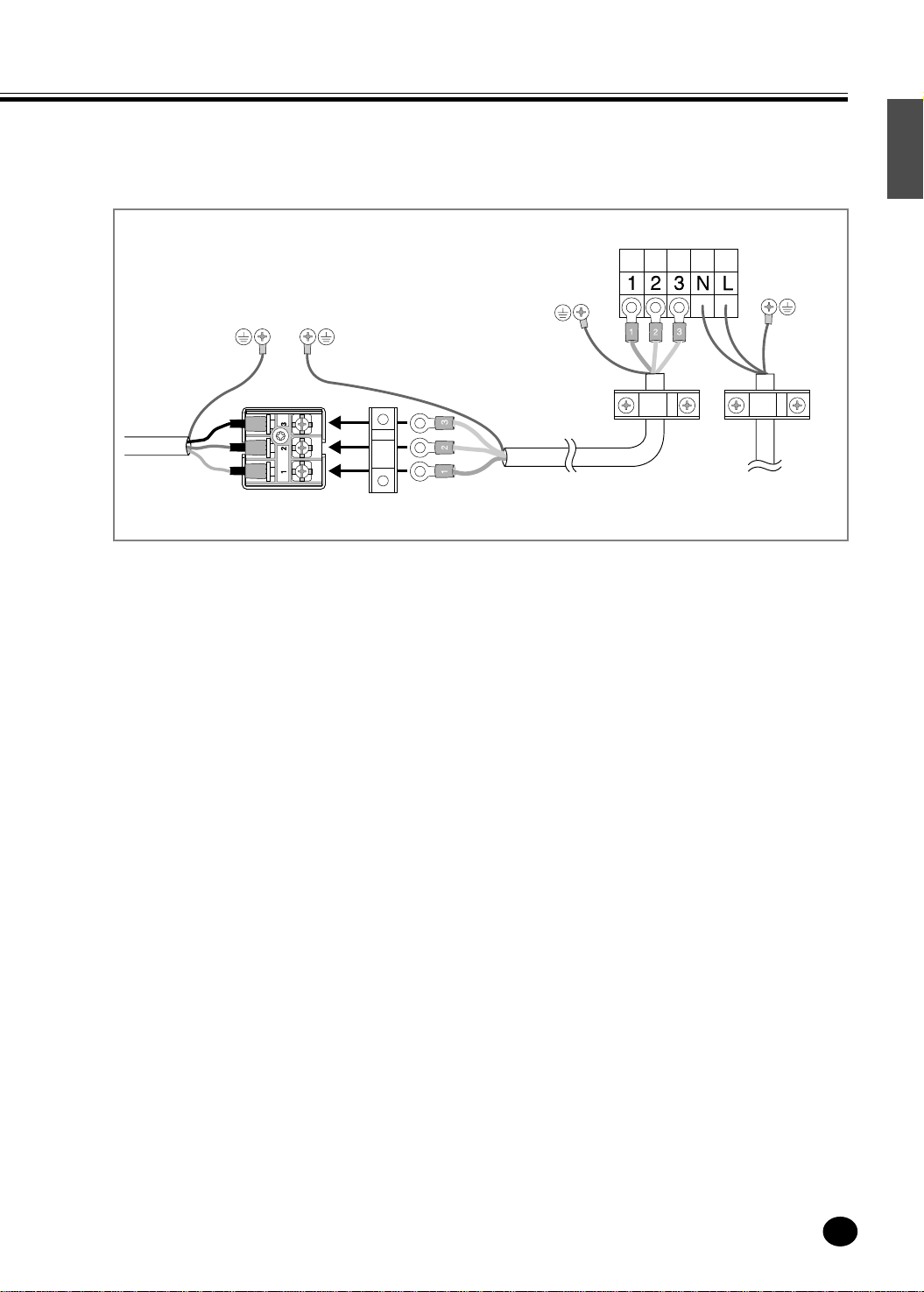

❏ Wiring diagram
Indoor unit terminal block
Indoor unit Outdoor unit
Control box
Indoor and outdoor
connection wire Power cable
Earth
Earth
Earth
Power Cable

E-8
INSTALLATION METHOD
Anchor bolt fixing dimensions
840mm
415mm
Nut
Outdoor unit leg
Leg holder
Foot holder
Outdoor Unit
❏ When using the anchor bolt
1. Fix the unit on a flat, rigid floor using the anchor bolt.
(Anchor bolt : M10 x 4 points - separately purchased)
❏ When using the leg holder of the outdoor unit
1. Insert the foot holder (4EA).
2. Remove the nut fastened to the leg holder,
and then insert the leg holder into the hole of
the outdoor unit leg.
3. Fix the unit securely with the nut.

E-9
ENGLISH

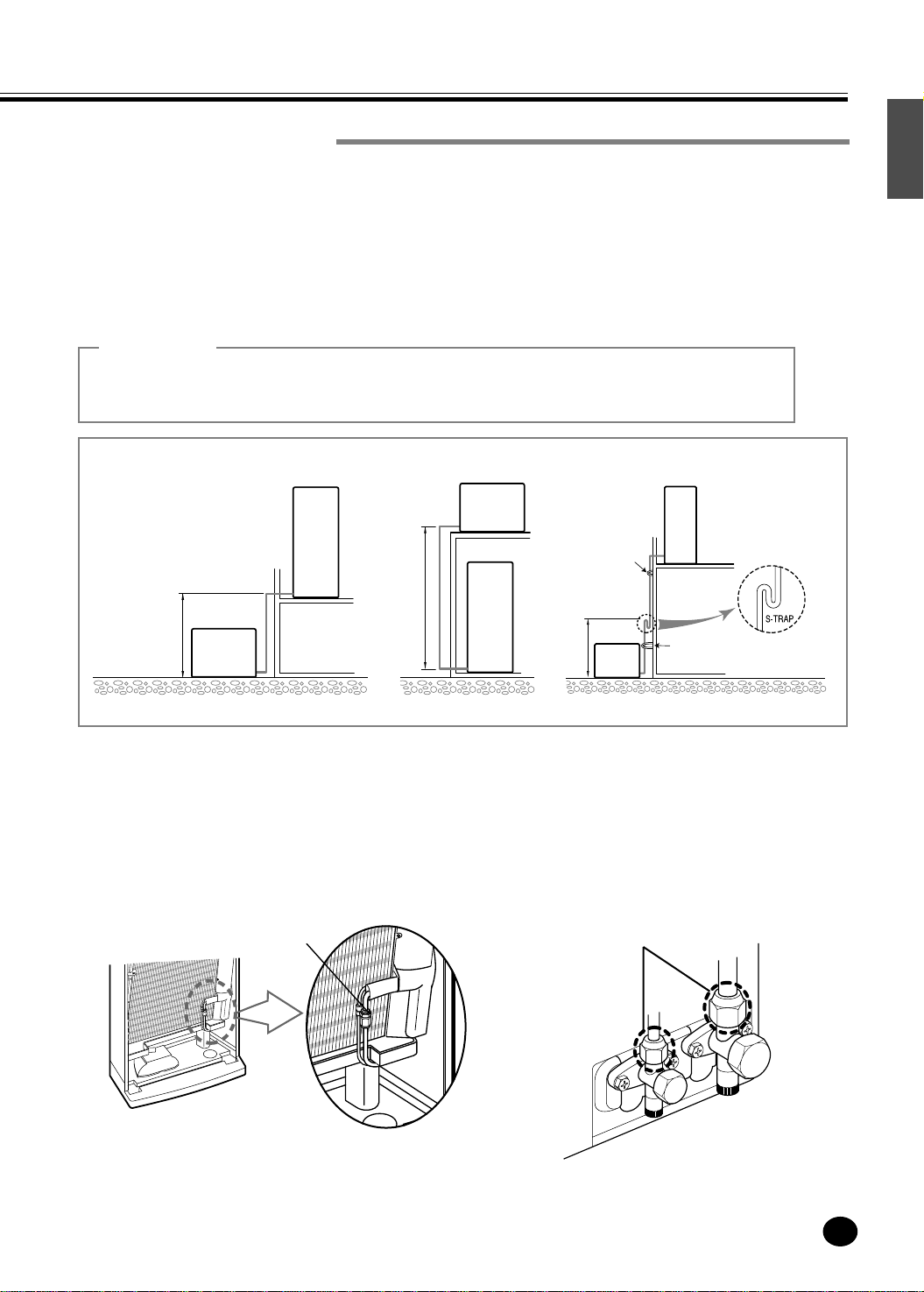

Installation Procedures
1. Open the front panel, and remove the flare nut.
2. Bend the connection pipe to an appropriate length using the spring bender depending
upon the installation place.
- Allowable pipe length : Maximum 20m
- Allowable pipe drop distance : Maximum 15m
- Make no more than ten bending points on the pipe
❈ When the pipe length is in excess of the standard pipe length of 5m, add the refrigerant (R22) of
70g for each additional 1m.
3. Install the high pressure pipe to the heat exchanger liquid pipe, and the low pressure pipe to the
heat exchanger gas pipe respectively using the flare nut, taking care not to cause any leakage of refrigerant.
4. Be sure to insulate the pipe with appropriate insulation material.
5. Insert the drain hose into the drain pipe, and connect them by tying them to the cable tie to prevent
any water leakage.
6. After completion of the installation, check the connecting area for any gas leakage.
7. Wind a finish tape when the wiring of the refrigerant pipe, the unit, and the drain piping are completed.
Less than 15m
CAUTION
◆ If the pipe is lengthened, the performance of the unit is degraded, and the service life is shortened.
Therefore, the pipe length should be as short as possible (less than 15m).
Outdoor
unit
Outdoor
unit
Outdoor
unit
Indoor unit Indoor unit
Indoor unit
Less than 15m
Less than 6m
(Every 6m)
Fix the pipe
Fix the pipe
Indoor unit
checking area Outdoor unit checking area

E-10
INSTALLATION METHOD
Connection of Refrigerant Piping
Outer Diameter
ø 9.52mm
ø 19.05mm
A(mm)
1.8
2.2
❏ Flare Processing
1. Cut the pipe using the pipe cutter.
2. Insert the flare nut into the pipe, and then perform the flare processing.
Oblique Roughness Burr

E-11
ENGLISH
Final Torque
350 kg •cm
750 kg •cm
RemarksOuter Diameter
ø 9.52mm
ø 19.05mm
Tightening Torque
300 kg •cm
700 kg •cm
Spring
❏ Pipe Bending
1. Perform bending of the pipe using the bender which has a specified bending
radius.
2. Be sure to take full care to perform bending of the pipe successfully at one
time. Bending and unbending the pipe more than twice makes the bending
work increasingly difficult.
3. You may use the spring inserted into the gas pipe instead of the bender to
bend the pipe.
4. When you bend the pipe using the spring, hold the pipe with both hands to
prevent any distortion, and secure a minimum bending radius of more than
100mm.
❏ Tightening of Connection Parts
◆ Align the center of the connection piping, and tighten the flare nut
by turning it with hand. Then tighten it again using the spanner in
the direction as shown in the figure.

E-12
Drain Hose
Drilling a Hole in the Wall
◆ Drill a hole of 60mm in diameter to the outside.
◆ The drilling should be done at a distance of less than
200mm from the floor facing the indoor unit.
◆ Extend the drain hose to the drain hose connected to
the drain pan, and fix it with the tape or a cable-tie to
prevent separation. Then make a covering of it so
that water cannot flow outwardly.
CAUTION
1. As the draining is of natural drain type, make the drain hose direct
downward.
2. If there is any foreign substance in the drain plate, it may clog the
drain pipe. Therefore, be sure to remove the foreign substance
inside after installation.
3. After completion of installation, be sure to pour water into the drain
pan, and then check the draining condition.
(There is no problem in draining when the draining is completed
within 20 seconds.)
Ø 60mm
Less than
200mm
Foamed PolyethyleneInsulator
Vinyl Chloride(Inner diameter ø18mm,
Outer diameter ø23mm)
Piping Material
INSTALLATION METHOD
Drain hose
Drain pan
Indoor and outdoor
connection
Insulation
Band

E-13
ENGLISH
Connecting the Pipe
◆ The piping of this unit can be connected to the right, left, and rear side.
When you hit the area for piping connection slightly with a hammer, a hole is made.
◆ After connecting the piping and drain hose, insert the rubber cap as shown in the figure.
CAUTION
When installing the air conditioner as a fixture, make a U-trap(1m) with refrigerant piping and power cable.
Holes for piping
connection (3 points)
U-trap(1m)
Extra cable
(About 1m)
❈The shape of hole may varies with the models.

E-14
AIR PURGE
❈ Be sure that all valve cocks are closed.
◆The air in the indoor unit and in the pipe must be purged. If air remains in the refrigeration pipes, it will affect the
compressor, reduce to cooling capacity and could lead to a malfunction.
Use Vacuum Pump as shown at the figure.
1. Connect each assembly pipe to the appropriate valve on the outdoor unit and tighten the flare nut.
2. Connect the charging hose of low pressure side of manifold gauge to the packed valve having a service port as
shown at the figure.
3. Open the valve of the low pressure side of manifold gauge counter-clockwise.
4. Purge the air from the system using vacuum pump for about 10 minutes.
- Close the valve of the low pressure side of manifold gauge clockwise.
- Make sure that pressure gauge show -0.1MPa(-76cmHg) after about 10minutes.
- This procedure is very important in order to avoid gas leak.
- Turn off the vacuum pump
- Remove the hose of the low pressure side of manifold gauge.
5. Set valve cork of both liquid side and gas side of packed valve to the open position.
6. Mount the valve stem nuts and the service port cap to the valve, and tighten them at the torque of 183kgf•cm with
a torque wrench.
7. Check for gas leakage.
- At this time, especially check for gas leakage from the 3-way valve’s stem nuts, and from the service port cap.
Indoor unit
Liquid side Gas side
3-way valve
Outdoor unit
3-way
valve
A
B
OUTDOOR UNIT
Gas side
Vacuum
Pump
Liquid side
Needle valve cap
Flare nut
Valve cock
Cap

E-15
ENGLISH

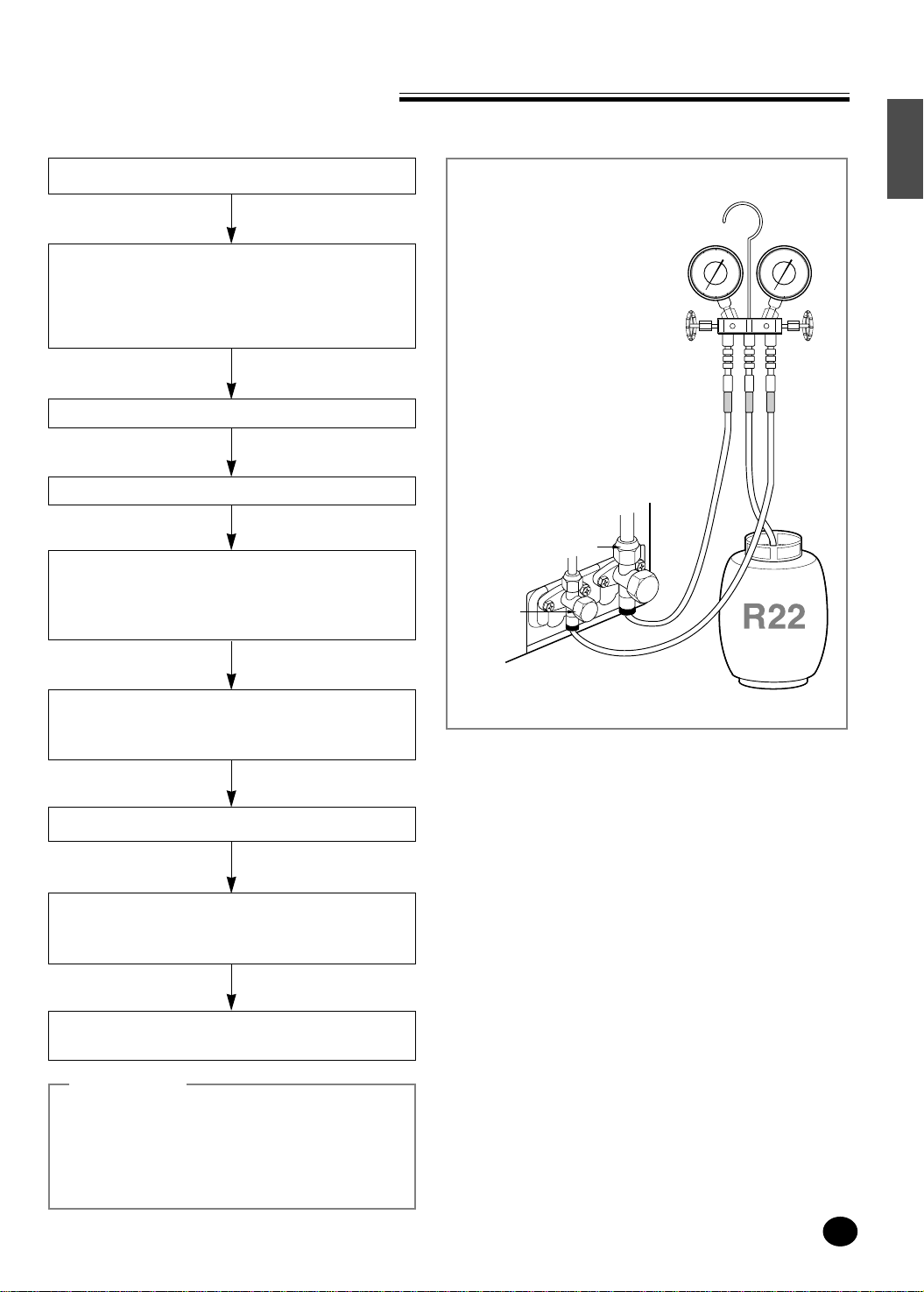

REFRIGERANT CHARGING
Air purge(at the time of new installation only)
Close the gas pipe side valve by turning it
clockwise.
Connect the pressure gauge to the low
pressure side service valve, and then open
the gas pipe side valve again.
Connect it to the refrigerant filling tank.
Start cooling operation.
Open the tank and refill the refrigerant
until arriving at the proper pressure.
(Refill the refrigent slowly checking the pressure.)
Check the pressure of the pressure gauge.
Check whether the low pressure side is within
the range of 4.5~5.6kg/cm2G
(outside temperature 35°C).
Stop operation.
Close the gas pipe side valve, and loosen
the pressure gauge connected.
Then open the gas pipe side valve again.
Tighten the cap of each valve using
a specified tool.
OUTDOOR UNIT
Gas pipe side
Liquid
pipe side
CAUTION
◆ Always use R22 refrigerant to avoid damage of
the unit or an explosion.
◆ Must keep the quantity of refrigerant by using a
balance. Do not use a manometer or not depend
on your experiences.

E-16
CHECK AND TEST OPERATION
Check
◆ Be sure to check the following again after completion of installation.
1. Check the piping connection area for any gas leakage.
2. Is the drain hose properly connected?
3. Is the insulation of the piping in good condition? 4. Is grounding properly made?
Insulation
Indoor
connection area Outdoor
connection area

E-17
ENGLISH
Test Operation
◆ After checking, read the owner’s instructions carefully, and perform a test operation.
Then deliver the unit to the customer.
(When delivering the unit, be sure to read carefully and follow the contents of the owner’s instructions.)
CAUTION
1. Be sure to check whether the service valve is opened before attempting to perform
the test operation.
2. Never attempt to start test operation by force pressing the electronic contactor as
it is very dangerous.
(This is very dangerous as the protective device does not work.)
3. Be sure to perform the test operation after installation.

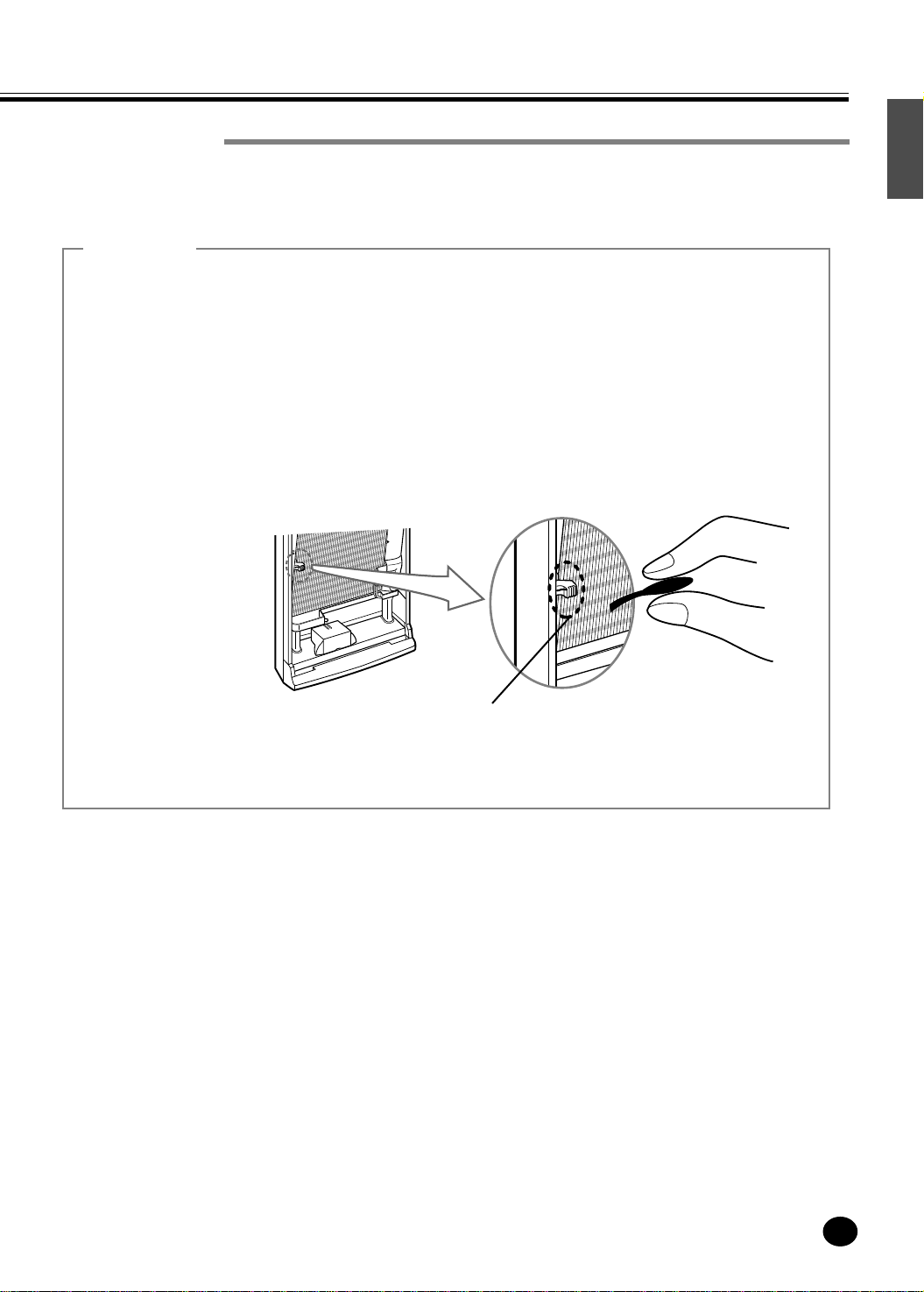

It is easy to start the test operation in winter if you increase the sensor temperature to
23°C ~ 25°C by holding the indoor temperature sensor. (Cooling operation)
❈ When the outdoor temperature is below zero, do not test operation for more than 3 minutes.
Otherwise, the compressor will be damaged.
Temperature sensor

E-18

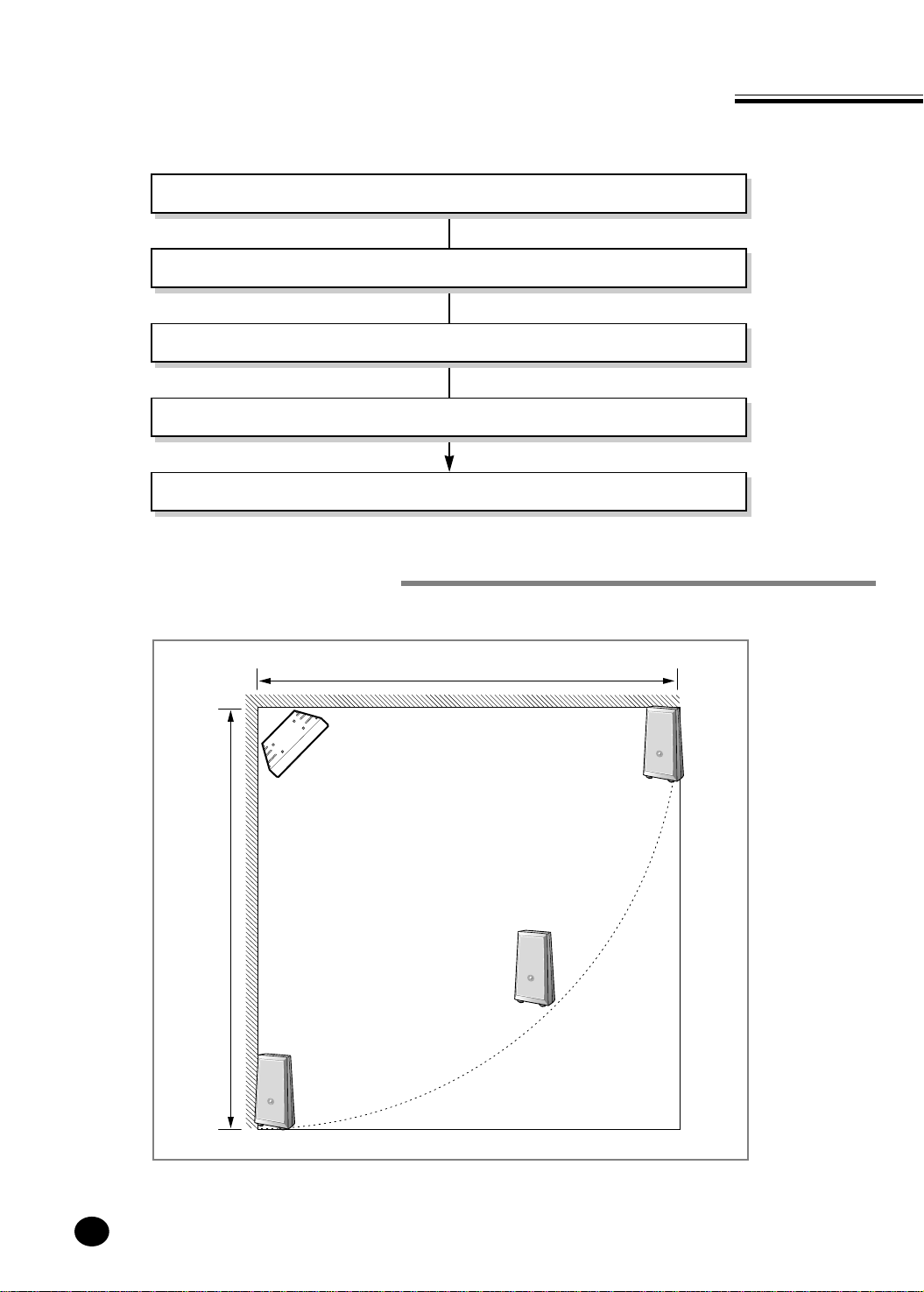

INSTALLATION OF DIGITAL TELECOMMUNICATOR
Select installation place
Connect telephone cable
Connect power cable
Check the password
Check and test operation
Selection of Installation Place
◆ Decide the installation place referring to the figure below.
about 10m
Indoor unit
about 10m

E-19
ENGLISH

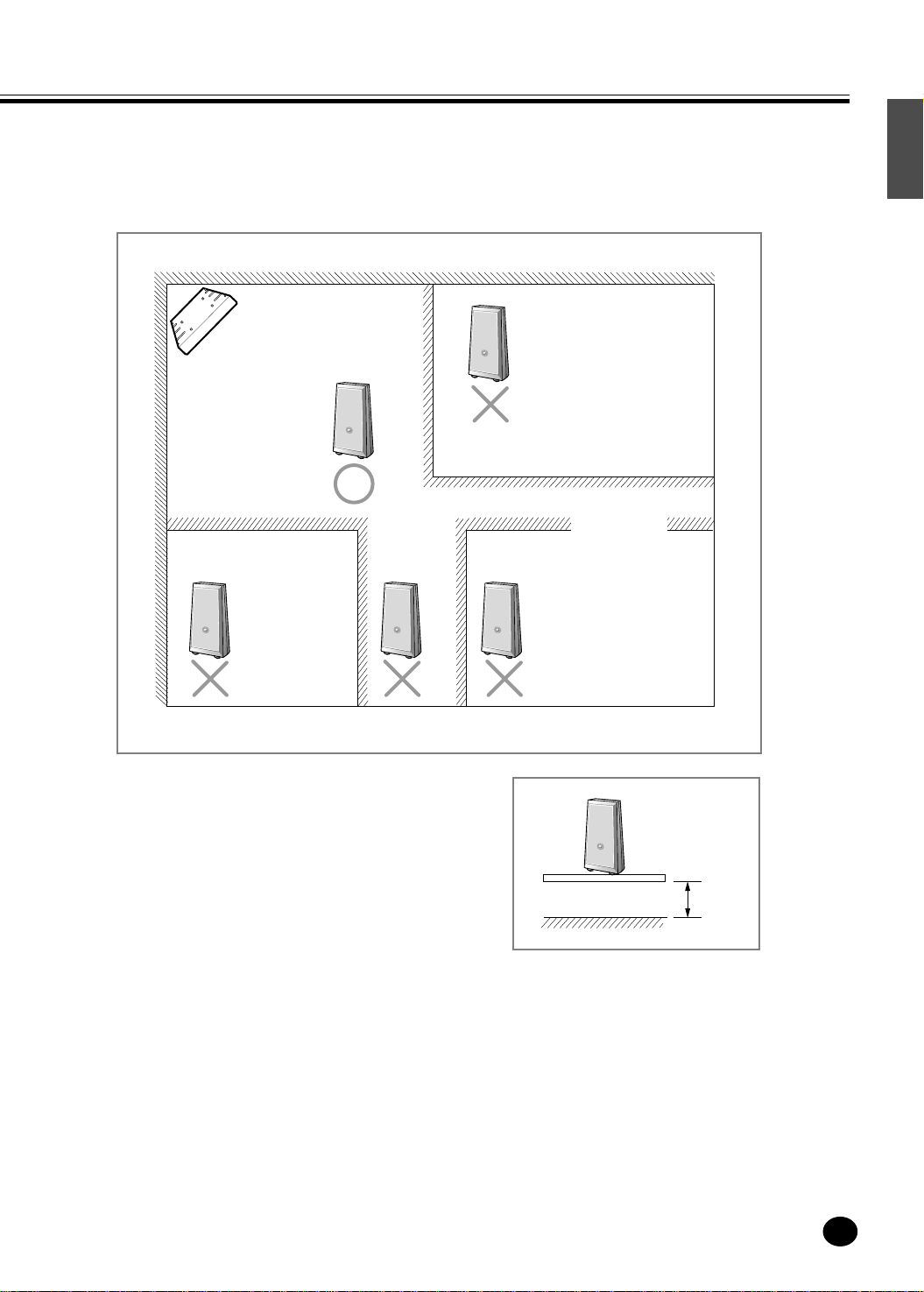

◆ Avoid following conditions when installing the digital telecommunicator.
(There must be no obstacles between the indoor unit and the digital telecommunicator.)
◆ Select the place above 30cm or more from the floor.
◆ It is recommended that the digital telecommunicator faces the front of the indoor unit.
30cm

E-20
INSTALLATION OF DIGITAL TELECOMMUNICATOR
Connection of Phone Cable and Power Cable
◆ Connect the phone cable.
- Never invert the LINE-LINE cable and the LINE-PHONE cable.
Otherwise, the digital telecommunicator will not be operated.
The digital telecommunicator does not work if it is connected with the key phones normally used in the office.
◆ Connect DC adaptor to the digital telecommunicator.
Connect telephone line
Line-phone
Line-Line
Digital telecommunicator
DC adaptor
Plug in
