Samsung UH052EAMC User manual

System Air Conditioner(Cooling and Heating)
UH052EAMC
UH070EAM(1)C
INSTALLATION
MANUAL
UH094EAM1C
UH105EAMC
E S F I P D G R DB98-27159A(4)
E§§HNIKA
RUSSIAN PORTUGUÊS
DEUTSCH ENGLISH
ESPAÑOL
FRANÇAIS
ITALIANO

Safety Precautions
The following safety precautions must be taken when using your air conditioner.
◆The unit should not be installed by the user. Ask the dealer or authorized
company to install the units except room air conditioners for the U.S.A and
Canada area.
◆If the unit is installed improperly, water leakage, electric shock or fire may
result.
◆Mount with the lowest moving parts at least 2.5 m above the floor or grade
level. (If applicable)
◆The manufacturer does not assume responsibility for accidents or injury
caused by an incorrectly installed air conditioner. If you are unsure about
installation, contact an installation specialist.
◆When installing the built-in type air conditioner, keep all electrical cables
such as the power cable and the connection cord in pipe, ducts, cable
channels e.t.c to protect them against liquids, outside impacts and so on.
WARNING
INSTALLING THE UNIT
◆If the power cord of this air conditioner is damaged, it must be replaced by
the manufacturer, its service agent or similarly qualified persons in order to
avoid a hazard.
◆The unit must be plugged into an independent circuit if applicable or
connect the power cable to the auxiliary circuit breaker. An all pole
disconnection from the power supply must be incorporated in the fixed
wiring with a contact opening of >3mm.
◆Do not use an extension cord with this product.
◆If the unit is equipped with a power supply cord and a plug, the plug must
be accessible after installation.
◆The air conditioner must be installed in accordance with national wiring
regulations and safety regulations wherever applicable.
POWER SUPPLY LINE,
FUSE OR CIRCUIT
BREAKER
Risk of electric shock. • Can cause injury or death. • Disconnect all
remote electric power supplies before servicing, installing or cleaning.
• This must be done by the manufacturer or its service agent or a similar
qualified person in order to avoid a hazard.
E-2

■Preparation for outdoor unit installation ............................................................... 5
■Air Conditioner and Accessories .......................................................................... 5
■Deciding where to install the outdoor unit 6
■Outdoor unit installation ...................................................................................... 9
■Connecting the cable ........................................................................................... 10
■Connecting the refrigerant pipe ............................................................................ 13
■Connecting up and removing air in the circuit ..................................................... 14
■Cutting / Flaring the pipes .................................................................................... 15
■Performing leak tests ........................................................................................... 16
■Connecting the drain hose to the outdoor unit ..................................................... 16
■Insulation .............................................................................................................. 16
■Using stop valve ................................................................................................... 17
■Adding refrigerant ................................................................................................. 18
■Checking correct grounding ................................................................................. 20
■Setting up option switches ................................................................................... 21
■Testing operations ................................................................................................ 23
■Troubleshooting .................................................................................................... 25
■Optional parts list ................................................................................................. 26
Contents
...........................................................
E-3
ENGLISH

E-4

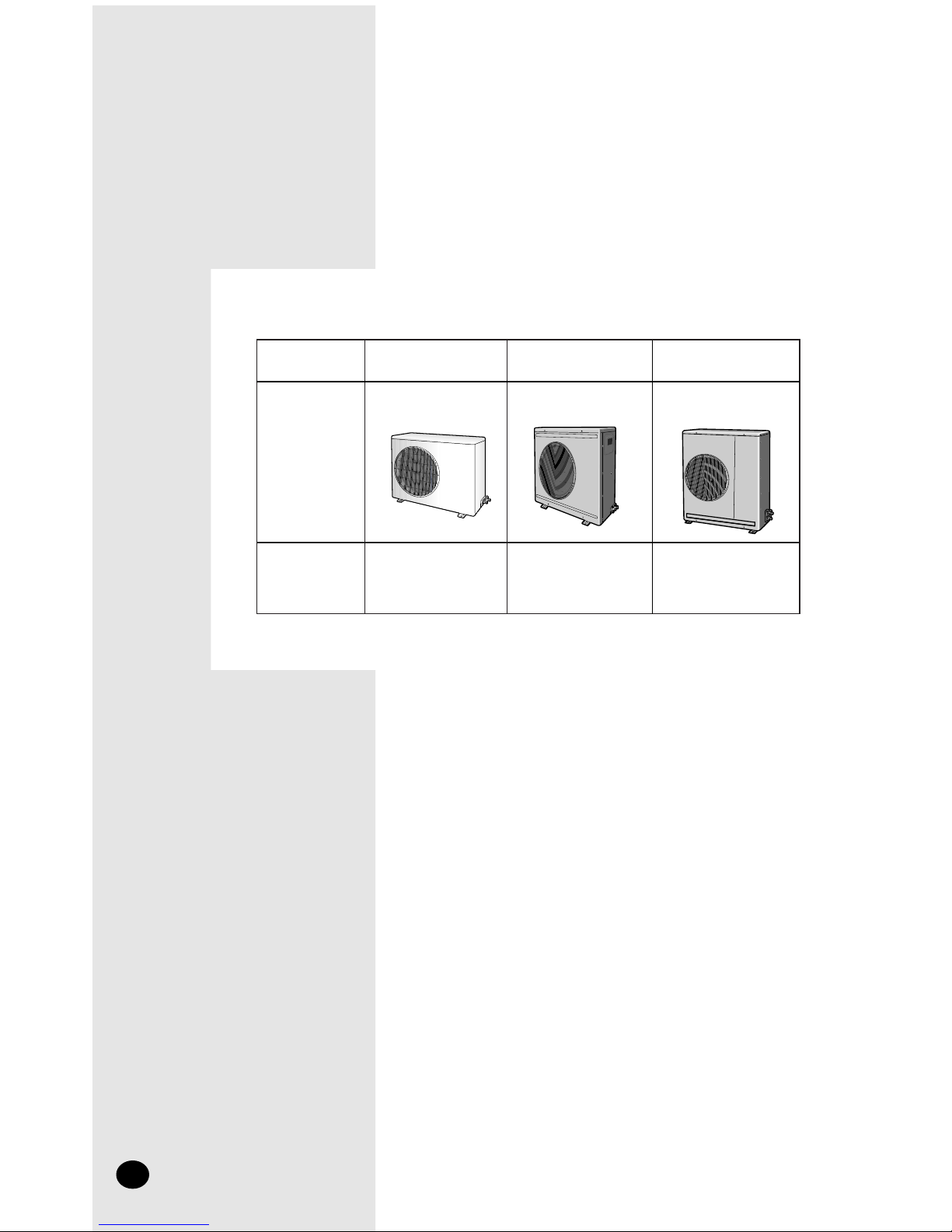

Model
UH052EAMC
UH070EAM(1)C
Type of
outdoor unit
A
Design
UH094EAM1C
B C
UH105EAMC

ENGLISH
Air Conditioner and Accessories
The following accessories are supplied with the air conditioner.
The type and quantity may differ depending on the specifications.
NN
NNoo oott ttee ee
◆ UH052EAMC
Installation manual
Rubber legs
◆ Refrigeration pipes and their insulating materials,
power cables are not supplied.
◆
UH070EAM(1)C & UH094EAM1C
Drain Plug
Drain Plug Installation manual
Installation manual
Rubber legs
Flare Nuts 3/8"
Rubber Bracket Wire
Cap Drain A

UH105EAMC
Preparation for outdoor unit installation
E-5
Moving the Outdoor Unit by Wire Rope
Fasten the outdoor unit by two 8m or longer wire ropes as
shown at the figure. To prevent from damage or scratches,
insert a piece of cloth between the outdoor unit and rope,
then move the unit.
Plate protection cloth
Wire rope
HSILGNE

Deciding where to install the outdoor unit
E-6
Outdoor Unit
◆The outdoor unit must not be placed on its side or upside down, as the
compressor lubrication oil will run into the cooling circuit and seriously
damage the unit.
◆Choose a location that is dry and sunny, but not exposed to direct sunlight or
strong winds.
◆Do not block any passageways or thoroughfares.
◆Choose a location where the noise of the air conditioner when running and
the discharged air do not disturb any neighbours.
◆Choose a position that enables the pipes and cables to be easily connected
to the indoor unit.
◆Install the outdoor unit on a flat, stable surface that can support its weight
and does not generate any unnecessary noise and vibration.
◆Position the outdoor unit so that the air flow is directed towards the open
area.
◆Maintain sufficient clearance around the outdoor unit, especially from a radio,
computer, stereo system, etc.
◆If the outdoor unit is installed at a height, ensure that its base is firmly fixed in
position.
◆Make sure that the water dripping from the drain hose runs away correctly
and safely.
1.5m or more
Indoor Unit
Fuse
Outdoor
Unit
Remote Controller
1m or more
1m or more
1.5m or more
1.5m or more
1.5m or more
Fuse
Stereo
◆ You have just purchased a system air conditioner and it
has been installed by your installation specialist.
◆This device must be installed according to the national
electrical rules.
CC
CCAA AAUU UUTT TTII IIOO OONN NN

E-7
ENGLISH
150 or more
❋ When the air outlet is opposite the wall
1500 or more
❋ When the air outlet is towards the wall
200 or more
150 or more 600 or more
❋ When 3 sides of the outdoor unit are
blocked by the wall
1500 or more
2000 or more
❋ The upper part of the outdoor unit and
the air outlet is towards the wall
500 or more
300 or more
❋ The upper part of the outdoor unit
and the air outlet is opposite the wall
300 or more1500 or more
❋ When front and rear side of the outdoor
unit is towards the wall
Unit : mm
Space Requirements for Outdoor Unit
When installing 1 outdoor unit

Deciding where to install the outdoor unit (Continued)
E-8
Unit : mm
1500 or more
❋ When the air outlet is towards the wall
200 or more
300 or more
1500 or more 600 or more 3000 or more 200 or more3000 or more
600 or more 600 or more
200 or more
1500 or more
600 or more 600 or more
600 or more
❋ When 3 sides of the outdoor unit are blocked by the wall
❋ When front and rear side of the outdoor unit is towards the wall
❋ When front and rear side of the outdoor unit is towards the wall
When installing more than 1 outdoor unit

Fix the outdoor unit with anchor bolts.
◆ The anchor bolt must be 20mm or higher from the base
surface.
NN
NNoo oott ttee ee
660
880
013
043
463
Anchor bolt hole
Unit : mm
The outdoor unit must be installed on a rigid and stable base to avoid any increase in the
noise level and vibration, particularly if the outdoor unit is to be installed in a location
exposed to strong winds or at a height, the unit must be fixed to an appropriate
support(wall or ground).
Type C
Type A,B
Anchor bolt hole
645
878
813
043
4
63
m
m02
Anchor bolt
Outdoor-->
Unit
O
<-- utdoor Unit
Support
Base
Surface
Outdoor unit installation
E-9
◆ Make a drain outlet around the base for outdoor unit
drainage.
◆If the outdoor unit is installed on the roof, you have to check
the ceiling strength and waterproof the unit.
CC
CCAA AAUU UUTT TTII IIOO OONN NN
Piping
To prevent the unit against a wild
animal or something, cover part
after connecting the pipe.
Outdoor Unit Support
ENGLISH

ELB MCCB
1
Outdoor Unit Communication
Connection cord
Power cable
Communication cable
Indoor Unit
Earth
When using ELB for 1 phase
E-10
Connecting the cable
Two electronic cables must be connected to the outdoor unit.
◆ The connection cord between indoor unit and outdoor unit.
◆ The power cable between outdoor unit and auxiliary circuit breaker.
◆ Specially for Russian and European market, before installation, the supply authority should be
consulted to determine the supply system impedance to ensure compliance.
Example of Air Conditioner System
❋ If an outdoor unit is installed in a place in danger of an electric leak or submergence,
you must install the EL .

Power Cable Specifications
Power Supply
3 Phase
Max/Min
(V)
MCCB ELB
Type of
outdoor
unit
Earth
Cable
Power
Supply
Power
Cable
Length Length
Power
Supply Max/Min (V)
220-
240V~
/50Hz
220-
240V~
/50Hz
±10%
Frame:
30A
Trip:
20A
20A
25A
-
- - -
3.5mm2,
2 Wires
Ø 1.6mm,
1 Wire
Power
Cable
MCCB ELB
Single Phase

The power cable is not supplied with air conditioner.

For power cable, use the grade H07RN-F or H05RN-F materials.
- -
-
- - - - -
A
B
B,C


20m
or less
2.5mm2,
2 Wires 20m
or less
±10%
Frame:
30A
Trip:
25A
Ø 1.6mm,
1 Wire
E-11
LISHGEN

Power Supply
Electrical component box
Indoor Unit
Communication
Cable
◆ You should connect the power cable into the power cable
terminal and fasten it with a clamp.
◆The unbalanced power must be maintained within 2% of
supply rating.
- If the power is unbalanced greatly, it may shorten the life
of the condenser. If the unbalanced power is exceeded over
4% of supply rating, the indoor unit is protected, stopped
and the error mode indicates.
◆To protect the product from water and possible shock, you
should keep the power cable and the connection cord of the
indoor and outdoor units in the iron pipe.
◆ Connect the power cable to the auxiliary circuit breaker.
An all pole disconnection from the power supply must be
incorporated in the fixed wiring(≥3mm).
◆ When connecting cables, make the cable pass through the
cable tube as shown at the figure.
◆Must keep the cable in a protection tube.
◆Keep distances of 50mm or more between power cable and
communication cable.
Connecting the cable (Continued)
E-12

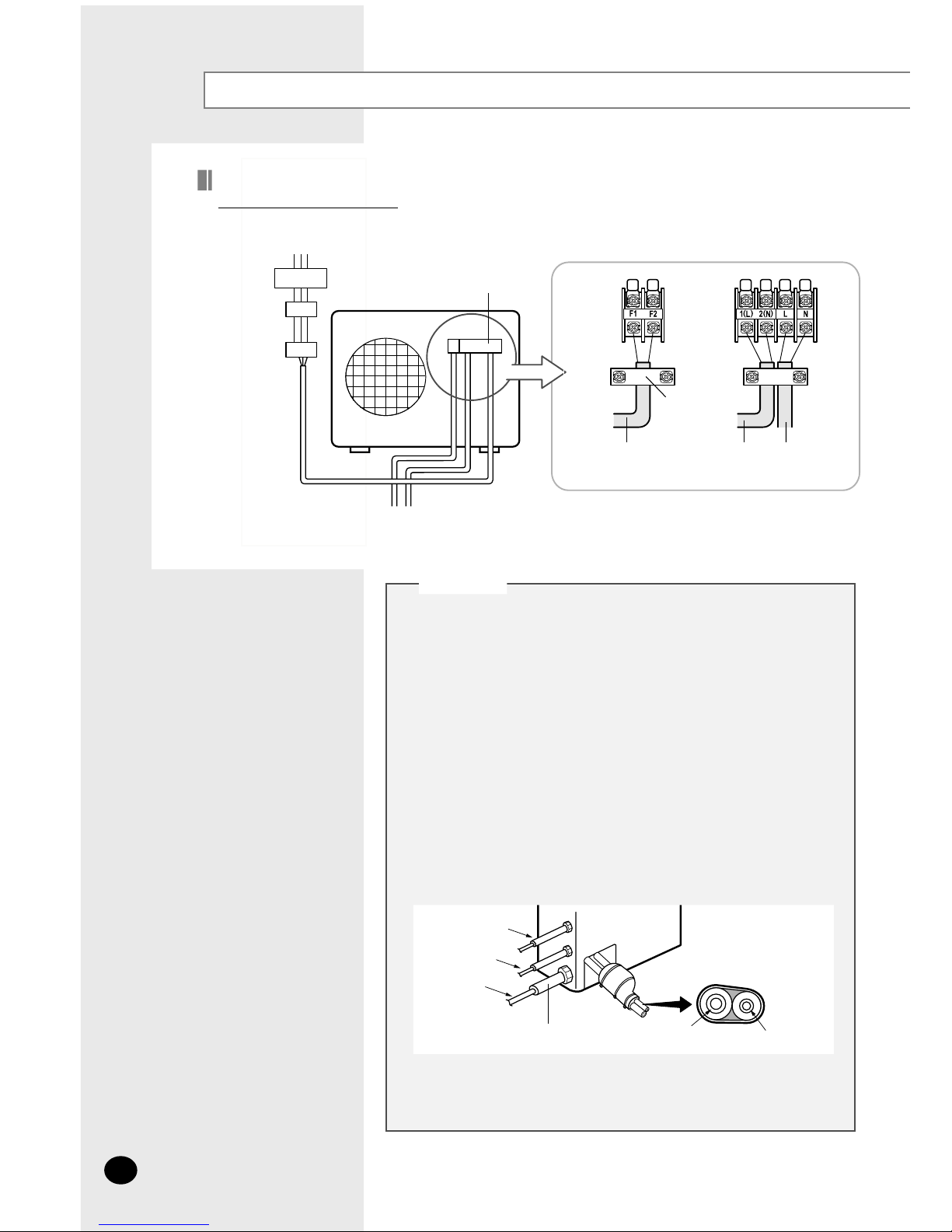

Wiring Diagram of Power Cable
When using ELB for 1 phase
MCCB
Power Supply
Electrical component box
Indoor Unit
Communication
Cable
Connection cord
Cable
clamp
Single Phase
AC220V
ELB
MCCB
◆ You should connect the power cable into the power cable
terminal and fasten it with a clamp.
◆The unbalanced power must be maintained within 2% of
supply rating.
- If the power is unbalanced greatly, it may shorten the life
of the condenser. If the unbalanced power is exceeded over
4% of supply rating, the indoor unit is protected, stopped
and the error mode indicates.
◆To protect the product from water and possible shock, you
should keep the power cable and the connection cord of the
indoor and outdoor units in the iron pipe.
◆ Connect the power cable to the auxiliary circuit breaker.
An all pole disconnection from the power supply must be
incorporated in the fixed wiring(≥3mm).
◆ When connecting cables, make the cable pass through the
cable tube as shown at the figure.
◆Must keep the cable in a protection tube.
◆Keep distances of 50mm or more between power cable and
communication cable.
CC
CCAA AAUU UUTT TTII IIOO OONN NN
Gas refrigerant pipe
Cable tube
Communication
cable
Connection cord
Power cable
Liquid refrigerant pipe

E-13
L1
H
L0
Refrigerant piping system table
Max. allowable length Actual pipe length
L0+H+L1
Allowable height length Actual pipe length H
30m or less
15m or less
50m or less
30m or less
UH052EAMC/UH070EAM(1)C/UH094EAM1C
UH105EAMC
Pipe length or height
HS
I
LGNE

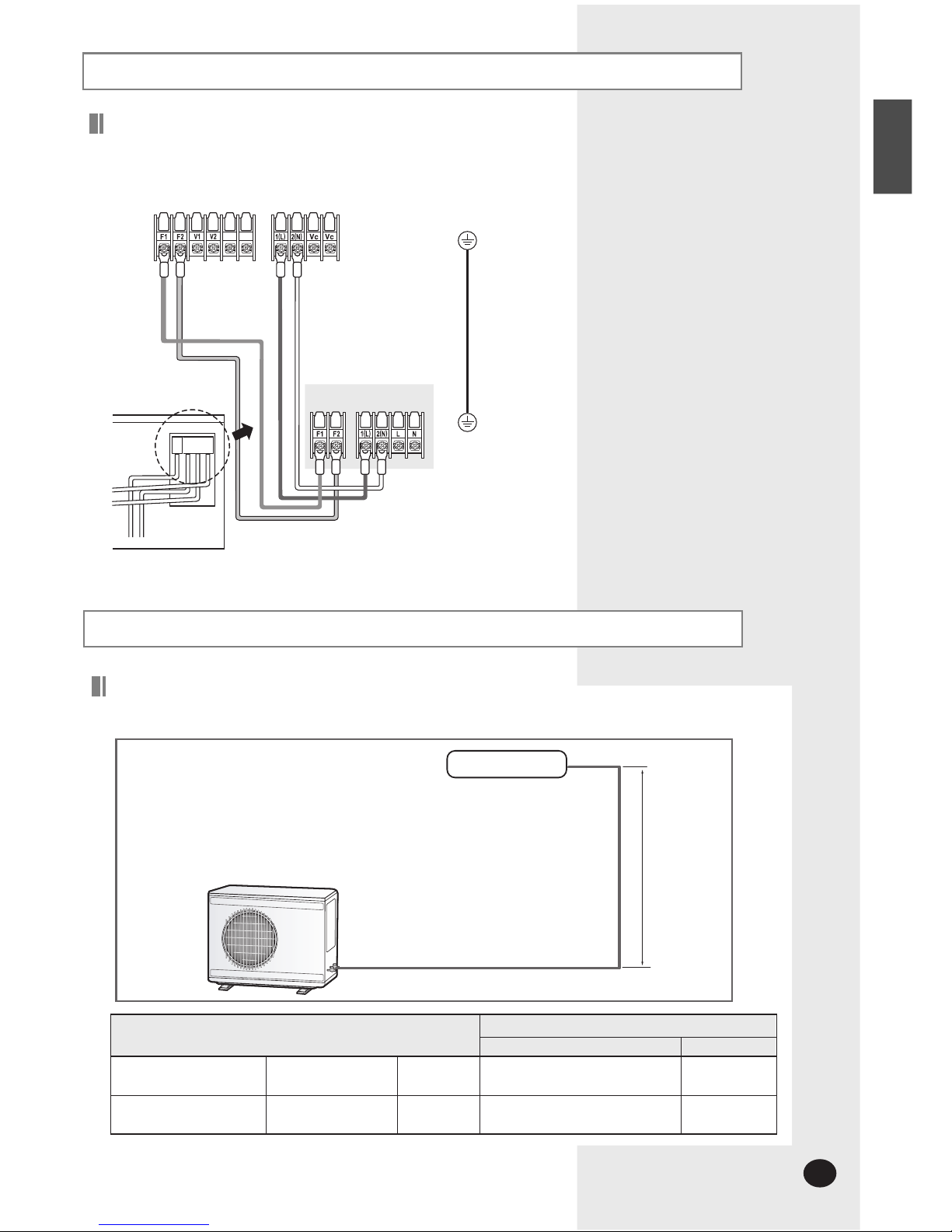

Connecting the cable (Continued)
Wiring Diagram of Connection Cord
Indoor Unit
- Max. length of communication cable : 120m
- Whole length of cable : 240m
- Connect the Connection Cord as seen as picture,
and the torque of screw is 40~70kgf·cm
Outdoor Unit
F3F3 F4F4
Connecting the refrigerant pipe
Refrigerant Piping System

Connecting up and removing air in the circuit
E-14
The air in the indoor unit and in the pipe must be purged. If air remains in the
refrigeration pipes, it will affect the compressor, reduce to cooling capacity and
could lead to a malfunction. Refrigerant for air purging is not charged in the
outdoor unit. Use Vacuum Pump as shown at the figure.
Connect each assembly pipe to the appropriate valve on the outdoor unit
and tighten the flare nut.
1
Referring to the illustration opposite, tighten the flare nut on section B first
manually and then with a torque wrench, applying the following torque.
Outer Diameter Torque (kgf•cm)
6.35 mm (1/4") 140~170
9.52 mm (3/8") 250~280
12.70 mm (1/2") 380~420
15.88 mm (5/8") 440~480
19.05 mm (3/4") 990~1210
22.23 mm (7/8") 990~1210
2
Connect the charging hose of low pressure side of manifold gauge to the
packed valve having a service port as shown at the figure.
3
Open the valve of the low pressure side of manifold gauge
counterclockwise.
4
Purge the air from the system using vacuum pump for about 10 minutes.
◆Close the valve of the low pressure side of manifold gauge clockwise.
◆Make sure that pressure gauge show -0.1MPa(-76cmHg) after about
10 minutes.
This procedure is very important in order to avoid gas leak.
◆Turn off the vacuum pump.
◆Remove the hose of the low pressure side of manifold gauge.
5
Set valve cork of both liquid side and gas side of packed valve to the
open position.
6
Mount the valve stem nuts and the service port cap to the valve, and
tighten them at the torque of 183kgf•cm with a torque wrench.
7
Check for gas leakage.
◆At this time, especially check for gas leakage from the 3-way valve’s
stem nuts(A port), and from the service port cap.
8
Outdoor unit Indoor unit
Gas pipe side
Liquid pipe side
Vacuum
pump
A
B
C
D
B(liquid)
Valve stem

E-15
ENGLISH
Cutting / Flaring the pipes
Make sure that you have the required tools available (pipe cutter, reamer,
flaring tool and pipe holder).
If you wish to shorten the pipes, cut it with a pipe cutter, taking care to
ensure that the cut edge remains at a 90°angle with the side of the pipe.
Refer to the illustrations below for examples of edges cut correctly and
incorrectly.
1
2
To prevent any gas from leaking out, remove all burrs at the cut edge of the
pipe, using a reamer.
3
Slide a flare nut on to the pipe and modify the flare.
Outer Diameter(D) Depth (A)
6.35 mm (1/4") 1.3mm
9.52 mm (3/8") 1.8mm
12.70 mm (1/2") 2.0mm
15.88 mm (5/8") 2.2mm
19.05 mm (3/4") 2.2mm
22.23 mm (7/8") 2.2mm
4
Align the pipes and tighten the flare nuts first manually and then with
a torque wrench, applying the following torque.
Outer Diameter Torque (kgf•cm)
6.35 mm (1/4") 140~170
9.52 mm (3/8") 250~280
12.70 mm (1/2") 380~420
15.88 mm (5/8") 440~480
19.05 mm (3/4") 990~1210
22.23 mm (7/8") 990~1210
6
Check that the flaring is correct, referring to the illustrations below for
examples of incorrect flaring.
5
90O
Oblique Rough Burr
Inclined Damaged Surface Cracked Uneven Thickness
◆ CC
CCAA AAUU UUTT TTII IIOO OONN NN
In case of welding the pipe, you must weld with nitrogen
gas blowing.

E-16
Insulation
Before completing the installation (insulation of the hose and piping),
you must check that there are no gas leaks.
To check for gas leaks on the... Then, using a leak detector,
check the...
Outdoor unit Valves on sections A and B.
A
B

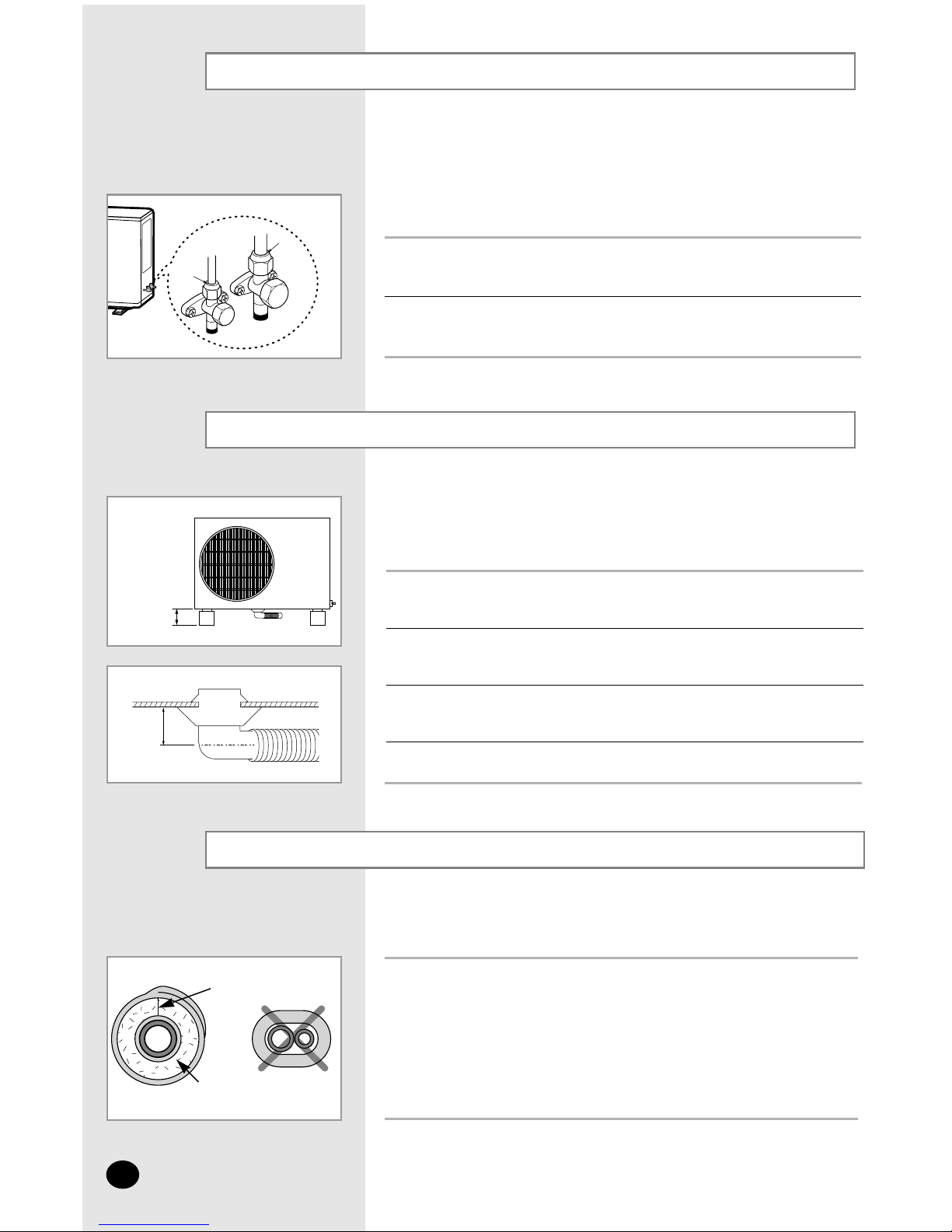

Performing leak tests
Connecting the drain hose to the outdoor unit
Once you have checked that there are no leaks in the system, you can
insulate the piping and hose.
To avoid condensation problems, place an insulator around each
refrigerant pipe.
1
◆When insulate the pipe, be sure to overlap the insulation.
◆You have to use more than 120°C insulation(T13.0 or thicker
Acrylonitrile Butadien Rubber) for the gas refrigerant pipe.
NN
NNoo oott ttee ee
No gap
NBR(T13.0 or thicker)
When using the air conditioner in the heating mode, ice may accumulate.
During de - icing, the condensed water must be drained off safely.
Consequently, you must install a drain hose on the outdoor unit, following
the instructions below.
Make space more than 50mm between the bottom of the outdoor unit
and the ground for installation of the drain hose, as shown in figure.
1
Insert the drain plug into the hole on the underside of the outdoor unit.
2
Connect the drain hose to the drain plug.
3
Ensure that the drained water runs off correctly and safely.
4
50mm min.
30mm

E-17
ENGLISH
Using stop valve
Cap
Service
port
Axis Sealing
point
◆ When you use the service port, always use a charging hose, too.
◆Check the leakage of refrigerant gas after tightening the cap.
◆ Must use a spanner and wrench when you open/tighten the stop valve.
CC
CCAA AAUU UUTT TTII IIOO OONN NN
To Open the Stop Valve
To Close the Stop Valve
Open the cap and turn the stop valve counterclockwise by using a hexagonal
wrench.
Turn it until the axis is stopped.
1
2
Tighten the cap securely.
3
◆Do not apply excessive force to the stop valve and always use
special instruments. Otherwise, the stopping box can be
damaged and the back sheet can leaks.
◆If the watertight sheet leaks, turn the axis back by half, tighten
the stopping box, then check the leakage again. If there is no
leakage any more, tighten the axis entirely.
NN
NNoo oott ttee ee
Remove the cap.
Turn the stop valve clockwise by using a hexagonal wrench.
1
2
Tighten the cap securely.
4
Tighten the axis until the valve reached the sealing point.
3

E-18

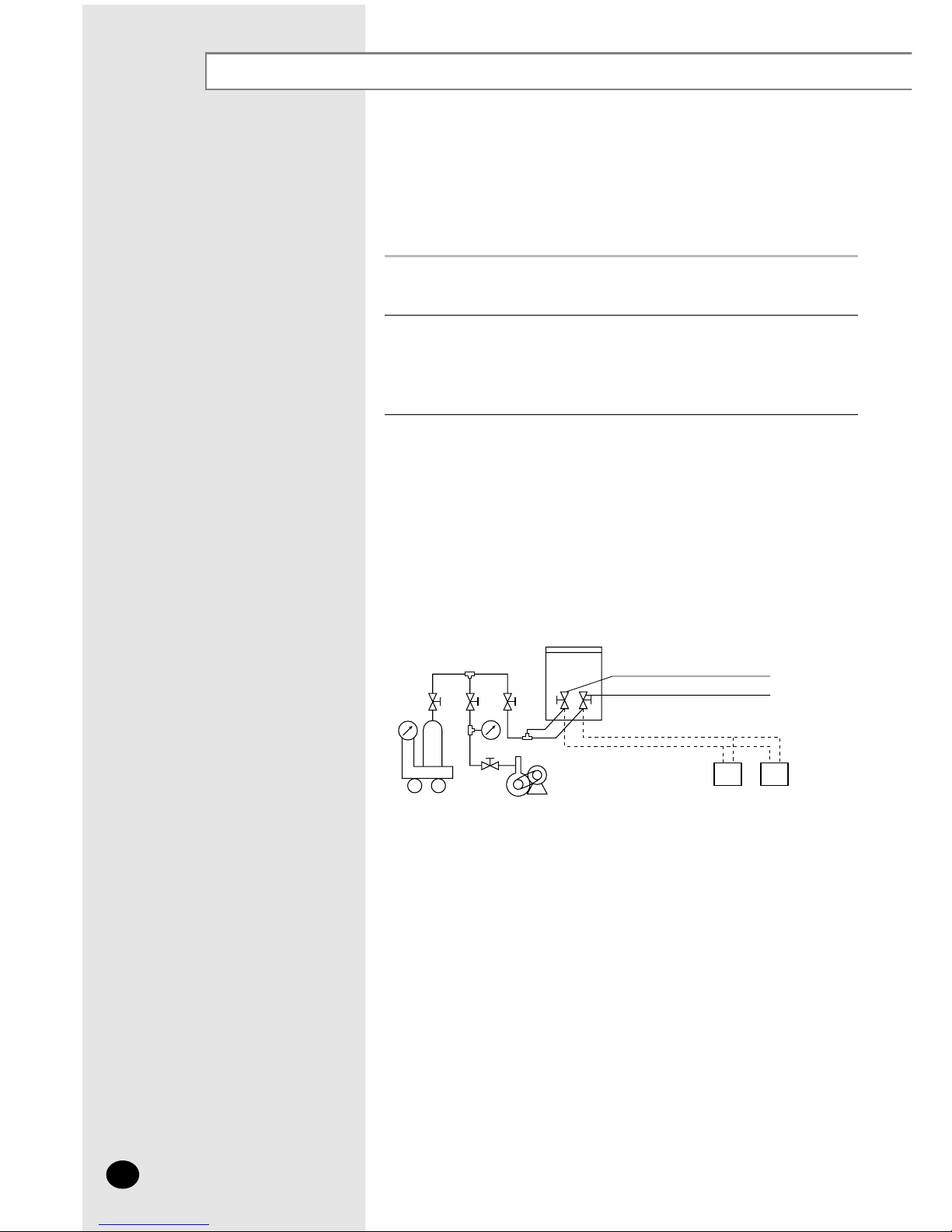

Adding refrigerant
The outdoor unit is loaded with sufficient refrigerant for the standard
piping. Thus, refrigerant must be added if the piping is lengthened.
This operation can only be performed by a qualified refrigeration
specialist. For quantity of adding refrigerant, refer to page 19.
Check that the stop valve is closed entirely.
1
Charge the refrigerant through the service port of liquid stop valve.
2
If you cannot charge the refrigerant according to the upper steps,
following these:
3-1 Open both liquid stop valve and gas stop valve.
3-2 Operate the air conditioner by pressing the K2 key on the outdoor
unit PCB.
3-3 About 30 minutes later, charge the refrigerant through the service
port of gas stop valve.
3
◆Do not charge the refrigerant through the gas side service port.
NN
NNoo oott ttee ee
◆If necessary, refer to the pressure table classified by outdoor
temperature.
NN
NNoo oott ttee ee
21
Ref.
Liquid side stop valve(service port)
Outdoor unit
Indoor unit
Balance Vacuum pump
Gas side stop valve(service port)

How to Calculate the Quantity of Adding Refrigerant
E-19
HSILGNE
Model
UH070EAM(1)C 40 g/m
“Q” (R410A)
UH094EAM1C
UH105EAMC
60 g/m
70 g/m
If you have used more than 7.5m, add “Q”of refrigerant for extrameter
(For maximum piping length and height,refer to page 13)
The quantity of additional refrigerant is variable according to the installation
situation.Thus,make sure the outdoor unit situation before adding
refrigerant.This operation can only be performed by a qualified refrigeration
specialist.
UH052EAMC 25 g/m
Additional charging amount
Piping length
“a”
UH052EAMC UH070EAM(1)C
- -
7.5m
10.0m
15.0m
UH094EAM1C
- -
62.5g
187.5g
100g
300g
150g 175g
450g 525g
For example of UH052EAMC,if pipe length is 10.0m ,you would
calculate (10.0-7.5)*25=62.5
❋
UH105EAMC
How to Calculate the Quantity of Adding Refrigerant
Refrigerant type GWP value
R410A 1975
 GWP=Global Warming Potential
This product contains fluorinated greenhouse gases covered by the Kyoto
Protocol. Do not vent gases into the atmosphere.
Please fill in with indelible ink,
- the factory refrigerant charge of the product,
- the additional refrigerant amount charged in the field and
-
+ the total refrigerant charge.
on the refrigerant charge label supplied with the product.

The filled-out label must be adhered in the proximity of the product
charging port (e.g. onto the inside of the stop valve cover).
Important information regulation regarding the
refrigerant used
Refrigerant type GWP value
R410A 1975
 GWP=Global Warming Potential
This product contains fluorinated greenhouse gases covered by the Kyoto
Protocol. Do not vent gases into the atmosphere.
Please fill in with indelible ink,
- the factory refrigerant charge of the product,
- the additional refrigerant amount charged in the field and
-
+ the total refrigerant charge.
on the refrigerant charge label supplied with the product.

The filled-out label must be adhered in the proximity of the product
charging port (e.g. onto the inside of the stop valve cover).
Indoor unit
Outdoor unit
= ( ) kg
= ( ) kg += ( ) kg

Contains fluorinated greenhouse gases
covered by the Kyoto Protocol.
Note a. Factory refrigerant charge of the product: see unit name plate
b. Additional refrigerant amount charged in the field
( Refer to the above information for the quantity of refrigerant
replenishment.)
c. Total refrigerant charge
d. Refrigerant cylinder and manifold for charging
a
b
c
d


E-20
Checking correct grounding
If the power distribution circuit does not have an earth or the ground does
not comply with specifications, an grounding electrode must be installed.
The corresponding accessories are not supplied with the air conditioner.
Select an grounding electrode that complies with the specifications given in
the illustration.
Determine a suitable location for the grounding electrode:
◆
In damp hard soil rather than loose sandy or gravel soil that has a
higher grounding resistance
◆
Away from underground structures or facilities, such as gas pipes,
water pipes, telephone lines and underground cables
◆
At least two metres away from a lightening conductor grounding
electrode and its cable
1
2
Finish wrapping insulating tape around the rest of the pipes leading to the
outdoor unit.
3
Install a green/yellow coloured grounding wire:
◆
If the grounding wire is too short, connect an extension lead, in a
mechanical way and wrapping it with insulating tape (do not bury the
connection)
◆
Secure the grounding wire in position with staples
4
Carefully check the installation, by measuring the grounding resistance with
a ground resistance tester. If the resistance is above required level, drive the
electrode deeper into the ground or increase the number of grounding
electrodes.
5
Connect the grounding wire to the electrical component box inside of the
outdoor unit.
6
◆The grounding wire for the telephone line cannot be used to
ground the air conditioner.
NN
NNoo oott ttee ee
◆If the grounding electrode is installed in an area of heavy traffic,
its wire must be connected securely.
NN
NNoo oott ttee ee
50cm
Terminal M4
PVC-insulated green/
yellow wire
To
grounding
screw
Steel
core
Carbon
plastic
30cm
