Samsung AS09HPBN Installation guide

AS09HPBN
AS12HPBN
Precautions 1
Product Specifications 2
Operating Instructions & Installation 3

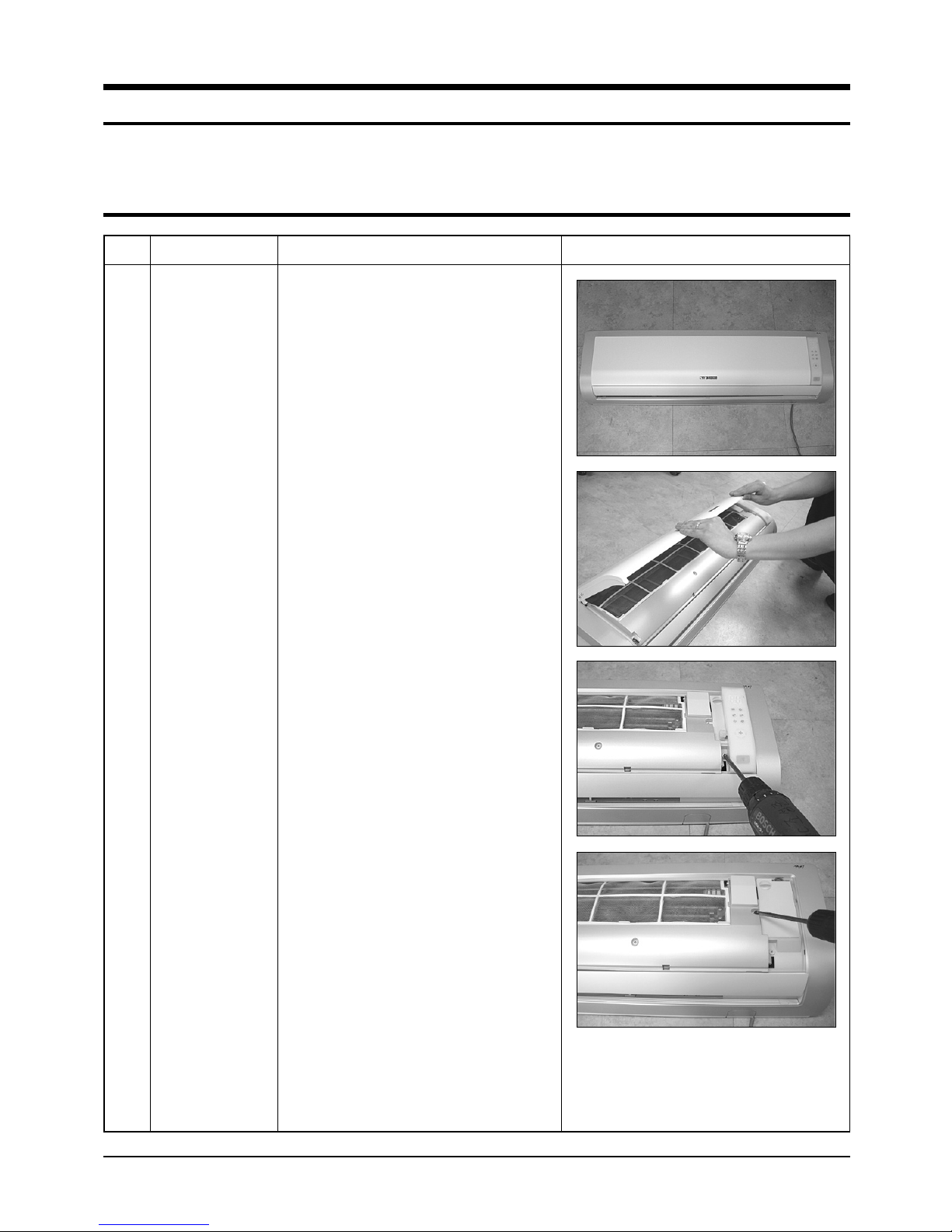

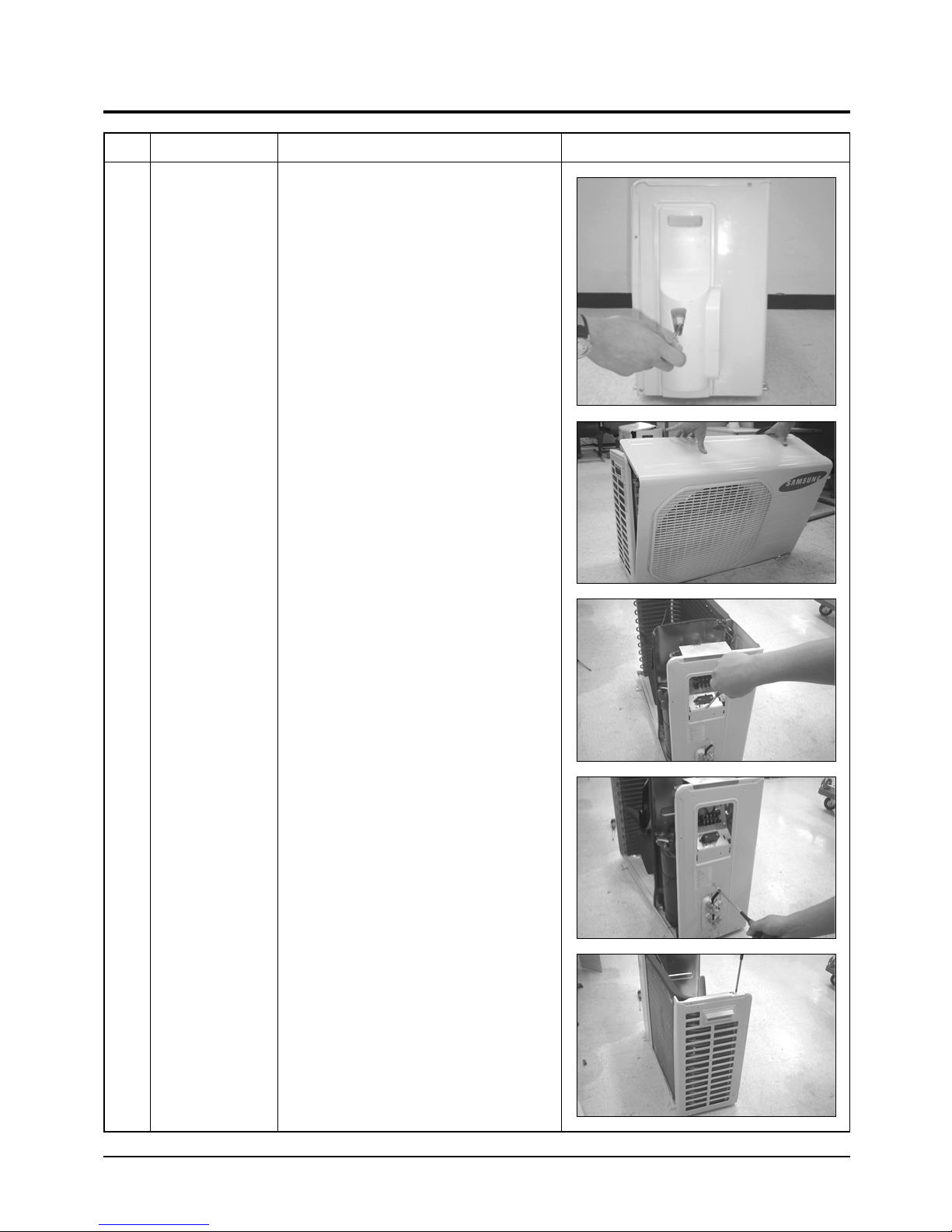

Disassembly and Reassembly 10

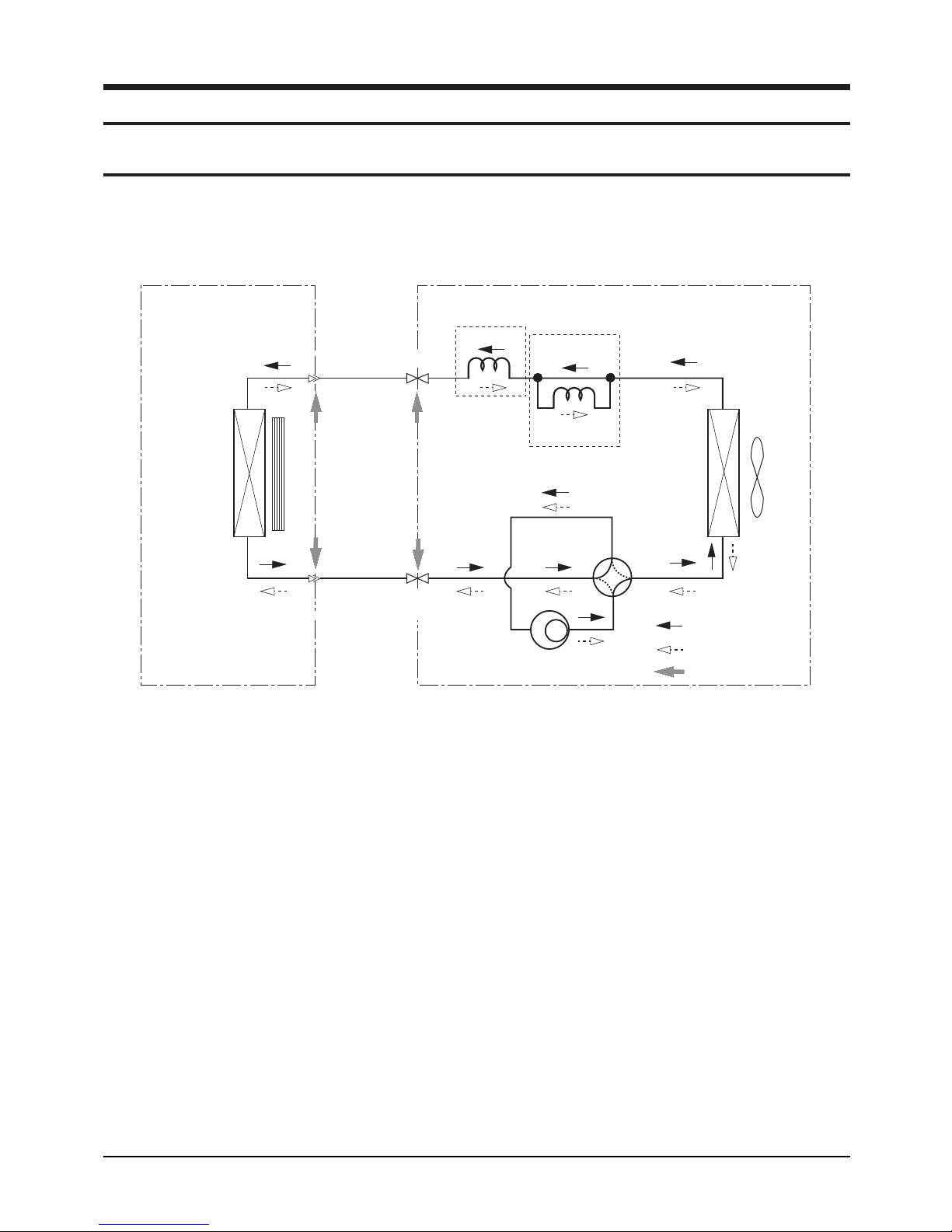

Refrigerating Cycle Diagram 16
Feature & Operation 27
Set Up the Model Option 46
Troubleshooting 49
Exploded Views and Parts List 62
Block Diagram 67
PCB Diagram 68
Wiring Diagram 77
Schematic Diagram 79
CONTENTS
DB98_20801A(1)_co 12/24/04 10:42 AM Page 1

1Samsung Electronics

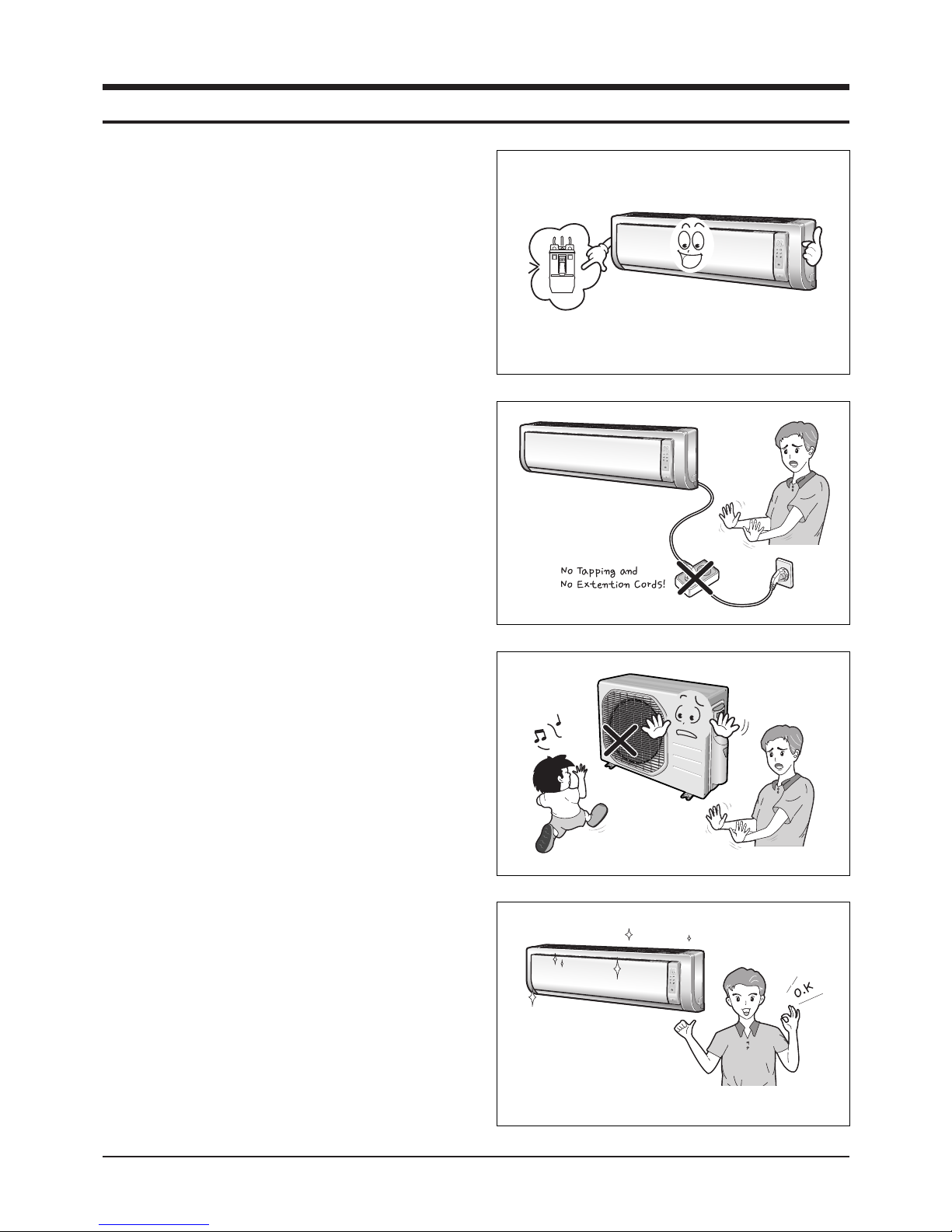

1. Precautions
11) Cut off the power.
● Make sure to cut off the power before repair. If not, you may
be damaged by an electric shock.
12) Do not install an outdoor unit on the apartment outside
wall(or equivalent) for safety.
● Installing an outdoor unit on the apartment outside wall(or
equivalent) is prohibited for the safety purpose. Service will
not be available for the outdoor unit where our servicemen
can not access and the cost of moving the outdoor unit to
the service area will be borne by the customer.
● If requested by the customer, you shall discourage him to
install an outdoor unit on the apartment outside wall(or
equivalent).
13) The air conditioner outdoor unit shall be installed 2m
above ground and kept away from pedestrians to prevent
direct exposure to hot wind. (according to the Building
Facility Standard Regulations)
14) Keep the drain hose outlet free.
● Otherwise, air flow will get slow, which may hinder cooling
capacity.
● Also, dew may be laden on the service valve.
15) Use of Certified Parts
● Use certified parts only. (An electric contact part, if broken
down, shall not be repaired but replaced with a new one.
Remodeling shall be prohibited. In no case, the customer
shall repair the product on his own because this is danger-
ous enough to bring about breakdown or fire.)
16) Ban on Middle Connection of Power Cord
● Do not cut the power cord in the middle to be connected to
other power cord nor use a middle socket between two
power cords. This is dangerous enough to bring about
breakdown or fire.
17) Check Insulation
● After assembly, be sure to check insulation resistance.
(Use an insulation ohmmeter to measure the insulation
resistance between the power cord and the earthing wire.
Do not supply power until it reads 30MΩ.)
18) Be sure to keep the symmetry of the product.
● Otherwise, you may hear vibration noise.
19) Caution for Children
● Do not keep children off the product while it is in repair.
Otherwise, they might be endangered.
10) Be sure to put the indoor or outdoor unit free of corrosive
gases such as sulfuric water, ammonium, and sulfuric
gas.
● Otherwise, copper tubes or soldered parts could be
corroded causing refrigerant leak.
11) Arrangement of surroundings
● After repair finishes, clean the air conditioner and its
surroundings and inform the customer of what it is like.
DB98_20801A(1)_1 12/24/04 10:46 AM Page 1

Samsung Electronics2
2. Product Specifications
2-1 Table
Perfor-
mance
Power
Size
Model
Item
Type
Cooling kW
Heating kW
Dehumidifying |/h
Air Volume Cooling m3/min
Heating (H/M/L)
Noise Cooling dB
Heating (H/M/L)
Energy Efficiency Ratio Cooling W/W
Heating
Power ph-V-Hz
Power Consumption Cooling W
Heating
Operating Current Cooling A
Heating
Power Factor Cooling %
Heating
Starting Current A
Length m
Power Cord Number of Core Wire
Capacity A
Outer Dimension Width x Height mm
x Depth inch
Weight(Net) kg
Refrigerant Pipe Liquid mm x L(m)
Gas mm x L(m)
Drain Hose D x L(mm)
Type
Compressor Motor Type
Rated Output
Oil Type
Type
Blower Motor Type
Rated Output W
Heat Exchanger
Refrigerant Control Unit
Freezer Oil Capacity cc
Refrigerant to Change(R410A) g
Protection Device(OLP)
Cooling Test Condition
Maximum Operation Condition
AS09HPBN AS12HPBN
INDOOR UNIT : DB27˚C WB19˚C OUTDOOR UNIT : DB35˚C WB24˚C
INDOOR UNIT : DB32˚C WB23˚C OUTDOOR UNIT : DB43˚C WB26˚C
Indoor unit Outdoor unit
Wall-mounted
2.70
2.90
1.0
7.5/6.9/6.3 25
8.0/7.4/6.8 25
40/36/32 51/51
40/36/32 51/51
3.21
3.41
1-220/240-50
840
850
3.9
3.7
93.6
99.9
21
2.1
5G
250V-10A
950 x 268 x 165 790 x 548 x 285
37.4 x 10.6 x 6.5 31.1 x 21.6 x 11.2
9.0 33.8
ø6.35 x 7.5
ø9.52 x 7.5
ø18 x 550
Rotary, G4A091JU
Induction Motor(PSC)
930
DAPHNE FV68S(PVE)
Cross-flow Propeller
Resin / steel steel
15 50
2ROW 12STEP 1ROW 24STEP
CAPILLARY TUBE
280
730
RBC12054-12500
Indoor unit Outdoor unit
Wall-mounted
3.50
3.80
1.4
8.3/7.0/5.7 25
9.5/8.9/8.3 25
43/38/34 53/53
43/38/34 53/53
3.21
3.22
1-220/240-50
1,090
1,180
5.0
5.4
94.8
95.0
28
2.1
5G
250V-10A
950 x 268 x 165 790 x 548 x 285
37.4 x 10.6 x 6.5 31.1 x 21.6 x 11.2
9.0 36.0
ø6.35 x 7.5
ø9.52 x 7.5
ø18 x 550
Rotary, G8C124JU
Induction Motor(PSC)
1,267
DAPHNE FV68S(PVE)
Cross-flow Propeller
Resin / steel steel
15 50
2ROW 12STEP 2ROW 24STEP
CAPILLARY TUBE
500
950
RBC12128-12500
DB98_20801A(1)_1 12/24/04 10:46 AM Page 2

3Samsung Electronics
3. Operating Instructions & Installation
3-1 View of the Unit

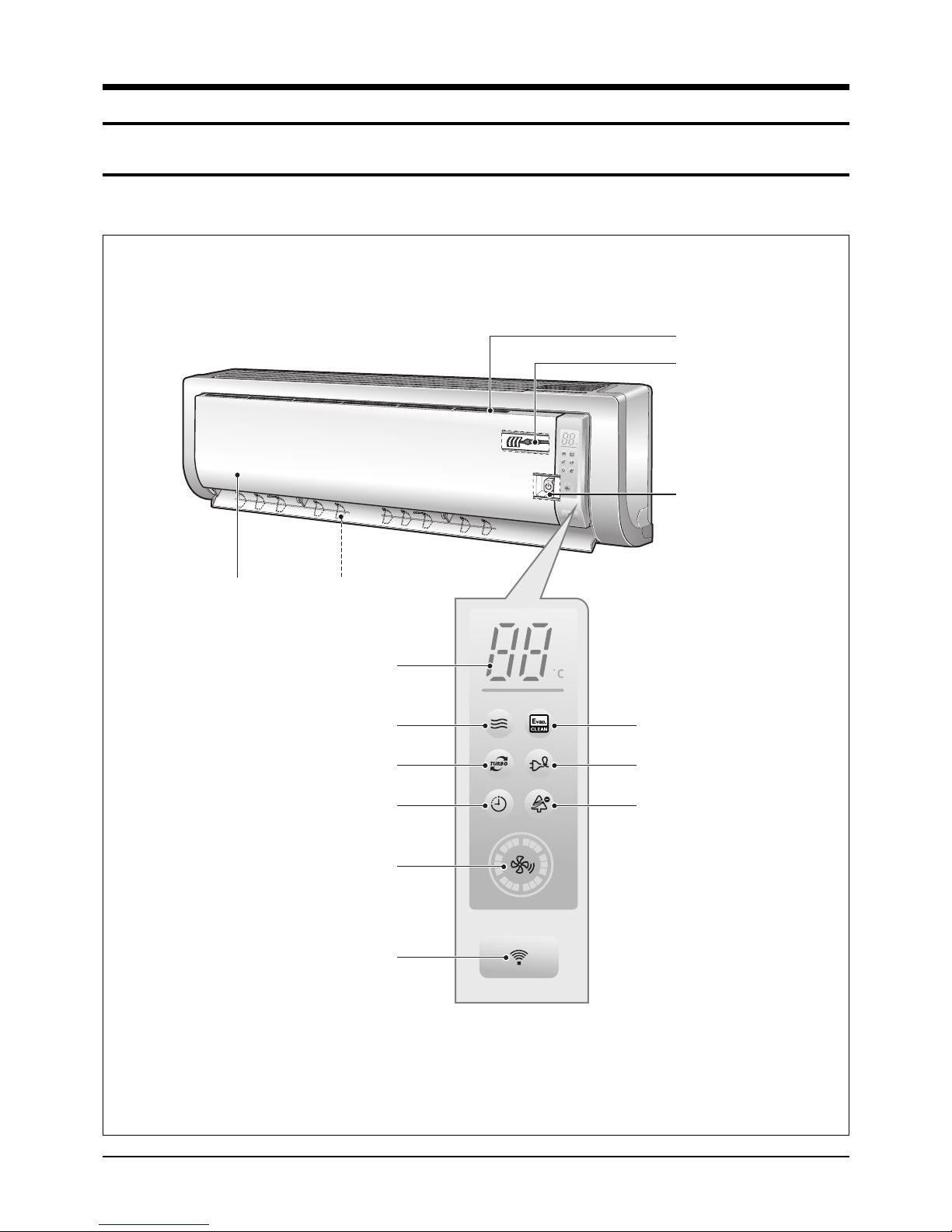

3-1-1 Indoor Unit
Air filter
(under the grille)
Airflow blades
(outlet)
Power(On/Off) button
Set temperature &
room temperature
Operation indicator
(Auto-Cool, Cool, Dry, Fan : Blue
Auto-Heat, Heat : Orange)
Auto cleaning indicator
(Blue)
Energy saving indicator
(Blue)
Anion indicator
(Blue)
Turbo function indicator
(Blue)
Timer indicator
(Orange)
Fan speed indicator
(Blue)
Remote control sensor
Room Temperature sensor
Air Inlet
DB98_20801A(1)_1 12/24/04 10:46 AM Page 3

Samsung Electronics4
Operating Instructions & Installation
Air Inlet(Rear)
Air Outlet
Connection Valve
(inside)

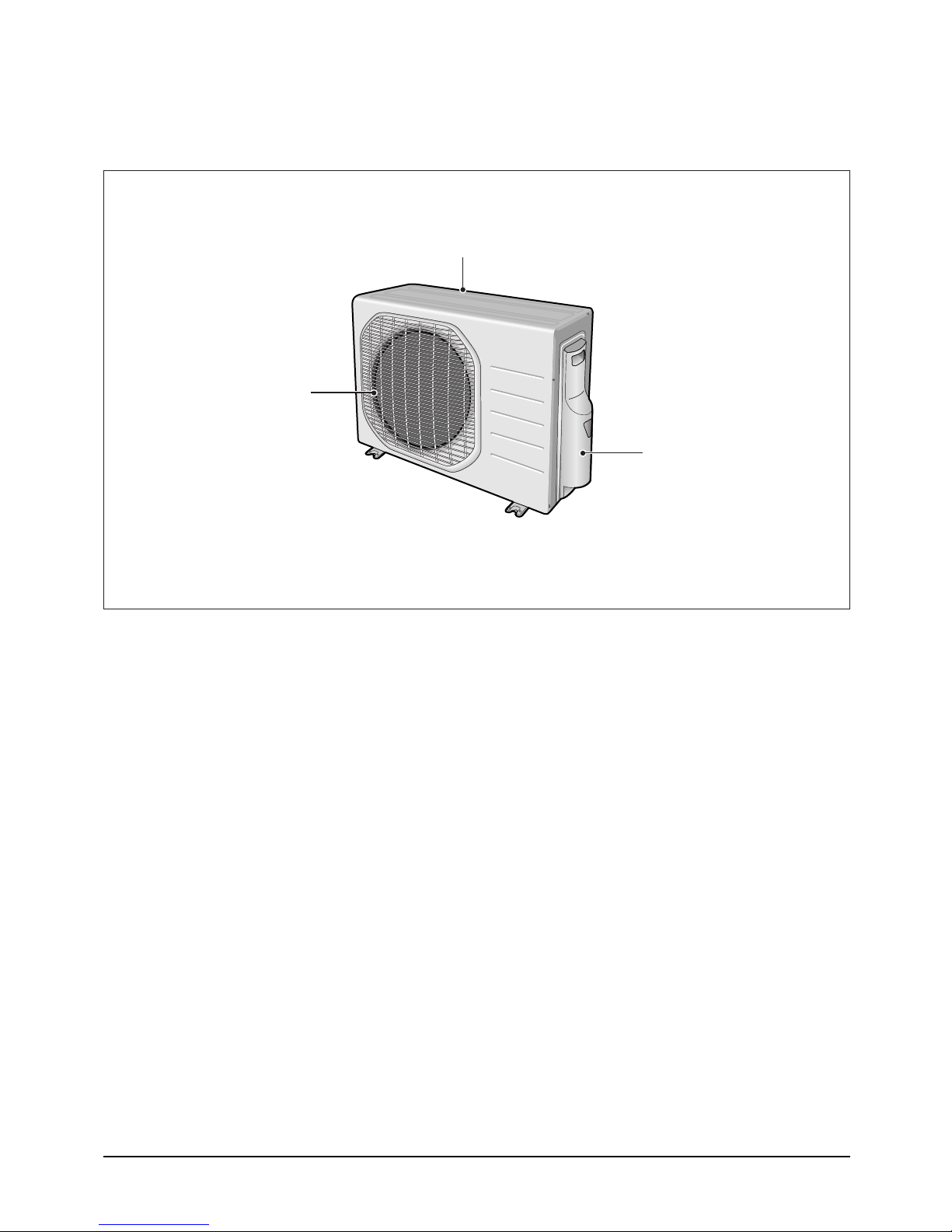

3-1-2 Outdoor Unit
DB98_20801A(1)_1 12/24/04 10:46 AM Page 4

5Samsung Electronics
3-2 Air Conditioner and Accessories
The following accessories are supplied with the air conditioner.
- The number of each accessory is indicated in parentheses.
3-2-1 Accessories in the Indoor Unit Case
3-2-2 Accessories in the Outdoor Unit Case
- The flare nuts are attached to the end of each pipe of an evaporator or a service port.
Use the nuts when connecting the pipes.
- The 5-wire assembly cable is optional. If it is not supplied, use the standard cable.
- The drain plug and rubber leg are only included when the air conditioner is supplied without the assembly pipe as seen in the
picture below.
The following connection accessories are optional.
If they are not supplied, you should prepare them before installing the air conditioner.
- If these accessories are supplied, you can find them in the accessory box.
Assembly Pipe, ø6.35mm
by 7.5m (1)
Assembly Pipe, ø9.52mm
by 7.5m (1)
PE T3 Foam Tube
Insulation (1)
Vinyl Tape,
Width 50mm (1)
Drain Plug (1) Rubber Leg (4)
Pipe Clamps A (3) Pipe Clamps B (3) Cement Nail (6) M4 x 16 Tapping
Screws (10)
Drain Hose,
length 2m (1)
Putty 100g (1)
Installation Plate (1) Remote Control (1) Batteries for
Remote Control (2)
User’s Manual (1) Installation Manual (1)
OWNER’SINSTRUCTIONS
MANUALDEINSTRUCCIONES
ISTRUZIONIPERL’USO
MANUALDEINSTRU˝ES
MANUELD’UTILISATION
GEBRAUCHSANWEISUNG
Splut-typeRoomAirConditioner
AireacondicionadodomsticosistemaSplit
Condizionatored’ariaperambientiadunitSeparate
AparelhodearcondicionadotipoSplit
Climatiseurdetypespar
Geteilteraumklimaanlage
OWNER’SINSTRUCTIONS
MANUALDEINSTRUCCIONES
ISTRUZIONIPERL’USO
MANUALDEINSTRU˝ES
MANUELD’UTILISATION
GEBRAUCHSANWEISUNG
Splut-typeRoomAirConditioner
AireacondicionadodomsticosistemaSplit
Condizionatored’ariaperambientiadunitSeparate
AparelhodearcondicionadotipoSplit
Climatiseurdetypespar
Geteilteraumklimaanlage
5-wire
Assembly Cable (1)
Drain Plug (1) Rubber Leg (4)
DB98_20801A(1)_1 12/24/04 10:46 AM Page 5

Samsung Electronics6
3-3 Installation
3-3-1 Before Installation
Keep the air conditioner outlet and inlet free from its surroundings.
In case of installation, keep the symmetry and fix it to prevent vibration.
The pipe length shall meet the standard as far as possible.
3-3-2 Installation Procedure
■Location
Install the product in an area to guarantee the best cooling effect, convenience of piping and electric work, and inexistence of
vibration or wind.
■Wall Drilling
Drill the wall downward in a diameter of 60 to 65mm.
■Fixing Indoor Unit & Outdoor Unit
Fix the air conditioner indoor unit securely to the wall. Secure the outdoor unit in a suitable position.
■Pipe Spooling & Connecting
You shall cut the pipe with a pipe cutter and grind all the burrs of the cut surface.
Pipe expansion may continue until the pipe surface becomes uneven or torn apart.
Be sure to use a torque wrench to tighten pipes or flare nuts.
■Leak Test
Put an inert gas like nitrogen in the outdoor unit pipe and put soap bubbles or other test liquids on the pipe surface for the leak test.
■Drain Hose Connecting
Install the drain hose downward to drain water naturally. Be sure to pour water into the hose to check if it drains well.
■Electric & Earth Work
Electric and earth work shall meet the "Electric Facility Technology Standard" and the "Internal Wire Regulation" of the Electric
Business Laws.
■Inspection & Trial Run
Upon completion of the tests, you shall make a trial run while you explain the main functions of the air conditioner to finish the
installation.
Outer Diameter(D)
6.35mm(1/4")
9.52mm(3/8")
Torque(kgf.cm)
140~170
250~280
Depth(A)
1.3mm
1.8mm
D
A
<Torque & Depth>
DB98_20801A(1)_1 12/24/04 10:46 AM Page 6

7Samsung Electronics
3-4 Installation Diagram of Indoor Unit and Outdoor Unit
3-4-1 Air-Purge Procedure
1) Connect each assembly pipe to the appropriate
valve on the outdoor unit and tighten the flare nut.
3) Open the valve of the low pressure side of
manifold gauge counter-clockwise.
4) Purge the air from the system using vacuum
pump for about 30 minutes.
- After that, please recheck that pressure is
stabilized.
- Close the valve of the low pressure side of
manifold gauge clockwise.
- Remove the hose of the low pressure side
of manifold gauge.
7) Check for gas leakage.
- At this time, especially check for gas
leakage from the 3-Way valve’s stem nuts,
and from the service port cap.
2) Connect the charging hose of low pressure side
of manifold gauge to the packed valve having a
service port (3/8" Packed valve) as shown at the
figure.
5) Set valve cork of both liquid side and gas side of
packed valve to the open position.
6) Mount the valve stem nuts to the 2-Way and
3-Way valve. And mount the service port cap to
3-Way valve.
A
B
C
D
Outdoor unit Indoor unit
Gas pipe side
Liquid pipe side
Vacuum Pump
A
(gas)
B
(liquid)
Valve stem
Stem cap
DB98_20801A(1)_1 12/24/04 10:46 AM Page 7

Samsung Electronics8
Operating Instructions & Installation
3-4-2 Refrigerant Refill(R410A)
Refill an air conditioner with refrigerant when refrigerant has been leaked at installing or using.
Suspension hook
High
pressure
gauge
Hand
wheel
Finger tight
fittings
Connected to
high pressure
side
Charging line
For mounting
other and of
hose when
not in use
Compound
gauge
1) Purge air(for new installation only).
3) Connect the tank to refill with refrigerant.
4) Set the unit to cool operation mode.
7) Stop operation of the air conditioner.
9) Close the cap of each valve.
2) Turn the 3-Way valve clockwise to close,
connect the pressure gauge (low pressure side) to
the service valve, and open the 3-Way valve
again.
5) Check the pressure indicated by the pressure
gauge(low pressure side).
* Standard pressure is should be 9.0~10.0kg/cm2
in a regular, high operation mode.
6) Open the refrigerant tank and fill with refrigerant
until the rated pressure is reached.
* It is recommended not to pour the refrigerant
in too quickly, but gradually while operating a
pressure valve.
8) Close the 3-Way valve, disconnect the
pressure gauge, and open the 3-Way valve
again.
DB98_20801A(1)_1 12/24/04 10:46 AM Page 8

9Samsung Electronics
3-4-3 "Pump down" Procedure
Pump down will be carried out when an evaporator is replaced or when the unit is relocated in another area.
3-Way Valve
2-Way Valve
1) Remove the caps from the 3-Way valve and the
3-Way valve.
3) Set the unit to cool operation mode.
(Check if the compressor is operating.)
4) Turn the 3-Way valve clockwise to close.
7) Close the cap of each valve.
2) Turn the 3-Way valve clockwise to close and
connect a pressure gauge (low pressure side)
to the service valve, and open the 3-Way valve
again.
5) When the pressure gauge indicates "0" turn the
3-Way valve clockwise to close.
6) Stop operation of the air conditioner.
Operating Instructions & Installation
Relocation of the air conditioner
•Refer to this procedure when the unit is relocated.
•Carry out the pump down procedure (refer to the details of 'pump down').
•Remove the power cord.
•Disconnect the assembly cable from the indoor and outdoor units.
•Remove the flare nut connecting the indoor unit and the pipe.
•At this time, cover the pipe of the indoor unit and the other pipe using a cap or vinyl plug to avoid foreign
material entering.
•Disconnect the pipe connected to the outdoor unit.
At this time, cover the valve of the outdoor unit and the other pipe using a cap or vinyl plug to avoid foreign
material entering.
•Make sure you do not bend the connection pipes in the middle and store together with the cables.
•Move the indoor and outdoor units to a new location.
•Remove the mounting plate for the indoor unit and move it to a new location.
DB98_20801A(1)_1 12/24/04 10:46 AM Page 9

Samsung Electronics10
4. Disassembly and Reassembly
4-1 Indoor Unit
Stop operation of the air conditioner and electrically isolate before repairing the unit.
No Parts Procedure Remark
1 Panel Front 1) Stop the air conditioner operation and
shut off the main power.
2) Detach the Front Grille after pushing out it.
3) Loosen 1 of the right screw and detach
the Ass'y display.
4) Loosen 1 of the right screw and detach the
Terminal Cover.
5) Detach the cover PCB-DVM and thermistor
from the Panel Front.
DB98_20801A(1)_1 12/24/04 10:46 AM Page 10

11Samsung Electronics
Disassembly and Reassembly
No Parts Procedure Remark
2
3
Tray Drain
Heat Exchanger
6) Loosen 5 fixing screws of Panel Front.
7) Unlock 2 hooks to fix Panel Front and
Tray Drain.
8) Unlock 2 hooks to fix Panel Front and
Back Body.
1) Detach the connected wire of Stepping
Motor.
2) Pull Tray Drain out from the Back Body.
1) Loosen 1 fixing earth screw of right side.
DB98_20801A(1)_1 12/24/04 10:46 AM Page 11

Samsung Electronics12
Disassembly and Reassembly
No Parts Procedure Remark
2) Detach the Room Sensor.
3) Detach the Holder Pipe at the rear side
of the unit.
4) Loosen 3 fixing screws of left Holder Evap.
5) Loosen 1 fixing screw of right Holder
Motor.
6) Detach the Heat Exchanger from the
indoor unit.
DB98_20801A(1)_1 12/24/04 10:46 AM Page 12

Disassembly and Reassembly
13Samsung Electronics
No Parts Procedure Remark
4
5
Electrical Parts
(Main PCB)
Fan Motor
&
Cross Fan
1) Loosen 4 fixing screws of right Holder
control.
2) Take all the connector of PCB upper side
out.(Including Power Cord)
3) Detach the outdoor unit connection wire
from the Terminal Block.
4) Pull the PCB up to detach.
1) Loosen 2 fixing screws and detach the
Motor Holder.
2) Loosen 1 fixing screw of Fan Motor.
3) Detach the Fan Motor from the Fan.
4) Detach the Fan from the left Holder
Bearing.
DB98_20801A(1)_1 12/24/04 10:46 AM Page 13

Samsung Electronics14
4-2 Outdoor Unit
No Parts Procedure Remark
1 Common Work 1) Loosen 1 fixing screw of the Cover-Side.
2) Loosen each 3 fixing screws on both right
and left Cabinet-Side edge and a fixing
screw on the Cabinet-Front lower to detach
the Cabinet-Front.
3) Loosen 6 fixing screws of the Cabinet-Side
RH.
4) Loosen 2 fixing screws of the Cabinet-Side
LF.
DB98_20801A(1)_1 12/24/04 10:46 AM Page 14

15Samsung Electronics
Disassembly and Reassembly
No Parts Procedure Remark
2
3
4
Fan & Motor
Heat Exchanger
Compressor
1) Detach the Nut Flange.(Turn counterclock-
wise because the screw is right-handed)
2) Detach the Fan.
3) Loosen 4 fixing screws to detach
the Motor.
1) Loosen 2 fixing screws on both sides.
2) Disassemble the pipe in both inlet and
outlet with welding torch.
3) Detach the Heat Exchanger.
1) Loosen the Terminal Cover nut to open the
Terminal Cover.
2) Disassemble the cloth sound felt.
3) Disassemble the pipe in both inlet and
outlet of the Compressor with welding
torch.
4) Disassemble the pipe in both inlet and
outlet of the Condenser with welding torch.
5) Loosen the 3 bolts at the bottom.
6) Detach the Compressor.
DB98_20801A(1)_1 12/24/04 10:46 AM Page 15

Samsung Electronics16
Cooling
Heating
Gas Leak Check Polnt
Indoor Unit Outdoor Unit
T1
T2
Heat
Exchanger
(Evaporator)
Heat
Exchanger
(Condenser)
Propeller fan
Cross fan
2-Way valve
Capillary tube
Capillary tube
Check valve
✳Note
3-Way valve 4-Way valve
Gas side
Liquid side
Compressor
5. Refrigerating Cycle Diagram
5-1 Refrigerating Cycle Diagram
DB98_20801A(1)_1 12/24/04 10:46 AM Page 16

17Samsung Electronics

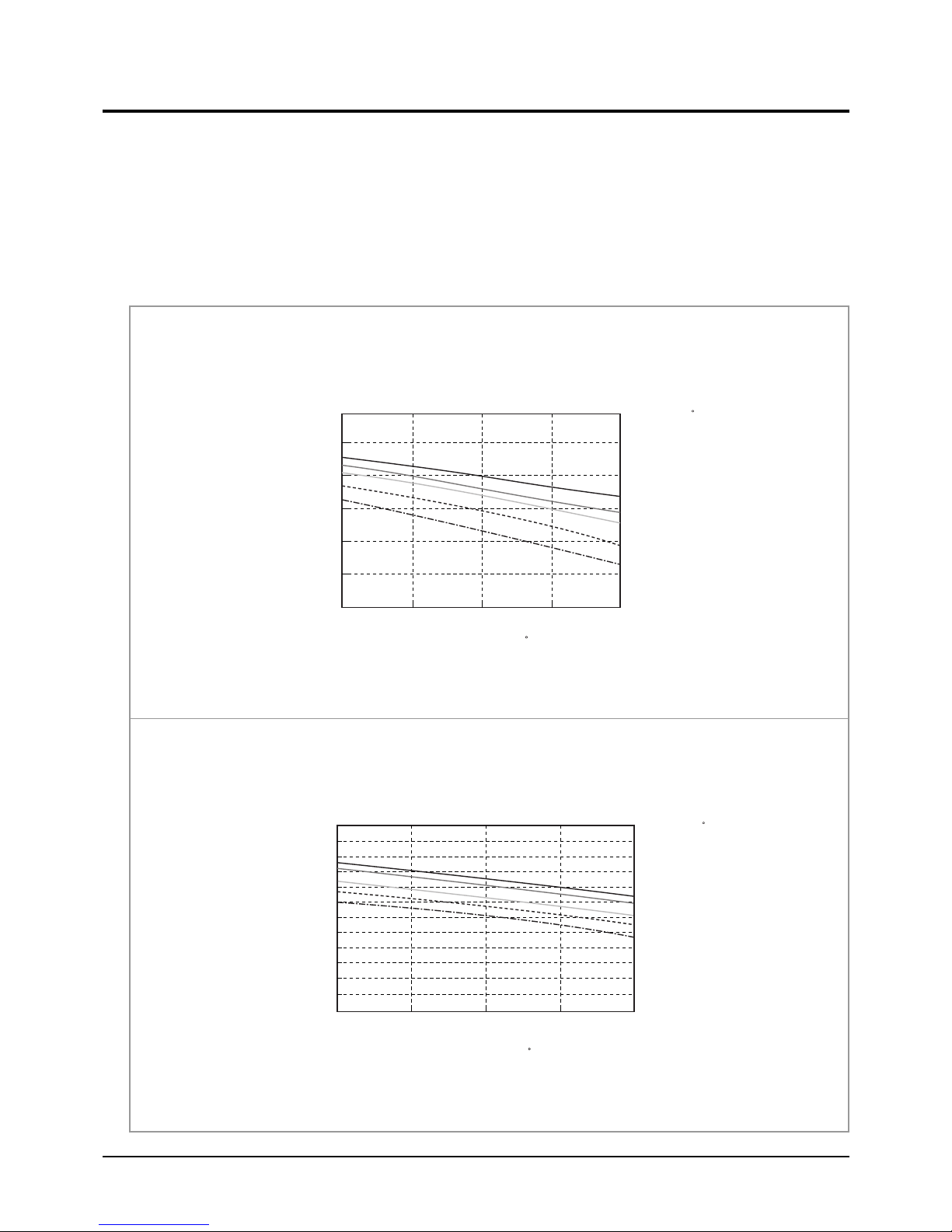

5-2 Refrigerant Cycle Characteristic
5-2-1 Capacity Distributions
Capacity Distributions according to indoor and outdoor temperature variation.
■COOLING MODE
- Indoor Temp. Variation : 21.0˚C ~ 32.4˚C
- Outdoor Temp. Variation : 25.0˚C ~ 45.0˚C
DB32.4 / WB24.0
DB30.6 / WB22.5
DB27.0 / WB19.0
DB24.0 / WB17.0
DB21.0 / WB15.0
Cooling Capacity(kW)
Cooling Capacity Distribution
4.0
3.0
2.0
1.0
25.0 35.0 45.0
Outdoor Temp.(DB C)
Indoor Temp.( C)
■ AS09HPBN
DB32.4/WB24.0
DB30.6/WB22.5
DB27.0/WB19.0
DB24.0/WB17.0
DB21.0/WB15.0
Cooling Capacity(kW)
Cooling Capacity Distribution
6.0
5.0
4.0
3.0
2.0
1.0
0.0
25 35 45
Outdoor Temp.(DB C)
Indoor Temp.( C)
■ AS12HPBN
DB98_20801A(1)_1 12/24/04 10:46 AM Page 17

Samsung Electronics18
Refrigerating Cycle Diagram
■HEATING MODE
- Indoor Temp. Variation : 15.0˚C ~ 25.0˚C
- Outdoor Temp. Variation : 1.0˚C ~ 20.0˚C
DB15.0
DB20.0
DB25.0
Heating Capacity(kW)
Heating Capacity Distribution
4.00
3.00
2.00
1.00
1.0/0.0 7.0/6.0 20.0/15.0
Indoor Temp.( C)
Outdoor Temp.(DB/WB C)
■ AS09HPBN
DB15.0
DB20.0
DB25.0
Heating Capacity
Heating Capacity Distribution
6.00
5.00
4.00
3.00
2.00
1.00
0.00
1.0/0.0 7.0/6.0 20.0/15.0
Indoor Temp.( C)
Outdoor Temp.(DB/WB C)
■ AS12HPBN
DB98_20801A(1)_1 12/24/04 10:46 AM Page 18

Refrigerating Cycle Diagram
19Samsung Electronics
5-2-2 Power Consumption Distributions
Power Consumption Distributions according to indoor and outdoor temperature variation.
■COOLING MODE
- Indoor Temp. Variation : 21.0˚C ~ 32.4˚C
- Outdoor Temp. Variation : 25.0˚C ~ 45.0˚C
DB32.4 / WB24.0
DB30.6 / WB22.5
DB27.0 / WB19.0
DB24.0 / WB19.0
DB21.5 / WB15.0
Power consumption(W)
Power consumption Distribution(Cooling mode)
1,100
1,000
900
800
700
600
500 25 35 45
Indoor Temp.( C)
Outdoor Temp.(DB C)
■ AS09HPBN
Power consumption(W)
Power consumption Distribution(Cooling mode)
1,400
1,300
1,200
1,100
1,000
900
800
25 35 45
DB32.4 / WB24.0
DB30.6 / WB22.5
DB27.0 / WB19.0
DB24.0 / WB19.0
DB21.5 / WB15.0
Indoor Temp.( C)
Outdoor Temp.(DB C)
■ AS12HPBN
DB98_20801A(1)_1 12/24/04 10:46 AM Page 19
