OWNER’S INSTRUCTIONS
MANUAL DE INSTRUCCIONES
MANUEL D’UTILISATION
ISTRUZIONI PER L’USO
MANUAL DE INSTRUÇÕES
GEBRAUCHSANWEISUNG
√¢∏°π∂™ Ã ∏™∆∏
àçëíêìäñàü èéãúáéÇÄíÖãü
System Air Conditioner
Aire acondicionado sistemático
Climatiseur numérique multifonctionnel
Sistema Aria Condizionata
Sistema Ar Condicionado
Klimaanlage System
™‡ÛÙËÌ· ∫ÏÈÌ·ÙÈÛÌÔ‡
ëËÒÚÂÏÌ È ÇÓÁ‰Û¯Ì È äÓ̉ˈËÓÌÂ
AVMCH052CA1(3,4)
AVMCH072CA1(3,4)
AVMCH105CA1(3,4)
AVMCH128CA1(3,4)
AVMCH140CA1(3,4)
AVMCH045EA4
AVMCH052EA(B)1(3,4)
AVMCH070EA(B)1(3,4)
AVMCH105EA(B)1(3,4)
AVMCH128EA(B)1(3,4)
AVMCH140EA(B)1(3,4)
Heat pump
AVMCC052CA1(3,4)
AVMCC072CA1(3,4)
AVMCC105CA1(3,4)
AVMCC128CA1(3,4)
AVMCC140CA1(3,4)
AVMCC052EA(B)1(3,4)
AVMCC070EA(B)1(3,4)
AVMCC105EA(B)1(3,4)
AVMCC128EA(B)1(3,4)
AVMCC140EA(B)1(3,4)
Cooling only
E S F I P D G R DB98-14089A(4)
E§§HNIKA ENGLISH
ESPAÑOL
FRANÇAIS
ITALIANO
DEUTSCH PORTUGUÊS
RUSSIAN

E-2
Safety Precautions
The following safety precautions must be taken when using your air conditioner.
◆Users of this product are cautioned not to attempt repair of this product
at their own discretion. Instead, they are requested to directly contact a
designated service center or the outlet at which the product was
purchased.
◆Never spill any kind of liquid into the unit. Should this happen, unplug
or main switch off the unit and contact an authorized service center.
◆Do not insert anything between the air outlet blades because the inner
fan may be damaged and could cause injury. Keep children away from
the unit.
◆Do not place any obstacles in front of the unit.
◆Do not spray liquid of any kind into the indoor unit. Should this happen,
switch off the breaker used for your air conditioner and contact your
installation specialist.
◆Make sure that the unit is correctly ventilated at all times:
Do not place clothing or other materials over it.
◆If the wireless remote control will not be used for a long time, remove
the batteries. (If applicable)
◆When using a wireless remote control, the distance should not be more
than 7 meters from the air conditioner. (If applicable)
WARNING
DURING OPERATION
◆Never store or ship the air conditioner upside down or sideways to
avoid damage to the compressor.
◆The appliance is not intended for use by young children or infirm
persons without supervision: Young children should be supervised to
ensure that they do not play with the appliance.
◆Max current is measured according to IEC standard for safety and
current is measured according to ISO standard for energy efficiency.
OTHERS
◆Before throwing out the device, it is necessary to pull back the battery
cells and get rid of them safely for recycling reasons.
◆When you need to dispose of the unit, consult your dealer. If pipes are
removed incorrectly, refrigerant may blow out and come into contact
with your skin, causing injury. Releasing refrigerant into the atmosphere
also damages the environments.
◆Please recycle or dispose of the packaging material for this product in
an environmentally responsible manner.
D ISPOSING OF THE UNIT
Risk of electric shock. • Can cause injury or death. • Disconnect all
remote electric power supplies before servicing, installing or cleaning.
• This must be done by the manufacturer or its service agent or a similar
qualified person in order to avoid a hazard.
Register your product at www.samsung.com/global/register
AVMCH052CA1 IB_E_14089 2005.12.29 2:48 PM Page 2

E-3
ENGLISH
Contents
◆ P REPARING YOUR AIR CONDITIONER
■ Safety Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
■ View of the Unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
■ Wireless Remote Controller-Buttons and Display . . . . . . . . . . . 6
■ Wired Remote Controller-Buttons and Display . . . . . . . . . . . . . 7
■ Centralized Controller . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
■ Function Controller . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
◆ R ECOMMENDATIONS FOR USE
■ Operating Recommendations . . . . . . . . . . . . . . . . . . . . . . . . . 10
■ Temperature and Humidity Ranges . . . . . . . . . . . . . . . . . . . . . 11
■ Cleaning Your Air Conditioner . . . . . . . . . . . . . . . . . . . . . . . . 12
■ Bio-Pure Filter Installation (Optional) . . . . . . . . . . . . . . . . . . . . 13
■ Solving Common Problems . . . . . . . . . . . . . . . . . . . . . . . . . . 14
◆ T ECHNICAL SPECIFICATIONS
Correct Disposal of This Product
(Waste Electrical & Electronic Equipment)
(Applicable in the Eu opean Union and othe Eu opean count ies with sepa ate collection systems)
This marking shown on the product or its literature, indicates that it should not be disposed with other household
wastes at the end of its working life. To prevent possible harm to the environment or human health from uncontrolled
waste disposal, please separate this from other types of wastes and recycle it responsibly to promote the sustainable
reuse of material resources.
Household users should contact either the retailer where they purchased this product, or their local government
office, for details of where and how they can take this item for environmentally safe recycling.
Business users should contact their supplier and check the terms and conditions of the purchase contract.
This product should not be mixed with other commercial wastes for disposal.
AVMCH052CA1 IB_E_14089 2005.12.29 2:48 PM Page 3

View of the Unit
E-4
The figures shown in this instruction may differ from yours depending on the model.
Air flow blades(outlet)
Air inlet
Air filter(under the grille)
Indoor Unit
TYPE A
Indoor Unit
TYPE B
Timer indicator
Remote control sensor
On/Off button
On/Off indicator
Fan indicator
Removing frost indicator
Filter Sign indicator
Air flow blades(outlet)
Air inlet
Air filter(under the grille)
Timer indicator
Remote control sensor
On/Off button
On/Off indicator
Fan indicator
Removing frost indicator
Filter Sign indicator
AVMCH052CA1 IB_E_14089 2005.12.29 2:48 PM Page 4

E-5
ENGLISH
Air outlet
Connection valve
TYPE A
Outdoor Unit
Air outlet
Connection valve
TYPE B
Outdoor Unit
Air outlet
Connection valve
TYPE C
Outdoor Unit
Air outlet
Connection valve
TYPE D
Outdoor Unit
Air outlet
Connection valve
TYPE E
Outdoor Unit
If the heat exchanger in the outdoor unit gets dusty, cooling efficiency may fall. So clean the heat exchanger with water
when it becomes dirty. However, be careful when you wash the surface of the heat exchanger because it is very sharp.
NN
NNoo oott ttee ee
AVMCH052CA1 IB_E_14089 2005.12.29 2:48 PM Page 5

Wireless Remote Controller-Buttons and Display
◆After cleaning the air filter, press the filter reset button.
◆The heating mode( ) is not selected in cooling only models.
NN
NNoo oott ttee ee
Operating mode Mode selection button
Filter Reset button
Swing button
On Timer button
Off Timer button
On/Off & Timer
Set/Cancel button
Fan speed adjustment
button
Temperature adjustment
buttons
Temperature setting
Fan speed
Air flow direction
On Timer setting
Off Timer setting
Battery discharge indicator
The wireless remote controller is an optional accessory.
To use the wireless remote controller, refer to an appropriate manual.
E-6
AVMCH052CA1 IB_E_14089 2005.12.29 2:48 PM Page 6

Wired Remote Controller-Buttons and Display
The wired remote controller is an optional accessory and it is installed on the wall.
To use the wired remote controller, refer to an appropriate manual.
◆Test button is for your installation specialist. You must NOT press it.
◆After cleaning the air filter, press the filter reset button. Then the wired remote
controller will display the FILTER SIGN indicator when the time to clean the air filter;
refer to page 12.
◆The heating mode( ) is not selected in cooling only models.
NN
NNoo oott ttee ee
Communication error indicator
On Timer setting
Off Timer setting
Test indicator
On Timer button
Off Timer button
Test button Filter Reset button
Mode selection button
Temperature adjustment
buttons
Centralized controller indicator
(In case of installing the Centralized controller)
Removing frost indicator
(Except Cooling Only Models)
Temperature setting
Fan speed
Air flow direction
Filter Sign indicator
On/Off & Timer
Set/Cancel button
Fan speed adjustment
button
Swing button
On/Off indicator
Operating mode
E-7
ENGLISH
AVMCH052CA1 IB_E_14089 2005.12.29 2:48 PM Page 7

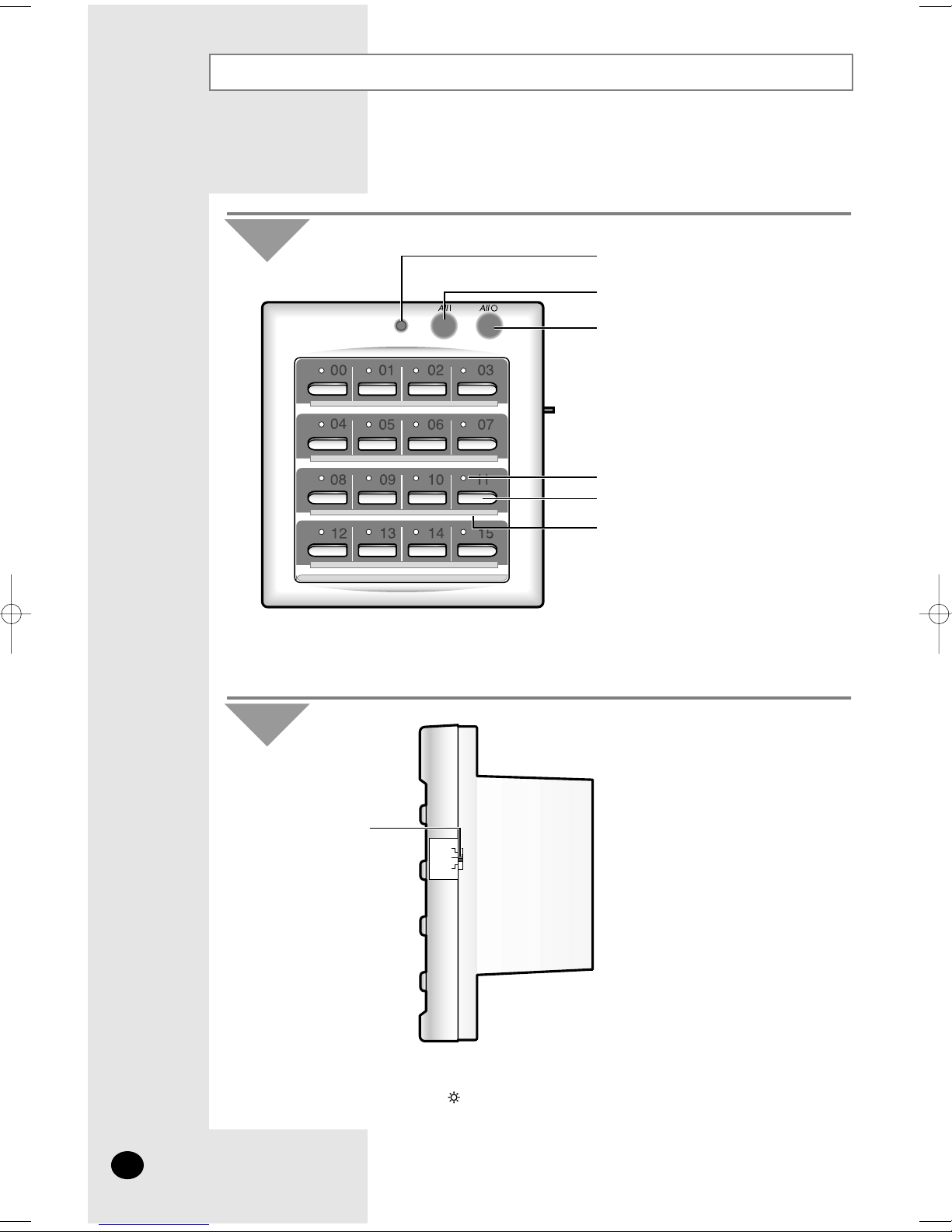

Centralized Controller
The centralized controller is an optional accessory and it is installed on the wall.
To use the centralized controller, refer to an appropriate manual.
E-8
Operating lamp
All On button
All Off button
On/Off indicators
On/Off buttons
Index
◆The operating lamp comes on even when only one air conditioner
connected to the centralized controller is operating.
NN
NNoo oott ttee ee
Front View
Operating Mode Switch
COOL
AUTO
HEAT
◆Choose the appropriate operating mode with the Operating Mode Switch
that enables the user to choose between the Cool/Auto/Heat mode.
◆The heating mode( ) is not selected in cooling only models.
NN
NNoo oott ttee ee
Side View
AVMCH052CA1 IB_E_14089 2005.12.29 2:48 PM Page 8

Function Controller
E-9
ENGLISH
The function controller is an additional controller which is used with the centralized controller.
To use the function controller, refer to an appropriate manual.
◆ Test button is for your installation specialist. You must NOT press it.
◆After cleaning the air filter, press the filter reset button. Then the wired remote controller
will display the FILTER SIGN indicator when the time to clean the air filter.
◆The heating mode( ) is not selected in cooling only models.
NN
NNoo oott ttee ee
Mode selection button
Room number display
Test indicator
Indoor unit selection button
Test button Filter Reset button
Swing button
Temperature adjustment
buttons
Temperature setting
Fan speed
Air flow direction
Filter Sign indicator
On/Off & Timer
Set/Cancel button
Fan speed adjustment
button
On/Off indicator
Centralized controller indicator
Communication error indicator
Removing frost indicator
(Except Cooling Only Models)
Operating mode
AVMCH052CA1 IB_E_14089 2005.12.29 2:48 PM Page 9

Operating Recommendations
E-10
Here are a few recommendations that you should follow when operating
your air conditioner.
Topic Recommendation
The heat pump function of the air conditioner absorbs heat
from
outside air and brings it indoors. As the temperature of the
outside
air drops, the heating performance of air conditioner will
decrease. If you find that the room is not warm enough, using
an additional heating appliance is recommended.
Heating
performances
When outside temperature is low but humidity is high,
frost may form on the outdoor unit at HEAT mode.
If this happens:
◆ The heating operation stops.
◆ The defrost mode will be triggered automatically for about ten
minutes.
No intervention is required ; after about ten minutes, the air
conditioner operates again normally.
Frost
If both indoor and outdoor temperatures are high and the air
conditioner is running at HEAT mode, the outdoor unit’s fan
and compressor may stop at times.
This is normal ; simply wait until the air conditioner switches
on again.
High indoor
and outdoor
temperatures
If a power failure occurs while the air conditioner is operating,
the unit will be switched off. When the power returns, the air
conditioner starts up again automatically.
Power failure
When you use the heat pump model, it is impossible to
operate HEAT and COOL mode of several indoor units at the
same time.
The
simultaneous
operation
AVMCH052CA1 IB_E_14089 2005.12.29 2:48 PM Page 10

Temperature and Humidity Ranges
E-11
ENGLISH
The following table indicates the temperature and humidity ranges,
within which the air conditioner can be used.
If the air conditioner is used at... Then...
The automatic protection feature may be
triggered and the air conditioner stopped.
High temperature
A water leakage or some other
malfunction may happen if the heat
exchanger freezes.
Low temperature
Water may condense on and drip from
the surface of the indoor unit if it is used
for a long periods.
High humidity levels
❇ The standardized temperature for heating is 7°C. If the outdoor
temperature drops to 0°C or below, the heating capacity can be
reduced depending on the temperature condition.
If the cooling operation is used at over 32°C(indoor temperature) then,
it does not cool at its full capacity.
Mode Outdoor Temperature Indoor Temperature Indoor Humidity
Heating
Cooling
Drying
-15°C to 24°C approx.
-5°C to 43°C approx.
-5°C to 43°C approx.
27°C or less
21°C to 32°C approx.
21
°C to 32°C approx.
-
80% or less
-
AVMCH052CA1 IB_E_14089 2005.12.29 2:48 PM Page 11

E-12
Cleaning Your Air Conditioner
To get the best possible use out of your air conditioner, you must clean
it regularly to remove the dust that accumulates on the air filter.
Before cleaning your air conditioner, ensure that you have
switched off the electric circuit breaker used for the unit.
Open the front grille by pushing the tabs on the grille.
1
Remove the front grille.
2-1 Remove the safety clips.
2-2 Open the front grille about 45°and pull it forward.
2
Pull out the air filter.
3
Remove all dust on air filter with a vacuum cleaner or a brush. In case of
serious dust accumulation, put the air filter in warm detergent water and
shake it vertically.
4
Dry the air filter.
5
When you have finished, insert the filter into the front grille.
6
Clean the unit with a vacuum cleaner or a brush once a month.
7
Reinstall the front grille and the safety clips.
8
IMPORTANT
You must give attention when disassembling the front grille
and must check the safety clips have been installed.
If you do not check them, the front grille will drop suddenly
and you will be hurt.
IMPORTANT
After cleaning the air conditioner, press the Filter Reset button.
NN
NNoo oott ttee ee
When you have installed the Bio-Pure filter, do not allow any
liquids to contact the filter. It may lose its properties.
NN
NNoo oott ttee ee
You can use all 4 points of the indoor unit for installing the front
grille and the safety clips depending on your requirement.
NN
NNoo oott ttee ee
Wired Remote Controller Wireless Remote Controller
Safety Clip
AVMCH052CA1 IB_E_14089 2005.12.29 2:48 PM Page 12

E-13
ENGLISH
Bio-Pure Filter Installation (Optional)
Open the front grille by pulling the tabs on the grille.
2
Remove the front grille.
3-1 Remove the safety clips.
3-2 Open the front grille about 45°and pull it forward.
3
Pull out the air filter.
4
Locate the bio-pure filter on the center of air filter.
5
Secure the bio-pure filter with four screws.
6
Reinstall the air filter, the front grille and the safety clips.
7
Do not remove the packing from a bio-pure filter until you wish
to use the filter, as it will lose its properties.
NN
NNoo oott ttee ee
The air conditioner can be fitted with a Bio-Pure filter to remove minute dust
particles. The service life of the filter is approximately three months depending
on the time during which the air conditioner is used.
Remove the vinyl packing from the filter.
1
AVMCH052CA1 IB_E_14089 2005.12.29 2:48 PM Page 13

E-14
Solving Common Problems
Before contacting the after-sales service, perform the following simple checks.
They may save your time and expense of an unnecessary call.
Explanation/Solution
◆Check that the breaker used for the air conditioner is switched on.
Problem
The air conditioner does not
operate at all
◆Check that there are no obstacles between you and the remote
control sensor.
◆Check the wireless remote controller batteries.
◆Check that you are close enough to the remote control sensor.
(seven metres/yards or less).
◆Check that you are pointing the remote controller at the remote
control sensor on the indoor unit.
◆Replace the remote controller batteries if necessary.
◆If there is a strong light around the air conditioner, a
three-wavelength light, a neon sign, etc., for example,
the air conditioner may not be operated with a remote controller.
If this happens, use the remote controller close by the remote
control sensor.
◆Check that the correct operating mode has been selected.
◆The room temperature may be too low or too high.
◆Dust may be blocking the air filter guard; refer to page 12
for cleaning instructions.
◆Check that there is no obstacle in front of the outdoor unit.
The air conditioner does not
operate with the remote
controller
Wi eless Remote Cont olle
Wi eless Remote Cont olle
No beep is heard when you
press (ON/OFF) on the
remote controller
The air conditioner does
not cool or heat
◆ is displayed on the wired remote controller. In this case,
turn the air conditioner off and contact your dealer.
Wi ed Remote Cont olle
The air conditioner does not
operate with the remote
controller
◆In case of using the wired remote controller for a group, the air
conditioners connected to the remote controller are turned on/off in
order. Thus, it takes some time(up to 32 seconds).
Wi ed Remote Cont olle
When turning on/off the
air conditioner, it is not
turned on/off immediately.
◆Check that the required temperature has been set correctly.
◆Increase the fan speed.
When heating, the required
room temperature is never
reached and the air
conditioner frequently stops
AVMCH052CA1 IB_E_14089 2005.12.29 2:48 PM Page 14

E-15
ENGLISH
Technical Specifications
Power Supply
Model
1Ø, 208-230V~, 60Hz
AVMCH052CA1(3,4)
AVMCH072CA1(3,4)
AVMCH105CA1(3,4)
AVMCH128CA1(3,4)
AVMCH140CA1(3,4)
AVMCC052CA1(3,4)
AVMCC072CA1(3,4)
AVMCC105CA1(3,4)
AVMCC128CA1(3,4)
AVMCC140CA1(3,4)
1Ø, 220-240V~, 50Hz
AVMCH045EA4
AVMCH052EA(B)1(3,4)
AVMCH070EA(B)1(3,4)
AVMCH105EA(B)1(3,4)
AVMCH128EA(B)1(3,4)
AVMCH140EA(B)1(3,4)
AVMCC052EA(B)1(3,4)
AVMCC070EA(B)1(3,4)
AVMCC105EA(B)1(3,4)
AVMCC128EA(B)1(3,4)
AVMCC140EA(B)1(3,4)
AVMCH052CA1 IB_E_14089 2005.12.29 2:48 PM Page 15

ELECTRONICS
THIS AIR CONDITIONER IS MANUFACTURED BY:
ESTE AIRE ACONDICIONADO HA SIDO FABRICADO POR:
CE CLIMATISEUR EST FABRIQUE PAR:
QUESTO CONDIZIONATORE D’ARIA È PRODOTTO DA:
ESTE APARELHO DE AR CONDICIONADO É FABRICADO POR:
DIESE KLIMAANLAGE IST FABRIZIERT VON:
AYTH H ™Y™KEYH KATA™KEYA™THKE A¶O:
ùíéí äéçÑàñàéçÖê àáÉéíéÇãÖç îàêåéâ:
Country
BELGIUM
CZECH REPUBLIC
DENMARK
FINLAND
FRANCE
GERMANY
HUNGARY
ITALIA
LUXEMBURG
NETHERLANDS
NORWAY
POLAND
PORTUGAL
SLOVAKIA
SPAIN
SWEDEN
U.K
RUSSIA
UKRAINE
Customeer Care Center
02 201 2418
844 000 844
38 322 887
09 693 79 554
08 25 08 65 65 (0,15 /min)
01805 - 121213 ( 0,12/min)
06 40 985 985
199 153 153
02 261 03 710
0900 20 200 88 ( 0.10/min)
231 627 22
0 801 801 881
80 8 200 128
0850 123 989
902 10 11 30
08 585 367 87
0870 242 0303
8-800-200-0400
8-800-502-0000
Web Site
www.samsung.com/be
www.samsung.com/cz
www.samsung.com/dk
www.samsung.com/fi
www.samsung.com/fr
www.samsung.de
www.samsung.com/hu
http://www.samsung.com/it
www.samsung.lu
www.samsung.com/nl
www.samsung.com/no
www.samsung.com/pl
www.samsung.com/pt
www.samsung.com/sk
www.samsung.com/es
www.samsung.com/se
www.samsung.com/uk
www.samsung.com.ru
www.samsung.com/ur
Contact SAMSUNG WORLD WIDE
If you have any comments or questions regarding a Samsung products, contact the SAMSUNG
customer care center.
