Samsung AVMDSH022EA User manual

ENGLISHESPAÑOLFRANÇAISITALIANODEUTSCH
System Air Conditioner (Cooling and Heating)
Aire acondicionado sistemático (Enfriamiento y Calefacción)
Climatiseur numérique multifonctionnel (Réfrigération & Chauffage)
Sistema Aria Condizionata (Raffredamento e Riscaldamento)
Klimaanlage System (Kühlen and Heizen)
DB98-24325A(1)SE F I D
OWNER’S INSTRUCTIONS
MANUAL DE INSTRUCCIONES
MANUEL D’UTILISATION
ISTRUZIONI PER L’USO
GEBRAUCHSANWEISUNG
AVMDSH022EA
AVMDSH028EA
AVMDSH036EA
AVMDSH045EA
AVMDSH056EA
AVMDSH071EA
AVMDSH112EA
AVMDSH128EA
AVMDSH140EA
AVMDSH022EA_E_24325.indd 15 2005-11-10 ｿﾀﾈﾄ 6:55:37

E-2
Safety Precautions
The following safety precautions must be taken when using your air conditioner.
WARNING
◆ Users of this product are cautioned not to attempt repair of this product
at their own discretion. Instead, they are requested to directly contact a
designated service center or the outlet at which the product was
purchased.
◆ Never spill any kind of liquid into the unit. Should this happen, unplug
or main switch off the unit and contact an authorized service center.
◆ Do not insert anything between the air outlet blades because the inner
fan may be damaged and could cause injury. Keep children away from
the unit.
◆ Do not place any obstacles in front of the unit.
◆ Do not spray liquid of any kind into the indoor unit. Should this
happen, switch off the breaker used for your air conditioner and
contact your installation specialist.
◆ Make sure that the unit is correctly ventilated at all times:
Do not place clothing or other materials over it.
◆ If the wireless remote control will not be used for a long time, remove
the batteries. (If applicable)
◆ When using a wireless remote control, the distance should not be more
than 7 meters from the air conditioner. (If applicable)
◆ Never store or ship the air conditioner upside down or sideways to
avoid damage to the compressor.
◆ The appliance is not intended for use by young children or infirm
persons without supervision: Young children should be supervised to
ensure that they do not play with the appliance.
◆ Max current is measured according to IEC standard for safety and
current is measured according to ISO standard for energy efficiency.
◆ Before throwing out the device, it is necessary to pull back the battery
cells and get rid of them safely for recycling reasons.
◆ When you need to dispose of the unit, consult your dealer. If pipes are
removed incorrectly, refrigerant may blow out and come into contact
with your skin, causing injury. Releasing refrigerant into the atmosphere
also damages the environments.
◆ Please recycle or dispose of the packaging material for this product in
an environmentally responsible manner.
DURING OPERATION
OTHERS
DISPOSING OF THE UNIT
Risk of electric shock. • Can cause injury or death. • Disconnect all
remote electric power supplies before servicing, installing or cleaning.
• This must be done by the manufacturer or its service agent or a
similar qualified person in order to avoid a hazard.
Register your product at www.samsung.com/global/register
AVMDSH022EA_E_24325.indd 2 2005-11-10 ｿﾀﾈﾄ 6:55:30

E-3
ENGLISH
Contents
◆ PREPARING YOUR AIR CONDITIONER
■ Safety Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
■ View of the Indoor unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
■ Wireless Remote Controller-Buttons and Display . . . . . . . . . . . . . . . 5
■ The Receiver & Display Unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
■ Wired Remote Controller-Buttons and Display. . . . . . . . . . . . . . . . . . 8
■ Centralized Controller. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
■ Function Controller . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
◆ RECOMMENDATIONS FOR USE
■ Operating Recommendations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
■ Temperature and Humidity Ranges. . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
■ Cleaning Your Air Conditioner . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
■ Solving Common Problems. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Correct Disposal of This Product
(Waste Electrical & Electronic Equipment)
(Applicable in the European Union and other European countries with separate collection systems)
This marking shown on the product or its literature, indicates that it should not be disposed with other household
wastes at the end of its working life. To prevent possible harm to the environment or human health from uncontrolled
waste disposal, please separate this from other types of wastes and recycle it responsibly to promote the sustainable
reuse of material resources.
Household users should contact either the retailer where they purchased this product, or their local government office,
for details of where and how they can take this item for environmentally safe recycling.
Business users should contact their supplier and check the terms and conditions of the purchase contract.
This product should not be mixed with other commercial wastes for disposal.
AVMDSH022EA_E_24325.indd 3 2005-11-10 ｿﾀﾈﾄ 6:55:30

E-4

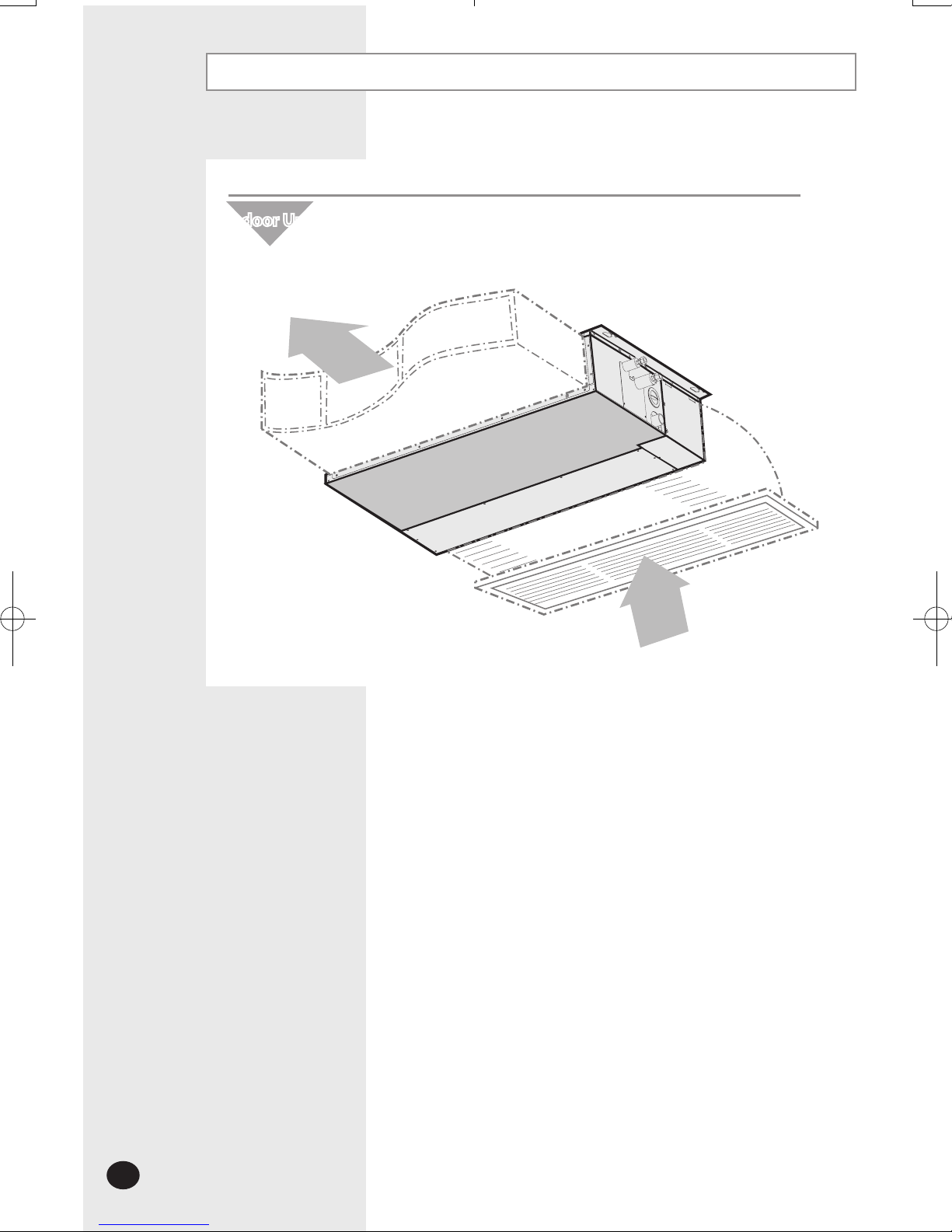

View of the Indoor unit
The figures are shown in this instruction may differ from yours depending on the model.
Indoor Unit
Air
inlet
Air
outlet
AVMDSH022EA_E_24325.indd 4 2005-11-10 ｿﾀﾈﾄ 6:55:31

E-5
ENGLISH

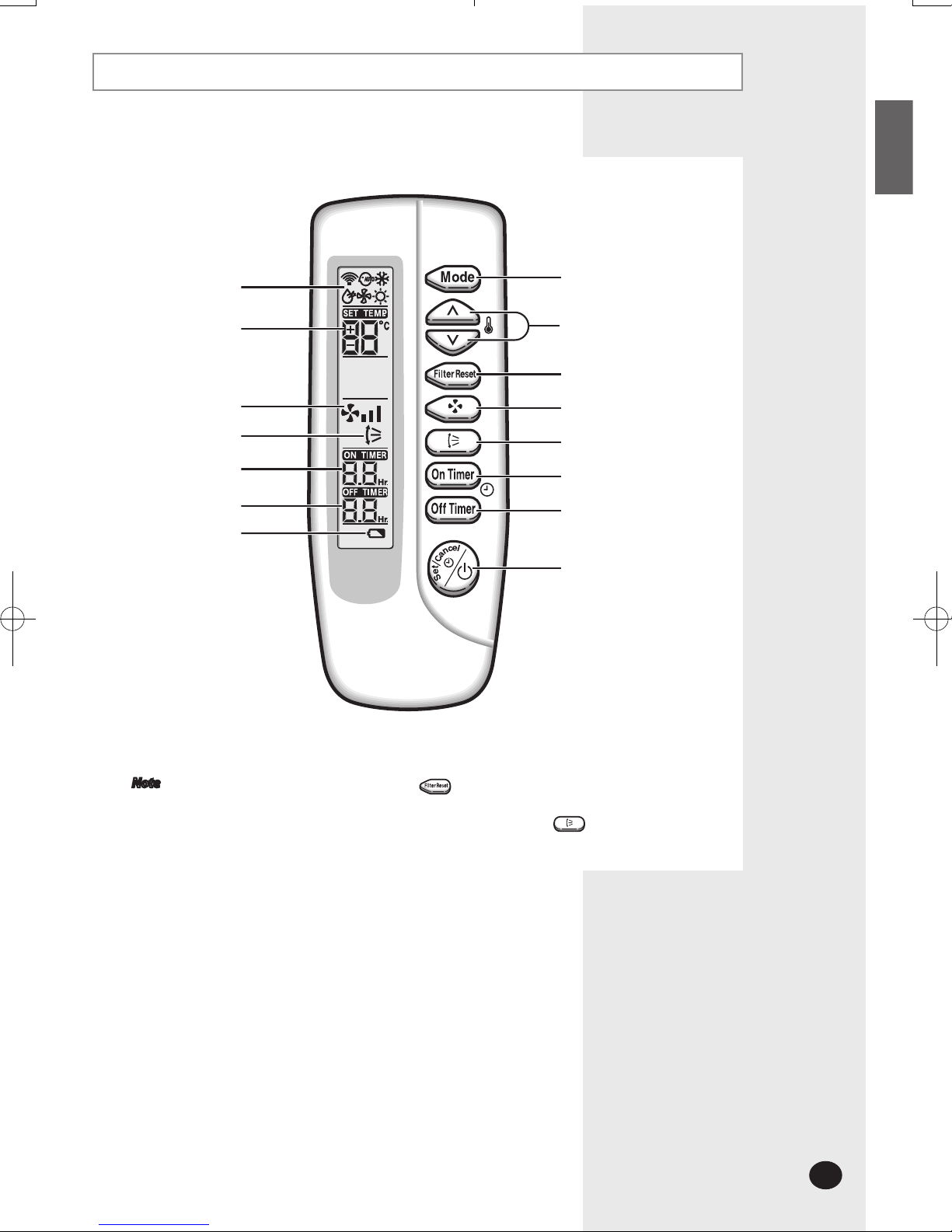

Wireless Remote Controller-Buttons and Display
The wireless remote controller is an optional accessory.
To use the wireless remote controller, refer to an appropriate manual.
◆ After cleaning the air filter, press the button.
◆ Duct type air conditioner does not have function of adjusting air flow direction.
Therefore, the function is not operated even if you press the button.
Note
Air flow direction
Operating mode Mode selection button
Filter Reset button
Swing button (Not operated)
On Timer button
Off Timer button
On/Off & Timer Set/
Cancel button
Fan speed adjustment
button
Temperature adjustment
buttons
Temperature setting
Fan speed
On Timer setting
Off Timer setting
Battery discharge indicator
AVMDSH022EA_E_24325.indd 5 2005-11-10 ｿﾀﾈﾄ 6:55:31

E-6
The Receiver & Display Unit
The Receiver & Display unit is an optional accessory and it is installed on the wall.
To use the receiver & display unit, refer to an appropriate manual.
Concealed Type
Filter sign indicator
Fan indicator
Timer indicator
Remote control sensor
- Heat Pump Models :
On/Off indicator(Blue) &
Removing frost
indicator(Red)
- Cooling Only Models :
On/Off indicator
AVMDSH022EA_E_24325.indd 6 2005-11-10 ｿﾀﾈﾄ 6:55:32

E-7
ENGLISH
The Receiver & Display Unit
Standard Type
Filter sign indicator
Removing frost indicator
(Except Cooling Only Models)
Fan indicator
On/Off indicator
Timer indicator
Remote control sensor
On/Off button
AVMDSH022EA_E_24325.indd 7 2005-11-10 ｿﾀﾈﾄ 6:55:32

E-8
Wired Remote Controller-Buttons and Display
The wired remote controller is an optional accessory and it is installed on the wall.
To use the wired remote controller, refer to an appropriate manual.
◆ The button is for your installation specialist. You must NOT press it.

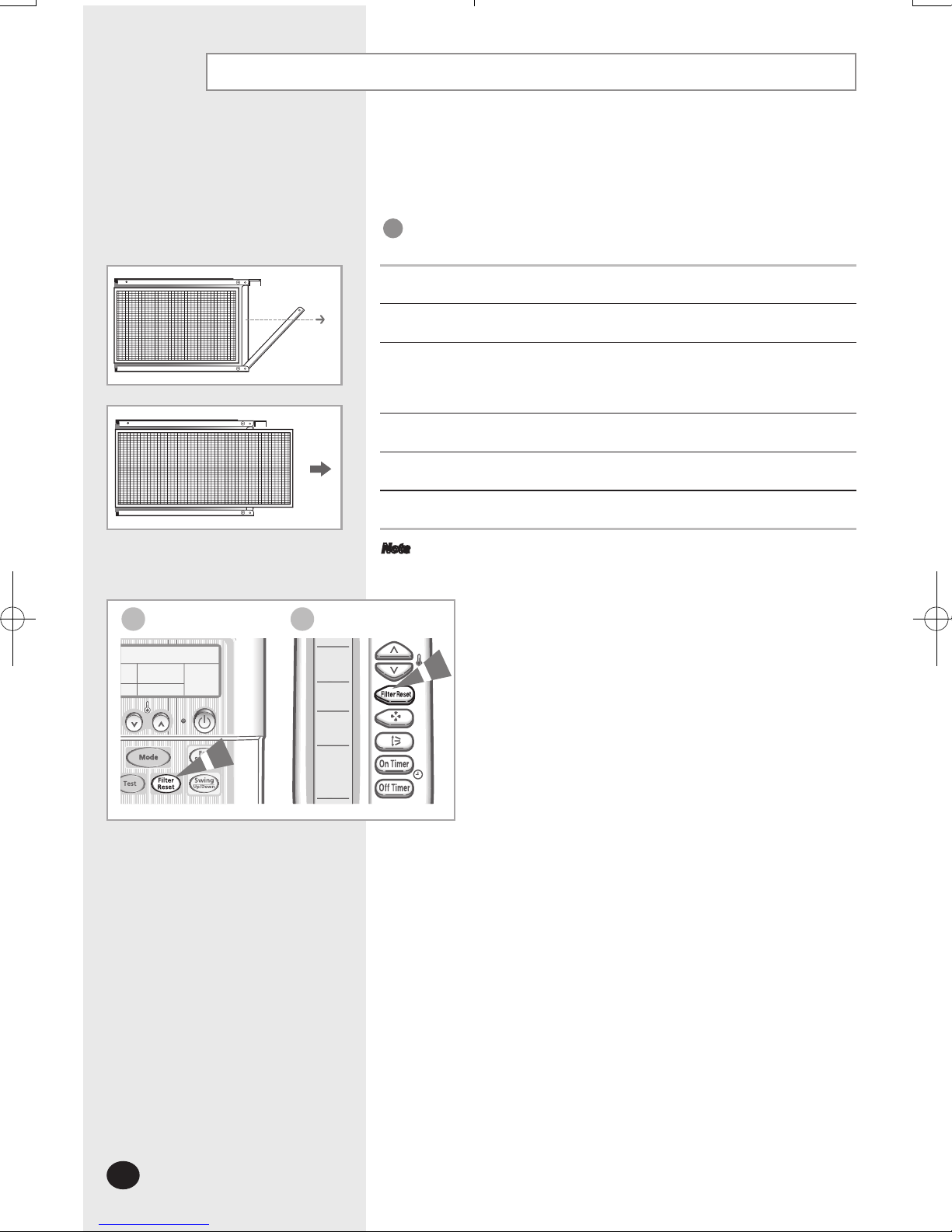

◆ After cleaning the air filter, press the button. Then the wired remote
controller will display the FILTER SIGN indicator when the time to clean the
air filter; refer to page 12.
◆ Duct type air conditioner does not have function of adjusting air flow direction.
Therefore, the function is not operated even if you press the button.
Note
Communication error indicator
On Timer setting
Off Timer setting
Test indicator
On Timer button
Timer Set/Cancel button
Test button Filter Reset button
Mode selection button
Temperature adjustment
buttons
Centralized controller indicator
(In case of installing the Centralized controller)
Removing frost indicator
(Except Cooling Only Models)
Temperature setting
Fan speed
Air flow direction
Filter Sign indicator
On/Off button
Fan speed adjustment
button
Swing button
(Not operated)
On/Off indicator
Operating mode
AVMDSH022EA_E_24325.indd 8 2005-11-10 ｿﾀﾈﾄ 6:55:33

E-9
ENGLISH
Front View

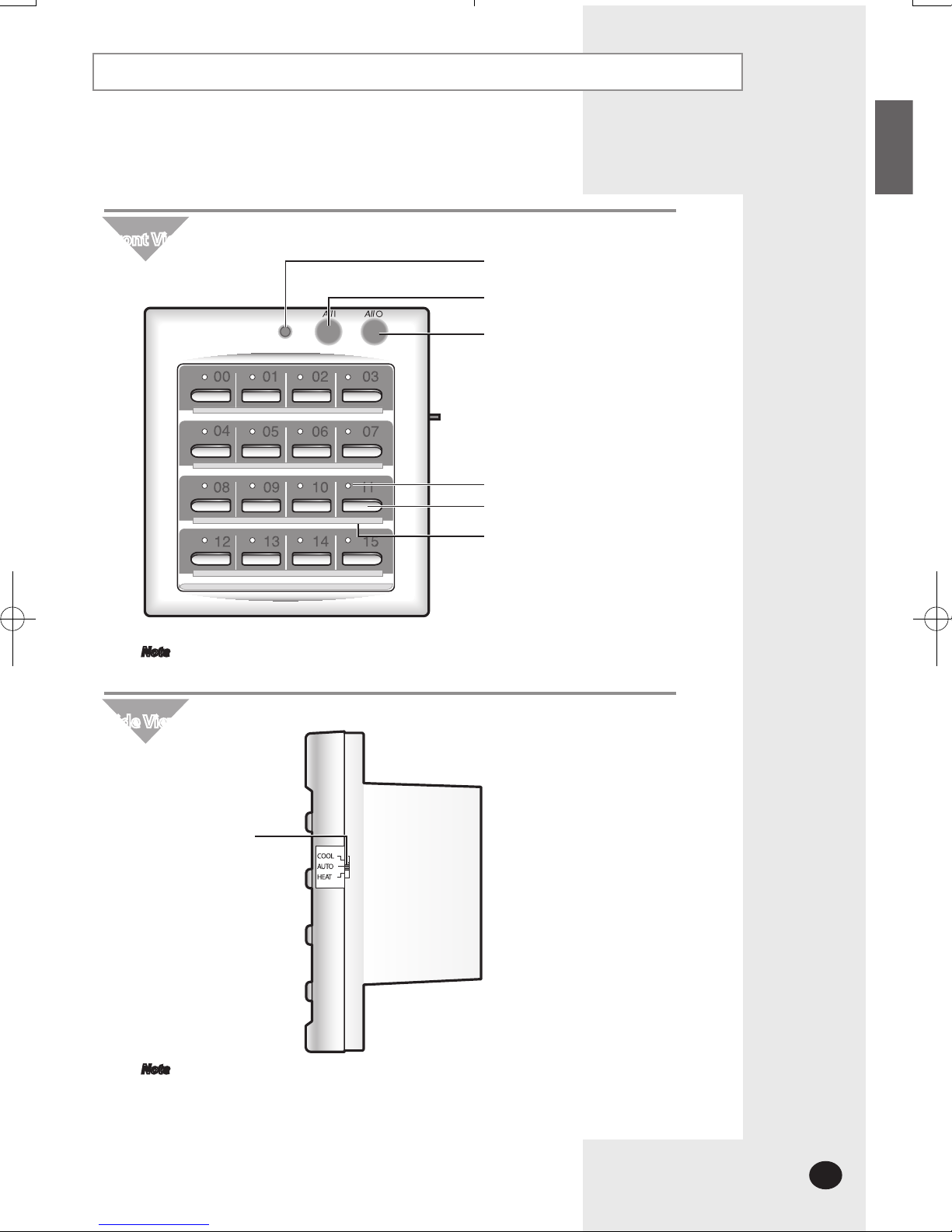

Centralized Controller
The centralized controller is an optional accessory and it is installed on the wall.The centralized controller is an optional accessory and it is installed on the wall.
To use the centralized controller, refer to an appropriate manual.
Operating lamp
All On button
All Off button
On/Off indicators
On/Off buttons
Index
◆ The operating lamp comes on even when only one air conditioner
connected to the centralized controller is operating.
Note
◆ Choose the appropriate operating mode with the Operating Mode Switch
that enables the user to choose between the Cool/Auto/Heat mode.
Note
Side View
Operating Mode Switch
AVMDSH022EA_E_24325.indd 9 2005-11-10 ｿﾀﾈﾄ 6:55:34

E-10

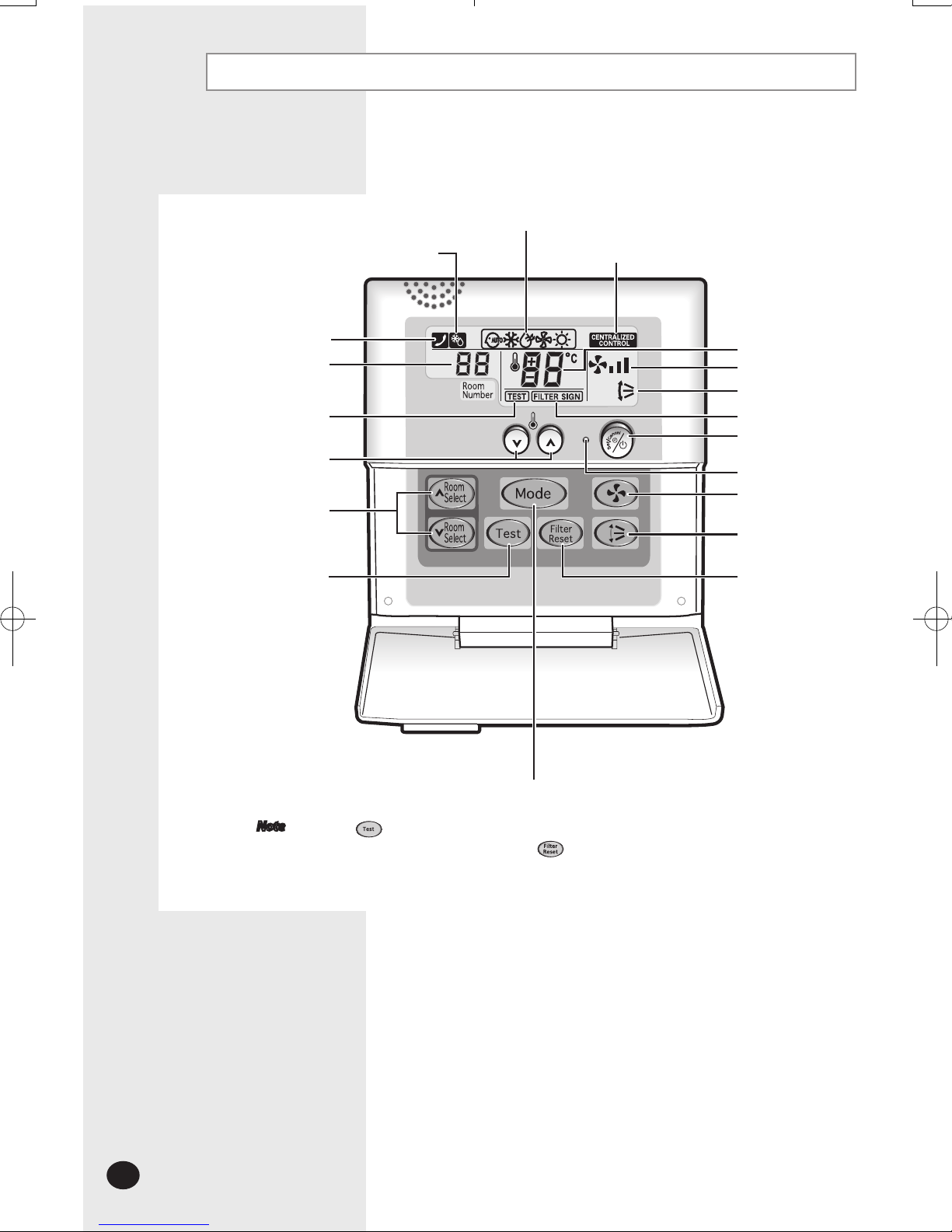

Function Controller
The function controller is an optional accessory and it is installed on the wall.
The function controller is an additional controller which is used with the centralized controller.
To use the function controller, refer to an appropriate manual.
◆ The button is for your installation specialist. You must NOT press it.
◆ After cleaning the air filter, press the button. Then the wired remote controller will
display the FILTER SIGN indicator when the time to clean the air filter.
Note
Room number display
Filter Reset button
Swing button
Temperature setting
Fan speed
Air flow direction
Filter Sign indicator
On/Off & Timer Set/
Cancel button
Fan speed adjustment
button
On/Off indicator
Test indicator
Indoor unit selection button
Test button
Temperature adjustment
buttons
Mode selection button
Centralized controller indicator
Communication error indicator
Removing frost indicator
(Except Cooling Only Models)
Operating mode
AVMDSH022EA_E_24325.indd 10 2005-11-10 ｿﾀﾈﾄ 6:55:35

E-11
ENGLISH
Operating Recommendations
Temperature and Humidity Ranges
Here are a few recommendations that you should follow when operating your air conditioner.
The following table indicates the temperature and humidity ranges, within which the
air conditioner can be used.
Topic Recommendation
Heating
performances
The heat pump function of the air conditioner absorbs heat from outside air and brings it
indoors. As the temperature of the outside air drops, the heating performance of air
conditioner will decrease. If you find that the room is not warm enough, using an additional
heating appliance is recommended.
Frost When outside temperature is low but humidity is high,
frost may form on the outdoor unit at HEAT mode.
If this happens:
◆ The heating operation stops.
◆ The defrost mode will be triggered automatically for about 10 minutes.
No intervention is required ; after about 10 minutes, the air conditioner operates
again normally.
High indoor
and outdoor
temperatures
If both indoor and outdoor temperatures are high and the air conditioner is running at HEAT
mode, the outdoor unit’s fan and compressor may stop at times.
This is normal ; simply wait until the air conditioner switches on again.
Power failure If a power failure occurs while the air conditioner is operating, the unit will be switched off.
When the power returns, the air conditioner starts up again
automatically.
If the air conditioner is used at... Then...
High temperature The automatic protection feature may be triggered and
the air conditioner stopped.
Low temperature A water leakage or some other malfunction may happen if the heat
exchanger freezes.
High humidity levels Water may condense on and drip from the surface of the indoor unit if
it is used for a long periods.
❇ The standardized temperature for heating is 7°C. If the outdoor temperature drops to 0°C or below, the
heating capacity can be reduced depending on the temperature condition. If the cooling operation is
used at over 32°C(indoor temperature), it does not cool at its full capacity.
Mode Outdoor Temperature Indoor Temperature Indoor Humidity
Heating -15°C to 24°C approx. 27°C or less -
Cooling - 5°C to 43°C approx. 21°C to 32°C approx. 80% or less
Drying - 5°C to 43°C approx. 18°C to 32°C approx. -
AVMDSH022EA_E_24325.indd 11 2005-11-10 ｿﾀﾈﾄ 6:55:35

E-12
Cleaning Your Air Conditioner
To get the best possible use out of your air conditioner, you must clean it
regularly to remove the dust that accumulates on the air filter.
Before cleaning your air conditioner, ensure that you have
switched off the electric circuit breaker used for the unit.
IMPORTANT
◆ After cleaning the air conditioner, press the Filter Reset button.
◆ Do not operate the air conditioner without the filter.
Note
Wireless Remote ControllerWired Remote Controller
1Turn the levers to the right or left not to prevent pulling out the air filter.
2Pull out the air filter.
3Remove all dust on air filter with a vacuum cleaner or a brush. In case of serious
dust accumulation, put the air filter in warm detergent water and shake it
vertically.
4Dry the air filter.
5When you have finished, insert the filter into the unit.
6Return the levers.
AVMDSH022EA_E_24325.indd 12 2005-11-10 ｿﾀﾈﾄ 6:55:36

E-13
ENGLISH
Solving Common Problems
Before contacting the after-sales service, perform the following simple checks. They may
save your time and expense of an unnecessary call.
Problem Explanation/Solution
The air conditioner does not
operate at all
◆ Check that the breaker used for the air conditioner is switched on.
Wired Remote Controller
The air conditioner does not
operate with the remote
controller
◆ is displayed on the wired remote controller. In this case, turn the
air conditioner off and contact your dealer.
Wired Remote Controller
When turning on/off the
air conditioner, it is not
turned on/off immediately.
◆ In case of using the wired remote controller for a group, the air conditioners
connected to the remote controller are turned on/off in order. Thus, it takes
some time(up to 32 seconds).
Wireless Remote Controller
The air conditioner does not
operate with the remote
controller
◆ Check that there are no obstacles between you and the remote control
sensor.
◆ Check the wireless remote controller batteries.
◆ Check that you are close enough to the remote control sensor
(7 metres/yards or less).
Wireless Remote Controller
No beep is heard when you
press (ON/OFF) on the
remote controller
◆ Check that you are pointing the remote controller at the remote control
sensor on the receiver & display unit.
◆ Replace the remote controller batteries if necessary.
◆ If there is a strong light around the air conditioner, a three-wavelength light,
a neon sign, etc., for example, the air conditioner may not be operated with
a remote controller. If this happens, use the remote controller close by the
remote control sensor.
The air conditioner does
not cool or heat
◆ Check that the correct operating mode has been selected.
◆ The room temperature may be too low or too high.
◆ Dust may be blocking the air filter guard; refer to page 12 for cleaning
instructions.
◆ Check that there is no obstacle in front of the outdoor unit.
When heating, the required
room temperature is never
reached and the air
conditioner frequently stops
◆ Check that the required temperature has been set correctly.
◆ Increase the fan speed.
AVMDSH022EA_E_24325.indd 13 2005-11-10 ｿﾀﾈﾄ 6:55:37

THIS AIR CONDITIONER IS MANUFACTURED BY:
ESTE AIRE ACONDICIONADO HA SIDO FABRICADO POR:
CE CLIMATISEUR EST FABRIQUE PAR:
QUESTO CONDIZIONATORE D’ARIA È PRODOTTO DA:
DIESE KLIMAANLAGE IST FABRIZIERT VON:
Printed in Korea
Country Customeer Care Center Web Site
BELGIUM 02 201 2418 www.samsung.com/be
CZECH REPUBLIC 844 000 844 www.samsung.com/cz
DENMARK 38 322 887 www.samsung.com/dk
FINLAND 09 693 79 554 www.samsung.com/fi
FRANCE 08 25 08 65 65 (0,15 /min) www.samsung.com/fr
GERMANY 01805 - 121213 ( 0,12/min) www.samsung.de
HUNGARY 06 40 985 985 www.samsung.com/hu
ITALIA 199 153 153 www.samsung.com/it
LUXEMBURG 02 261 03 710 www.samsung.lu
NETHERLANDS 0900 20 200 88 ( 0.10/min) www.samsung.com/nl
NORWAY 231 627 22 www.samsung.com/no
POLAND 0 801 801 881 www.samsung.com/pl
PORTUGAL 80 8 200 128 www.samsung.com/pt
SLOVAKIA 0850 123 989 www.samsung.com/sk
SPAIN 902 10 11 30 www.samsung.com/es
SWEDEN 08 585 367 87 www.samsung.com/se
U.K 0870 242 0303 www.samsung.com/uk
Contact SAMSUNG WORLD WIDE
If you have any comments or questions regarding a Samsung products, contact the SAMSUNG customer care center.
AVMDSH022EA_IB_E_24325.indd 14 2005-11-11 ｿﾀﾈﾄ 2:09:21
