Samsung AW0595M User manual

DB98-17031A(1)
AW0505M AW0595M
Window-type Room Air Conditioner
(Cool)
EF
OWNER’S
INSTRUCTIONS

E-2
The following safety precautions must be taken when installing
and using your air conditioner.
Safety Precautions
1The air conditioner must be plugged into its own specific power source, which must be
installed in compliance with national wiring, earthing and safety regulations.
Depending on national regulations and your specific installation, you may need to install:
◆ A circuit breaker
For further information on electrical requirements, contact a professional electrician.
This device must be installed according to the national electrical rules.
2Make sure that the unit is correctly ventilated at all times;
do NOT place clothing or other materials over it.
4Do NOT insert anything between the air outlet blades, as it may damage the inner fan
and you may get hurt. Keep children away from the unit.
5If the supply cord is damaged, it must be replaced by the manufacturer, its service agent
or similarly qualified persons in order to avoid a hazard.
6Do NOT attempt to repair the unit yourself. If it is damaged in any way, contact:
◆ An authorized service center
◆ The dealer from whom you purchased the air conditioner.
7Do NOT place any blocking objects in front of the unit.
3NEVER spill liquids of any kind into the unit.
Should this happen, unplug the unit and contact your installation specialist.
8If the remote control will not be used for a long time, remove the batteries.
9Before throwing out the device, it is necessary to pull back the battery cells
and get rid of them safely.
10 The appliance is not intended for use by young children or infirm person without supervision;
young children should be supervised to ensure that they do not play with the appliance.
11 Do NOT use an extension cord with this product.
The manufacturer does not assume responsibility for accidents or injury
caused by an incorrectly installed air conditioner. If you are unsure about
installation, contact an installation specialist.
CC
CA AU UT TI IO ON N

Contents
◆PREPARING YOUR AIR CONDITIONER
■Safety Precautions ......................................................................................... 2
■Description of Each Component .................................................................... 4
■Getting Started ............................................................................................... 5
◆OPERATING YOUR AIR CONDITIONER
■Cooling Your Room ........................................................................................ 6
■Ventilating Your Room .................................................................................... 7
■Switching the Air Conditioner Off .................................................................... 8
■Adjusting the Air Flow Direction Horizontally .................................................. 9
■Adjusting the Air Flow Direction Vertically ...................................................... 9
◆RECOMMENDATIONS FOR USE
■Power Failure ................................................................................................. 10
■Temperature and Humidity Ranges ................................................................ 10
■Cleaning Your Air Conditioner ........................................................................ 11
■Solving Common Problems ............................................................................ 12
■Technical Specifications ................................................................................. 13
E-3

Description of Each Component
E-4
❄The design and shape are subject to
change.
Selector Thermostat
Hi Fan
110
29
38
47
56
Low Fan
OFF
Hi Cool
Med Cool
Low Cool
Air outlet
Inner air flow
blades (right/left
orientation)
Air inlet (Inside)
Outer air flow blades
(up/down orientation)
- Except AW0505M / AW0595M
Power plug
(The type of power plug
may differ, depending on
the local power supply.)
Operating mode
selection dial Thermostat control
Ventilation lever
- Except AW0505M / AW0595M
Air outlet
Air inlet (Outside)
Air filter (Inside)

Getting Started
You have just purchased a Samsung window-type room air conditioner which should be
installed following your Owner’s Instructions.
Your Owner's Instructions contain much valuable information on using your air conditioner.
Please take the time to read them as they will help you take full advantage of the unit's
features.
The illustrations in the step-by-step procedures use four different symbols:
E-5
PRESS PUSH IMPORTANT NOTE
☛
➢

Cooling Your Room
To control the direction of the air flow, refer to page 9.3
Turn the operating mode selection dial and set it to “ Hi Cool ” ,
“ Med Cool ” or “ Low Cool ”.
Result: The air conditioner starts up in cool mode.
➢You can change modes at any time.
Turn the THERMOSTAT control to the desired position.
You must select the COOL mode if you wish to adjust the:
◆ Cooling temperature
◆ Fan speed when Cooling
1
2
Possible temperatures: Can be set between 18°Cand 29°C.
Result: The air conditioner starts cooling if the room temperature is
higher than the selected temperature.
E-6

Ventilating Your Room
If the air in your room is stale, you can ventilate the room using the
Fan feature. (Except AW0505M / AW0595M)
1
Turn the operating mode selection dial and set it to “Hi Fan” or “Low Fan” posi-
tion.
Result: The air conditioner starts up in fan mode.
➢ ◆ Hi Fan : The fan turns rapidly.
◆ Low Fan : The fan turns slowly.
◆ You can change modes at any time.
2
To control the direction of the air flow, refer to page 9. 3
If you wish to discharge stale air, push the ventilation lever on the front
of the unit to the right and open position ( ).
Result: The air inside the room circulates and stale air is discharged
outside.
Otherwise, push the ventilation lever to the left and closed position ( ).
Result: The air simply circulates inside the room.
E-7

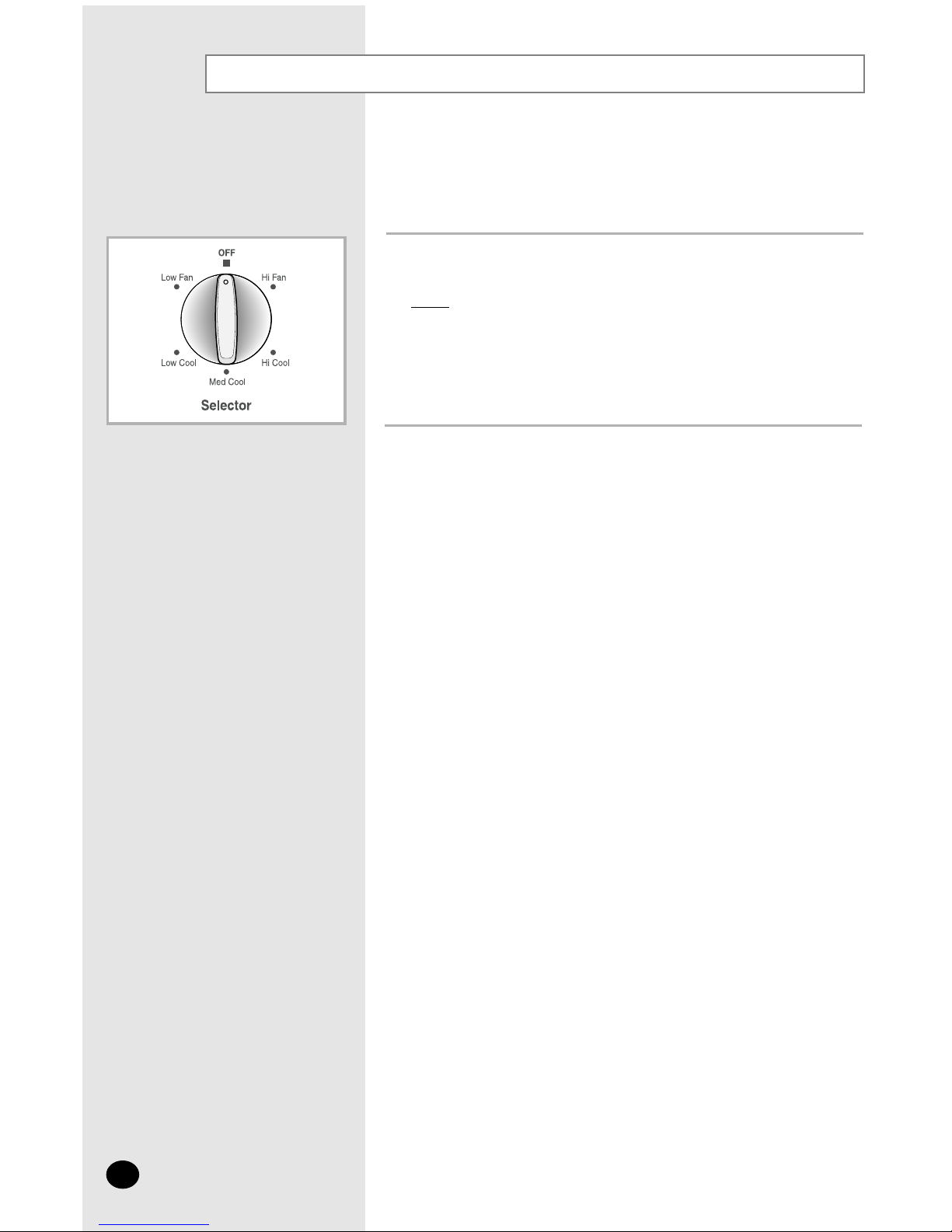

Switching the Air Conditioner Off
To switch the unit off, simply set the operating mode selection dial to the
" OFF "
position.
Result: The air conditioner stops operating.
You can switch the air conditioner off whenever you want.
1
E-8

Adjusting the Air Flow Direction Horizontally
Adjusting the Air Flow Direction Vertically
The outer air flow blades can be adjusted to control the vertical air
flow direction. (Except AW0505M / AW0595M)
RECOMMENDATION When...
Cooling
Adjust the blades to face...
Upwards.
Adjust the air flow blades to the desired position, by pushing them
upwards or downwards.
If you orient the air flow blades downwards and the unit operates
in Cool mode for long periods of time, dew may:
- Form on the surface of the blades
- Drip from the blades
➢
E-9
Depending on the position of the unit in your room, you can adjust
the orientation of the inner air flow blades on the unit.
Adjust the air flow blades to the desired position by sliding them side to side.

Power Failure
Temperature and Humidity Ranges
If the air conditioner is used at... Then...
Higher temperature The automatic protection feature may be triggered
and the air conditioner stopped.
Lower temperature A water leakage or some other malfunction may happen
if the heat exchanger freezes.
Higher humidity levels Water may condense on and drip from the surface of the unit
if it is used for long periods.
The following table indicates the temperature and humidity ranges
within which the air conditioner can be used.
Mode Indoor
Temperature Outdoor Temperature Indoor Humidity
Cooling 21°Cto 32°Capprox. 21°Cto 43°Capprox. 80% or less
If a power failure occurs, the air conditioner is switched off.
When the power comes back on, the air conditioner starts up again
automatically.
E-10

E-11
Cleaning Your Air Conditioner
Open the front grille by pulling the tabs on both sides of the grille.
Then lift it up slightly to open the front grille completely.
1
Remove all dust on the air filter with a vacuum cleaner or brush. 3
Grab the tabs on the filter and pull it up and out. 2
When you have finished, insert the air filter back into its original position. 4
Wipe the surface of the unit with a neutral detergent
and then wipe it again with dry cloth.
(Be sure not to use benzene, solvent or other chemical products.)
5
Be sure to clean the air filter periodically to maintain the air conditioner
in the best condition for a long period of time.
When cleaning the air conditioner, turn it off and pull out the
power plug.
Set the fan going for a few hours to
dry the inside of the air conditioner
thoroughly.
If you... Then...
Will not be using the
air conditioner for a
long period of time
◆ Set the fan going for a few
hours to dry the inside of the air
conditioner thoroughly.
◆ Switch the air conditioner off and
unplug it from the wall socket.
◆ Clean the filter and outer surfaces.
Have not used the air
conditioner for a long
period of time
➢
☛

Solving Common Problems
Explanation / Solution
◆Check for a power failure.
◆ Check the voltage.
(See the technical specifications)
◆ Check the power plug for disconnection.
◆ Check to see whether the operating mode selection dial is placed in the
"Off" position. (Set it to the desired position.)
◆ Check to see whether the room temperature is too low.
- Refer to page 10 for details about temperature condition.
◆Set the THERMOSTAT control to the desired position.
- When the number on the THERMOSTATcontrol is too high,
the room temperature may be too warm.
◆ Check to see whether there is an open window or other leakage of cool
air to the outside.
- Close the window, and fill the gap.
◆ Check to see whether there is any obstacle adversely affecting
the flow of the air inside and outside the room.
- Remove the obstacle or change the position of the air conditioner.
◆ Check to see whether the air filter is clogged with dust or
contaminated with foreign substances.
- Clean the air filter.
◆ Check to see whether there is any direct sunlight facing the air conditioner.
- Block the sunlight with a sunshade.
◆ Check to see whether there is any electric device generating heat.
- Do not use the air conditioner together with any heating device.
◆ Ventilate the room.
Problem
The air conditioner
does not operate at all.
The air comes out smoothly,
but cooling is not effective.
Odors are permeating the
room during air conditioning.
Before contacting an authorized service center, perform the following simple checks.
They may save you the time and the expense of an unnecessary call.
E-12

Technical Specifications
Model Power Supply
AW0505M
AW0595M
Design and specifications are subject to change without notice.
115V~, 60Hz
E- 13

ELECTRONICS
Labor
1 Year (In home)
Parts
1 Year
Printed in Korea
YOUR SAMSUNG ROOM AIR CONDITIONER
WARRANTY
Limited Warranty to Original Purchaser
Samsung will repair or replace, at our option, this product if found defective within the warranty
period beginning from the original date of purchase. This Samsung Product is warranted by
SAMSUNG ELECTRONICS CANADA Inc. against manufacturing defects in materials or
workmanship for the period specified.
Limited 5-Years Compressor Warranty
Within one year of purchase Samsung Electronics Canada Inc. will provide a replacement
compressor if it is found to be defective in material or workmanship. During the existing four
years (second through fifth year) Samsung Electronics Canada Inc. will provide a replacement
only, without charge, if it is found to be defective in material or workmanship. Labor to install
the compressor during these existing four years is not included in the warranty. All warranty
repairs must be performed by a Samsung Authorized Service Centre.
Obligation of the Original Owner
The original dated purchase receipt must be retained as proof of purchase and presented to
the Authorized Service Centre before warranty services are rendered.
Exclusions of the Warranty
This warranty does not cover damage due to accident, fire, flood and/or other Acts of God:
misuse, incorrect line voltage, improper installation, improper or unauthorized repairs,
commercial use, or damages which occur in shipping. Exterior and interior finish and plastic
parts, are not covered under this warranty, Customer adjustments which are explained in the
instruction manual are not covered under the terms of this warranty. This warranty will
automatically be voided for any unit found with a missing or altered serial number.
This warranty is valid only on products purchased and used in Canada.
SAMSUNG ELECTRONICS CANADA INC.
7037 Financial Drive, Mississauga, Ontario L5N 6R3
