FLOOR STANDING TYPE AIR CONDITIONER
(Cool)
OWNER'S
INSTRUCTIONS &
INSTALLATION
MANUAL
AP-3607BR

E-2
◆PREPARING YOUR AIR CONDITIONER
■Getting Started
■Remote Control - Buttons and Display
■Inserting the Remote Control Batteries
■Keeping the Remote Control
■Indoor Unit
■Outdoor Unit
■Control panel
■Setting the Time
◆OPERATING YOUR AIR CONDITIONER
■Operating Preparation
■Using the Control Panel on the Indoor Unit
■Using the Remote Control
■Selecting the Auto Operating Mode
■Starting to Cool
■Selecting the Turbo Operating Mode
■Selecting the Mild Operating Mode
■Removing Excess Humidity
■Ventilating Your Room
■Adjusting the Air Flow Direction Horizontally
■Adjusting the Air Flow Direction Vertically
◆PROGRAMMING YOUR AIR CONDITIONER
■Setting the Timer

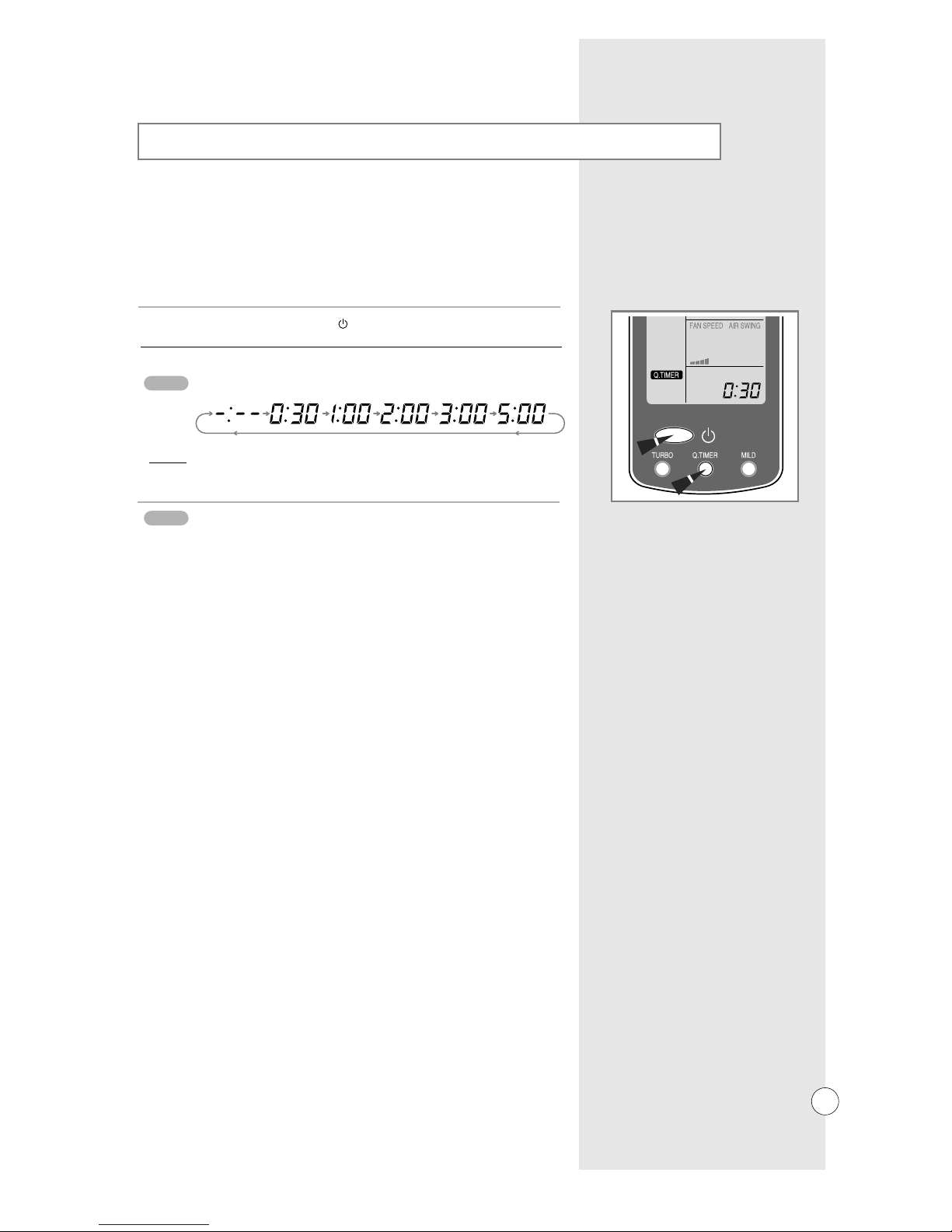

■Setting the Quick Timer
■Cancelling the Timer
■Cancelling the Quick Timer
◆RECOMMENDATIONS FOR USE
■Operating Recommendations
■Safety Precautions
■Temperature and Humidity Ranges
■Cleaning Your Air Conditioner
■Before Calling the After-Sales Service
■Technical Specifications
3
4
5
5
6
7
7
8
9
9
9
10
11
12
12
13
14
15
15
16
17
18
18
19
19
20
20
21
22
Contents

E-3
Getting Started
You have just purchased a packaged air conditioner and it has been installed by
your installation specialist.
Your Owner's Instructions contain much valuable information on using your
air conditioner.
Please take the time to read them as they will help you take full advantage
of the unit's features.
The booklet is organized as follows:
◆The following figures are shown on page 4, page 6 and page 7.
- Remote control(buttons and display)
- Indoor unit
- Outdoor unit
They will help you find the buttons and switches
and understand the symbols displayed.
◆In the main part of the document, you will find a series of step-by-step
procedures for each function available.
The illustrations in the step-by-step procedures use three different symbols:
PRESS PUSH HOLD DOWN

E-4
Remote Control - Buttons and Display
Setting display
-Indicator : TURBO, MILD,
Q.TIMER, Transmission,
Battery discharge.
Operating mode selection
Turbo setting
ON/OFF Button
Fan speed adjustment
Air flow adjustment
Timer setting/cancellation
Time adjustment
Timer adjustment
Operating mode/Temperature display :
-Mode indicators : AUTO, COOL, DRY,
FAN
Setting display :
-Fan speed
-Air flow direction
Mild setting(Automatic stop)
Q.Timer adjustment
Time/Timer display
-Current time
-Timer settings
Temperature adjustment

E-5
Open the control panel by pushing a part of it.
Put the remote control into the case.
Close the control panel by pushing a part of it in the direction
of the arrow until it clicks into place.
2
1
Keep the remote control in remote control case of the indoor unit
when it is not being used.
Inserting the Remote Control Batteries
Keeping the Remote Control
Push the battery cover on the rear of the remote control with your
thumb in the direction of the arrow.
1
2
3
You must insert or replace the remote control batteries when:
◆You purchase the air conditioner
◆The remote control does not work correctly
Use two LR03 1.5V batteries. Do not use old batteries, or
different kinds of batteries together. Batteries may not be
usable after 12 months though they have not been used.
IMPORTANT
Remote
control
case
When the following indication is displayed, replace the batteries
with a new set of it.
NOTE
Close the cover by sliding it back until it clicks into place.
Insert the two batteries, taking care to respect the polarities:
◆+ on the battery with + on the remote control
◆- on the battery with - on the remote control

E-6

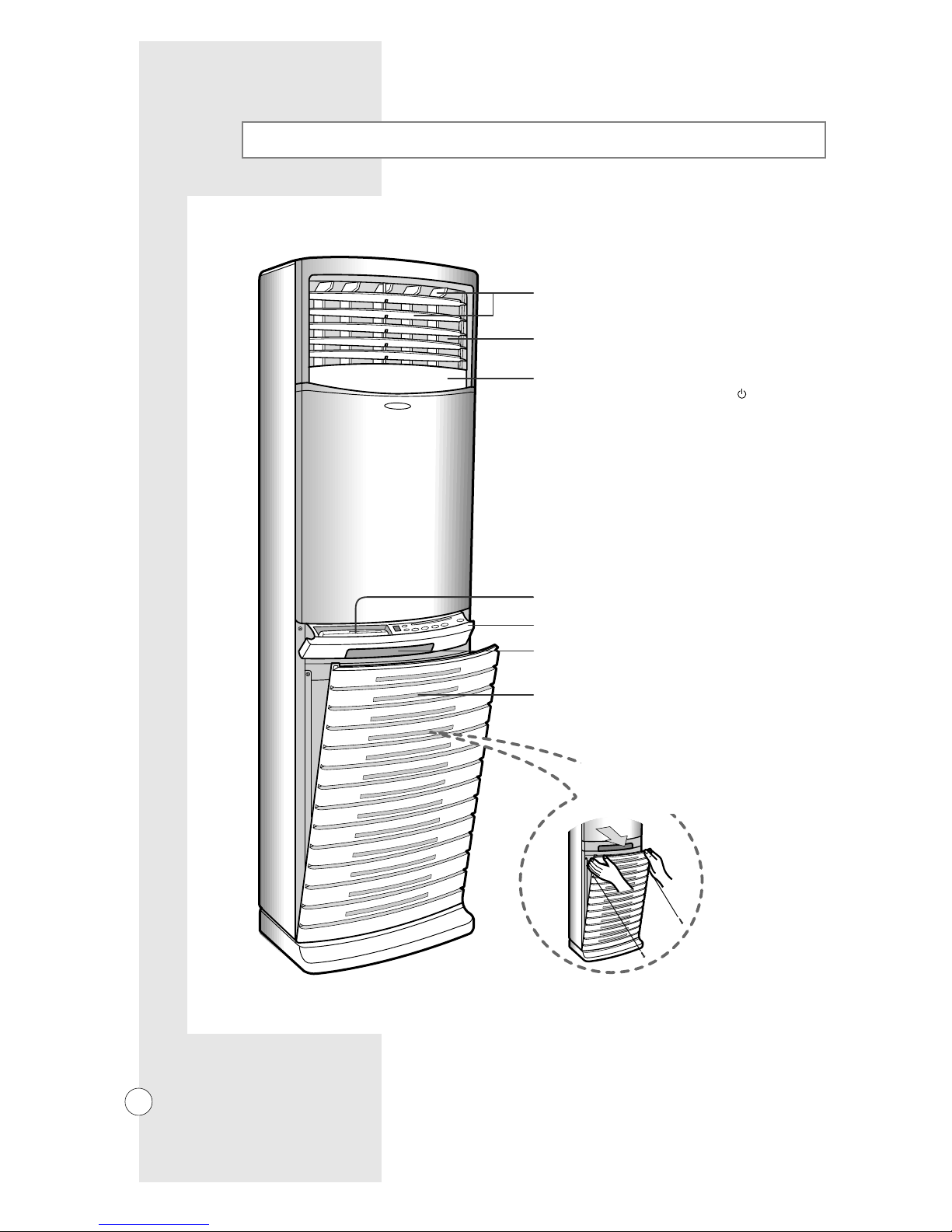

Indoor Unit
AIR FLOW(DIRECTION) ADJUSTING BLADE
AIR OUTLET
REMOTE CONTROL CASE
CONTROL PANEL
REMOTE CONTROL SENSOR
AIR INLET GRILLE
AUTO SHUTTER
Each time you can press the ON/OFF( )button,
it open or close automatically.
To disassemble the air inlet grille.
󹜺
Loosen two fixing screws of left and right.
Hold the upper part of the air inlet grille,
and then pull it lightly forward.

E-7
Outdoor Unit
ELECTRIC PARTS BOX
AIR OUTLET
CONNECTION VALVE
Control Panel
Temperature adjustment
Operating Light
ON/OFF Button
Fan Light Operating Light
Mild setting(Automatic stop) Fan Speed adjustment
Turbo setting
Operating Mode Selection
Temperature display
Open the control panel by pushing a part of it.

E-8
After setting the time, press the (time set) button one more time.
Result: The Time indicator stops flashing and the clock is started.
Insert the batteries.
Result: The TIME indicator flashes.
Your air conditioner contains a clock used to start or stop the unit
automatically at a given time.
You must set the time when you:
◆Purchase the air conditioner
◆Replace the batteries
Be sure to change the time in an area where summertime
is applied.
To set the time during the operation.
Open the lid on the rear side of the remote control, and press the
(time set) button using a tool with a sharp end point.
Result: The TIME indicator flashes.
Result: AM or PM are displayed to indicate whether the setting
corresponds to a time before or after midday.
3
2
◆Each time the (▲) button is pressed, the time increases by
one minute.
When the (▲) button is continually pressed, the time increases
by ten minutes.
◆Each time the (▼) button is pressed, the time decreases by
one minute.
When the (▼) button is continually pressed, the time decreases
by ten minutes.

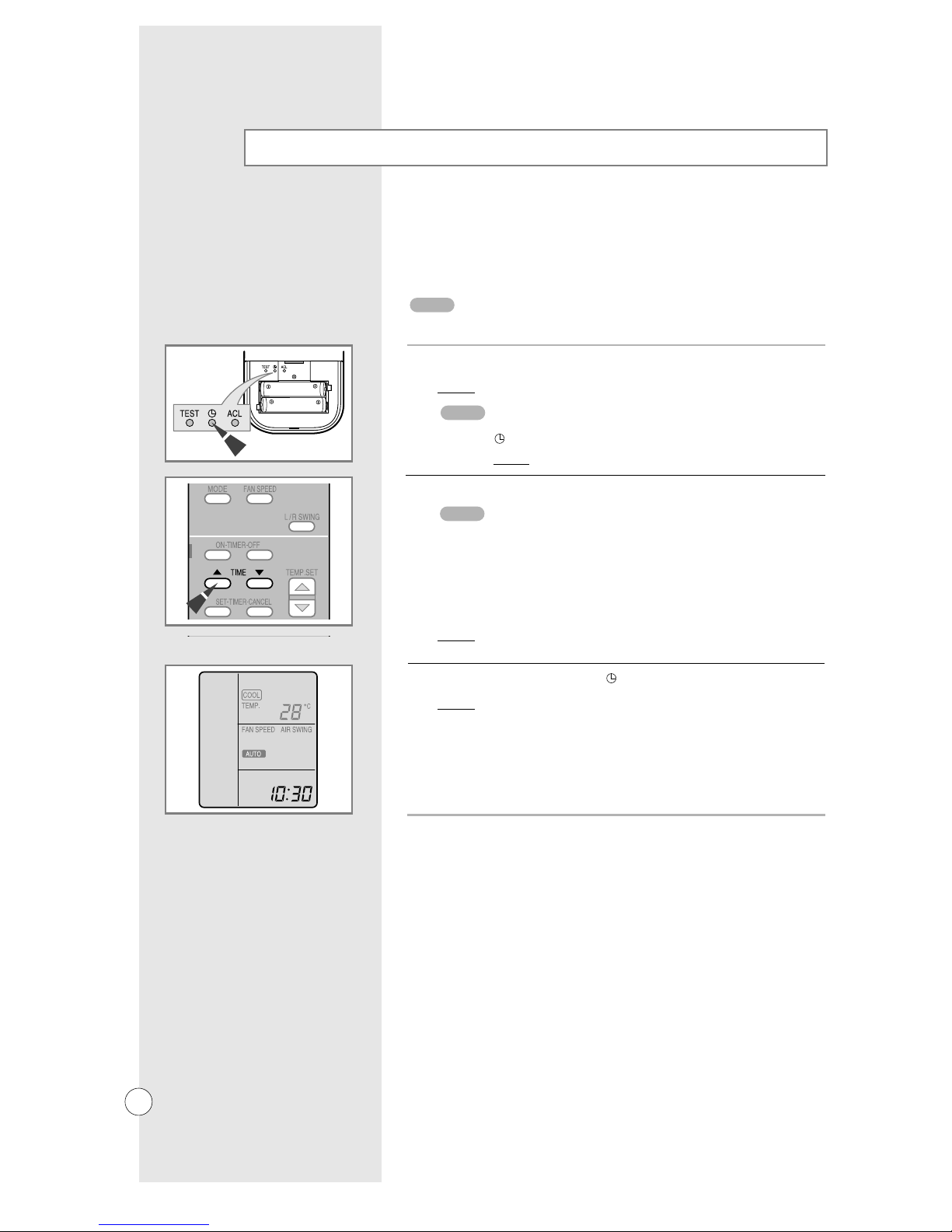

Setting the Time
NOTE
NOTE
NOTE
Press the TIME ▲or ▼buttons, and set the current time.
1

E-9
Exemple: Remote control broken or lost.
Open the control panel by pushing a part of it.
Turn the power switch on.
Result: The POWER light on the indoor unit switches on.
1
Remove a protective cover of the outdoor unit.
2
You cannot operate the timer function with indoor unit.
NOTE
Look around the indoor and outdoor units.
Confirm if any obstacles that may prevent the air flow are present near
the air conditioner.
Operating Preparation
To operate the unit, the power switch is fitted to the wall
must be set to ON
IMPORTANT
You can operate with indoor unit when you do not wish to or cannot
operate the air conditioner with the remote control.
You can : Adapt the auto operating, cooling, turbo operating, mild
operating, drying and fan settings to your specific
requirements ;
All air conditioner features can be controlled from your seat, by using
the remote control.
Using the Remote Control
You can : Adapt the auto operating, cooling, turbo operating, mild
operating, drying and fan settings to your specific
requirements ;
See pages 10 to 18 for further details.
Using the Control Panel on the Indoor Unit

E-10
You can start the air conditioner in AUTO mode
If necessary, press the ON/OFF( ) button.
Result: ◆The OPER. light on indoor unit switches on.
◆The operation mode previously set is displayed.
◆The indoor unit beeps twice.
◆The air conditioner starts up in the current.
1
The air conditioner is fitted with a protection feature
which prevents the unit from being damaged when
it is started immediately after being:
◆Switched on
◆Stopped
After a rest period of three minutes,
it will start up normally.
If the AUTO indicator is not displayed at the top of the remote control,
press MODE under the remote control flap one or more times until it
appears.
Result: ◆The indoor unit beeps each time you press MODE.
◆The air conditioner starts up in AUTO mode.
2
◆You can, however, change modes at any time when the
air conditioner is operating.
◆How to control the standard temperature.
When the unit is in automatic operation mode, the standard
temperature is automatically set.
However, the standard temperature can be adjusted up to ±2
˚C/
±4 ˚F by pressing the TEMP.SET ▲or ▼buttons depending
upon the user.
In AUTO mode, the optimum fan speed is selected automatically
and cannot be changed.
Selecting the Auto Operating Mode
IMPORTANT
NOTE
·Upward control by +2˚C/+4˚F from the standard temperature
·Upward control by +1˚C/+2˚F from the standard temperature
·Standard temperature
·Downward control by -1˚C/-2˚F from the standard temperature
·Downward control by -2˚C/-4˚F from the standard temperature
( )
( )
( )
( )
( )

E-11
Each time you change the temperature by 1 ˚C ,
the indoor unit beeps.
The air conditioner will only start cooling if the room temperature
is higher than the selected temperature.
The fan will, however, operate. During cooling,
the light switches on.
You must select the COOL mode if you wish to adjust the:
◆Cooling temperature
◆Fan speed when cooling
The air conditioner is fitted with a protection feature which
prevents the unit from being damaged when it is started
immediately after being:
◆Swithced on
◆Stopped
After a rest period of three minutes, it will start up normally.
If necessary, press the ON/OFF( ) button.
Result: ◆The OPER. light on the indoor unit switches on.
◆The operation mode previously set is displayed.
◆The indoor unit beeps twice.
◆The air conditioner starts up in the current mode.
1
Press MODE under the remote control flap one or more times until the
COOL indicator is displayed.
2
Select the temperature by pressing the TEMP.SET ▲or ▼buttons one
or more times until the required temperature is displayed.
Possible temperatures are between 18 ˚C(65˚F) and 30 ˚C(86˚F) inclusive.
3
Each time you change the fan setting, the indoor unit beeps.
Select the fan speed by pressing the FAN SPEED button one or more
times until the required setting is displayed:
Low
Medium
High
Natural
Auto
4
Control the air flow direction when necessary.
Refer to page 15.
5
Starting to Cool
IMPORTANT
NOTE
NOTE

E-12
The turbo cooling operation function provides heavy duty
cooling for 30 minutes regardless of the set temperature.
Therefore, you can instantly get cool in this operation mode when
you feel it is very hot in the room after returning home from outside.
After 30 minutes turbo operation, the unit returns automatically to the
operation mode previously set.
◆When the unit is in the turbo operation mode, the set temperature
and air flow quantity are automatically controlled. Therefore,
it is not necessary to make any separate selection.
◆Press the TURBO button again to cancel the turbo operation.
(Then the unit returns to the operation mode previously set.)
If necessary, press the ON/OFF( ) button.
1
Check to see whether the operation mode is positioned at
"AUTO" or "COOL" ; the turbo cooling operation cannot be selected when
the unit is in the "DRY" or "FAN" operation mode.
2
Press the TURBO button.
3
The mild cooling operation function provides automatic control
of the set temperature and air flow quantity to ensure pleasant operation
during, sleeping or when used by elderly people.
The mild operation function stops automatically after operating for three
hours.
◆When the unit is in the mild operation mode, the set temperature
and air flow quantity are automatically controlled.
Therefore, it is not necessary to make any separate selection.
◆Press the MILD button again to cancel the mild operation.
(Then the unit returns to the operation mode previously set.)
If necessary, press the ON/OFF( ) button.
1
Check to see whether the operation mode is positioned at
"AUTO" or "COOL" ; the mild cooling operation cannot be selected when
the unit is in the "DRY" or "FAN" operation mode.
2
Press the MILD button.
3
Result: ◆The OPER. light on the indoor unit switches on.
◆The operation mode previcusly set is displayed.
◆The indoor unit beeps twice.
◆The air conditioner starts up in the current mode.
Result: ◆The OPER. light on the indoor unit switches on.
◆The operation mode previcusly set is displayed.
◆The indoor unit beeps twice.
◆The air conditioner starts up in the current mode.
Selecting the Turbo Operating Mode
Selecting the Mild Operating Mode
NOTE
NOTE

E-13

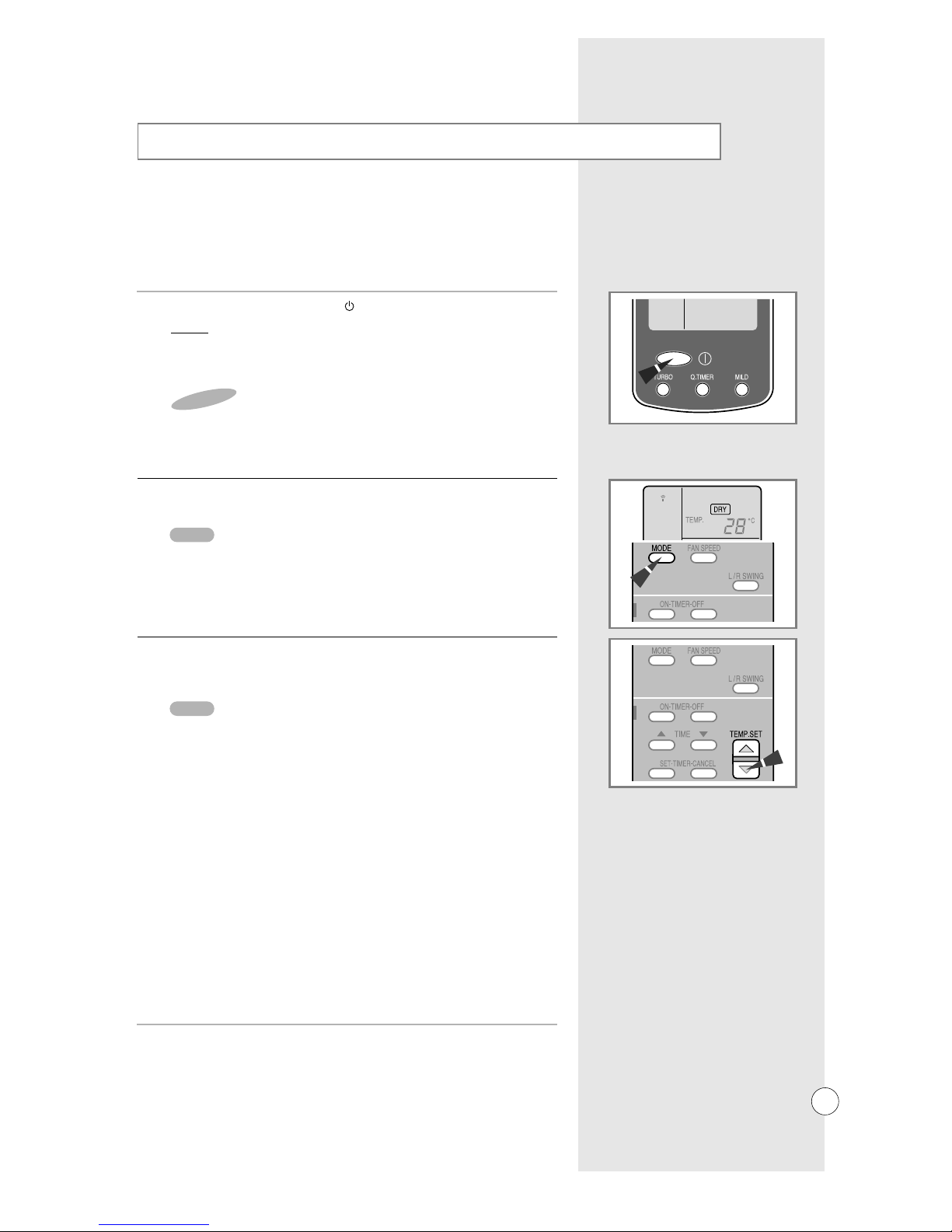

If the atmosphere in your room is very humid or damp, you can remove
excess humidity without lowering the room temperature excessively.
The air conditioner is fitted with a protection feature which
prevents the unit from being damaged when it is started
immediately after being:
◆Switched on
◆Stopped
After a rest period of three minutes, it will start up normally.
Each time you change the temperature by 1
˚C , the indoor
unit beeps.
When the unit is in the dry operation mode, the air flow quantity is
automatically set. Therefore, it is not necessary to select the air
flow quantity separately.
If necessary, press the ON/OFF( ) button.
Result: ◆The OPER. light on the indoor unit switches on.
◆The operation mode previously set is displayed.
◆The indoor unit beeps twice.
◆The air conditioner starts up in the current mode.
1
Press MODE under the remote control flap one or more times until the
DRY indicator is displayed.
2
Select the temperature by pressing the TEMP.SET ▲or ▼buttons one
or more times until the required temperature is displayed.
Possible temperatures are between 18 ˚C(65˚F) and 30 ˚C(86˚F) inclusive.
3
Removing Excess Humidity
IMPORTANT
NOTE
NOTE

E-14
If the atmosphere in your room is stale, you can ventilate it using the
Fan feature.
When the unit is in the fan operation mode, the temperature is
automatically set.
Therefore, it is not necessary to set the temperature separately.
Each time you change the fan setting, the indoor unit beeps.
Press MODE under the remote control flap one or more times until
the FAN indicator is displayed.
2
Select the fan speed by pressing the FAN SPEED button one or more
times until the required setting is displayed:
3
If necessary, press the ON/OFF( ) button.
Result: ◆The OPER. light on the indoor unit switches on.
◆The operation mode previously set is displayed.
◆The indoor unit beeps twice.
◆The air conditioner starts up in the current mode.
1
Ventilating Your Room
NOTE
NOTE
Low
Medium
High
Natural

E-15
Depending on the position of the indoor unit, you can adjust
the position of the air flow blades on the top of the unit,
thus increasing the efficiency of the air conditioner.
Press the L/R SWING button on the remote control.
Result: The blades are moved between right and left.
Set the horizontal blades in the disired direction.
1
1
To stop the blades, press the L/R SWING button.
2
Just as the air flow blades can be adjusted vertically, they can also be
adjusted by the hands.
◆Effective control of air flow direction.
·Adjust the blades to face upward for cooling.
Adjusting the Air Flow Direction Horizontally
Adjusting the Air Flow Direction Vertically
To set to the required position, press the L/R SWING button
when the blades are in the required position,
NOTE
NOTE

E-16
You can turn the air conditioner on or off automatically.
Example: You wish to start cooling your room before you
return from work; you decide to:
◆Set the air conditioner going at 5:30 p.m.
◆Switch it off at 11:30 p.m.
You can hold the button down to scroll rapidly through the figures.
You can set:
◆The start time only
◆The stop time only
◆Both the start and stop times
◆Refer to page 18 for detailed information about the method of
cancelling the timer.
The timer function allows reserved operation using only
the remote control.
3
Check that the current time is correct before setting the
timer; if not, refer to page 8.
Press the ON/OFF( ) button.
You cannot make any reservation in the "off" state.
Press the TIMER ON button.
Result: ◆The TIMER indicator is displayed.
◆The ON indicator flashes.
◆The preset time is displayed.
1
5When you are satisfied with the start time, press SET-TIMER.
Result: ◆The indoor unit beeps.
◆The TIMER light switches on.
◆The unit is switched off and will start up automatically
when the start time is reached.
6Press the TIMER OFF button.
7Indicate the time at which you wish to stop the air conditioner; to do so,
follow steps 4 above.
8When you are satisfied with the stop time, press SET-TIMER to transmit
the settings to the indoor unit.
Result: The indoor unit beeps.
4Press the TIME ▲or ▼buttons to set the "on time"("off time").
Result: AM or PM are displayed to indicate whether the setting
corresponds to a time before or after midday.
Press MODE under the remote control flap one or more times until the
COOL indicator is displayed.
2
Setting the Timer
IMPORTANT
NOTE
NOTE

E-17
The quick timer function allows reserved operation using only one button.
Therefore, it is very convenient especially for children and elderly people to
make reserved operation using this function. When the reserved operation is
too complex presenting difficulty in use. You can set reservation in the range
of thirty minutes - one hour - two hours - three hours - five hours. When the
set period has elapsed, the operation stops automatically.
Press the Q. TIMER button.
Each time the button is pressed, the following are displayed sequentially:
Result: ◆The Q.TIMER indicator is displayed.
◆When the timer operation function starts, the remaining
time is displayed on the remote control.
2
Setting the Quick Timer
NOTE
The quick timer function allows reserved operation using only
the remote control.
NOTE
If necessary, press the ON/OFF( ) button and select the operating mode.
1

E-18
If you no longer wish to use the timer that you have set, you can cancel
it at any time.
2Press the TIMER-CANCEL
Result: ◆The indoor unit beeps.
◆The TIMER light switches off if no stop time is currently set.
◆The unit operates normally.
4Press the TIMER-CANCEL
Result: ◆The indoor unit beeps.
◆The TIMER light switches off.
◆The unit operates normally.
To cancel the start time, press TIMER ON.
Result: The ON indicators flash.
1
To cancel the stop time, press TIMER OFF.
Result: The OFF indicators flash.
3
If you no longer wish to use the Quick timer function, you can cancel
it at any time.
Press the Q.TIMER button.
Set the button so that (- : - -) is displayed. After the elapse of five seconds,
the current time is displayed, and the quick timer is cancelled.
Result: ◆The indoor unit beeps.
◆The Q.TIMER indicator is no longer displayed.
◆The unit operates normally.
Cancelling the Timer
Cancelling the Quick Timer

E-19
Operating Recommendations
Here are a few recommendations that you should follow when using your
air conditioner.
Topic Recommendation
If a power failure occurs while the air conditioner is operating, it is
switched off. When the power returns, you must press
ON/OFF
( )
to restart it.
Power failure
Safety Precautions
The following safety precautions should be taken when using your air
conditioner.
Make sure that the indoor unit is correctly ventilated at all times; do not
place clothing or other materials over it.
1
Never spill liquids of any kind into the indoor unit. Should this happen,
turn the power switch off and contact your installation specialist.
2
Do not insert anything between the air outlet blades as the inner fan may
be damaged and you may be hurt. Particularly, keep children away from
the indoor unit.
3
Always ensure that the power cable is in good condition. Make sure that
it is not walked on or damaged by items placed on or against it.
4
Do not overload wall sockets or extension cables.5
Do not place any obstacles in front of the outdoor unit.6
If the remote control will not be used for a long time, remove the batteries,
and keep in remote control case.
7
When you intend to reoperate AIR CONDITIONER, it will be operated
after 3 minutes from its stop.
8

E-20
Mode Outdoor Temperature Indoor Temperature Indoor Humidity
Cooling 21˚C to 43˚C approx. 18˚C to 32˚C approx. 80% or less
(70˚F to 109˚F approx.) (65˚F to 90˚F approx.) If the unit is used for long
periods at a high humidity
level, water may condense
on and drip from the
surface of the unit.
Drying 18˚C to 43˚C approx. 18˚C to 32˚C approx. -
(65˚F to 109˚F approx.) (65˚F to 90˚F approx.) If the unit is used for long
periods at a high humidity
level, water may condense
on and drip from the
surface of the unit.
Temperature and Humidity Ranges
Cleaning Your Air Conditioner
The following table indicates the temperature and humidity ranges,
within which the air conditioner can be used.
To get the best possible use out of your air conditioner, you must clean
it regularly to remove the dust that accumulates on the air filter.
Before cleaning your air conditioner,
ensure that it is switched off.
1Loosen two fixing screws of left and right. Pull the inlet grille lightly and
pull out the air filter in an upward direction to release them.
※If the cooling operation is used at over 33˚C/92˚F(indoor temperature) then,
does not a full capacity.
2Remove all dust on air filters with a vacuum cleaner or brush. In case
of serious dust accmulation, put the dust filter in warm detergent water
and shake it vertically.
3Dry the air filter.
IMPORTANT
If you have not used the air conditioner for a long period of time:
◆Check that the air filter is clean and remove any dust
◆Set the fan going for three to four hours to dry the inside
of the air conditioner thoroughly
◆Turn the switch off after stopping the operation
◆Cover the outdoor unit with a protective cover.
4When you have finished, insert the bottom part of the filters into
their slot and push down until they click into place.
5Clean the front panel with the damp cloth and mild detergent (do not
use benzene, solvents or other chemicals).
NOTE
