APV36M0 Series
Air Conditioner
user & installation manual
imagine the possibilities
Thank you for purchasing this Samsung product.
To receive more complete service, please
register your product at
www.samsung.com/register
This manual is made with 100% recycled paper.
EDB98-34573A(1)
Mirage_AP36M0@_IBIM_E_34573A(1).indd 57 2012-02-21 오후 1:10:05

2
Features of your new air conditioner
Environment-friendly air conditioner
Your environment-friendly air conditioner has achieved not only high efficiency, low noise, and energy saving technology but
also certified RoHS technology.
Energy saving technology with S-inverter system
The S-inverter system that changes the capacity of the air conditioner from 10% to 160% with one compressor depending
on the usage condition will provide optimal cooling performance with less energy consumption by reducing unnecessary
electric consumption.
Auto air flow blades
The auto air flow blade that opens and closes according to the on or off operation of the air conditioner increases the usage
convenience and it also prevent dust from coming into the air conditioner when the air conditioner is not used for a long
term.
Powerful speed/Convenient remote operation
The speed operation will provide you with quick cooling and heating for 30min and the remote operation will provide you
with cooling even for remote area.
High efficient purifying function for four seasons
Since the Purity function can operate separately, the energy consumption and operation noise can be further reduced.
When operating the air conditioner, the Purity function works continuously using a sterilization function that removes
harmful substances from the air and a neutralizing active oxygen function that will provide you with a healthy and clean
environment.
Mirage_AP36M0@_IBIM_E_34573A(1).indd 2 2012-02-21 오후 1:08:23

3
Contents
Safety precautions ................................................................................................ 4
Checking before use .............................................................................................. 8
Using indoor unit ...................................................................................................... 8
Storing indoor unit ..................................................................................................... 8
Using outdoor unit ..................................................................................................... 8
Installing outdoor unit ................................................................................................. 8
Checking auxiliary power switch ....................................................................................... 9
Operational temperature and humidity range .......................................................................... 9

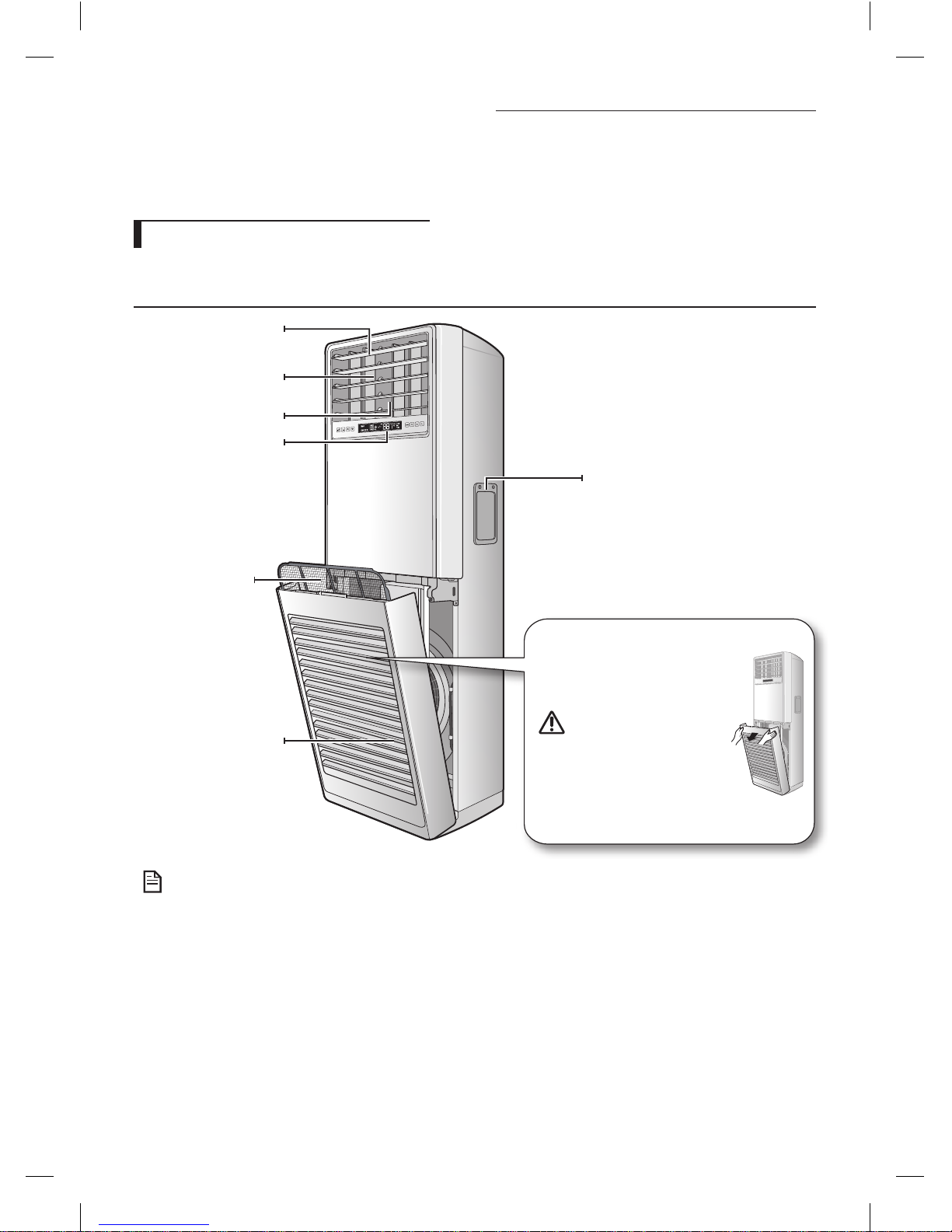

Viewing your air conditioner .................................................................................... 10

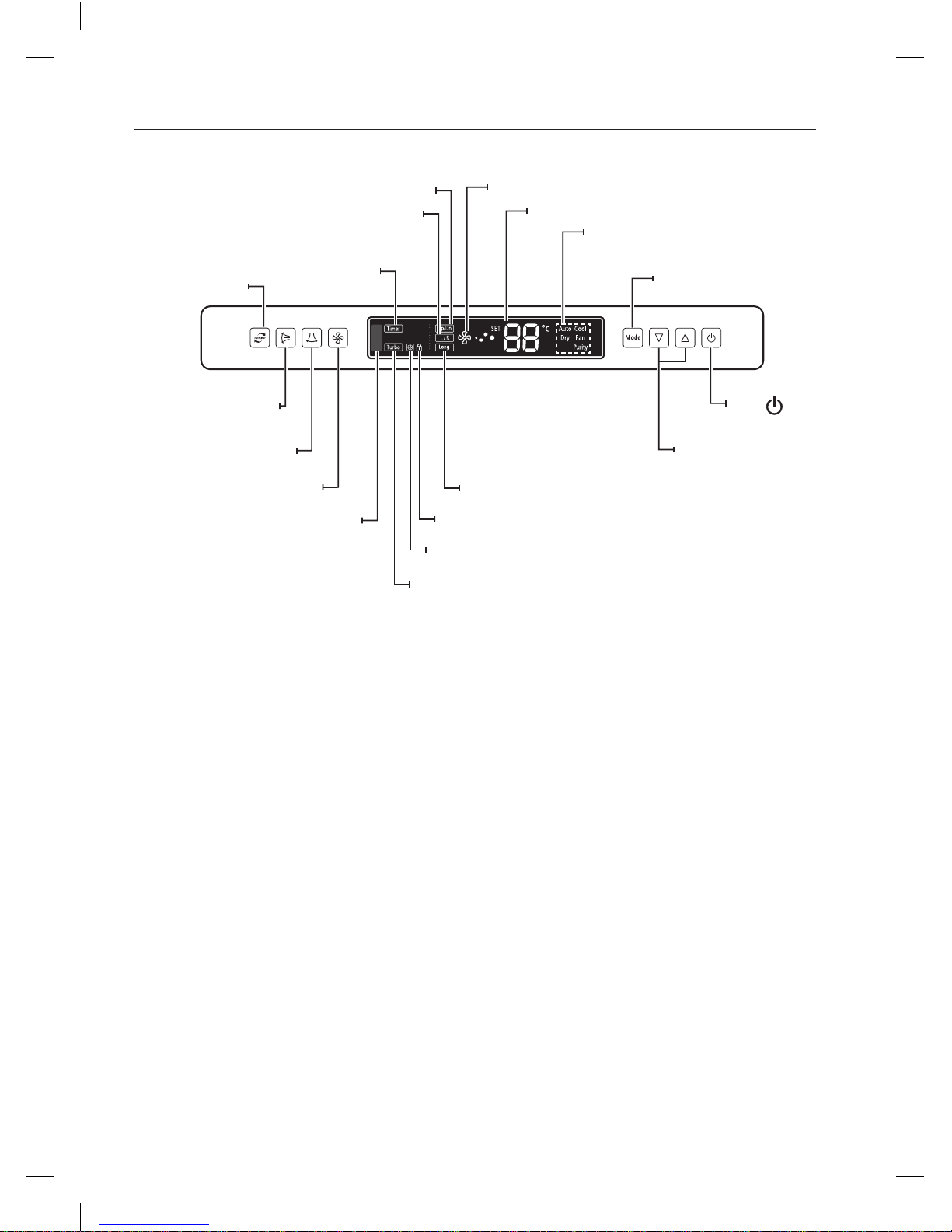

Checking the indoor unit and display ................................................................................. 10
Checking the remote controller ....................................................................................... 12
Operating basic function ........................................................................................ 14
Turning the air conditioner on and off ................................................................................. 14
Selecting operation mode ............................................................................................ 14
Using advanced functions ....................................................................................... 18
Using the Purity function ............................................................................................. 18
Using the Turbo function .............................................................................................. 19
Using the Long function .............................................................................................. 20
Adjusting the air flow direction ....................................................................................... 21
Setting timer ......................................................................................................... 23
Using the air conditioner with the control panel ....................................................................... 26
Locking the control panel ............................................................................................. 27
Cleaning and maintaining the air conditioner .................................................................... 28
Cleaning the exterior ................................................................................................. 28
Cleaning the filter ..................................................................................................... 28
Maintaining your air conditioner ...................................................................................... 29
Appendix . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Troubleshooting ...................................................................................................... 31
Safety precautions .............................................................................................. 33
Installing the air conditioner ..................................................................................... 35
Caution for installation ............................................................................................... 35
Installation procedure and method ................................................................................... 36
Pump down procedure (When removing the product) ................................................................ 41
Electrical work ........................................................................................................ 41
How to connect your extended power cables .................................................................... 53
Installing the interface module .................................................................................. 55
Installation procedure and method ................................................................................... 55
User manual
Installation manual
Mirage_AP36M0@_IBIM_E_34573A(1).indd 3 2012-02-21 오후 1:08:24

4
Safety precautions
These warning signs are here to prevent injury to you and others. Please follow them carefully.
Important safety symbols and precautions :
WARNING Hazards or unsafe practices that may result in severe personal injury or death.
CAUTION Hazards or unsafe practices that may result in minor personal injury or property damage.
Follow directions.
Do NOT attempt.
Make sure the machine is grounded to prevent electric shock.
Unplug the power plug from the wall socket.
Do NOT disassemble.
FOR INSTALLATION WARNING
Plug the power cord into a wall socket with the power specifications of the product or higher and use the socket
for this appliance only. In addition, do not use an extension cord.
 Sharing a wall socket with other appliances using a power strip or extending the power cord may result in electric
shock or fire.
 Do not use an electric transformer. It may result in electric shock or fire.
 If the voltage/frequency/rated current condition is different, it may cause fire.
The installation of this appliance must be performed by a qualified technician or service company.
 Failing to do so may result in electric shock, fire, explosion, problems with the product, or injury.
Install a switch and circuit breaker dedicated to the air conditioner.
 Failing to do so may result in electric shock or fire.
Fix the outdoor unit firmly so that the electric part of the outdoor unit is not exposed.
 Failing to do so may result in electric shock or fire.
Do not install this appliance near a heater, inflammable material. Do not install this appliance in a humid, oily or
dusty location, in a location exposed to direct sunlight and water (rain drops). Do not install this appliance in a
location where gas may leak.
 This may result in electric shock or fire.
Never install the outdoor unit in a location such as on a high external wall where it could fall.
 If the outdoor unit falls, it may result in injury, death or property damage.
This appliance must be properly grounded. Do not ground the appliance to a gas pipe, plastic water pipe, or
telephone line.
 Failing to do so may result in electric shock, fire, and explosion, or other problems with the product.
 Never plug the power cord into a socket that is not grounded correctly and make sure that it is in accordance with
local and national codes.
User manual
Mirage_AP36M0@_IBIM_E_34573A(1).indd 4 2012-02-21 오후 1:08:24

5
FOR INSTALLATION CAUTION
This appliance should be positioned in such a way that it is accessible to the power plug.
 Failing to do so may result in electric shock or fire due to electric leakage.
Install your appliance on a level and hard floor that can support its weight
 Failing to do so may result in abnormal vibrations, noise, or problems with the product.
When installing the outdoor unit on the street, make sure to install it on the place with height over 2m or on the
place where warm air from the outdoor unit does not blow directly to the pedestrian.
 This is a policy on the architectural standards and it must be followed.
Install the draining hose properly so that water is drained correctly.
 Failing to do so may result in water overflowing and property damage.
FOR POWER SUPPLY WARNING
When the circuit breaker is damaged, contact your nearest service center.
Do not pull or excessively bend the power line. Do not twist or tie the power line. Do not hook the power line
over a metal object, place a heavy object on the power line, insert the power line between objects, or push the
power line into the space behind the appliance.
 This may result in electric shock or fire.
FOR POWER SUPPLY CAUTION
When not using the air conditioner for a long period of time or during a thunder/lightning storm, cut the power
at the circuit breaker.
 Failing to do so may result in electric shock or fire.
FOR USING WARNING
If the appliance is flooded, please contact your nearest service center.
 Failing to do so may result in electric shock or fire.
If the appliance generates a strange noise, a burning smell or smoke, unplug the power plug immediately and
contact your nearest service center.
 Failing to do so may result in electric shock or fire.
In the event of a gas leak (such as propane gas, LP gas, etc.), ventilate immediately without touching the power
line. Do not touch the appliance or power line.
 Do not use a ventilating fan.
 A spark may result in an explosion or fire.
To reinstall the air conditioner, please contact your nearest service center.
 Failing to do so may result in problems with the product, water leakage, electric shock, or fire.
 A delivery service for the product is not provided. If you reinstall the product in another location, additional
construction expenses and an installation fee will be charged.
 Especially, when you wish to install the product in an unusual location such as in an industrial area or near the
seaside where it is exposed to the salt in the air, please contact your nearest service center.
Mirage_AP36M0@_IBIM_E_34573A(1).indd 5 2012-02-21 오후 1:08:25

6
Safety precautions
Do not touch the power plug or the circuit breaker with wet hands.
 This may result in electric shock.
Do not strike or pull the air conditioner with excessive force.
 This may result in fire, injury, or problems with the product.
Do not place an object near the outdoor unit that allows children to climb onto the machine.
 This may result in children seriously injuring themselves.
Do not turn the air conditioner off with the circuit breaker while it is operating.
 Turning the air conditioner off and then on again with the circuit breaker may cause a spark and result in electric
shock or fire.
After unpacking the air conditioner, keep all packaging materials well out of the reach of children, as packaging
materials can be dangerous to children.
 If a child places a bag over his/her head, it may result in suffocation.
Do not insert your fingers or foreign substances into the outlet when the air conditioner is operating.
 Take special care that children do not injure themselves by inserting their fingers into the product.
Do not insert your fingers or foreign substances into the air inlet/outlet of the air conditioner.
 Take special care that children do not injure themselves by inserting their fingers into the product.
Do not use this air conditioner for long periods of time in badly ventilated locations or near infirm people.
 Since this may be dangerous due to a lack of oxygen, open a window at least once an hour.
If any foreign substance such as water has entered the appliance, cut the power by unplugging the power plug
and turning the circuit breaker off and then contact your nearest service center.
 Failing to do so may result in electric shock or fire.
Do not attempt to repair, disassemble, or modify the appliance yourself.
 Do not use any fuse (such as cooper, steel wire, etc.) other than the standard fuse.
 Failing to do so may result in electric shock, fire, problems with the product, or injury.
FOR USING CAUTION
Do not place objects or devices under the indoor unit.
 Water dripping from the indoor unit may result in fire or property damage.
Check that the installation frame of the outdoor unit is not broken at least once a year.
 Failing to do so may result in injury, death or property damage.
Do not stand on top of the appliance or place objects (such as laundry, lighted candles, lighted cigarettes,
dishes, chemicals, metal objects, etc.) on the appliance.
 This may result in electric shock, fire, problems with the product, or injury.
Do not operate the appliance with wet hands.
 This may result in electric shock.
Do not spray volatile material such as insecticide onto the surface of the appliance.
 As well as being harmful to humans, it may also result in electric shock, fire or problems with the product.
Mirage_AP36M0@_IBIM_E_34573A(1).indd 6 2012-02-21 오후 1:08:26

7
Do not drink the water from the air conditioner.
 The water may be harmful to humans.
Do not apply a strong impact to the remote controller and do not disassemble the remote controller.
Do not touch the pipes connected with the product.
 This may result in burns or injury.
Do not use this air conditioner to preserve precision equipment, food, animals, plants or cosmetics, or for any
other unusual purposes.
 This may result in property damage.
Avoid directly exposing humans, animals or plants from the air flow from the air conditioner for long periods of
time.
 This may result in harm to humans, animals or plants.
FOR CLEANING WARNING
Do not clean the appliance by spraying water directly onto it. Do not use benzene, thinner or alcohol to clean
the appliance.
 This may result in discoloration, deformation, damage, electric shock or fire.
Before cleaning or performing maintenance, unplug the air conditioner from the wall socket and wait until the
fan stops.
 Failing to do so may result in electric shock or fire.
FOR CLEANING CAUTION
Take care when cleaning the surface of the heat exchanger of the outdoor unit since it has sharp edges.
 To avoid cutting your fingers, wear thick cotton gloves when cleaning it.
Do not clean the inside of the air conditioner by yourself.
 For cleaning inside the appliance, contact your nearest service center.
 When cleaning the internal filter, refer to the descriptions in the "Cleaning and maintaining the air conditioner"
section.
 Failure to do may result in damage, electric shock or fire.
Mirage_AP36M0@_IBIM_E_34573A(1).indd 7 2012-02-21 오후 1:08:26

8
Checking before use
Using indoor unit
Make sure that curtain does not block the air inlet.
 It may decrease cooling performance by blocking air circulation.
In Cool mode, set the appropriate desired temperature.
 If the desired temperature is too low, it may be harmful for human body and power consumption will also increase. Set
the desired temperature about 5°C lower than the outdoor temperature.
When cooling the room, use air conditioner and fan together to save energy.
 When the air conditioner is used with fan, cooling will be more effective and energy can be saved.
When the air conditioner is operating, close the doors and windows.
 When the air conditioner is used with doors and windows open, cooling effect will decrease.
 If you use the air conditioner for over an hour, open the window to ventilate the air about once every hour.
Install the product away from sunlight or heating devices.
 Close the curtain when the sun shines.
 Do not use any heating devices during cooling operation. Cooling effect will decrease.
Storing indoor unit
Dry the air conditioner thoroughly by operating Fan mode for 3 to 4 hours.
Stop the operation and disconnect the power plug.
Do not move the product on your own. Pipe may get loose or pipe can get damaged and cause refrigerant leakage.
Using outdoor unit
Take away any covers or barriers.
 It may cause product failure, and poor performance in cooling by blocking air flow.
Installing outdoor unit
Install the outdoor unit in well ventilated area with no sunlight. If sunlight is unavoidable, install a sunshade.
CAUTION
Mirage_AP36M0@_IBIM_E_34573A(1).indd 8 2012-02-21 오후 1:08:26

9
Checking auxiliary power switch
Turn on the auxiliary power switch which is installed separately.
1phase circuit breaker 3phase 4wire circuit breaker
ON
Auxiliary power switch(NFB, ELB)
• Auxiliary power switch is not included in the package. Purchase and install it separately.
• Auxiliary power switch is a device for preventing over-current or short circuit. When not using the auxiliary power
switch for a long term, it should be turned off.
• If ELB has already been installed in the switch box of the building, you don’t need to install the auxiliary power
switch.
Operational temperature and humidity range
When the air conditioner operates outside of temperature and humidity range indicated below, protective device may
activate and stop the operation. Especially, when installing and performing the trial operation of the air conditioner in the
winter, start the operation 1 hour after you supply power to the unit. Product malfunction may occur due to the drastic
temperature difference between indoor and outdoor room.
Mode Indoor temperature Outdoor temperature Indoor humidity
Cool 21°C~32°C -5°C~43°C Relative humidity 80% or less
Dry 21°C~32°C 21°C~43°C -
 If the air conditioner operates in cooling mode for long period of time in high humidity area, dew may be formed.
NOTE
Mirage_AP36M0@_IBIM_E_34573A(1).indd 9 2012-02-21 오후 1:08:26

10
Viewing your air conditioner
Congratulations on the purchase of the air conditioner. We hope you enjoy the features of your air conditioner and stay cool
with optimal efficiency.
Please read the manual to get started and to make the best use of the air conditioner.
Checking the indoor unit and display
Carefully unpack your air conditioner and check the indoor unit to make sure it is not damaged.
Main parts
Air flow blade
(up/down orientation)
Heat exchanger cleaning section
Air flow blade
(right/left orientation)
Control panel
Air intake
Air filter
To open the panel
 Hold the upper part of the
panel, then pull it slightly
forward.
• Don’t open the panel
when it is operating. It
may cause a malfunction
or an electrical hazard.
CAUTION
Air outlet
Your air conditioner may slightly look different from illustration shown above depending on your model.
NOTE
Mirage_AP36M0@_IBIM_E_34573A(1).indd 10 2012-02-21 오후 1:08:27

11
Control panel
You can operate the air conditioner with the control panel when you can’t or don’t want to operate the air conditioner with
the remote controller. (see pages 26~27)
Air swing (Up/Down) button
Fan speed indicator
Air swing (Left/Right) button
Fan speed adjustment button
Temperature adjustment
buttons
Power
button
Timer indicator
Turbo button
Outdoor unit operation indicator
Turbo indicator
Air swing (Left/Right) indicator
Air swing (Up/Down) indicator
Long function indicator
Lock indicator
Temperature setting
Operation mode indicators
Mode selection button
Remote controller receiver
Mirage_AP36M0@_IBIM_E_34573A(1).indd 11 2012-02-21 오후 1:08:28

12
Viewing your air conditioner
Checking the remote controller
You can activate the air conditioner by pointing the remote controller away from it. When using the remote controller, always
point it directly at the air conditioner.
Remote controller display
Power
Turn on/off the air conditioner
Temp + -
Increase/Decrease the temperature
by 1°C
Turbo/Long
Set the Turbo/Long function
Purity
Set the Purity function
Air swing(Left/Right)
Activate/Deactivate air flow blade
movement automatically right and left
Cancel
Cancel the timer
Set
Set the timer
Fan
Adjust how much air flows through
the air conditioner with the 4 different
fan speeds such as Auto/Low/
Medium/High
Time Up
Increase the time when
setting the timer
Time Down
Decrease the time when
setting the timer
Air swing(Up/Down)
Activate/Deactivate air flow blade
movement automatically up and
down
Mode
Set one of the 4 operation modes (see
pages 14~17 for instructions)
On Timer
Set the On Timer on
Off Timer
Set the Off Timer on
This button is not functional
• When you press the button, a short ring will sound and a transmit indicator( )appears on the remote controller
display.
• Heater and Smart Saver functions are not supported by this model.
• Remote controller will remember the most recent temperature setting if you turn off the air conditioner and then
turn it on again.
NOTE
Mirage_AP36M0@_IBIM_E_34573A(1).indd 12 2012-02-21 오후 1:08:29

13
Remote controller display
Air swing indicator
Transmit indicator
Set temperature/time
indicator
Fan speed indicator
Auto
Low
Medium
High
Low battery indicator
On/Off timer indicator
Operation mode indicator
Using the remote controller
Point the remote controller towards the remote controller receiver of the indoor unit (see page 11 to find the location of
remote controller receiver).
When you properly press the button on the remote controller, you will hear ring sound from the indoor unit.
• The signal may not be received well of electronic lighting style fluorescent lamps such as inverter fluorescent lamps
are in the same space.
• If other electrical products operate by the remote controller, call your nearest contact center.
Changing the batteries
If low battery indicator( ) is on the remote control display, change batteries. It needs two 1.5V batteries.(AAA type).
Installing the batteries
1. Push the lever as arrow
indicates on the rear side of the
remote controller and pull up.
2. Insert two AAA batteries.
Check and match the “+” and “-”
signs accordingly. Make sure you
have inserted the batteries in
correct position.
3. Close the cover by place it back
to its original position.
You should hear click sound
when the cover is locked
properly.
NOTE
Mirage_AP36M0@_IBIM_E_34573A(1).indd 13 2012-02-21 오후 1:08:30

14
Operating basic function
Turning the air conditioner on and off
Press the Power button on the remote controller.
You will hear a ring and the air flow blade will move automatically when the
air conditioner is properly on. The air conditioner will operate in the most
recent operation mode used or Auto mode.
When you turn off the air conditioner, air flow blade will stop moving.
Turning on/off your air conditioner without the remote controller.
You can operate your air conditioner by pressing the Power button on the indoor unit control panel.
Selecting operation mode
Auto
In Auto mode, the air conditioner will automatically set the temperature and fan speed depending on the room temperature
detected by the room temperature sensor.
1. Turn on the air conditioner.
Press the Power button on the remote controller.
2. Set the operation mode.
Press the Mode button on the remote controller until Auto mode and
Auto fan speed indicator appear on the remote controller display.
The air conditioner will automatically set the operation mode to Cool
depends on the room temperature.
Each time you press the Mode button, the mode will change in
order of Auto, Cool, Dry and Fan.
3. Adjust the temperature (if you need to increase or decrease the room
temperature).
Press the Temp + or - button on the remote controller to increase or
decrease the desired temperature.
You can set the desired temperature between the range of 18°C~30°C.
You can increase/decrease the temperature by 1°C.
• While the air conditioner is already operating in another mode, press the Mode button until Auto mode indicator
appears on the remote controller display.
• When you are using the remote controller, make sure correct indicator which matches your selection appears on
the remote controller display.
• Air flow can be adjusted manually (see pages 21 ~ 22 for instructions).
NOTE
NOTE
NOTE
NOTE
Mirage_AP36M0@_IBIM_E_34573A(1).indd 14 2012-02-21 오후 1:08:33

15
Cool
In Cool mode, the air conditioner will cool your room. You can adjust the temperature and the fan speed to feel cooler in hot
season.
1. Turn on the air conditioner.
Press the Power button on the remote controller.
2. Set the operation mode.
Press the Mode button on the remote controller until Cool mode
indicator appears on the remote controller display.
The air conditioner operates in Cool mode and it will lower the
temperature in your room.
Each time you press the Mode button, the mode will change in
order of Auto, Cool, Dry and Fan.
3. Set the temperature.
Press the Temp + or - button on the remote controller to increase or
decrease the desired temperature.
You can set the desired temperature between the range of 18°C~30°C.
You can increase/decrease the temperature by 1°C.
4. Set the fan speed.
Press the Fan or button on the remote controller to set the
desired fan speed.
If room temperature reaches desired value, the air conditioner will shut
off cooling for a while and just the fan runs.
Each time you press the Fan or button, fan speed will
change in order of Auto, Low, Medium and High.
• While you are using the remote controller, make sure correct indicator which matches your selection appears on the
remote controller display.
• Air flow can be adjusted manually (see pages 21 ~ 22 for instructions).
• If current outside temperatures are much higher than the selected indoor temperature, it may take time to bring
the inner temperature to the desired coolness.
• If you operate the air conditioner right after stopping the cooling operation or the temperature reaches to the
desired temperature, cool air will not come out around 3 minutes for compressor protection.
NOTE
NOTE
NOTE
NOTE
Mirage_AP36M0@_IBIM_E_34573A(1).indd 15 2012-02-21 오후 1:08:36

16
Operating basic function

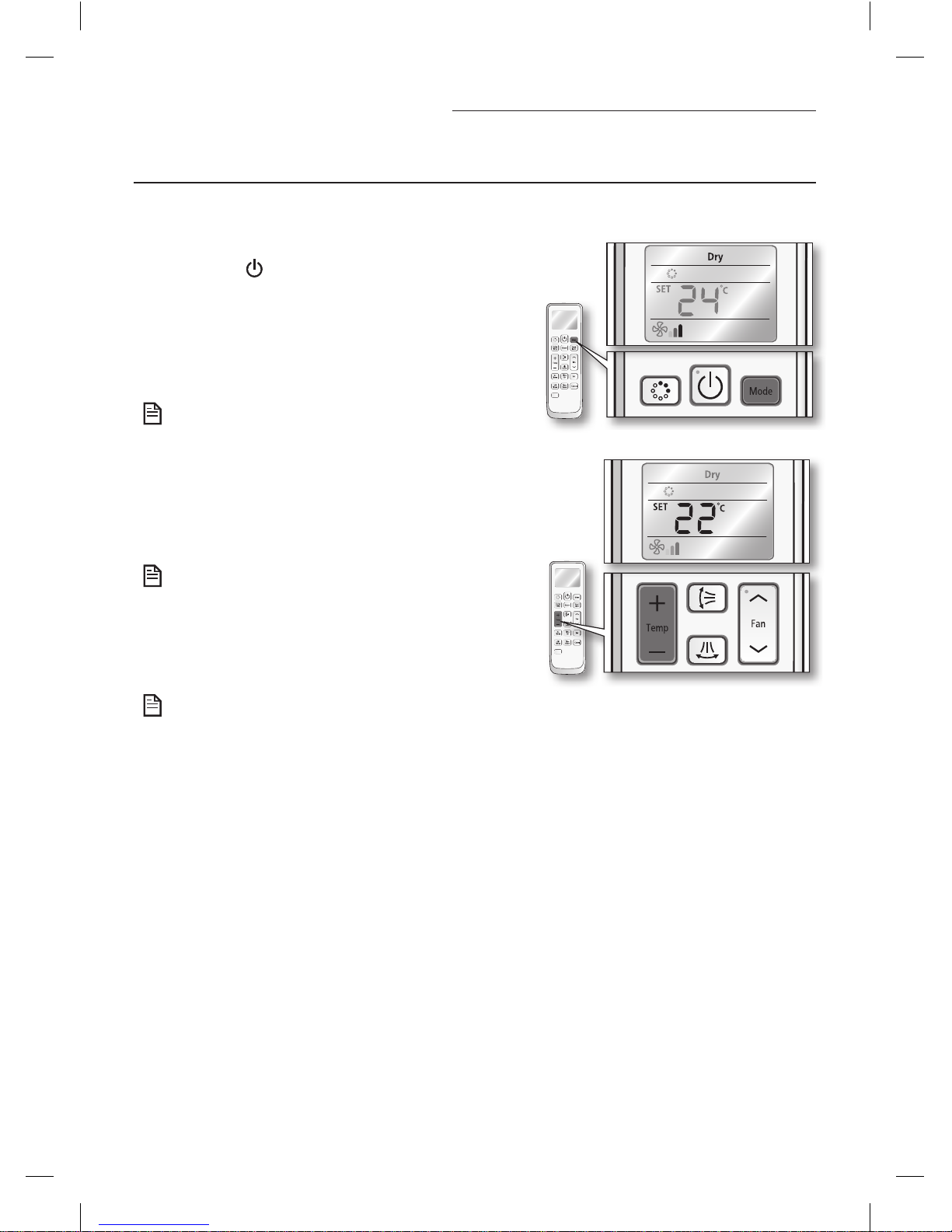

Dry
The air conditioner in Dry mode acts like a dehumidifier by removing moisture from the indoor air. Dry mode makes the air
feel refreshing in a humid climate.
1. Turn on the air conditioner.
Press the Power button on the remote controller.
2. Set the operation mode.
Press the Mode button on the remote controller until Dry mode
indicator appears on the remote controller display.
The air conditioner operates in Dry mode and automatically adjust
the fan speed to Auto.
Each time you press the Mode button, the mode will change in
order of Auto, Cool, Dry and Fan.
3. Set the temperature.
Press the Temp + or - button on the remote controller to increase or
decrease the desired temperature.
You can set the desired temperature between the range of
18°C~30°C.
You can increase/decrease the temperature by 1°C.
• While you are using the remote controller, make sure correct indicator which matches your selection appears on the
remote controller display.
• Air flow can be adjusted manually (see pages 21 ~ 22 for instructions).
NOTE
NOTE
NOTE
Mirage_AP36M0@_IBIM_E_34573A(1).indd 16 2012-02-21 오후 1:08:38

17

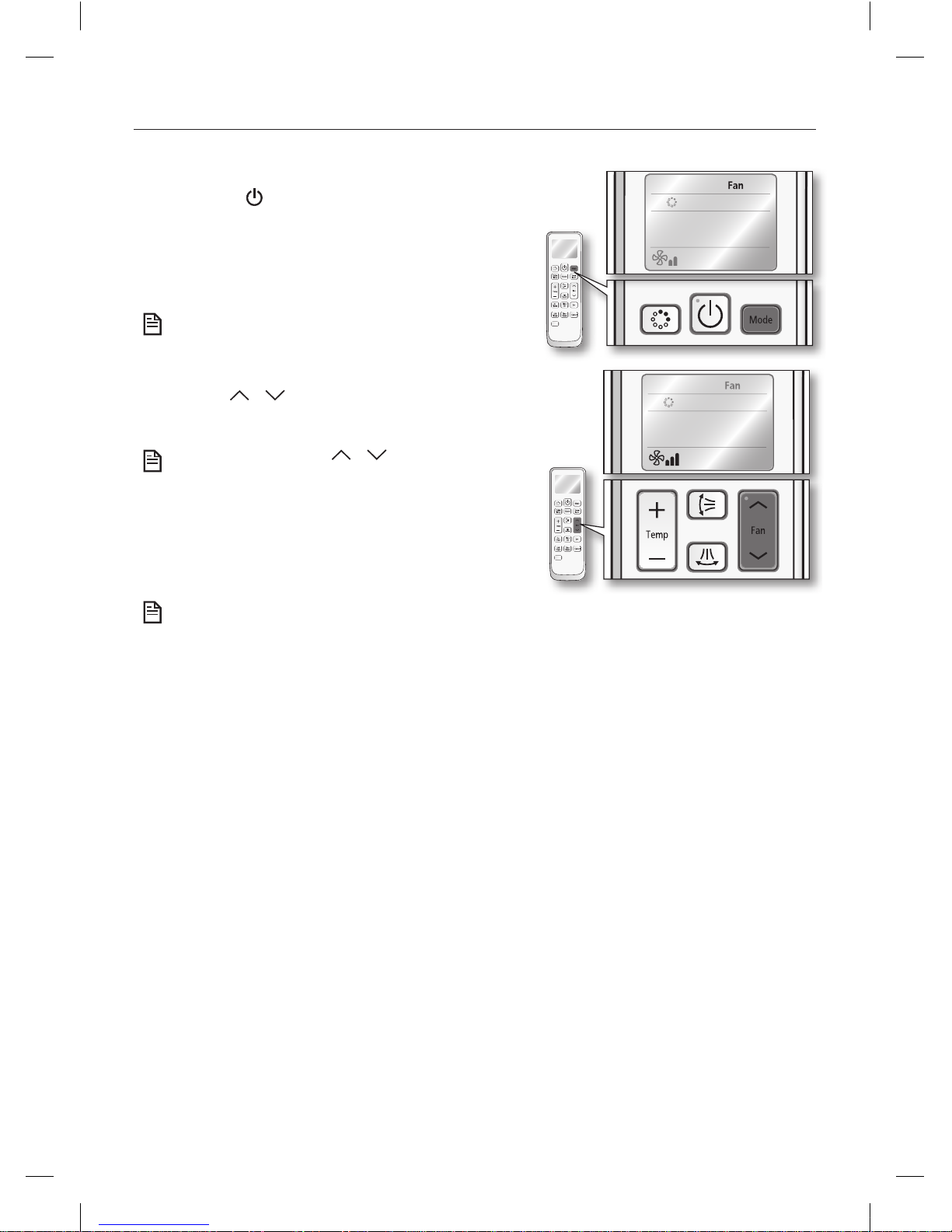

Fan
Fan mode can be selected to ventilate your room. Fan mode will be helpful to refresh the stale air in your room.
1. Turn on the air conditioner.
Press the Power button on the remote controller.
2. Set the operation mode.
Press the Mode button on the remote controller until Fan mode
indicator appears on the remote controller display.
The air conditioner operates in Fan mode and circulate the indoor air.
Each time you press the Mode button, the mode will change in
order of Auto, Cool, Dry and Fan.
3. Set the fan speed.
Press the Fan or button on the remote controller to set the
desired fan speed.
Each time you press the Fan or button, fan speed will
change in order of Low, Medium and High.
• While you are using the remote controller, make sure correct indicator which matches your selection appears on the
remote controller display.
• Air flow can be adjusted manually (see pages 21 ~ 22 for instructions).
NOTE
NOTE
NOTE
Mirage_AP36M0@_IBIM_E_34573A(1).indd 17 2012-02-21 오후 1:08:40

18
Using advanced functions
Using the Purity function
Purifying operation will get rid of the active oxygen and provide fresh air.
1. Press the Purity button on the remote controller while the air conditioner is on or off.
When the air conditioner is off
Purity function will be turned on.
When the air conditioner is on
Purity function will be turned off, since it will be already on upon
turning on the air conditioner. Press the button once again to start the
operation additionally.
• By pressing the Purity button, Purity function can be selected additionally in all basic operation modes.
• There will not be any changes in power consumption or operation noise even if you set the Purity function to
operate simultaneously with other mode.
• When the Purity function is on, selecting other operations is available by pressing the Power or Mode button.
• You can press the Power button to stop the operation if the Purity function is operating simultaneously with
other mode.
• If the Purity function is operating alone, you can press the Purity button to stop the operation.
To deactivate the Purity function
1. Press the Purity button on the remote controller while Purity function is on.
Purity function will be canceled and Purity indicator will disappear on the remote controller display.
NOTE
Mirage_AP36M0@_IBIM_E_34573A(1).indd 18 2012-02-21 오후 1:08:42

19
Using the Turbo function
Turbo function will be helpful to cool or heat your room quickly and effectively by operating at the maximum fan speed for
30 minutes.
1. Turn on the air conditioner.
Press the Power button on the remote controller.
2. Set the operation mode.
Press the Turbo/Long button on the remote controller once. Turbo
indicator will appear on the remote controller display.
The air conditioner operates in High fan speed and automatically
adjusts the temperature according to the current room temperature.
The unit operates for 30 minutes and then operates in last used
mode or in Auto mode if Dry/Fan mode is most recent mode used.
• Turbo function is only available in Auto/Cool mode.
If Turbo function is selected in Dry/Fan mode, operation mode changes to Auto.
• You cannot use Turbo and Long function at the same time.
To deactivate Turbo function
1. Press the Turbo/Long button on the remote controller twice while Turbo function is on.
The air conditioner operates in last used mode or in Auto mode if Dry/Fan mode is most recent mode used.
• While you are using the remote controller, make sure corresponding indicator appears on the remote controller
display.
• Temperature/Fan speed cannot be adjusted while using this function.
• Air flow can be adjusted manually (see pages 21 ~ 22 for instructions).
• If you press the Mode button while the Turbo function is on, it will cancel the function.
NOTE
NOTE
Mirage_AP36M0@_IBIM_E_34573A(1).indd 19 2012-02-21 오후 1:08:43

20
Using advanced functions
Using the Long function
Long function will be helpful when you want the cool or warm air to go to much further place.
1. Turn on the air conditioner.
Press the Power button on the remote controller.
2. Set the operation mode.
Press the Turbo/Long button on the remote controller twice. Long
indicator will appear on the remote controller display.
The air conditioner operates in High fan speed and you can adjust
the desired temperature.
• Long function is only available in Auto/Cool mode.
If Long function is selected in Dry/Fan mode, operation mode changes to Auto.
• When using Long function, the air flow blades face upward and vertical air flow direction control is not possible.
• You cannot use Turbo and Long function at the same time.
To deactivate Long function
1. Press the Turbo/Long button on the remote controller while Long function is on.
The air conditioner operates in last used mode, or in Auto mode if Dry/Fan mode is most recent mode used.
• While you are using the remote controller, make sure corresponding indicator appears on the remote controller
display.
• Press Temp + or - button to adjust desired temperature. Each time you press the button, the temperature changes
by 1°C.
• Fan speed is set as High only and cannot be adjusted in Long function.
• In Long function, air flow can be adjusted in horizontal direction only (see pages 21 ~ 22 for instructions).
NOTE
NOTE
Mirage_AP36M0@_IBIM_E_34573A(1).indd 20 2012-02-21 오후 1:08:44
