Samsung AW05B05A User manual

ROOM AIR CONDITIONER
AW05B05A(AW0500, AW0500A)
AW05E05A(AW0510, AW1510A)
AW05F05A
AIR CONDITIONER CONTENTS
1. Precautions
2. Product Specifications
3. Installation and Operating
Instructions
4. Disassembly and Reassembly
5. Troubleshooting
6. Exploded Views and Parts List
7. Block Diagram
8. Wiring Diagram
SERVICE Manual
AW05E05A(AW0510)-front 6/9/00 4:54 PM Page 2

1. Precautions
Samsung Electronics 1-1
1. Warning: Prior to repair, disconnect the
power cord from the circuit breaker.
2. Use proper parts: Use only exact
replacement parts. (Also, we recommend
replacing parts rather than repairing them.)
3. Use the proper tools: Use the proper tools
and test equipment, and know how to use
equipment may cause problems later-
intermittent contact, for example.
4. Power Cord: Prior to repair, check the
power cord and replace it if necessary.
5. Avoid using an extension cord, and avoid
tapping into a power cord. This practice
may result in malfunction or fire.
6. After completing repairs and reassembly,
check the insulation resistance, Procedure:
Prior to applying power, measure the
resistance between the power cord and the
ground terminal. The resistance must be
greater than 30 megohms.
7. Make sure that the grounds are adequate.
8. Make sure that the installation conditions
are satisfactory. Relocate the unit if
necessary.
9. Keep children away from the unit while it is
being repaired.
10. Be sure to clean the unit and its surrounding
area.
Fig. 1-1 Avoid Dangerous Contact
Fig. 1-2 No Tapping and No Extension Cords
Fig. 1-3 No Kids Nearby!
Fig. 1-4 Clean the Unit
AW05E05A(AW0510)-1 6/9/00 5:10 PM Page 1-1

1-2 Samsung Electronics
MEMO
AW05E05A(AW0510)-1 6/9/00 5:10 PM Page 1-2

Samsung Electronics 2-1
2. Product Specifications
2-1 Table
Type
Dimensions:
Width x Height x Depth
Packing Size:
Width x Height x Depth
Voltage:
Phase
Frequency
Operating Current
Power Consumption
Refrigerant Type
Refrigerant Charge
Cooling Capacity
E.E.R
Humidity Removed
Air Circulation
Net Weight
Condenser
Condenser Fan
Evaporator
Evaporator Fan
Fan Motor
Compressor(Rotary)
Overload Protect
Fan Motor Capacitor
Compressor Capacitor
Plug Type
Fan Speed Control
Thermo Control
Design Pressure
High Side/Low Side
-
Inches
mm
Inches
mm
Volt
-
Hz
A
W
FREON
OZ(kg)
BTU/h
Kcal/h
(BTU/h,W)
(Kcal/hw)
LT/h
C.F.M
LBS
Row
Type
Row
Type
Model
Model
-
µ F/VAC
µ F/VAC
-
-
-
PSI
5.6
625
9.0(255)
5,000
-
8.0
-
1.5
134
46
1
1
44A052HW1KA
4 & 30/370
4.8
515
12.0(340)
5,100
-
9.7
-
1.5
125
46
2
2
44A052HS1KA
3.5 & 30/370
5.6
625
9.0(255)
5,000
-
8.0
-
1.5
134
46
1
1
2R7S126A6F
4 & 35/270
4.8
515
12.0(340)
5,100
-
9.7
-
1.5
125
46
2
2
2R7S126A6F
3.5 & 35/370
4.8
560
12.0(340)
-
1,250
9.7
2.22
1.5
125
46
2
2
44A052HS1KA
3.5 & 30/370
Window
17 13/16 x 12 3/8 x 13 9/16
452 x 314 x 345
19 11/32 x 14 7/8 x 17 11/32
491 x 378 x 440
115
Single
60
R-22
Propeller Fan
Squirrel Cage
AFS015ZREA
MRA12040-12008
(DUAL TYPE)
Parallel
Selector S/W
Thermostat
300/150
Unit of
Measure AW05B05A (AW0500) AW05E05A (AW0510) AW05B05A (AW0500A) AW05E05A (AW0510A) AW05F05AItem Remarks
AW05E05A(AW0510)-1 6/9/00 5:10 PM Page 2-1

2-2 Samsung Electronics

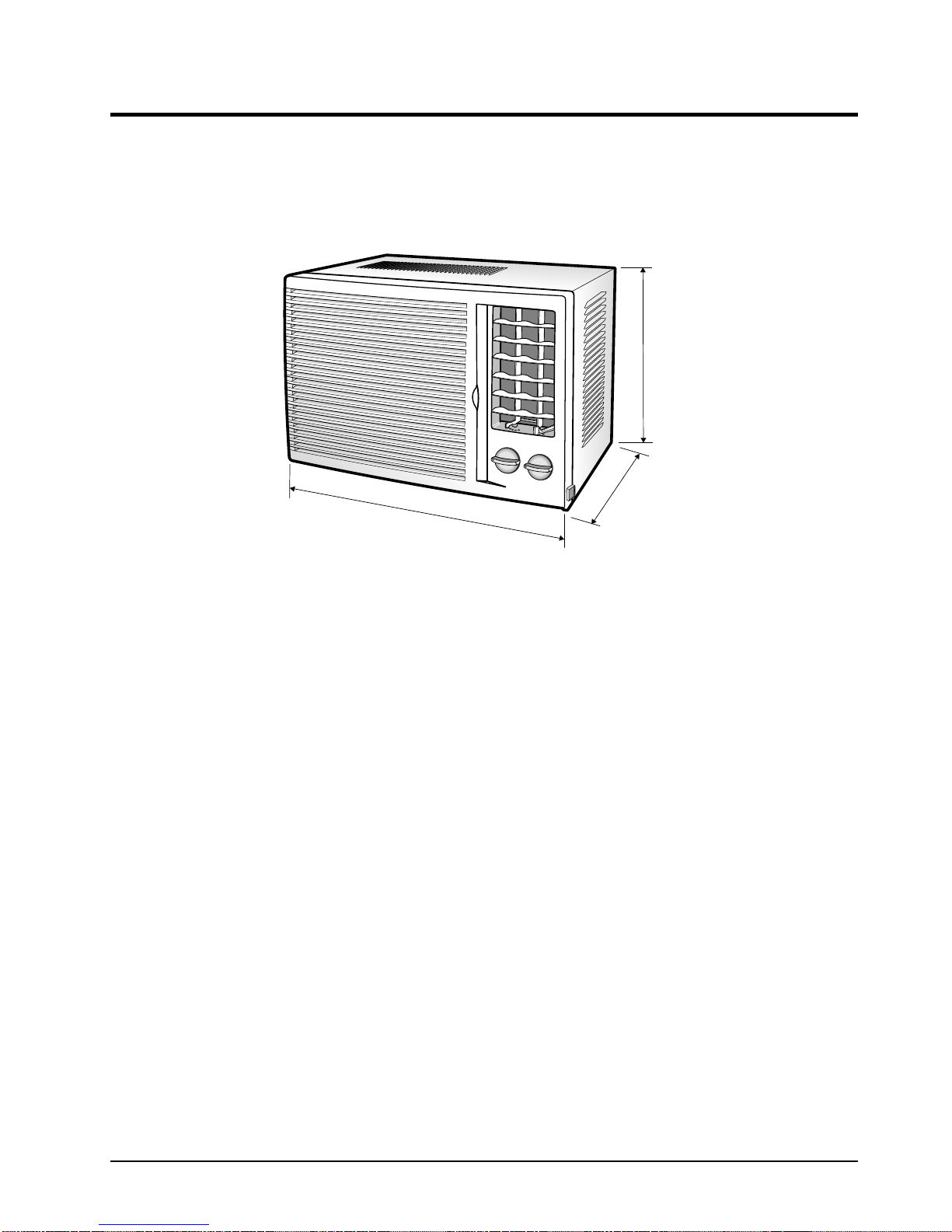

2-2 Dimensions
314
345
452
Unit : mm
AW05E05A(AW0510)-1 6/9/00 5:10 PM Page 2-2

Samsung Electronics 3-1
3. Installation and Operating Instructions
3-1 Installation
3-1-1 Selecting Area for Installation
Select an area for installation that is suitable to the
customer’s needs.
1. Make sure that you install the unit in an area
providing good ventilation. The air conditioner
must not be blocked by any obstacles affecting the
airflow near the air inlet and the air outlet.
2. Make sure that you install the unit in an area that
allows good air handling. The installation area
must be able to endure vibration from the unit.
3. Make sure that you install the unit away from heat
or vapor.
4. Make sure that you install the unit in an area
which is cool and has adequate space.
5. Make sure that you install the unit in an area away
from TVs, audio units, cordless phones,
fluorescent lighting fixtures and other electrical
appliances (at least 1 meter clearance).
6. Make sure that you install the unit in an area which
provides easy drainage for condensed water.
7. Make sure that you install the unit in area not
exposed to the rain or direct sunlight.
(Install a separate sunblind if exposed to direct
sunlight).
8. Make sure that you install the unit in an area
allowing good air movement. Do not install it in
a space that would cause noise amplification
of noise.
9. Fix the unit firmly if mounted in a high place.
Caution:
It is harmful to the air conditioner if it is used in the following environments : greasy areas (including areas near
machines), salty areas such as coast areas, areas where sulfuric gas is present (such as hot spring areas), Contact
your dealer for advice.
AW05E05A(AW0510)-1 6/9/00 5:10 PM Page 3-1

3-2 Samsung Electronics

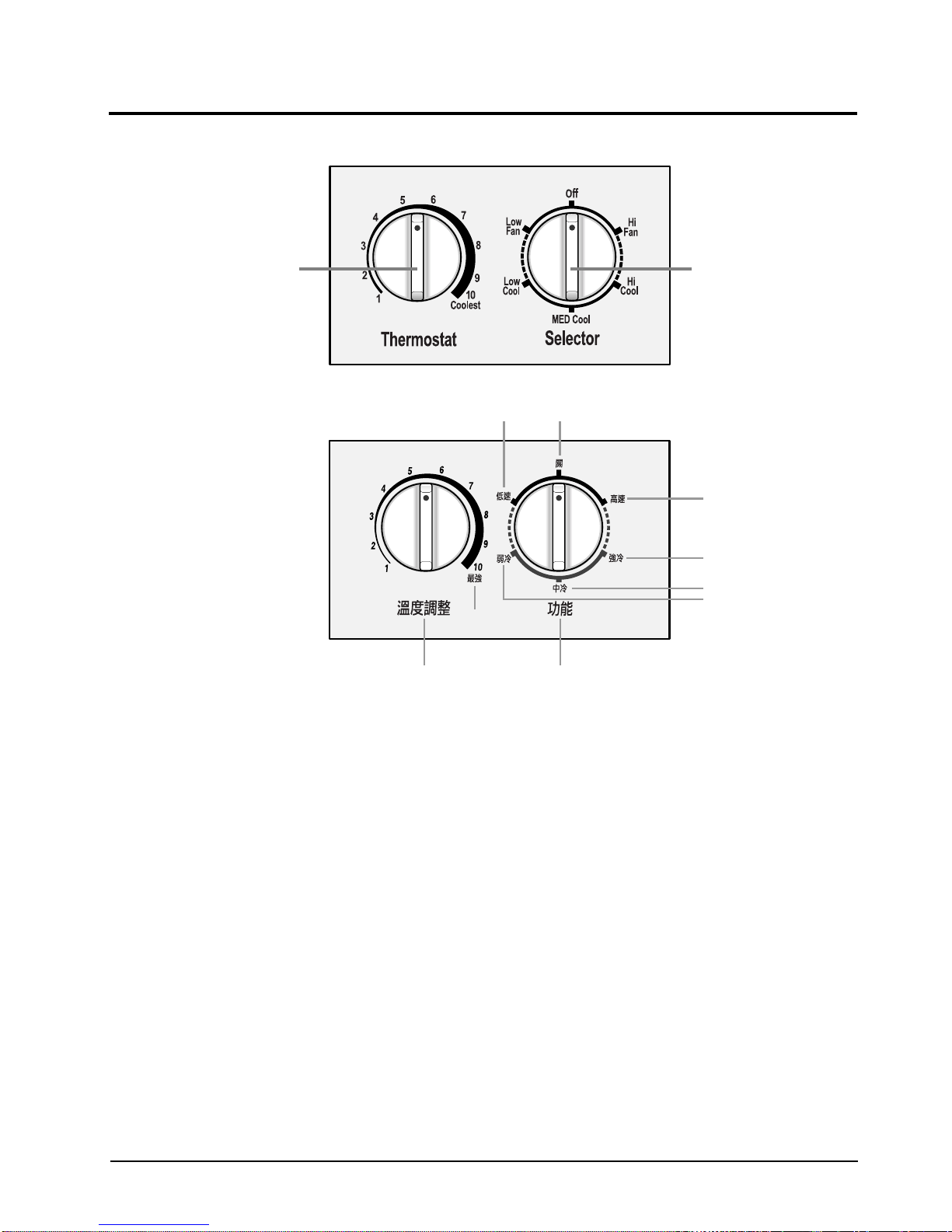

3-2 Controls and Components
3-2-1 Thermostat
3-2-2 Selector
• Control Operation :
By turning control knob clockwise(toward higher numbers), the temperature will be cooler.
By turning the control knob counterclockwise(toward lower numbers), the temperature will be warmer.
• Level 1 : Cool air will be supplied above 30~35°C
Cool air will be ceased below 28~32.5°C
• Level 10 : Cool air will be supplied above 11~17°C
Cool air will be ceased below 7~13°C
• Slowly turn the Fan Selector Switch in the following order :
to LOW FAN, HIGH FAN, HIGH COOL, MED COOL, LOW COOL.
• OFF : All functions will be off.
• LOW FAN : The circulation of air is low.
• HIGH FAN : The circulation of air is maximum.
• LOW COOL : Circulation, cooling, and humidity removal are low(all simultaneousy operated).
• MED COOL : Circulation, cooling, and humidity removal are mediume(all simultaneously operated).
• HIGH COOL : Circulation, cooling, and humidity removal are maximum(all simultaneously operated).
Coolest
MED Cool
LOW Cool
HIGH Cool
HIGH Fan
Thermostat control Selector
OFFLOW Fan
Thermostat Selector
AW05E05A(AW0510)-1 6/9/00 5:10 PM Page 3-2

Samsung Electronics 4-1
4. Disassembly and Reassembly
4-1 Compressor Replacement Flow Chart
Locate cause of defect
Release refrigerant
Disconnect electrical wiring
from compressor
Cut refrigerant lines
from compressor
Plug disconnected lines
Replace compressor
Inspect electrical
wiring for defects,
and terminals for
correct and secure
connections
Solder discharge line
Corrective action Check refrigerant oil level
Add oil as necessary
Solder suction line Use nitrogen gas
Perform soldering function
Fill system with nitrogen gas
Check for leakage
Pinch and braze filling tube
Recharge system
Evacuate system
Release nitrogen gas?
Problem?
Low oil level? NY
Y N
N
Y
Leakage?
AW05E05A(AW0510)-1 6/9/00 5:10 PM Page 4-1

4-2 Samsung Electronics
4-2 Checking the Oil
4-2-1 Oil quality
4-2-2 Changing and adding refrigerant oil
1. Change the compressor - DO NOT recharge the oil as the compressor itself is
already charged.
2. Change the condenser .... add 50cc
3. Change the evaporator .... add 50cc
4. When the refrigerant is replaced .... add 30cc oil.
5. After vacuum is completed, the oil is filled through the high pressure side.
6. In the event of a refrigerant leak, generally it is not necessary to add oil
(unless the oil has leaked significantly).
Put approximately 10cc oil into a transparent container and test it.
4-3 Refrigerant Oil Specifications
Normal
Overheat
Motor Damage
Condition of
Refrigerant Cycle Color
Light Yellow
Brown Color
Dark Brown
No Odor
-
Pungent Oil
Odor Remarks
Return with the system
Oil Change
Oil Change
Condition of Oil
Model Oil Specification Oil Change
AW05B05A(AW0500) SONTEX 200LT 260CC
AW05E05A(AW0510) SONTEX 200LT 260CC
AW05B05A(AW0500A) SUNISO 4GDID 260CC
AW05E05A(AW0510A) SUNISO 4GDID 260CC
AW05F05A SONTEX 200LT 2600CC
AW05F05A SUNTEX 200LT 260CC
AW05E05A(AW0510)-1 6/9/00 5:10 PM Page 4-2

Samsung Electronics 4-3
4-4 Disassembly and Reassembly Procedure
Stop operating of the air conditioner and remove the power cord before repairing the unit.
No. Part name Procedures Remarks
①
➁
➂
➃

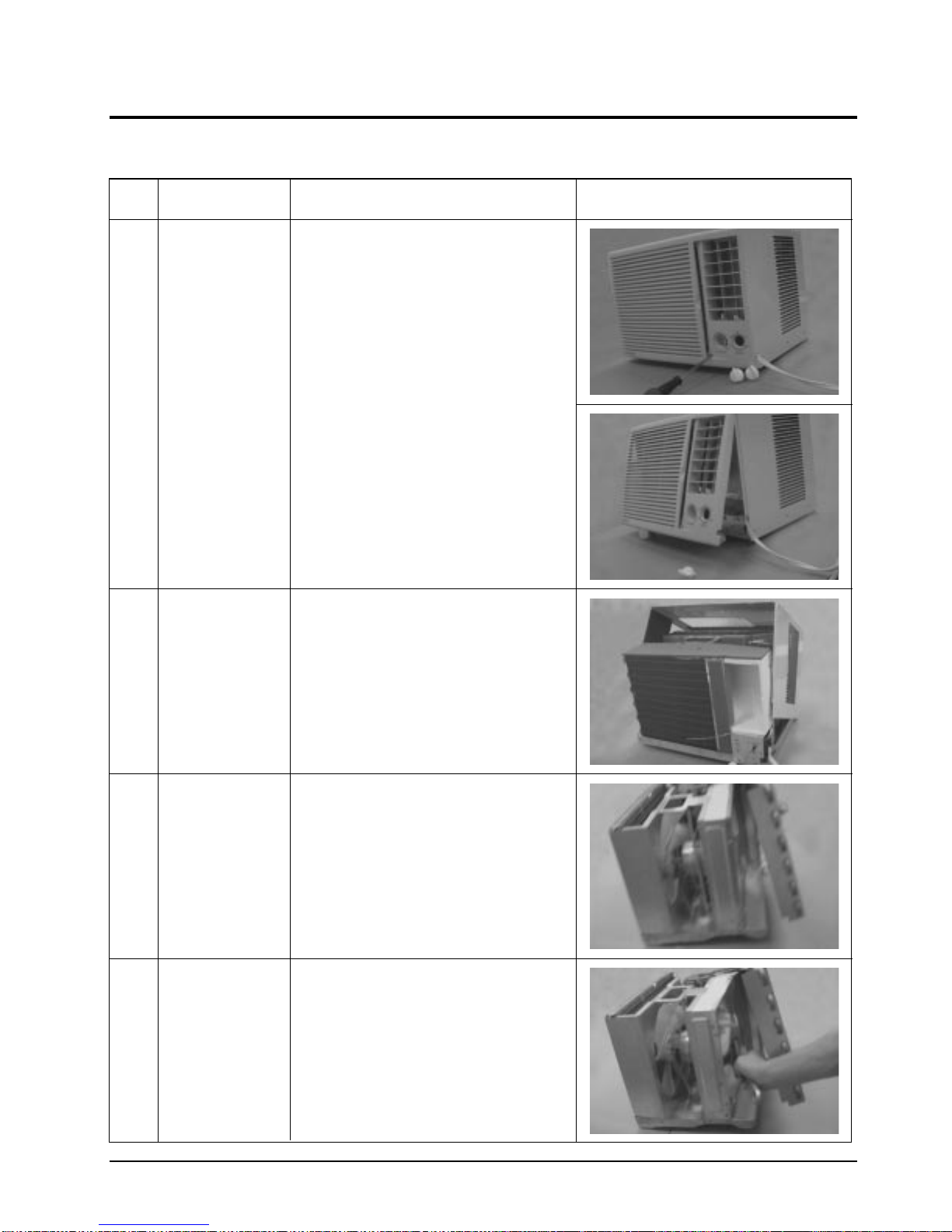

Ass'y - Grille 1. Remove the knobs and the grille screw
located behind the guard air filter.
2. Remove the grille from the cabinet by pushing
in on the grille tabs on both cabinet sides, and
then lift the grille off the top latches.
Ass'y - Frame 1. Remove the 7 screws on each of the cabinet
and lift the cabinet upward.
Ass'y - Evaporator 1. Remove foam-seal on the top of the unit.
2. Remove 4 screw on the both side of
evaporator.
3. Separate the evaporator from the unit.
Ass'y - Blower 1. Loose the nut to disassemble the blower.
AW05E05A(AW0510)-1 6/9/00 5:10 PM Page 4-3

4-4 Samsung Electronics
Disassembly and Reassembly
No. Part name Procedures Remarks
➄
➅
➆
Ass'y - Condenser & 1. Remove the 2 screws on the bottom between
Fan propeller the base-pan and the condenser and 2 screws
on left side of condenser.
2. Separate the cond-casing from the base-pan.
3. Loose the nut to disassemble the fan-propeller.
4. Separate the fan-propeller from the motor and
the cond-casing.
Ass'y - Control 1. Remove the 2 screws at the bottom of
between the base-pan and the control-box.
2. Separate the power cord from the base pan.
Ass'y - Motor 1. Remove the 2 screws on the motor and
mountor motor.
2. Separate the motor from mountor motor.
AW05E05A(AW0510)-1 6/9/00 5:11 PM Page 4-4

Samsung Electronics 5-1
5. Troubleshooting
5-1 Method of Troubleshooting and Cautions on Troubleshooting
Before troubleshooting the air conditioner,
it is necessary to determine whether the electrical power or the electrical parts are faulty.
Follow this procedure :
The input voltage shall be 115V/60Hz
The air conditioner may not operate properly if the voltage is out of this range.
Malfunction Check point Possible cause
1. check the thermostat position. 1. Setting temp is lower than room temp.
2. check the connection of the lead wire. 2. Disconnection of the lead wire.
3. check the over load protector. 3. O.L.P is faulty
4. check the compressor. 4. Compressor is faulty
1. check the connection of the lead 1. disconnection of the lead wire
wire & switch. 2. switch is faulty.
2. check the motor 3. motor is faulty
1. check the refrigerant leakage. 1. Caused by the pipe crack
2. check the evaporator condition 2. shortage of refrigerant
( freezing, blocked with dusts, etc. ) 3. clean the evaporator & air filter.
❈Difference of temp. exists between
the suction side and the discharge
side at least 12°C
❈Standard condition
Indoor : 27°C outdoor : 35°C
1. check vibration of the pipe 1. pipes are contact with the other parts.
2. check the propeller fan and blower 2. the hex nut is loose
( not loose or broken ). 3. the parts are broken
3. check bearing noise of the motor 4. motor is faulty
4. check the compressor noise against 5. compressor is faulty
that of other compressors.
5-1-1 Check the Voltage of the power source.
5-1-2 Check weak and fragile parts.
5-1-3 Check the connection of terminals.
5-1-4 When a malfunction occurs:
➀
➁
➂
➃
The compressor does not
operate.
The motor does
not operate.
The cooling capacity
is low.
Noise
AW05E05A(AW0510)-1 6/9/00 5:11 PM Page 5-1

6-1 Samsung Electronics

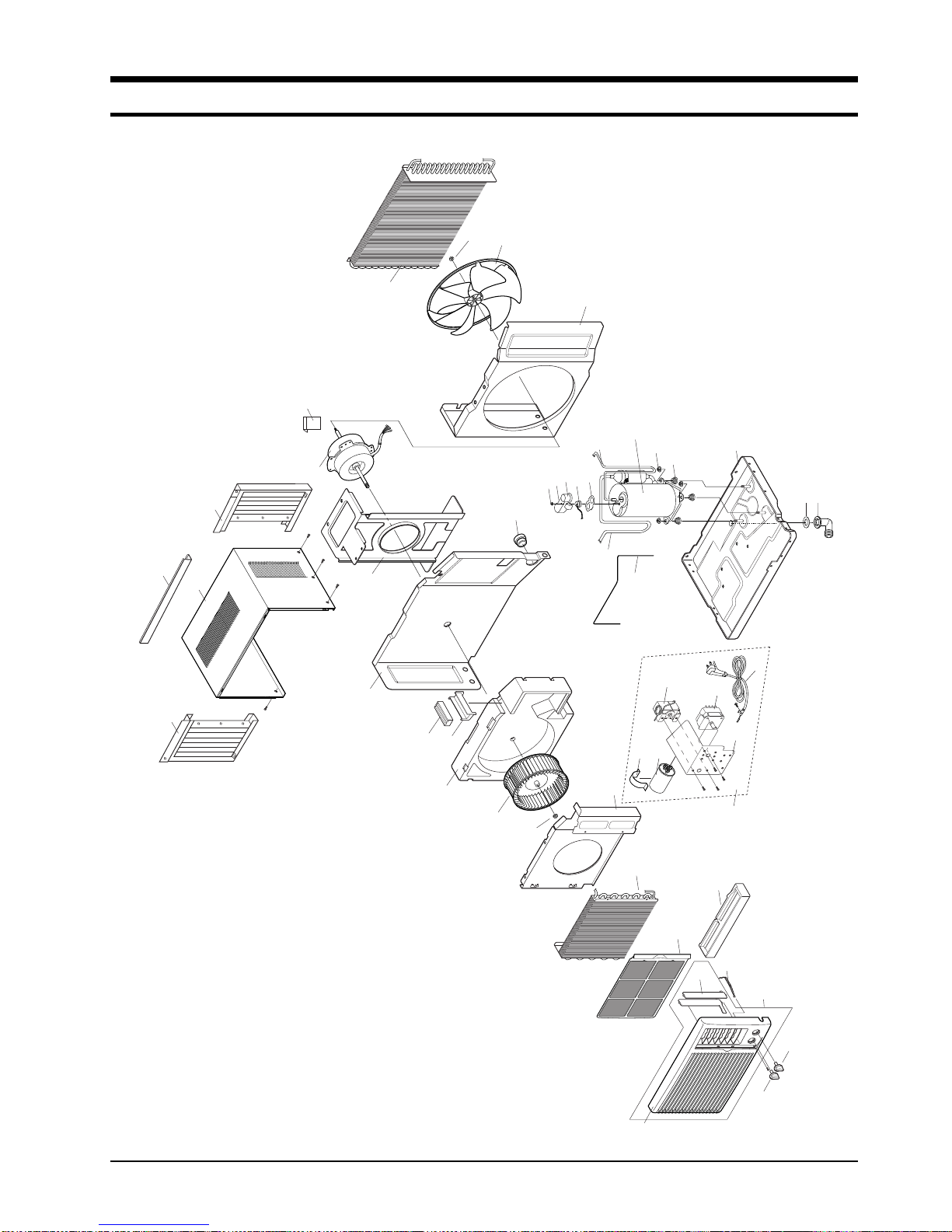

6. Exploded View and Parts List
34
35
37
36
1
3-1
2
3
4
5
7
8
21
41 40
22
23
38
27
28
29
30
31
32
25
26
33
33-1
33-2
33-3
33-4
33-5
33-6
24
9
10
11
12
14 15
16 39
20
17
18
19
13
6
3-2
AW05E05A(AW0510)-1 6/9/00 5:11 PM Page 5-2

Samsung Electronics 6-2
■Part List
No. Code No. Description Specification
Q'TY Remarks
AW05B05A
(AW0500) AW05E05A (AW0510) AW05B05A (AW0500A) AW05E05A (AW0510A)
DB64 - 00124A
DB64 - 00124B
DB92 - 00034A
DB92 - 00032B
DB64 - 00043A
DB66 - 00023A
DB66 - 00024A
DB63 - 00026A
DB63 - 00026B
DB63 - 00027A
DB96 - 00208A
DB75 - 00028A
DB70 - 00014A
DB60 - 30004A
DB67 - 00013A
DB61 - 00083A
DB73 - 00031A
DB63 - 00031A
DB67 - 00012A
DB61 - 00084A
DB31 - 00035A
DB61 - 00085A
DB67 - 00014A
DB60 - 30020A
DB96 - 00210A
DB96 - 00209A
DB90 - 00123B
DB73 - 00016A
DB73 - 00046A
DB60 - 30028A
DB62 - 00249A
DB62 - 00200B
DB62 - 00365A
DB62 - 00202A
DB62 - 00366A
DB62 - 00296A
DB96 - 00197B
DB96 - 00200B
DB63 - 20002A
DB63 - 00024A
DB47 - 20002F
DB35 - 00012A
DB63 - 10504A
DB63 - 00090A
DB63 - 00023A
DB63 - 10026A
DB60 - 00001A
DB63 - 00089A
DB93 - 00259A
DB93 - 00259B
DB93 - 00259G
DB93 - 00259H
DB93 - 00259C
DB70 - 00019A
3406 - 001045
DB47 - 20074B
2501 - 001205
2501 - 001154
0501 - 001219
2501 - 001221
DB65 - 00031A
DB39 - 10032J
DB64 - 00046B
DB64 - 20005E
DB64 - 20005F
DB92 - 30007D
DB92 - 30007F
DB92 - 30005D
DB92 - 30005F
44A052HW1KA
44A052HS1KA
DB95 - 00109A
DB97 - 90014K
DB67 - 20041A
DB67 - 20028A
DB73 - 20111A
DB73 - 20135A
KNOB - THERMO
KNOB - SELECTOR
ASSY - GRILLE
ASSY-GRILLE
GRILLE - FRONT
BLADE - V
LEVER - DAMPER
GUARD - AIR FILTER
GUARD - AIR FILTER
TRAY - DRAIN
ASSY - EVAP
ASSY - EVAP
PLATE - EVAP CASING
NUT - FLANGE
BLOWER
CASE - EVAP
RUBBER - PIPE
COVER - PIPE
PARTITION
MOUNT - MOTOR
MOTOR - FAN
CASE - COND
FAN - PROPELLER
NUT - FLANGE
ASSY - COND
ASSY - COND
ASSY - BASE
GROMMET - ISOLATOR
GROMMET - ISOLATOR
NUT - WASHER
TUBE - DISCHARGE
TUBE - DISCHARGE
TUBE - DISCHARGE
TUBE - SUCTION
TUBE - SUCTION
TUBE - SUCTION
ASSY - TUBE CAPILLAR
ASSY - TUBE CAPILLAR
GASKET
GASKET
OLP
OLP
COVER - TERMINAL
COVER - TERMINAL
COVER - TERMINAL
COVER - TERMINAL
NUT - FLANGE
COVER-PARTITION
ASSY - CONTROL BOX
ASSY - CONTROL BOX
ASSY - CONTROL
ASSY - CONTROL
ASSY - CONTROL BOX
PLATE - CONTROL
SWITCH - ROTARY
THERMOSTAT
C - OIL
C - OIL
C - OIL
C - OIL
CLIP - CAPACITOR
POWER-CORD
CABINET - OK
SHUTTER - ANGLE-UP
SHUTTER - ANGLE UP
ASSY - SHUTTER-RH
ASSY - SHUTTER RH
ASSY - SHUTTER-LF
ASSY - SHUTTER LF
ASSY COMP
ASSY COMP
ASSY - COMPRESSOR
ASSY SCREW
DRAIN PLUG
DRAIN - TUBE
RUBBER DRAIN
RUNNER - DRAIN
ABS, SC - 94445R, ASSY
ABS, SC - 94445R, ASSY
ASSY, SC - 94445R
ASSY, SC - 94445R
HIPS, SC - 94445R
PP, SC - 94445R
ABS, SC - 94445R
ABS, SC - 94445R
ABS, SF(GREEN)
EPS
D - FIN, OD 9.52 1R
T3, OD 2R
SGCC - M
SM20C, NTR
ABS
EPS
NR, BLK
PP
SGCC - M
SGCC - M
AFS015ZREA
SGCC - M
ABS
M6, FEFZY, LF
SLIT, OD 7.0, 1R
T3, OD 2R x 15S
ASSY
EPDM, BLK
EPDM, MEI COMP
HEX, 2C, M8, ZPC
C1220T-0, OD 7.93
C1220T-0
C1220T-0, OD 9.52
C1220T-0, OD 9.52
C1220T-0, OD 9.52
ID 1.2x1100
ID 1.2x750
EPDM, T 0.8
EPDM, T 0.8
MRA12040 - 12008
MRA99087 - 9201
NORYL, BLK
EPDM, BLK
NORYL, BLK, MEI COMP
NORYL, BLK
HEX, M5, SM20C
ABS
ASSY
ASSY
AW0500A
AW0510A
ASSY
SGCC - M
DYU - 3, 240V, 25A
BU - A213
30/4uF, 370V
30/3.5uF, 370V
35/3.5uF, 370V
35/4uF, 270V
SGCC-M
SPT3, 125V, 10A, GRAY
SCP1
SC-94445T
SGCC-A, SC-94445T
ASSY, SC-94445R(GR)
PVC, SC - 94445R
ASSY, SC - 94445R(GR)
PVC, SC - 94445R
ASSY
ASSY
2R7S126A6F
ASSY
PP, ID10
PP
NR, T0.3, BLK
NR, T1
1
1
1
-
-
1
1
1
-
1
1
-
1
1
1
1
1
1
1
1
1
1
1
1
1
-
1
3
-
3
1
-
-
1
-
-
1
-
1
-
1
-
1
1
-
-
1
1
1
-
-
-
-
1
1
1
1
-
-
-
1
1
1
1
-
1
-
1
-
1
-
-
1
1
-
1
-
1
1
1
-
-
1
1
1
-
1
-
1
1
1
1
1
1
1
1
1
1
1
1
1
-
1
1
3
-
3
-
1
-
1
-
-
-
1
1
-
1
-
1
1
-
-
1
1
-
1
-
-
-
1
1
1
-
1
-
-
1
1
1
1
-
1
-
1
-
-
1
-
1
1
-
1
-
1
1
1
-
-
1
1
1
-
1
1
-
1
1
1
1
1
1
1
1
1
1
1
1
1
-
1
-
3
3
-
-
1
-
1
-
1
-
-
1
-
1
-
-
1
-
1
1
-
-
1
-
-
1
1
1
-
-
-
1
1
1
1
1
-
1
-
1
-
-
-
1
1
1
-
1
-
1
1
1
-
-
1
1
1
-
1
-
1
1
1
1
1
1
1
1
1
1
1
1
1
-
1
1
3
3
3
-
-
1
-
1
-
-
1
-
1
-
1
-
-
1
-
1
1
-
-
-
1
-
1
1
1
-
-
1
-
1
1
1
1
-
1
-
1
-
-
-
1
1
1
-
1
-
AW05F05A
1
1
-
1
1
1
1
-
1
1
-
1
1
1
1
1
1
1
1
1
1
1
1
1
-
1
1
3
-
3
-
1
-
-
-
1
-
1
1
-
1
-
-
-
-
1
1
1
-
-
-
-
1
1
1
1
-
1
-
-
1
1
1
-
1
-
1
-
1
-
1
-
1
-
1
-
1
1
2
3
3-1
3-2
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
33-1
33-2
33-3
33-4
33-5
33-6
34
35
36
37
38
39
40
41
AW05E05A(AW0510)-1 6/9/00 5:11 PM Page 5-3

6-3 Samsung Electronics
MEMO
AW05E05A(AW0510)-1 6/9/00 5:11 PM Page 5-4

Samsung Electronics 7-1
7. Block Diagram
7-1 Refrigerating Cycle Block Diagram
PINCH PIPE
(SERVICE VALVE) PINCH PIPE (
SERVICE VALVE )
SUCTION LINE
ACCUMULATOR/COMPRESSOR
EVAPORATOR
CAPILLARY TUBE
CONDENSER
DISCHARGE LINE
PINCH PIPE
(SERVICE VALVE)
AW05E05A(AW0510)-1 6/9/00 5:11 PM Page 7-1

7-2 Samsung Electronics
MEMO
AW05E05A(AW0510)-1 6/9/00 5:11 PM Page 7-2

Samsung Electronics 8-1
GRN
ORN
BLK
MOTOR
L
1 4
L
M
M YEL
RED
BLUE
BLK
O.L.P
COMP
WHT
RED
CAPACTIOR
NEUTRAL
(RIB)
ACTIVE (WHT)
L
C
S
RC
THERMOSTAT
BLK
H
S
2 3
SELECTOR SWITCH

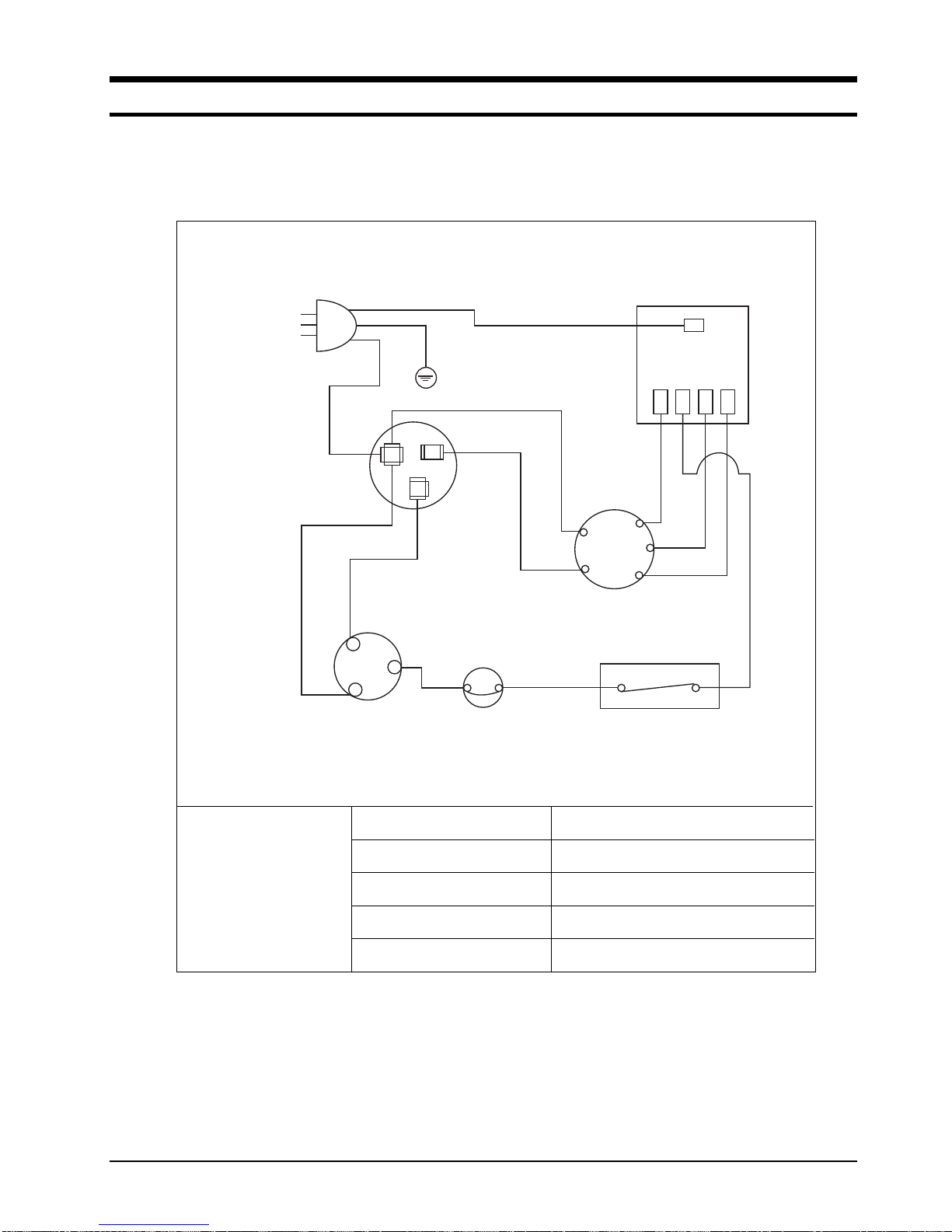

8. Wiring Diagram
DIAGRAM-ELECTRIC
AW05B05A(AW0500)
AW05E05A(AW0510)
AW05B05A(AW0500A)
AW05E05A(AW0510A)
AW05F05A
CAPACITOR : 4/30µF, 370VAC
CAPACITOR : 3.5/30µF, 370VAC
CAPACITOR : 4/35µF, 270VAC
CAPACITOR : 3.5/35µF, 370VAC
CAPACITOR : 3.5/30µF, 370VAC
AW05E05A(AW0510)-1 6/9/00 5:11 PM Page 8-1

8-2 Samsung Electronics
MEMO
AW05E05A(AW0510)-1 6/9/00 5:11 PM Page 8-2

UPDATE LOG SHEET
Application date Page Part# Note(Cause & Solution) S/Bulletin#
Use this page to keep any special servicing information.(Service Bulletin, etc.)
If only parts number changes, Just change parts number directly on parts list.
And if you need more information, please see the service bulletin
Copyright
1995 by Samsung Electronics Co., Ltd.
All rights reserved.
This manual may not, in whole or in part, be
copied, photocopied, reproduced, translated, or
converted to any electronic or machine readable
from without prior written permission of
Samsung Electronics Co., Ltd.
SyncMaster 17GLi/CMG7387L Service Manual
First edition June 1995.
Printed in Korea.
Trademarks
Samsung is a registered trademark and
SyncMaster 17GLi/CMG7387L and MacMaster
Cable Adapter are trademark of Samsung
Electronics Co., Ltd.
Macintosh, Centris, Quadra, Duo Dock, and
Power Macintosh are trademark of Apple
computer, Inc.
All other trademarks are the property of their
respective owners.
AW05E05A(AW0510)-1 6/9/00 5:11 PM Page 8-5
