Samsung AW069CB User manual

OWNER'S
INSTRUCTIONS
AW069CB
AW089CB
AWI09CB
AWI29CB
AWI49CB
AWI89CB
AW06ECB7
AW08ECB7
AWIOECB7
AWI2ECB7
AWISECB7
AWISECB7
AW25ECB7
Window-type RoomAir Conditioner
(Cooling)
_(_ DB81-00656A(3)

Safety Precautions
The following safety precautions must be taken when using your air conditioner.
WARNING Riskof electric shock. •Can cause injury or death. •Disconnect all
remote electric power supplies before servicing, installing or cleaning.
•This must be done by the manufacturer or its service agent or asimilar
qualified person in order to avoid a hazard.
DURING OPERATION Users of this product are cautioned not to attempt repair of this product at their
own discretion. Instead. they are requested to directly contact a designated
service center or the outlet at which the product was purchased.
Never spill any kind of liquid into the unit. Should this happen, unplug or
switch the unit off and contact an authorized service center.
Do not insert anything between the air outlet blades because the inner fan may
be damaged and could cause injury. Keep children away from the unit.
Do not place any obstacles in front of the unit.
Do not spray liquid of any kind intothe unit. Should this happen, switch off
the breaker used for your air conditioner and contact your installation specialist.
Make sure that the unit is correctly ventilated at atl times:
Do not place clothing or other materials over it.
tf the wireless remote control will not be used for a long time. remove the
batteries. (If applicable)
When using the wireless remote control, the distance should not be more than 7
meters from the air conditioner. (If applicable)
The air conditioner must be plugged into its own specific power source, which
must be installed in compliance with national wiring,grounding and safety
regulations.
If the power cord is damaged in any way, it must be replaced by the manufacturer,
its service agent, or a similarly qualified person in order to avoid a hazard.
This device must be installed according to the national electrical rules.
After installing the appliance, the plug should be easily accessible.
The breaker of the air conditioner should be all-pole switch: and the distance
between its two contacts should be no less thar 3.5mm. Such means for
disconnection must be incorporated in the fixed wiring.
DISPOSINGOFTHEUNIT
OTHERS
Before throwing out the device, it is necessary to remove the battery cells and
recycle them.
When you are ready to dispose of the unit. consult your dealer first. If pipes are removed
incorrectly, refrigerant may blow out and come into contact with your skin,causing
injury. Releasing refrigerant into the atmosphere also damages the environment.
Please recycle or dispose of the packaging material for this product in an
environmentally responsible manner.
Never store or sh p the air conditioner upside down or sideways to avoid damage
to the compressor.
The appliance is not intended for use by young children or ili persons without
supervision; young children should be supervised to ensure that they do not play
with the appliance.
Max current is measured according to IEC standard for safety and current is
measured according to ISO standard for energy efficiency.
0

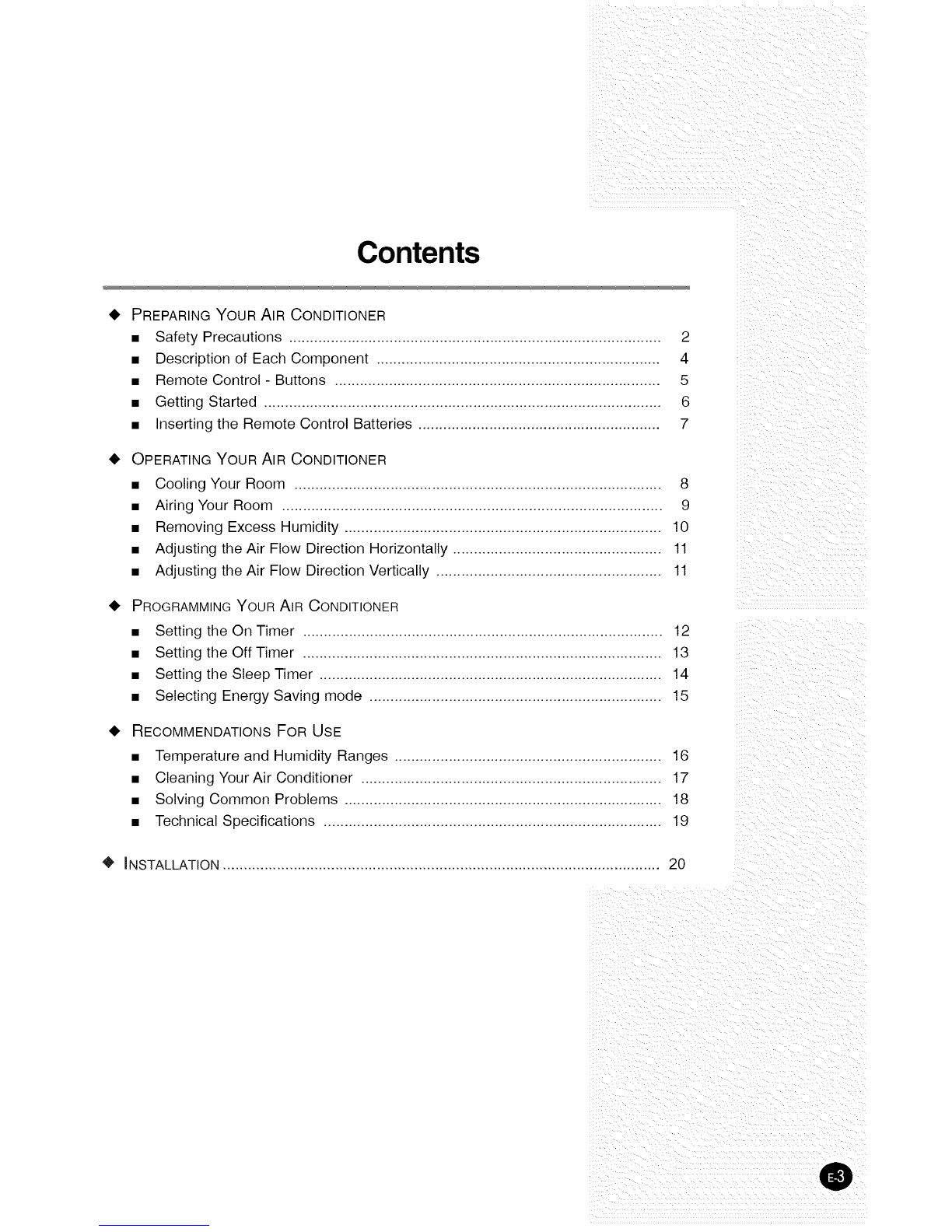

Contents
PREPARING YOUR AIR CONDITIONER
• Safety Precautions ........................................................................................ 2
• Description of Each Component .................................................................... 4
• Remote Control - Buttons .............................................................................. 5
• Getting Started ............................................................................................. 6
• Inserting the Remote Control Batteries .......................................................... 7
OPERATING YOUR AIR CONDITIONER
• Cooling Your Room ........................................................................................ 8
• Airing Your Room ........................................................................................... 9
• Removing Excess Humidity ............................................................................ 10
• Adjusting the Air Flow Direction Horizontally .................................................. 11
• Adjusting the Air Flow Direction Vertically ...................................................... 11
PROGRAMMINGYOUR AIR CONDITIONER
• Setting the On Timer ...................................................................................... 12
• Setting the Off Timer ...................................................................................... 13
• Setting the Sleep Timer .................................................................................. 14
• Selecting Energy Saving mode ..................................................................... 15
RECOMMENDATIONS FOR USE
• Temperature and Humidity Ranges ................................................................ 16
• Cleaning Your Air Conditioner ........................................................................ 17
• Solving Common Problems ............................................................................ 18
• Technical Specifications ................................................................................. 19
• INSTALLATION ......................................................................................................... 20
®

Description of Each Component
_ The design and shape are subject to
change.
Air inlet (Outside}
Inner air flow - -
blades (right/left
orientation)
Front Grille
Mode selection button
_Cool. Fan. Dry)
Energy Saver button
Sleep timer setting button
Timer setting button IPower
Air outlet
Ventilation lever
Air inlet (Outside)
Air filter (Inside)
Power plug
(The type of power plug
may differ, depending on
the local power supply).
Temperature/Timer
settings
I
ITemperature adjustment
buttons
On/Off button
Fan speed adjustment button Remote control
0
Th e Power plug contain s a Reset button that wi!! automatically shut down I
th e air conditioner in the event of a POWer surge, To restart the unit, PreSs
the Reset button and the unit will return to normal operation in2,3 minutes.]

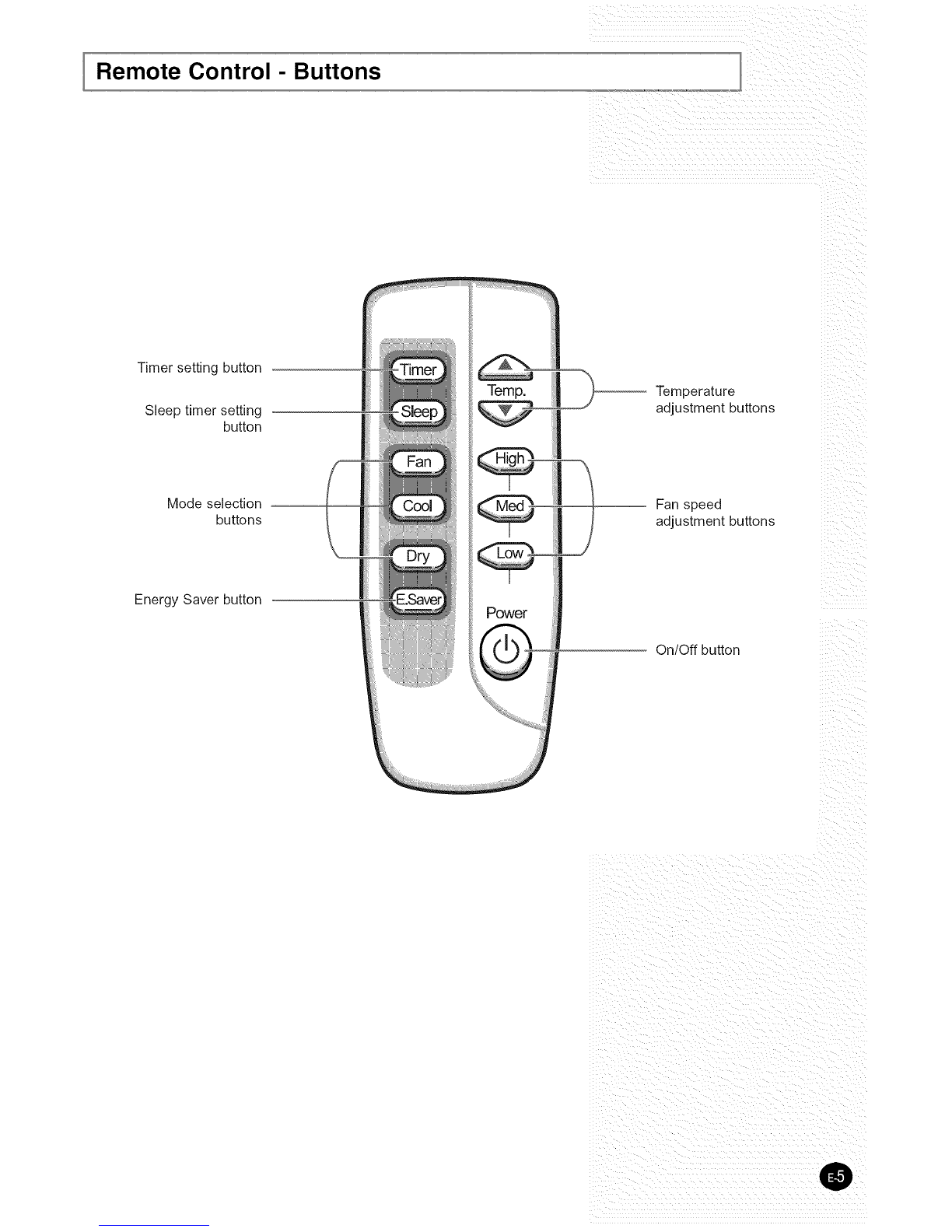

Remote Control - Buttons
Timer setting button
Sleep timer setting
button
Mode selection
buttons
Energy Saver button
Temp.
Power
Temperature
adjustment buttons
Fan speed
adjustment buttons
On/Off button
®

Getting Started
You have just purchased a Samsung window-type Room Air Conditioner which should be installed
by following your installation manual.
Your Owner's Instructions contain valuable information on using your air conditioner.
Please take the time to read them as they will help you take full advantage of the unit's features.
The booklet is organized as follows.
The following figures are shown on pages 4 and 5:
Description of Each Component
Remote control (buttons)
They will help you find the buttons and understand the symbols displayed.
In the manual, you will find a series of step-by-step procedures for each function
available.
The illustrations in the step-by-step procedures use four different symbols:
PRESS _PUSH
0

Inserting the Remote Control Batteries
You must insert or replace the remote control batteries when :
•You purchase the air conditioner
•The remote control does not work correctly
•Use two AAA, LR03 1.5V batteries.
•Do not use old batteries or different kinds of batteries together.
•Batteries may be completely discharged after 12 months, even
if they have not been used.
1 Push the battery cover on the rear of the remote control with your thumb
in the direction of the arrow and remove it.
2 Insert the two batteries, taking care to respect the polarities •
• + on the battery with + on the remote control.
•- on the battery with - on the remote control.
3 Close the cover by sliding it back until it clicks into place.
O

Cooling Your Room
RemoteControl ControlPanel
You must select the Cool mode if you wish to lower the temperature
in your room. You can also set the Fan speed.
Press the (,D (On/Off) button.
Result: 4, The air conditioner starts up in the Cool mode.
4, The unit beeps twice.
2
The air conditioner is fitted with a protection mechanism to prevent
the unit from being damaged when it is started immediately after
being:
4, Plugged in
4, Stopped
It will begin to cool after three minutes
If the temperature is not displayed on the control panel:
4, Press the _ button on the remote control
or
4, Press the _ button on the unit one or more times until ::' is displayed.
Result: 4, The unit beeps each time you press the _/_ button.
4, The air conditioner starts up in the Cool mode.
You can change modes at any time.
4
To adjust the temperature, press the _or _ buttons on the remote
control or unit one or more times until the desired temperature is displayed.
The temperature can be set between 64°F and 86°F.
Result: 4, Each time you press the r--Z-]or I-77 buttons:
- The temperature is adjusted by I°F and displayed on
the control panel
- The unit beeps
4, If the room temperature is higher than the selected temperature,
the air conditioner starts cooling.
4, If the room temperature reaches the set temperature, the air
conditioner stops cooling, but the fan still operates.
To set the fan speed:
4, Press the Q, Q or@ button on the remote control as desired.
or
4, Press the _ button on the unit one or more times until the
desired Fan speed(F1, F2 or F3) is displayed.
5 To control the direction of the air flow, refer to page tt.
0

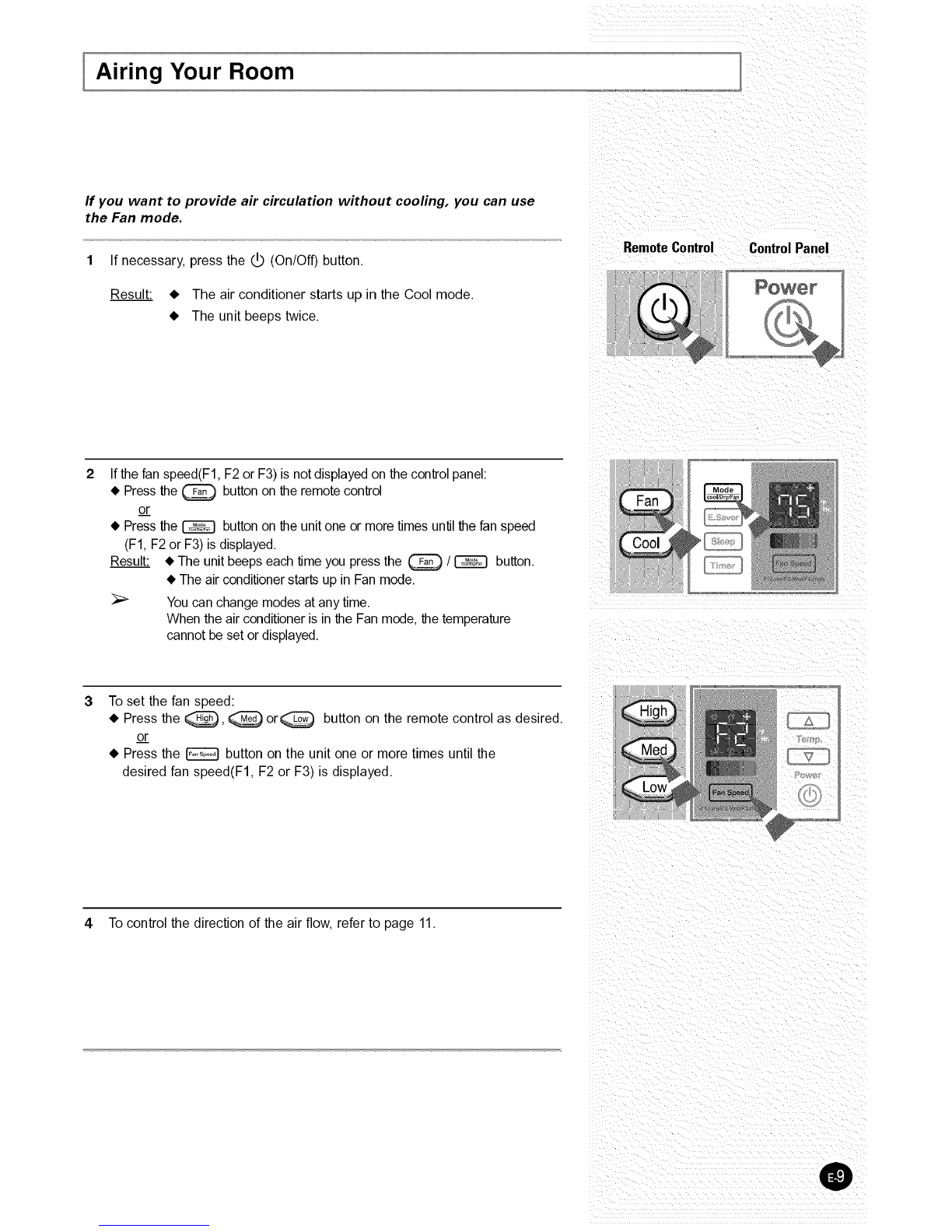

Airing Your Room
If you want to provide air circulation without cooling, you can use
the Fan mode.
1 If necessary, press the _) (On/Off) button.
Result: • The air conditioner starts up in the Cool mode.
• The unit beeps twice.
Remote Control Control Panel
Power
%
If the fan speed(F1, F2 or F3) is not displayed on the control panel:
• Press the _ button on the remote control
or
• Press the _ button on the unit one or more times until the fan speed
(F1, F2 or F3) is displayed.
Result: • The unit beeps each time you press the _ /_ button.
• The air conditioner starts up in Fan mode.
You can change modes at any time.
When the air conditioner is in the Fan mode, the temperature
cannot be set or displayed.
Mode
To set the fan speed:
• Press the Q, Q or@ button on the remote control as desired.
or
• Press the _ button on the unit one or more times until the
desired fan speed(F1, F2 or F3) is displayed.
Hic
4 To control the direction of the air flow, refer to page 11.
IIi

Removing Excess Humidity
=
Remote Control Control Panel
ff the atmosphere in your room is very humid or damp. you can remove
excess humidity without lowering the room temperature too much.
1 If necessary, press the _ (On/Off) button.
Result: • The air conditioner starts up in the Cool mode.
• The unit beeps.
_ql" The air conditioner is fitted with a protection mechanism to pre-
vent the unit from being damaged when it is started immediately
after being:
• Plugged in
• Stopped
It will begin to cool after three minutes.
If the temperature is not displayed on the control panel:
• Press the _ button on the remote control
or"
• Press the _ button on the unit one or more times until ,'_ is displayed.
Result: • The unit beeps each time you press the _/_ button.
• The air conditioner starts up in the Cool mode.
You can change modes at any time.
To adjust the temperature, press the l--Z-] or _ buttons one or
more times until the required temperature is displayed.
The temperature can be set between 64°F and 86°F.
Result: • Each time you press the I--S--'lor _ buttons:
- The temperature is adjusted by I°F
- The unit beeps
• The air conditioner starts removing the excess humidity;
the quality of air is adjusted automatically.
4 To control the direction of the air flow, refer to page 11.
®

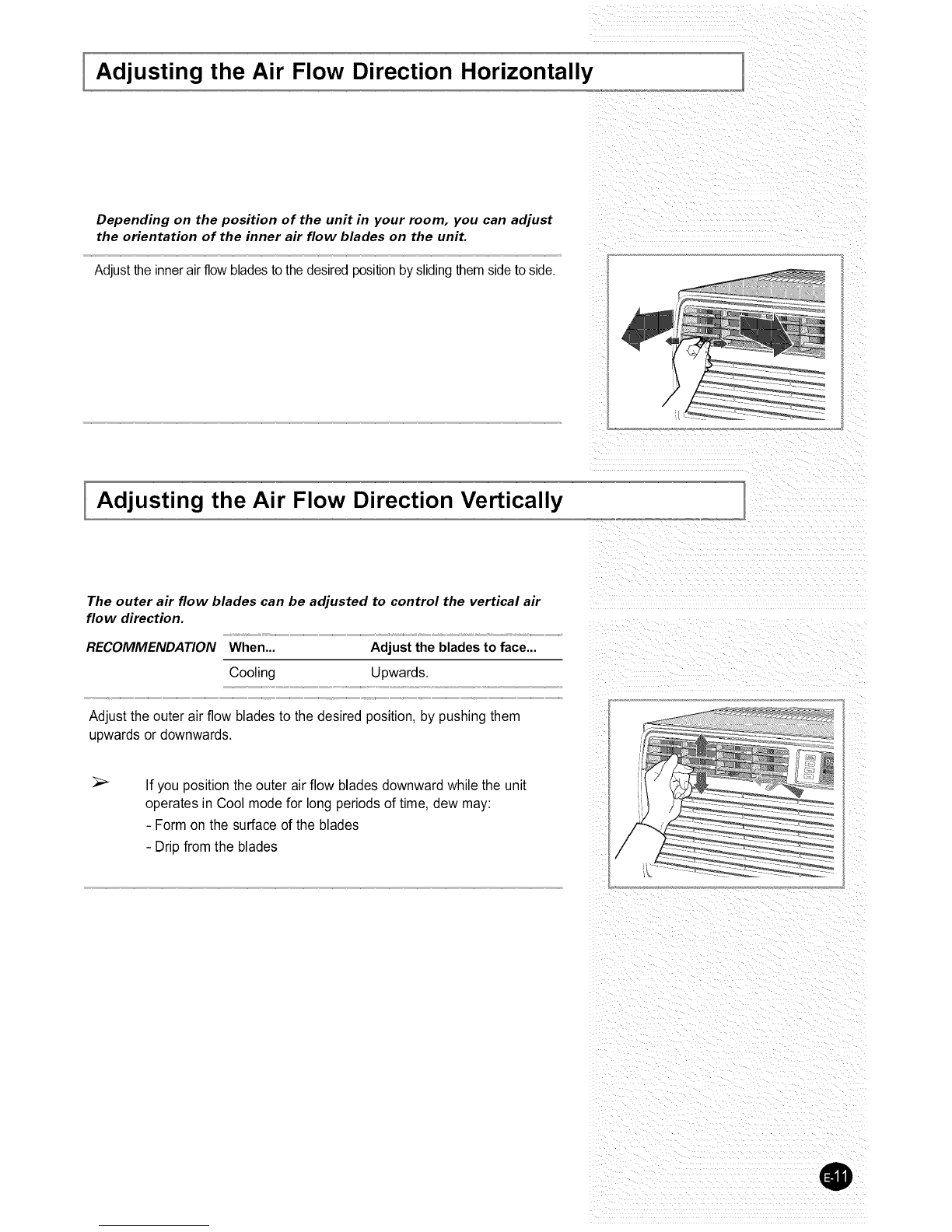

Adjusting the Air Flow Direction Horizontally
Depending on the position of the unit in your room. you can adjust
the orientation of the inner air flow blades on the unit.
Adjust the inner air flow blades to the desired position by sliding them side to side.
/
Adjusting the Air Flow Direction Vertically
The outer air flow blades can be adjusted to control the vertical air
flow direction.
RECOMMENDATION When... Adjust the blades to face...
Cooling Upwards.
Adjust the outer air flow blades to the desired position, by pushing them
upwards or downwards.
If you position the outer air flow blades downward while the unit
operates in Cool mode for long periods of time, dew may:
- Form on the surface of the blades
- Drip from the blades
®

Setting the On Timer
RemoteControl ControlPanel
The On 77mer enables you to switch on the air conditioner automatically after
a given time, You can select the On timer only when the air conditioner is off,
1Check that the air conditioner has been switched off; if necessary,
press the (D (On/Off) button.
I Timer_ I
Set the desired amount of time in hours before the unit will come on
by pressing the @ button on the remote control or _ button
on the unit one or more times. The countdown time can be set
between 1 and 24 hours.
Result: _1,Each time you press the _ button:
- The time is adjusted by 1 hour and displayed on the control
panel
- The unit beeps
4!, The countdown time is displayed and decreases automatically to
indicate the remaining time.
4!, The air conditioner starts up in the Coot or Dry mode automati-
cally when the countdown time reaches zero.
You can select the fan speed,temperature and Energy Saving
mode after setting the On timer mode. You also can change
the Cool or Dry mode without cancelling the On timer mode.
Cancel the On Timer
To cancel the timer, press:
41, Timer on the remote control or unit one or more times until "--" is displayed.
or
<!, The (,D (On/Off) button on the remote control or unit
(The Air Conditioner returns to the previously selected operation mode.)
@

Setting the Off Timer
The Off 7Tmerenables you to switch off the air conditioner automatically after
a given time. You can select the Off timer only when the air conditioner is on.
Check that the air conditioner has been switched on; if necessary,
press the (_) (On/Off) button.
RemoteControl ControlPanel
Set the desired amount of time before the unit will turn off by pressing
the (_ button on the remote control or _ button on the unit one or
more times until the desired time is displayed. The countdown time can be
set between 1 and 24 hours.
Result: 41,Each time you press the _ button:
-The time is adjusted by 1 hour and displayed on the control
panel
- The unit beeps
• The countdown time is displayed and decreases automatically
to indicate the remaining time.
• The air conditioner switches off automatically when the
countdown time reaches zero.
_,_ You can select the fan speed, temperature and Energy saving mode
after setting the Off timer mode. However, when you change
to the fan speed mode,the Off timer mode is canceled.
Cancel the Off Timer
To cancel the timer, press:
• Timer on the remote control or unit one or more times until "--" is displayed.
o._[
• The (_) (On/Off) button on the remote control or unit.
@

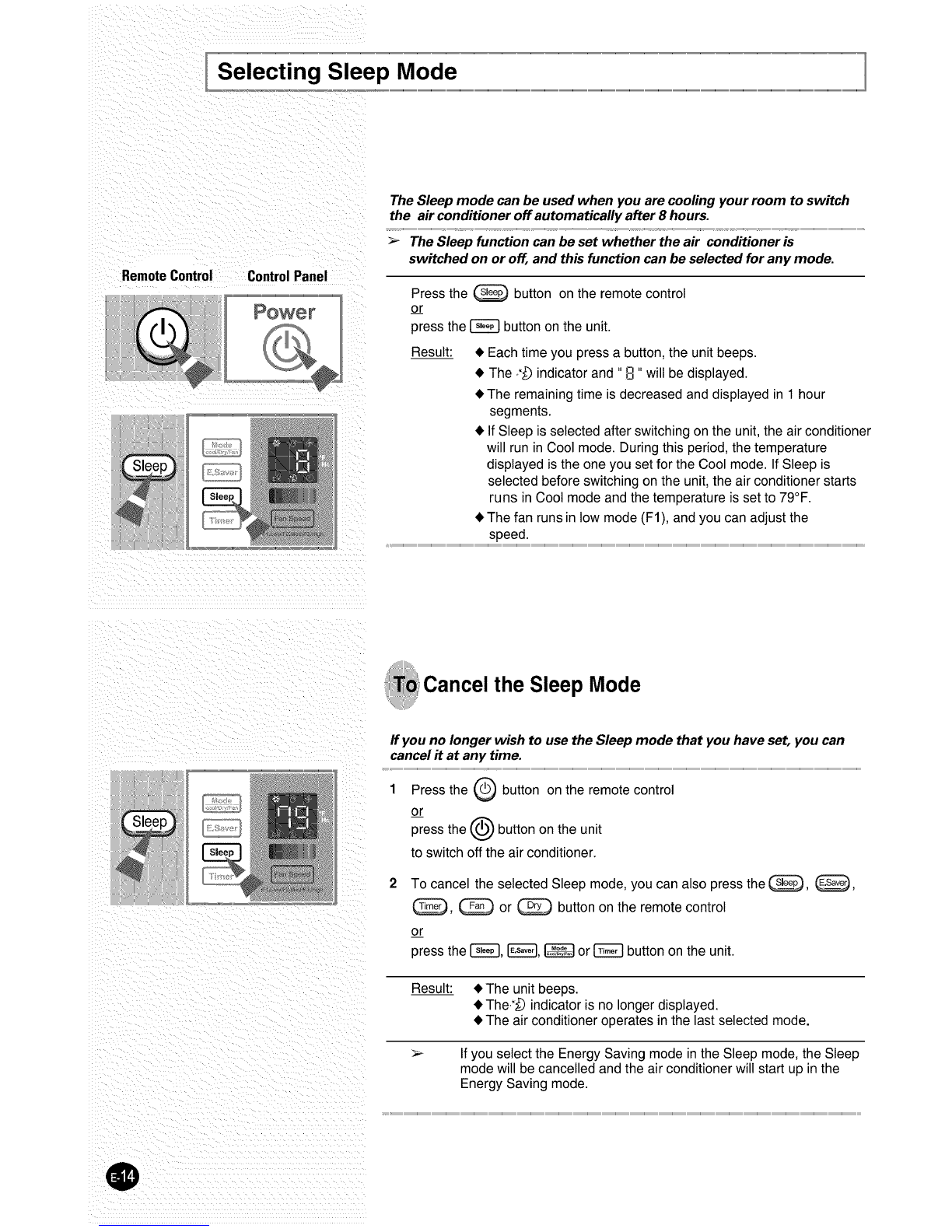

Selecting Sleep Mode
RemoteControl ControlPanel
The Sleep mode can be used when you are cooling your room to switch
the air conditioner off automatically after 8 hours.
> The Sleep function can be set whether the air conditioner is
switched on or off, and this function can be selected for any mode.
Press the _ button on the remote control
or
press the _ button on the unit.
Result: • Each time you press a button, the unit beeps.
• The _# indicator and "El "wilt be displayed.
• The remaining time is decreased and displayed in 1 hour
segments.
• If Sleep is selected after switching on the unit, the air conditioner
will run in Cool mode. During this period, the temperature
displayed is the one you set for the Cool mode. If Sleep is
selected before switching on the unit, the air conditioner starts
runs in Cool mode and the temperature is set to 79°F.
• The fan runs in tow mode (F1), and you can adjust the
speed.
the Sleep Mode
ff you no longer wish to use the Sleep mode that you have set, you can
cancel it at any time.
Press the Q button on the remote
1 control
or
press the (_ button on the unit
to switch off the air conditioner.
To cancel the selected Sleep mode, you can also press the _, _,
_, _ or _ button on the remote control
or
press the _, _, _ or _ button on the unit.
Result: • The unit beeps.
• The.*# indicator is no longer displayed.
• The air conditioner operates in the last selected mode.
If you select the Energy Saving mode in the Sleep mode, the Sleep
mode will be cancelled and the air conditioner will start up in the
Energy Saving mode.
@

Selecting Energy Saving Mode
If you wish to save energy when using your air conditioner,
select the energy saving mode.
1 To select the energy saving mode, press the _ button on the remote
control or _ button on the unit one or more times until the Energy
Saver indicator lights up.
Result: •The fan and compressor cycle on and off together.
• The fan will continue to run for a short time after the
compressor cycles off.
If you would like the air conditioner to run in Dry mode, do not press
the _ button. You cannot use the Dry mode in the energy saving
mode.
Remote Control Control Panel
IE.Saverl
To stop the energy saving mode, press the _ button on the remote
control or _ button on the unit again.
Result: The fan runs at all times, while the compressor cycles on and off.
If you select the Sleep Timer in the Energy Saving mode, the Energy
Saving will be cancelled and the air conditioner will start up in the
Sleep Timer mode.
®

Temperature and Humidity Ranges
The following table indicates the air conditioner's temperature and humidity operation range.
Mode Indoor Temperature Outdoor Temperature Indoor Humidity
Cooling 70°F to 90°F approx. 70°F to 110°F approx. 80% or less
If the air conditioner is used at... Then...
Higher temperatures The automatic protection feature may be triggered and the air
conditioner will stop.
Lower tern peratures A water leakage or some other malfunction may happen if the
heat exchanger freezes.
Higher humidity levels Water may condense on and drip from the surface of the unit
if it is used for long periods.
@

Cleaning Your Air Conditioner
Be sure to clean the air filter periodically to keep the air conditioner operating
at optimum level.
_=_ When cleaning the air conditioner, turn it off and pull out the
power plug.
1Open the front grille by pulling the tabs on both sides of the front grille.
Then lift it up slightly to open the front grille completely.
2Grab the tabs on the air filter and pull it up and out.
3Remove all dust on the air filter with a vacuum cleaner or brush.
4When you have finished, insert the air filter back into its original position.
5Wipe the surface of the unit with a neutral detergent and then wipe it again
with a dry cloth. (Be sure not to use benzene, solvent or other chemical
products.)
Ifyou... Then..,
Will not be using the
air conditioner for a
long period of time
Switch the fan on for a few hours to
thoroughly dry the inside of the air
conditioner.
4, Switch the air conditioner off and
unplug it from the wall socket.
Clean the filter and outer surfaces.
Have not used the air Switch the fan on for a few hours to
conditioner for a long thoroughly dry the inside of the air
period of time conditioner.
@

Solving Common Problems
Before contacting a Samsung authorized service center, perform the following simple checks.
They may save you the time and expense of an unnecessary call.
Problem Explanation /Solution
The air conditioner does
not operate at all t Check that the circuit breaker used for the air conditioner has not been
triggered.
t Check that the power cable is plugged into a wall socket and the socket is
switched on, if necessary.
t Check that the temperature indicator on the unit is lit; if necessary,
press the (L) (On/Off) button on the remote control or unit.
The air conditioner does not
operate with the remote
control
t Check that there are no obstacles between you and the unit.
t Replace the remote control batteries if necessary.
t Check that you are close enough to the unit (seven meters/yards or less).
No beep is heard when you
press the (L) (On/Offl button
on the remote control
t Check that you are pointing the remote control at the remote control sensor
on the unit.
t Replace the remote control batteries if necessary.
The air conditioner does not
cool t Check that the correct operating mode has been selected(Cool).
t The room temperature may be too low.
t Dust may be blocking the air filter; refer to page 17 for cleaning instructions.
t Check that there is no obstacle blocking the air flow into or out of the unit.
The timer is not correctly trig- t Check that the timer has been programmed correctly; refer to pages 12-14.
gered
Odors are permeating the t Ventilate the room.
room during air conditioning
@

Technical Specifications
Design and specifications are subject to change without notice.
Model Power Supply
AW069CB AW06ECB7
AW089CB AW08ECB7
AW109CB AW10ECB7
AW129CB AW12ECB7
AW149CB AW15ECB7
115V~, 60Hz
AWl 89CB
AWl 8ECB7 230-208V ~, 60Hz
AW25ECB7
@

INSTALLATIONMANUAL
Window-Type roomair conditioner
