Samsung AM015JNVDKH User manual

Features of your new air conditioner
Turbo function
You can set the Turbo function to provide fast and powerful cooling (heating).
Easy Filter
There is no grille to remove before separating the lter from the air conditioner! Therefore, lter can
be cleaned easily, more frequently! Frequent lter cleaning will prevent dust from entering into the
product or accumulating on the lter.
Easy Installation
It’s so easy to install!You can easily hang the product on the wall and connect the pipes and wires
by opening the cover on the bottom of the product. Now you won’t have to tilt the product to
connect the pipe and the wires!
function
function will allow you to have deep, good night’s sleep by adjusting the
temperature, fan speed and air ow direction.
Correct Disposal of This Product
(Waste Electrical & Electronic Equipment)
(Applicable in countries with separate collection systems)
This marking on the product, accessories or literature indicates that the product and its electronic accessories (e.g. charger, headset, USB cable) should not be
disposed of with other household waste at the end of their working life. To prevent possible harm to the environment or human health from uncontrolled
waste disposal, please separate these items from other types of waste and recycle them responsibly to promote the sustainable reuse of material resources.
Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how
they can take these items for environmentally safe recycling.
Business users should contact their supplier and check the terms and conditions of the purchase contract. This product and its electronic accessories
should not be mixed with other commercial wastes for disposal.
For information on Samsung’s environmental commitments and product specific regulatory obligations e.g. REACH visit: samsung.com/uk/aboutsamsung/
samsungelectronics/corporatecitizenship/data_corner.html
English-2

Contents
Preparation
Safety precautions ..........................................................................................................4
Checking before use ......................................................................................................10
Checking the name of the parts ...........................................................................................11
Using the remote controller ...............................................................................................12
Basic operation
Basic operation ........................................................................................................... 15
Timer
Setting the On/O timer ..................................................................................................18
Setting the good'sleep mode..............................................................................................20
Options
Using the Turbo function ..................................................................................................22
Using the Purity function..................................................................................................23
Settings
Selecting an indoor unit...................................................................................................24
Selecting a blade..........................................................................................................24
Others
Cleaning the air conditioner............................................................................................... 25
Maintaining the air conditioner............................................................................................28
Troubleshooting ..........................................................................................................29
Appendix .................................................................................................................31
Installation parts
Installation parts ..........................................................................................................32
English-3

Safety precautions
Before using your new air conditioner, please read this manual thoroughly to ensure
that you know how to safely and eciently operate the extensive features and
functions of your new appliance.
Because the following operating instructions cover various models, the
characteristics of your air conditioner may dier slightly from those described in this
manual. If you have any questions, call your nearest contact center or nd help and
information online at www.samsung.com.
Important safety symbols and precautions:
WARNING
Hazards or unsafe practices that may result in severe
personal injury or death.
CAUTION
Hazards or unsafe practices that may result in minor
personal injury or property damage.
Follow directions. Cut-o the power supply.
Do NOT attempt. Do NOT disassemble.
Make sure the machine is grounded to prevent electric shock.
FOR INSTALLATION
WARNING
Use the power line with the power specications of the product or higher
and use the power line for this appliance only. In addition, do not use an
extension line.
Extending the power line may result in electric shock or fire.
Do not use an electric transformer. It may result in electric shock or fire.
If the voltage/frequency/rated current condition is different, it may cause
fire.
The installation of this appliance must be performed by a qualied
technician or service company.
Failing to do so may result in electric shock, fire, explosion, problems with the
product, or injury and may also void warranty on the installed product.
Install a Isolation Switch next to the Air Conditioner (but not on the panels
of the Air Conditioner)and circuit breaker dedicated to the air conditioner.
Failing to do so may result in electric shock or fire.
Fix the outdoor unit rmly so that the electric part of the outdoor unit is not
exposed.
Failing to do so may result in electric shock, fire, explosion, problems with the
product.
English-4

Do not install this appliance near a heater, inammable material. Do
not install this appliance in a humid, oily or dusty location, in a location
exposed to direct sunlight and water (rain drops). Do not install this
appliance in a location where gas may leak.
This may result in electric shock or fire.
Never install the outdoor unit in a location such as on a high external wall
where it could fall.
If the outdoor unit falls, it may result in injury, death or property damage.
This appliance must be properly grounded. Do not ground the appliance to a
gas pipe, plastic water pipe, or telephone line.
Failure to do so may result in electric shock, fire, and explosion.
Make sure to use a socket-outlet with ground.
FOR INSTALLATION
CAUTION
Install your appliance on a level and hard oor that can support its weight.
Failing to do so may result in abnormal vibrations, noise, or problems with the
product.
Install the draining hose properly so that water is drained correctly.
Failing to do so may result in water overflowing and property damage. Avoid
adding drain to waste pipes as odours may arise in the future.
When installing the outdoor unit, make sure to connect the draining hose
so that draining is performed correctly.
The water generated during the heating operation by the outdoor unit may
overflow and result in property damage.
In particular, in winter, if a block of ice falls, it may result in injury, death or
property damage.
FOR POWER SUPPLY
WARNING
When the circuit breaker is damaged, contact your nearest service center.
Do not pull or excessively bend the power line. Do not twist or tie the
power line. Do not hook the power line over a metal object, place a heavy
object on the power line, insert the power line between objects, or push
the power line into the space behind the appliance.
This may result in electric shock or fire.
English-5
PREPARATION01

Safety precautions
FOR POWER SUPPLY
CAUTION
When not using the air conditioner for a long period of time or during a
thunder/lightning storm, cut the power at the circuit breaker.
Failing to do so may result in electric shock or fire.
FOR USING
WARNING
If the appliance is ooded, please contact your nearest service center.
Failing to do so may result in electric shock or fire.
If the appliance generates a strange noise, a burning smell or smoke, cut-
o the power supply immediately and contact the nearest service center.
Failing to do so may result in electric shock or fire.
In the event of a gas leak (such as propane gas, LP gas, etc.), ventilate
immediately without touching the power line. Do not touch the appliance
or power line.
Do not use a ventilating fan.
A spark may result in an explosion or fire.
To reinstall the air conditioner, please contact your nearest service center.
Failing to do so may result in problems with the product, water leakage,
electric shock, or fire.
A delivery service for the product is not provided. If you reinstall the product in
another location, additional construction expenses and an installation fee will
be charged.
Especially, when you wish to install the product in an unusual location such as
in an industrial area or near the seaside where it is exposed to the salt in the air,
please contact your nearest service center.
Do not touch the circuit breaker with wet hands.
This may result in electric shock.
Do not turn the air conditioner o with the circuit breaker while it is
operating.
Turning the air conditioner off and then on again with the circuit breaker may
cause a spark and result in electric shock or fire.
After unpacking the air conditioner, keep all packaging materials well
out of the reach of children, as packaging materials can be dangerous to
children.
If a child places a bag over its head, it may result in suffocation.
English-6

Do not insert your ngers or foreign substances into the outlet when the air
conditioner is operating.
Take special care that children do not injure themselves by inserting their
fingers into the product.
Do not touch the air ow blade with your hands or ngers during the
heating operation.
This may result in electric shock or burns.
Do not insert your ngers or foreign substances into the air inlet/outlet of
the air conditioner.
Take special care that children do not injure themselves by inserting their
fingers into the product.
Do not strike or pull the air conditioner with excessive force.
This may result in fire, injury, or problems with the product.
FOR USING
WARNING
Do not place an object near the outdoor unit that allows children to climb
onto the machine.
This may result in children seriously injuring themselves.
Do not use this air conditioner for long periods of time in badly ventilated
locations or near inrm people.
Since this may be dangerous due to a lack of oxygen, Open a window at least
once an hour.
If any foreign substance such as water has entered the appliance, cut-o
the power supply and contact the nearest service center.
Failing to do so may result in electric shock or fire.
Do not attempt to repair, disassemble, or modify the appliance yourself.
Do not use any fuse (such as cooper, steel wire, etc.)other than the standard
fuse.
Failing to do so may result in electric shock, fire, problems with the product, or
injury.
English-7
PREPARATION01

Safety precautions
FOR USING
CAUTION
Do not place objects or devices under the indoor unit.
Water dripping from the indoor unit may result in fire or property damage.
(example electrical appliances)
Check that the installation frame of the outdoor unit is not broken at least
once a year.
Failing to do so may result in injury, death or property damage.
Max current is measured according to IEC standard for safety and current is
measured according to ISO standard for energy eciency.
Do not stand on top of the appliance or place objects (such as laundry,
lighted candles, lighted cigarettes, dishes, chemicals, metal objects, etc.) on
the appliance.
This may result in electric shock, fire, problems with the product, or injury.
Do not operate the appliance with wet hands.
This may result in electric shock.
Do not spray volatile material such as insecticide onto the surface of the
appliance.
As well as being harmful to humans, it may also result in electric shock, fire or
problems with the product.
Do not drink the water from the air conditioner.
The water may be harmful to humans.
Do not apply a strong impact to the remote controller and do not
disassemble the remote controller.
Do not touch the pipes connected with the product.
This may result in burns or injury.
Do not use this air conditioner to preserve precision equipment, food,
animals, plants or cosmetics, or for any other unusual purposes.
This may result in property damage.
Avoid directly exposing humans, animals or plants from the air ow from
the air conditioner for long periods of time.
This may result in harm to humans, animals or plants.
English-8
• Please cover the air conditioner with PE BAG after installation, and remove it when
you start to run air conditioner.
CAUTION

This appliance is not intended for use by persons (including children) with
reduced physical, sensory or mental capabilities, or lack of experience
and knowledge, unless they have been given supervision or instruction
concerning use of the appliance by a person responsible for their safety.
Children should be supervised to ensure that they do not play with the
appliance.
For use in Europe : This appliance can be used by children aged from 8
years and above and persons with reduced physical, sensory or mental
capabilities or lack of experience and knowledge if they have been given
supervision or instruction concerning use of the appliance in a safe way
and understand the hazards involved. Children shall not play with the
appliance. Cleaning and user maintenance shall not be made by children
without supervision.
FOR CLEANING
WARNING
Do not clean the appliance by spraying water directly onto it. Do not use
benzene, thinner or alcohol to clean the appliance.
This may result in discoloration, deformation, damage, electric shock or fire.
Before cleaning or performing maintenance, cut-o the power supply and
wait until the fan stops.
Failing to do so may result in electric shock or fire.
FOR CLEANING
CAUTION
Take care when cleaning the surface of the heat exchanger of the outdoor
unit since it has sharp edges.
This should be done by a qualified technician please contact your installer or
service center.
Do not clean the inside of the air conditioner by yourself.
For cleaning inside the appliance, contact your nearest service center.
When cleaning the internal filter, refer to the descriptions in the ‘Cleaning the
air conditioner’section.
Failure to do may result in damage, electric shock or fire.
English-9
PREPARATION01

Checking before use
Operation ranges
The table below indicates the temperature and humidity ranges the air
conditioner can be operated within. Refer to the table for ecient use.
Maintaining your air conditioner
 The standardized temperature for heating is 7˚C. If the outdoor temperature drops to 0˚C or below, the heating capacity can
be reduced depending on the temperature condition.
 If the cooling operation is used at over 32˚C(indoor temperature), it does not cool at its full capacity.
Internal protections via the unit control system
This internal protection operates if an internal fault occurs in the air conditioner.
• If the heat pump is operating in Heat mode, defrost cycle is actuated to help remove frost from an outdoor unit that
may have deposited at low temperatures.
The internal fan is switched o automatically and restarted only after the defrost cycle is completed.
Type Description
Against cold air The internal fan will be o to prevent cold air when the heat pump is heating.
Defrost cycle
The internal fan will be o to defrost ice when the heat pump is heating.
Vertical air ow blade will be closed during defrost cycle and it will open again during
heating operation after defrost cycle.
Protect compressor The air conditioner does not start operating immediately to help protect the compressor
of the outdoor unit after it has been started.
MODE OPERATIONAL TEMPERATURE INDOOR HUMIDITY IF OUT OF CONDITIONS
INDOOR OUTDOOR
COOLING 16˚C to 32˚C -5˚C to 48˚ 80% or less
Condensation may occur on the indoor unit
with risk to have either water blow o or drops
on the oor.
HEATING 27˚C or less -20˚C to 24˚C -Internal protection triggers and the air
conditioner will stop.
DRYING 16˚C to 32˚C -5˚C to 48˚C -
Condensation may occur on the indoor unit
with risk to have either water blow o or drops
on the oor.
English-10

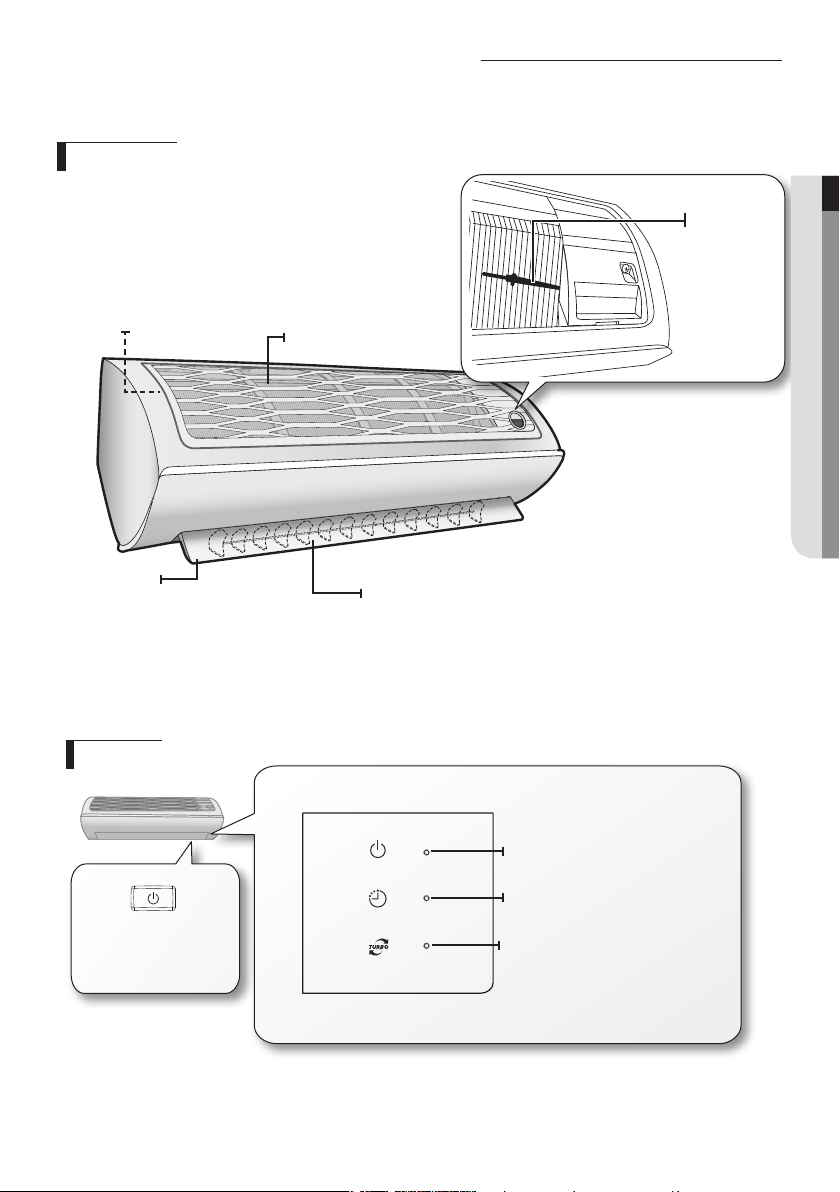

Main parts
Checking the name of the parts
Display
Power button/
Remote controller receiver Turbo indicator
Timer/Auto clean indicator
Power indicator
Air lter
Air ow blade
(up and down) Air ow blade
(left and right)
Air intake
Room
temperature
sensor
English-11
PREPARATION01

Using the remote controller
f Point the remote controller towards the remote controller receiver of the indoor unit.
f When you press the button on the remote controller correctly, you will hear beep sound from the indoor unit and a
transmit indicator( ) appears on the remote controller display.
Remote controller buttons
Mode
Selects operation mode.
Air ow direction (Left and right)
Adjusts the air ow direction left and right.
Power
Turns the air conditioner on or o.
Temperature
Adjusts the temperature.
Options
Selects options during operation.
Direction
Moves to select and set an option.
Fan speed
Adjusts the fan speed.
Air ow direction (Up and down)
Adusts the air ow direction up and down
(Not applicable to Duct type models).
SET
Selects or cancels an option.
Settings
Selects settings.
Timer
Sets timer option.
• In case you wish to cancel the options or settings that you have just set, press the Options or Settings button
again, then the most recently selected item will blink and you may simply cancel it by pressing the SET button
while selected item is blinking.
NOTE
English-12

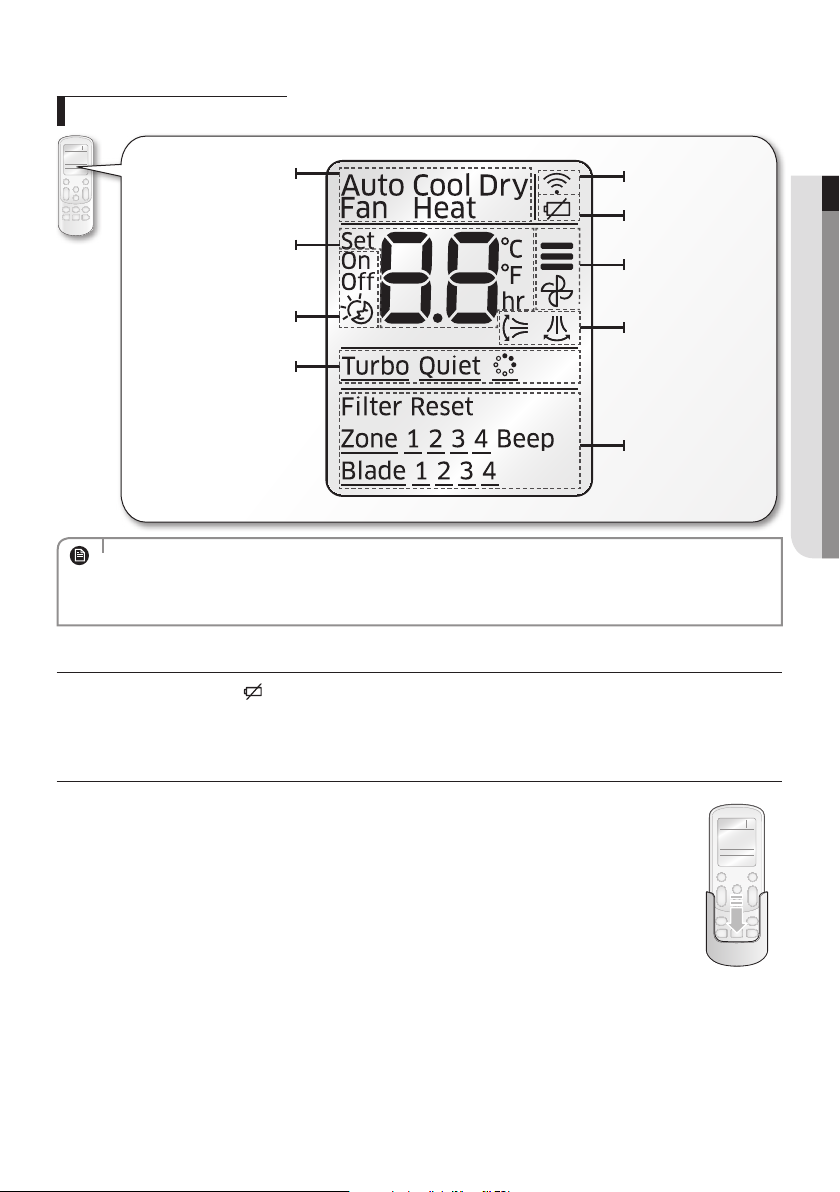

Remote controller display
Operation mode
*Heat mode is applicable to
MR-EH00/MR-EH00U model
only.
Remote controller
transmission
Low battery
Fan speed
Air ow direction
Settings
Set temperature or on/o set
time with the timer function
On/O timer
Options
• For MR-EH00U/MR-EC00U model, the temperature unit will be indicated by "°F" on the display.
• When turning o and turning on the remote controller, the Timer, Options and Settings set before turning o
the remote controller are cancelled. However, the fan direction does not change.
NOTE
Battery changing time
When the battery is exhausted, ( ) will be displayed on the remote controller display. When the icon appears, change the
batteries.
The remote controller requires two 1.5V AAA type batteries.
Storing the remote controller
When you do not use the remote controller for a long time, remove the batteries from the remote controller
and store it in the remote controller holder.
English-13
PREPARATION01

Using the remote controller
Inserting the batteries
1. Open the battery cover of the remote controller.
- Press the ( ) part gently and lift it up in the arrow direction.
2. Insert the batteries.
- Check and match the (+)and (-) signs accordingly.
3. Close the battery cover.
- Match the cover and bottom part of the remote controller and press it until you hear click
sound.
CAUTION
• Make sure that water is not allowed to enter the remote controller.
• There is a possibility that the air conditioner will not operate by remote controller near strong light such as a
uorescent lamp or neon sign. In this case, use the remote controller in front of the remote controller receiver of
the indoor unit.
• If other electrical products are operated by the remote controller, call your nearest service center.
• Filter reset : When the lter reset indicator is turned on the indoor unit display, clean the lter and press the
Settings <, >or Settings (Filter Reset)blinking SET button.
• Beep o : To silence the beep sound, press the Settings <, >or Settings (Beep)blinking SET button. If
you press the Settings <, > or Settings (Beep) blinking SET button again, the beep sound
will ring again.
NOTE
Correct disposal of batteries in this product
(Applicable in countries with separate collection systems)
This marking on the battery, manual or packaging indicates that the batteries in this product should not be disposed
of with other household waste at the end of their working life. Where marked, the chemical symbols Hg, Cd or Pb
indicate that the battery contains mercury, cadmium or lead above the reference levels in EC Directive 2006/66. If
batteries are not properly disposed of, these substances can cause harm to human health or the environment.
To protect natural resources and to promote material reuse, please separate batteries from other types of waste and
recycle them through your local, free battery return system.
English-14

Basic operation
Basic operation is an operation mode that can be selected by pressing the Mode button.
Auto
In Auto mode, the air conditioner will automatically adjust the temperature and fan speed to maintain your fresh
environment.
f When the indoor temperature is too high, the powerful cool breeze is generated and when the indoor room becomes
cool enough, the soft breeze is generated.
Cool
Cool mode is frequently used and you can freely control the temperature, fan speed, and air ow direction in Cool mode.
f When you select the Heat mode while the Cool mode is on, the Cool mode is cancelled.
Dry
The air conditioner in Dry mode acts like a dehumidier by removing moisture from the indoor air. The Dry mode will provide
you with fresh air even on a rainy day.
Fan
Fan mode provides you with a breeze just like a fan to make fresh environment for you.
Heat (MR-EH00/MR-EH00U)
In Heat mode, you can warm your room even in the fall and winter.
f The fan may not commence immediately to avoid generating a cold breeze.
f During the Heat mode, defrost operation may be performed to remove the frost formed on the outdoor unit. (When the
frost is removed by the defrost operation in Heat mode, steam is generated from the outdoor unit.)
f If you stop operating the air conditioner after heating operation, the fan will operate for some time to cool the indoor
unit.
f When you select the Cool mode while the Heat mode is on, the Heat mode is cancelled.
• When the outdoor temperature is low and humidity is high during the heat mode, the outdoor unit's heating
capacity may decrease due to the frost formed on the outdoor heat exchanger. The defrost operation removes
the frost formed on the heat exchanger of the outdoor unit for 5 ~ 12 minutes. During the defrost operation, the
indoor unit does not generate breeze in order to prevent cold breeze blowing out.
 The interval between the defrost operation can decrease depending on the amount of the frost formed on the
outdoor unit.
 The interval between defrost operation can also decrease by humidity level with rain or snow.
NOTE
English-15
BASIC OPERATION02

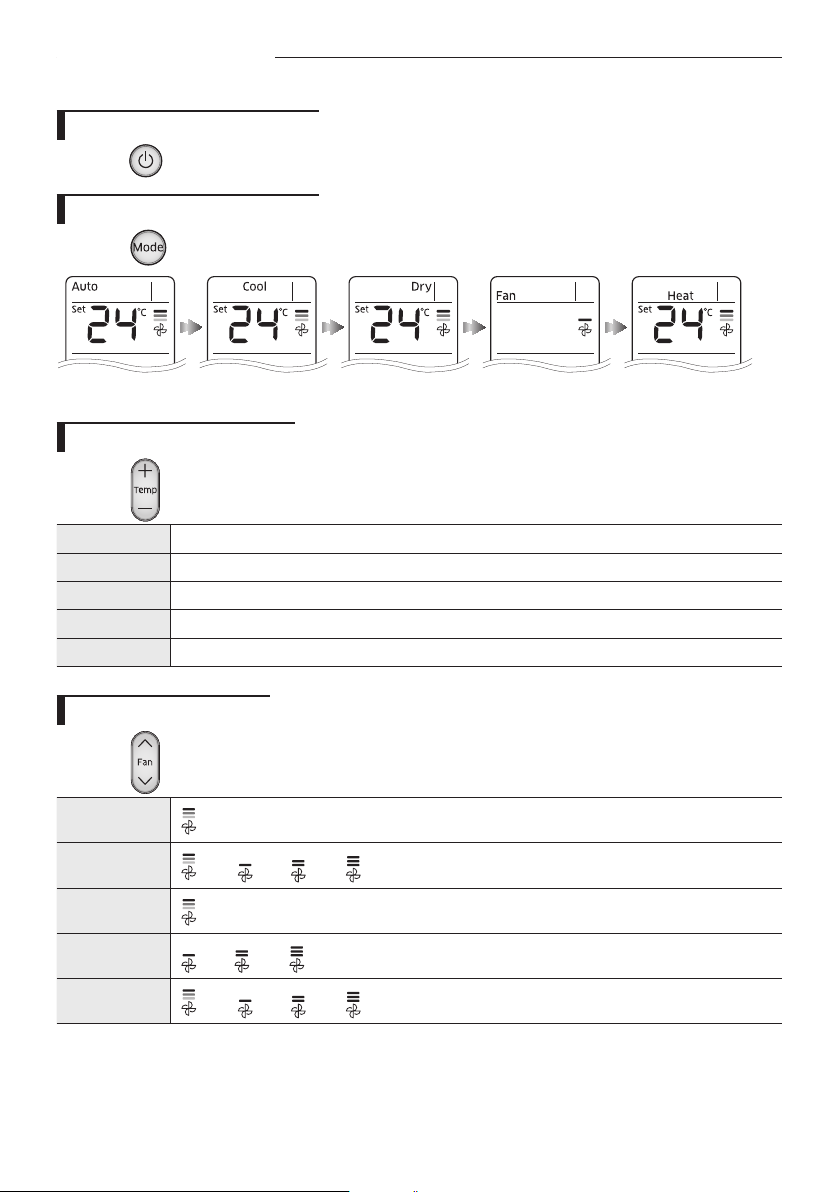

Basic operation
Turning the air conditioner on
Press the button to operate the air conditioner.
Selecting the operation mode
Press the button to select an operation mode.
 Heat mode operates with MR-EH00/MR-EH00U model only.
Adjusting the temperature
Press the button to adjust the temperature.
Auto Temperature can be adjusted by 1°C(1°F) within the range of 18°C(65°F)~30°C(86°F).
Cool Temperature can be adjusted by 1°C(1°F) within the range of 18°C(65°F)~30°C(86°F).
Dry Temperature can be adjusted by 1°C(1°F) within the range of 18°C(65°F)~30°C(86°F).
Fan Temperature cannot be adjusted.
Heat Temperature can be adjusted by 1°C(1°F) within the range of 16°C(61°F) ~30°C(86°F).
Selecting the fan speed
Press the button to adjust the fan speed.
Auto (Auto)
Cool (Auto), (Low), (Med), (High)
Dry (Auto)
Fan (Low), (Med), (High)
Heat (Auto), (Low), (Med), (High)
English-16

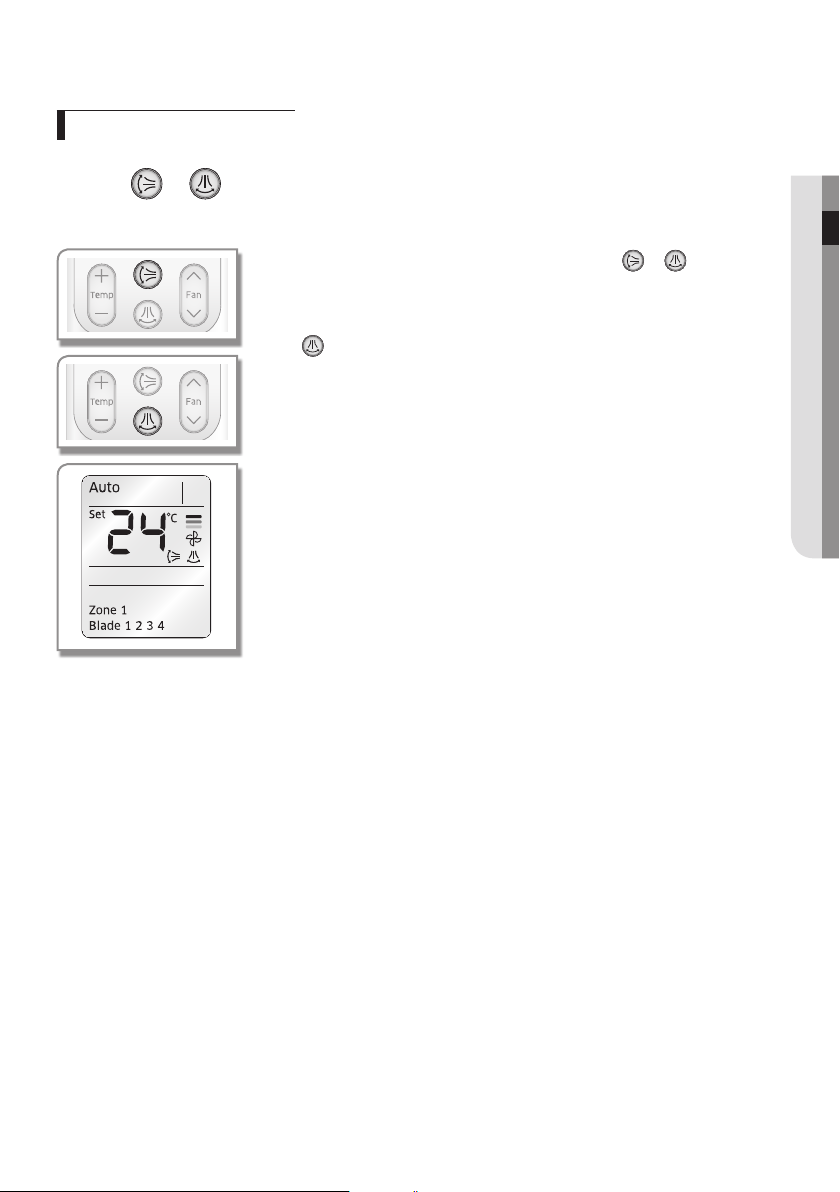

Selecting air ow direction
This function allows you to shift the air ow direction up and down or left and right.
Press the or button to move the air ow direction up and down or left and right while
the air conditioner is turned on.
Remote controller display
f When the blade reaches the desired position, press the or button one
more time to set the air ow direction. The up/down and left/right tilting of the
blade will stop.
 Duct type model cannot adjust air ow direction up and down.
 button not available on RAC.
English-17
BASIC OPERATION02

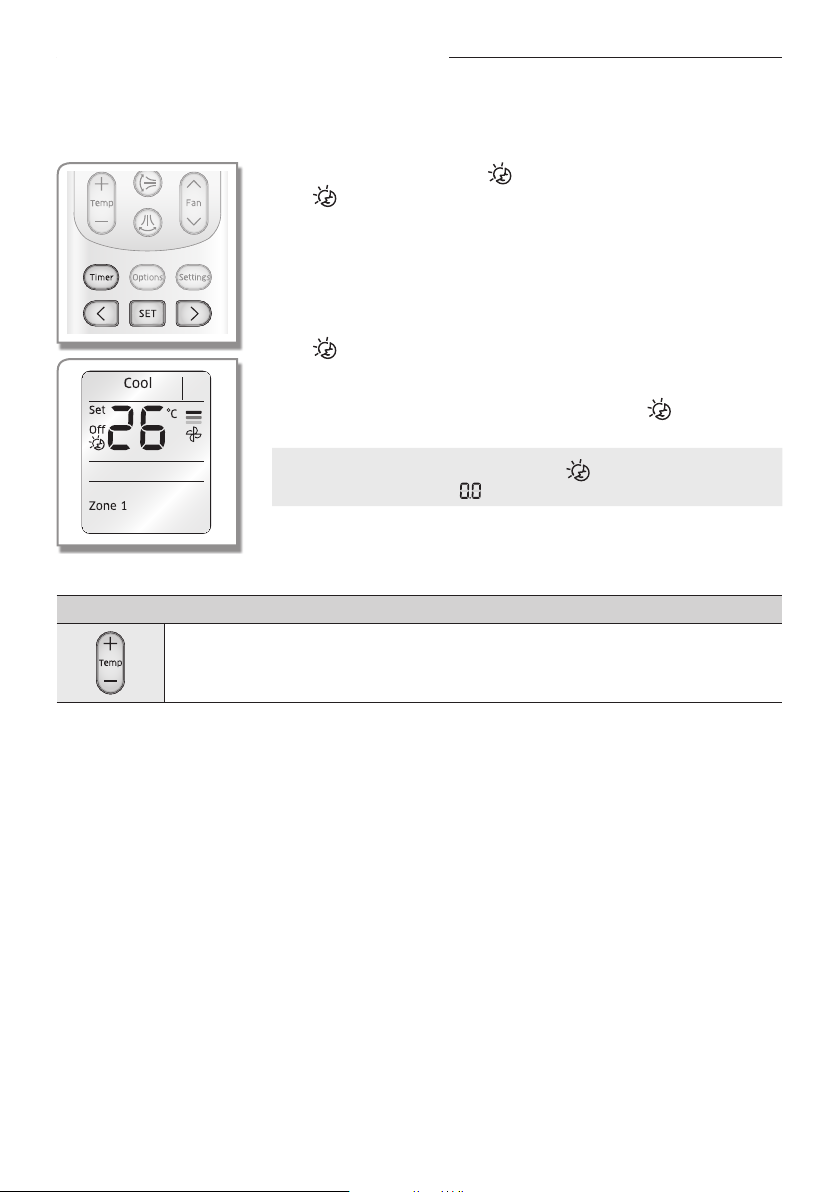

Setting the On/O timer
You can set the air conditioner to be turned on or o automatically at desired time.
Setting the On timer
When the air conditioner is turned o.
Remote controller display
1. Press the Timer button to select (On).
- (On) indicator will keep blinking and you can set the time.
2. Press the <or >button to set the time.
- You can set the time in half hour unit from 30minutes (0.5 on the display) ~
3hours and hour unit from 3 ~ 24hours.
- Time can be set from minimum 30 minutes to maximum 24hours.
3. Press the SET button to complete the On timer setting.
- (On) indicator and the set time of the timer will be displayed on the remote
controller display.
- On timer setting will be cancelled if you don't press the SET button within
10seconds after setting the time. Therefore, check for the (On) indicator on the
remote controller display.
Cancel f Press the Timer button select (On) press the <or >button 
set the timer to press the SET button.
Additional options available in On timer
Select the mode from (Auto) (Cool) (Dry) (Fan) and (Heat).
 Heat mode operates with MR-EH00/MR-EH00U model only.
You can adjust the temperature after timer setting is completed.
Temperature adjustment is only available in Auto/Cool/Dry/Heat mode. In Fan mode, temperature cannot be
adjusted.
 Heat mode operates with MR-EH00/MR-EH00U model only.
• When On timer setting is completed, the set status will be displayed for 3 seconds, and then only (On) indicator
will remain on the remote controller display thereafter.
NOTE
English-18

Setting the O timer
When the air conditioner is turned on
Remote controller display
1. Press the Timer button to select (O).
- (O) indicator will keep blinking and you can set the time.
2. Press the <or >button to set the time.
- You can set the time in half hour unit from 30minutes (0.5 on the display) ~
3hours and hour unit from 3 ~ 24hours.
- Time can be set from minimum 30 minutes to maximum 24 hours.
3. Press the SET button to complete the O timer setting.
- (O) indicator and the set time of the timer will be displayed on the remote
controller display.
- O timer setting will be cancelled if you don't press the SET button within
10seconds after setting the time. Therefore, check for the (O) indicator on the
remote controller display.
Cancel f Press the Timer button select (O) press the <or >button 
set the timer to press the SET button.
• Only the latest setting timer will be applied between the O Timer and
good’sleep o timer functions.
NOTE
Combining On timer and O timer
When the air conditioner is turned o When the air conditioner is turned on
When set time on On timer is shorter than O timer
e.g. On timer: 3hours, O timer: 5hours
• The air conditioner will be turned on after 3hours from the
moment you have set the timer and the air conditioner will
remain on for 2hours and then be turned o automatically.
When set time on On timer is longer than O timer
e.g. On timer: 3hours, O timer: 1hour
• The air conditioner will be turned o after 1hour from the
moment you have set the timer and will be turned on after
2hours from the moment it was turned o.
• Set time for the On timer and the O timer should be dierent from each other.
• When the On timer or the O timer is set, setting can be cancelled by pressing the Power button.
NOTE
English-19
TIMER03

Setting the good’sleep mode
For a comfortable sleep, the air conditioner will operate in 3 stages in order of‘Fall asleep Sound sleep Wake up’stages.
When the air conditioner is operating in Cool mode;
Remote controller display
1. Press the Timer button to select ( ).
- ( ) indicator will keep blinking and you can set the time.
2. Press the <or >button to set the time.
- You can set the time in half hour unit from 30minutes (0.5 on the display) ~
3hours and hour unit from 3 ~ 12hours.
- Time can be set from minimum 30minutes to maximum 12hours.
- Default time setting for the good'sleep mode is 8hours.
3. Press the SET button to complete the good'sleep mode setting.
- ( ) indicator and the set time of the good'sleep mode will be displayed on
the remote controller display.
- good'sleep mode will be cancelled if you don't press the SET button within
10seconds after setting the time. Therefore, check for the ( ) indicator on the
remote controller display.
Cancel f Press the Timer button select ( ) press the <or >button 
set the timer to press the SET button.
Additional options available in good'sleep mode
Temperature can be adjusted by 1°C(1°F) within the range of 18°C(65°F)~30°C(86°F).
English-20
