Window-type Room Air Conditioner (Cool)
L
O
Ñ
A
P
SES
I
AÇNARF
DB98-26003A
OWNER'S
INSTRUCTIONS
E S F P I
SÊUGU
T
R
O
PO
N
AILAT
I
DB98-20384A.indd 23 2006-4-4 16:22:45
AW07P1H Series
AW09P1H Series
AW12P1H Series
AWT12P1H Series
AW14P1H Series
AW18P1H Series
AWT18P1H Series
AW24P1H Series
AWT24P1H Series
AW122PM

E-2
Safety Precautions
The following safety precautions must be taken when using your air conditioner.
Users of this product are cautioned not to attempt repair of this product at their
own discretion. Instead, they are requested to directly contact a designated
service center or the outlet at which the product was purchased.
Never spill any kind of liquid into the unit. Should this happen, unplug or main
switch off the unit and contact an authorized service center.
Do not insert anything between the air outlet blades because the inner fan may
be damaged and could cause injury. Keep children away from the unit.
Do not place any obstacles in front of the unit.
Do not spray liquid of any kind into the indoor unit. Should this happen, switch off
the breaker used for your air conditioner and contact your installation specialist.
Make sure that the unit is correctly ventilated at all times:
Do not place clothing or other materials over it.
If the wireless remote control will not be used for a long time, remove the
batteries. (If applicable)
When using a wireless remote control, the distance should not be more than 7
meters from the air conditioner. (If applicable)
WARNING
DURING OPERATION
Risk of electric shock. • Can cause injury or death. • Disconnect all
remote electric power supplies before servicing, installing or cleaning.
• This must be done by the manufacturer or its service agent or a similar
qualified person in order to avoid a hazard.
AQ07S2GE IB_E_15110 04/2/2 15:35 Page 2
The air conditioner must be plugged into its own specific power source, which
must be installed in compliance with national wiring,earthing and safety
regulations.
If the power cord is damaged in any way, it must be replaced by the manufacturer
or its service agent or a similarly qualified person in order to avoid a hazard.
This device must be installed according to the national electrical rules.
The appliance must be installation that the plug should be easily accessible
after installation.
If the fuse on PC board is broken please change it with the type of T 3.15A 250V.
The breaker of the air conditioner should be all-pole switch; and the distance
between its two contacts should be no less than 3.5mm. Such means for
disconnection must be incorporation in the fixed wiring.
Never store or ship the air conditioner upside down or sideways to avoid damage
to the compressor.
The appliance is not intended for use by young children or infirm persons without
supervision: Young children should be supervised to ensure that they do not play
with the appliance.
Max current is measured according to IEC standard for safety and current is
measured according to ISO standard for energy efficiency.
OTHERS
Before throwing out the device, it is necessary to pull back the battery cells and
get rid of them safely for recycling reasons.
When you need to dispose of the unit, consult your dealer. If pipes are removed
incorrectly, refrigerant may blow out and come into contact with your skin,causing
injury. Releasing refrigerant into the atmosphere also damages the environments.
Please recycle or dispose of the packaging material for this product in an
environmentally responsible manner.
D ISPOSING OF THE UNIT
Register your product at www.samsung.com/global/register

E-3
Contents
PREPARING YOUR AIR CONDITIONER
Safety Precautions
Air Conditioning Unit-Main Parts and Control Panel
CoolingYour Room
Airing Your Room
Switching the Air Conditioner Off
Adjusting the Air Flow Direction Horizontally
Adjusting the Air Flow Direction Vertically
OPERATION YOUR AIR CONDITIONER
Temperature and Humidity Ranges
Cleaning Your Air Conditioner
Solving Common Problems
RECOMMENDATIONS FOR USE
2
4
5
6
6
7
7
8
9
10
CC
CCAA AAUU UUTT TTII IIOO OONN NN
"The high inrush current of the starting compressor motor can have adverse effects to
the operation of other equipment under unfavorable mains conditions.This equipment
does not comply with the relevant technical standards for the limitation of voltage
fluctuations and flicker."
Before connection this equipment to the power supply system, please report to your
suply authority and obtain the consent.
Do not connect other electric appliances to the same supply lines.
The maximum permissible system impedance at the power junction box is 0.24 ohms.
Usually, the maximum permissible mains impedance will not be exceeded when the
branch to the power outlet is fed from a junction box with a rated current of 32A.
INSTALLATION
The illustrations in the step-by-step procedures use four different symbols:
AW18 **
HSILGNE
7

E-4
Air Conditioning Unit - Main Parts and Control Panel
The desing and shape are subject to
change according to the model.
Power plug The type of the power plug
may differ according to the
type of local power supply.
Inner air flow blades
(right/left orientation)
Outer air flow blades
(up/down orientation)
Air inlet (Outside)
Ventilation lever
Power Cable
Air inlet(Inside)
The air filter is
located in side
Operating mode
selection dial Temperature
control dial
Air flow blade swing switch
Air Outlet
Coolest

E-5

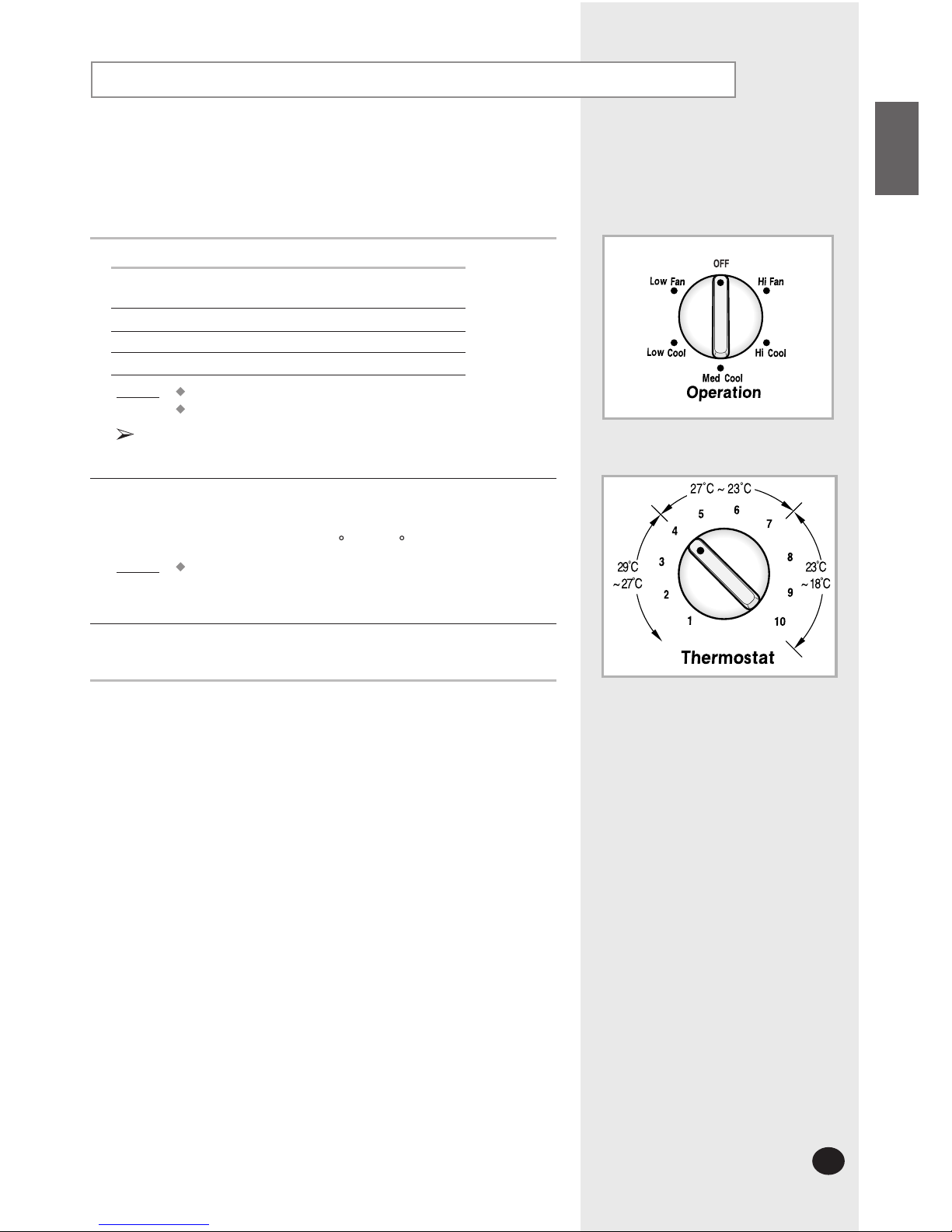

Cooling Your Room
You must select the Cool mode if you wish to lower the temperature
in your room. Y ou can also set the fan speed.
1 Select the operating mode and fan speed.
To cool your room with a... Set the operating mode
selection dial to...
High fan speed
Between HIGH and LOW
Low fan speed
HI COOL
MED COOL
LOW COOL
Result: The air conditioner starts up in Cool mode.
The fan starts up at the speed selected.
You can change modes at any time.
2 To adjust the temperature, turn the temperature control dial
to the desired position.
Possible temperatures: Between 18 C and 29 C inclusive.
Result: The air conditioner starts cooling if the room temperature is
higher than the selected temperature.
3 To control the direction of the air flow, refer to page 7
ENGLISH

E-6
Airing Your Room
If the atmosphere in your room is stale, you can air it using
the Fan feature and if necessary, evacuate the stale air outside.
1 If you wish to evacuate stale air outside, push the ventilation lever on the front
of the unit to the right and the open position ( ).
You can switch the air conditioner off whenever you want.
1 To switch the unit off, simply set the operating mode selection dial
to the OFF position.
Result:
Result:
The air inside the room circulates and stale air is evacuated outside.
Otherwise, push the ventilation lever to the left and the closed position ( ).
The air simply circulates inside the room.
Result: The air conditioner starts up in Fan mode.
Result: The air conditioner stops operating.
2 Set the operating mode selection dial to the HI FAN or LOW FAN
position.
3 To control the direction of the air flow, refer to page 7.
HI FAN: The fan turns rapidly.
LOW FAN: The fan turns slowly.
Switching the Air Conditioner Off

E-7
If you orient the air flow blades downwards and the unit operates
in Cool mode for long periods of time, dew may:
Form on the surface of the blades
Drip from the blades
Adjusting the Air Flow Direction Horizontally
Adjusting the Air Flow Direction Vertically
HSILGNE
Depending on the position of the unit in your room, you can adjust the
orientation of the inner air flow blades on the right-hand side of the
unit, thus increasing the efficiency of the air conditioner.
1 Set the air flow blade swing switch to the on position.
Result: The inner blades swing automatically left and right.
2 To stop the blades moving left and right, set the air flow blade swing
switch to the off position.
To stop the blades in a specific position and orient the air flow in
the corresponding direction, simply set the switch to the off
position when the blades are in the desired position.
Again depending on the position of the unit in your room, you can adjust the
orientation of the outer air flow blades on the right-hand side of the unit.
RECOMMENDATION When... Adjust the blades to face...
Cooling Upwards.
Adjust the air flow blades to the desired position, by pushing them
upwards or downwards.
Temperature and Humidity Ranges
The following table indicates the temperature and humidity ranges
within which the air conditioner can be used in the best condition .
Mode Indoor Temperature Outdoor Temperature Indoor Humidity
If the air conditioner is used at... Then...
Higher temperature
Lower temperature
Higher humidity levels
The automatic protection feature may be triggered
and the air conditioner stopped.
A water leakage or some other malfunction may happen
if the heat exchanger freezes.
Water may condense on and drip from the surface of the unit
if it is used for long periods.
Cooling 21 C to 32 C approx. 21 C to 43 C approx. 80% or less

CC
CCAA AAUU UUTT TTII IIOO OONN NN
E-8

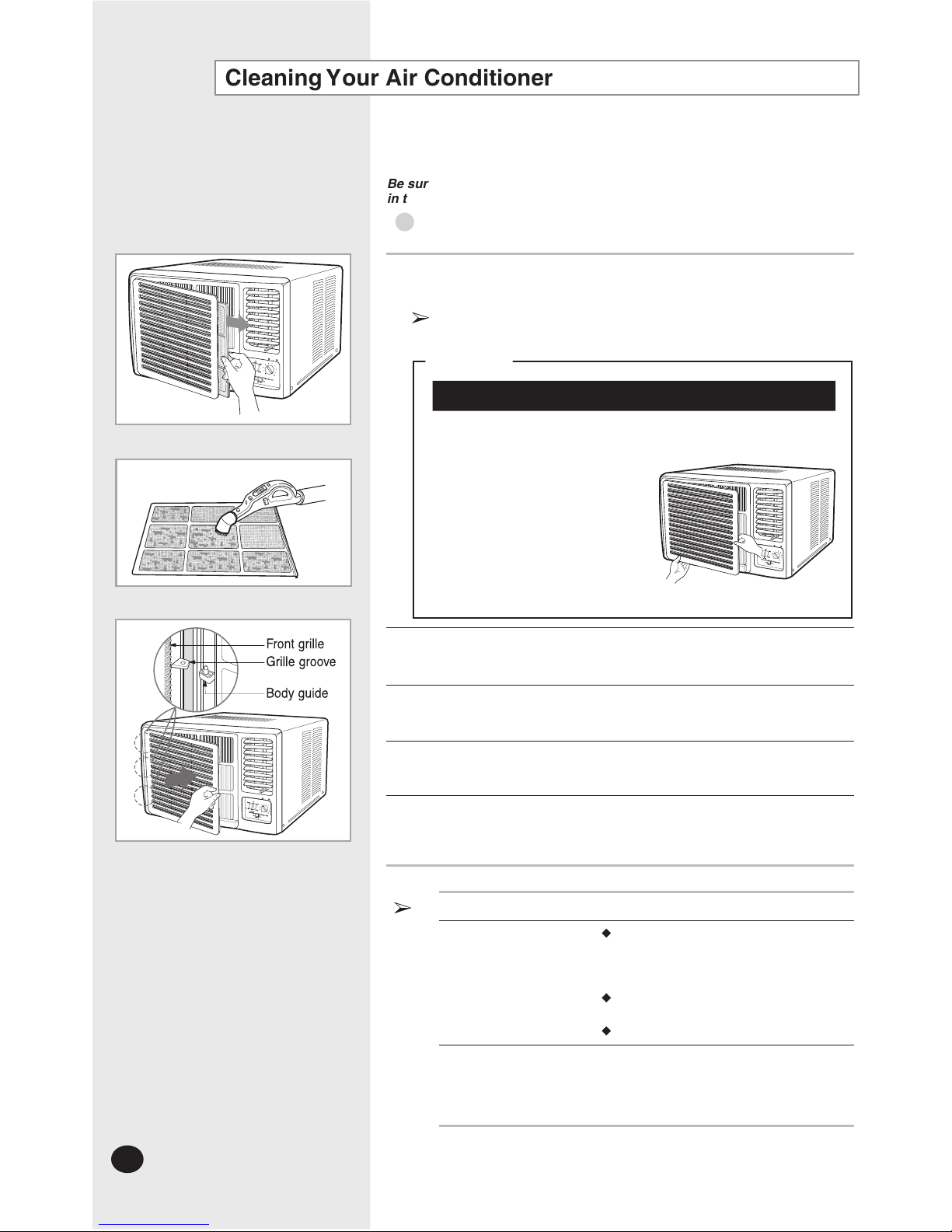

Cleaning Your Air Conditioner
Be sure to clean the air filter periodically to maintain the air conditioner
in the best condition for a long period of time.
1 Hold the front grille handle, slightly pull it to the left side and open the front
grille.
2 Pull the air filter to the right side.
3 Remove all dust on the air filter with a vacuum cleaner or brush.
4 When you have finished, insert the air filter back into its original position.
5 Wipe the surface of the unit with a neutral detergent and then wipe it again
with dry cloth.
(Be sure not to use benzene, solvent or other chemical products.)
IMPORTANT When cleaning the air conditioner, turn it off and pull out
the power plug.
The removal of the front grille makes it easier to clean the air
conditioner. Open the grille as much as possible.
1 Grasp the lower part of the front
grille and the front grille handle,
then open the grille.(The open
angle of front grille has not to be
exceeded 25 degree)
2 Lift the front grille slightly and
remove it from the front panel.
3 Reassembling of front grille
should be done in reverse
order of disassembly.
If you... Then...
Will not be using the
air conditioner for a
long period of time
Have not used the air
conditioner for a long
period of time
Set the operating mode selection dial
to "LOW FAN" and let it run of a few
hours to dry the inside of the air
conditioner thoroughly.
Switch the air conditioner off and
unplug it from the wall socket.
Clean the filter and outer surfaces.
Set the operating mode selection dial
to "LOW FAN" and let it run of a few
hours to dry the inside of the air
conditioner thoroughly.
The air conditioner has two or three
grille grooves depending on the model.
Removal and reassembly of the Front Grille

Solving Common Problems
Before contacting the after-sales service, perform the following simple checks.
They may save you the time and expense of an unnecessary call.
PROBLEM EXPLANATION / SOLUTION
The air conditioner does not
operate at all
The air conditioner does not
cool
The air flow direction does not
change when you set the air
flow blade swing switch to the
on position
Odours are permeated in the
room during air conditioning
Check that the circuit breaker used for the air conditioner
has not been triggered.
Check that the power cable is plugged into a wall socket and the
socket is switched on, if necessary.
Check that the correct operating mode has been selected
(cooling or airing).
Check that the correct operating mode has been selected.
The room temperature may be too low.
Dust may be blocking the air filter;
refer to page 8 cleaning instructions.
Check that there is no obstacle blocking the air flow into or out of the unit.
Check that the air conditioner has been switched on;
if necessary, turn the operating mode selection dial;
refer to page 7.
Air the room.
E- 9
HSILGNE

E- 10
Installation (for 60Hz)
1 Electrical Requirements
For personal safety:
This appliance must be properly grounded.
Do not, under any circumstances, cut or remove the third grounding
prong from the power cord.
We recommend that you do not use an extension cord or an
adapter plug with this appliance.
Do not change the plug on the power cord of this appliance.
Follow national electrical codes or local codes and ordinances.
If the electric supply provided does not meet the above
specifications, call a licensed electrician.
Aluminum house wiring may pose special problems-
consult a qualified electrician.
This unit requires a separate circult, serving only this appliance.
115V
15 AMP Circuit
"parallel" type
230V/208V
20 AMP circuit
"perpendicular" type
230V/208V
15AMP circuit
"tandem" type
230V/208V
30 AMP circuit
"tandem" type

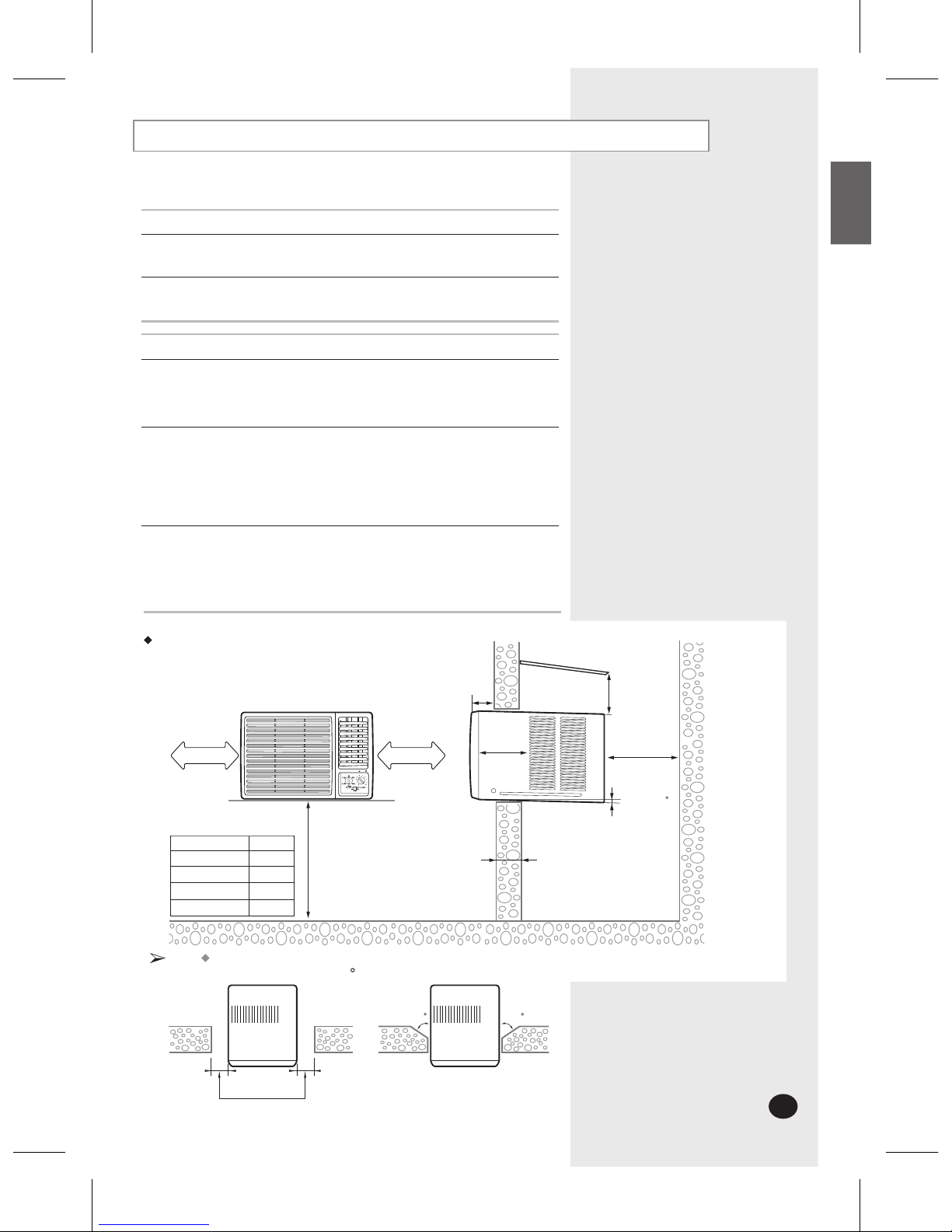

Installation
Before installation, be sure to check the installation area
for the air conditioner, and drain hose.
Checkpoints prior to installation
Installation Conditions
1 Check the cabinet and front grille of the unit for any harmful defects
such as scratches.
1 A s the unit is heavy, the wall or window of the installation area should
have sufficient strength and durability for operation of the air conditioner,
and for prevention of any vibration or noise.
If it is weak, reinforcement work should be performed separately.
2 It is advisable to install the air conditioner in the north or west side to
prevent the effect of direct sunlight.
When installing it in the south or east side due to unavoidable
circumstances, it is advisable to install the sunshade to prevent the
direct sunlight.
In this case, take care not to cause any hindrance to the flow of outside air.
3 When installing the air conditioner, be sure to obtain sufficient space on
the rear side of the unit for smooth flow of air.
When operating the air conditioner in closed areas such as inner building
with cooling operation, and result in trouble with the unit.
See the illustration below.
2 Be sure to check the power supply.
- Refer to the specifications on the label attached to the unit.
The appliance must be fixed well by screw or similar method.
Fence, wall
or other
obstacle
If the wall is greater than 150mm thick.
cut the wall back on a 45 angle if possible.
500mm 500mm
75mm
min.
300mm
500mm
150mm min.
"A"
Approx.3
Awning
750mm
100mm or more
4545
Outdoor Side
Indoor Side
"A"
145
170
260
MODEL
AW07/AW09
AW12/AWT12
AW14/AW18/AW24
AWT18/AWT24 260
HSILGNE
E- 11

Rubber cap
Screws(2EA)
Gasket
Rear
Drain Tube
Bottom-Side View with
Drain Pan and Hose in Place
Rubber cap
Drain Hose
Rear
Drain Pan
Screw
Installation of the Drain Tube
Fix the drain tube as shown in the figure.
Installation of the Drain Pan
The procedure for installing the drain pan should be determined by the
condition of the installing area.
1 Open the front grille; refer to page 8.
3 Remove the front panel.
4 Remove two screws on the lower, right and left sides of the unit.
5 Remove the chassis from the cabinet.
6 Remove the rubber cap inserted into the basepan.
7 Fix the drain pan as shown in the figure, and then connect the drain hose.
(You can use any commercially-available drain hose.)
8 Install the cabinet at the specified area after installing the drain pan,
and then re-assemble it in the original condition.
1 Follow steps 6 and 7 only
2Remove the screw located at the lower section of the front grille.
It is secured in the section depending on the model.
In the case of an area where the drain pan can not be directly
installed on the rear side of the unit after installing the air conditioner.
Example: High storage
In the case of an area where the drain pan can be directly installed
on the rear side of the unit after installing the air conditioner.
3-1 Press both sides of the cabinet in the direction of the arrow
as shown in the figure.
3-2 Pull the lower part of the front panel slightly forward.
(below three inches)
3-3 Lift the front panel upward.
Applying excessive force to remove the front panel may cause
damage to the tab; be sure not to use excessive force.
Secure the front panel to the case by replacing the screw removed in
step 2. If a screw not removed in step 2. secure the panel with a
supplied screw.
E- 12

Country
Customer Care Center ☎Web Site
ARGENTINE 0800-333-3733 www.samsung.com/ar
BRAZIL 0800-124-421 www.samsung.com/br
CHILE 800-726-7864(SAMSUNG) www.samsung.com/cl
COSTA RICA 0-800-507-7267 www.samsung.com/latin
ECUADOR 1-800-10-7267 www.samsung.com/latin
EL SALVADOR 800-6225 www.samsung.com/latin
GUATEMALA 1-800-299-0013 www.samsung.com/latin
JAMAICA 1-800-234-7267 www.samsung.com/latin
PANAMA 800-7267 www.samsung.com/latin
PUERTO RICO 1-800-682-3180 www.samsung.com/latin
REP. DOMINICA 1-800-751-2676 www.samsung.com/latin
TRINIDAD & TOBAGO 1-800-7267-864 www.samsung.com/latin
VENEZUELA 1-800-100-5303 www.samsung.com/latin
AUSTRALIA 1300 362 603 www.samsung.com/au
INDIA 3030 8282 / 1600 1100 11 www.samsung.com/in
INDONESIA 0800-112-8888 www.samsung.com/id
MALAYSIA 1800-88-9999 www.samsung.com/my
PHILIPPINES 1800-10-SAMSUNG (7267864) www.samsung.com/ph
SINGAPORE 1800-SAMSUNG (7267864) www.samsung.com/sg
THAILAND 1800-29-3232 / 02-689-3232 www.samsung.com/th
VIETNAM 1 800 588 889 www.samsung.com/vn
SOUTH AFRICA 0860 7267864 (SAMSUNG) www.samsung.com/za
U.A.E 800SAMSUNG (7267864) www.samsung.com/mea
