1. DVM system series
1-1. What is DVM?
1-2. Features of DVM 6
7
1.Overview_TM_E_06890 2/27/03 10:12 AM Page 7

Ι
6
Ι . Overview
1. DVM system series
1-1. What is DVM?
The DVM(Digital Variable Multi) air conditioning system is operated by a variable-capacity compressor
and is accommodated by multiple evaporators (indoor units). It is touted as the next-generation modular
system in the world of high-efficiency air conditioning. lt has undoubtedly changed the face of cooling
associated with high-storied buildings. It provides a broad range of different applications for settings such
as offices, hotels and schools. With its easy installation and simple controlling system, the DVM will more
than meet the demands of the air conditioning market.
Outdoor unit
4-way cassette type1-way cassette type
Duct type (Low silhouette) Duct type (Built-in)
Duct type (High pressure) Wall-mounted type
1.Overview_TM_E_06890 2/27/03 10:12 AM Page 6

1-2. Features of DVM
(1) Customized air conditioner
1) Up to 16 indoor units can be connected to one outdoor unit.
2) Indoor units can be combined by various methods, according to each room’s use and shape.
3) There are several indoor units which can be applied; 1-way cassette type, 4-way cassette type,
Ceiling, Duct (Low silhouette, Built-in, High pressure), Wall-mounted and Floor standing type.
(2) Comparison of DVM with conventional air conditioners
1) DVM air conditioner
①
Variable capacity (Energy Saving)
②
Competitive price (Compared with the Inverter type)
③
Can be installed in houses / commercial buildings
④
Versatile combination of indoor units
⑤
Various remote controls
2) Conventional air conditioners
①
Fixed capacity
②
Unfavorable in case of installing more than 3 units / system
Ι
7
1.Overview_TM_E_06890 2/27/03 10:12 AM Page 7

Ι
8
Ι . Overview
1. DVM system series
(3) Variable compressor
The world’s first PWM(Pulse Width Modulation) compressor controls the cooling & heating capacity
automatically, depending on the load.

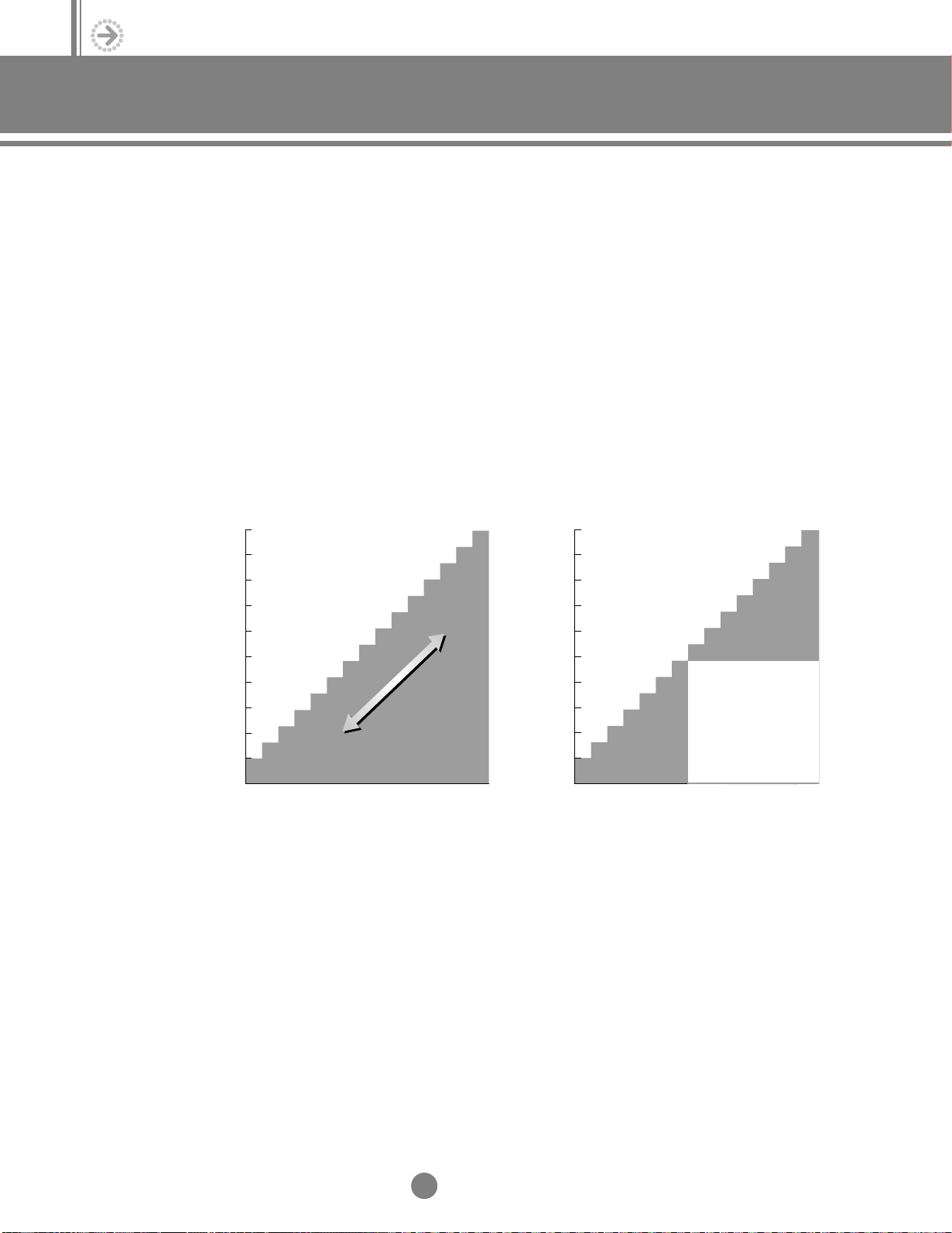

1) Principle of the digital compressor
①
Composition
A solenoid valve is installed for compressor´s loading / unloading between the upper part of the fixed
scroll and the suction pipe.
②
Mechanism
a. When the solenoid valve is turned off, the fixed scroll is closed to the orbiting scroll (Loading),
b. When the solenoid valve is turned on, the fixed scroll is separated from the orbiting scroll (Unloading),
c. This process controls the On / Off turning of the valve, thus adjusting the capacity of the compressor.
d. The cooling capacity of the outdoor unit is controlled automatically, depending on the
number of operating indoor unit(s).
Total capacity of operating indoor unit(s)
(kcal/h)
100
90
80
70
60
50
40
30
20
10
0
3000 6000 9000 12000 15000 18000
Running ratio of compressor(%)
unloading
loading
< 1-Compressor system >
Total capacity of operating indoor unit(s)
(kcal/h)
100
90
80
70
60
50
40
30
20
10
0
0 5000 10000 15000 20000 25000
Running ratio of compressor(%)
Fixed compressor
operating
Digital operating
Digital only
operating
< 2-Compressor system >
1.Overview_TM_E_06890 2/27/03 10:12 AM Page 8

Ι
9

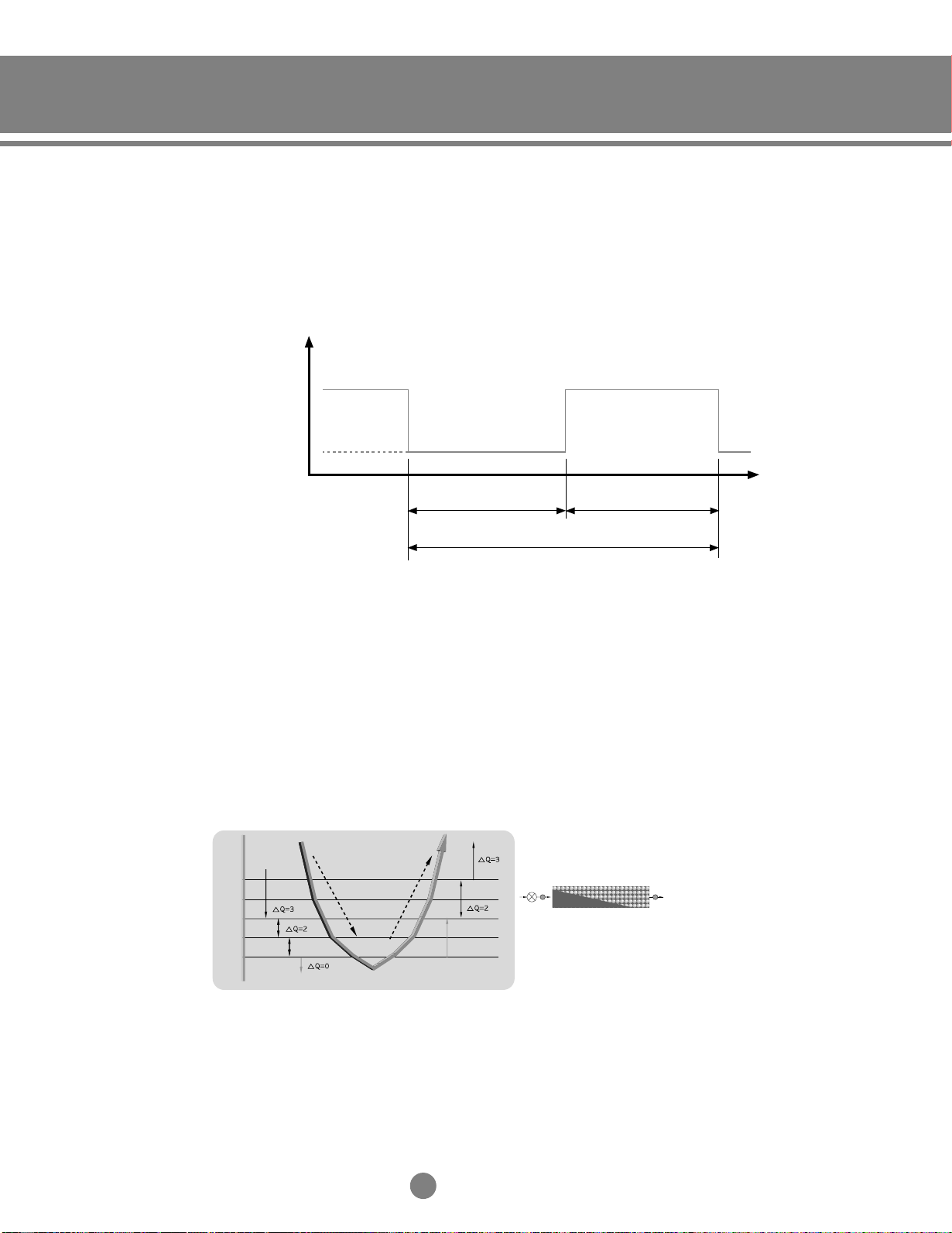

2) PWM (Pulse Width Modulation) valve
PWM valve is the valve to take away the fixed scroll by lifting up through the difference of pressure after the digital
scroll compress being connected to the outlet and inlet of suction. Therefore, the capacity of compressor is controlled
automatically according to the operation status such as loading when the valve is closed or unloading when the valve
is opened. PWM means the control of ON/OFF signal to the valve for loading/unloading.
(4) Refrigerant flow rates control
Refrigerant flow rates through the electronic expansion valve are controlled by the 2 factors, which are the
temperature difference between inlet and outlet of evaporator and the difference between room and set temperature.
a. An electronic expansion valve optimally distributes refrigerant flow rates to each room and the fuzzy logic enables
the unit to cool precisely; refer to the figure below.
b. The air conditioner senses the temperature difference between inlet and outlet of evaporator, plus the temperature
difference between room and set temperature. It calculates the superheat and the room temperature status, then
adjusts refrigerant flow rates by deciding the required steps for the valve to open.
①
Falling room temperature
②
Rising room temperature
③
Open electronic expansion valve
④
Close electronic expansion valve
1
0.5
0
-0.5
-1
①②
③
④
Relationship between PWM valve and loading/unloading
PWM valve open PWM valve close
Unloading
Period (Cycle Time, T)
Loading
compression
non-compression
(rotating in vain)
1.Overview_TM_E_06890 2/27/03 10:12 AM Page 9

Ι
10
Ι . Overview
1. DVM system series

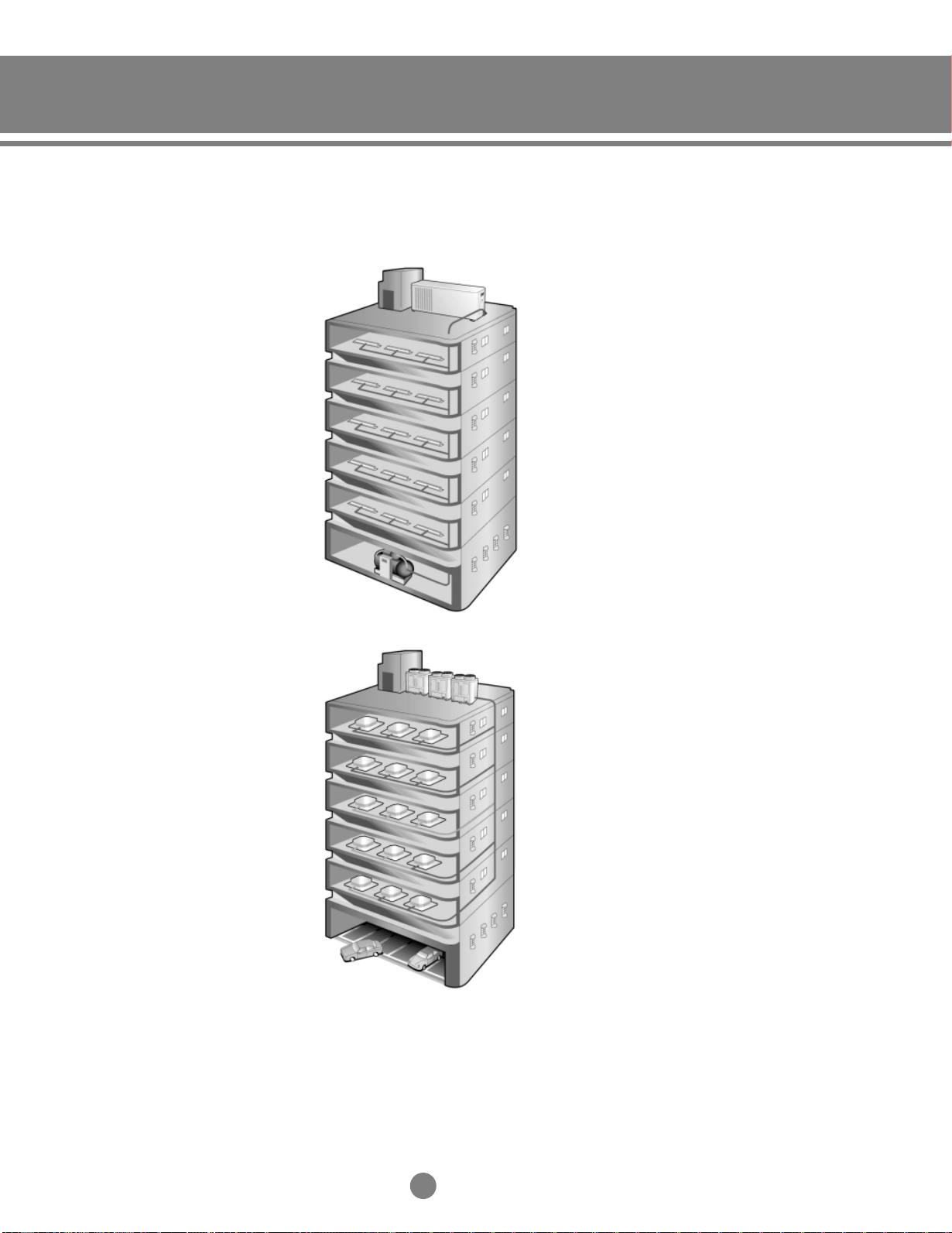

(5) Long & single piping system
1) Piping can be extended up to 300 ft.; refer to the figure.
2) The outdoor unit is connected with each indoor unit by
single refrigerant piping.
(6) Convenient centralized control
1) Every indoor unit has its own remote controller.
In addition, a maximum of 16 indoor units
can be controlled with the centralized controller.
2) A maximum of 256 indoor units can be controlled
by using the PC Control.
(7) Easy installation
Simple planning and installation during the early
stage of building construction or renovation.
(8) Minimizing operation costs
The cooling / heating capacity is adjusted automatically
with the variable compressor, which reduces power
consumption and running costs.
45ft. (Height between indoor units)
300ft. (Max. piping length)
150ft. (8.0~10.0HP), 90ft. (7.5HP ) (Height between indoor and outdoor unit)
➞
Initial cost (US$)
Running cost
(US$)
DVMDivision
Equipment price
Piping
Duct-install
Grand total
Power consumption
Monthly consumption
Annual consumption
(6 months in a year)
1 year rate
3 year rate
5 year rate
Comparison
27,500
17/m
2
37,500
52.5kW X 1.0
19,162kWh
114,972kWh
8,277
24,833
41,389
+48%
Chiller Unitary
❋ The results are based on Samsung Lab., therefore there may be differences according to the installation
and the environment.
❋ Heat loads : 90,000 kcal/h in Korea
❋ Total area : 750m
2
❋ Running : 3 months in every summer and winter
❋ Running cost based on $0.072/Kwh
29,812
17/m
2
39,812
44.2kW X 0.8
(Variable Compressor)
12,906kWh
77,436kWh
5,575
16,726
27,877
-
25,558
5,111
17/m
2
40,670
43kW X 1.0
15,695kWh
94,170kWh
6,780
20,340
33,900
+21%
1.Overview_TM_E_06890 2/27/03 10:12 AM Page 10

Ι
11
(9) Space Saving
The outdoor units connected with several indoor units do not require much space.
1) Conventional System
2) DVM System
1.Overview_TM_E_06890 2/27/03 10:12 AM Page 11

Ι . Overview
Ι
12
2. DVM line-up
2-1. Numbering system of model
(1) Indoor unit
①Semi-finished product
② Classification of product
AVM
①
K
②
H
③
020
④
C
⑤
A
⑥
0
⑦
Model
1-way
4-way
2-way
Exposed
Low silhouette
High pressure
Built-in
Wall-mounted type
Cassette
type
Duct type
K
C
G
N
D
H
B
W
③Mode
C
H
Cooling only (C/O)
Heat pump (H/P)
Variable capacity free
joint multi (DVM) AVM
⑦Version
0
1
2
-
~
~
⑥Refrigerant
AR22
0 0 0
④Capacity (x 1/10 kW, 3 digits)
Btu/h Watt
7K
9K
12K
18K
20K
24K
28K
36K
44K
48K
50Hz
2000W
2600W
3500W
5200W
6000W
7000W
8200W
10500W
12800W
14000W
60Hz
2000W
3200W
4000W
5200W
6000W
7200W
8300W
10500W
12800W
14000W
C208~230V, 60Hz
⑤Power supply
1.Overview_TM_E_06890 2/27/03 10:12 AM Page 12

Ι
13
(2) Outdoor unit
①Semi-finished product ⑥Combination of indoor unit
RVM
①
H
②
050
③
C
④
B
⑤
M
⑥
0
⑦
Model
②Mode
③Capacity (x 1/10 HP, 3 digits)
C
H
Cooling only (C/O)
Heat pump (H/P)
Variable capacity free
joint multi (DVM) RVM
⑦Version
④Power supply
0 0 0
⑤
Refrigerant / Discharge direction
Refrigerant
R22
Discharge
direction
Upward
Onward
Classification
A
B
C
F
J
208~230V, 60Hz
208~230V, 60Hz, 3ø
460V, 60Hz, 3ø
1-way
4-way
2-way
Exposed
Low silhouette
High pressure
Built-in
Wall-mounted type
Free
Cassette
type
Duct type
K
C
G
N
D
H
B
W
M
1.Overview_TM_E_06890 2/27/03 10:12 AM Page 13

Ι
14
Ι . Overview
2. DVM line-up
Name Model ExampleExplanation
Electronic
expansion valve kit
(Built-in type)
Electronic
expansion valve kit
(Distributor kit
type)
Discharge duct
Refnet kit
Drain pump
MEV : Optional electronic expansion valve
① : Electronic expansion valve model(2 digits)
② : Manufacturer
③ : Version
④ : Area
MXD : Optional distributor kit
① : Max diameter(2 digits)
② : Kinds(marked as K2 for two kinds)
③ : Minimum diameter
(Marked as 00 only for use of one kind and
marked with minimum diameter for use of two
kinds)
④ : Kinds(marked as K2 for two kinds)
⑤ : Version
⑥ : Area
MDF : Optional distributor duct flange
① : Hole size(ø, cm, 2 digits)
② : Version
③ : Area
MXJ : Optional refnet(Y-joint) kit
① : Inlet pipe diameter(2 digits)
② : Outlet pipe diameter(2 digits)
③ : Version
④ : Area
MDP : Optional drain pump
① : Discharge pressure(cm, 3 digits), 75cm › 075
② : Manufacturer
③ : Version
④ : Area
MEV ① ② ③ ④
MXD ① ② ③ ④ ⑤ ⑥
MDF ① ② ③
MXJ ① ② ③ ④
MDP ① ② ③ ④
• MEV-14SAU
• MEV-18SAU
• MEV-24SAU
1Way cassette
• MXD-14K300AU
(1/4” 3)
• MXD-14K218AU
(1/4” 2, 1/8” 1)
1Way cassette
Wall-mounted type
• MDF-45AU
(Upward type)
• MDF-46AU
(Onward type)
• MXJ-0906AU(Liquid)
MXJ-2212AU(Gas)
• MXJ-1206AU(Liquid)
MXJ-3112AU(Gas)
• MDP-075SAU
(Low silhouette)
• MDP-075SBU(Built-in)
• MDP-H075SAU(HSP)
(3) Options
1.Overview_TM_E_06890 2/27/03 10:12 AM Page 14

Ι
15
Name Model ExampleExplanation
Front panel
Wireless remote
controller
Receiver &
display unit kit
Receiver &
display unit wire
Wired
remote controller
① : Grille application(Front panel)
② : Type of indoor unit(K : 1Way cassette,
G : 2Way cassette, C : 4Way cassette,
B : Built-in duct)
③ : H : Cooling only & heat pump, N : No use of
wireless remote controller
④ : Size(Mark the longer side, cm, 3 digits)
⑤ : Color(G : gray, I : Ivory)
⑥ : Languages(U : 3 Languages-˚F & inch)
⑦ : Version
MR : Optional wireless remote controller
① : Design(A~Compact)
② : Mode(C : cooling only, H : heat pump)
③, ④: Version
⑤ : Area
MRK : Optional receiver & display unit kit
① : Receiver kit design(A)
②, ③: Version
④ : Area
MRW : Optional receiver & display unit wire
① : Length(m, 2 digits)
② : Version
③ : Area
MWR : Optional wired remote controller
① : Design(A-present)
② : Mode(H : cooling only & heat pump)
③, ④: Version
⑤ : Area
M ① ② ③ ④ ⑤ ⑥ ⑦
MR ① ② ③ ④ ⑤
MRK ① ② ③ ④
MRW ① ② ③
MWR ① ② ③ ④ ⑤
• MGKH118IU0
• MR-AH01U
• MRK-A00U
• MRW-10AU
• MWR-AH01U
1.Overview_TM_E_06890 2/27/03 10:12 AM Page 15

Ι
16
Ι . Overview
2. DVM line-up
Name Model ExampleExplanation
Interface module
Controller
MIM : Optional interface module
① : Applicable location
(A : indoor unit, B : outdoor unit, C : others)
②, ③: Version
④ : Area
MCM : Optional controller
① : Function(A : controller, B : measuring instrument,
C : others)
② : LCD Application(1 : Function controller,
2 : Centralized controller)
③, ④: Version
⑤: Area
MIM ① ② ③ ④
MCM ① ② ③ ④ ⑤
• MIM-B00U
• MCM-A200U
1.Overview_TM_E_06890 2/27/03 10:12 AM Page 16

Ι
17
Name Model ExampleExplanation
Filter
Water coil
MF : Optional filter
① : Classification of product
② : Specification of filter
(0 : air filter
1 : Pure & deodorizing filter
2 : On-board electric dust collector
3 : Scroll electric dust collector)
③: Color(B : black G : green)
④: Version
MWC : Water coil
①,②,③: Capacity of applicable indoor unit(x 10 kW)
④: Applicable product
(H: High pressure duct, D: Low silhouette duct,
B: Built-in duct)
⑤: Version
MF ① ② ③ ④
MWC ① ② ③ ④ ⑤
• MF-C1B0
• MWC-052D0
(For 5200W
Low silhouette duct)
1.Overview_TM_E_06890 2/27/03 10:12 AM Page 17

Ι
18
Ι . Overview
2. DVM line-up
2-2. Combination
(1) Outdoor unit
1) Cooling only
Design Power supply Model
208~230V, 1ø, 60Hz RVMC050CBM0
Capacity(HP)
5
Refrigerant
R22
208~230V, 3ø, 60Hz RVMC070FAM0 7.0 R22
208~230V, 3ø, 60Hz RVMC100FAM0 10 R22
◆ The system enables the connection of indoor units with a total capacity of between 50 to 130% of that of
the corresponding outdoor unit but where this capacity ratio exceeds 100% then the actual capacity of
each indoor unit will fall a little short of its individual rated capacity when all the units are operated
simultaneously.
◆ The specification of super cooler may differ, depending on the model.
1.Overview_TM_E_06890 2/27/03 10:12 AM Page 18
