Samsung AW140CB User manual

DB98-15114B(5)
AW0503B
AW0505B
AW0509B
AW0603B
AW0605B
AW0609B
AW0803B
AW0805B
AW0809B
AW1003B
AW1005B
AW1009B
AW1203B
AW1209B
AW1403B
AW1409B
AW1803B
AW1805B
AW1809B
AW2402B
AW2404B
AW2406B
Window-type Room Air Conditioner
(Cooling)
E S
USER’S MANUAL
AW1205B
AW109CB
AW089CB
AW129CB
AW140CB
AW189CB
1.pdf 2006-8-9 18:42:101.pdf 2006-8-9 18:42:10
AW10NCB7
AW12NCB7
AW14NCB7 AW18NCB7

E-2
Safety Precautions
The following safety precautions must be taken when using your air conditioner.
Users of this product are cautioned not to attempt repair of this product at their
own discretion. Instead, they are requested to directly contact a designated
service center or the outlet at which the product was purchased.
Never spill any kind of liquid into the unit. Should this happen, unplug or main
switch off the unit and contact an authorized service center.
Do not insert anything between the air outlet blades because the inner fan may
be damaged and could cause injury. Keep children away from the unit.
Do not place any obstacles in front of the unit.
Do not spray liquid of any kind into the indoor unit. Should this happen, switch off
the breaker used for your air conditioner and contact your installation specialist.
Make sure that the unit is correctly ventilated at all times:
Do not place clothing or other materials over it.
If the wireless remote control will not be used for a long time, remove the
batteries. (If applicable)
When using a wireless remote control, the distance should not be more than 7
meters from the air conditioner. (If applicable)
WARNING
DURING OPERATION
Risk of electric shock. • Can cause injury or death. • Disconnect all
remote electric power supplies before servicing, installing or cleaning.
• This must be done by the manufacturer or its service agent or a similar
qualified person in order to avoid a hazard.
The air conditioner must be plugged into its own specific power source, which
must be installed in compliance with national wiring,earthing and safety
regulations.
If the power cord is damaged in any way, it must be replaced by the manufacturer
or its service agent or a similarly qualified person in order to avoid a hazard.
This device must be installed according to the national electrical rules.
The appliance must be installation that the plug should be easily accessible
after installation.
If the fuse on PC board is broken please change it with the type of T 3.15A 250V.
The breaker of the air conditioner should be all-pole switch; and the distance
between its two contacts should be no less than 3.5mm. Such means for
disconnection must be incorporation in the fixed wiring.
Never store or ship the air conditioner upside down or sideways to avoid damage
to the compressor.
The appliance is not intended for use by young children or infirm persons without
supervision: Young children should be supervised to ensure that they do not play
with the appliance.
Max current is measured according to IEC standard for safety and current is
measured according to ISO standard for energy efficiency.
OTHERS
Before throwing out the device, it is necessary to pull back the battery cells and
get rid of them safely for recycling reasons.
When you need to dispose of the unit, consult your dealer. If pipes are removed
incorrectly, refrigerant may blow out and come into contact with your skin,causing
injury. Releasing refrigerant into the atmosphere also damages the environments.
Please recycle or dispose of the packaging material for this product in an
environmentally responsible manner.
D ISPOSING OF THE UNIT
Register your product at www.samsung.com/global/register

E-3
Contents
◆PREPARING YOUR AIR CONDITIONER
■Safety Precautions ......................................................................................... 2
■Description of Each Component .................................................................... 4
■Remote Control - Buttons .............................................................................. 5
■Getting Started ............................................................................................... 6
■Inserting the Remote Control Batteries .......................................................... 7
◆OPERATING YOUR AIR CONDITIONER
■Cooling Your Room ........................................................................................ 8
■Airing Your Room ........................................................................................... 9
■Removing Excess Humidity ............................................................................ 10
■Adjusting the Air Flow Direction Horizontally .................................................. 11
■Adjusting the Air Flow Direction Vertically ...................................................... 11
◆PROGRAMMING YOUR AIR CONDITIONER
■Setting the On Timer ...................................................................................... 12
■Setting the Off Timer ...................................................................................... 13
■Setting the Sleep Mode .................................................................................. 14
■Selecting Energy Saving mode ...................................................................... 15
◆RECOMMENDATIONS FOR USE
■Temperature and Humidity Ranges ................................................................ 16
■Cleaning Your Air Conditioner ........................................................................ 17
■Solving Common Problems ............................................................................ 18
■Technical Specifications ................................................................................. 19

E-4
Description of Each Component
❄The design and shape are subject to
change.
Temperature/Timer
settings
Temperature adjustment
buttons
On/Off button
Mode selection button
(Cool,Fan, Dry)
Sleep timer setting button
Timer setting button
Fan speed adjustment button Remote control
Energy Saver button
Fan Speed
Mode
Cool/Dry/Fan
E.Saver
Sleep
Timer
Temp.
Power
Outer air flow blades
(up/down orientation)
- Except AW0503B / AW0505B
/ AW0603B / AW0605B
Ventilation lever
- Except AW0503B / AW0505B
/ AW0603B / AW0605B
Air outlet
Air inlet (Outside)
Air filter (Inside)
Air outlet
Inner air flow
blades (right/left
orientation)
Air inlet (Inside)
Power plug
(The type of power plug
may differ, depending on
the local power supply.)

E-5
Remote Control - Buttons
Timer setting button
Temperature
adjustment buttons
Fan speed
adjustment buttons
On/Off button
Sleep timer setting
button
Mode selection
buttons
Energy Saver button

E-7

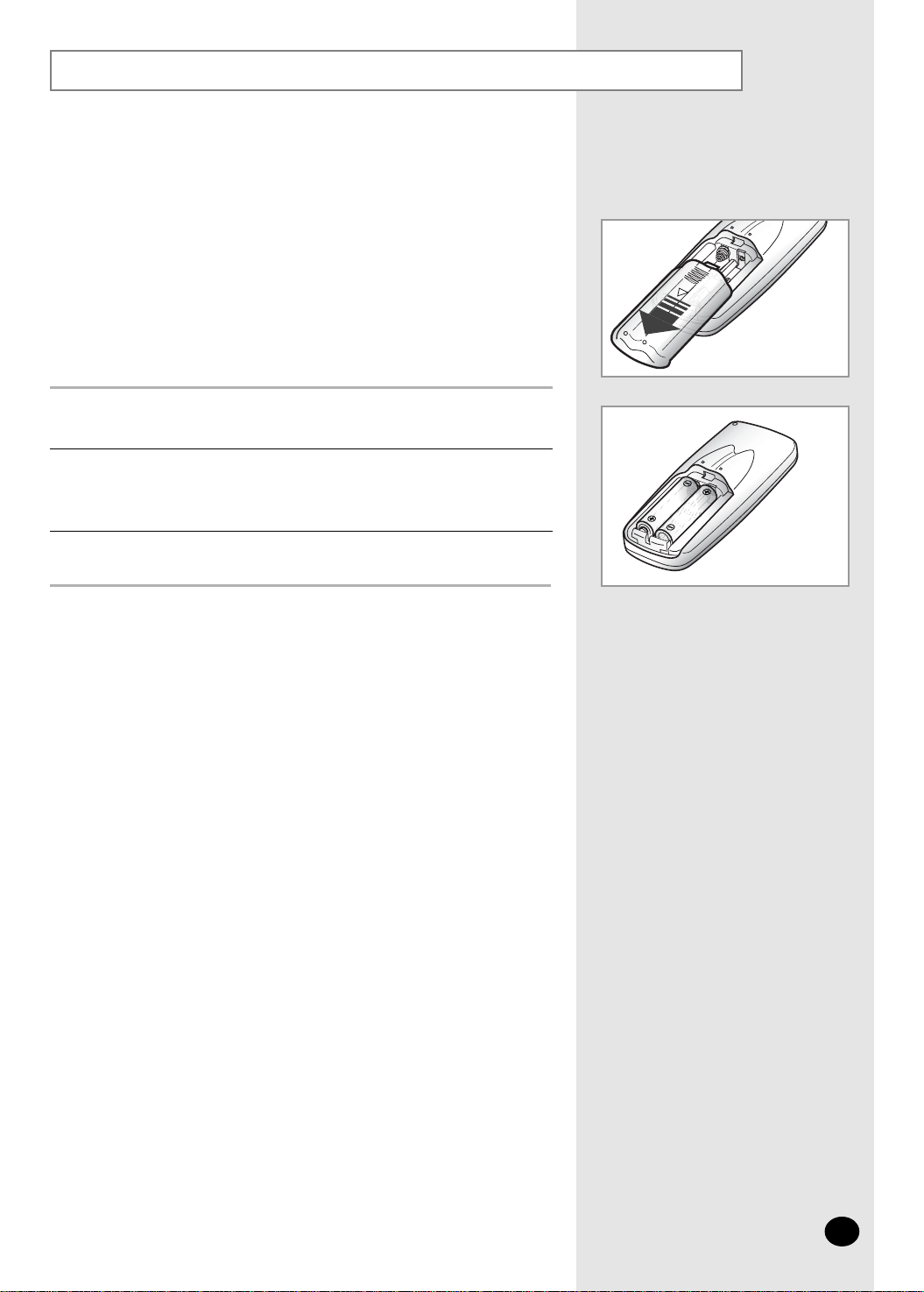

Inserting the Remote Control Batteries
Push the battery cover on the rear of the remote control with your thumb
in the direction of the arrow and remove it.
Insert the two batteries, taking care to respect the polarities :
◆+ on the battery with + on the remote control.
◆- on the battery with - on the remote control.
1
2
Close the cover by sliding it back until it clicks into place.
3
◆Use two AAA, LR03 1.5V batteries.
◆Do not use old batteries or different kinds of batteries together.
◆Batteries may be completely discharged after 12 months, even
if they have not actually been used.
You must insert or replace the remote control batteries when :
◆You purchase the air conditioner
◆The remote control does not work correctly
➢

E-8
Cooling Your Room
To adjust the temperature, press the or buttons on the remote
control or unit one or more times until the desired temperature is displayed.
The temperature can be set between 64°F and 86°F.
Result:
◆ Each time you press the or buttons:
– The temperature is adjusted by 1°F and displayed on
the control panel
– The unit beeps
◆ The air conditioner starts cooling, if the room temperature is
higher than the selected temperature.
◆ If the room temperature reaches the set temperature, the air
conditioner stops cooling, but the fan is still operating.
3
Press the (On/Off) button.
Result: ◆ The air conditioner starts up in the Cool mode.
◆ The unit beeps twice.
☛The air conditioner is fitted with a protection mechanism to prevent
the unit from being damaged when it is started immediately after
being:
◆ Plugged in
◆ Stopped
It will start up normally after three minutes.
If the temperature is not displayed on the control panel:
◆ Press the button on the remote control
or
◆ Press the button on the unit one or more times until the
temperature is displayed.
Result:
◆ The unit beeps each time you press the / button.
◆ The air conditioner starts up in the Cool mode.
➢
You can change modes at any time.
You must select the Cool mode if you wish to lower the temperature
in your room. You can also set the Fan speed.
1
2
To set the fan speed:
◆ Press the , or button on the remote control as desired.
or
◆ Press the button on the unit one or more times until the
desired Fan speed(F1, F2 or F3) is displayed.
4
To control the direction of the air flow, refer to page 11.
5
Fan Speed
Remote Control Control Panel

E-9

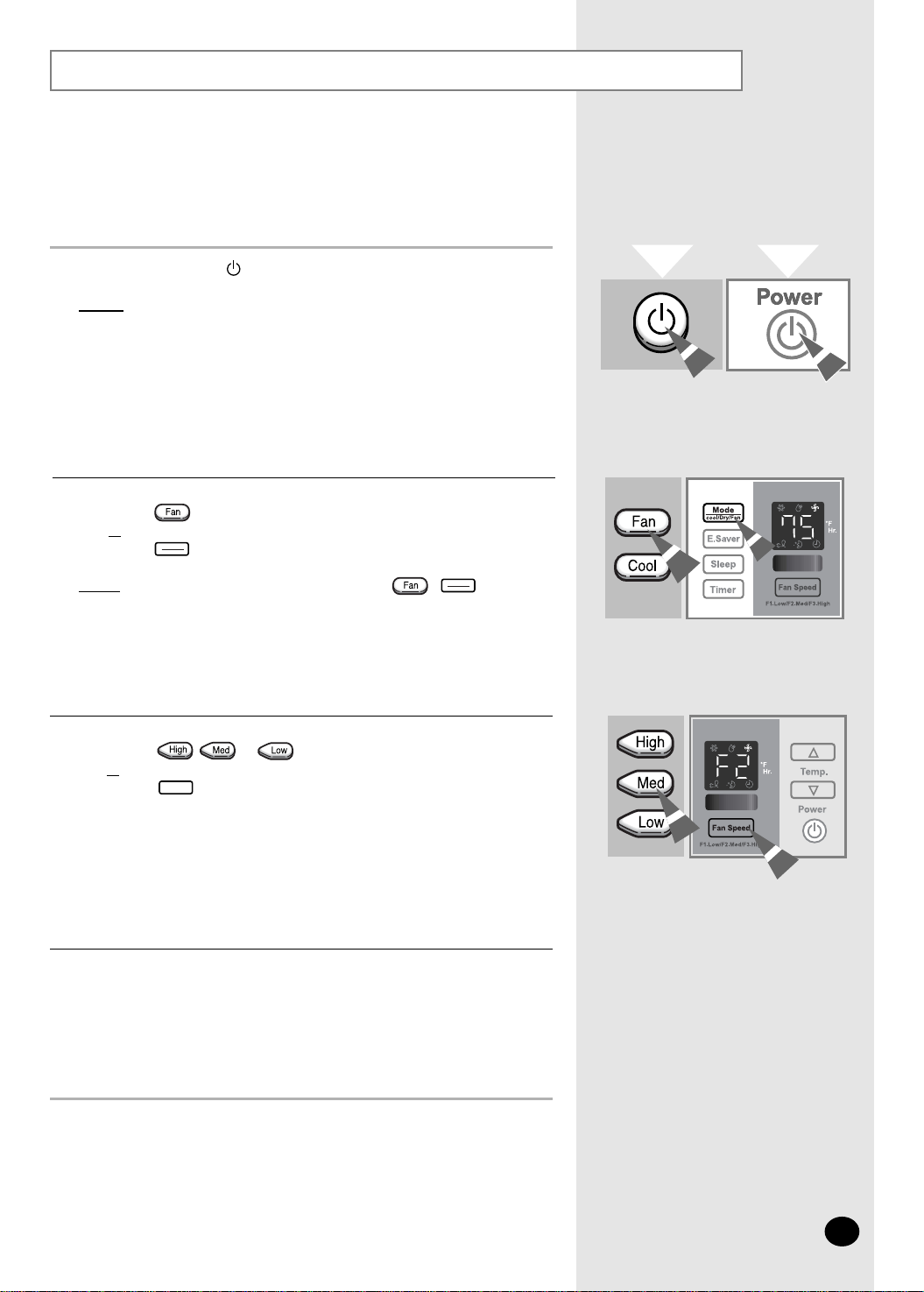

Airing Your Room
If you want to provide air circulation without cooling, you can use
the Fan mode.
If necessary, press the (On/Off) button.
Result: ◆ The air conditioner starts up in the Cool mode
.
◆The unit beeps twice.
1
To set the fan speed:
◆ Press the , or button on the remote control as desired.
or
◆ Press the button on the unit one or more times until the
desired fan speed(F1, F2 or F3) is displayed.
3
To control the direction of the air flow, refer to page 11.
4
If the fan speed(F1, F2 or F3) is not displayed on the control panel:
◆ Press the button on the remote control
or
◆ Press the button on the unit one or more times until the fan speed
(F1, F2 or F3) is displayed.
Result: ◆ The unit beeps each time you press the / button.
◆The air conditioner starts up in Fan mode.
➢ You can change modes at any time.
When the air conditioner is in the Fan mode, the temperature
cannot be set or displayed.
2
Mode
Cool/Dry/Fan
Fan Speed
Mode
Cool/Dry/Fan
Remote Control Control Panel

E-10

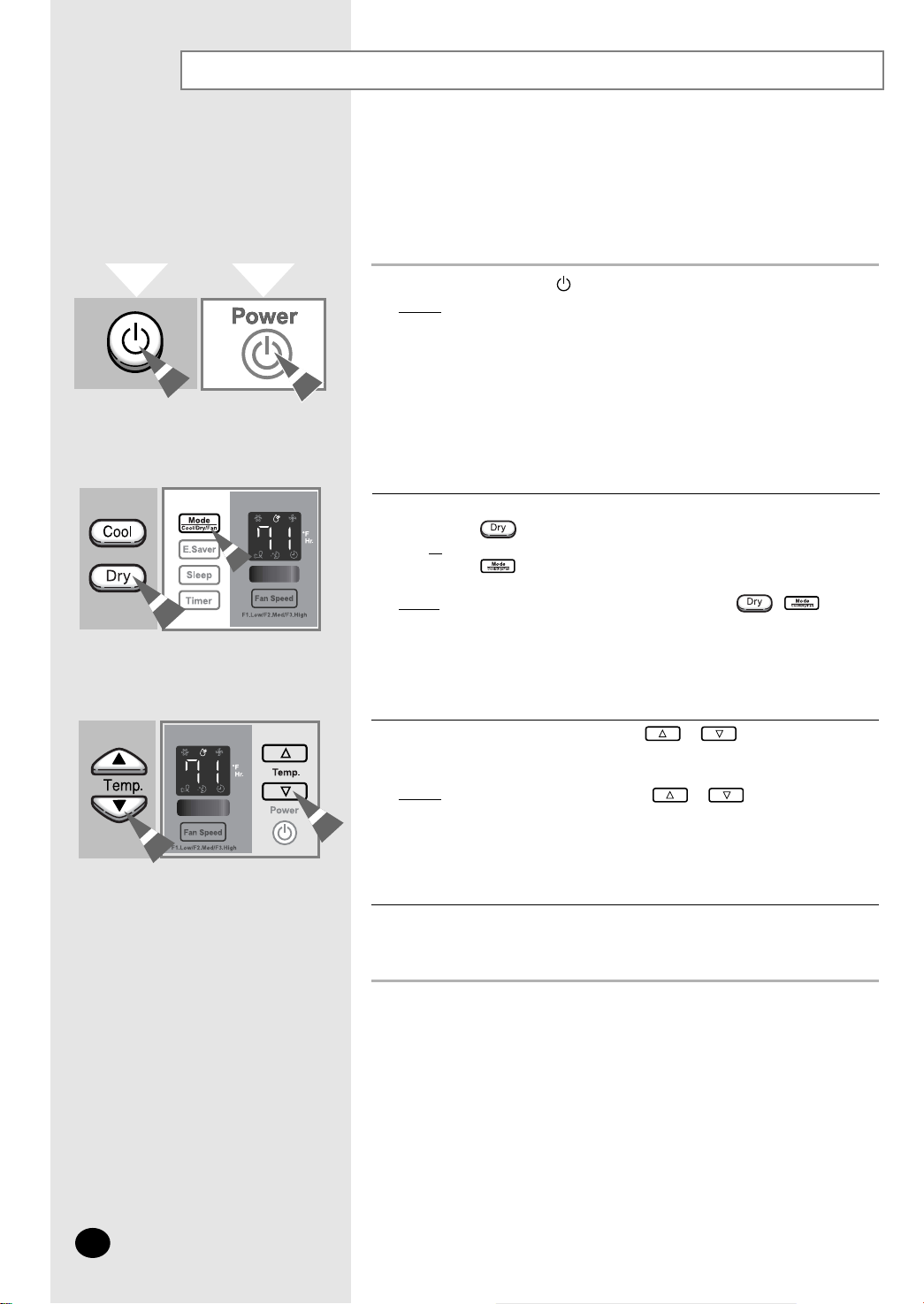

Removing Excess Humidity
☛
Remote Control Control Panel
If the temperature is not displayed on the control panel:
◆ Press the button on the remote control
or
◆ Press the button on the unit one or more times until the
temperature is displayed.
Result:
◆ The unit beeps each time you press the / button.
◆ The air conditioner starts up in the Cool mode.
➢
You can change modes at any time.
2
If the atmosphere in your room is very humid or damp, you can remove
excess humidity without lowering the room temperature too much.
1If necessary, press the (On/Off) button.
Result: ◆The air conditioner starts up in the Cool mode.
◆The unit beeps.
The air conditioner is fitted with a protection mechanism to pre-
vent the unit from being damaged when it is started immediately
after being:
◆Plugged in
◆Stopped
It will start up normally after three minutes.
3To adjust the temperature, press the
or buttons one or
more times until the required temperature is displayed.
Possible temperatures are between
64°F and 86°F
inclusive.
Result:◆Each time you press the
or buttons:
- The temperature is adjusted by 1°F
- The unit beeps
◆The air conditioner starts removing the excess humidity;
the quantity of air is adjusted automatically.
4To control the direction of the air flow, refer to page 11.

E-11
Adjusting the Air Flow Direction Horizontally
Depending on the position of the unit in your room, you can adjust
the orientation of the inner air flow blades on the unit.
Adjust the air flow blades to the desired position by sliding them side to side.
Adjusting the Air Flow Direction Vertically
The outer air flow blades can be adjusted to control the vertical air
flow direction. (Except AW0503B / AW0505B /AW0509B/ AW0603B/AW0605B/AW0609B)
RECOMMENDATION When...
Cooling
Adjust the blades to face...
Upwards.
Adjust the air flow blades to the desired position, by pushing them
upwards or downwards.
If you orient the air flow blades downwards and the unit operates
in Cool mode for long periods of time, dew may:
- Form on the surface of the blades
- Drip from the blades
➢

E-12

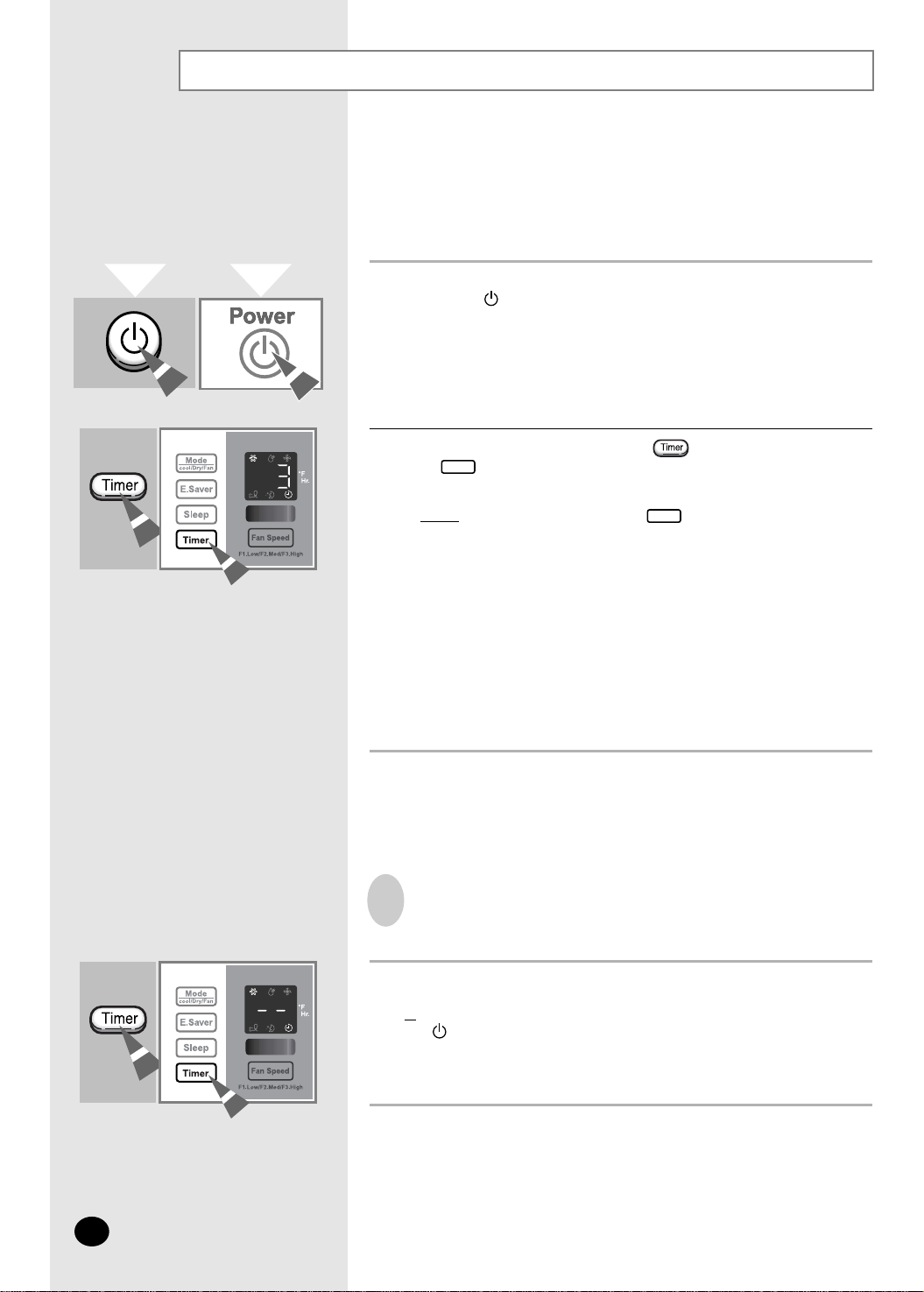

Setting the On Timer
The On Timer enables you to switch on the air conditioner automatically after a
given time. You can select the On timer only when the air conditioner is off. You
can select the On timer when the air conditioner operates in the Cool or Dry mode.
1Check that the air conditioner has been switched off; if necessary,
press the (On/Off) button.
2 Set the operating time by pressing the button on the remote control
or button on the unit one or more times until the desired time is dis-
played. The operating time can be set between 1 and 24 hours.
Result: ◆Each time you press the button:
– The time is adjusted by 1 hour and displayed on the control
panel
– The unit beeps
◆The operating time is displayed and decreases automatically to
indicate the remaining time.
◆The air conditioner starts up in the Cool or Dry mode automati-
cally when the operating time reaches zero.
➢
You can select the fan speed, temperature and Energy saving mode
after setting the On timer and Off timer mode. However, when you
change the mode, the On timer and Off timer mode is canceled.
To cancel the timer, press:
◆Timer on the remote control or unit one or more times until "--" is displayed.
or
◆The (On/Off) button on the remote control or unit (The air conditioner
operates in the mode selected when the unit was last used.)
To Cancel the On Timer
Timer
Timer
Remote Control Control Panel

E-13
Setting the Off Timer
The Off Timer enables you to switch off the air conditioner automatically after a
given time. You can select the Off timer only when the air conditioner is on. You
can select the Off timer when the air conditioner operates in the Cool or Dry mode.
1Check that the air conditioner has been switched on; if necessary,
press the (On/Off) button.
2 Set the operating time by pressing the button on the remote control
or button on the unit one or more times until the desired time is dis-
played. The operating time can be set between 1 and 24 hours.
Result: ◆Each time you press the button:
– The time is adjusted by 1 hour and displayed on the control
panel
– The unit beeps
◆The operating time is displayed and decreases automatically to
indicate the remaining time.
◆The air conditioner switches off automatically when the
operating time reaches zero.
➢
You can select the fan speed, temperature and Energy saving mode
after setting the On timer and Off timer mode. However, when you
change the mode, the On timer and Off timer mode is canceled.
To Cancel the Off Timer
To cancel the timer, press:
◆Timer on the remote control or unit one or more times until "--" is displayed.
or
◆The (On/Off) button on the remote control or unit.
Timer
Timer
Remote Control Control Panel

Air Conditioner
Remote control
Air Conditioner.
Remote control
The Air Conditioner will operate with the previously selected
settings.
If you select the Energy Saving mode while in Sleep mode, the Sleep
mode will be cancelled and the air conditioner will start in the
Energy Saving mode.
the Air Conditioner starts

E-15
Selecting Energy Saving Mode
To select the energy saving mode, press the button on the remote
control or button on the unit one or more times until the Energy
Saver indicator lights up.
Result:
◆ The fan and compressor cycle on and off together.
◆ The fan will continue to run for a short time after the
compressor cycles off.
➢ If you would like the air conditioner to run in Dry mode, do not press
the button. You cannot use the Dry mode in the energy saving
mode.
To stop the energy saving mode, press the button on the remote
control or button on the unit again.
Result: The fan runs at all times, while the compressor cycles on and off.
➢ If you select the Sleep Timer in the Energy Saving mode, the Energy
Saving will be cancelled and the air conditioner will start up in the
Sleep Timer mode.
If you wish to save energy when using your air conditioner,
select the energy saving mode.
1
2
E.Saver
E.Saver
E.Saver
E.Saver
E.Saver
Remote Control Control Panel

E-16
Temperature and Humidity Ranges
If the air conditioner is used at... Then...
Higher temperature The automatic protection feature may be triggered and the air
conditioner stopped.
Lower temperature A water leakage or some other malfunction may happen if the
heat exchanger freezes.
Higher humidity levels Water may condense on and drip from the surface of the unit
if it is used for long periods.
The following table indicates the temperature and humidity ranges
within which the air conditioner can be used.
Mode Indoor Temperature Outdoor Temperature Indoor Humidity
Cooling 70°F to 90°F approx. 70°F to 110°F approx. 80% or less

E-17
Cleaning Your Air Conditioner
Open the front grille by pulling the tabs on both sides of the grille.
Then lift it up slightly to open the front grille completely.
1
Remove all dust on the air filter with a vacuum cleaner or brush. 3
Grab the tabs on the filter and pull it up and out. 2
When you have finished, insert the air filter back into its original position. 4
Wipe the surface of the unit with a neutral detergent and then wipe it again
with dry cloth. (Be sure not to use benzene, solvent or other chemical
products.)
5
Be sure to clean the air filter periodically to maintain the air conditioner
in the best condition for a long period of time.
When cleaning the air conditioner, turn it off and pull out the
power plug.
Set the fan going for a few hours to dry
the inside of the air conditioner tho-
roughly.
If you... Then...
Will not be using the
air conditioner for a
long period of time
◆ Set the fan going for a few
hours to dry the inside of the air
conditioner thoroughly.
◆ Switch the air conditioner off and
unplug it from the wall socket.
◆ Clean the filter and outer surfaces.
Have not used the air
conditioner for a long
period of time
➢
☛

E-18
Solving Common Problems
Explanation / Solution
◆Check that the circuit breaker used for the air conditioner has not been
triggered.
◆ Check that the power cable is plugged into a wall socket and the socket is
switched on, if necessary.
◆ Check that the temperature indicator on the unit is lit; if necessary,
press the (On/Off) button on the remote control or unit.
◆Check that there are no obstacles between you and the unit.
◆ Replace the remote control batteries if necessary.
◆ Check that you are close enough to the unit (seven metres/yards or less).
◆
Ventilate the room.
Problem
The air conditioner does
not
operate at all
The air conditioner does not
operate with the remote
control
Odors are permeating the
room during air conditioning
◆Check that you are pointing the remote control at the remote control sensor
on the unit.
◆ Replace the remote control batteries if necessary.
No beep is heard when you
press the (On/Off) button
on the remote control
◆Check that the correct operating mode has been selected(Cool).
◆ The room temperature may be too low.
◆Dust may be blocking the air filter; refer to page 17 for cleaning instructions.
◆Check that there is no obstacle blocking the air flow into or out of the unit.
The air conditioner does not
cool
◆Check that the timer has been programmed correctly; refer to page 12~14.
The timer is not correctly trig-
gered
Before contacting an authorized service center, perform the following simple checks.
They may save you the time and expense of an unnecessary call.

E-19
Technical Specifications
Model Power Supply
AW0503B
AW0505B
AW0509B
AW0603B
AW0605B
AW0609B
AW0803B
AW0805B
AW1003B
AW1005B
AW1009B
Design and specifications are subject to change without notice.
115V~, 60Hz
230-208V~, 60Hz
AW0809B
AW1203B
AW1205B
AW1209B
AW1403B
AW1409B
AW1803B
AW1805B
AW1809B
AW2404B
AW2406B
AW2402B
AW089CB
AW109CB
AW129CB
AW140CB
AW189CB
19.pdf 2006-8-9 18:48:0519.pdf 2006-8-9 18:48:05
AW10NCB7
AW12NCB7 AW14NCB7
AW18NCB7

DB98-26004A.indd 22 2006-12-5 16:37:44
Country
Customer Care Center ☎Web Site
MEXICO 01-800-SAMSUNG (7267864) www.samsung.com/mx
ARGENTINE 0800-333-3733 www.samsung.com/ar
BRAZIL 0800-124-421
4004-0000 www.samsung.com/br
CHILE 800-726-7864(SAMSUNG) www.samsung.com/cl
COSTA RICA 0-800-507-7267 www.samsung.com/latin
ECUADOR 1-800-10-7267 www.samsung.com/latin
EL SALVADOR 800-6225 www.samsung.com/latin
GUATEMALA 1-800-299-0013 www.samsung.com/latin
JAMAICA 1-800-234-7267 www.samsung.com/latin
PANAMA 800-7267 www.samsung.com/latin
PUERTO RICO 1-800-682-3180 www.samsung.com/latin
REP. DOMINICA 1-800-751-2676 www.samsung.com/latin
TRINIDAD &
TOBAGO
1-800-7267-864 www.samsung.com/latin
VENEZUELA 0-800-100-5303 www.samsung.com/latin
COLOMBIA 01-8000112112 www.samsung.com.co
AUSTRALIA 1300 362 603 www.samsung.com/au
INDIA 3030 8282
1800 110011 http://www.samsung.com/in/
INDONESIA 0800-112-8888 www.samsung.com/id
MALAYSIA 1800-88-9999 www.samsung.com/my
PHILIPPINES 1800-10-SAMSUNG (7267864) www.samsung.com/ph
SINGAPORE 1800-SAMSUNG (7267864) www.samsung.com/sg
VIETNAM 1 800 588 889 www.samsung.com/vn
SOUTH AFRICA 0860 726 7864 (SAMSUNG) www.samsung.com/za
800SAMSUNG (7267864)
8000-4726
www.samsung.com/mea
U.A.E
THAILAND
1800-29-3232
02-689-3232
www.samsung.com/th
