Samsung FH052EZA User manual

OWNER’S INSTRUCTIONS
MANUAL DE INSTRUCCIONES
MANUEL D’UTILISATION
ISTRUZIONI PER L’USO
MANUAL DE INSTRUÇÕES
GEBRAUCHSANWEISUNG
√¢∏°π∂™ Ã∂πƒπ™ª√À
àçëíêìäñàü èéãúáéÇÄíÖãü
CEILING/FLOOR TYPE AIR CONDITIONER (Cool and Heat)
ACONDICIONADOR DE AIRE DEL TIPO DE TECHO/SUELO (Refrigeración y Calefacción)
CLIMATISEUR DE TYPE PLAFOND/SOL (Refroidissement et Chauffage)
TIPO D’ARIA CONDIZIONATA SOFFITTO/PAVIMENTO (Raffreddamento e Riscaldamento)
AR CONDICONADO, MODELO TETO/PISO (Refrigeração e Aquecimento)
DECKE/BODEN TYP KLIMAANLAGE (Kühlen und Wärmen)
∫ÏÈ ·ÙÈÛÙÈÎfi ˯¿ÓË · Ù‡Ô˘ ÔÚÔÊ‹˜/‰·¤‰Ô˘ ( æ‡Í˘ Î·È £¤Ú ·ÓÛ˘ )
èÓÚÓÎÓ˜Ì˚ /èÓÎÓ‚Ó íËÔ äÓ̉ˈËÓÌÂ‡ ( éı·ʉÂÌËÂ Ë é·Ó„‚ )
FH052EZA
FH070EZA
Indoor unit FH052EZX
FH070EZX
Outdoor unit
E§§HNIKA ENGLISH
ESPAÑOL
FRANÇAIS
ITALIANO
DEUTSCH PORTUGUÊS
RUSSIAN
E S F I P D G R DB98-12337A(1)

E-2
Safety Precautions
The following safety precautions must be taken when using your air conditioner.
1 Make sure that the indoor unit is correctly ventilated at all times; do NOT place clothing or other materials
over it.
2 NEVER spill liquid of any kind into the indoor unit. Should this happen, switch off the breaker used for your
air conditioner and contact your installation specialist.
3 Do NOT insert anything between the air flow blades, as the inner fan may be damaged and you may be hurt.
Keep children away from the indoor unit.
4 Do NOT place any obstacles in front of the outdoor unit.
5 If the remote control will not be used for a long time, remove the batteries.
6 Users of this product are cautioned not to attempt repair of this product at their own discretion.
Instead, they are requested to directly contact a designated service center or the outlet at which
the product was purchased.
7 If the supply cord is damaged, it must be replaced by a special cord or assembly available from
the manufacturer or its service agent.
8 This device must be installed according to the national electrical rules.
9 Before throwing out the device, it is necessary to pull back the battery cells and get rid of them safely.
10 The appliance is not intended for use by young children or infirm person without supervision;
young children should be supervised to ensure that they do not play with the appliance.
11 Max current is measured according to IEC standard for safety
and current is measured according to ISO standard for energy efficiency.
The manufacturer do not take the responsibility of the accident happened
because the air conditioner is not fixed firmly or installed securely, during
installing or using the product. In case you have difficulty in installation, you
must ask for an installation specialist help. The accident will be happened in
case of installing improperly.
CC
CCAA AAUU UUTT TTII IIOO OONN NN

E-3
ENGLISH
Contents
◆ P REPARING YOUR AIR CONDITIONER
■ Safety Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
■ View of the Unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
■ Remote Control-Buttons and Display . . . . . . . . . . . . . . . . . . . . . . 6
■ Getting Started . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
■ Inserting the Remote Control Batteries . . . . . . . . . . . . . . . . . . . . . 8
◆ O
PERATING YOUR AIR CONDITIONER
■ Selecting the Automatic Operating Mode . . . . . . . . . . . . . . . . . . . 9
■ Cooling Your Room . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
■ Heating Your Room . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
■ Removing Excess Humidity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
■ Airing Your Room . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
■ Adjusting the Air Flow Direction Vertically . . . . . . . . . . . . . . . . . . . 14
■ Adjusting the Air Flow Direction Horizontally . . . . . . . . . . . . . . . . 15
◆ P
ROGRAMMING YOUR AIR CONDITIONER
■ Setting the On Timer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
■ Setting the Off Timer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
◆ R ECOMMENDATIONS FOR USE
■ Operating Recommendations . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
■ Temperature and Humidity Ranges . . . . . . . . . . . . . . . . . . . . . . . . 19
■ Cleaning YourAir Conditioner . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
■ Solving Common Problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
◆ T
ECHNICAL SPECIFICATIONS

E-4
View of the Unit
Indoor Unit
Air flow blade(up/down)
Air flow blade(right/left)
Air filter
Front grille
Remote control sensor
Filter sign indicator
Defrosting indicator
Fan indicator
Auto indicator
Timer indicator
Operation indicator
On/Off button

E-5
ENGLISH
Air Inlet(Rear)
Air Outlet
Connection Valve
Outdoor Unit

E-6
Remote Control - Buttons and Display
Operating mode
( AUTO, COOL,
DRY, FAN, HEAT)
Mode selection button
(AUTO, COOL, DRY, FAN, HEAT)
Filter reset button
Swing button
On timer button
Off timer button
On/Off &
Timer Set/Cancel button
Fan speed adjustment
button
Temperature adjustment
buttons
Temperature setting
Fan speed
Air flow direction
On Timer setting
Off Timer setting
Battery discharge indicator

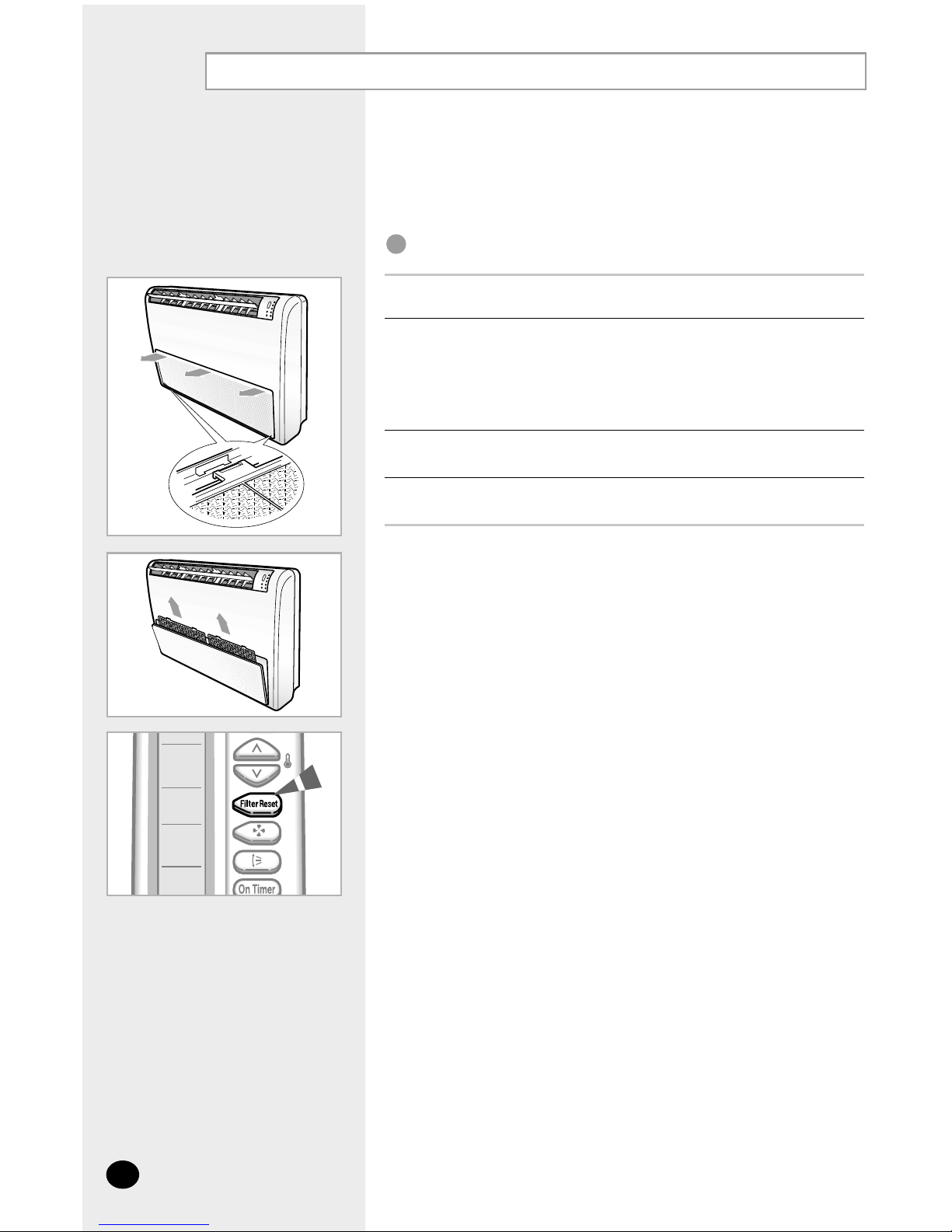

◆After cleaning the air filter, press the filter reset button.
NN
NNoo oott ttee ee

E-7
ENGLISH
Getting Started
You have just purchased a Ceiling/Floor type air conditioner and it has been
installed by your installation specialist.
Your Owner’s Instructions contain much valuable information on using your
air conditioner. Please take the time to read them as they will help you take full
advantage of the unit’s features.
The booklet is organized as follows.
◆The following figures are shown on pages from 4 to 6 :
- Indoor and outdoor units
- Remote control(buttons and display)
They will help you find the buttons and understand the symbols displayed.
◆In the manual, you will find a series of step-by-step
procedures for each function available.
The illustrations in the step-by-step procedures use three different symbols:
PRESS PUSH HOLD DOWN

E-8
Inserting the Remote Control Batteries
Push the battery cover on the rear of the remote control with your thumb
in the direction of the arrow and remove it.
Insert the two batteries, taking care to respect the polarities :
◆+ on the battery with + on the remote control.
◆- on the battery with - on the remote control.
1
2
Close the cover by sliding it back until it clicks into place.
3
◆Use two AAA, LR03 1.5V batteries.
◆Do not use old batteries or different kinds of batteries together.
◆Batteries may be completely discharged after 12 months, even
◆if they have not actually been used.
You must insert or replace the remote control batteries when :
◆You purchase the air conditioner
◆The remote control does not work correctly
NN
NNoo oott ttee ee

Selecting the Automatic Operating Mode
E-9
ENGLISH
In the Automatic mode, the room temperature and the fan speed are
controlled automatically.
1
If the is not displayed at the top of the remote control,
press the button on the remote control one or more times until it
appears.
Result:◆The indoor unit beeps each time you press the button.
◆The air conditioner runs in AUTO mode.
2
You can change modes at any time.
If necessary, press the (On/Off) button.
Result:◆The operation indicator on the indoor unit lights up.
◆The air conditioner starts up in the mode selected
when the unit was last used.
◆The indoor unit beeps.
The air conditioner is fitted with a protection mechanism to
prevent the unit from being damaged when it is started
immediately after being:
◆Plugged in
◆Stopped
lt will start up normally after three minutes.
IMPORTANT
NN
NNoo oott ttee ee
The α is a preset temperature for the most comfortable environment.
It can be adjusted by your installation specialist when installing the
product.
NN
NNoo oott ttee ee
To adjust the temperature, press the buttons one or more times until the
required temperature is displayed. Possible temperatures are between 18°C
and 30°C inclusive.
Result: ◆Each time you press buttons:
- The temperature is adjusted by 1°C.
◆The air conditioner takes the present temperature of the room
every 30 minutes.
- If the temperature is higher than the selected temperature +α,
the air conditioner will start cooling.
- If the temperature is lower than the selected temperature -α,
the air conditioner will start heating.
3

E-10
Cooling Your Room
1
If necessary, press the (On/Off) button.
Result:◆The operation indicator on the indoor unit lights up.
◆The air conditioner starts up in the mode selected
when the unit was last used.
◆The indoor unit beeps.
The air conditioner is fitted with a protection mechanism to
prevent the unit from being damaged when it is started
immediately after being:
◆Plugged in
◆Stopped
lt will start up normally after three minutes.
IMPORTANT
If the is not displayed at the top of the remote control,
press the button on the remote control one or more times until it
appears.
Result: ◆ The indoor unit beeps each time you press the button.
◆ The air conditioner runs in COOL mode.
2
You can change modes at any time.
NN
NNoo oott ttee ee
To adjust the temperature, press the buttons one or more times
until the required temperature is displayed.
Possible temperatures are between 18°C and 30°C inclusive.
Result:◆ Each time you press the buttons:
- The temperature is adjusted by 1°C
- The indoor unit beeps
◆The air conditioner starts cooling, provided that the room
temperature is higher than the selected temperature.
◆If the room temperature reaches the set temperature,
the air conditioner stops cooling, but the fan is still
operating.
3
Select the fan speed by pressing the button one or more times
until the required setting is displayed:
Automatic (rotated : )
Low
Medium
High
Result: Each time you press the button, the indoor unit beeps.
4
To control the direction of the air flow, refer to pages 14 and 15.
5
You must select the Cool mode if you wish to adjust the:
◆Cooling temperature
◆Fan speed when cooling

E-11
ENGLISH
Heating Your Room
1
If necessary, press the (On/Off) button.
Result:◆The operation indicator on the indoor unit lights up.
◆The air conditioner starts up in the mode selected
when the unit was last used.
◆The indoor unit beeps.
The air conditioner is fitted with a protection mechanism to
prevent the unit from being damaged when it is started
immediately after being:
◆Plugged in
◆Stopped
lt will start up normally after three minutes.
IMPORTANT
If the is not displayed at the top of the remote control,
press the button on the remote control one or more times until it
appears.
Result: ◆ The indoor unit beeps each time you press the button.
◆ The air conditioner runs in HEAT mode.
2
You can change modes at any time.
NN
NNoo oott ttee ee
To adjust the temperature, press the buttons one or more times
until the required temperature is displayed.
Possible temperatures are between 16°C and 30°C inclusive.
Result:◆ Each time you press the buttons:
- The temperature is adjusted by 1°C
- The indoor unit beeps
◆The air conditioner starts heating, provided that the room
temperature is lower than the selected temperature.
◆If the room temperature reaches the set temperature,
the air conditioner stops heating, but the fan is still
operating.
3
Select the fan speed by pressing the button one or more times
until the required setting is displayed:
Automatic (rotated : )
Low
Medium
High
Result: Each time you press the button, the indoor unit beeps.
4
To control the direction of the air flow, refer to pages 14 and 15.
5
You must select the Heat mode if you wish to adjust the:
◆Heating temperature
◆Fan speed when heating

E-12
Removing Excess Humidity
If the atmosphere in your room is very humid or damp, you can remove
excess humidity without lowering the room temperature too much.
1If necessary, press the (On/Off) button.
Result:
◆The operation indicator on the indoor unit lights up.
◆The air conditioner starts up in the mode selected when
the unit was last used.
◆The indoor unit beeps.
The air conditioner is fitted with a protection mechanism
to prevent the unit from being damaged when it is started
immediately after being:
◆Plugged in
◆Stopped
It will start up normally after three minutes.
2If the is not displayed at the top of the remote control, press the
button on the remote control one or more times until it appears.
Result:◆
The indoor unit beeps each time you press the button.
◆ The air conditioner runs in DRY mode.
NN
NNoo oott ttee eeYou can change modes at any time.
3To adjust the temperature, press the buttons one or more times
until the required temperature is displayed.
Possible temperatures are between 18°C and 30°C inclusive.
Result:◆Each time you press the buttons:
- The temperature is adjusted by 1°C
- The indoor unit beeps
◆The air conditioner starts removing the excess humidity;
the quantity of air is adjusted automatically.
4To control the direction of the air flow, refer to pages 14 and 15.
IMPORTANT

E-13
ENGLISH
Airing Your Room
If the atmosphere in your room is stale, you can air the room using the Fan
feature.
1If necessary, press the (On/Off) button.
Result:◆
The operation indicator on the indoor unit lights up.
◆The air conditioner starts up in the mode selected when
the unit was last used.
◆The indoor unit beeps.
2If the is not displayed at the top of the remote control,
press the button on the remote control one or more times until it
appears.
Result:◆
The indoor unit beeps each time you press the button.
◆ The temperature is set automatically.
NN
NNoo oott ttee eeYou can change modes at any time.
3Select the fan speed by pressing the button one or more times
until the required setting is displayed:
Low
Medium
High
Result: Each time you press the button, the indoor unit beeps.
4To control the direction of the air flow, refer to pages 14 and 15.

E-14

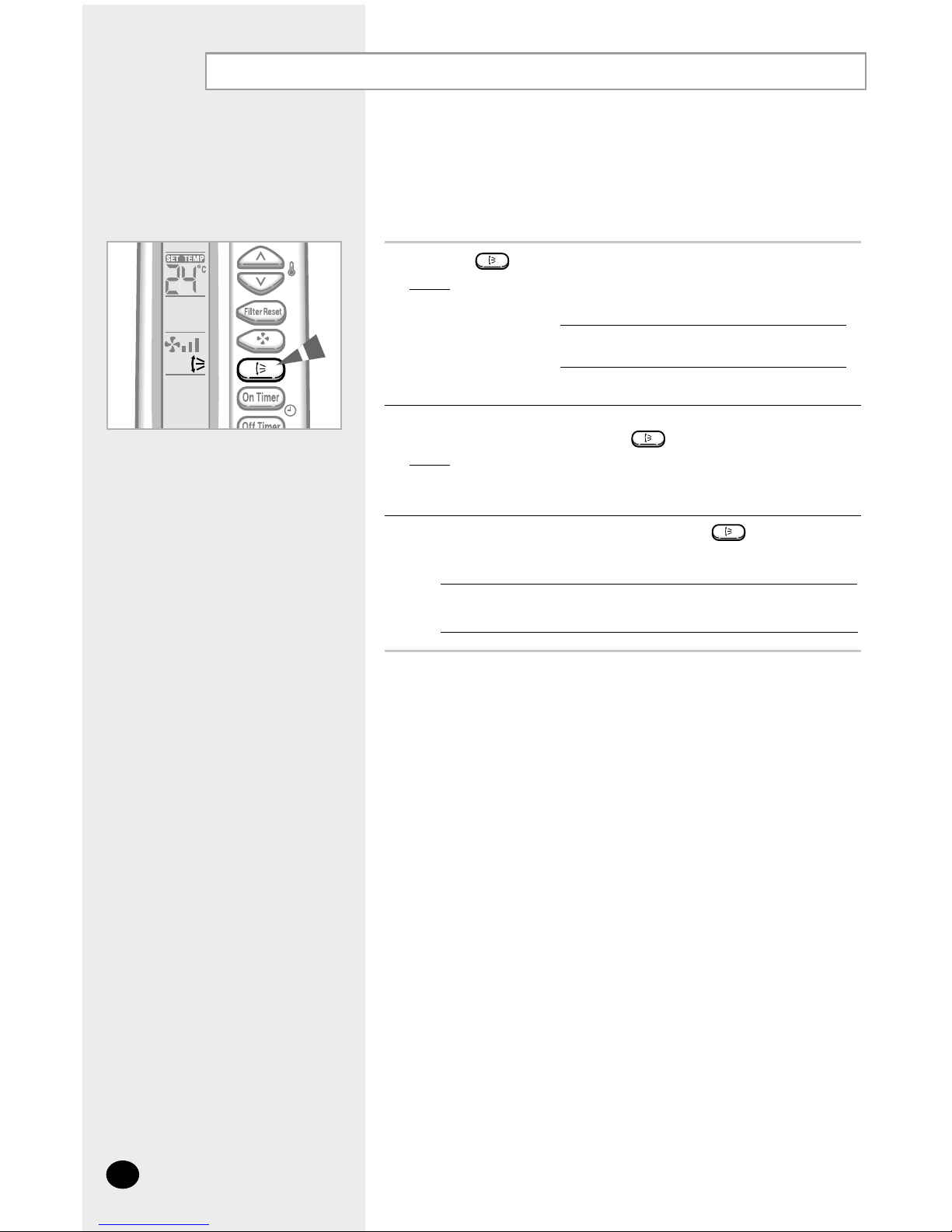

Adjusting the Air Flow Direction Vertically
You can adjust the position of air flow blade for increasing the efficiency of
the air conditioner.
1Press the button one or more times as required.
Result: The outer blade is adjusted vertically.
RECOMMENDATION When... Adjust the blade to face...
Cooling Upwards.
Heating Downwards.
2If you want the blade to move up and down automatically when the air
conditioner is operating, press the button.
Result: The blade move up and down, around the base position set.
3
To stop the blade moving up and down, press the button again.
NN
NNoo oott ttee eeIf you switch the air conditioner... Then the blade is...
Off Closed completely.
On again Set to the initial position powered.

E-15
ENGLISH
Adjusting the Air Flow Direction Horizontally
There are two sets of inner air flow blades. Just as the outer air flow blade
can be adjusted vertically, the inner blades can be adjusted horizontally.
1Adjust each set of inner blades to the required position, by pushing or
pulling them sideways.

E-16
Setting the On Timer
If you want to turn on the air conditioner before the timer reaches
the setting time, press the (On/Off) button.
NN
NNoo oott ttee ee
The On Timer enables you to switch on the air conditioner automatically
after a given period of time. You can set the period of time from
30 minutes to 24 hours.
To set the operating time, press the button one or more times until
the required time is displayed. Possible time is between 0.5 hour and
24 hours inclusive.
1
Press the (Set/Cancel) button to complete the setting.
Result: ◆The remaining time is displayed.
◆Blinking of the timer indicator stops.
◆The selected mode and the temperature disappear on the
display after 10 seconds.
◆The air conditioner will switch on automatically when the
counter displayed on the remote control reaches the setting
time as disappearing the ON TIMER display.
2
To select an operating mode in advance, press the button until the
desired mode is displayed at the top of the remote control.
Result: ◆The air conditioner will run in the selected mode when it has
been turned on.
3
To cancel the On Timer, press the button one or more times until
the timer setting disappears.
1
Press the (Set/Cancel) button.
2
To Cancel the On Timer

E-17
ENGLISH
Setting the Off Timer
The Off Timer enables you to switch off the air conditioner automatically
after a given period of time. You can set the period of time from
30 minutes to 24 hours.
To set the operating time, press the button one or more times until
the required time is displayed. Possible time is between 0.5 hour and
24 hours inclusive.
1
You can see or change the setting mode and/or the temperature
by pressing the button or the buttons after setting
the Off timer.
NN
NNoo oott ttee ee
Press the (Set/Cancel) button to complete the setting.
Result: ◆The remaining time is displayed.
◆Blinking of the timer indicator stops.
◆The selected mode and the temperature disappear on the
display after 10 seconds.
◆The air conditioner will switch off automatically when the
counter displayed on the remote control reaches the setting
time as disappearing the OFF TIMER display.
2
If you would like to turn the air conditioner on after 2 hours
and to operate it for 2 hours:
1. Press the button until ‘2.0 Hr’ is displayed.
2. Press the (Set/Cancel) button.
3. Press the button until ‘4.0 Hr’ is displayed.
4. Press the (Set/Cancel) button.
EE
EExx xxaa aamm mmpp ppll llee ee
If you want to turn off the air conditioner before the timer reaches
the setting time, press the (On/Off) button.
NN
NNoo oott ttee ee
To cancel the Off Timer, press the button one or more times until the
timer setting disappears.
1
Press the (Set/Cancel) button.
2
To Cancel the Off Timer

E-18
Operating Recommendations
Here are a few recommendations that you should follow when using
your air conditioner.
Topic Recommendation
Heating performances The heat pump inside the air conditioner
absorbs heat from outside air and brings it
indoors. If the temperature of the outside air
drops, the air conditioner will heat less. If you
find that the room is not warm enough, use an
additional heating appliance.
Warm air circulation The air conditioner circulates warm air to heat
your room; as a result, some time will be
required after starting the air conditioner to
warm the entire room. If necessary, set the air
conditioner on before you wish to use the
room.
Frost When outside temperatures are low and
humidity is high, frost may form in the outdoor
unit when heating is selected.
If this happens:
◆The heating operation is stopped.
◆The Deice mode is triggered automatically
for about seven minutes.
No intervention is required from you; after
about seven minutes, the air conditioner starts
operating again normally.
High indoor and outdoor If both the indoor and outdoor temperatures
temperatures are high and you select the Heat mode, the
outdoor unit’s fan and compressor may stop at
times. This is normal; simply wait until the air
conditioner switches on again.
Power failure If a power failure occurs when the air condition-
er is operating, the unit is switched off.
When the power returns, the air conditioner
starts up again automatically.

E-19
ENGLISH
Temperature and Humidity Ranges
The following table indicates the temperature and humidity ranges within which the air conditioner can be used.
If the air conditioner is used at... Then...
High temperatures
The automatic protection feature may be triggered and the air conditioner stopped.
❇ If the heating operation is used at below -5°C(outdoor temperature) then, it does not heat at its full capacity.
If the cooling operation is used at over 32°C(indoor temperature) then, it does not cool at its full capacity.
Low temperatures
A water leakage or some other malfunction may happen if the heat exchanger freezes.
High humidity levels
Water may condense on and drip from the surface of the indoor unit if it is used for long periods.
Mode Indoor Temperature Outdoor Temperature Indoor Humidity
Heating 15°C to 27°C approx. -5°C to 24°C approx. -
Cooling 18°C to 32°C approx. 5°C to 43°C approx. 80% or less
Drying 18°C to 32°C approx. 5°C to 43°C approx. -

E-20
Cleaning Your Air Conditioner
To get the best possible use out of your air conditioner, you must to
clean it to remove the dust that accumulates on the air filters.
Before cleaning your air conditioner, ensure that you
have switched off the breaker used for the unit.
1 Open the front grille by pushing on both sides and center.
2 Pull the air filters in upward direction to remove them.
Remove all dust from the air filters by vacuum cleaner, brush or by
washing them with a detergent and warm water below 40
° c.
After washing, allow them to dry thoroughly in an area protected from
sunlight.
3
Insert the air filters to the front grille.
4 Close the front grille by pushing both sides and center.
NN
NNoo oott ttee ee ◆ If you have not used the air conditioner for a long period of time, set the fan
going for three or four hours to dry the inside of the air conditioner thoroughly.
◆ If you don't clean the air filter at least every two weeks, its performance may
be reduced and noise may increase.
NN
NNoo oott ttee ee ◆ After cleaning the air conditioner, press the Filter Reset button.
IMPORTANT
