ECO HP/HR
Quick Reference Guide
Important Notice
This is not a substitute for the installation or service manuals.As new products are released, this list will be changed.
Samsung is in no way responsible for inaccuracies. This document is intended to be used as a reference.

© 2020 Samsung All rights reserved.
System Communication Wiring Guide 1
Indoor unit
(F3,F4) or (3,4)
Indoor unit PCB
ODU to IDU
Communications
5vdc
12 vdc
Samsung
accessories
To Controller
485 & 12 Vdc
Outdoor Unit Terminal Block Wired Remote to Indoor Unit
Terminal Block Indoor Unit Terminal Block
F1 F2 V1 V2 F3 F4
F1 F2 –Set Layer:
ODU to IDU
Communications 5vdc
R1 R2 –Control Layer:
Outdoor Unit to DMS
Centralized Control

© 2020 Samsung All rights reserved.
Piping Design 2
Standard HP: Y piping for heat pump application Refrigeration piping:
•All piping specifications must be followed to insure that the system will
operate properly.
• Maintain a minimum straight line distance: ≥ 20” before connecting to
a Y-joint.
• Minimum 36” straight line between Y-joints.
▪HR Changer: Mandatory device for indoor unit mode changeover
▪HR Changer is installed as the first device in the refrigerant piping
network. (Heat recovery only)
▪Cool-only indoor unit is connected to the HR Changer low pressure
gas and liquid outgoing pipes.
▪Sub MCU required for additional indoor unit zones after the HR
Changer
Standard HR: Piping for heat recovery application
Sub MCU
HR Changer Cool-only unit
Paired ports
to increase
capacity

© 2020 Samsung All rights reserved.
HR & Sub MCU Chart 3
Case Correct installation* Incorrect installation
HR Installation
(HR changer required)
HR Changer Sub MCU
Serial
Installation
HR
Changer Sub MCU Sub
MCU HR Changer
Cooling only
Indoor unit
Installation
Cooling Only
HR
Changer
Sub MCU
Cooling Only
HR Changer Sub MCU
Parallel
Installation
HR Changer Sub MCU
HR Changer Sub MCU
Sub MCU
HR Changer
*Refrigerant supply pipes to HR changer can only enter on one dedicated side of the HR Changer. The images above are for simple explanation only. Refer to
the HR changer installation manual for full details.

© 2020 Samsung All rights reserved.
Note: Power must be off, complete prior to auto addressing
Pairing DIP
switch No.
ON
(Individual
setting)
OFF
(Paired setting)
1 A & B not paired A & B paired
2 C & D not paired C & D paired
3 E & F not paired E & F paired
4 N/A N/A
Port assign DIP switch
No. ON (Port Used) OFF (Port not used)
1 Port A used Port A not used
2 Port B used Port B not used
3 Port C used Port C not used
4 Port D used Port D not used
Second DIP switch bank
1 Port E used Port E not used
2 Port F used Port F not used
Use the rotary dial to give
each MCU its own
individual address
10’s
1’s
MCU Settings (HR changer & Sub changer) 4
F E D C B A
Below: Port Use Selection Dip Switch Settings..
Capacity per port (≤19 MBtu)
MCU
address
setting
rotary’s
A B C D E F
Below: Port Paring Dip Switch Settings

© 2020 Samsung All rights reserved.
Indoor unit quantity
Rotary Dial.
Outdoor unit option
settings-
-DIP switches.
Commissioning & Service modes
K1 K2 K3 K4 Tactile switches Outdoor unit option set, Indoor unit quantity set
Commissioning & Service modes. K1 K2 K3 K4 Tactile switches
System PCB Identification 5
36, 48, & 53 MBtu/h Heat Pump Models 60 MBtu/h HP Model –All HR Models

© 2020 Samsung All rights reserved.
Set the quantity of indoor units from rotary switches: SW51 & SW52
With system powered off:
▪Set the connected indoor unit quantity on the ODU PCB
▪When the ODU is powered up:
▪The system will automatically address the IDU’s
▪Option: Manual addressing –remote controller or SNET Pro 2
SW51:10’s SW52:1’s
36, 48 & 53 Btu HP Initial System Settings 6

© 2020 Samsung All rights reserved.

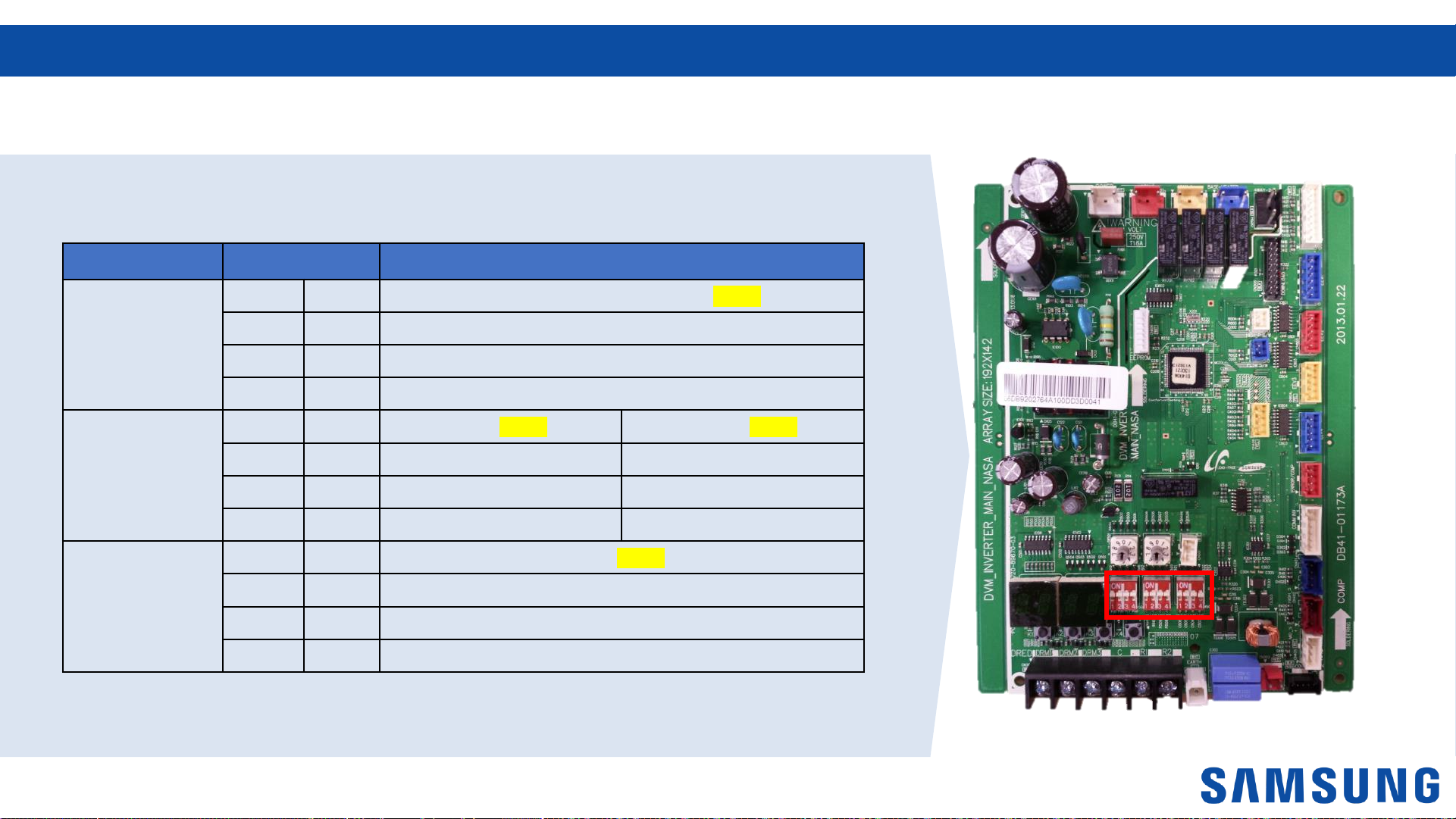

36, 48 & 53 Btu HP Initial System Settings 7
Switch Position Function
K6 ON Snow prevention (Used) Default
OFF Snow prevention (Not used)
K7 & K8
ON ON (Target evap temp) 7-9 ⁰C / 44.6-48.2 ⁰F Default
ON OFF 5-7 ⁰C / 41-44.6 ⁰F
OFF ON 9-11 ⁰C / 48.2-51.8 ⁰F
OFF OFF 10-12 ⁰C / 50-53.6 ⁰F
K9 & K10
ON ON Night quiet mode not used Default
ON OFF Step –1
OFF ON Step –2
OFF OFF Step - 3

© 2020 Samsung All rights reserved.
36, 48 & 53 Btu HP Initial System Settings 8
Switch Position Function
K11 & K12
ON ON Capacity correction heating Default
ON OFF Default –28.4 psi
OFF ON Default –14.2 psi
OFF OFF Default + 14.2 psi
K13 & K14
ON ON 3 ton Default 4 + ton Default
ON OFF Max current (–) 4(A) Max current (–) 2A)
OFF ON Max current (–) 6(A) Max current (–) 4(A)
OFF OFF Max current (–) 8(A) Max current (–) 6(A)
K15 & K16
ON ON MID Default
ON OFF MID
OFF ON LOW1 (Humidity)
OFF OFF LOW2 (Humidity)

© 2020 Samsung All rights reserved.
36,48&53 MBtu/h HP models
▪Defrost mode can start after 30 minutes of heat operation run time, and the suction temperature at the outdoor unit heat exchanger is less than
23°F, or there is a significant temperature difference between the heat exchanger suction gas and ambient.
▪For installations with high humidity which creates too many defrost cycles, defrost interval can be changed to LOW1 or LOW2 (K5 K6)
▪Heating capacity is reduced in this operation
Outdoor Unit Option Settings –Defrost Interval Adjustment 9
Switch Position Function
K15 & K16
ON ON Humidity MID1 Default
ON OFF Humidity MID2
OFF ON Humidity LOW1
OFF OFF Humidity LOW2

© 2020 Samsung All rights reserved.
Step Button press Display Description Note
Step 1 Power on unit id nd Indoor setting
required -
Quantity of indoor units
Step 2 Press K1 & K2
for 2
seconds id 00 Ready to set (Default)
Step 3
K2 id X0 Ten digit setting -
K4 id 0XOnes digit setting
Hold K4 for 2 seconds to start auto detection mode
Heat pumps hold K2 to save and exit. Segment will displayAd 00 then UP.
Quantity of MCU (HR only)
Step 4 Press K1 NC 00 Ready to set (Default)
Step 5
K2 NC X0 Ten digit setting -
K4 NC 0XOnes digit setting
Hold K4 for 2 seconds for auto detection mode
Heat recovery setting
Step 6 Press K1 ht 00 System type -
Step 7 Press K4 ht 00 Heat pump (Default)
ht 01 Heat Recovery Must set
Step 8 Hold K2 Exit Save Unit will display
E201 or E213
All units powered on
Indoor unit count
Outdoor Type
Finished
MCU count
HR only
60 Btu HP/HR Initial system settings 10

© 2020 Samsung All rights reserved.
Note: MCU address and dip switch settings must be completed before Auto Pipe Pairing operation is initiated
The outdoor unit will display E213 if addressing has not been completed
The Indoor Unit MICOM firmware version must be “161222” or higher see next slide
yr./month/day
To run the Auto Pipe Pairing operation, take the following steps:
1.Press the K2 button 10 times on the main PBA of the outdoor unit to start the Auto pipe pairing operation. (Display : )
- The operation takes about 25 to 55 minutes normally depending on the number of indoor units connected.(Max 2hours)
Step 1 (Start ) → Steps 2 -8 (Setup ) → Step 9 (Check ) → Step 10 (Confirmation )
Temperature Outdoor temp < 75℉Outdoor temp 75℉ ≥
85℉ Outdoor temp ≥ 86℉
Avg. Indoor temp <75℉ Main heating operation Main heating operation Main cooling operation
Avg. Indoor temp ≥75℉ Main cooling operation
MCU Auto Pipe Pairing
Auto Addressing (H/R only) 11
Note: Once Auto Pipe Paring has successfully completed (End) will appear on the display. Press K3 to exit Auto Pipe Pairing..

© 2020 Samsung All rights reserved.
1. Press and hold K2 to enter the option setting.
(system must be thermo-off)
-display will show as follows:
SEG 1, 2 SEG 3, 4
-SEG 1 & 2 will display the number of the optional setting.
-SEG 3 & 4 will display the number of set value for the function setting.
2. Shortly press the K1 button to adjust the value of SEG 1 & 2 to match
the desired option number.
-Example: SEG 3, 4
SEG 1, 2 SEG 3, 4
SEG 1, 2
Quickly pressing K1
button One time.
SEG 3, 4
SEG 1, 2 SEG 3, 4
SEG 1, 2
Quickly pressing K2
button One time.
3. Shortly press the K2 button to adjust the value of SEG 3 & 4 to match
the desired option number.
-Example:
4. After setting the number values in SEG 1, 2, 3 & 4 for the function option you want to change.
Press and hold the K2 button for 2 seconds or more to save.
5. All Segments will BLINK and begin tracking
NOTE:
•Press and hold the
K1 button to reset
values to previous
settings.
•Press and hold K4 to
restore to factory
default settings.
•Once you release K4
for factory default
wait until the system
resets and starts the
tracking process.
Then press and hold
the K2 button to
save the setting.
•Press K3 at any time
to exit
Outdoor
Setting 12

© 2020 Samsung All rights reserved.
Option item Input
unit SEG1 SEG2 SEG3 SEG4 Function Remarks
Cooling
Correction Main
PCB 0 1
0 0 44-48 ( F ) Default
(A type PBA)
Target
Evaporator
Temp (F)
manual
readings are
(C)
when lower
temperature
value is set,
discharge air
Temp of the
indoor unit will
decrease
0 1 41-44 ( F ) Default
( B type PBA)
0 2 48-51 ( F )
0 3 50-53 ( F )
0 4 51-55 ( F )
0 5 53-57 ( F )
0 6 55-57 ( F )
Outdoor
Setting 13
NOTE:
•Press and hold the
K1 button to reset
values to previous
settings.
•Press and hold K4 to
restore to factory
default settings.
•Once you release K4
for factory default
wait until the system
resets and starts the
tracking process.
Then press and hold
the K2 button to
save the setting.
•Press K3 at any time
to exit

© 2020 Samsung All rights reserved.
Option item Input
unit SEG1 SEG2 SEG3 SEG4 Function Remarks
Heating
Correction
Main
&
Sub
PCB 0 2
0 0 435 (PSI)
Default
Target High
Pressure (PSI)
(When low
pressure value
is set,
discharge air
temperature of
indoor unit will
decrease)
0 1 362 (PSI)
0 2 377 (PSI)
0 3 391 (PSI)
0 4 406 (PSI)
0 5 420 (PSI)
0 6 449 (PSI)
0 7 464 (PSI)
0 8 478 (PSI)
Outdoor
Setting 14
NOTE:
•Press and hold the
K1 button to reset
values to previous
settings.
•Press and hold K4 to
restore to factory
default settings.
•Once you release K4
for factory default
wait until the system
resets and starts the
tracking process.
Then press and hold
the K2 button to
save the setting.
•Press K3 at any time
to exit

© 2020 Samsung All rights reserved.
Option item Input
unit SEG1 SEG2 SEG3 SEG4 Function Remarks
Current
Restriction Main
PCB 0 3
0 0 100%
Default
When
restriction
option is set,
cooling and
heating
performance
may decrease
0 1 95%
0 2 90%
0 3 85%
0 4 80%
0 5 75%
0 6 70%
0 7 65%
0 8 60%
0 9 55%
1 0 50%
1 1 No restriction
Outdoor
Setting 15
NOTE:
•Press and hold the
K1 button to reset
values to previous
settings.
•Press and hold K4 to
restore to factory
default settings.
•Once you release K4
for factory default
wait until the system
resets and starts the
tracking process.
Then press and hold
the K2 button to
save the setting.
•Press K3 at any time
to exit

© 2020 Samsung All rights reserved.
Option item Input
unit SEG1 SEG2 SEG3 SEG4 Function Remarks
Oil
Collection Main
PCB 0 4
0 0 Disabled
Default
-
0 1 Shorten the Interval by
1/2
Temperature
to trigger
Defrost
Main
PCB 0 5
0 0 Disabled
Default Apply this
setting when
installation
location is in
humid area.
(near lakes,
rivers etc.)
0 1 High humidity
Outdoor
Fan
Speed
Main
&
Sub
PCB
0 6
0 0 Disabled
Default Changing this
setting will
increase fan
speed to
maximum
value
0 1 Increase fan
speed
Outdoor
Setting 16
NOTE:
•Press and hold the
K1 button to reset
values to previous
settings.
•Press and hold K4 to
restore to factory
default settings.
•Once you release K4
for factory default
wait until the system
resets and starts the
tracking process.
Then press and hold
the K2 button to
save the setting.
•Press K3 at any time
to exit

© 2020 Samsung All rights reserved.
Option item Input
unit SEG1 SEG2 SEG3 SEG4 Function Remarks
Silent
mode Main
PCB 0 7
0 0 Disabled
Default If enabled in
this function
will operate
automatically
Cooling Only
0 1 Level 1 /
Auto
0 2 Level 2 /
Auto
0 3 Level 3 /
Auto
Silent
mode
external
contact
Main
PCB 0 7
0 4 Level 1 /
Manual Heat Recovery
When using
(MIM-B14)
installed in the
outdoor unit
0 5 Level 2 /
Manual
0 6 Level 3 /
Manual
Outdoor
Setting 17
NOTE:
•Press and hold the
K1 button to reset
values to previous
settings.
•Press and hold K4 to
restore to factory
default settings.
•Once you release K4
for factory default
wait until the system
resets and starts the
tracking process.
Then press and hold
the K2 button to
save the setting.
•Press K3 at any time
to exit

© 2020 Samsung All rights reserved.
Option item Input
unit SEG1 SEG2 SEG3 SEG4 Function Remarks
High-head
condition
Main
PCB 0 8
0 0 Disabled
Default -
0 1
Level 1
Type 1
Indoor
lower than
outdoor
unit
When outdoor unit
is located 131-
262ft
above indoor units
0 2 Unused Unused
0 3
Type 2
Outdoor
unit lower
than indoor
unit
When indoor units
are over 98ft above
the outdoor unit
Outdoor
Setting 18
NOTE:
•Press and hold the
K1 button to reset
values to previous
settings.
•Press and hold K4 to
restore to factory
default settings.
•Once you release K4
for factory default
wait until the system
resets and starts the
tracking process.
Then press and hold
the K2 button to
save the setting.
•Press K3 at any time
to exit

© 2020 Samsung All rights reserved.
Option item
Input
unit SEG1 SEG2 SEG3 SEG4 Function Remarks
Long –
piping
condition
(cannot be
set with
high-head
setting)
Main
PCB 0 9
0 0 Disabled
Default -
0 1 Level 1
Equivalent
length of
farthest indoor
unit from
outdoor is over
328’
0 2 Unused Unused
Energy
savings
Setting
Main
PCB 1 0
0 0 Disable
Default -
0 1 Energy
saving mode
Energy saving
triggers when
the room
temperature
reaches
desired set-
point
(Heating mode
only)
0 2 Rapid
Cooling
Heat Recovery
Increase
cooling speed
Outdoor
Setting 19
NOTE:
•Press and hold the
K1 button to reset
values to previous
settings.
•Press and hold K4 to
restore to factory
default settings.
•Once you release K4
for factory default
wait until the system
resets and starts the
tracking process.
Then press and hold
the K2 button to
save the setting.
•Press K3 at any time
to exit
