Samsung AWT18SBWDC User manual

OWNER’S
INSTRUCTIONS
AWT18SBWDC
Window-type Room Air Conditioner
(Cool)
E
DB98-09660A(1)

The following safety precautions must be taken when installing
and using your air conditioner.
Safety Precautions
1The air conditioner must be plugged into its own specific power source, which must be
installed in compliance with national wiring, earthing and safety regulations.
Depending on national regulations and your specific installation, you may need to install:
◆ A circuit breaker
For further information on electrical requirements, contact a professional electrician.
This device must be installed according to the national electrical rules.
2Make sure that the unit is correctly ventilated at all times;
do NOT place clothing or other materials over it.
4Do NOT insert anything between the air outlet blades, as it may damage the inner fan
and you may be hurt. Keep children away from the unit.
5ALWAYS ensure that the power cable is in good condition.
If the power cord is damaged in any way, it must be replaced by an authorized service technician.
Do not use an extension cord with this or other appliance.
6Do NOT attempt to repair the unit yourself. If it is damaged in any way, contact:
◆ An authorized service center
◆ The dealer from whom you purchased the air conditioner.
7Do NOT place any blocking objects in front of the unit.
3NEVER spill liquids of any kind into the unit.
Should this happen, unplug the unit and contact your installation specialist.
8If the remote control will not be used for a long time, remove the batteries.
9Before throwing out the device, it is necessary to pull back the battery cells
and get rid of them safely.
E-2
The manufacturer does not assume responsibility for accidents or injury
caused by an incorrectly installed air conditioner. If you are unsure about
installation, contact an installation specialist.
CC
CCAA AAUU UUTT TTII IIOO OONN NN

Contents
◆PREPARING YOUR AIR CONDITIONER
■Safety Precautions ......................................................................................... 2
■Air Conditioning Unit - Main Parts, Buttons and Display ............................... 4
■Remote Control Buttons ................................................................................. 5
■Getting Started ............................................................................................... 6
■Inserting the Remote Control Batteries .......................................................... 7
◆OPERATING YOUR AIR CONDITIONER
■Cooling Your Room ........................................................................................ 8
■Airing Your Room ........................................................................................... 9
■Adjusting the Air Flow Direction Horizontally .................................................. 10
■Adjusting the Air Flow Direction Vertically ...................................................... 10
◆PROGRAMMING YOUR AIR CONDITIONER
■Setting the On Timer ...................................................................................... 11
■Setting the Off Timer ...................................................................................... 12
■Setting the Sleep Timer .................................................................................. 13
■Selecting Energy Saving mode ...................................................................... 14
◆RECOMMENDATIONS FOR USE
■Operating Recommendations ......................................................................... 14
■Temperature and Humidity Ranges ................................................................ 14
■Cleaning Your Air Conditioner ........................................................................ 15
■Solving Common Problems ............................................................................ 16
■Technical Specifications ................................................................................. 17
◆METHOD OF INSTALLATION .................................................................................... 18
E-3

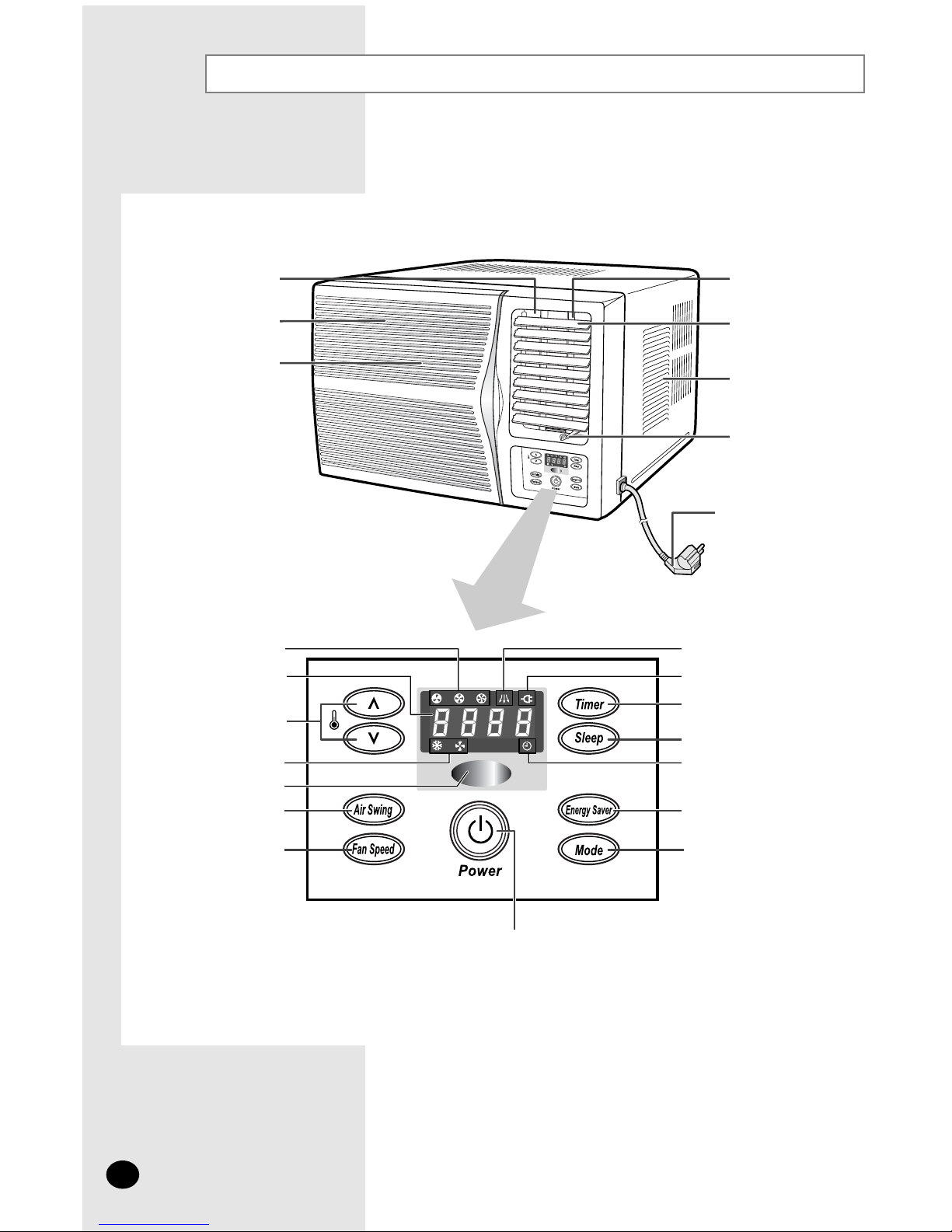

Air Conditioning Unit - Main Parts, Buttons and Display
Air inlet (inside)
Air outlet
Air filter
(The air filter is
located in inside)
Inner air flow blades
(right/left orientation)
Outer air flow blades
(up/down orientation)
Air inlet
Ventilation lever
Power plug (The type of
power plug may differ,
depending on the local
power supply.)
Fan speed indicators
(LOW, MED, HIGH)
Temperature/Timer
settings
Temperature adjustment
buttons
Operating mode indicators
(COOL, FAN)
Remote Control sensor
Air flow blade swing button
Fan speed adjustment
button
Air flow blade swing indicator
Energy Saver indicator
Sleep timer setting button
Timer indicator
Energy Saver button
ON/OFF button
Operating mode selection
button (COOL, FAN)
Timer setting button
❄The design and shape are subject to change according to the model.
E-4

Remote Control - Buttons
Temperature adjustment
buttons
Fan speed
adjustment buttons
ON/OFF button
E-5
Timer setting button
Sleep timer setting button
Operating mode
selection buttons
Energy Saver button
Air flow blade swing button

Getting Started
You have just purchased a window-type room air conditioner and it has been installed by your
installation specialist.
Your Owner’s Instructions contain valuable information on using your air conditioner.
Please take the time to read them as they will help you take full advantage of the unit’s functions.
This Owner’s Instructions is just for using your air conditioner correctly.
Thus, the illustrations shown in this manual may not exactly match your air conditioners.
The booklet is organized as follows.
◆The following figures are shown on pages 4 and 5:
-Air conditioning unit (main parts, buttons and display)
-Remote control (buttons)
They will help you find the buttons and understand the symbols displayed.
◆In the main part of the document, you will find a series of step-by-step procedures for each
function available.
The illustrations in the step-by-step procedures use four different symbols:
Moreover, applicable, wherever the illustrations show the positions of the buttons on both the
remote control and the unit itself.
For the... The illustrations have a...
Remote control Gray background.
Example:
Unit itself White background.
Example:
PRESS PUSH IMPORTANT NOTE
☛
➢
E-6

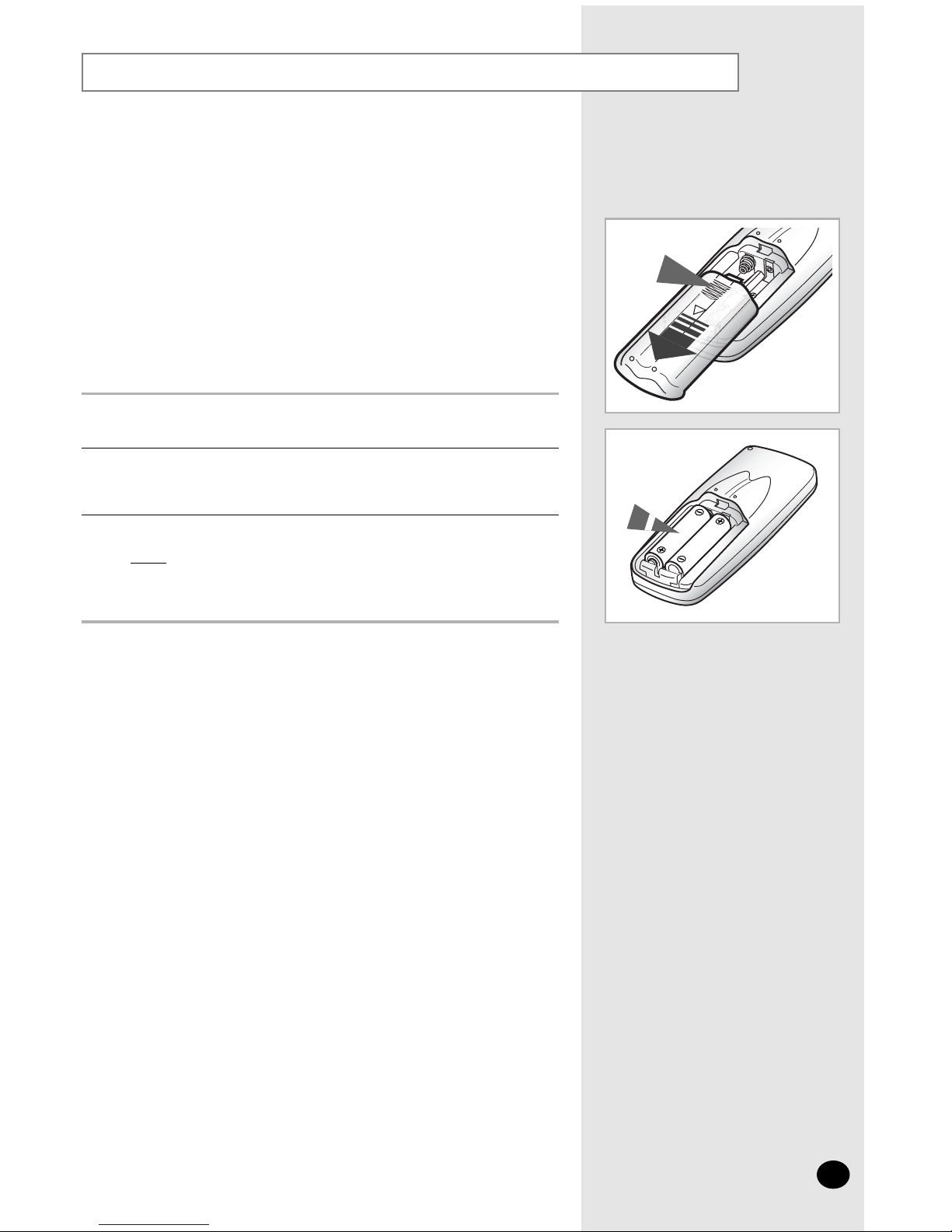

Inserting the Remote Control Batteries
You must insert or replace the remote control batteries when:
◆You purchase the air conditioner
◆The remote control does not work correctly
☛Use two AAA, LR03 1.5 V batteries. Do not use old
batteries or different kinds of batteries together.
Batteries may be completely discharged after 12 months,
even if they have not actually been used.
1Push the battery cover on the rear of the remote control with your thumb in
the direction of the arrow and remove it.
2 Insert the two batteries, taking care to respect the polarities:
◆+ on the battery with + on the remote control
◆– on the battery with – on the remote control
3 Close the cover by sliding it back until it clicks into place.
Result:
You can control all the functions on your air conditioning unit
directly from your seat, using the remote control.
E-7

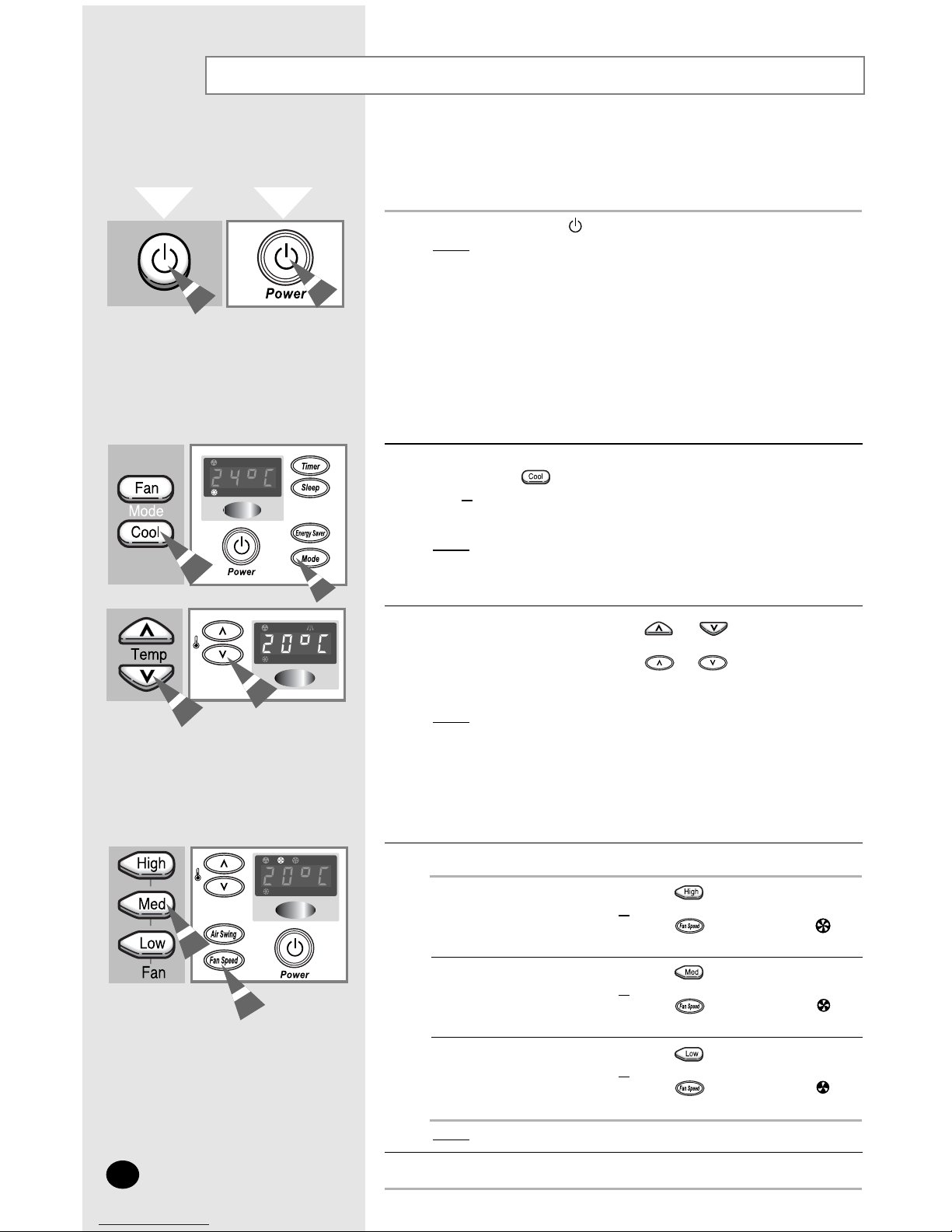

You must select the Cool mode if you wish to lower the temperature in your
room. You can also set the fan speed.
1If necessary, press the (On/Off) button.
Result:◆The operating mode indicator (COOL or FAN) on
the unit comes on.
◆The air conditioner starts up in the mode selected
when the unit was last used.
◆The unit beeps twice.
☛The air conditioner is fitted with a protection mechanism to prevent
the unit from being damaged when it is started immediately after
being:
◆Plugged in
◆Stopped
It will start up automatically after about three minutes.
2 If the COOL indicator is not lit up on the unit:
◆Press the button on the remote control
or
◆Press the MODE button on the unit one or more times until the COOL
indicator lights up
Result:◆The unit beeps each time you press MODE.
◆The air conditioner starts up in Cool mode.
➢You can change modes at any time.
3 To adjust the temperature, press the or button on the remote
control one or more times until the required temperature is displayed.
To adjust the temperature, press the or button on the unit one
or more times until the required temperature is displayed.
Possible temperatures are between 18°C and 30°C inclusive.
Result:◆Each time you press the temperature buttons:
–The temperature is adjusted by 1°C and
displayed on the control panel
–The unit beeps
◆The air conditioner starts cooling if the room temperature is
higher than the selected temperature.
4 To set the fan speed to... Then...
Result:Each time you press a button, the unit beeps.
5 To control the direction of the air flow, refer to page 10.
Cooling Your Room
Remote Control Control Panel
High ◆Press the button on the remote control.
or
◆Press the on the unit until the
indicator lights up
Med ◆Press the button on the remote control.
or
◆Press the on the unit until the
indicator lights up
Low ◆Press the button on the remote control.
or
◆Press the on the unit until the
indicator lights up
E-8

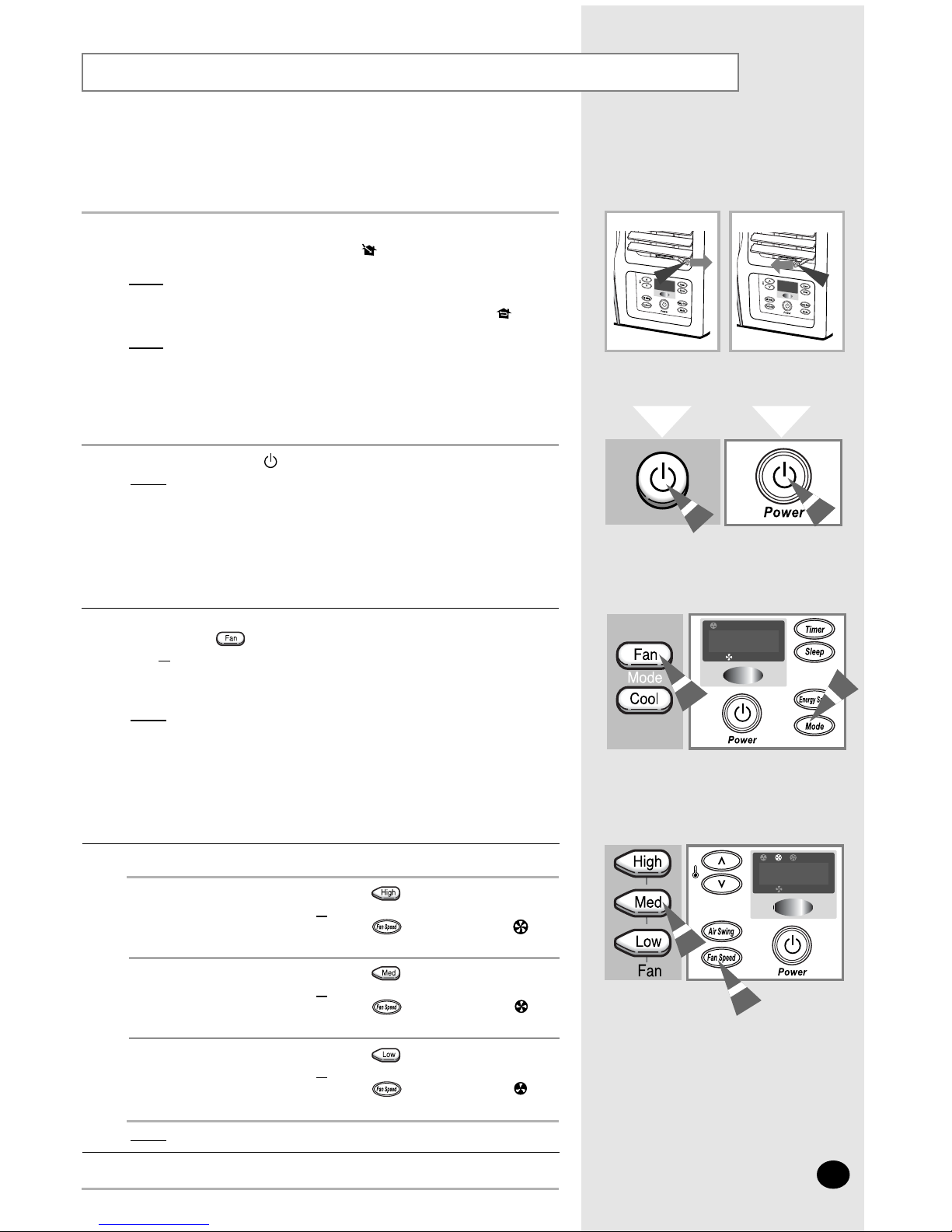

Airing Your Room
E-9
If the atmosphere in your room is stale, you can air it using the Fan
feature and if necessary, evacuate the stale air outside.
1 If you wish to evacuate stale air outside, push the ventilation lever on the front
of the unit to the right and the open position ( ).
Result: The air inside the room circulates and stale air is evacuated outside.
Otherwise, push the ventilation lever to the left and the closed position ( ).
Result: The air simply circulates inside the room.
2 If necessary, press the (On/Off) button.
Result:◆The operating mode indicator (COOL or FAN) on the
unit comes on.
◆The air conditioner starts up in the mode selected
when the unit was last used.
◆The unit beeps twice.
3 If the FAN indicator is not lit up on the unit:
◆Press the button on the remote control
or
◆Press the MODE button on the unit one or more times until the FAN
indicator lights up
Result: ◆The unit beeps each time you press MODE.
◆The air conditioner starts up in Fan mode.
➢◆You can change modes at any time.
◆When the air conditioner is in Fan mode, the
temperature is not displayed; in this case, you do not
need to set the temperature.
4 To set the fan speed to... Then...
Result:Each time you press a button, the unit beeps.
5 To control the direction of the air flow, refer to page 10.
High ◆Press the button on the remote control.
or
◆Press the on the unit until the
indicator lights up
Med ◆Press the button on the remote control.
or
◆Press the on the unit until the
indicator lights up
Low ◆Press the button on the remote control.
or
◆Press the on the unit until the
indicator lights up
Remote Control Control Panel

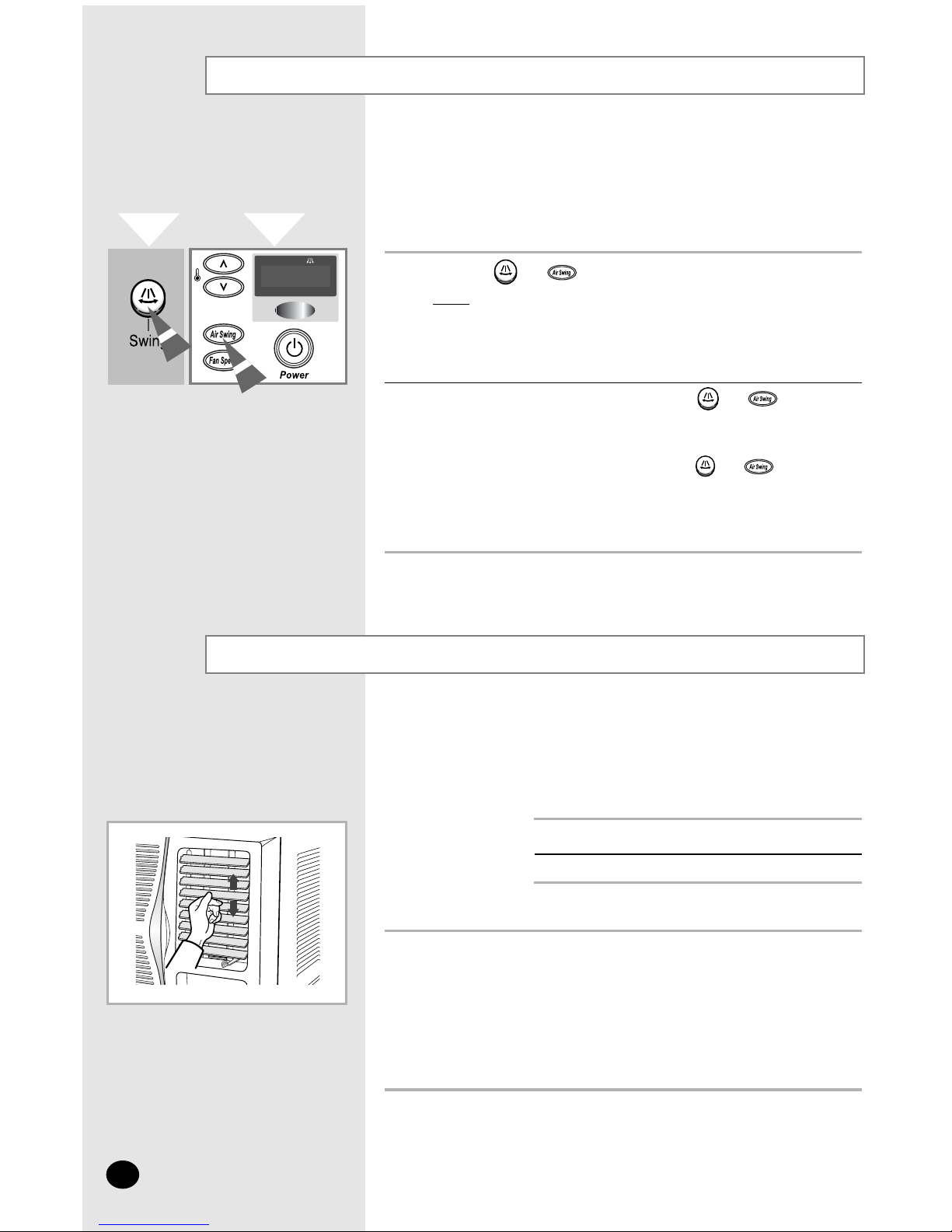

Adjusting the Air Flow Direction Horizontally
Adjusting the Air Flow Direction Vertically
E-10
Depending on the position of the unit in your room, you can adjust the
orientation of the inner air flow blades on the right-hand side of the
unit, thus increasing the efficiency of the air conditioner.
1Press the (or on the unit) button on the remote control.
Result:The inner blades swing automatically left and right.
2 To stop the blades moving left and right, press the
(or on the unit)
button on the remote control .
➢To stop the blades in a specific position and orient the air flow in the
corresponding direction, simply press the
(or on the unit)
button on the remote control when the blades are in the desired position.
Again depending on the position of the unit in your room, you can
adjust the orientation of the outer air flow blades on the right-hand
side of the unit.
RECOMMENDATION When... Adjust the blades to face...
Cooling Upwards.
Adjust the air flow blades to the desired position, by pushing them upwards or
downwards.
➢If you orient the air flow blades downwards and the unit operates in Cool mode
for a long period of time, dew may:
◆Form on the surface of the blades
◆Drip from the blades
Remote Control Control Panel

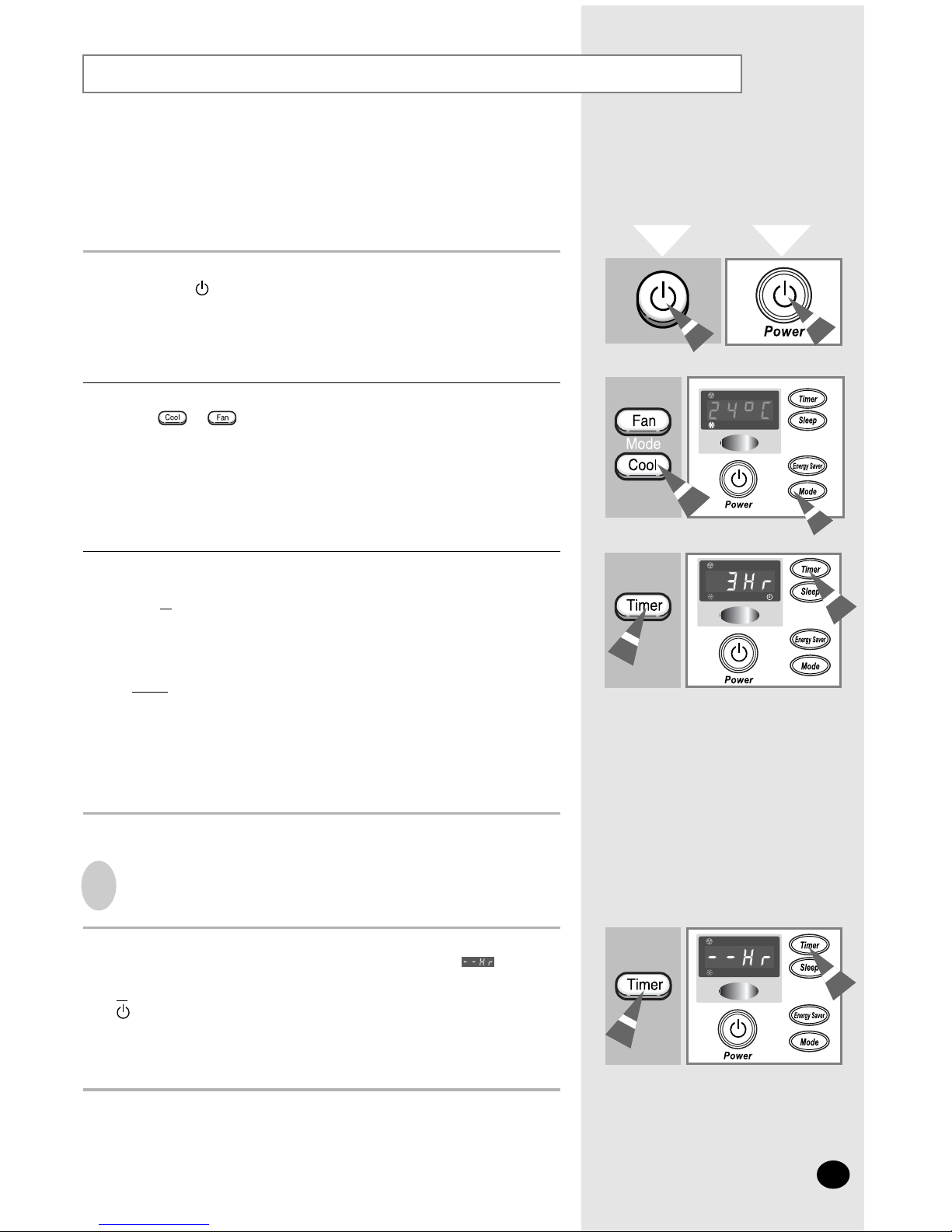

Setting the On timer
E-11
The On Timer enables you to switch on the air conditioner automatically after
a given period time. You can set the period of time from 1 hour to 24 hours.
You can select the On timer only when the air conditioner is off.
1Check that the air conditioner has been switched off; if necessary,
press the (On/Off) button.
3 Set the operating time by pressing:
◆Timer on the remote control.
or
◆Timer on the unit one or more times.
Possible time is between 1 hour and 24 hour inclusive.
Result:◆The remaining time is displayed and decreased by 1 hour
automatically to indicate the remaining time.
◆The air conditioner switches on automatically when the
operating time reaches zero.
➢You can change the setting mode, fan speed, and air flow direction
after setting the On timer.
To cancel the timer, press:
◆Timer on the remote control or unit one or more times until " " is
displayed.
or
◆on the remote control or unit (The air conditioner operates in the mode
selected when the unit was last used.)
To Cancel the On Timer
Remote Control Control Panel
2 Set the required mode by pressing the appropriate button:
◆or on the remote control
◆Mode button on the unit (press it one or more times until the
appropriate operating mode indicator lights up)

Setting the Off Timer
E-12
The Off Timer enables you to switch off the air conditioner
automatically after a given period of time. You can set the period of
time from 1 hour to 24 hours.
You can select the Off timer only when the air conditioner is on.
1Check that the air conditioner has been switched on; if necessary,
press the (On/Off) button.
2 Set the operating time by pressing:
◆Timer on the remote control
or
◆Timer on the unit one or more times.
Possible times are between 1 hour and 24 hour inclusive.
Result:◆The remaining time is displayed and decreased by 1 hour
automatically to indicate the remaining time.
◆The air conditioner switches off automatically when the
operating time reaches zero.
➢You can change the setting mode, fan speed, and air flow direction
after setting the Off timer.
To Cancel the Off Timer
Remote Control Control Panel
To cancel the timer, press:
◆Timer on the remote control or unit one or more times until " " is
displayed.
or
◆on the remote control or unit (The air conditioner operates in the mode
selected when the unit was last used.)

Setting the Sleep timer
E-13
The Sleep Timer can be used when you are cooling your room to
switch the air conditioner off automatically after a period of 8 hours.
➢If you wish to switch the unit off at a specific time, refer to page 12.
1Make sure that you have selected either COOL mode.
2 Press the button on the remote control
or
Press the button on the unit.
Result:◆Each time you press a button, the unit beeps.
◆The “SLEEP” passes through the control panel for about
15 seconds and the " " will be displayed.
◆The remaining time is displayed and decreased by 1 hour
automatically to indicate the remaining time.
◆The air conditioner will be controlled as illustration below.
To cancel the timer, press:
◆on the remote control.
or
◆on the unit.
Result: ◆The unit beeps.
◆The SLEEP indicator is no longer displayed.
◆The air conditioner operates in the mode selected last.
➢If you select the Energy Saving mode in the Sleep Timer mode,
the Sleep Timer will be cancelled and the air conditioner will start up
in the Energy Saving mode.
To Cancel the Sleep Timer
Cooling When the temperature has
been increased by 1°C (after
1 hour), it is maintained
for 7 hours.
Remote Control Control Panel

Selecting Energy Saving mode
E-14
Remote Control Control Panel
To select the energy saving mode, press the Energy Saver button on the remote
control or unit one or more times until the Energy Saver indicator lights up.
Result:◆The fan and compressor cycle on and off together.
◆The fan will continue to run for a short time after the
compressor cycles off.
➢If you would like the air conditioner to run in Fan mode, do not press
the Energy Saver button. You cannot use the Fan mode in the energy
saving mode.
To stop the energy saving mode, press the Energy Saver button on the
remote control or unit again.
Result:The fan runs at all times, while the compressor cycles on and off.
➢If you select the Sleep Timer in the Energy Saving mode, the Energy
Saving will be cancelled and the air conditioner will start up in the
Sleep Timer mode.
If you wish to save energy when using your air conditioner,
select the energy saving mode with the Energy Saver button.
1
2
Temperature and Humidity Ranges
The following table indicates the temperature and humidity ranges within which the air conditioner can be used.
Cooling 21°C to 32°C approx. 21°C to 54°C approx. 80% or less
Mode Indoor Temperature Outdoor Temperature Indoor Humidity
Higher humidity levels Water may condense on and drip from the surface of the unit if
it is used for long periods.
Lower temperatures Awater leakage or some other malfunction may happen if the
heat exchanger freezes.
Higher temperatures The automatic protection feature may be triggered and the air
conditioner stopped.
If the air conditioner is used at... Then...
Operating Recommendations
Here are a few recommendations that you should follow when using your air conditioner.
Power failure If a power failure occurs when the air conditioner is operating, the
unit is switched off. When the power returns, the air conditioner
starts up again automatically.
Topic Recommendation

Cleaning Your Air Conditioner
E-15
If you...
Will not be using the
air conditioner for a
long period of time
Have not used the air
conditioner for a long
period of time
Then...
◆ Set the fan going for a few hours to
dry the inside of the air conditioner
thoroughly.
◆ Switch the air conditioner off and
unplug it from the wall socket.
◆ Clean the filter and outer surfaces.
Set the fan going for a few hours to dry
the inside of the air conditioner
thoroughly.
➢
Hold the air filter handle, slightly pull it to the left side and open the front grille. 1
Pull the air filter to the right side. 2
Remove all dust on the air filter with a vacuum cleaner or brush. 3
When you have finished, insert the air filter back into its original position. 4
Wipe the surface of the unit with a neutral detergent and then wipe it again
with dry cloth.
(Be sure not to use benzene, solvent or other chemical products.)
5
The removal of the front grille makes it easier to clean the air
conditioner.
➢
Be sure to clean the air filter periodically to maintain the air conditioner
in the best condition for a long period of time.
When cleaning the air conditioner, turn it off and pull out
the power plug.
IMPORTANT
Removal and Reassembly of the Front Grille
Grasp the lower part of the front
grille and the air filter handle, then
open the grille. (The open angle
of front grille has not to be
exceeded 90 degree)
1
Lift up the front grille (5mm~10mm)
and remove it from front panel.
2
Reassembling of front grille
should be done in reverse
order of disassembly.
3
For user's safety, a safety clip has been installed in the front grille.
CC
CCAA AAUU UUTT TTII IIOO OONN NN
Front grille Air filter
Front grille
Grille groove
Body guide

Solving Common Problems
E-16
Before contacting the after-sales service, perform the following simple checks. They may save
you the time and expense of an unnecessary service call.
The air conditioner does not
operate at all ◆Check that the circuit breaker used for the air conditioner has not
been triggered.
◆Check that the power cable is plugged into a wall socket and the
socket is switched on, if necessary.
◆
Check that the operating mode indicator (COOL or FAN) on the unit is
lit up; if necessary press (On/Off) on the remote control or unit.
Problem Explanation/Solution
The air conditioner does not
operate with the remote control ◆Check that there are no obstacles between you and the unit. ◆Replace the remote control batteries if necessary.
◆
Check that you are close enough to the unit (seven metres/yards
or less).
No beep is heard when you press
(On/Off) on the remote control ◆Check that you are pointing the remote control at the remote control sensor on the unit.
◆
Replace the remote control batteries if necessary.
The air conditioner does not cool ◆Check that the correct operating mode has been selected COOL.
◆
The room temperature may be too low.
◆ Dust may be blocking the air filter; refer to page 15 for
cleaning instructions.
◆ Check that there is no obstacle blocking the air flow into or out of
the unit.
The air flow direction does not
change when you press the
(or on the unit)button
◆Check that the air conditioner has been switched on; if necessary,
press (On/Off) on the remote control or unit.
The timer is not correctly triggered ◆Check that the timer has been programmed correctly;
see page 11~13.
Odours are permeated in the
room during air conditioning ◆Air the room.

Technical Specifications
E-17
Design and specifications are subject to change without notice.
Model
AWT18SBWDC
Power Supply
200-220V~, 50Hz

Method of Installation
500mm 500mm
85mm
min.
300mm
500mm Fence, wall
or other
obstacle
150mm min.
235mm
Approx.3˚
Awning
750mm
➢ ◆ If the wall is greater than 150mm thick,
cut the wall back on a 45˚ angle if possible.
100mm or more
45˚45˚
Before installation, be sure to check the installation area or the air
conditioner, and drain hose.
Checkpoints prior to installation
Check the cabinet and front grille of the unit for any harmful defects
such as scratches.
1
Be sure to check the power supply.
- Refer to the specifications on the label attached to the unit.
2
Installation Conditions
As the unit is heavy, the wall or window of the installation area should
have sufficient strength and durability for operation of the air conditioner,
and for prevention of any vibration or noise.
If it is weak, reinforcement work should be performed separately.
1
It is advisable to install the air conditioner in the north or west side to
prevent the effect of direct sunlight.
When installing it in the south or east side due to unavoidable
circumstances, it is advisable to install the sunshade to prevent the
direct sunlight.
In this case, take care not to cause any hindrance to the flow of outside air.
2
When installing the air conditioner, be sure to obtain sufficient space on
the rear side of the unit for smooth flow of air.
When operating the air conditioner in closed areas such as inner building
with cooling operation, and result in trouble with the unit.
See the illustration below.
3
E-18

E-19
Installation of the Drain Tube
Fix the drain tube as shown in the figure.
Installation of the Drain Pan
The procedure for installing the drain pan should be determined by the
condition of the installing area.
◆ In the case of an area where the drain pan can not be directly
installed on the rear side of the unit after installing the air conditioner.
Example: High storage
◆ In the case of an area where the drain pan can be directly installed
on the rear side of the unit after installing the air conditioner.
Remove two screws on the lower, right and left sides of the unit.
3
Open the front grille ; refer to page 15.
1
Remove the chassis from the cabinet.
4
Remove the rubber cap inserted into the basepan.
5
Fix the drain pan as shown in the figure, and then connect the drain hose.
(You can use any commercially-available drain hose.)
6
Install the cabinet at the specified area after installing the drain pan,
and then re-assemble it in the original condition.
7
Follow steps 5 and 6 only
1
Remove the front panel.
2-1 Press both sides of the cabinet in the direction of the arrow
as shown in the figure.
2-2 Pull the lower part of the front panel slightly forward.
(below three inches)
2-3 Lift the front panel upward.
2
Applying excessive force to remove the front panel may cause
damage to the tab ; be sure not to use excessive force.
☛
Rubber cap
Screws(2EA)
2-3
2-1 2-1
2-2
Gasket
Rear
Drain Tube
Front panel
Tighten the supplied screw on the lower part of front panel to secure the
front panel.
➢
Bottom-Side View with
Drain Pan and Hose in Place
Rubber cap
Drain Hose
Rear Drain Pan
Screw

Printed in India
THIS AIR CONDITIONER IS MANUFACTURED BY:
