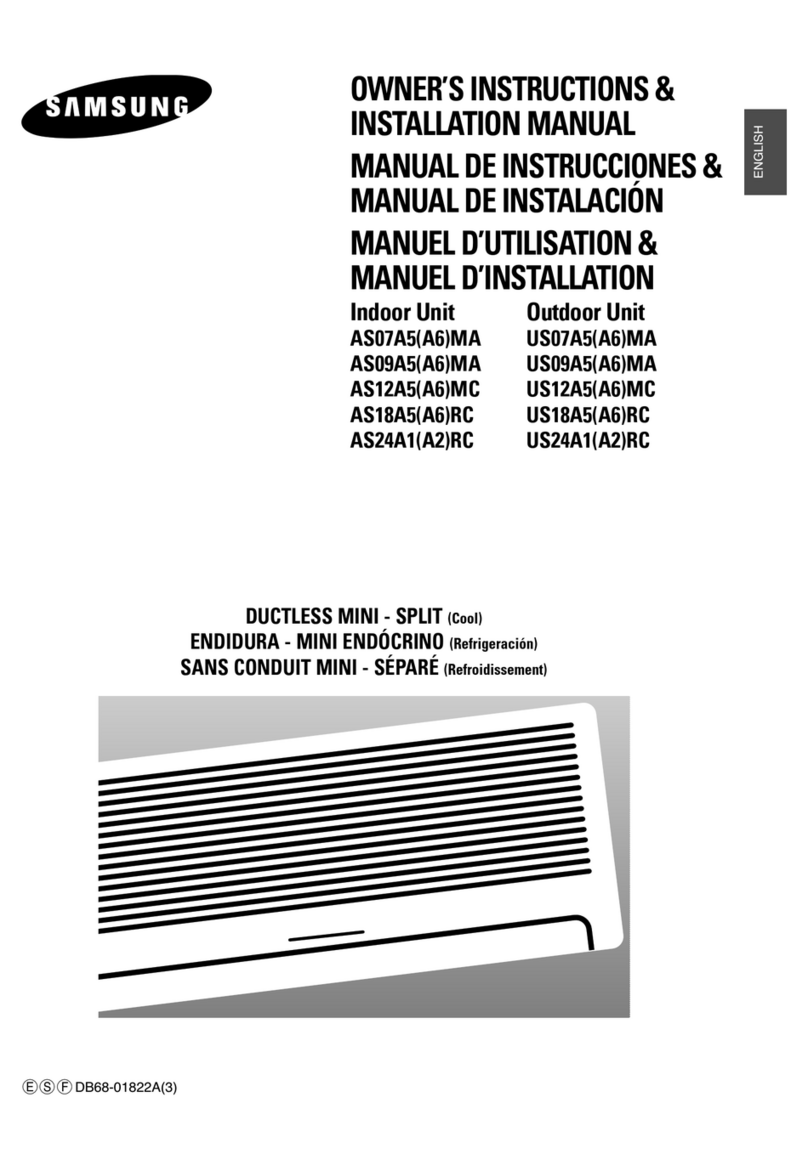

Samsung AS07A5(A6)MA User manual

ENGLISH
OWNER’S INSTRUCTIONS &
INSTALLATION MANUAL
MANUAL DE INSTRUCCIONES &
MANUAL DE INSTALACIÓN
MANUEL D’UTILISATION &
MANUEL D’INSTALLATION
DUCTLESS MINI - SPLIT (Cool)
ENDIDURA - MINI ENDÓCRINO (Refrigeración)
SANS CONDUIT MINI - SÉPARÉ (Refroidissement)
E S F
DB68-01822A(3)
ESPAÑOL
FRANÇAIS
AS07A5(A6)MA
AS09A5(A6)MA
AS12A5(A6)MC
AS18A5(A6)RC
AS24A1(A2)RC
Indoor Unit
US07A5(A6)MA
US09A5(A6)MA
US12A5(A6)MC
US18A5(A6)RC
US24A1(A2)RC
Outdoor Unit
Get user manuals: See SafeManuals.com

Safety Precautions
The following safety precautions must be taken when using your air conditioner.
1 Make sure that the indoor unit is correctly ventilated at all times; do NOT place clothing or other materials
over it.
2 NEVER spill liquid of any kind into the indoor unit. Should this happen, switch off the breaker used for your
air conditioner and contact your installation specialist.
3 Do NOT insert anything between the air flow blades, as the inner fan may be damaged and you may be hurt.
Keep children away from the indoor unit.
4 Do NOT place any obstacles in front of the outdoor unit.
5 If the remote control will not be used for a long time, remove the batteries.
6 Users of this product are cautioned not to attempt repair of this product at their own discretion.
Instead, they are requested to directly contact a designated service center or the outlet at which the
product was purchased.
7 If the supply cord is damaged, it must be replaced by a special cord or assembly available from the
manufacturer or its service agent.
8 This device must be installed according to the national electrical rules.
9 Before throwing out the device, it is necessary to pull back the battery cells and get rid of them safely.
10 The appliance is not intended for use by young children or infirm person without supervision;
young children should be supervised to ensure that they do not play with the appliance.
The manufacturer do not take the responsibility of the accident happened
because the air conditioner is not fixed firmly or installed securely, during
installing or using the product. In case you have difficulty in installation,
you must ask for an installation specialist help. The accident will be
happened in case of installing improperly.
CC
CCAA AAUU UUTT TTII IIOO OONN NN
E-2
Get user manuals: See SafeManuals.com

Contents
◆ P REPARING YOUR AIR CONDITIONER
■ Safety Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
■ View of the Unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
■ Remote Control-Buttons and Dis lay . . . . . . . . . . . . . . . . . . . . 6
■ Getting Started . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
■ Inserting the Remote Control Batteries . . . . . . . . . . . . . . . . . . . 8
◆ O
PERATING YOUR AIR CONDITIONER
■ 5 Way Function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
■ Selecting the Automatic O erating Mode . . . . . . . . . . . . . . . . 10
■ Cooling Your Room . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
■ Changing the Room Tem erature Quickly . . . . . . . . . . . . . . . 12
■ Removing Excess Humidity . . . . . . . . . . . . . . . . . . . . . . . . . . 13
■ Airing Your Room . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
■ Adjusting the Air Flow Direction Vertically . . . . . . . . . . . . . . . 15
■ Adjusting the Air Flow Direction Horizontally . . . . . . . . . . . . . 15
◆ P ROGRAMMING YOUR AIR CONDITIONER
■ Setting the On Timer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
■ Setting the Off Timer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
■ Setting the Slee Timer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
◆ R
ECOMMENDATIONS FOR USE
■ O erating Recommendations . . . . . . . . . . . . . . . . . . . . . . . . . 19
■ Tem erature and Humidity Ranges . . . . . . . . . . . . . . . . . . . . 20
■ Cleaning Your Air Conditioner . . . . . . . . . . . . . . . . . . . . . . . . . 21
■ Solving Common Problems . . . . . . . . . . . . . . . . . . . . . . . . . . 22
■ Installing a Filter (O tion) . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
◆ T
ECHNICAL SPECIFICATIONS
E-3
ENGLISH
Get user manuals: See SafeManuals.com

View of the Unit
The design and sha e are subject to change according to the model.
Indoor Unit
Air filter
(under the grille)
Air flow blades (outlet) Air Inlet
Timer indicator
STANDARD indicator
NATURE indicator POWER indicator
SILENCE indicator
Remote Control Sensor
SAVING indicator
On/Off & 5 Way
selection button
◆For details on the 5 Way, refer to age 9.
NN
NNoo oott ttee ee
E-4
Get user manuals: See SafeManuals.com

Air Inlet(Rear)
Air Outlet
Connection Valve
US07A5(A6)MA
US09A5(A6)MA
Outdoor Unit
Air Inlet(Rear)
Air Outlet
Connection Valve
(Inside)
US12A5(A6)MC
Outdoor Unit
Air Inlet(Rear)
Air Outlet
Connection Valve
US1 A5(A6)RC
US24A1(A2)RC
Outdoor Unit
E-5
ENGLISH
Get user manuals: See SafeManuals.com

Remote Control - Buttons and Display
O erating mode
( AUTO, COOL,
DRY, FAN)
Remote control
transmission indicator Mode selection button
(AUTO, COOL, DRY, FAN)
Turbo/Slee mode
selection button
Swing button
On Timer button
Off Timer button
On/Off &
Timer Set/Cancel button
Fan s eed adjustment
button
Tem erature adjustment
buttons
Tem erature setting
Slee mode
Turbo mode
Fan s eed
Air flow direction
On Timer setting
Off Timer setting
Battery discharge indicator
5 Way selection button
E-6
Get user manuals: See SafeManuals.com

Getting Started
You have just purchased a split type air conditioner and it has been
installed by your installation specialist.
Your Owner’s Instructions contain much valuable information on using your
air conditioner. Please take the time to read them as they will help you take full
advantage of the unit’s features.
The booklet is organized as follows.
◆The following figures are shown on pages from 4 to 6 :
- Indoor and outdoor units
- Remote control(buttons and display)
They will help you find the buttons and understand the symbols displayed.
◆In the main part of the document, you will find a series of step-by-step
procedures for each function available.
The illustrations in the step-by-step procedures use three different symbols:
PRESS PUSH HOLD DOWN
E-7
ENGLISH
Get user manuals: See SafeManuals.com

Inserting the Remote Control Batteries
Push the battery cover on the rear of the remote control with your thumb
in the direction of the arrow and remove it.
Insert the two batteries, taking care to res ect the olarities :
◆+ on the battery with + on the remote control.
◆- on the battery with - on the remote control.
1
2
Close the cover by sliding it back until it clicks into lace.
3
◆Use two AAA, LR03 1.5V batteries.
◆Do not use old batteries or different kinds of batteries together.
◆Batteries may be com letely discharged after 12 months, even
◆if they have not actually been used.
You must insert or replace the remote control batteries when :
◆You purchase the air conditioner
◆The remote control does not work correctly
NN
NNoo oott ttee ee
E-8
Get user manuals: See SafeManuals.com

5 Way Function
Press the (ON/OFF) button one or more times until the desired mode is
selected.
1
To sto the o erating, ress the (ON/OFF) button until all indicators
turn off.
2
You can select the 5 Way function with operating mode of the air conditioner for
more comfortable circumstances. You can use the 5 Way function with the indoor
unit as well as the remote control. Thus, you can use this function
even though you have lost your remote control.
Using with the indoor unit
To select the 5 Way function with the remote control, ress the 5 Way
button one or more times until the desired mode is selected.
◆Each time you ress the 5 Way button:
Each 5 Way indicator on the indoor unit comes on in order.
Selecting with the Remote Control
Even if the air conditioner has been turned on via the ON/OFF
button, o erations can still be controlled using the remote control
as usual.
NN
NNoo oott ttee ee
To obtain a(n)...
Normal o erating (STANDARD) mode
Then select...
(NATURE) mode
Reducing the uncomfortable
tem erature swing
(POWER) mode
Stronger air-conditioner environment
faster
(SAVING) mode
Energy saving
(SILENCE) mode
Quiet environment
E-9
ENGLISH
Get user manuals: See SafeManuals.com

Selecting the Automatic Operating Mode
You can start the air conditioner in Automatic mode from your remote
control. In the Automatic mode, the standard temperature and the
optimum fan speed is selected automatically. You can adjust the
standard temperature but not the fan speed.
1
If the is not dis layed at the to of the remote control,
ress the MODE button on the remote control one or more times until it
a ears.
Result:◆The indoor unit bee s each time you ress the MODE button.
◆The air conditioner runs in AUTO mode.
2
You can change modes at any time.
If necessary, ress the (On/Off) button.
Result:◆The 5 Way indicator on the indoor unit comes on.
◆The air conditioner starts u in the mode selected
when the unit was last used.
◆The indoor unit bee s.
The air conditioner is fitted with a rotection mechanism to
revent the unit from being damaged when it is started
immediately after being:
◆Plugged in
◆Sto ed
lt will start u normally after three minutes.
IMPORTANT
NN
NNoo oott ttee ee
To adjust the standard tem erature (The air conditioner automatically
set the standard tem erature by the current room tem erature.),
ress the TEMPERATURE buttons one or more times.
3
SET TEMP. SET TEMP. - SET TEMP. SET TEMP.
-4°F/-2°C -2°F/-1°C Standard tem erature +2°F/+1°C +4°F/+2°C
< When you feel hot > < When you feel chilly >
E-10
Get user manuals: See SafeManuals.com

Cooling Your Room
1If necessary, ress the (On/Off) button.
Result: ◆ The 5 Way indicator on the indoor unit comes on.
◆The air conditioner starts u in the mode selected
when the unit was last used.
◆The indoor unit bee s.
The air conditioner is fitted with a rotection mechanism to
revent the unit from being damaged when it is started
immediately after being:
◆Plugged in
◆Sto ed
lt will start u normally after three minutes.
IMPORTANT
If the is not dis layed at the to of the remote control,
ress the MODE button on the remote control one or more times until it
a ears.
Result: ◆ The indoor unit bee s each time you ress the MODE button.
◆ The air conditioner runs in COOL mode.
2
You can change modes at any time.
NN
NNoo oott ttee ee
To adjust the tem erature, ress the TEMPERATURE buttons one or
more times until the required tem erature is dis layed.
Possible tem eratures are between 65°F(18°C) and 86°F(30°C)
inclusive.
Result:◆ Each time you ress the TEMPERATURE buttons:
- The tem erature is adjusted by 1°F(1°C)
- The indoor unit bee s
◆The air conditioner starts cooling, rovided that the room
tem erature is higher than the selected tem erature;
the fan will, however, o erate.
3
Select the fan s eed by ressing the FAN button one or more times
until the required setting is dis layed:
Automatic (rotated : )
Low
Medium
High
Result: Each time you ress the FAN button, the indoor unit bee s.
4
To control the direction of the air flow, refer to age 15.
5
You must select the Cool mode if you wish to adjust the:
◆Cooling temperature
◆Fan speed when cooling
E-11
ENGLISH
Get user manuals: See SafeManuals.com

Changing the Room Temperature Quickly
The Turbo cooling function is used to cool your room as quickly as possible.
EE
EExx xxaa aamm mmpp ppll llee ee : You have just come home and find that the room is very
hot. You wish to cool it down as quickly as possible.
The Turbo function operates for 30 minutes with the maximum settings before
returning automatically to the mode and temperature previously selected.
1 If necessary, ress the (On/Off) button.
Result:◆The 5 Way indicator on the indoor unit comes on.
◆The air conditioner starts u in the mode selected when the unit
was last used.
◆The indoor unit bee s.
2 Press the button.
Result:◆The tem erature and fan settings are adjusted automatically.
◆The air conditioner cools the room as quickly as ossible.
◆After 30 minutes, the air conditioner is reset automatically to the
revious mode, tem erature and fan settings.
But, if you ress the button in DRY or FAN mode
that is changed with AUTO mode automatically.
3 If you wish to sto the Turbo function before the end of the 30-minute eriod,
ress the button one or more times until or disa ears.
Result: The air conditioner is reset automatically to the revious mode,
tem erature and fan settings.
But, if you ress the button in DRY or FAN mode that is
changed with AUTO mode automatically.
4 To control the direction of the air flow, refer to age 15.
E-12
Get user manuals: See SafeManuals.com

Removing Excess Humidity
E-13
ENGLISH
If the atmosphere in your room is very humid or damp, you can
remove excess humidity without lowering the room temperature too
much.
1If necessary, ress the (On/Off) button.
Result:◆
The 5 Way indicator on the indoor unit comes on.
◆The air conditioner starts u in the mode selected when
the unit was last used.
◆The indoor unit bee s.
The air conditioner is fitted with a rotection mechanism
to revent the unit from being damaged when it is started
immediately after being:
◆Plugged in
◆Sto ed
It will start u normally after three minutes.
2If the is not dis layed at the to of the remote control, ress the
MODE button on the remote control one or more times until it a ears.
Result:◆
The indoor unit bee s each time you ress the MODE button.
◆ The air conditioner runs in DRY mode.
NN
NNoo oott ttee eeYou can change modes at any time.
3To adjust the tem erature, ress the TEMPERATURE buttons one or
more times until the required tem erature is dis layed.
Possible tem eratures are between 65°F(18°C) and 86°F(30°C)
inclusive.
Result:◆Each time you ress the TEMPERATURE buttons:
- The tem erature is adjusted by 1°F(1°C)
- The indoor unit bee s
◆The air conditioner starts removing the excess humidity;
the quantity of air is adjusted automatically.
4To control the direction of the air flow, refer to age 15.
IMPORTANT
Get user manuals: See SafeManuals.com

Airing Your Room
If the atmosphere in your room is stale, you can air the room using
the Fan feature.
1If necessary, ress the (On/Off) button.
Result:◆
The 5 Way indicator on the indoor unit comes on.
◆The air conditioner starts u in the mode selected when
the unit was last used.
◆The indoor unit bee s.
2If the is not dis layed at the to of the remote control,
ress the MODE button on the remote control one or more times until it
a ears.
Result:◆
The indoor unit bee s each time you ress the MODE button.
◆ The air conditioner runs in FAN mode.
◆ The tem erature is set automatically.
NN
NNoo oott ttee eeYou can change modes at any time.
3Select the fan s eed by ressing the FAN button one or more times
until the required setting is dis layed:
Low
Medium
High
Result: Each time you ress the FAN button, the indoor unit bee s.
4To control the direction of the air flow, refer to age 15.
E-14
Get user manuals: See SafeManuals.com

Adjusting the Air Flow Direction Vertically
E-15
ENGLISH
Depending on the position of the indoor unit on the wall of your room,
you can adjust the position of the outer air flow blade on the bottom of
the unit, thus increasing the efficiency of the air conditioner.
1Press the SWING button one or more times as required.
Result: The outer blade is adjusted vertically.
RECOMMENDATION When... Adjust the blade to face...
Cooling U wards.
2If you want the blade to move u and down automatically when the air
conditioner is o erating, ress the SWING button.
Result: The blade move u and down, around the base osition set.
3
To sto the blade moving u and down, ress the SWING button again.
NN
NNoo oott ttee eeIf you switch the ai conditione ... Then the blade is...
Off Closed com letely.
On again Reset to the osition that you
reviously selected.
Adjusting the Air Flow Direction Horizontally
There are two sets of inner air flow blades. Just as the outer air flow
blade can be adjusted vertically, the inner blades can be adjusted
horizontally.
1O en the air flow blade along the bottom of the indoor unit, by
ressing the SWING button.
2To sto the blade moving u and down, ress the SWING button
again.
3Adjust each set of inner blades to the required osition, by ushing or
ulling them sideways.
Get user manuals: See SafeManuals.com

Setting the On Timer
If you want to turn on the air conditioner before the timer reaches
the setting time, ress the (ON/OFF) button.
NN
NNoo oott ttee ee
The On Timer enables you to switch on the air conditioner automatically
after a given period of time. You can set the period of time from
30 minutes to 24 hours.
To set the o erating time, ress the ON TIMER button one or more times
until the required time is dis layed. Possible time is between 0.5 hour and
24 hour inclusive.
Result: ◆Each time you ress ON TIMER button:
- The time is adjusted by 0.5 hour to 5 hours, by 1 hour from
6 hours to 24 hours.
1
Press the (Set/Cancel) button to com lete the setting.
Result: ◆The remaining time is dis layed.
◆Blinking of the timer indicator sto s.
◆The selected mode and the tem erature disa ear on the
dis lay after 5 seconds.
◆The air conditioner will switch on automatically when the
counter dis layed on the remote control reaches the setting
time as disa earing the On timer setting.
2
To cancel the On Timer, ress the ON TIMER button one or more times
until the timer setting disa ears.
1
Press the (Set/Cancel) button.
2
To Cancel the On Timer
Yon can see or change the setting mode and/or the tem erature
by ressing the MODE button or the TEMPERATURE buttons
after setting the On timer.
NN
NNoo oott ttee ee
E-16
Get user manuals: See SafeManuals.com

Setting the Off Timer
The Off Timer enables you to switch off the air conditioner automatically
after a given period of time. You can set the period of time from
30 minutes to 24 hours.
To set the o erating time, ress the OFF TIMER button one or more times
until the required time is dis layed. Possible time is between 0.5 hour and
24 hour inclusive.
Result: ◆Each time you ress OFF TIMER button:
- The time is adjusted by 0.5 hour to 5 hours, by 1 hour from
6 hours to 24 hours.
1
Yon can see or change the setting mode and/or the tem erature
by ressing the MODE button or the TEMPERATURE buttons
after setting the Off timer.
NN
NNoo oott ttee ee
Press the (Set/Cancel) button to com lete the setting.
Result: ◆The remaining time is dis layed.
◆Blinking of the timer indicator sto s.
◆The selected mode and the tem erature disa ear on the
dis lay after 5 seconds.
◆The air conditioner will switch off automatically when the
counter dis layed on the remote control reaches the setting
time as disa earing the Off timer setting.
2
If you would like to turn the air conditioner on after 2 hours
and to operate it for 2 hours:
1. Press the ON TIMER button until ‘2.0 Hr’ is dis layed.
2. Press the (Set/Cancel) button.
3. Press the OFF TIMER button until ‘4.0 Hr’ is dis layed.
4. Press the (Set/Cancel) button.
EE
EExx xxaa aamm mmpp ppll llee ee
If you want to turn off the air conditioner before the timer reaches
the setting time, ress the (ON/OFF) button.
NN
NNoo oott ttee ee
To cancel the Off Timer, ress the OFF TIMER button one or more times
until the timer setting disa ears.
1
Press the (Set/Cancel) button.
2
To Cancel the Off Timer
E-17
ENGLISH
Get user manuals: See SafeManuals.com

Setting the Sleep Timer
The Sleep Timer can be used when you are cooling your room to
switch the air conditioner off automatically after a period of six hours.
NN
NNoo oott ttee eeIf you wish to switch the unit off at a specific time, refer to
page 17.
1Make sure that you have selected either COOL mode.
2Press the button one or more times until a ears on the
remote control.
Result:◆The indoor unit bee s.
◆The air conditioner will be controlled as indicated in the
illustrations below.
Cooling The tem erature is increased
by 2°F/1°C every hour.
When it has been increased
by 4°F/2°C (after two hours),
the tem erature is maintained
for four hours.
To Cancel the Sleep Timer
If you no longer wish to use the Sleep Timer that you have set, you
can cancel it at any time.
Press the button.
Result:◆The indoor unit bee s.
◆The is no longer dis layed.
◆The air conditioner o erates normally.
E-18
Get user manuals: See SafeManuals.com

Operating Recommendations
Here are a few recommendations that you should follow when using
your air conditioner.
Topic Recommendation
Power failure If a ower failure occurs when the air
conditioner is o erating, the unit is switched off.
When the ower returns,
✴✴A2✴✴
✴✴A6✴✴
✴✴A1✴✴
✴✴A5✴✴
you must ress the (ON/OFF)
button to restart it.
the air conditioner starts u
again automatically
Make sure which model you urchased because some
air conditioners do not restart automatically.
NN
NNoo oott ttee ee
E-19
ENGLISH
Get user manuals: See SafeManuals.com

Temperature and Humidity Ranges
The following table indicates the temperature and humidity ranges
within which the air conditioner can be used.
If the air conditioner is used at... Then...
High tem eratures The automatic rotection feature may
be triggered and the air conditioner
sto ed.
Low tem eratures A water leakage or some other
malfunction may ha en if the heat
exchanger freezes.
High humidity levels Water may condense on and dri
from the surface of the indoor unit if it
is used for long eriods.
Mode Outdoor Temperature Indoor Temperature Indoor Humidity
Cooling 70°F to 109°F a rox. 65°F to 90°F a rox.
21°C to 43°C a rox. 18°C to 32°C a rox. 80% or less
Drying 65°F to 109°F a rox. 65°F to 90°F a rox.
18°C to 43°C a rox. 18°C to 32°C a rox. -
❇ If the cooling operation is used at over 92°F/33°C(indoor temperature)
then, does not a full capacity.
E-20
Get user manuals: See SafeManuals.com
