Samsung AWT19PHHEB User manual

E
PE
DB98-21815A
OWNER’S
INSTRUCTIONS
Window-type Room Air Conditioner
( Cool )
AWT12PHHEA
AWT19PHHEB
AWT24PHHEC

E-2
Safety Precautions
The following safety precautions must be taken when using your air conditioner.
Users of this product are cautioned not to attempt repair of this product at their
own discretion. Instead, they are requested to directly contact a designated
service center or the outlet at which the product was purchased.
Never spill any kind of liquid into the unit. Should this happen, unplug or main
switch off the unit and contact an authorized service center.
Do not insert anything between the air outlet blades because the inner fan may
be damaged and could cause injury. Keep children away from the unit.
Do not place any obstacles in front of the unit.
Do not spray liquid of any kind into the indoor unit. Should this happen, switch off
the breaker used for your air conditioner and contact your installation specialist.
Make sure that the unit is correctly ventilated at all times:
Do not place clothing or other materials over it.
If the wireless remote control will not be used for a long time, remove the
batteries. (If applicable)
When using a wireless remote control, the distance should not be more than 7
meters from the air conditioner. (If applicable)
WARNING
DURING OPERATION
Risk of electric shock. • Can cause injury or death. • Disconnect all
remote electric power supplies before servicing, installing or cleaning.
• This must be done by the manufacturer or its service agent or a similar
qualified person in order to avoid a hazard.
AQ07S2GE IB_E_15110 04/2/2 15:35 Page 2
The air conditioner must be plugged into its own specific power source, which
must be installed in compliance with national wiring,earthing and safety
regulations.
If the power cord is damaged in any way, it must be replaced by the manufacturer
or its service agent or a similarly qualified person in order to avoid a hazard.
This device must be installed according to the national electrical rules.
The appliance must be installation that the plug should be easily accessible
after installation.
If the fuse on PC board is broken please change it with the type of T 3.15A 250V.
The breaker of the air conditioner should be all-pole switch; and the distance
between its two contacts should be no less than 3.5mm. Such means for
disconnection must be incorporation in the fixed wiring.
Never store or ship the air conditioner upside down or sideways to avoid damage
to the compressor.
The appliance is not intended for use by young children or infirm persons without
supervision: Young children should be supervised to ensure that they do not play
with the appliance.
Max current is measured according to IEC standard for safety and current is
measured according to ISO standard for energy efficiency.
OTHERS
Before throwing out the device, it is necessary to pull back the battery cells and
get rid of them safely for recycling reasons.
When you need to dispose of the unit, consult your dealer. If pipes are removed
incorrectly, refrigerant may blow out and come into contact with your skin,causing
injury. Releasing refrigerant into the atmosphere also damages the environments.
Please recycle or dispose of the packaging material for this product in an
environmentally responsible manner.
D ISPOSING OF THE UNIT

Contents
PREPARING YOUR AIR CONDITIONER
■Safety Precautions ......................................................................................... 2
■Air Conditioning Unit - Main Parts, Buttons and Display ............................... 4
■Remote Control - Buttons .............................................................................. 5
■Getting Started ............................................................................................... 6
■Inserting the Remote Control Batteries .......................................................... 7
OPERATING YOUR AIR CONDITIONER
■Cooling Your Room ........................................................................................ 8
■Airing Your Room ........................................................................................... 9
■Adjusting the Air Flow Direction Horizontally .................................................. 11
■Removing Excess Humidity............................................................................. 10
■Adjusting the Air Flow Direction Vertically ...................................................... 11
PROGRAMMING YOUR AIR CONDITIONER
■Setting the On Timer ...................................................................................... 12
■Setting the Off Timer ...................................................................................... 13
■Setting the Sleep Timer .................................................................................. 14
■Selecting Energy Saving mode ...................................................................... 15
RECOMMENDATIONS FOR USE
■Temperature and Humidity Ranges ................................................................ 15

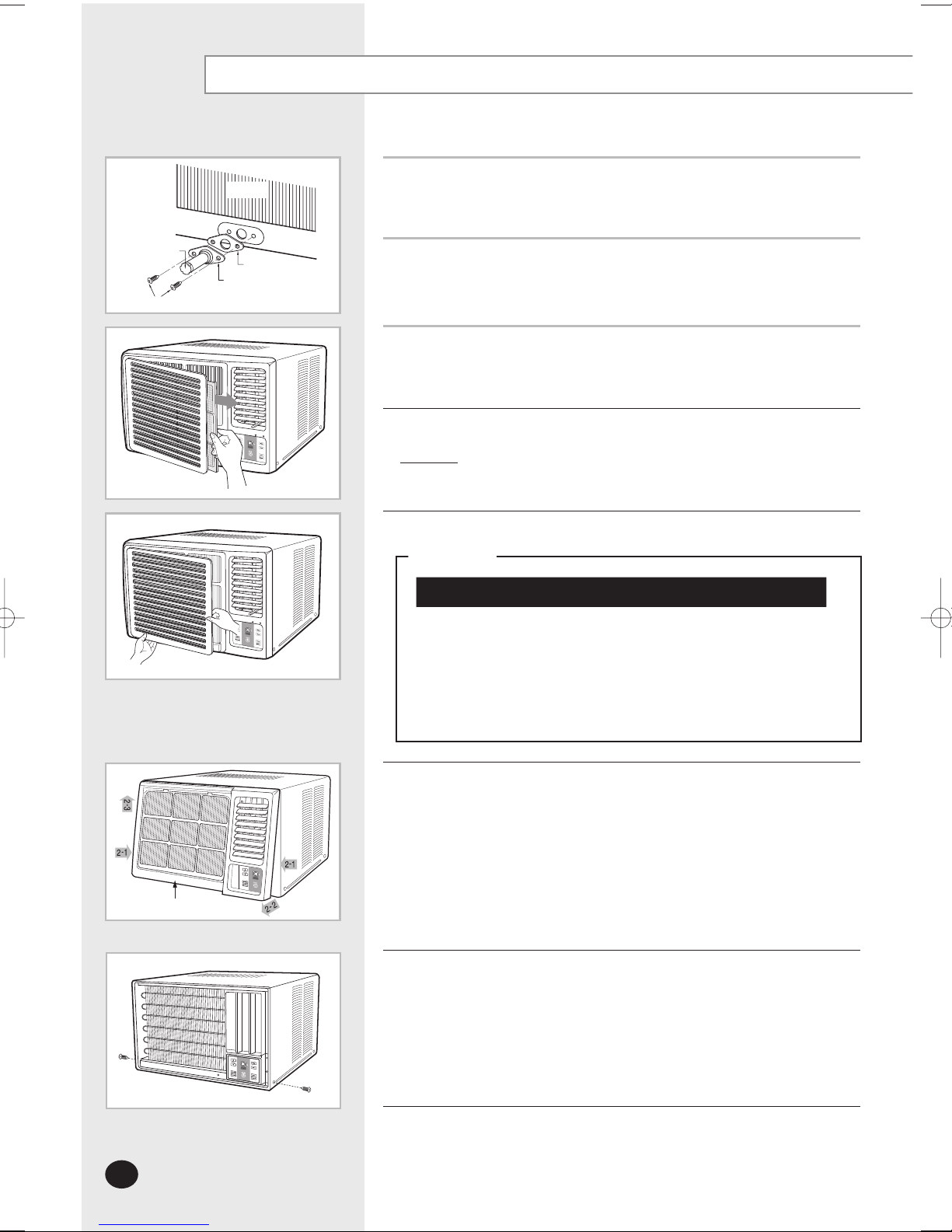

■Cleaning Your Air Conditioner ........................................................................ 16
■Solving Common Problems ............................................................................ 17
■Technical Specifications ................................................................................. 18
METHODOF INSTALLATION.................................................................................... 19
E-3
CC
CCAA AAUU UUTT TTII IIOO OONN NN
" The high inrush current of the starting compressor motor can have adverse effects to
the operation of other equipment under unfavorable mains conditions. This equipment
does not comply with the relevant technical standards for the limitation of voltage
fluctuations and flicker."
Before connecting this equipment to the power supply system, please report to your
supply authority and obtain the consent.
Do not connect other electric appliances to the same supply lines.
AWT18PHHBA_E_17028 04/2/23 10:37 Page 3

Air Conditioning Unit - Main Parts, Buttons and Display
Temperature/
Timer settings
Temperature adjustment
buttons
Energy Saver indicator
Operating mode indicators
(COOL,DRY, FAN)
Remote Control sensor
Air flow blade
swing button
Fan speed adjustment
button
Sleep timer setting button
Sleep indicator
Timer indicator
Energy Saver button
On/Off button
Operating mode selection
button
(COOL, DRY,FAN)
Timer setting button
The design and shape are subject to
change according to the model.
E-4
Ventilation lever
Power Cable
Outer air flow blades
(up/down orientation)
Inner air flow blades
(right/left orientation)
Air inlet (Outside)
Air inlet (Inside)
Air filter (Inside)
Power plug
(The type of the power
plug may differ according
to the type of local power
supply.)
AWT12*****
Power cable connection
should be committed to
an installation engineer.
BLUE BROWN YELLOW/GREEN
Main Power Earth
AWT18*****
AWT24*****

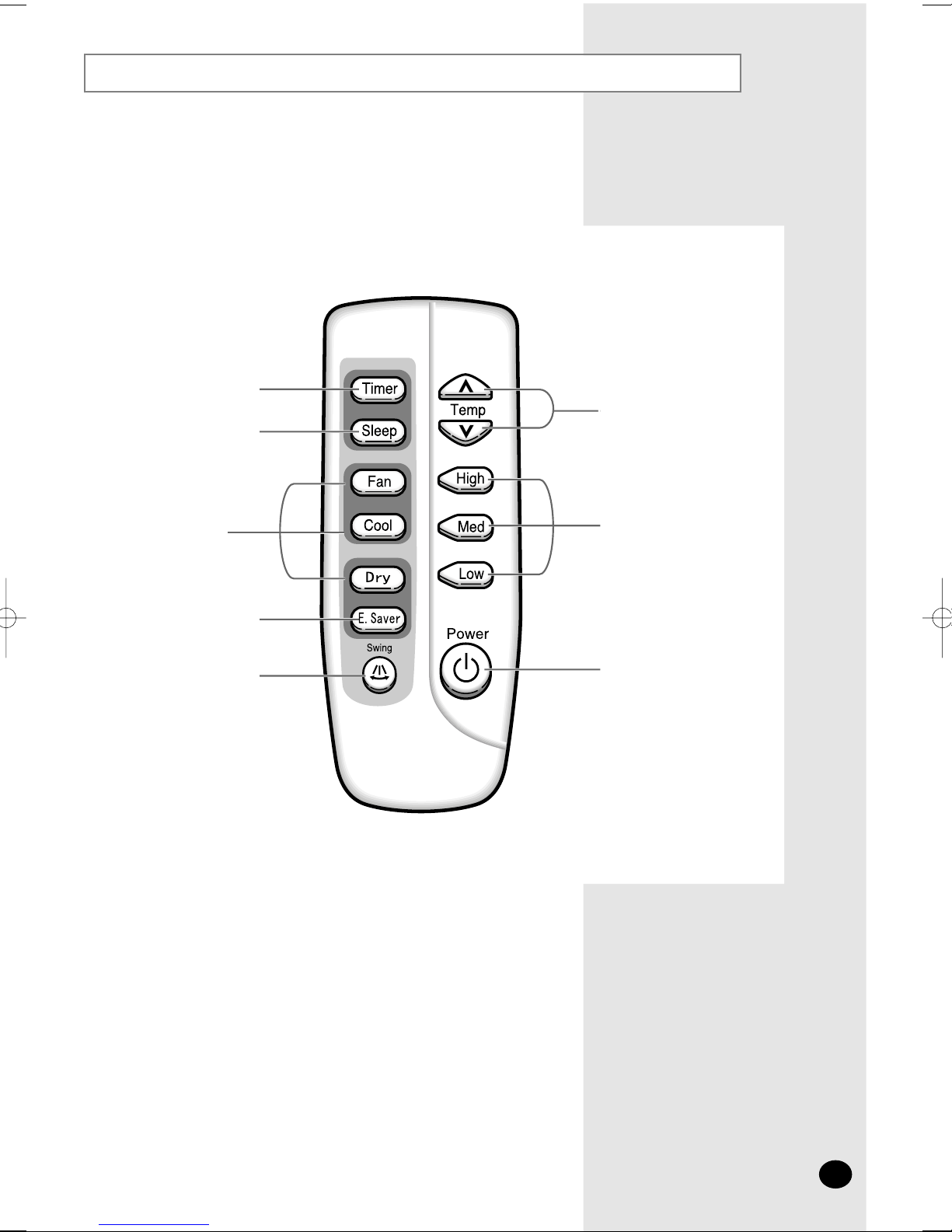

Remote Control - Buttons
E-5
AWT18PHHBA_E_17028 04/2/23 10:37 Page 5
Timer setting button
Sleep timer setting button
Operating mode
selection buttons
Air flow blade swing button
Energy Saver button
Temperature adjustment
buttons
Fan speed adjustment
buttons
On/Off button

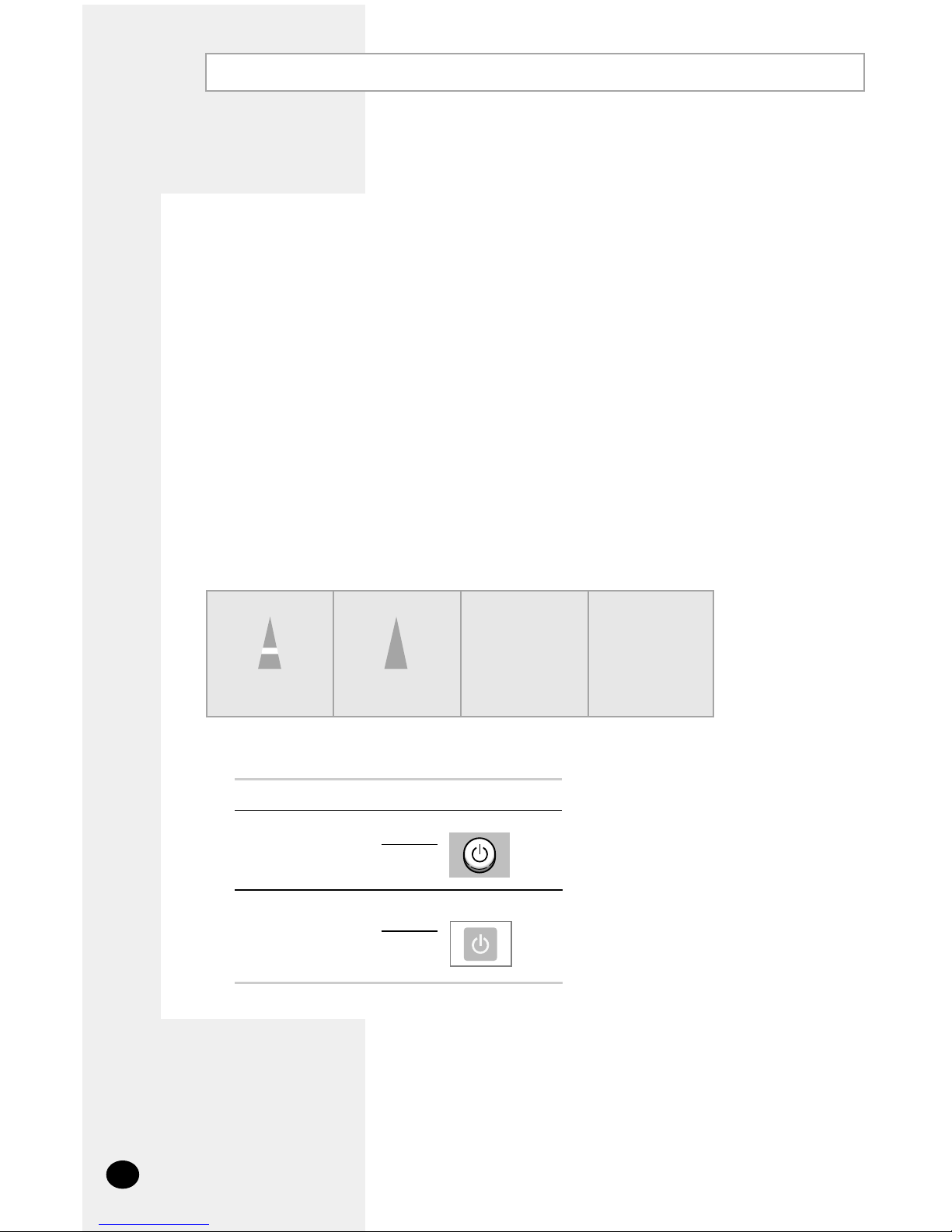

Getting Started
You have just purchased a window-type room air conditioner and it has been installed by your
installation specialist.
Your Owner’s Instructions contain valuable information on using your air conditioner.
Please take the time to read them as they will help you take full advantage of the unit’s functions.
This Owner’s Instructions is just for using your air conditioner correctly.
Thus, the illustrations shown in this manual may not exactly match your air conditioners.
The booklet is organized as follows.
◆The following figures are shown on pages 4 and 5:
-Air conditioning unit (main parts, buttons and display)
-Remote control (buttons)
They will help you find the buttons and understand the symbols displayed.
◆In the manual, you will find a series of step-by-step procedures for each function available.
The illustrations in the step-by-step procedures use four different symbols:
Moreover, applicable, wherever the illustrations show the positions of the buttons on both the
remote control and the unit itself.
For the... The illustrations have a...
Remote control Gray background.
Example:
Unit itself White background.
Example:
PRESS PUSH IMPORTANT NOTE
☛
➢
E-6

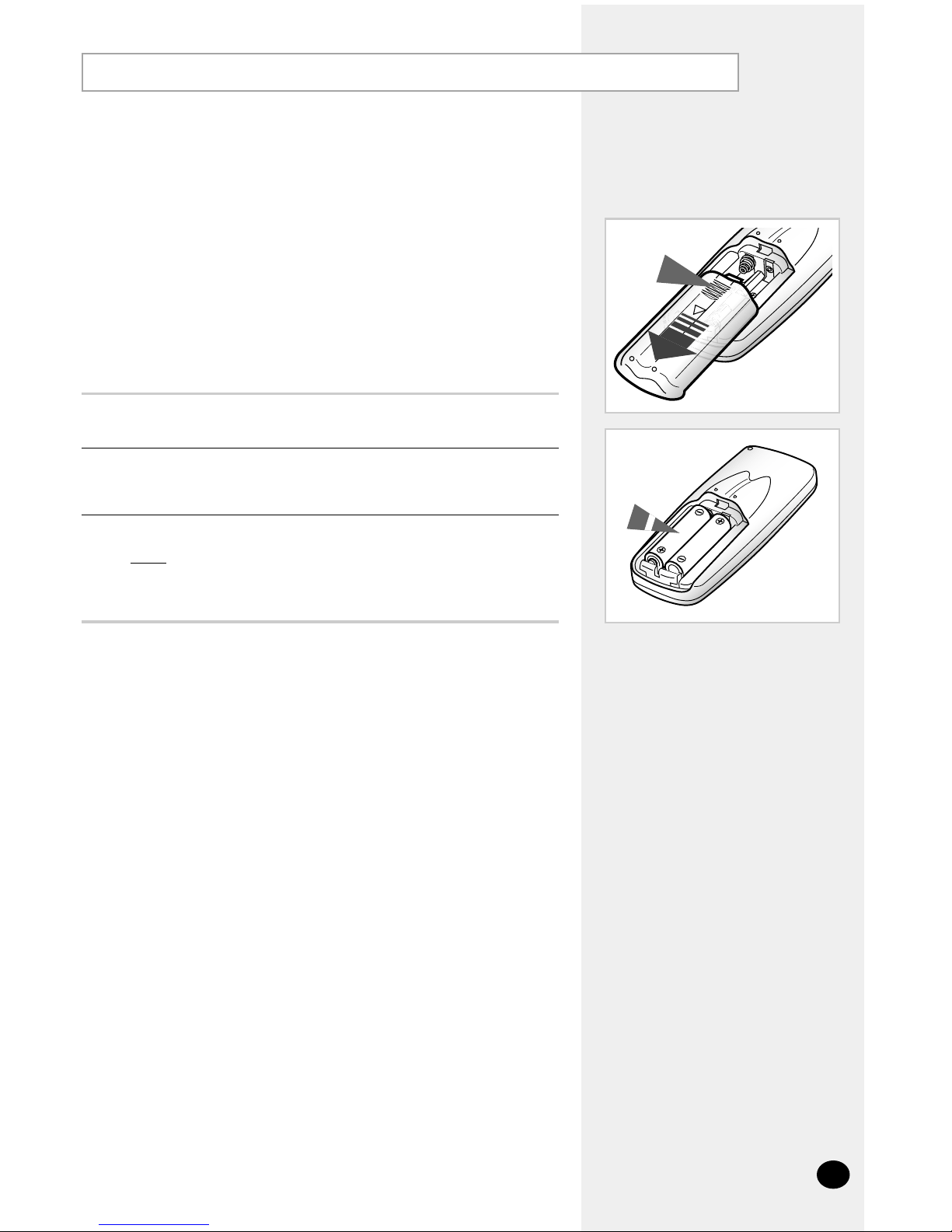

Inserting the Remote Control Batteries
You must insert or replace the remote control batteries when:
◆You purchase the air conditioner
◆The remote control does not work correctly
☛Use two AAA, LR03 1.5 V batteries. Do not use old
batteries or different kinds of batteries together.
Batteries may be completely discharged after 12 months,
even if they have not actually been used.
1Push the battery cover on the rear of the remote control with your thumb in
the direction of the arrow and remove it.
2 Insert the two batteries, taking care to respect the polarities:
◆+ on the battery with + on the remote control
◆– on the battery with – on the remote control
3 Close the cover by sliding it back until it clicks into place.
Result:
You can control all the functions on your air conditioning unit
directly from your seat, using the remote control.
E-7

3 To adjust the temperature, press the or button on the remote
control one or more times until the required temperature is displayed.
To adjust the temperature, press the or button on the unit one
or more times until the required temperature is displayed.
Possible temperatures are between 18 C and 30 C inclusive.
Each time you press the temperaure bottons:
The temperature is adjusted by 1 C and
displayed on the control panel
The unit beeps
The air conditioner starts cooling if the room temperature is
higher than the selected temperature.
E-8

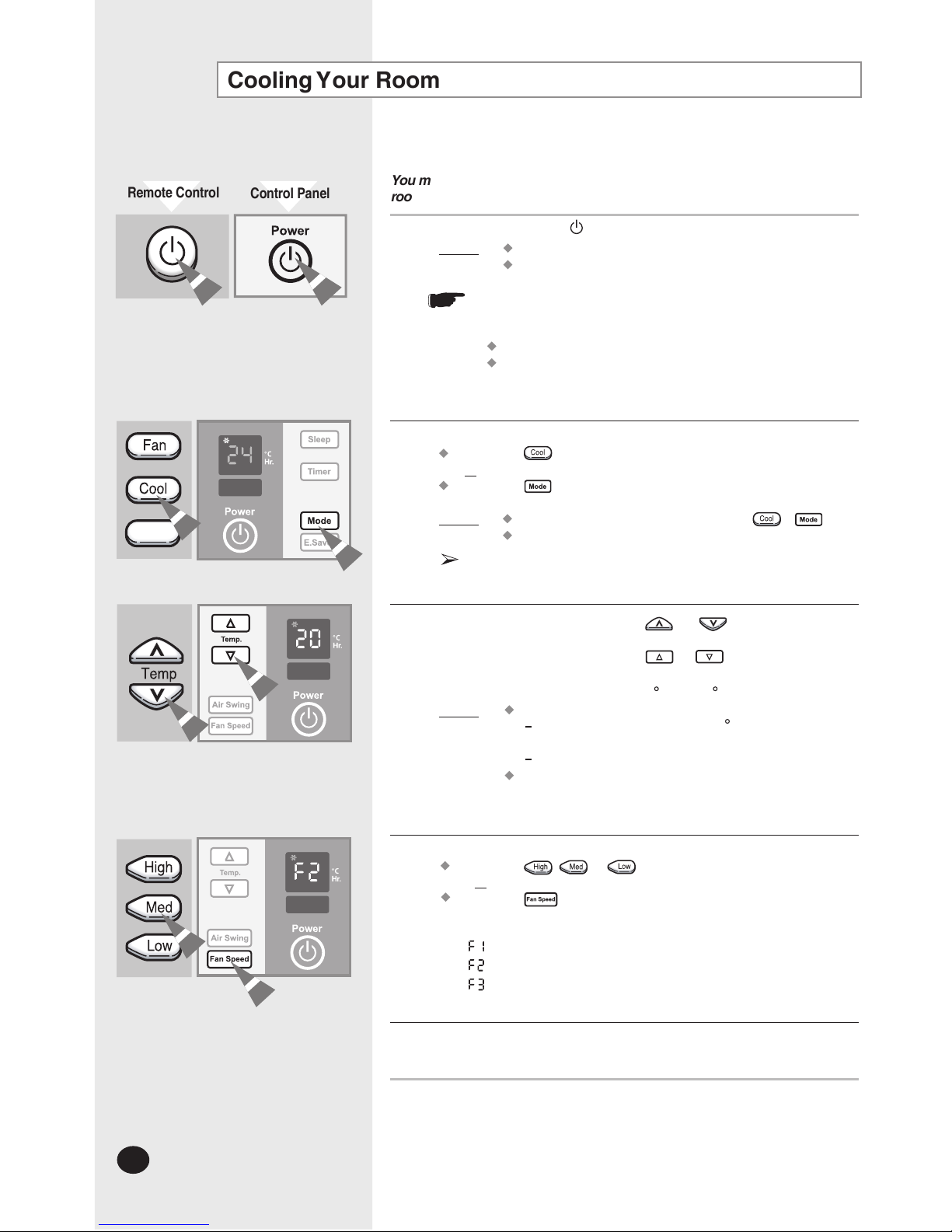

Cooling Your Room
Remote Control Control Panel
Dry
You must select the Cool mode if you wish to lower the temperature in your
room.You can also set the fan speed.
1 If necessary, press the (On/Off ) button.
The air conditioner starts up in the Cool mode.
The unit beeps twice.
Result:
Result:
The air conditioner is fitted with a protection mechanism to prevent
the unit from being damaged when it is started immediately after
being:
Plugged in
Stopped
It will start up automatically after about three minutes.
2 If the COOL indicator is not lit up on the unit:
Press the button on the remote control
or
Press the button on the unit one or more times until the COOL
indicator lights up
The unit beeps each time you press the / button.
The air conditioner starts up in Cool mode.
You can change modes at any time.
Result:
4To set the fan speed to... Then...
Press the , or button on the remote control as desired.
or
Press the button on the unit one or more times until the the
desired fan speed(F1, F2, or F3) is displayed.
:
:
:
Low Speed
Med Speed
High Speed
5 To control the direction of the air flow, refer to page 10.

E-9

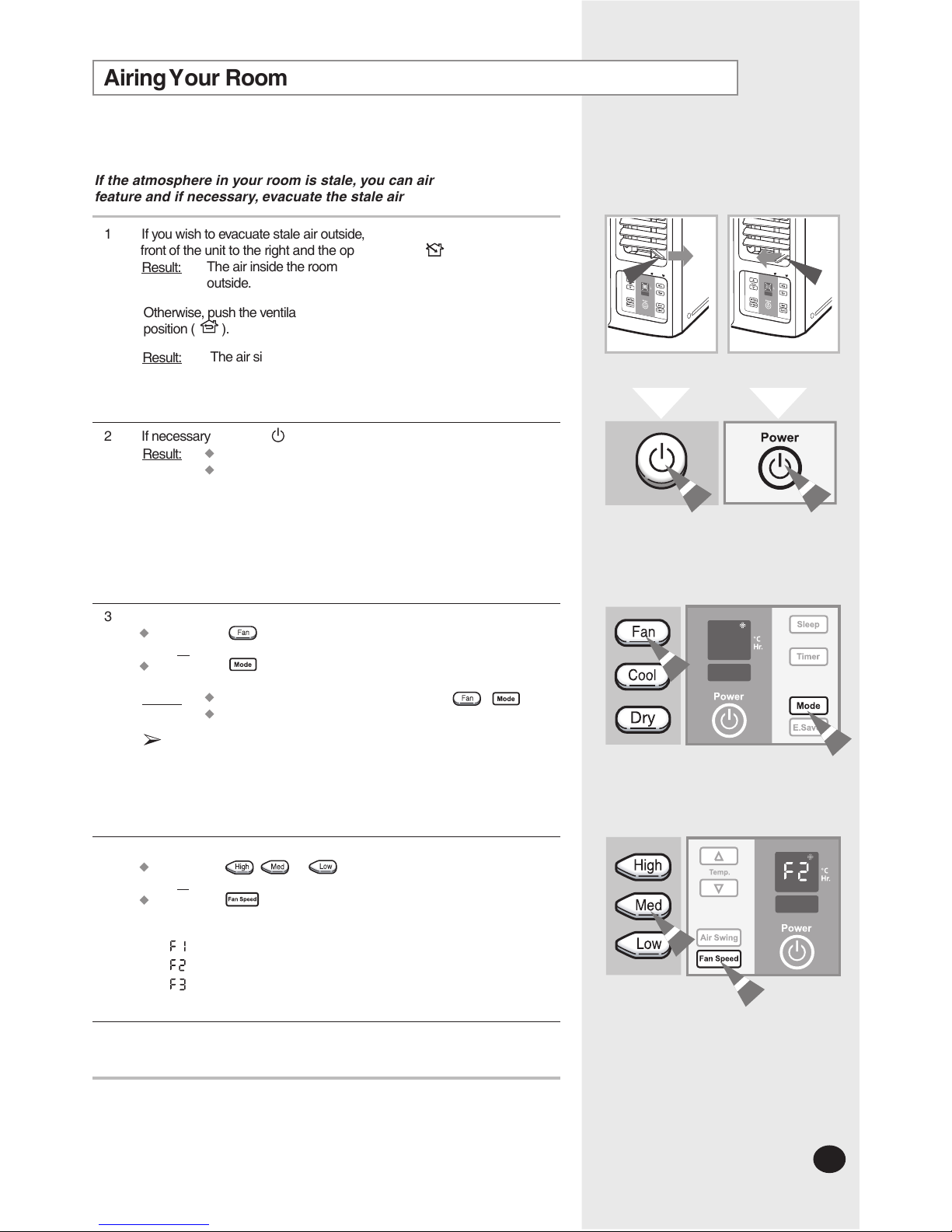

AiringYour Room
Remote Control Control Panel
If the atmosphere in your room is stale, you can air it using the Fan
feature and if necessary, evacuate the stale air outside.
1 If you wish to evacuate stale air outside, push the ventilation lever on the
frontof the unit to the right and the open position ( ).
The air inside the room circulates and stale air is evacuated
outside.
Result:
Result:
Otherwise, push the ventilation lever to the left and the closed
position ( ).
The air simply circulates inside the room.
2 If necessary, press the (On/Off) button.
The air conditioner starts up in the Cool mode.
The unit beeps twice.
Result:
3 If the FAN indicator is not lit up on the unit:
Press the button on the remote control
or
Press the button on the unit one or more times until the
FAN indicator lights up.
The unit beeps each time you press the / button.
The air conditioner starts up in Cool mode.
4 To set the fan speed to... Then...
Press the , or button on the remote control as desired.
or
Press the button on the unit one or more times until the the
desired fan speed(F1, F2, or F3) is displayed.
:
:
:
Low Speed
Med Speed
High Speed
5 To control the direction of the air flow, refer to page 10.
You can change modes at any time.
When the air conditioner is in the Fan mode, the temperature
is not displayed; in this case, you do not need to set the
temperature.
Result:

E- 10
Removing Excess Humidity
If the atmosphere in your room is very humid or damp, you can remove
excess humidity without lowering the room temperature too much.
1If necessary, press the (On/Off) button.
Result: The air conditioner starts up in the Cool mode.
The unit beeps.
The air conditioner is fitted with a protection mechanism to pre-
vent the unit from being damaged when it is started immediately
after being:
Plugged in
Stopped
It will start up normally after three minutes.
2If the
temperature is not displayed at the top of the control panel, press
the button on the control panel one or more times until it
appears.
Result:
The unit beeps each time you press the button.
The air conditioner runs in Dry mode.
You can change modes at any time.
3To adjust the temperature, press the
or buttons one or
more times until the required temperature is displayed.
Possible temperatures are between
18 °C and 30 ° C inclusive.
Result: Each time you press the
or buttons:
- The temperature is adjusted by 1
° C
- The unit beeps
The air conditioner starts removing the excess humidity;
the quantity of air is adjusted automatically.
4To control the direction of the air flow, refer to page 11.
Remote Control Control Panel
Dry

E- 11
Adjusting the Air Flow Direction Horizontally
Adjusting the Air Flow Direction Vertically
Remote Control Control Panel
Depending on the position of the unit in your room, you can adjust the
orientation of the inner air flow blades on the right-hand side of the
unit, thus increasing the efficiency of the air conditioner.
1 Press the (or on the unit) button on the remote control.
The inner blades swing automatically left and right.
Result:
In the Energy Saving mode, the blades may stop when the
compressor is off. For details on the Energy Saving mode,
refer to page 14.
2 To stop the blades moving left and right, press the (or on the unit
button in the remote control.
To stop the blades in a specific position and orient the air flow in the
corresponding direction, simply press the (or on the unit)
button on the remote control when the blades are in the desired position.
Again depending on the position of the unit in your room, you can
adjust the orientation of the outer air flow blades on the right-hand
side of the unit.
RECOMMENDATION When... Adjust the blades to face...
Cooling Upwards.
Adjust the air flow blades to the desired position, by pushing them upwards or
downwards.
If you orient the air flow blades downwards and the unit operates in Cool mode
for a long period of time, dew may:
From on the surface of the blades
Drip from the blades

E- 12
Setting the On Timer
Remote Control Control Panel
The On Timer enables you to switch on the air conditioner automatically after
a given period time.You can set the period of time from 1 hour to 24 hours.
You can select the On Timer only when the air conditioner is off.
1 Check that the air conditioner has been switched off; if necessary,
press the (On/Off) button.
2 Set the operating time by pressing:
on the remote control.
or
on the unit one or more times.
Possible time is between 1 hour and 24 hours inclusive.
Result: The remaining time is displayed and decreased by 1 hour
automatically to indicate the remaining time.
The air conditioner switches on automatically when the
operating time reaches zero.
To Cancel the On Timer
To cancel the On Timer, press:
on the remote control or on the unit one or more times until
" " is displayed.
(The air conditioner operates in the cool mode.)
or
(On/Off) button on the remote control or unit.
button on the unit.
button on the Remote control.
You can change the setting mode, fan speed, and air flow direction
after setting the On Timer.

E- 13
Setting the Off Timer
Remote Control Control Panel
The Off Timer enables you to switch off the air conditioner
automatically after a given period of time. Y ou can set the period of
time from 1 hour to 24 hours.
You can select the Off Timer only when the air conditioner is on.
1 Check that the air conditioner has been switched on; if necessary,
press the (On/Of
f) button.
2 Set the operating time by pressing:
on the remote control.
or
on the unit one or more times.
Possible times is between 1 hour and 24 hours inclusive.
Result:The remaining time is displayed and decreased by 1 hour
automatically to indicate the remaining time.
The air conditioner switches off automatically when the
operating time reaches zero.
To Cancel the Off Timer
To cancel the Off Timer, press:
button on the unit.
button on the Remote control.
You can change the setting mode, fan speed, and air flow direction
after setting the Off Timer.
on the remote control or on the unit one or more times until
" " is displayed.
or
on the remote control or unit (The air conditioner operates in the mode
selected when the unit was last used.)

E- 14
Setting the Sleep Timer
Remote Control Control Panel
The Sleep Timer can be used when you are cooling your room to
switch the air conditioner off automatically after a period of 8 hours.
If you wish to switch the unit off at a specific time, refer to page 12.
1 Make sure that you have selected either COOL mode.
2 Press the button on the remote control
or
Result:
Result:
To Cancel the Sleep Timer
Each time you press a butoon, the unit beeps.
The indicator and " " will be displayed.
The remaining time is displayed and decreased by 1 hour
automatically to indicate the remaining time.
The air conditioner will be controlled as illustration below.
Cooling When the temperature has
been increased by 1 C(after
1 hour), it is maintained
for 7 hours.
To cancel the timer, press:
on the remote control.
or
on the unit.
The unit beeps.
The indicator is no longer displyed.
The air conditioner operates in the mode selected last.
Press the button on the unit until the indicator lights up.
If you select the Energy Saving mode in the Sleep Timer mode,
the Sleep Timer will be cancelled and the air conditioner will start up
in the Energy Saving mode.

E- 15
21 C to 32 C approx.
Selecting Energy Saving Mode
If you wish to save Energy when using your air conditioner,
select the Energy Saving mode with the Energy Saver button.
1 To select the Energy Saving mode, press the Energy Saver button on the remote
control or unit one or more times until the Energy Saver indicator lights up.
Result:
Result: The fan and compressor cycle on and off together.
The fan will continue to run for a short time after the
compressor cycles off.
If you would like the air conditioner to run in Fan mode do not press the
Energy Saver button.You cannot use the Fan mode in the Energy
saving mode.
2 To stop the Energy Saving mode, press the Energy Saver button on the
remote control or unit again.
The fan runs at all times, while the compressor cycles on and off.
If you select the Sleep Timer in the Energy Saving mode, the Energy
Saving will be cancelled and the air conditioner will start up in the
Sleep Timer mode.
Remote Control Control Panel
Temperature and Humidity Ranges
The following table indicates the temperature and humidity ranges within which the
air conditioner can be used.
Cooling 21 C to 54 C approx. 80% or less
Mode Indoor HumidityIndoorTemperature OutdoorTemperature
If the air conditioner is used at... Then...
Higher temperatures The automatic protection feature may be triggered and the air
conditioner stopped.
Lower temperatures
Higher humidity levels
A water leakage or some other malfunction may happen if the
heat exchanger freezes.
Water way condense on and drip from the surface of the unit if
it is used for long periods.

When cleaning the air conditioner, turn it off and pull out
the power plug.
E- 16
Cleaning Your Air Conditioner
1 Hold the front grille handle, slightly pull it to the left side and open the front grille.
2 Pull the air filter to the right side.
3 Remove all dust on the air filter with a vacuum cleaner or brush.
4 When you have finished, insert the air filter back into its original position.
5 Wipe the surface of the unit with a neutral detergent and then wipe it again
with dry cloth.
(Be sure not to use benzene, solvent or other chemical products.)
CC
CCAA AAUU UUTT TTII IIOO OONN NN
The removal of the front grille makes it easier to clean the air
conditioner. Open the grille as much as possible.
If you... Then...
Will not be using the
air conditioner for a
long period of time
Have not used the air
conditioner for a long
period of time
Switch the air conditioner off and
unplug it from the wall socket.
Clean the filter and outer surfaces.
Set the fan going for a few hours to
dry the inside of the air conditioner
thoroughly.
Removal and Reassembly of the Front Grille
IMPORTANT
2 Lift the front grille slightly and
remove it from the front panel.
3 Reassembling of front grille
should be done in reverse
order of disassembly.
The air conditioner has two or three grille
grooves depending on the model.
Grasp the lower part of the front
grille and the air filter handle, then
open the grille. (The open angle
of front grille has not to be
exceeded 90 degree)
1
Set the fan going for three to four hours
to dry the inside of the air conditioner
thoroughly.
Be sure to clean the air filter periodically two weeks to maintain
the air conditioner in the best condition for a long period of time.

Solving Common Problems
E-17
Before contacting the after-sales service, perform the following simple checks.
They may save you the time and expense of an unnecessary service call.
The air conditioner does not
operate at all ◆Check that the circuit breaker used for the air conditioner has not
been triggered.
◆Check that the power cable is plugged into a wall socket and the
socket is switched on, if necessary.
◆
Check that the operating mode indicator (COOL or FAN) on the unit is
lit up; if necessary press (On/Off) button on the remote control or
unit.
Problem Explanation/Solution
The air conditioner does not
operate with the remote control ◆Check that there are no obstacles between you and the unit. ◆Replace the remote control batteries if necessary.
◆
Check that you are close enough to the unit (seven metres/yards
or less).
No beep is heard when you press
(On/Off) on the remote control ◆Check that you are pointing the remote control at the remote control sensor on the unit.
◆
Replace the remote control batteries if necessary.
The air conditioner does not cool ◆Check that the correct operating mode has been selected COOL.
◆
The room temperature may be too low.
◆ Dust may be blocking the air filter; refer to page 16 for
cleaning instructions.
◆ Check that there is no obstacle blocking the air flow into or out of
the unit.
The air flow direction does not
change when you press the
or on the unit button
◆Check that the air conditioner has been switched on; if necessary,
press
(On/Off) button on the remote control or unit.
The timer is not correctly triggered ◆Check that the timer has been programmed correctly;
see page 11~13.
Odour is permeated in the
room during air conditioning ◆Air the room.
AWT18PHHBA_E_17028 04/2/23 10:37 Page 17

Technical Specifications
E-18
Design and specifications are subject to change without notice.
Power Supply
Model
AWT18PHHBA_E_17028 04/2/23 10:37 Page 18
AWT12PHHEA
220-240V~, 50Hz
AWT19PHHEB
AWT24PHHEC

E-19
Method of Installation
Before installation, be sure to check the installation area or the air
conditioner, and drain hose.
Checkpoints prior to installation
Check the cabinet and front grille of the unit for any harmful defects
such as scratches.
1
Be sure to check the power supply.
- Refer to the specifications on the label attached to the unit.
2
Installation Conditions
As the unit is heavy, the wall or window of the installation area should
have sufficient strength and durability for operation of the air conditioner,
and for prevention of any vibration or noise.
If it is weak, reinforcement work should be performed separately.
1
It is advisable to install the air conditioner in the north or west side to
prevent the effect of direct sunlight.
When installing it in the south or east side due to unavoidable
circumstances, it is advisable to install the sunshade to prevent the
direct sunlight.
In this case, take care not to cause any hindrance to the flow of outside air.
2
When installing the air conditioner, be sure to obtain sufficient space on
the rear side of the unit for smooth flow of air.
When operating the air conditioner in closed areas such as inner building
with cooling operation, and result in trouble with the unit.
See the illustration below.
3
500mm 500mm
75mm
min.
300mm
500mm Fence, wall
or other
obstacle
150mm min.
Approx.3˚
Awning
750mm
If the wall is greater than 150mm thick,
cut the wall back on a 45˚ angle if possible.
100mm or more
Outdoor side
Indoor side
45˚
45˚
AWT18PHHBA_E_17028 04/2/23 10:37 Page 19
"A"
170
260
MODEL
AWT12
AWT18/AWT24
"A"

Method of Installation (cont.)
E-20
Installation of the Drain Tube
Fix the drain tube as shown in the figure.
Installation of the Drain Pan
The procedure for installing the drain pan should be determined by the
condition of the installing area.
◆ In the case of an area where the drain pan can not be directly
installed on the rear side of the unit after installing the air conditioner.
Example: High storage
Remove two screws on the lower, right and left sides of the unit.
3
Open the front grille.
1
Remove the front panel.
2-1 Press both sides of the cabinet in the direction of the arrow
as shown in the figure.
2-2 Pull the lower part of the front panel slightly forward.
(below three inches)
2-3 Lift the front panel upward.
2
Applying excessive force to remove the front panel
may cause damage to the tab ; be sure not to use
excessive force.
☛
Removal and Reassembly of the Front Grille
Grasp the lower part of the front grille and the air filter handle, then
open the grille.
(The open angle of front grille has not to be exceeded 90 degree)
1
Push the front grille on the left and remove it from the front panel.
2
Reassembling of front grille should be done in reverse order of
disassembly.
3
CC
CCAA AAUU UUTT TTII IIOO OONN NN
Rubber cap
Screws(2EA)
Gasket
Rear
Drain Tube
Front panel
AWT18PHHBA_E_17028 04/2/23 10:37 Page 20
