Safety Precautions
The following safety precautions must be taken when using your air conditioner.
◆The unit should not be installed by the user. Ask the dealer or authorized
company to install the units except room air conditioners for the U.S.A and
Canada area.
◆If the unit is installed improperly, water leakage, electric shock or fire may
result.
◆Mount with the lowest moving parts at least 2.5 m above the floor or grade
level. (If applicable)
◆The manufacturer does not assume responsibility for accidents or injury
caused by an incorrectly installed air conditioner. If you are unsure about
installation, contact an installation specialist.
◆When installing the built-in type air conditioner, keep all electrical cables
such as the power cable and the connection cord in pipe, ducts, cable
channels e.t.c to protect them against liquids, outside impacts and so on.
◆This appliance is not accessible to the general public. This appliance
should be installed according to the provided installation instruction.
WARNING
INSTALLING THE UNIT
◆If the power cord of this air conditioner is damaged, it must be replaced by
the manufacturer, its service agent or similarly qualified persons in order to
avoid a hazard.
◆The unit must be plugged into an independent circuit if applicable or
connect the power cable to the auxiliary circuit breaker. An all pole
disconnection from the power supply must be incorporated in the fixed
wiring with a contact opening of >3mm.
◆Do not use an extension cord with this product.
◆If the unit is equipped with a power supply cord and a plug, the plug must
be accessible after installation.
◆The air conditioner must be installed in accordance with national wiring
regulations and safety regulations wherever applicable.
POWER SUPPLY LINE,
FUSE OR CIRCUIT
BREAKER
• Risk of electric shock can cause injury or death. • Disconnect all remote
electric power supplies before servicing, installing or cleaning.
• This must be done by the manufacturer or its service agent or a similar
qualified person in order to avoid a hazard.
E-2
EH035EAV_IM_E_25807 3/24/06 7:21 PM Page 2

E-3
ENGLISH
■Deciding on Where to Install the Air Conditioner.................................................. 4
■Deciding on Where to Install the Indoor Unit........................................................ 6
■Indoor Unit Installation .......................................................................................... 8
■Purging the Unit ................................................................................................... 9
■Connecting the Refrigerant Pipe .......................................................................... 10
■Cutting/Flaring the Pipes ..................................................................................... 11
■Performing Leak Test & Insulation ........................................................................ 12
■Drain Pipe and Drain Hose Installation................................................................. 13
■Connecting the Connection Cord.......................................................................... 15
■Adjusting Air Flow ................................................................................................ 17
■Setting Up the Mode Option ................................................................................ 18
■Assigning Address to Indoor Unit ........................................................................ 21
■Additional Functions ............................................................................................. 22
■Filter Replacement (Optional) .............................................................................. 24
■Drain pump Installation(Optional) ....................................................................... 26
■Troubleshooting ................................................................................................... 28
■Parts list ............................................................................................................... 32
Contents
EH035EAV_IM_E_25807 3/24/06 7:21 PM Page 3

Deciding on Where to Install the Air Conditioner
When deciding on the location of the air conditioner with the owner, the following restrictions
must be taken into account.
Do NOT install the air conditioner in a location where it will come into contact with the following elements:
◆Combustible gases
◆Saline air
◆Machine oil
◆Sulphide gas
◆Special environmental conditions
If you must install the unit in such conditions, first consult your dealer.
E-4
Accessories
General
◆The following accessories are supplied with the indoor unit.
The type and quantity may differ depending on the specifications.
Installation
Manual
Insulation Cover
Pipe in
Insulation Drain
Insulation Cover
Pipe out
Insulation Cover
Drain Insulation Pipe in Insulation Pipe out
RubberCable-Tie Flexible hose Flexible hose clamp
User’s
manual
Cable-tie Cable clamp M4x16 tapped screw
Indoor unit power
drawing cable
Communication
cable of the wired
remote controller
Wire joint User’s
manual
Installation
Manual
Wired
remote controller
Wired Remote Controller Accessories
EH035EAV_IM_E_25807 3/24/06 7:21 PM Page 4

E-5
ENGLISH
Indoor Unit
5mm
◆There must be no obstacles near the air inlet and outlet.
◆Install the indoor unit on a ceiling that can support its weight.
◆Maintain sufficient clearance around the indoor unit.
◆Make sure that the water dripping from the drain hose runs away correctly
and safely.
◆The indoor unit must be installed in this way, that they are out of public
access. (Not touchable by the users)
◆After connecting a chamber, insulate the connection part between the indoor
unit and the chamber with t10 or thicker insulation. Otherwise, there can be
air leak or dew from the connection part.
Space Requirements for Indoor Unit
You must have 5mm or more space between the ceiling and the bottom of indoor unit.
Otherwise, the noise from the vibration of indoor unit may bother the user.
When the ceiling is under construction, the hole for check-up must be made to
take service, clean and repair the unit.
1398mm x 400mm or more
(A space for repair and service)
EH035EAV_IM_E_25807 3/24/06 7:21 PM Page 5

E-6

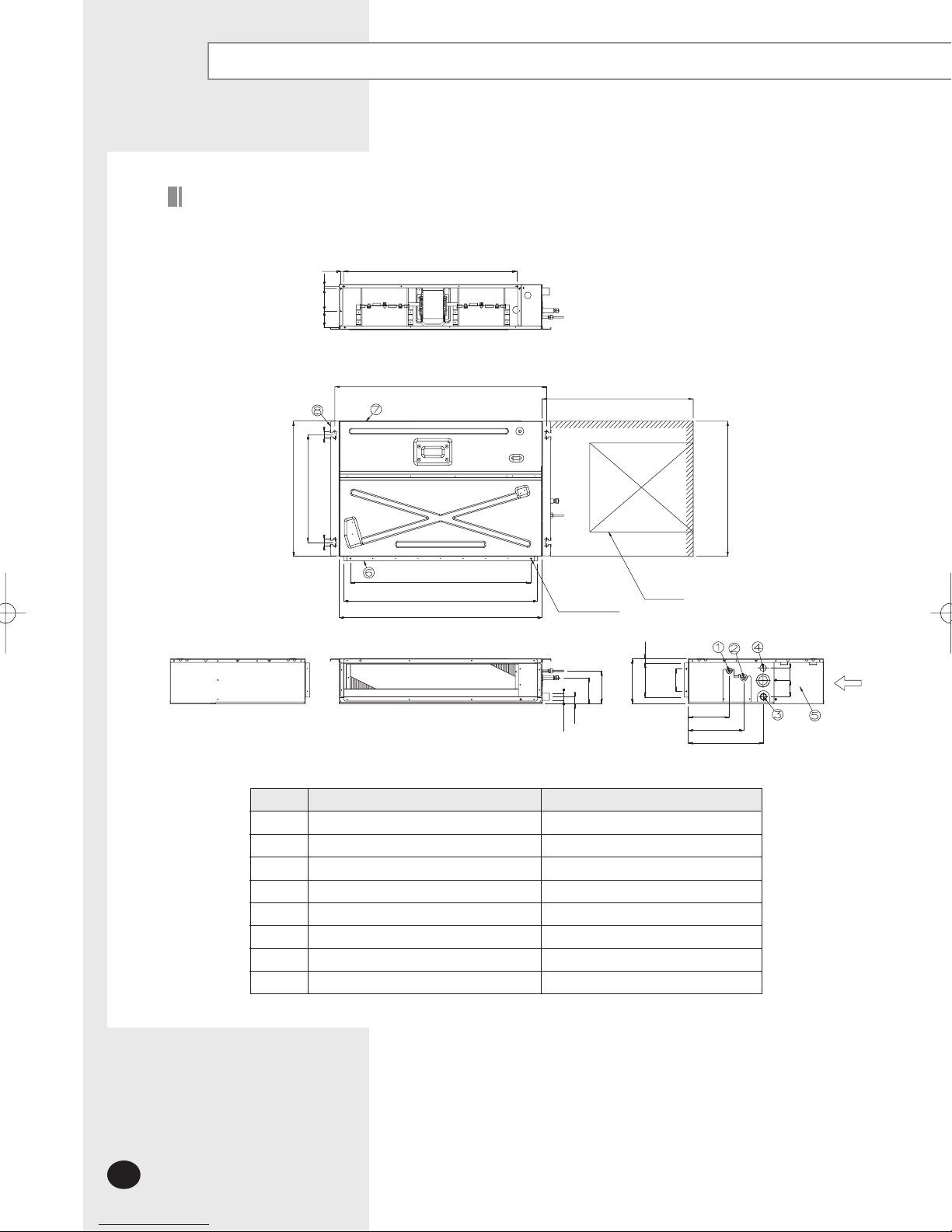

Deciding on Where to Install the Indoor Unit
938.4 Suspension position
1000 or more
1
2
3
4
5
6
7
8
Liquid pipe connection
Gas pipe connection
Hose connection
Hose connection
Power supply/Communicaion connection
Power supply connection
Air discharge grille flange
Air inlet grille flange
ø6.35 (1/4")
ø9.52 (3/8")
M8-M10
No. Name Remark
Drawing of the indoor unit
Unit : mm
8✕100=800
860 Air outlet duct flange
477 Suspension position
600
28
28
900
Service space
Inspection hole
22-ø3.2 Hole
All around
Discharge side
182
246
333
OD32
30.5
199
151.6
18
100
72.5 55
115.5
145.5
Suction side
11.9
71 100 10
3✕256=768
✴✴035✴✴
EH035EAV_IM_E_25807 3/24/06 7:21 PM Page 6

E-7
ENGLISH
1
2
3
4
5
6
7
8
Liquid pipe connection
Gas pipe connection
Drain pipe connection
Drain pipe connection
Power supply connection
Air inlet grille flange
Air filter
Hook
ø6.35
ø12.70(✴✴052✴✴) / ø15.88(✴✴070✴✴)
OD32 ID26
Using drain pump (Optional)
For M8-M10
No. Name Remark
Unit : mm
✴✴052/070✴✴
EH035EAV_IM_E_25807 3/24/06 7:21 PM Page 7

E-8
Indoor Unit Installation
Ensure that the ceiling is strong enough to support
the weight of the indoor unit.
Before hanging the unit, test the strength of each attached
suspension bolt.
CC
CCAA AAUU UUTT TTII IIOO OONN NN
You must install the suspension bolts more than four
when installing the indoor unit.
CC
CCAA AAUU UUTT TTII IIOO OONN NN
Concrete
Suspension bolt(M8)-field supply
Hole in anchor
Hole in plug
Insert
Ceiling support
Rubber
Drain hose port
When the drain hose is installed to the right.
10mm
Mark the place to insert the suspension bolt where you want to install the
indoor unit.
1
Insert bolt anchors. Use existing ceiling supports or construct a suitable
support as shown in figure.
2
Install the suspension bolts depending on the ceiling type.
3
Screw eight nuts to the suspension bolts making space for hanging the
indoor unit. Make sure you have space for hanging the indoor unit.
4
Hang the indoor unit to the suspension bolts between two nuts.
5
Screw the nuts to suspend the unit.
6
Adjust level of the unit by using measurement plate for all 4 sides.
7
Refer to pages 6~7 for the dimension.
NN
NNoo oott ttee ee
For proper drainage of condensate, give a 3mm slant to the left or
right side of the unit which will be connected with the drain hose,
as shown in the figure. Make a tilt when you wish to install the
drain pump, too.
NN
NNoo oott ttee ee
Tubing must be laid and connected inside the ceiling when
suspending the unit. If the ceiling is already constructed, lay the
piping into position for connection to the unit before placing the
unit inside the ceiling.
NN
NNoo oott ttee ee
EH035EAV_IM_E_25807 3/24/06 7:21 PM Page 8

E-9
ENGLISH
Purging the Unit
To prevent dirt or foreign objects from getting into the pipes during
installation, do NOT remove the pinch pipe completely until you
are ready to connect the piping.
NN
NNoo oott ttee ee
On delivery, the indoor unit is loaded with refrigerant gas.
All this gas must therefore be purged before connecting
the assembly piping.
To purge the inert gas, proceed as follows.
Unscrew the pinch pipe at the end of each refrigerant pipe.
Result: All inert gas escapes from the indoor unit.
EH035EAV_IM_E_25807 3/24/06 7:21 PM Page 9

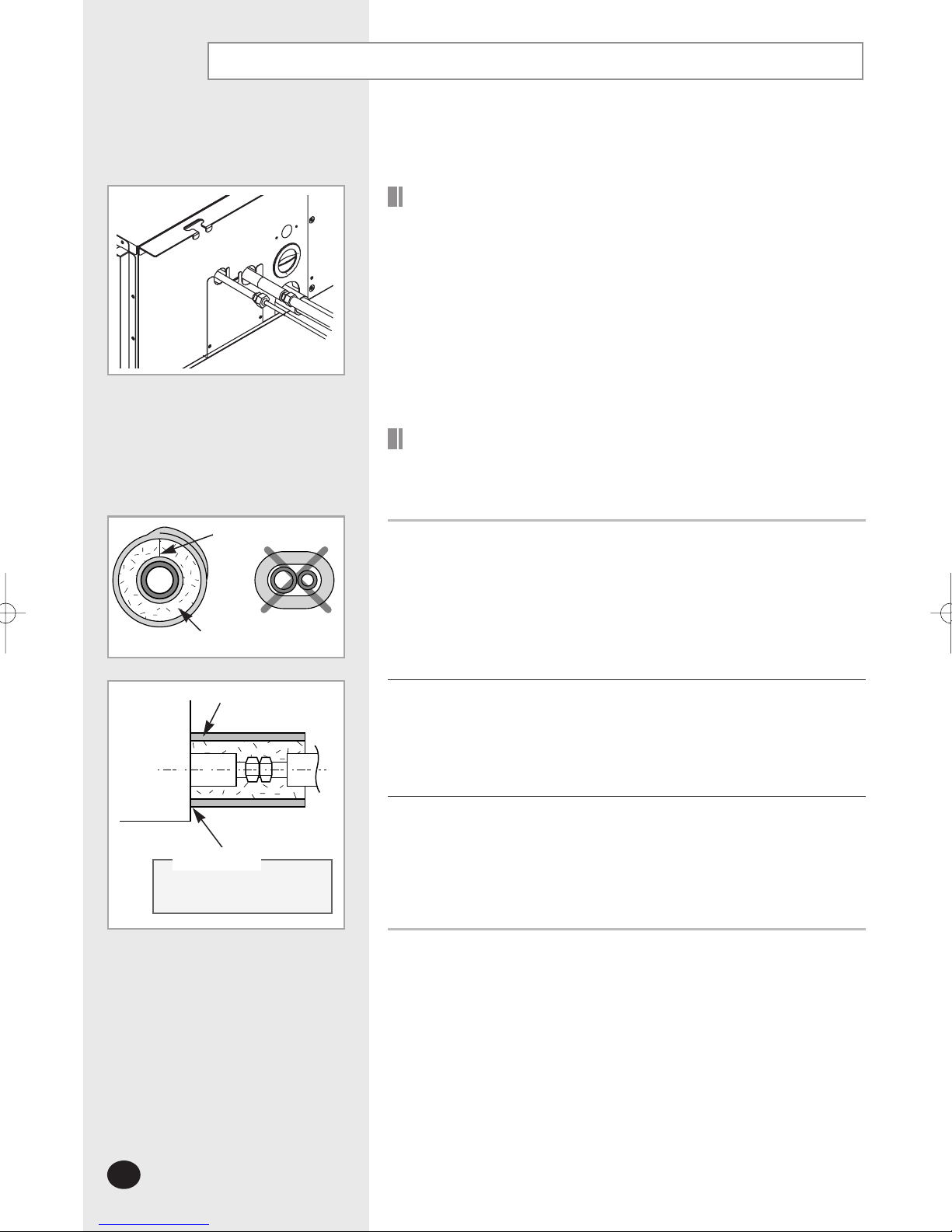

Connecting the Refrigerant Pipe
There are two refrigerant pipes of different diameters:
◆
A smaller one for the liquid refrigerant
◆
A larger one for the gas refrigerant
◆
The inside of copper tube must be clean & has no dust.
The connection procedure for the refrigerant pipes varies according to
the exit position of the pipes from the indoor unit, as seen when facing
the indoor in the “A” side.
◆
Liquid refrigerant port
◆
Gas refrigerant port
◆
Drain hose port
Remove the pinch pipe on the pipes and connect the assembly pipes to
each pipe, tightening the nuts, first manually and then with a torque
wrench, a spanner applying the following torque.
1
Must use insulator which is thick enough to cover the refrigerant tube to
protect the condensate water on the outside of pipe falling onto the floor
and the efficiency of the unit will be better.
2
Cut off any excess foam insulation.
3
Be sure that there must be no crack or wave on the bended area.
4
It would be necessary to double the insulation thickness(10mm or more)
to prevent condensation even on the insulator when if the installed area is
warm and humid.
5
If the pipes must be shortened refer to page 11.
NN
NNoo oott ttee ee
Outer Diameter Torque (kgf•cm)
6.35 mm (1/4") 140~170
9.52 mm (3/8") 250~280
12.70 mm (1/2") 380~420
15.88 mm (5/8") 440~480
19.05 mm (3/4") 990~1210
22.23 mm (7/8") 990~1210
E-10
Liquid
refrigerant port
Drain hose
connection
port
Gas
refrigerant
port
Oil trap (Must be install
every 10m)
Oil trap (Must be install
every 10m)
Oil trap
(suction tube)
a. When the indoor unit is above the outdoor
unit
b. When the outdoor unit is above the indoor
unit
Indoor unit
Indoor unit
Outdoor unit
Radius
5cm
Outdoor unit
A
EH035EAV_IM_E_25807 3/24/06 7:21 PM Page 10

Cutting/Flaring the Pipes
E-11
ENGLISH
Outer Diameter Torque (kgf•cm)
6.35 mm (1/4") 140~170
9.52 mm (3/8") 250~280
12.70 mm (1/2") 380~420
15.88 mm (5/8") 440~480
19.05 mm (3/4") 990~1210
22.23 mm (7/8") 990~1210
Make sure that you have the required tools available (pipe cutter, reamer,
flaring tool and pipe holder).
1
If you wish to shorten the pipes, cut it with a pipe cutter, taking care to ensure
that the cut edge remains at a 90° angle with the side of the pipe. Refer to the
illustrations below for examples of edges cut correctly and incorrectly.
2
To prevent any gas from leaking out, remove all burrs at the cut edge of the
pipe, using a reamer.
3
Slide a flare nut on to the pipe and modify the flare.
4
Check that the flaring is correct, referring to the illustrations below for
examples of incorrect flaring.
5
Align the pipes and tighten the flare nuts first manually and then with
a torque wrench, applying the following torque.
6
Outer Diameter (D) Depth (A)
6.35 mm (1/4") 1.3mm
9.52 mm (3/8") 1.8mm
12.70 mm (1/2") 2.0mm
15.88 mm (5/8") 2.2mm
19.05 mm (3/4") 2.2mm
22.23 mm (7/8") 2.2mm
90O
Oblique Rough Burr
Inclined Damaged Surface Cracked Uneven Thickness
◆
CC
CCAA AAUU UUTT TTII IIOO OONN NN
In case of welding the pipe, you must weld with nitrogen
gas blowing.
EH035EAV_IM_E_25807 3/24/06 7:21 PM Page 11

Performing Leak Test & Insulation
To check for gas leaks on the indoor unit, check the connection part
of each refrigerant pipe by using a leak detector.
Once you have checked that there are no leaks in the system,
you can insulate the piping and hose.
To avoid condensation problems, place T13.0 or thicker Acrylonitrile
Butadien Rubber separately around each refrigerant pipe.
1
Wind insulating tape around the pipes.
2
Finish wrapping insulating tape around the rest of the pipes leading to the
outdoor unit.
3
Always make the seam of pipes face upwards.
NN
NNoo oott ttee ee
Leak Test
Insulation
Insulation
cover pipe
Be sure to overlap
the insulation
Indoor Unit
CC
CCAA AAUU UUTT TTII IIOO OONN NN
Must fit tightly against
body without any gap.
No gap
NBR(T13.0 or thicker)
E-12
EH035EAV_IM_E_25807 3/24/06 7:21 PM Page 12

Drain Pipe and Drain Hose Installation
E-13
ENGLISH
Care must be taken when installing the drain hose for the indoor unit
to ensure that any condensate water is correctly drained outside. The
drain hose can be installed to the right or left side of the base pan.
Install the drain hose as short as possible.
1
Insulate the drain hose and then fix it as a picture.
2
◆Give a 3mm slant to the drain hose for proper drainage of
condensate.
◆Secure the drain hose with the cable-tie not to be separated
from the unit.
◆The drain pump connection port is used when using a drain
pump.
NN
NNoo oott ttee ee
◆Assemble flexible hose with clamps between indoor unit and
drain pipe.
◆Flexible hose clamps should be assembled tightly to prevent
being loosen. If it is loosen, it may cause water drops.
NN
NNoo oott ttee ee
Insert the flexible hose to the drain hose port.1
Fix the flexible hose to the indoor unit with the supplied cable clamp
securely.
(Use the screwdriver to fix the flexible hose securely.)
NN
NNoo oott ttee ee
Install the drain hose so that its length can be as short as possible.
Internal diameter of the drain hose should be the same or slightly bigger
than the external diameter of the drain hose port.
◆ Inner diameter of the drain hose
2
Wrap the drain hose with the insulation drain as shown in figure and secure it.
3
◆Give a slightly slant to the drain hose for proper drainage of
condensate.
◆Fix the flexible hose to the PVC with the supplied cable tie
securely.
NN
NNoo oott ttee ee
32mm(Inner diameter)
Flexible hose
Insulator
Clamp
Cable-tie
✴✴035✴✴
✴✴052/070✴✴
Cable-Tie
Insulation drain hose
Insulation cover drain
Indoor
Unit
CC
CCAA AAUU UUTT TTII IIOO OONN NN
Must fit tightly against
body without any gap.
Cable Clamp
EH035EAV_IM_E_25807 3/24/06 7:21 PM Page 13

Drain pipe and Drain Hose Installation (Continued)
Prepare a little water about 5 liter.
Open the cover of water supply intake by turning and pulling the cover.
(Only for ✴✴035✴✴)
1
Pour water into the the indoor unit as shown in figure.
2
Confirm that the water flows out through the drain hose.
3
Testing the drainage
E-14
Water supply intake
If you do not pour water inside the water supply intake,
water may spill from the indoor unit.
NN
NNoo oott ttee ee
Reassemble the cover of water supply intake.
(Only for ✴✴035✴✴)
4
✴✴035✴✴
✴✴052/070✴✴
CC
CCAA AAUU UUTT TTII IIOO OONN NN
When not installing the drain pump
Do not give the hose upward gradient after
the connection port.
This will cause water to flow backwards when
the unit is stopped, resulting in water leaks.
Do not apply force to the piping on the unit side
when connecting the drain hose. The hose should
not be allowed to hang loose from its connection to
the unit. Fasten the hose to a wall, frame or other
support as close to the unit as possible.
Upward gradient
Support pieces
Ceiling
Ceiling
20mm or more
550mm or less
Ceiling
Flexible hose
1/100 or more
When installing the drain pump(✴✴035✴✴)
When installing a flexible hose, the difference of
pivot of a drain hose port and a drain hose must
be within 20mm. If the difference of each pivot is
more than 20mm, or a flexible hose is bent
steeply, a flexible hose may leak.
75cm or less
Ceiling
When installing the drain pump(✴✴052/070✴✴)
If it is necessary to increase the height of the
drain hose somewhat, the portion directly after
75cm. If it is raised higher than 75cm, there can
be water leaks.
EH035EAV_IM_E_25807 3/24/06 7:21 PM Page 14

E-15
ENGLISH
Connecting the Connection Cord
The indoor unit is powered from the outdoor unit via the connection cord.
Remove the screw on the electrical component box and remove the cover
plate.
1
Route the connection cord through the side of the indoor unit and connect
the cable to terminals; refer to the figure below.
2
Route the other end of the cable to the outdoor unit through the ceiling &
the hole on the wall.
3
Reassemble the electrical component box cover, carefully tightening the
screw.
✼For connection cord, use the grade H07RN-F or H05RN-F materials.
4
Between Indoor and Outdoor Connection Cord
Specifications
208-230V~
/60Hz
±10%
0.75mm2
(2 wires)
Ø 1.6mm
(1 wire)
0.75mm2
(2 wires)
0.75~
1.25mm2
(2 wires)
Power Supply (Single Phase)
Power Supply Max/Min(V) Connection Wire
Earth Cable
Communication
Cable
Home
server
CC
CCAA AAUU UUTT TTII IIOO OONN NN
Keep the power cable and the connection cord in a steel pipe to
protect them against liquids, outside impacts and so on.
When connecting the cables, you must pass them through the
cable clamp to fix them securely.
NN
NNoo oott ttee ee
EH035EAV_IM_E_25807 4/10/06 9:25 AM Page 15

Connecting the Connection Cord (Continued)
Wiring and Communication Cable Connection
Connect the power cable, which is connected with the outdoor unit and supplied by another source,
making sure that the power cable terminal should not be changed.
The F3 and F4 communication cable may be cross-connected, however, it is recommended that they
are connected to the corresponding F3 and F4 terminal.
E-16
1(L) 2(N) Vc Vc Vw Vw F1 F2 V1 V2 F3 F4
Receiver &
Display Unit
(Optional)
Float Switch
Drain Pump
(Optional)
Wired
Remote
Controller
MAIN PCB
1ø208-230V~, 60Hz
MAIN POWER
Indoor unit
outdoor unit
EH035EAV_IM_E_25807 3/24/06 7:21 PM Page 16

E-17
HSILGNE
Adjusting Air Flow
E. S. P(External Static Pressure) Setting for Phase Control Motor
With its phase control motor, you can adjust the indoor unit fan speed
depending on the installation condition. If the external static pressure is
high so that the duct becomes longer or if the external static pressure is
low so that the duct becomes shorter, adjust the fan speed by referring
the following table. Refer to the page 18 to set the option code.
Range of static pressure (Factory preset)
represents E. S. P(External Static Pressure) range of
factory setting. You don't have to adjust the fan speed separately
if the external static pressure of the installation place is in .
When it is out of , input the appropriate option code.
If you input the inappropriate option code, error may occur or the
air conditioner is out of order. The option code must be inputted
correctly by the installation specialist or service agent.
NN
NNoo oott ttee ee
External static pressue(mmAq)
Min.
0
Normal
2
Max.
3( 035 )
Static Pressure(mmAq)
CMM
( 2mm Aq)
Step
Option Code for Indoor Unit
320
Hi
Mid
Low
10.5
9.0
7.5
015771-
1583E6
015773-
158189
015773-
1583CE
035
Option Code for Indoor Unit
420
Hi
Mid
Low
14.0
12.5
11.0
015773-
19812D
015773-
19814E
015774-
198071
052
Option Code for Indoor Unit
420
Hi
Mid
Low
18.0
16.0
14.0
015774-
1C80A2
015774-
1C80D4
015774-
1C8206
070
EH035EAV_IM_E_25807 3/24/06 7:21 PM Page 17
**
** **
**
4( 052/070 )
Static Pressure(mmAq)
CMM
( 2mm Aq)
Step
Static Pressure(mmAq)
CMM
( 2mm Aq)
Step

E-18
Setting Up the Mode Option
Setting Option Setup Method
Prepare of the Option Setup mode.
1
For example) Option Code :
Enter the Option Setup mode and select your option according to the
following procedure.
2
a. Take out the batteries of remote control.
b. Press the button simultaneously and insert the battery again.
c. Make sure the remote control display shows as .
The default value is . Otherwise, push the button to .
◆
Every time you press the button, the display panel reads or
repeatedly.
1
2
3
4
5
6
1
2
3
4
5
6
Press the button to set the display panel to .
◆
Every time you press the button, the display panel reads
repeatedly.
...
Press the button to set the display panel to .
◆
Every time you press the button, the display panel reads
repeatedly.
...
Press the button to set the display panel to .
◆
Every time you press the button, the display panel reads
repeatedly.
...
Press the button to set the display panel to .
◆
Every time you press the button, the display panel reads
repeatedly.
...
Press the button to set the display panel to .
◆
Every time you press the button, the display panel reads
repeatedly.
...
❊ Setting is not required if you want to input
. is displayed by default.
EH035EAV_IM_E_25807 3/24/06 7:21 PM Page 18

E-19
ENGLISH
Press the button, then the default value is .
Press the button to set the display panel to .
◆
Every time you press the button, the display panel reads
repeatedly.
...
Press the button to set the display panel to .
◆
Every time you press the button, the display panel reads
repeatedly.
...
Press the button to set the display panel to .
◆
Every time you press the button, the display panel reads
repeatedly.
...
Press the button to set the display panel to .
◆
Every time you press the button, the display panel reads
repeatedly.
...
Press the button to set the display panel to .
◆
Every time you press the button, the display panel reads
repeatedly.
...
Check you made right selections upon completion of the selection.
3
a. Press the button once to check the former part of option code
you inputted.
◆
The display part shows .
b. Press the button once more to check the latter part of option
code you inputted.
◆
The display part shows .
7
8
9
10
11
12
7
8
9
10
11
12
❊ Setting is not required if you want to input
. is displayed by default.
EH035EAV_IM_E_25807 3/24/06 7:21 PM Page 19

Setting Up the Mode Option (Continued)
Press the button.
4
When you press the button towards the indoor unit,
the sound 'Ding' or 'Diriring' is heard and the power indicator of the
display flashes at the same time. Then the option code setting is
completed.
(If the sound is not heard, press the button again.)
Check the air conditioner operates normally.
5
a. Remove the battery from the remote control.
b. Insert the battery into the remote control again.
c. Press the towards the indoor unit.
If all indicators of the indoor unit are flashing, plug out the power plug
and plug it in again. Then press the button.
If the air conditioner does not operate normally or all lamps indicators
flash, check that the correct option code is set up.
NN
NNoo oott ttee ee
Option items
E-20
Model SEG1 SEG2 SEG3 SEG4 SEG5 SEG6 SEG7 SEG8 SEG9 SEG10 SEG11 SEG12
EH035CAV
EH052CAV
EH070CAV
This option code is pre-set when indoor unit is produced at the factory.
EH035EAV_IM_E_25807 3/24/06 7:21 PM Page 20
