Safety Precautions
You should take the following safety precautions when using your air conditioner.
◆Do not repair the air conditioner at your discretion.
It is recommended to contact a service center directly.
◆Never spill any kind of liquid on the air conditioner.
If this happens, unplug or turn off the air conditioner and contact an
authorized service center.
◆Do not insert anything between the airflow blades to prevent damage of
the inner fan and consequent injury. Keep children away from the air
conditioner.
◆Do not place any obstacles in front of the air conditioner.
◆Do not spray any kind of liquid into the indoor unit. If this happens,
turn off the breaker and contact a service center.
◆Make sure that the air conditioner is well ventilated at all times:
Do not place a cloth or other materials over it.
◆Remove the batteries if you don’t use the remote control for a long
time. (If applicable)
◆Use the remote control within 7 meters from the indoor unit. (If applicable)
WARNING
DURING OPERATION
◆Never store or load the air conditioner upside down or sideways to
prevent the damage of the compressor.
◆Young children or infirm persons should be always supervised when
they use the air conditioner.
◆Max current is measured according to IEC standard for safety.
◆Current is measured according to ISO standard for energy efficiency.
OTHERS
◆Before throwing out the air conditioner, remove the batteries from the
remote control.
◆When you dispose of the air conditioner, consult your dealer. If pipes
are removed incorrectly, refrigerant may blow out and cause air
pollution. When it contacts with your skin, it can cause skin injury.
◆The package of the air conditioner should be recycled or disposed
properly for environmental reasons.
D ISPOSING OF THE UNIT
• If you don’t follow the safety precautions, you may get the risk of an electric
shock, injury or death.
•The manufacturer or qualified service personnel must install this air conditioner.
• Unplug the electric power before repairing, installing or cleaning.
Register your product at www.samsung.com/global/register

E-3
ENGLISH
Contents
◆ P REPARING YOUR AIR CONDITIONER
■ Safety Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
■ View of the Unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
■ Remote Control-Buttons and Display . . . . . . . . . . . . . . . . . . . . . . 6
■ Getting Started . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
■ Inserting the Remote Control Batteries . . . . . . . . . . . . . . . . . . . . . 8
◆ O PERATING YOUR AIR CONDITIONER
■ Selecting the Automatic Operating Mode . . . . . . . . . . . . . . . . . . . 9
■ Cooling Your Room . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
■ Heating Your Room . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
■ Changing the Room Temperature Quickly . . . . . . . . . . . . . . . . . . 12
■ Removing Excess Humidity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
■ Airing Your Room . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
■ Selecting Energy Saving Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
■ Adjusting the Air Flow Direction Vertically . . . . . . . . . . . . . . . . . . . 16
■ Adjusting the Air Flow Direction Horizontally . . . . . . . . . . . . . . . . 17
◆ P
ROGRAMMING YOUR AIR CONDITIONER
■ Setting the On Timer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
■ Setting the Off Timer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
■ Setting the Sleep Timer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
◆ R ECOMMENDATIONS FOR USE
■ Operating Recommendations . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
■ Temperature and Humidity Ranges . . . . . . . . . . . . . . . . . . . . . . . . 22
■ Operating Your Air Conditioner Without the Remote Control . . . . . 22
■ Solving Common Problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
■ Cleaning Your Air Conditioner . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
■ Cleaning Deodorizing and Bio Filter (Option) . . . . . . . . . . . . . . . . 24
◆ T ECHNICAL SPECIFICATIONS

View of the Unit
E-4
The design and shape are subject to change according to the model.

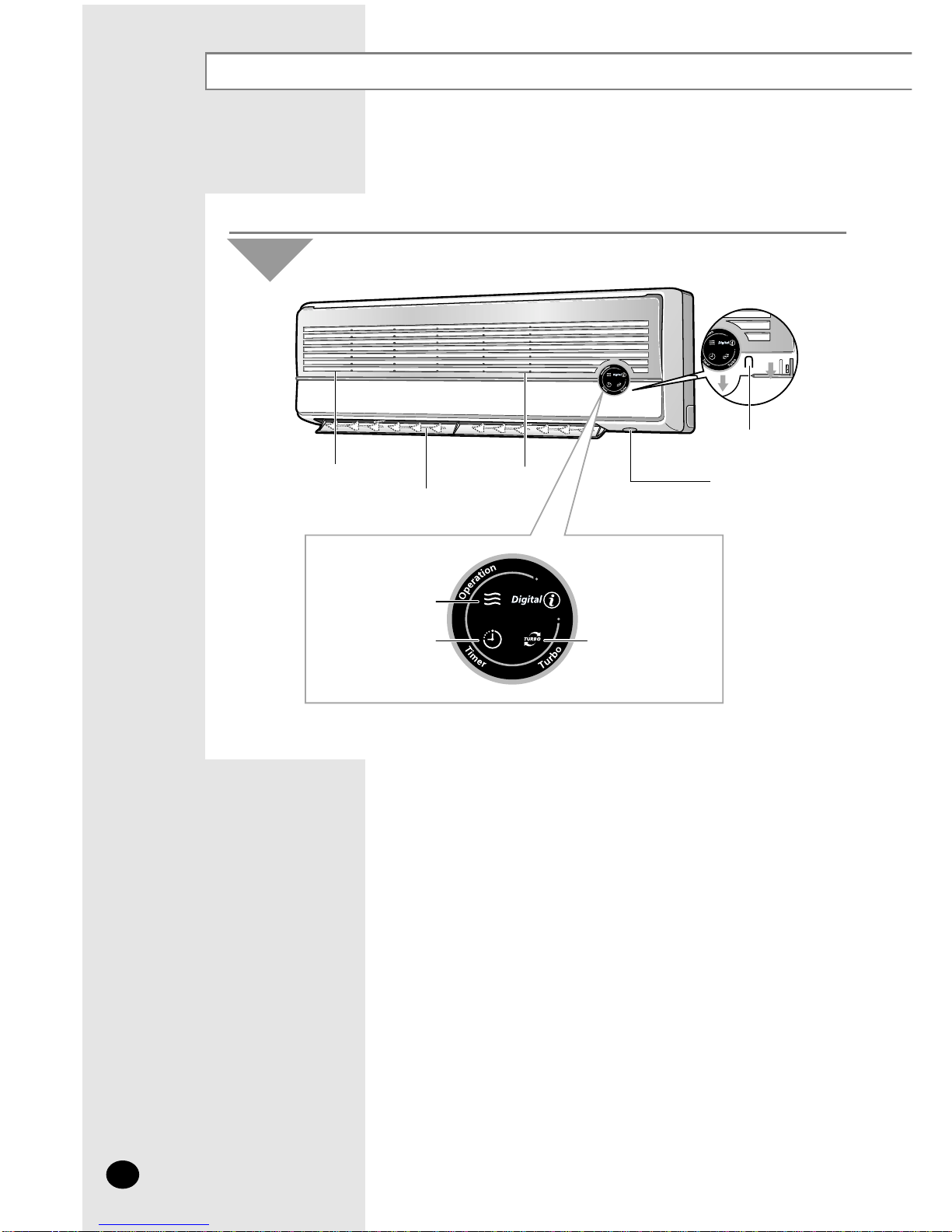

Indoor Unit
Air filter
(under the grille) Air flow blades
(outlet)
Air Inlet
On/Off switch
Remote senser
Turbo indicator
(GREEN)
Operation indicator
(GREEN)
Timer indicator
(ORANGE)

E-5
ENGLISH
Air Inlet(Rear)
Air Outlet
Connection Valve

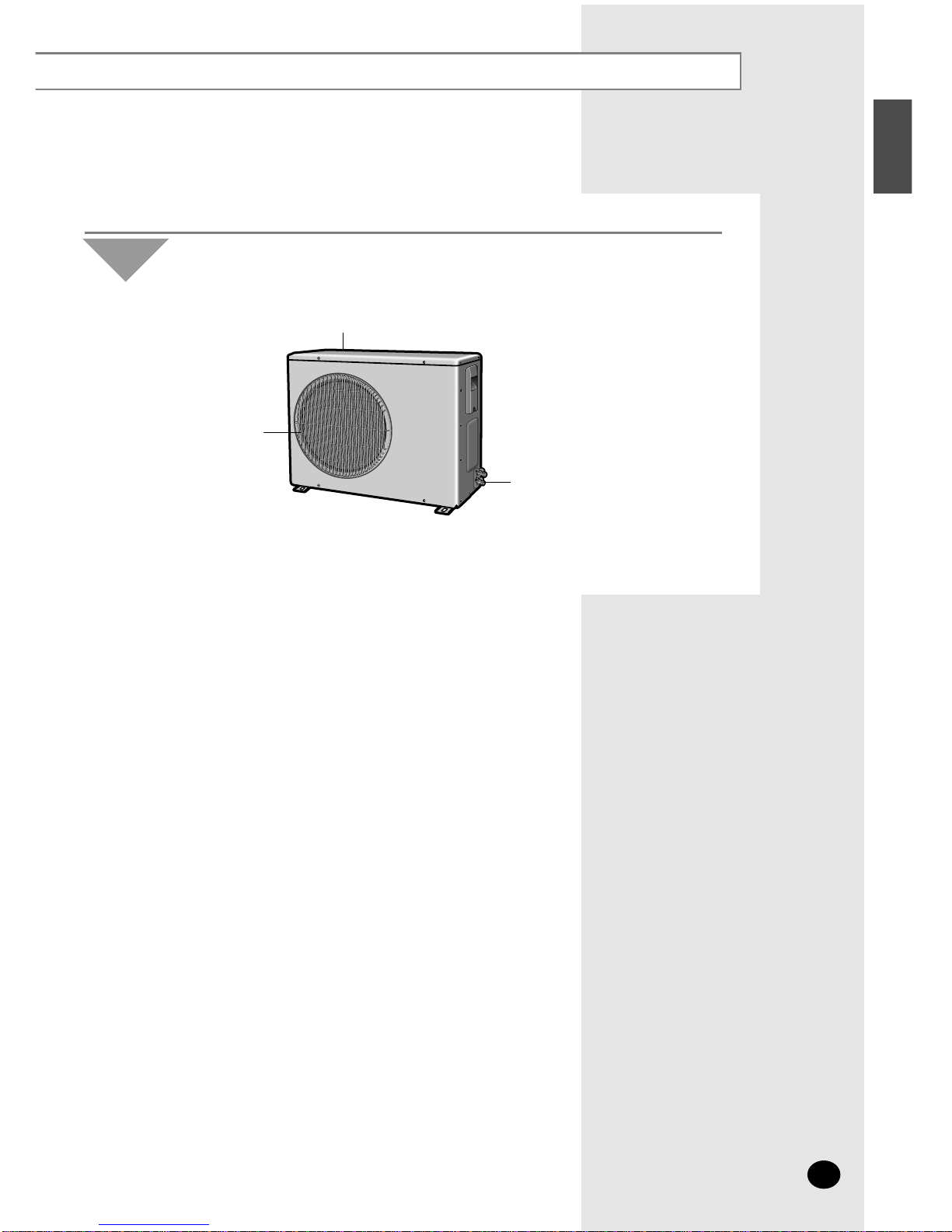

Outdoor Unit

Remote Control-Buttons and Display
E-6
Operating mode
( AUTO, COOL, DRY,
FAN, HEAT)
Remote control
transmission indicator Mode selection button
(AUTO, COOL, DRY, FAN, HEAT)
Turbo/Sleep mode
selection button
Swing button
On Timer button
Off Timer button
On/Off &
Timer Set/Cancel button
Fan speed adjustment button
Temperature adjustment
buttons
Temperature setting
Sleep mode
Turbo mode
Energy saving
Fan speed
Air flow direction
On Timer setting
Off Timer setting
Battery discharge indicator
Energy Saving button

Getting Started
You have just purchased a split type air conditioner and it has been
installed by your installation specialist.
Your Owner’s Instructions contains valuable information on using your
air conditioner. Please take the time to read it as it will help you take full
advantage of the unit’s features.
The booklet is organized as follows.
◆The following figures are shown on pages from 4 to 6 :
- Indoor and outdoor units
- Remote control(buttons and display)
They will help you find the buttons and understand the symbols displayed.
◆In the manual, you will find a series of step-by-step procedures for each
function available.
The illustrations in the step-by-step procedures use three different symbols:
PRESS PUSH HOLD DOWN
E-7
ENGLISH

Inserting the Remote Control Batteries
Push the battery cover on the rear of the remote control with your thumb
in the direction of the arrow and remove it.
Insert the two batteries, taking care to respect the polarities :
◆+ on the battery with + on the remote control.
◆- on the battery with - on the remote control.
1
2
Close the cover by sliding it back until it clicks into place.
3
◆Use two AAA, LR03 1.5V batteries.
◆Do not use old batteries or different kinds of batteries together.
◆Batteries may be completely discharged after 12 months, even
◆if they have not actually been used.
You must insert or replace the remote control batteries when :
◆You purchase the air conditioner
◆The remote control does not work correctly
NN
NNoo oott ttee ee
E-8

Selecting the Automatic Operating Mode
E-9
ENGLISH

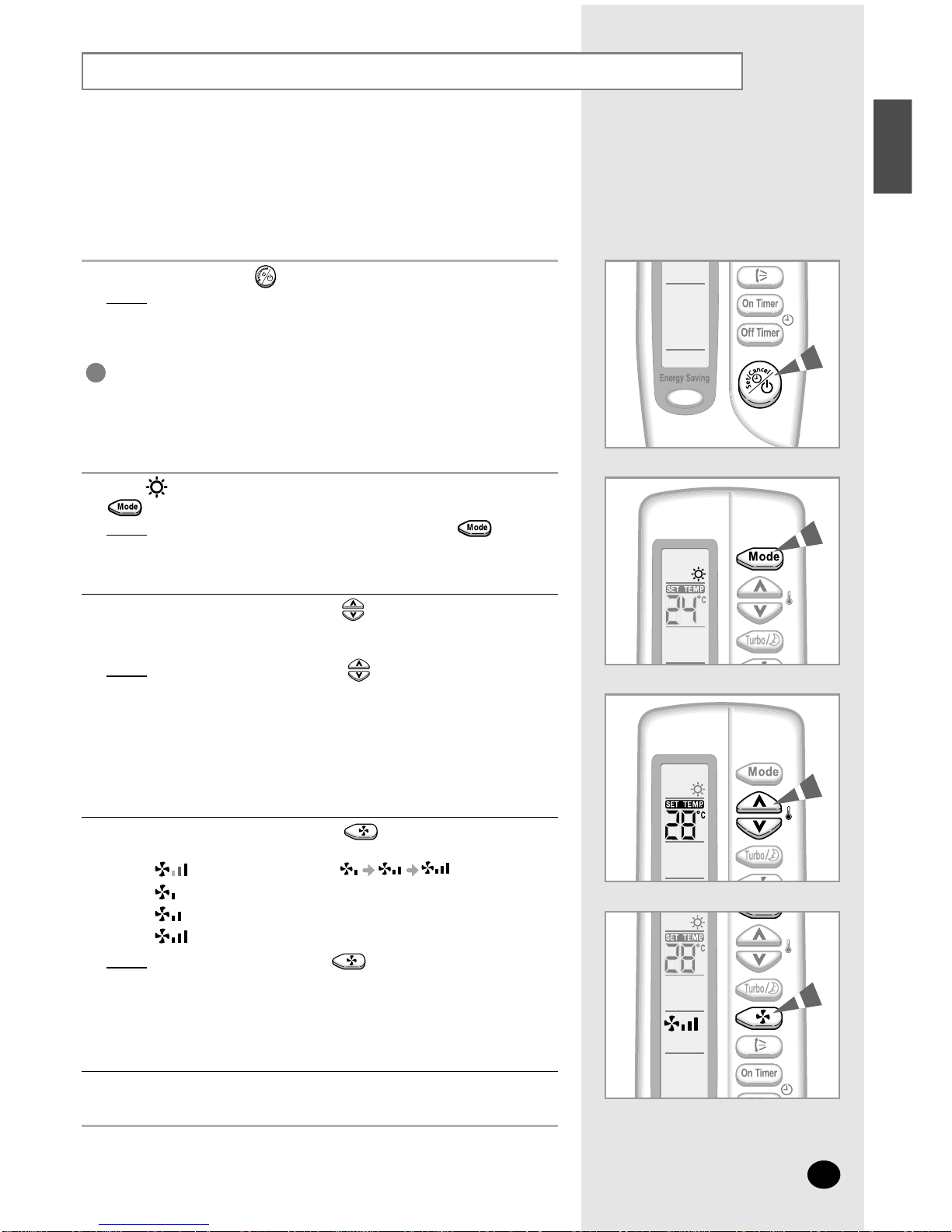

You can start the air conditioner in Automatic mode from your remote
control. In the Automatic mode, the standard temperature and the
optimum fan speed is selected automatically. You can adjust the
standard temperature but not the fan speed.
1
If the is not displayed at the top of the remote control,
press the button on the remote control one or more times until it
appears.
Result:◆The indoor unit beeps each time you press the button.
◆The air conditioner runs in AUTO mode.
2
You can change modes at any time.
If necessary, press the (On/Off) button.
Result:◆The operation indicator on the indoor unit lights up.
◆The air conditioner starts up in the mode selected
when the unit was last used.
◆The indoor unit beeps.
The air conditioner is fitted with a protection mechanism to
prevent the unit from being damaged when it is started
immediately after being:
◆Plugged in
◆Stopped
lt will start up normally after three minutes.
IMPORTANT
NN
NNoo oott ttee ee

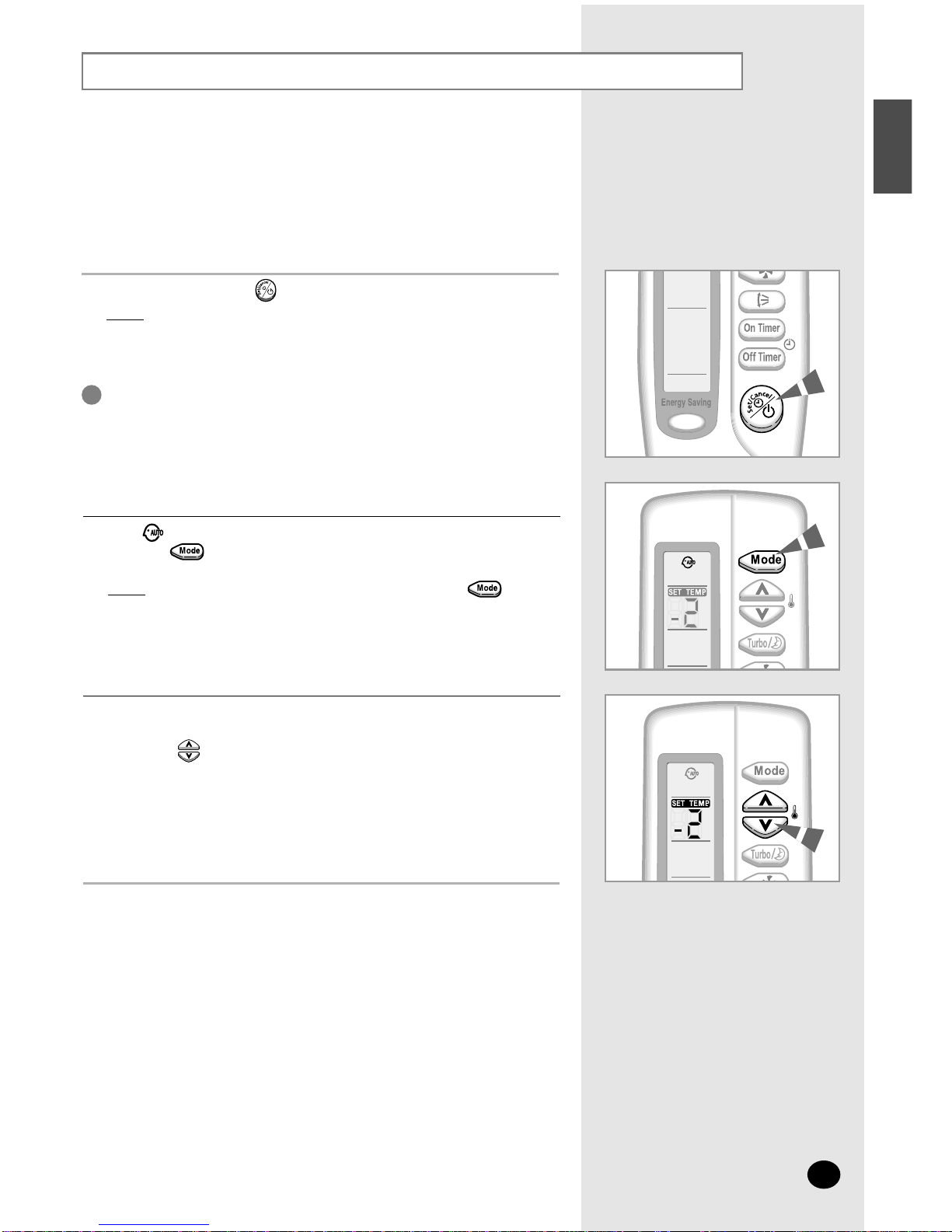

To adjust the standard temperature (The air conditioner automatically
set the standard temperature by the current room temperature.),
press the button one or more times.
3
SET TEMP. SET TEMP. - SET TEMP. SET TEMP.
-2°C -1°C Standard temperature +1°C +2°C
< When you feel hot > < When you feel chilly >

Cooling Your Room
1If necessary, press the (On/Off) button.
Result: ◆ The operation indicator on the indoor unit lights up.
◆The air conditioner starts up in the mode selected
when the unit was last used.
◆The indoor unit beeps.
The air conditioner is fitted with a protection mechanism to
prevent the unit from being damaged when it is started
immediately after being:
◆Plugged in
◆Stopped
lt will start up normally after three minutes.
IMPORTANT
If the is not displayed at the top of the remote control,
press the button on the remote control one or more times until it
appears.
Result: ◆ The indoor unit beeps each time you press the button.
◆ The air conditioner runs in COOL mode.
2
You can change modes at any time.
NN
NNoo oott ttee ee

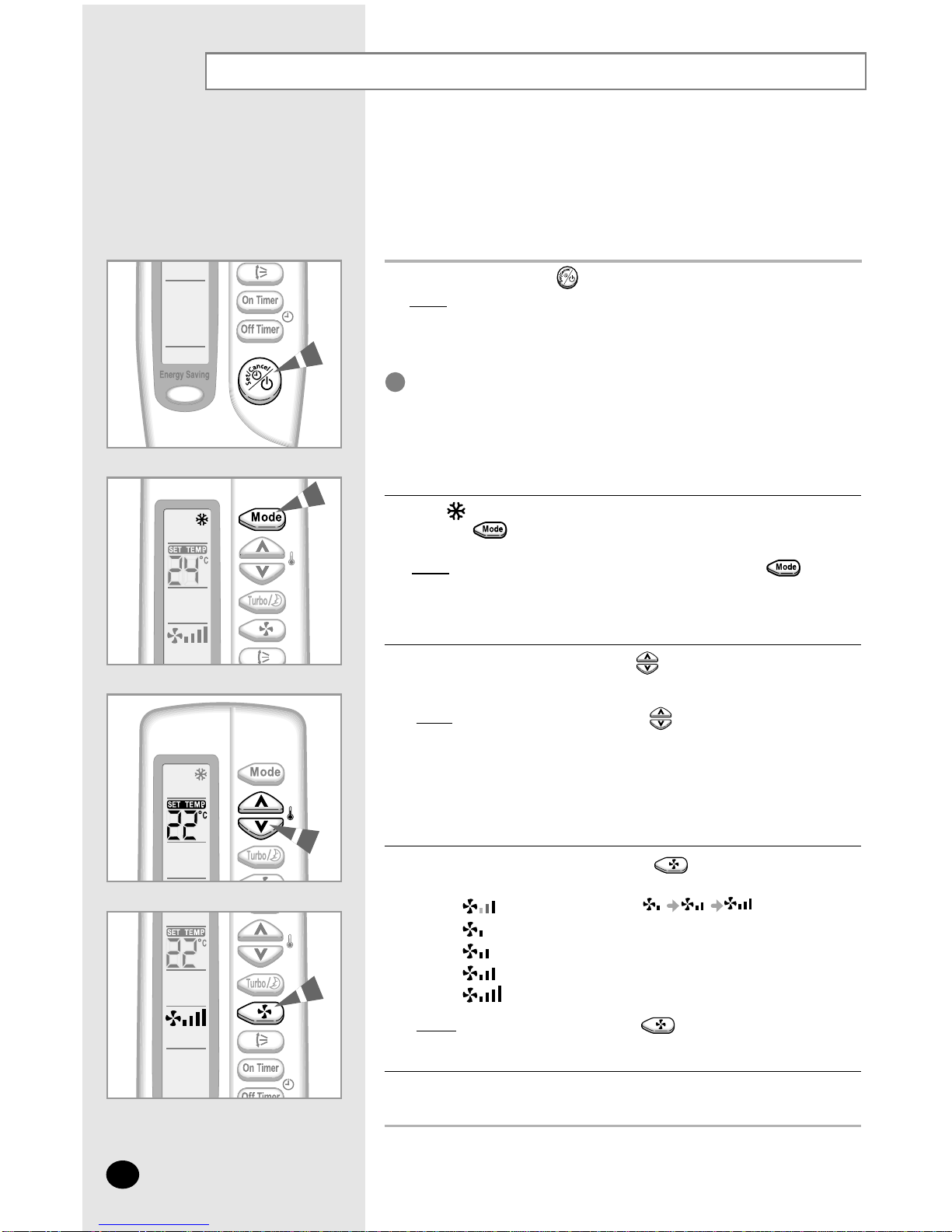

To adjust the temperature, press the button one or more times until
the required temperature is displayed.
Possible temperatures are between 18°C and 30°C inclusive.
Result:◆ Each time you press the button:
- The temperature is adjusted by 1°C
- The indoor unit beeps
◆The air conditioner starts cooling, provided that the room
temperature is higher than the selected temperature.
◆If the room temperature reaches the set temperature, the air
conditioner stops cooling, but the fan is still operating.
3

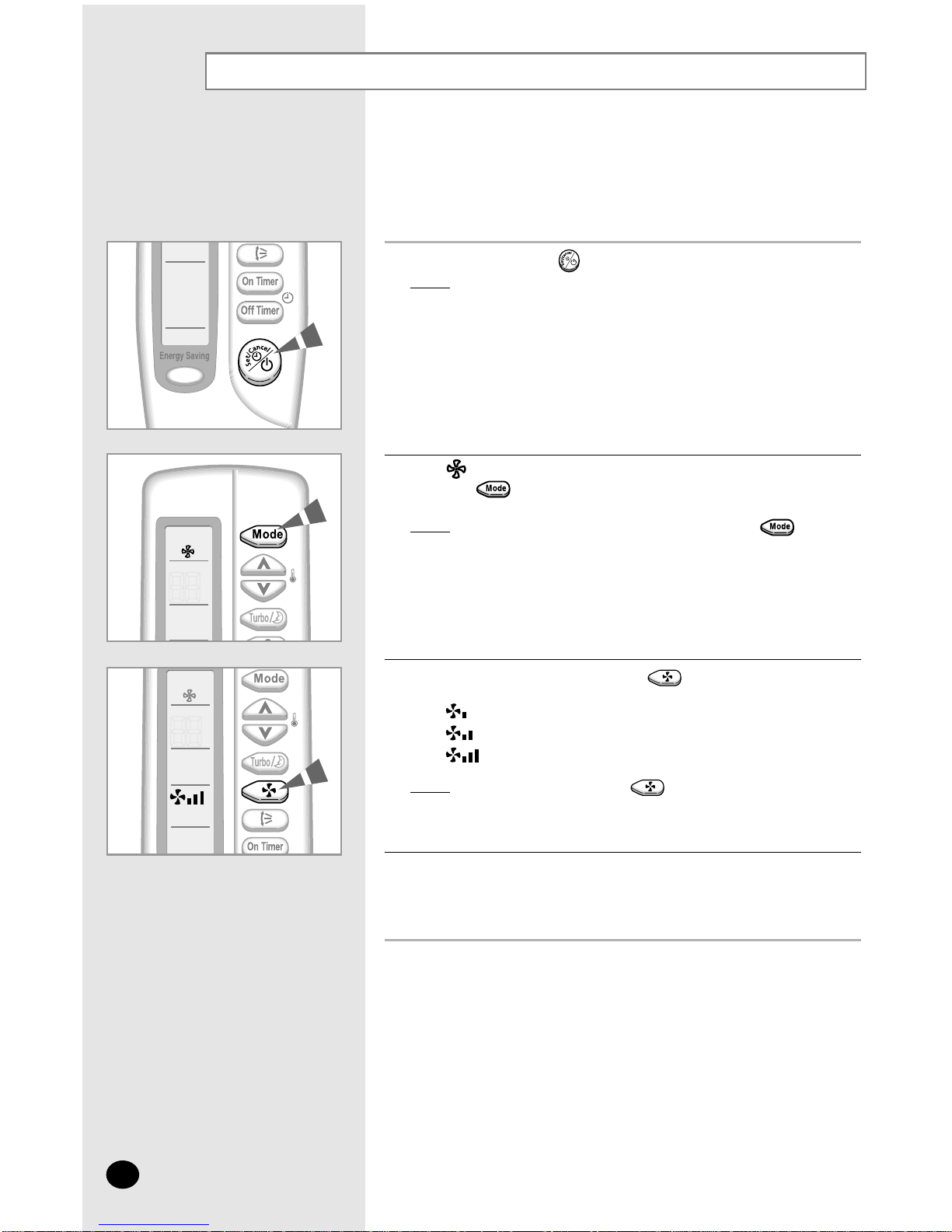

Select the fan speed by pressing the button one or more times
until the required setting is displayed:
Automatic (rotated : )
Low
Medium
High
Turbo (maximum)
Result: Each time you press the button, the indoor unit
beeps.
4
To control the direction of the air flow, refer to pages 16 and 17.
5
You must select the Cool mode if you wish to adjust the:
◆Cooling temperature
◆Fan speed when cooling
E-10

Heating Your Room
E-11
ENGLISH
You must select the Heat mode if you wish to adjust the:
◆Heating temperature
◆Fan speed when heating
1If necessary, press the (On/Off) button.
Result:◆
The operation indicator on the indoor unit lights up.
◆The air conditioner starts up in the mode selected when
the unit was last used.
◆The indoor unit beeps.
The air conditioner is fitted with a protection mechanism
to prevent the unit from being damaged when it is started
immediately after being:
◆Plugged in
◆Stopped
It will start up normally after three minutes.
2If the is not displayed at the top of the remote control, press the
button on the remote control one or more times until it appears.
Result:◆
The indoor unit beeps each time you press the button.
◆ The air conditioner runs in HEAT mode.
NN
NNoo oott ttee eeYou can change modes at any time.
3To adjust the temperature, press the button one or more times
until the required temperature is displayed.
Possible temperatures are between 16°C and 30°C inclusive.
Result:◆Each time you press the button:
- The temperature is adjusted by 1°C
- The indoor unit beeps
◆The air conditioner starts heating, provided that the room
temperature is lower than the desired temperature
(selected temperature+3°C).
◆If the room temperature reaches the set temperature, the air
conditioner stops heating, but the fan is still operating.
4Select the fan speed by pressing the button one or more times
until the required setting is displayed:
Automatic (rotated : )
Low
Medium
High
Result:◆
Each time you press the button, the indoor unit beeps.
◆ For the first three to five minutes, the fan operates very
slowly until the air has been sufficiently warmed. Once the
correct temperature has been reached, the fan is automatically
set to the required speed.
5To control the direction of the air flow, refer to pages 16 and 17.
IMPORTANT

Changing the Room Temperature Quickly
The Turbo cooling/heating function is used to cool or heat your room as
quickly as possible.
EE
EExx xxaa aamm mmpp ppll llee ee : You have just come home and find that the room is very
hot. You wish to cool it down as quickly as possible.
The Turbo function operates for 30 minutes with the maximum settings before
returning automatically to the mode and temperature previously selected.
1 If necessary, press the (On/Off) button.
Result:◆The operation indicator on the indoor unit lights up.
◆The air conditioner starts up in the mode selected when the unit
was last used.
◆The indoor unit beeps.
2 Press the button.
Result:◆The temperature and fan settings are adjusted automatically.
◆The air conditioner cools or heats the room as quickly as possible.
◆After 30 minutes, the air conditioner is reset automatically to the
previous mode, temperature and fan settings.
But, if you press the button in DRY or FAN mode,
it will change to AUTO mode automatically.
3 If you wish to stop the Turbo function before the end of the 30-minute period,
press the button one or more times until or disappears.
Result: The air conditioner is reset automatically to the previous mode,
temperature and fan settings.
4 To control the direction of the air flow, refer to pages
16 and 17.
E-12

Removing Excess Humidity
E-13
ENGLISH
If the atmosphere in your room is very humid or damp, you can
remove excess humidity without lowering the room temperature too
much.
1If necessary, press the (On/Off) button.
Result:◆
The operation indicator on the indoor unit lights up.
◆The air conditioner starts up in the mode selected when
the unit was last used.
◆The indoor unit beeps.
The air conditioner is fitted with a protection mechanism
to prevent the unit from being damaged when it is started
immediately after being:
◆Plugged in
◆Stopped
It will start up normally after three minutes.
2If the is not displayed at the top of the remote control, press the
button on the remote control one or more times until it appears.
Result:◆
The indoor unit beeps each time you press the button.
◆ The air conditioner runs in DRY mode.
NN
NNoo oott ttee eeYou can change modes at any time.
3To adjust the temperature, press the button one or more times
until the required temperature is displayed.
Possible temperatures are between 18°C and 30°C inclusive.
Result:◆Each time you press the button:
- The temperature is adjusted by 1°C
- The indoor unit beeps
◆The air conditioner starts removing the excess humidity;
the quantity of air is adjusted automatically.
4To control the direction of the air flow, refer to pages 16 and 17.
IMPORTANT

Airing Your Room
If the atmosphere in your room is stale, you can air the room using
the Fan feature.
1If necessary, press the (On/Off) button.
Result:◆
The operation indicator on the indoor unit lights up.
◆The air conditioner starts up in the mode selected when
the unit was last used.
◆The indoor unit beeps.
2If the is not displayed at the top of the remote control,
press the button on the remote control one or more times until it
appears.
Result:◆
The indoor unit beeps each time you press the button.
◆ The air conditioner runs in FAN mode.
◆ The temperature is set automatically.
NN
NNoo oott ttee eeYou can change modes at any time.
3Select the fan speed by pressing the button one or more times
until the required setting is displayed:
Low
Medium
High
Result: Each time you press the button, the indoor unit beeps.
4To control the direction of the air flow, refer to pages 16 and 17.
E-14

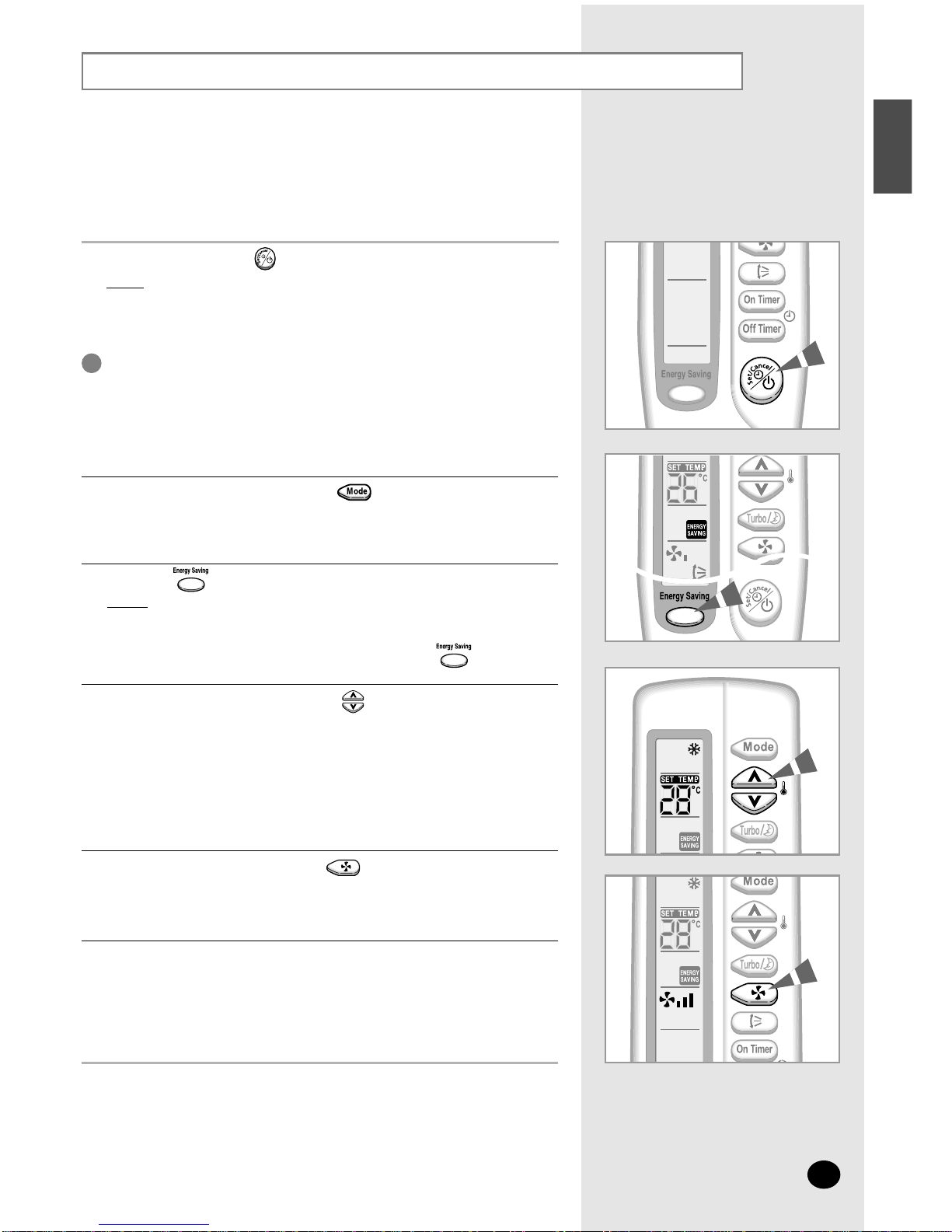

Selecting Energy Saving Mode
If you wish to save energy when using your air conditioner, select the
Energy saving mode with the Energy saving button.
3Press the button.
Result:◆
The indoor unit beeps.
◆ The air conditioner runs in the Energy saving mode.
◆ The outer air flow blade moves up and down.
◆ To stop the Energy saving mode, press the again.
4To adjust the temperature, press the button one or more times
until the required temperature is displayed. Possible temperatures are
between 26°C and 30°C inclusive.
NN
NNoo oott ttee eeIf you want to adjust temperature under 26°C, cancel the
Energy saving mode before adjusting the temperature.
6To control the direction of the air flow, refer to pages 16 and 17.
5To select the fan speed, press the button one or more times until
the required setting is displayed.
E-15
ENGLISH
1If necessary, press the (On/Off) button.
Result:◆The operation indicator on the indoor unit lights up.
◆The air conditioner starts up in the mode selected
when the unit was last used.
◆The indoor unit beeps.
The air conditioner is fitted with a protection mechanism to
prevent the unit from being damaged when it is started
immediately after being:
◆Plugged in
◆Stopped
lt will start up normally after three minutes.
IMPORTANT
2Select COOL mode by pressing the button.
NN
NNoo oott ttee ee
You can select the Energy saving mode only in the COOL mode.

Adjusting the Air Flow Direction Vertically
Depending on the position of the indoor unit on the wall of your room,
you can adjust the position of the outer air flow blade on the bottom
of the unit, thus increasing the efficiency of the air conditioner.
1Press the button one or more times as required.
Result: The outer blade is adjusted vertically.
RECOMMENDATION When... Adjust the blade to face...
Cooling Upwards.
Heating Downwards.
2If you want the blade to move up and down automatically when the air
conditioner is operating, press the button.
Result: The blade move up and down, around the base position set.
3
To stop the blade moving up and down, press the button again.
NN
NNoo oott ttee eeIf you switch the air conditioner... Then the blade is...
Off Closed completely.
On again Set to the initial position powered.
E-16

Adjusting the Air Flow Direction Horizontally
There are two sets of inner air flow blades. Just as the outer air flow
blade can be adjusted vertically, the inner blades can be adjusted
horizontally.
1Adjust each set of inner blades to the required position, by pushing or
pulling them sideways.
E-17
ENGLISH

Setting the On Timer
If you want to turn on the air conditioner before the timer reaches
the setting time, press the (On/Off) button.
NN
NNoo oott ttee ee
The On Timer enables you to switch on the air conditioner automatically
after a given period of time. You can set the period of time from
30 minutes to 24 hours.
To set the operating time, press the button one or more times until
the required time is displayed. Possible time is between 0.5 hour and
24 hours inclusive.
1
Press the (Set/Cancel) button to complete the setting.
Result: ◆The remaining time is displayed.
◆Blinking of the timer indicator stops.
◆The selected mode and the temperature on the display
disappear after 10 seconds.
◆The air conditioner will switch on automatically when the
counter displayed on the remote control reaches the set time
and disappears the On timer setting.
2
To cancel the On Timer, press the button one or more times until the
timer setting disappears.
1
Press the (Set/Cancel) button.2
To Cancel the On Timer
E-18
To select an operating mode in advance, press the button until the
desired mode is displayed at the top of the remote control.
Result: The air conditioner will run in the selected mode when it is
turned on.
3

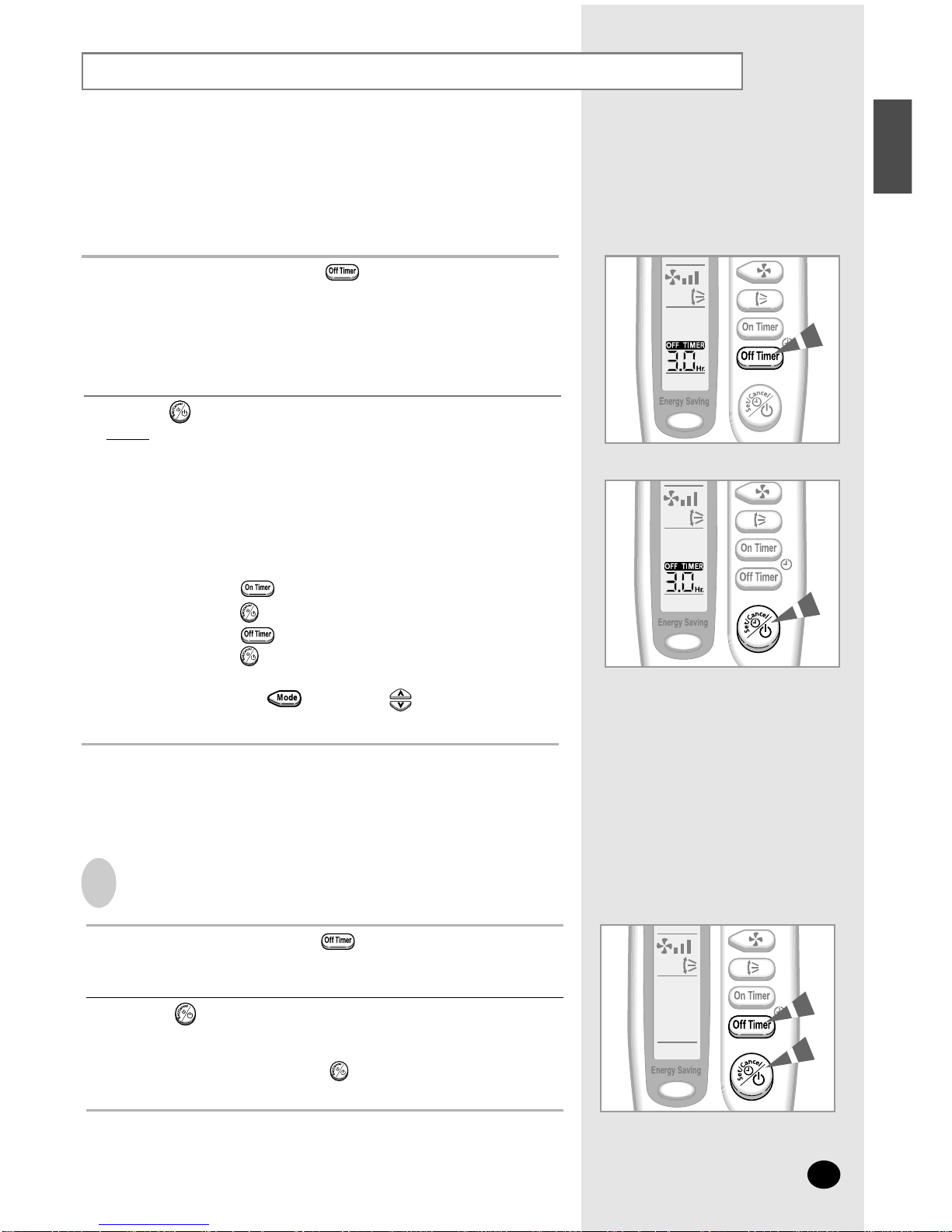

Setting the Off Timer
The Off Timer enables you to switch off the air conditioner automatically
after a given period of time. You can set the period of time from
30 minutes to 24 hours.
To set the operating time, press the button one or more times until
the required time is displayed. Possible time is between 0.5 hour and
24 hours inclusive.
1
You can see or change the setting mode and/or the temperature
by pressing the button or the button after setting the
Off timer.
NN
NNoo oott ttee ee
Press the (Set/Cancel) button to complete the setting.
Result: ◆The remaining time is displayed.
◆Blinking of the timer indicator stops.
◆The air conditioner will switch off automatically when the
counter displayed on the remote control reaches the set time
and disappears the Off timer setting.
2
If you would like to turn the air conditioner on after 2 hours
and to operate it for 2 hours:
1. Press the button until ‘2.0 Hr’ is displayed.
2. Press the (Set/Cancel) button.
3. Press the button until ‘4.0 Hr’ is displayed.
4. Press the (Set/Cancel) button.
EE
EExx xxaa aamm mmpp ppll llee ee
If you want to turn off the air conditioner before the timer reaches
the setting time, press the (On/Off) button.
NN
NNoo oott ttee ee
To cancel the Off Timer, press the button one or more times until the
timer setting disappears.
1
Press the (Set/Cancel) button.2
To Cancel the Off Timer
E-19
ENGLISH

Setting the Sleep Timer
The Sleep Timer can be used when you are cooling or heating your
room to switch the air conditioner off automatically after a period of
6 hours.
NN
NNoo oott ttee eeIf you wish to switch the unit off at a specific time,
refer to page 19.
1Make sure that you have selected either COOL or HEAT mode.
2Press the button one or more times until appears on the
remote control.
Result:◆The indoor unit beeps.
◆The air conditioner will be controlled as indicated in the
illustrations below.
Cooling The desired temperature is
increased by 1°C every hour.
When it has been increased
by 2°C (after 2 hours), the
temperature is maintained for
four hours.
Heating The desired temperature is
decreased by 1°C every hour.
When it has been decreased
by 2°C (after 2 hours), the
temperature is maintained for
four hours.
To Cancel the Sleep Timer
If you no longer wish to use the Sleep Timer that you have set, you
can cancel it at any time.
Press the button.
Result:◆The indoor unit beeps.
◆The is no longer displayed.
◆The air conditioner operates normally.
E-20
