Samsung EH035CAV User manual

EH035EAV_IB_E_25806 3/23/06 9:48 AM Page 17
HSILGNE
LOÑAPSE
E S F DB98-27565A(1)
Slim Ducted Type Air Conditioner
(Cooling and Heating)
USER’S MANUAL
EH035CAV
EH052CAV
EH070CAV
UH035CAV
UH052CAV
UH070CAV
EH035EAV_IB_E_25806 3/23/06 9:48 AM Page 17
Indoor Unit Outdoor Unit
HSILGNE
LOÑAPSE
SIAÇNARF

E-2
Safety Precautions
The following safety precautions must be taken when using your air conditioner.
◆Users of this product are cautioned not to attempt repair of this product
at their own discretion. Instead, they are requested to directly contact a
designated service center or the outlet at which the product was
purchased.
◆Never spill any kind of liquid into the unit. Should this happen, unplug
or main switch off the unit and contact an authorized service center.
◆Do not insert anything between the air outlet blades because the inner
fan may be damaged and could cause injury. Keep children away from
the unit.
◆Do not place any obstacles in front of the unit.
◆Do not spray liquid of any kind into the indoor unit. Should this happen,
switch off the breaker used for your air conditioner and contact your
installation specialist.
◆Make sure that the unit is correctly ventilated at all times:
Do not place clothing or other materials over it.
◆If the wireless remote control will not be used for a long time, remove
the batteries. (If applicable)
◆When using a wireless remote control, the distance should not be more
than 7 meters from the air conditioner. (If applicable)
WARNING
DURING OPERATION
◆Never store or ship the air conditioner upside down or sideways to
avoid damage to the compressor.
◆The appliance is not intended for use by young children or infirm
persons without supervision: Young children should be supervised to
ensure that they do not play with the appliance.
◆Max current is measured according to IEC standard for safety and
current is measured according to ISO standard for energy efficiency.
OTHERS
◆Before throwing out the device, it is necessary to pull back the battery
cells and get rid of them safely for recycling reasons.
◆When you need to dispose of the unit, consult your dealer. If pipes are
removed incorrectly, refrigerant may blow out and come into contact
with your skin, causing injury. Releasing refrigerant into the atmosphere
also damages the environments.
◆Please recycle or dispose of the packaging material for this product in
an environmentally responsible manner.
D ISPOSING OF THE UNIT
• Risk of electric shock can cause injury or death. • Disconnect all remote
electric power supplies before servicing, installing or cleaning.
• This must be done by the manufacturer or its service agent or a similar
qualified person in order to avoid a hazard.
Register your product at www.samsung.com/global/register
EH035EAV_IB_E_25806 3/23/06 9:48 AM Page 2

E-3
ENGLISH
Contents
P REPARING YOUR AIR CONDITIONER
Safety Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
View of the Unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Wireless Remote Controller-Buttons and Display . . . . . . . . . . . 6
The Receiver & Display Unit . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Wired Remote Controller-Buttons and Display . . . . . . . . . . . . . 8
R ECOMMENDATIONS FOR USE
Operating Recommendations . . . . . . . . . . . . . . . . . . . . . . . . . 9
Temperature and Humidity Ranges . . . . . . . . . . . . . . . . . . . . 10
Cleaning Your Air Conditioner . . . . . . . . . . . . . . . . . . . . . . . . . 11
Solving Common Problems . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Correct Disposal of This Product
(Waste Electrical & Electronic Equipment)
(Applicable in the European Union an other European countries with separate collection systems)
This marking shown on the product or its literature, indicates that it should not be disposed with other household
wastes at the end of its working life. To prevent possible harm to the environment or human health from uncontrolled
waste disposal, please separate this from other types of wastes and recycle it responsibly to promote the sustainable
reuse of material resources.
Household users should contact either the retailer where they purchased this product, or their local government
office, for details of where and how they can take this item for environmentally safe recycling.
Business users should contact their supplier and check the terms and conditions of the purchase contract.
This product should not be mixed with other commercial wastes for disposal.
EH035EAV_IB_E_25806 3/23/06 9:48 AM Page 3

E-4
View of the Unit
The figures are shown in this instruction may differ from yours depending on the model.
Air
inlet
Air
outlet
Air
inlet
Air
outlet
Indoor Unit
✴✴052/070✴✴
Indoor Unit
✴✴035✴✴
EH035EAV_IB_E_25806 3/23/06 9:48 AM Page 4

E-5
ENGLISH

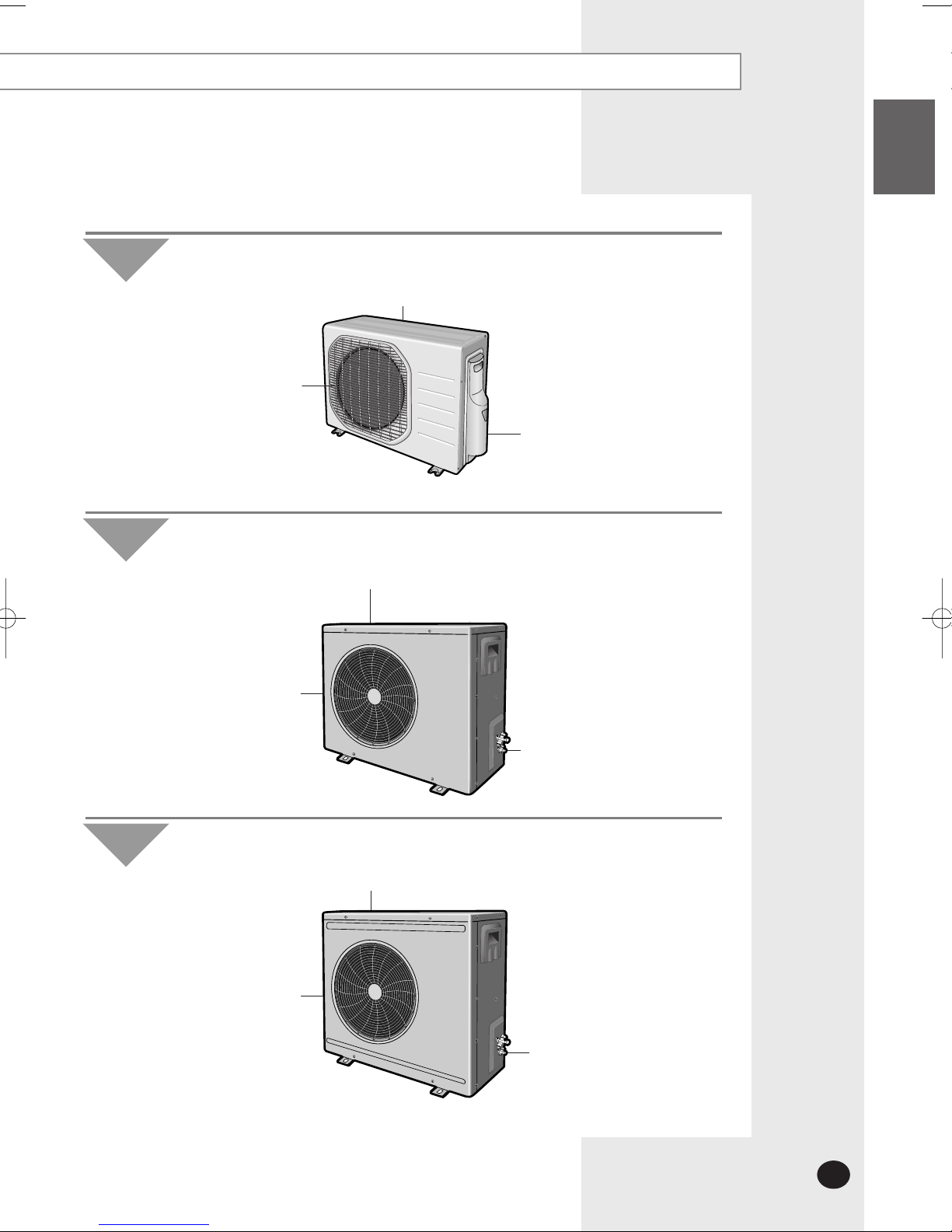

Air Inlet(Rear)
Air Outlet
Connection Valve
Outdoor Unit
✴✴035✴✴
Air Inlet(Rear)
Air Outlet
Connection Valve
Air Inlet(Rear)
Air Outlet
Connection Valve
Outdoor Unit
✴✴052✴✴
Outdoor Unit
✴✴070✴✴
EH035EAV_IB_E_25806 3/23/06 9:48 AM Page 5

E-6
Wireless Remote Controller-Buttons and Display
◆After cleaning the air filter, press the button.
◆Duct type air conditioner does not have function of adjusting air flow direction.
Therefore, the function is not operated even if you press the button.
NN
NNoo oott ttee ee
Operating mode Mode selection button
Filter Reset button
Swing button (Not operated)
On Timer button
Off Timer button
On/Off & Timer
Set/Cancel button
Fan speed adjustment
button
Temperature adjustment
buttons
Temperature setting
Fan speed
On Timer setting
Off Timer setting
Battery discharge indicator
The wireless remote controller is an optional accessory.
To use the wireless remote controller, refer to an appropriate manual.
Air flow direction
EH035EAV_IB_E_25806 3/23/06 9:48 AM Page 6

E-7
ENGLISH

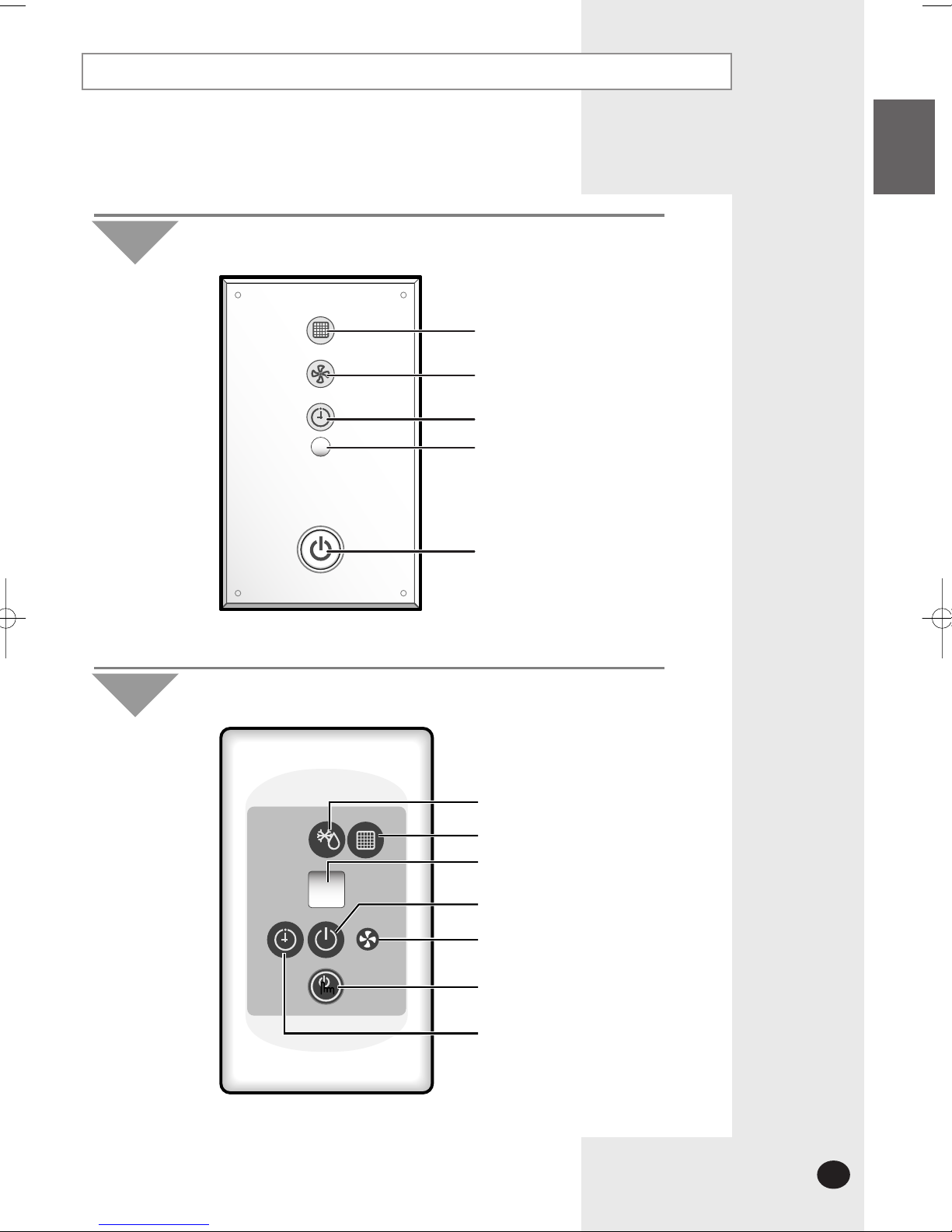

The Receiver & Display Unit
The Receiver & Display unit is an optional accessory and it is installed on the wall.
To use the receiver & display unit, refer to an appropriate manual.
Filter sign indicator
Fan indicator
Timer indicator
Remote control sensor
On/Off indicator(Blue) &
Removing frost
indicator(Red)
Concealed Type
Fan indicator
Filter sign indicator
On/Off indicator
Removing frost indicator
Timer indicator
Remote control sensor
On/Off button
Standard Type
EH035EAV_IB_E_25806 3/23/06 9:48 AM Page 7

E-8
Wired Remote Controller-Buttons and Display
To use the wired remote controller, refer to an appropriate manual.
◆The button is for your installation specialist. You must NOT press it.
◆After cleaning the air filter, press the button. Then the wired remote
controller will display the FILTER SIGN indicator when the time to clean the air filter;
refer to page 13.
◆Duct type air conditioner does not have function of adjusting air flow direction.
Therefore, the function is not operated even if you press the button.
NN
NNoo oott ttee ee
Mode selection button
Communication
error indicator
On Timer setting
Off Timer setting
Test indicator
Timer Set/Cancel button
Test button
Temperature adjustment
buttons
Removing frost indicator
Operating mode
Centralized controller indicator
(In case of installing the Centralized controller)
Filter Reset button
Swing button
(Not operated)
Temperature setting
Fan speed
Air flow direction
Filter Sign indicator
On/Off button
Fan speed
adjustment button
On/Off indicator
On Timer button
EH035EAV_IB_E_25806 3/23/06 9:48 AM Page 8

E-9
ENGLISH
Here are a few recommendations that you should follow when operating
your air conditioner.
Topic Recommendation
The heat pump function of the air conditioner absorbs heat
from outside air and brings it indoors. As the temperature of the
outside air drops, the heating performance of air conditioner will
decrease. If you find that the room is not warm enough, using
an additional heating appliance is recommended.
Heating
performances
When outside temperature is low but humidity is high,
frost may form on the outdoor unit at HEAT mode.
If this happens:
◆ The heating operation stops.
◆ The defrost mode will be triggered automatically for 3 to
14 minutes.
No intervention is required ; after about 7 minutes, the air
conditioner operates again normally.
Frost
If both indoor and outdoor temperatures are high and the air
conditioner is running at HEAT mode, the outdoor unit’s fan
and compressor may stop at times.
This is normal ; simply wait until the air conditioner switches
on again.
High indoor
and outdoor
temperatures
If a power failure occurs while the air conditioner is operating,
the unit will be switched off. When the power returns, the air
conditioner starts up again automatically.
Power failure
The indoor unit may not get the selected fan speed such as
Medium and Low under cooling operation at very low outdoor
temperatures for protecting the indoor unit from ice or frost.
During Low fan speed operation, cooling performance will be
reduced.
If the room does not cool down when using Low fan speed
operation, please adjust the indoor unit’s fan speed.
Cooling
operation
Operating Recommendations
EH035EAV_IB_E_25806 3/23/06 9:48 AM Page 11

E-10
Temperature and Humidity Ranges
The following table indicates the temperature and humidity ranges,
within which the air conditioner can be used.
If the air conditioner is used at... Then...
The automatic protection feature may be
triggered and the air conditioner stopped.
High temperature
A water leakage or some other
malfunction may happen if the heat
exchanger freezes.
Low temperature
Water may condense on and drip from
the surface of the indoor unit if it is used
for a long periods.
High humidity levels
If the outdoor temperature is as low as 0°C, the heating capacity drops
up to 70~80% depending on the operating condition.
If you use the air conditioner over 32°C(indoor temperature), the cooling
capacity may drop.
Mode Outdoor Temperature Indoor Temperature Indoor Humidity
Heating
Cooling
Drying
14°F to 75°F
23°F to 109°F
23°F to 109°F
80°F or less
64°F to 89°F
64°F to 89°F
-
80% or less
-
EH035EAV_IB_E_25806 3/23/06 9:48 AM Page 12

E-11
ENGLISH
For the best use of your air conditioner, you must clean it every 2 weeks
regularly to remove the dust that accumulates on the air filter.
Before cleaning your air conditioner, ensure that you have
switched off the electric circuit breaker used for the unit.
Turn the levers to the right or left not to prevent pulling out the air
filter.(✴✴035✴✴)
Pull the air filter to the right or left as you want.(✴✴052/070✴✴)
1
Pull out the air filter.
2
Remove all dust on air filter with a vacuum cleaner or a brush. In case of
serious dust accumulation, put the air filter in warm detergent water and
shake it vertically.
3
Dry the air filter.
4
When you have finished, insert the filter into the unit.
5
CC
CCAA AAUU UUTT TTII IIOO OONN NN
◆After cleaning the air conditioner,press the Filter Reset button.
◆Do not operate the air conditioner without the filter.
NN
NNoo oott ttee ee
Cleaning Your Air Conditioner
✴✴ 052/070 ✴✴
035 (Optional)
(Optional)
052/070
EH035EAV_IB_E_25806 3/23/06 9:48 AM Page 13

E-12
Solving Common Problems
Before contacting the after-sales service, perform the following simple checks.
They may save your time and expense of an unnecessary call.
Explanation/Solution
◆Check that the breaker used for the air conditioner is switched on.
Problem
The air conditioner does not
operate at all
◆Check that there are no obstacles between you and the remote
control sensor.
◆Check the wireless remote controller batteries.
◆Check that you are close enough to the remote control sensor.
(7 metres/ yards or less).
◆Check that you are pointing the remote controller at the remote
control sensor of the receiver & display unit.
◆Replace the remote controller batteries if necessary.
◆Check that the correct operating mode has been selected.
◆The room temperature may be too low or too high.
◆Dust may be blocking the air filter guard; refer to page 11
for cleaning instructions.
◆Check that there is no obstacle in front of the outdoor unit.
The air conditioner does not
operate with the remote
controller
Wireless Remote Controller
Wireless Remote Controller
No beep is heard when you
press (On/Off) on the
remote controller
The air conditioner does
not cool or heat
◆ is displayed on the wired remote controller. In this case,
turn the air conditioner off and contact your dealer.
Wire Remote Controller
The air conditioner does not
operate with the remote
controller
◆In case of using the wired remote controller for a group, the air
conditioners connected to the remote controller are turned on/off in
order. Thus, it takes some time(up to 32 seconds).
Wire Remote Controller
When turning on/off the air
conditioner, it is not turned
On/Off immediately.
◆Check that the required temperature has been set correctly.
◆Increase the fan speed.
When heating, the required
room temperature is never
reached and the air
conditioner frequently stops
EH035EAV_IB_E_25806 3/23/06 9:48 AM Page 14

E-13
ENGLISH
Memo
EH035EAV_IB_E_25806 3/23/06 9:48 AM Page 15

Printed in Korea
ELECTRONICS
If you have any comments or questions regarding Samsung products,
contact the SAMSUNG customer care center.
Samsung Electronics America, Inc.
1-800-SAMSUNG (7267864)
www.samsung.com
AQB09JJWC IB_E_DB98-25865 2006.3.27 8:24 PM Page 26
