Samsung MOK-100LA User manual

System Air conditioner
Installation manual
LAC KIT (LOW AMBIENT COOLING KIT) MOK-100LA
• Before installation, be sure to read Safety Information.
• When the product is used in other countries, we do not guarantee the quality of the product.
DB68-06398A-01_IM_ACC 옵션 저온냉방 Kit_AA_EN_.indd 1DB68-06398A-01_IM_ACC 옵션 저온냉방 Kit_AA_EN_.indd 1 2022-09-08 오후 1:53:012022-09-08 오후 1:53:01

2
Safety Information 3
Part Names and Components 6
Assy Control Kit 6
Components 6
Installing LAC KIT 7
Assembling the Assy Control Kit and Low Ambient Damper 7
Construction of outdoor unit and low ambient cooling kit 10
The fully assembly apperance 11
Installation Environment for Low Ambient Cooling Kit 19
How to Install the Low Ambient Cooling Kit Damper 20
Connecting the Low Ambient Cooling Kit to the Outdoor Unit 21
Configuring the options of the outdoor unit for installation of LAC KIT 23
Cautions for LAC KIT (Low ambient cooling kit) 24
Features of LAC KIT (Low ambient cooling kit) 25
Setting the address 25
Inspection after installation of LAC KIT 26
Checking the version of LAC KIT 27
Contents
DB68-06398A-01_IM_ACC 옵션 저온냉방 Kit_AA_EN_.indd 2DB68-06398A-01_IM_ACC 옵션 저온냉방 Kit_AA_EN_.indd 2 2022-09-08 오후 1:53:022022-09-08 오후 1:53:02

3
Safety Information
California Proposition 65 Warning (US)
WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov.
WARNING
Before installation, maintenance, and cleaning, be sure to cut
off the power supply.
The installation shall be conducted by the dealer or qualified
personnel.
• If installed by a unqualified person, it may cause leaks,
electric shock, or fire.
Be sure to install the product by following the instructions in
this manual.
• If not installed properly, it may cause leaks, electric shock,
or fire.
The LAC KIT manufacturer does not assume any responsibility
for losses or damages caused by careless installation or
installation by a unqualified person.
For installation, be sure to use the provided parts and the
specified parts and tools.
• If the specified tools are not used, it may cause a fall of the
product, leaks, electric shock, or fire.
If the power cable is damaged, be sure to let the cable
replaced by the manufacturer, service engineer, or person
with equivalent qualification.
DB68-06398A-01_IM_ACC 옵션 저온냉방 Kit_AA_EN_.indd 3DB68-06398A-01_IM_ACC 옵션 저온냉방 Kit_AA_EN_.indd 3 2022-09-08 오후 1:53:022022-09-08 오후 1:53:02

4
The electrical work shall be conducted by the qualified
personnel after following Technical Standards for Electrical
Equipment, Extension Regulations, and Installation Manual.
Additionally, be sure to follow the electrical specifications.
• The voltage drop, lack of voltage supply, inadvertent power
work, and use of unspecified wires may cause electric shock
or fire.
When wiring the power connection between LAC KIT and
outdoor units, the lines must be fixed not to allow movement
of structures such as cover of electrical unit. In addition, be
sure to fix the cover of electrical unit onto the product.
• If the cover of electrical unit is not securely fixed, it may
cause heating of connectors, electric shock, or fire.
For wiring, be sure to use the specified lines and firmly fix
them not to allow any external force to the connectors.
• Insecure connection and fixing may cause heating or fire.
Be cautious not to exceed the power limit of LAC KIT or supply
power less than the minimum voltage.
• Damage or dysfunction of any electrical part may cause
product failure.
Be sure to use the power cable made of copper and use only
the rated parts.
Then check the wiring status.
• It may cause fire due to heating.
Safety Information
DB68-06398A-01_IM_ACC 옵션 저온냉방 Kit_AA_EN_.indd 4DB68-06398A-01_IM_ACC 옵션 저온냉방 Kit_AA_EN_.indd 4 2022-09-08 오후 1:53:022022-09-08 오후 1:53:02

5
CAUTION
Be sure to conduct ground work.
• The ground wire shall not contact the following: gas pipes,
water pipes, lightning rod, and telephone grounding wire.
• An incomplete grounding may cause electric shock.
Be sure to place the power and communication lines of LAC
KIT at least 1 m apart from other electronic devices and at
least 2 m apart from the lightning rod's down conductor.
• Note that noise may occur even in the distance over 1 m
depending on the radio interference status.
Do not install the product in the following places:
• The place is filled with mineral oil, scattering oil, or steam
(e.g. kitchen): Heated resin parts may cause fall of the
product or leaks.
• The place generates corrosive gases such as sulfur dioxide
(e.g. Room with vents): Corrosion of copper pipes and joints
may cause refrigerant leak.
• There is equipment that generates electromagnetic waves:
Abnormal operation may be resulted due to malfunction of
the controller.
• Flammable gases may leak, carbon fiber dust or flammable
gas is floating, and volatile matters such as thinner and
gasoline are used: Leak gas may reside in the main valve,
which may cause a fire.
• In the place, an indoor unit may be corroded. (e.g. shore,
spa, etc.)
• The place is directly affected by external factors
(temperature, humidity, dust, etc.).
ÚInstallation-related claims caused by non-compliance with
above requirements are on your own responsibility.
(Service cost must be paid by you.)
DB68-06398A-01_IM_ACC 옵션 저온냉방 Kit_AA_EN_.indd 5DB68-06398A-01_IM_ACC 옵션 저온냉방 Kit_AA_EN_.indd 5 2022-09-08 오후 1:53:022022-09-08 오후 1:53:02

6
Assy Control Kit
Part Names and Components
02
03
01
Components
Name Body Communication Cable Power Cable
Amount 1 1 1
Shape
Name Cable Tie Installation Manual Grounding Screw Connection Cable
Amount 5 1 1 2
Shape
01 MAIN PBA
02 SMPS PBA
03 TERMINAL BLOCK
DB68-06398A-01_IM_ACC 옵션 저온냉방 Kit_AA_EN_.indd 6DB68-06398A-01_IM_ACC 옵션 저온냉방 Kit_AA_EN_.indd 6 2022-09-08 오후 1:53:022022-09-08 오후 1:53:02

7
Installing LAC KIT
Assembling the Assy Control Kit and Low Ambient Damper
1. Connect the actuator to TRANS.
– Place the actuator and TRANS on the Assy controller kit as shown in the figure and then
fix them on the plate with bolts, nuts, and screws.
Note
• Assemble them with the same alignment and rotation for the actuator as the figure below.
If its alignment and rotation are not correct, it may cause malfunction.
CW
CW
Note
• The direction of the actuator can be changed as follows:
ÚBefore installation on field, it must be assembled.
DB68-06398A-01_IM_ACC 옵션 저온냉방 Kit_AA_EN_.indd 7DB68-06398A-01_IM_ACC 옵션 저온냉방 Kit_AA_EN_.indd 7 2022-09-08 오후 1:53:032022-09-08 오후 1:53:03

8

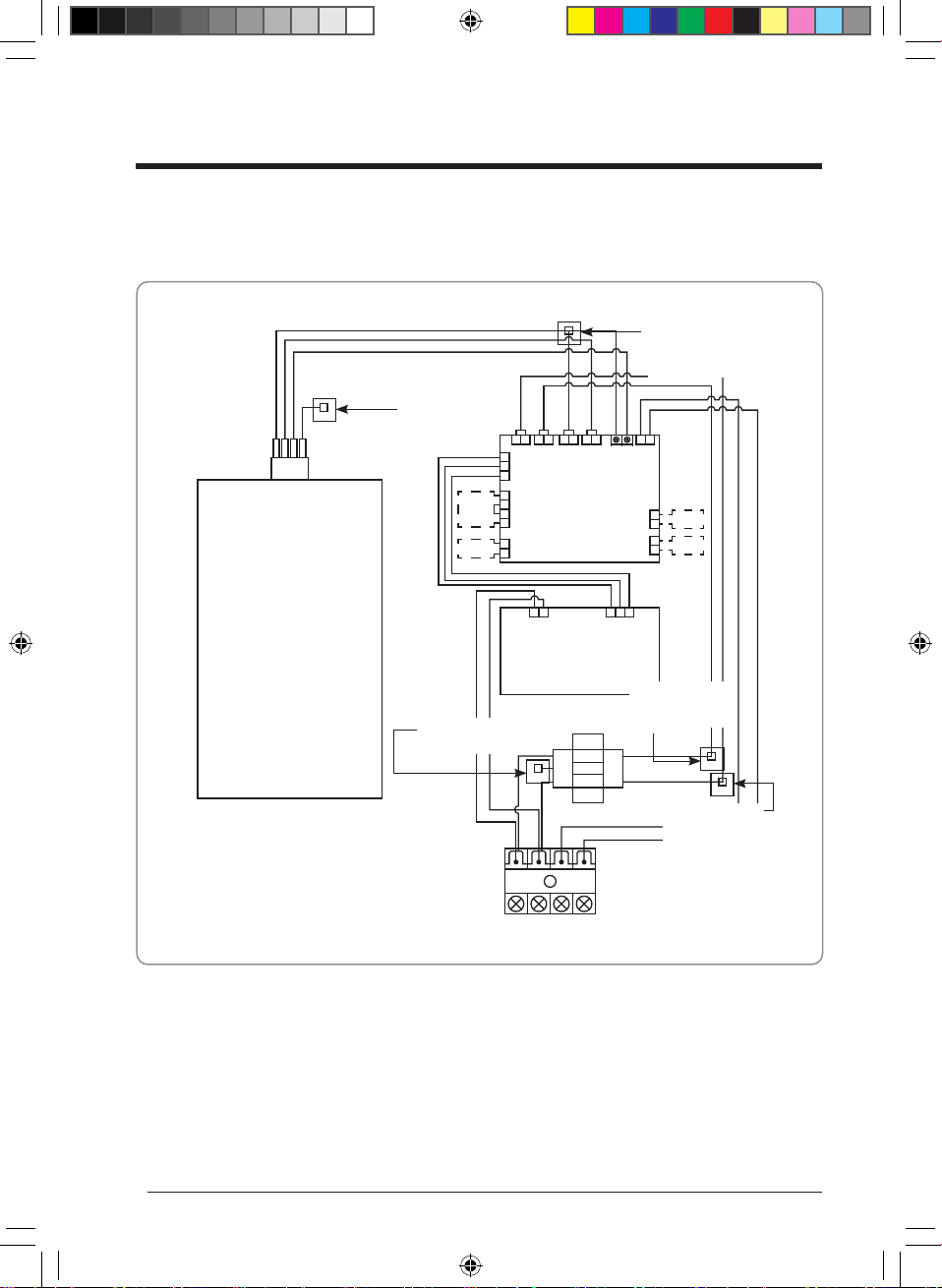

2. Connect the actuator to TRANS.
1
1
1235
2
2
1
2
1
3
1
2
3
4
1
2
212 12 12 21
21 1 2 3
DAMPER
ACTUATOR SMPS PBA
CONTROL
PBA
TRANS
1(L) 212(N)
EXTERNAL
OUTPUT TEMP
SENSOR2
TEMP
SENSOR1
CN801
(RED)
CN805 CN804 CN806 CN803 CN802 CN301
(RED)
CN402
(WHT)
CON01
(WHT)
CON02
(WHT)
CN401
(WHT)
CN81
(RED)
CN83
(RED)
EXTERNAL
INPUT
Connect it after
removing the
wire coating.
Connect it after
removing the
wire coating.
Connect it after
removing the
wire coating.
with the
OPEN finish
with the
OPEN finish
Installing LAC KIT
DB68-06398A-01_IM_ACC 옵션 저온냉방 Kit_AA_EN_.indd 8DB68-06398A-01_IM_ACC 옵션 저온냉방 Kit_AA_EN_.indd 8 2022-09-08 오후 1:53:032022-09-08 오후 1:53:03

9
3. Assemble the control box and the control kit.
<Control box specification determinants>
• The control kit must be taken into the
control box. (Check the fitting holes.)
• The UL certification must be acquired.
• When the louver actuator shaft enters into
the box, prevent water penetration. (Use a
bushing and such.)
• When assembling the control kit, use the
boss with12 mm or above in size.
(The heat transfer distance between the
control kit and control box must be 12 mm
or above.)
SCREW X 4 EA
2
10 3/8
95/8
113/16
75/8
31/2
813/16
4. Assemble the damper and Assy control box.
CW
LOUVER
SHAFT
NUT
FULL OPEN
Louver
Damper
WARNING
• When assembling the damper and Assy control box, be sure to fix the shaft and actuator (Nut x2)
in the louver in fully open state.
DB68-06398A-01_IM_ACC 옵션 저온냉방 Kit_AA_EN_.indd 9DB68-06398A-01_IM_ACC 옵션 저온냉방 Kit_AA_EN_.indd 9 2022-09-08 오후 1:53:032022-09-08 오후 1:53:03

10
Construction of outdoor unit and low ambient cooling kit
Components of Low Ambient Cooling Kit for the Outdoor Unit
Model Number Position Type
LACH-SL Low Ambient Cooling Hood - Small (chassis) Left
LACH-SR Low Ambient Cooling Hood - Small (chassis) Right
LACH-R1 Low Ambient Cooling Hood - Rear 1 (Small chassis)
LACH-R2 Low Ambient Cooling Hood - Rear 2 (Large A type chassis)
LACH-SLR Low Ambient Cooling Hood - Left/Right (Large B type chassis)
LACH-R3 Low Ambient Cooling Hood - Rear 3 (Large B type chassis)
LACH-F1 Low Ambient Cooling Hood - Front 1 (Large A type chassis)
LACKD-1
(= LACH-1)
Low Ambient Cooling Kit Damper-1(Small chassis)
(Low Ambient Cooling Hood-1 (Small chassis))
LACKD-2
(= LACH-2)
Low Ambient Cooling Kit Damper-2 (Large A,B type chassis)
(Low Ambient Cooling Hood-2 (Large A,B type chassis)
LACH-SL-B
Low Ambient Cooling Hood - Left(S2 Small, S2 Large, S2 X-Large Chassis)
LACH-SR-B Low Ambient Cooling Hood - Right(S2 Small, S2 Large, S2 X-Large Chassis)
LACH-R1-B Low Ambient Cooling Hood - Rear 1 (S2 Small Chassis, S2 X-Large Chassis)
LACH-R2-B Low Ambient Cooling Hood - Rear 2 (S2 Large Chassis)
LACH-F1-B Low Ambient Cooling Hood - Front 1 (S2 Large Chassis)
LACH-1-B Low Ambient Cooling Kit Damper - 1 (S2 Small Chassis)
(Low Ambient Cooling Hood - 1 S2 Small Chassis)
LACH-2-B Low Ambient Cooling Kit Damper - 2 (S2 Large Chassis)
(Low Ambient Cooling Hood - 2 (S2 Large Chassis)
LACH-3-B Low Ambient Cooling Kit Damper - 3 (S2 X-Large Chassis)
(Low Ambient Cooling Hood - 3 (S2 X-Large Chassis)
Required Model Number
per chassis
Model Number
Left Right Back Front Top
DVM S Small chassis LACH-SL LACH-SR LACH-R1 -LACKD-1
(= LACH-1)
DVM Large A type chassis LACH-SL LACH-SR LACH-R2 -LACKD-2
(= LACH-2)
DVM Large B type chassis LACH-SLR LACH-SLR LACH-R3 LACH-F1 LACKD-2
(= LACH-2)
DVM S2 Small chassis
LACH-SL-B LACH-SR-B LACH-R1-B - LACH-1-B
DVM S2 Large chassis LACH-SL-B LACH-SR-B LACH-R2-B LACH-F1-B LACH-2-B
DVM S2 X-Large chassis LACH-SL-B LACH-SR-B LACH-R1-B - LACH-3-B
CAUTION
• When installing the components in the outdoor unit, be careful for screws not to touch the
heat exchanger pin.
Installing LAC KIT
DB68-06398A-01_IM_ACC 옵션 저온냉방 Kit_AA_EN_.indd 10DB68-06398A-01_IM_ACC 옵션 저온냉방 Kit_AA_EN_.indd 10 2022-09-08 오후 1:53:032022-09-08 오후 1:53:03

11
The fully assembly apperance
Classfication Small type
Appearance
Large A type
Large B type
DB68-06398A-01_IM_ACC 옵션 저온냉방 Kit_AA_EN_.indd 11DB68-06398A-01_IM_ACC 옵션 저온냉방 Kit_AA_EN_.indd 11 2022-09-08 오후 1:53:032022-09-08 오후 1:53:03

12
Classfication DVM S2 Small type
Appearance
DVM S2 Large type
DVM S2 X-Large type
Installing LAC KIT
DB68-06398A-01_IM_ACC 옵션 저온냉방 Kit_AA_EN_.indd 12DB68-06398A-01_IM_ACC 옵션 저온냉방 Kit_AA_EN_.indd 12 2022-09-08 오후 1:53:032022-09-08 오후 1:53:03

13
(Unit: inch)
LACH-SR LACH-SL
23 11/16
49 9/16
2 15/16 8 1/8
22
6 15/16
41 7/16
18 3/4
8 1/8
16 3/8
6 15/16
41 7/16
49 9/16
22
LACH-R1 LACH-R2
31 1/16
8 1/8
22
6 15/16
41 7/16
49 9/16
28 11/16
47 1/2
6 15/16
41 7/16
49 9/16
45 1/8 8 1/8
22

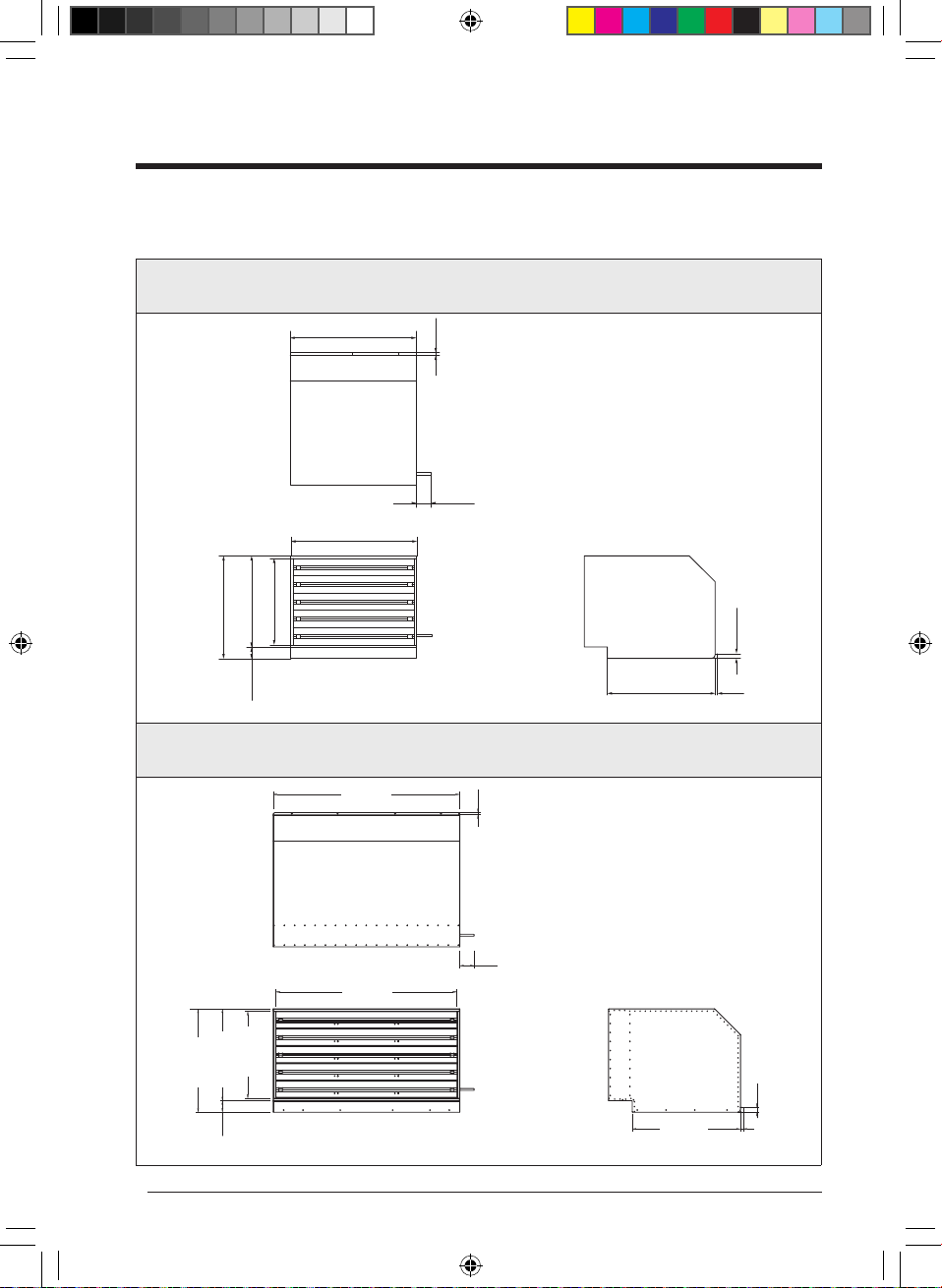

DB68-06398A-01_IM_ACC 옵션 저온냉방 Kit_AA_EN_.indd 13DB68-06398A-01_IM_ACC 옵션 저온냉방 Kit_AA_EN_.indd 13 2022-09-08 오후 1:53:042022-09-08 오후 1:53:04

14
(Unit: inch)
LACH-SLR LACH-R3
27 11/16
22
25 5/16 1 3/8
6 11/16
46 11/16
53 5/16
49 3/8
47 1 3/8
22
6 11/16
46 11/16
53 5/16
LACH-F1
16 7/8
22 5/8
15 7/8
15 1/16 1 15/16
9/16
6 11/1646 11/16
Installing LAC KIT

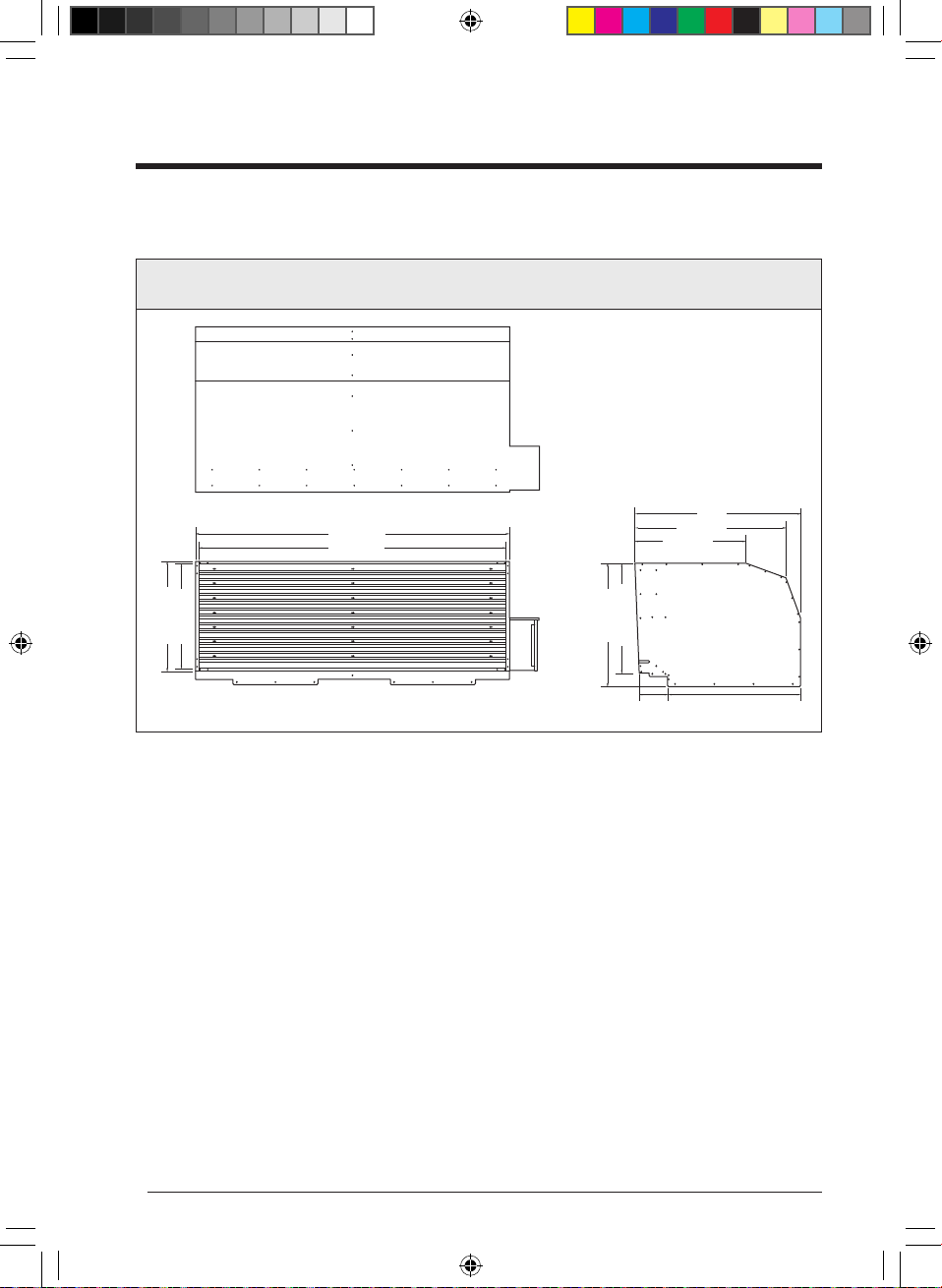

DB68-06398A-01_IM_ACC 옵션 저온냉방 Kit_AA_EN_.indd 14DB68-06398A-01_IM_ACC 옵션 저온냉방 Kit_AA_EN_.indd 14 2022-09-08 오후 1:53:042022-09-08 오후 1:53:04

15
(Unit: inch)
LACH-SL-B LACH-SR-B
49 3/8"
21 9/16"
25 15/16"
25 3/16"
24"
49 3/8"
21 9/16"
28 7/16"
27 11/16"
26 1/2"
LACH-R1-B LACH-R2-B
48 5/16"
49 3/8"
22 9/16"
32 5/8"
31 7/8"
30 11/16"
48 5/16"
49 3/8"
22 9/16"
46 11/16"
45 15/16"
44 3/4"
LACH-F1-B
48 5/16"
49 3/8"
22 5/16"
14 3/16"
13 1/2"
12 1/4"
DB68-06398A-01_IM_ACC 옵션 저온냉방 Kit_AA_EN_.indd 15DB68-06398A-01_IM_ACC 옵션 저온냉방 Kit_AA_EN_.indd 15 2022-09-08 오후 1:53:052022-09-08 오후 1:53:05

16
(Unit: inch)
Low Ambient Cooling Kit Damper-1 (Small chassis)
(Low Ambient Cooling Hood-1 (Small chassis))
5/8
35
35
3 15/16
5/8
1 1/4
29 3/4
23 7/8
25 3/16
28 3/8
3 3/16
Low Ambient Cooling Kit Damper-2 (Large A,B type chassis)
(Low Ambient Cooling Hood-2 (Large A,B type chassis))
5/8
51 1/4
3 15/16
51 1/4
1 1/4
29 3/4
23 7/8
25 3/16
28 3/8
3 1/16
5/8
Installing LAC KIT
DB68-06398A-01_IM_ACC 옵션 저온냉방 Kit_AA_EN_.indd 16DB68-06398A-01_IM_ACC 옵션 저온냉방 Kit_AA_EN_.indd 16 2022-09-08 오후 1:53:052022-09-08 오후 1:53:05

17
(Unit: inch)
Low Ambient Cooling Kit Damper-1 (DVM S2 Small type)
(Low Ambient Cooling Hood-1 (DVM S2 Small type)
34 5/8"
25 1/2"
6 1/2" 30 1/2"
38"
35"
36 5/8"
23 7/8"
25 3/16"
25 3/16"
28 3/8"
Low Ambient Cooling Kit Damper-2 (DVM S2 Large type)
(Low Ambient Cooling Hood-2 (DVM S2 Large type)
23 7/8"
25 3/16"
49 1/2"
34 1/2"
25 1/4"
25 3/16"
28 3/8"
51 1/4"
37 7/8"
6 1/2" 30 3/8"
DB68-06398A-01_IM_ACC 옵션 저온냉방 Kit_AA_EN_.indd 17DB68-06398A-01_IM_ACC 옵션 저온냉방 Kit_AA_EN_.indd 17 2022-09-08 오후 1:53:052022-09-08 오후 1:53:05

18
(Unit: inch)
Low Ambient Cooling Kit Damper-1 (DVM S2 X-Large type)
(Low Ambient Cooling Hood-1 (DVM S2 X-Large type)
23 7/8"
71 5/8"
25 3/16"
73 1/4" 34 5/8"
25 1/2"
6 1/2" 30 1/2"
38"
25 3/16"
28 3/8"
Installing LAC KIT
DB68-06398A-01_IM_ACC 옵션 저온냉방 Kit_AA_EN_.indd 18DB68-06398A-01_IM_ACC 옵션 저온냉방 Kit_AA_EN_.indd 18 2022-09-08 오후 1:53:052022-09-08 오후 1:53:05

19
Installation Environment for Low Ambient Cooling Kit
1. Keep the height of the frame and
foundation 12'' or above.
12
2. Remove any obstacles that screen the
damper outlet.
3. Align the damper outlet with the main
wind direction. (In case of head wind, the
performance can be lowered.)
Wind
direction
SCREW X 18EA
SCREW X 16EA
DB68-06398A-01_IM_ACC 옵션 저온냉방 Kit_AA_EN_.indd 19DB68-06398A-01_IM_ACC 옵션 저온냉방 Kit_AA_EN_.indd 19 2022-09-08 오후 1:53:052022-09-08 오후 1:53:05

20
How to Install the Low Ambient Cooling Kit Damper
1. In order to install the damper, use the lift
or crane. Otherwise, at least 2 people are
required for installation.
2. Before installation, remove the guard fan
from the outdoor unit.
3. When connecting the damper to the
outdoor unit, fasten screws in all marked
places (34 sites).
TOP VIEW
Installing LAC KIT
DB68-06398A-01_IM_ACC 옵션 저온냉방 Kit_AA_EN_.indd 20DB68-06398A-01_IM_ACC 옵션 저온냉방 Kit_AA_EN_.indd 20 2022-09-08 오후 1:53:052022-09-08 오후 1:53:05
