Wireless remote controller
MR-EH00
MR-EH00U
MR-EC00
Air conditioner
user manual
imagine the possibilities
Thank you for purchasing this Samsung product.
This manual is made with 100% recycled paper.
DB68-04667A-01
EN ES FR IT PT DE EL NL PL HU RU AR
MR-EH00_IB_04667A-01_Cover_EN.indd 3 2014-10-22 오후 1:31:11

ENGLISH-2
Contents
PREPARATION
Safety precautions ....................................................................................................... 3
Checking before using the product ...................................................................................... 6
BASIC OPERATION
Using the remote controller .............................................................................................. 7
Basic operation ......................................................................................................... 10
TIMER
Setting the On/Off timer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Setting the good’sleep mode ........................................................................................... 15
OPTIONS
Using the Turbo function ................................................................................................ 17
Using the Purity function ............................................................................................... 18
Using the Quiet function ................................................................................................ 19
SETTINGS
Selecting an indoor unit ................................................................................................ 20
Selecting a blade ....................................................................................................... 20
OTHERS
Appendix ............................................................................................................... 21
MR-EH00_IB_04667A-01_EN.indd 2 2014-12-04 오전 10:29:02

ENGLISH-3
01 PREPARATION
Safety precautions
This content is intended to protect the user’s safety and prevent property
damage. Please read it carefully for correct use of the product.
WARNING Hazards or unsafe practices that may result in severe
personal injury or death.
CAUTION Hazards or unsafe practices that may result in minor
personal injury or property damage.
Follow directions.
Do NOT attempt.
Make sure the machine is grounded to prevent electric
shock.
Unplug the appliance.
Do NOT disassemble.
FOR INSTALLATION WARNING
The installation of this product must be performed by a qualied
technician.
 Failure to do so may result in electric shock, fire, product malfuction,
explosion, or injury.
Do not install this product near a heater, or inammable material. Do
not install this product in a humid, oily or dusty location, in a location
exposed to direct sunlight and water (rain drops). Do not install this
product in a location where gas may leak.
 Otherwise, electric shock or fire may occur.
PREPARATION
MR-EH00_IB_04667A-01_EN.indd 3 2014-12-04 오전 10:29:03

ENGLISH-4
Safety precautions
FOR INSTALLATION CAUTION
Install the product on a hard and level place that can support its
weight.
 If the place cannot support its weight, the product may fall down
and it may cause product damage.
FOR OPERATION WARNING
If the product generates a strange noise, a burning smell or smoke,
unplug the product immediately and contact your nearest service
center.
 Otherwise, electric shock or fire may occur.
Do not attempt to repair, disassemble, or modify the product
yourself.
 Otherwise, electric shock, fire, product malfuction, or injury may
occur.
MR-EH00_IB_04667A-01_EN.indd 4 2014-12-04 오전 10:29:03

ENGLISH-5
01 PREPARATION
FOR OPERATION CAUTION
Do not allow water to enter the product.
 Otherwise, a fire or explosion may occur.
Do not operate the product with wet hands.
 Otherwise, electric shock may occur.
Do not spray volatile material such as insecticide onto the surface of
the product.
 As well as being harmful to humans, it may also result in electric
shock, fire or product malfunction.
Do not give a strong impact to the product and do not disassemble
the product.
Do not use this product for other purposes.
 This product is designed to be used only for a system air conditioner.
Do not press the buttons with any sharp objects.
 Otherwise, electric shock or part damage may occur.
Do not clean the product by spraying water directly onto it. Do not
use benzene, thinner, alcohol or acetone to clean the product.
 Otherwise, discoloration, deformation, damage, electric shock or fire
may occur.
MR-EH00_IB_04667A-01_EN.indd 5 2014-12-04 오전 10:29:03

ENGLISH-6
Checking before using the product

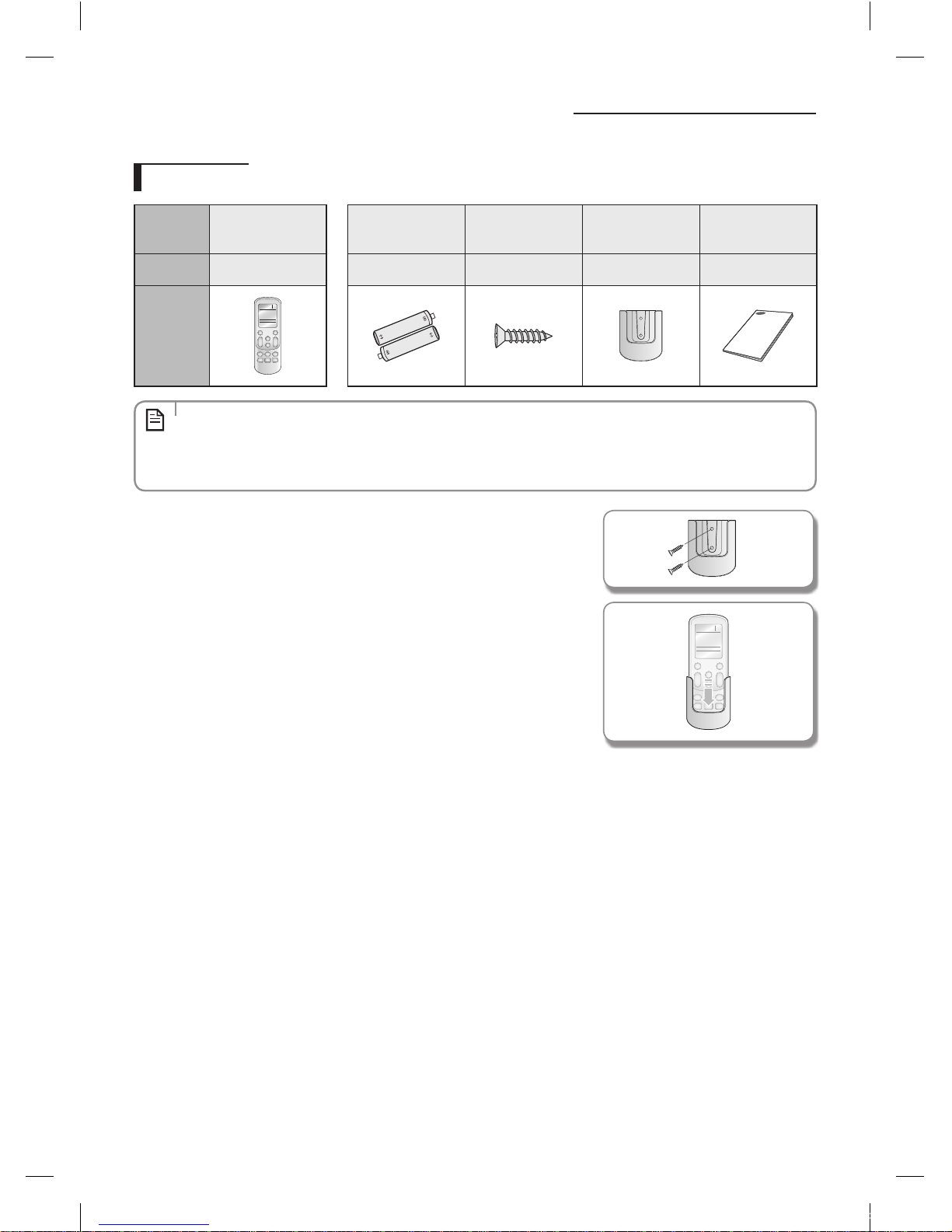

Accessories
Item Wireless remote
controller
Remote controller
batteries M4XL16 screws Remote controller holder User manual
Quantity 1 2211
Shape
Select the following places to install the remote controller holder.
• Where there is no interference to the remote controller signal.
• Not exposed to direct sunlight or heat source.
• More than 1 m away from a television or stereo system.
NOTE
1. Mark the spots with a pencil where you will install the remote controller holder.
2. Drill the marked holes(2EA) for screws on the wall.
3. Install the remote controller holder on the wall by using the screws.
MR-EH00_IB_04667A-01_EN.indd 6 2014-12-04 오전 10:29:03

ENGLISH-7
02 BASIC OPERATION
Using the remote controller
 Point the remote controller towards the remote controller receiver of the indoor unit.
 When you press the button on the remote controller correctly, you will hear beep sound from the indoor unit and a
transmit indicator( ) appears on the remote controller display.
Remote controller buttons
Mode
Selects operation mode.
Air ow direction (Left and right)
Adjusts the air flow direction left and right.
Power
Turns the air conditioner on or off.
Temperature
Adjusts the temperature.
Options
Selects options during operation.
Direction
Moves to select and set an option.
Fan speed
Adjusts the fan speed.
Air ow direction (Up and down)
Adusts the air flow direction up and down
(Not applicable to Duct type models).
SET
Selects or cancels an option.
Settings
Selects settings.
Timer
Sets timer option.
• In case you wish to cancel the options or settings that you have just set, press the Options or Settings button
again, then the most recently selected item will blink and you may simply cancel it by pressing the SET button
while selected item is blinking.
NOTE
BASIC OPERATION
MR-EH00_IB_04667A-01_EN.indd 7 2014-12-04 오전 10:29:04

ENGLISH-8
Using the remote controller

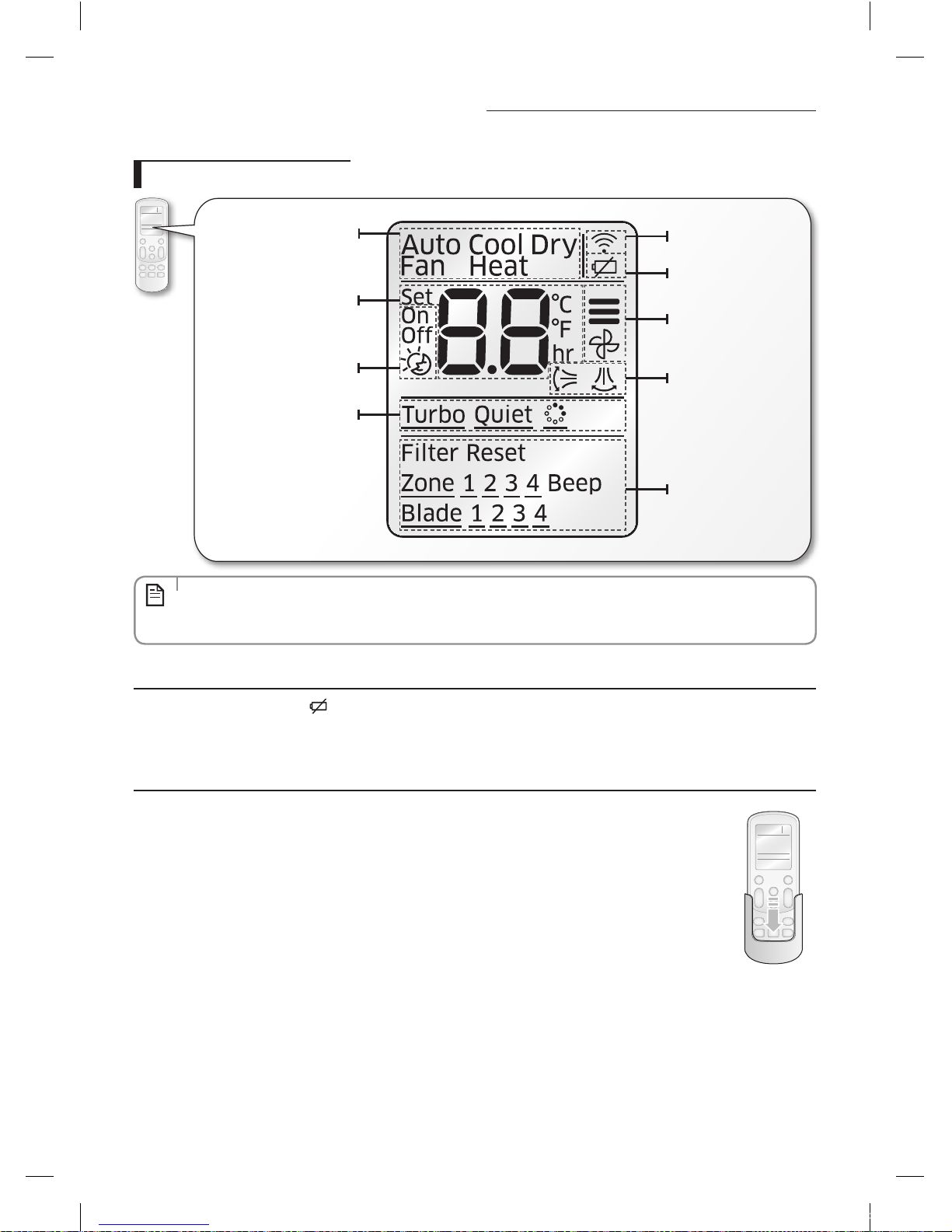

Remote controller display
Operation mode
*Heat mode is applicable to
MR-EH00/MR-EH00U model
only.
Remote controller
transmission
Low battery
Fan speed
Air ow direction
Settings
Set temperature or on/o set
time with the timer function
On/O timer
Options
• For MR-EH00U/MR-EC00U model, the temperature unit will be indicated by "°F" on the display.
• When turning off and turning on the remote controller, the Timer, Options and Settings set before turning off
the remote controller are cancelled. However, the fan direction does not change.
NOTE
Battery changing time
When the battery is exhausted, ( ) will be displayed on the remote controller display. When the icon appears, change the
batteries.
The remote controller requires two 1.5V AAA type batteries.
Storing the remote controller
When you do not use the remote controller for a long time, remove the batteries from the remote controller
and store it in the remote controller holder.
MR-EH00_IB_04667A-01_EN.indd 8 2014-12-04 오전 10:29:04

ENGLISH-9
02 BASIC OPERATION
Inserting the batteries
1. Open the battery cover of the remote controller.
- Press the ( ) part gently and lift it up in the arrow direction.
2. Insert the batteries.
- Check and match the (+)and (-) signs accordingly.
3. Close the battery cover.
- Match the cover and bottom part of the remote controller and press it until you hear
click sound.
CAUTION
• Make sure that water is not allowed to enter the remote controller.
• There is a possibility that the air conditioner will not operate by remote controller near strong light such as a
fluorescent lamp or neon sign. In this case, use the remote controller in front of the remote controller receiver of
the indoor unit.
• If other electrical products are operated by the remote controller, call your nearest service center.
• Filter reset : When the filter reset indicator is turned on the indoor unit display, clean the filter and press the
Settings <, >or Settings (Filter Reset)blinking SET button.
• Beep o : To silence the beep sound, press the Settings <, >or Settings (Beep)blinking SET button. If
you press the Settings <, > or Settings (Beep) blinking SET button again, the beep sound
will ring again.
NOTE
Correct disposal of batteries in this product
(Applicable in countries with separate collection systems)
This marking on the battery, manual or packaging indicates that the batteries in this product should not be disposed
of with other household waste at the end of their working life. Where marked, the chemical symbols Hg, Cd or Pb
indicate that the battery contains mercury, cadmium or lead above the reference levels in EC Directive 2006/66. If
batteries are not properly disposed of, these substances can cause harm to human health or the environment.
To protect natural resources and to promote material reuse, please separate batteries from other types of waste and
recycle them through your local, free battery return system.
MR-EH00_IB_04667A-01_EN.indd 9 2014-12-04 오전 10:29:04

ENGLISH-10
Basic operation
Basic operation is an operation mode that can be selected by pressing the Mode button.
Auto
In Auto mode, the air conditioner will automatically adjust the temperature and fan speed to maintain your fresh
environment.
 When the indoor temperature is too high, the powerful cool breeze is generated and when the indoor room becomes
cool enough, the soft breeze is generated.
Cool
Cool mode is frequently used and you can freely control the temperature, fan speed, and air flow direction in Cool mode.
 When you select the Heat mode while the Cool mode is on, the Cool mode is cancelled.
Dry
The air conditioner in Dry mode acts like a dehumidifier by removing moisture from the indoor air. The Dry mode will provide
you with fresh air even on a rainy day.
Fan
Fan mode provides you with a breeze just like a fan to make fresh environment for you.
Heat (MR-EH00/MR-EH00U)
In Heat mode, you can warm your room even in the fall and winter.
 The fan may not commence immediately to avoid generating a cold breeze.
 During the Heat mode, defrost operation may be performed to remove the frost formed on the outdoor unit. (When the
frost is removed by the defrost operation in Heat mode, steam is generated from the outdoor unit.)
 If you stop operating the air conditioner after heating operation, the fan will operate for some time to cool the indoor
unit.
 When you select the Cool mode while the Heat mode is on, the Heat mode is cancelled.
• When the outdoor temperature is low and humidity is high during the heat mode, the outdoor unit's heating
capacity may decrease due to the frost formed on the outdoor heat exchanger. The defrost operation removes
the frost formed on the heat exchanger of the outdoor unit for 5 ~ 12 minutes. During the defrost operation, the
indoor unit does not generate breeze in order to prevent cold breeze blowing out.
 The interval between the defrost operation can decrease depending on the amount of the frost formed on the
outdoor unit.
 The interval between defrost operation can also decrease by humidity level with rain or snow.
NOTE
MR-EH00_IB_04667A-01_EN.indd 10 2014-12-04 오전 10:29:04

ENGLISH-11
02 BASIC OPERATION
Turning the air conditioner on
Press the button to operate the air conditioner.
Selecting the operation mode
Press the button to select an operation mode.
 Heat mode operates with MR-EH00/MR-EH00U model only.
Adjusting the temperature
Press the button to adjust the temperature.
Auto Temperature can be adjusted by 1°C(1°F) within the range of 18°C(65°F)~30°C(86°F).
Cool Temperature can be adjusted by 1°C(1°F) within the range of 18°C(65°F)~30°C(86°F).
Dry Temperature can be adjusted by 1°C(1°F) within the range of 18°C(65°F)~30°C(86°F).
Fan Temperature cannot be adjusted.
Heat Temperature can be adjusted by 1°C(1°F) within the range of 16°C(61°F) ~30°C(86°F).
Selecting the fan speed
Press the button to adjust the fan speed.
Auto (Auto)
Cool (Auto), (Low), (Med), (High)
Dry (Auto)
Fan (Low), (Med), (High)
Heat (Auto), (Low), (Med), (High)
MR-EH00_IB_04667A-01_EN.indd 11 2014-12-04 오전 10:29:05

ENGLISH-12
Basic operation

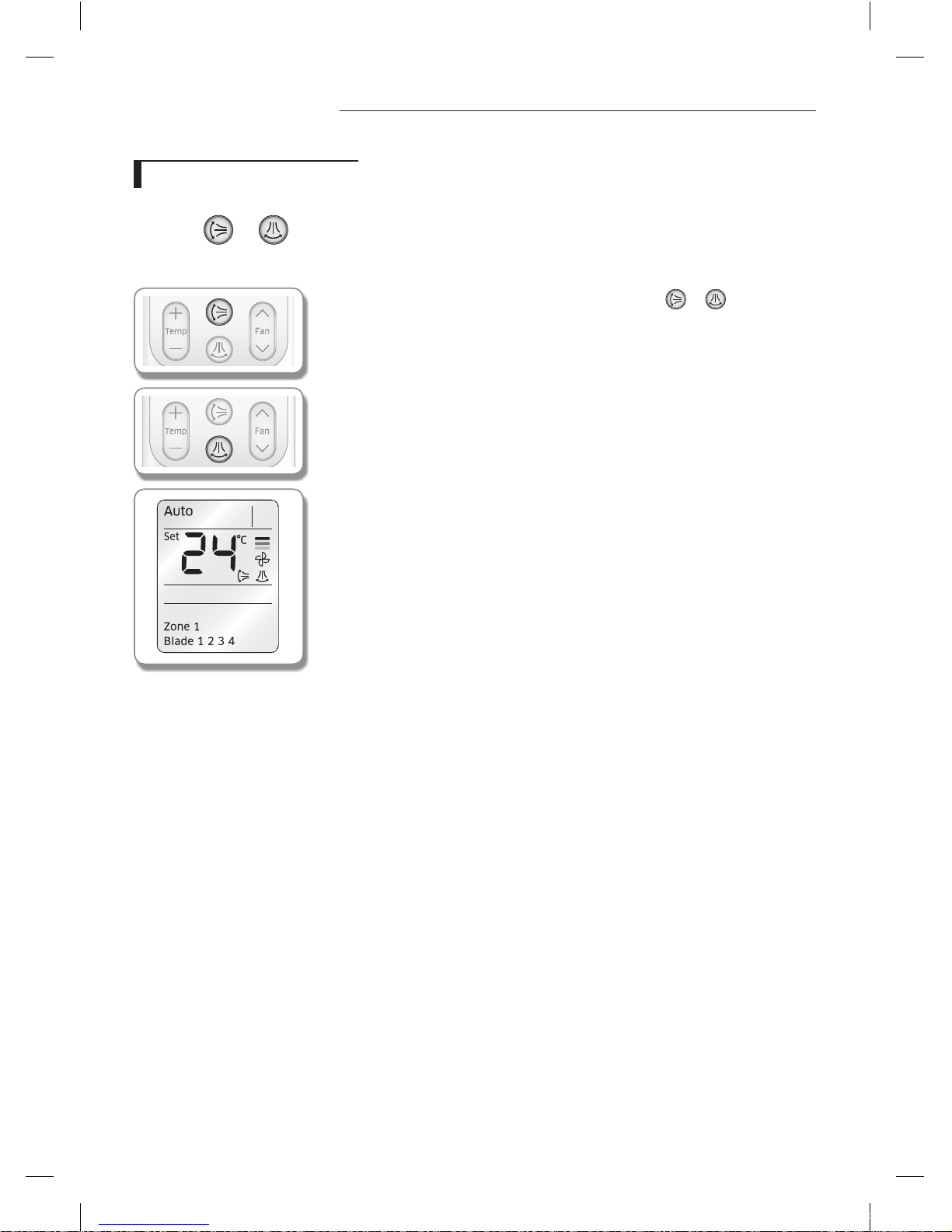

Selecting air ow direction
This function allows you to shift the air flow direction up and down or left and right.
Press the or button to move the air ow direction up and down or left and right while
the air conditioner is turned on.
Remote controller display
 When the blade reaches the desired position, press the or button one
more time to set the air flow direction. The up/down and left/right tilting of the
blade will stop.
 Duct type model cannot adjust air flow direction up and down.
MR-EH00_IB_04667A-01_EN.indd 12 2014-12-04 오전 10:29:06

ENGLISH-13
03 TIMER

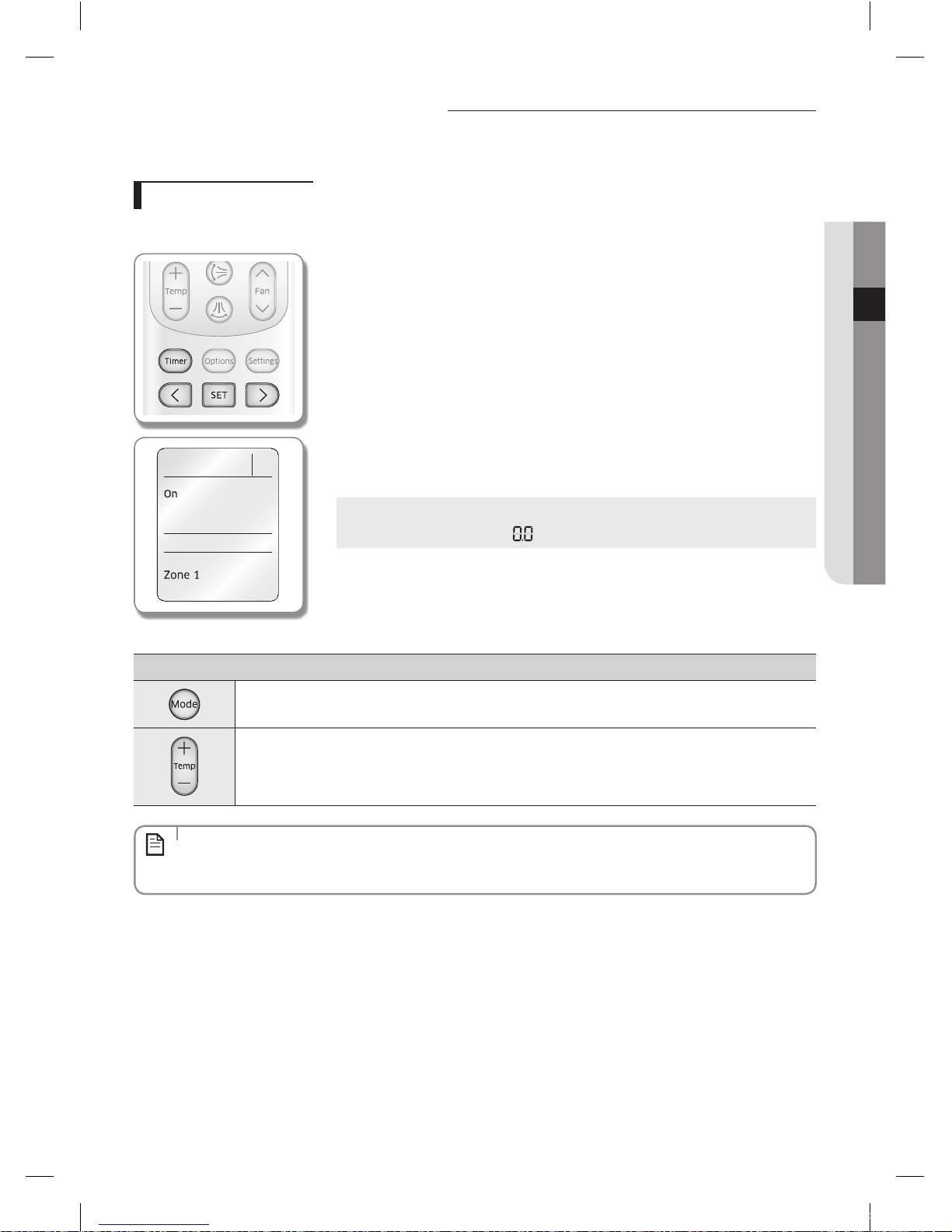

Setting the On/O timer
You can set the air conditioner to be turned on or off automatically at desired time.
Setting the On timer
When the air conditioner is turned o.
Remote controller display
1. Press the Timer button to select (On).
- (On) indicator will keep blinking and you can set the time.
2. Press the <or >button to set the time.
- You can set the time in half hour unit from 30minutes (0.5 on the display) ~
3hours and hour unit from 3 ~ 24hours.
- Time can be set from minimum 30 minutes to maximum 24hours.
3. Press the SET button to complete the On timer setting.
- (On) indicator and the set time of the timer will be displayed on the remote
controller display.
- On timer setting will be cancelled if you don't press the SET button within
10seconds after setting the time. Therefore, check for the (On) indicator on the
remote controller display.
Cancel  Press the Timer button select (On) press the <or >button 
set the timer to press the SET button.
Additional options available in On timer
Select the mode from (Auto) (Cool) (Dry) (Fan) and (Heat).
 Heat mode operates with MR-EH00/MR-EH00U model only.
You can adjust the temperature after timer setting is completed.
Temperature adjustment is only available in Auto/Cool/Dry/Heat mode. In Fan mode, temperature cannot be
adjusted.
 Heat mode operates with MR-EH00/MR-EH00U model only.
• When On timer setting is completed, the set status will be displayed for 3 seconds, and then only (On) indicator
will remain on the remote controller display thereafter.
• You cannot set the Fan speed when setting the On timer.
NOTE
TIMER
MR-EH00_IB_04667A-01_EN.indd 13 2014-12-04 오전 10:29:06

ENGLISH-14

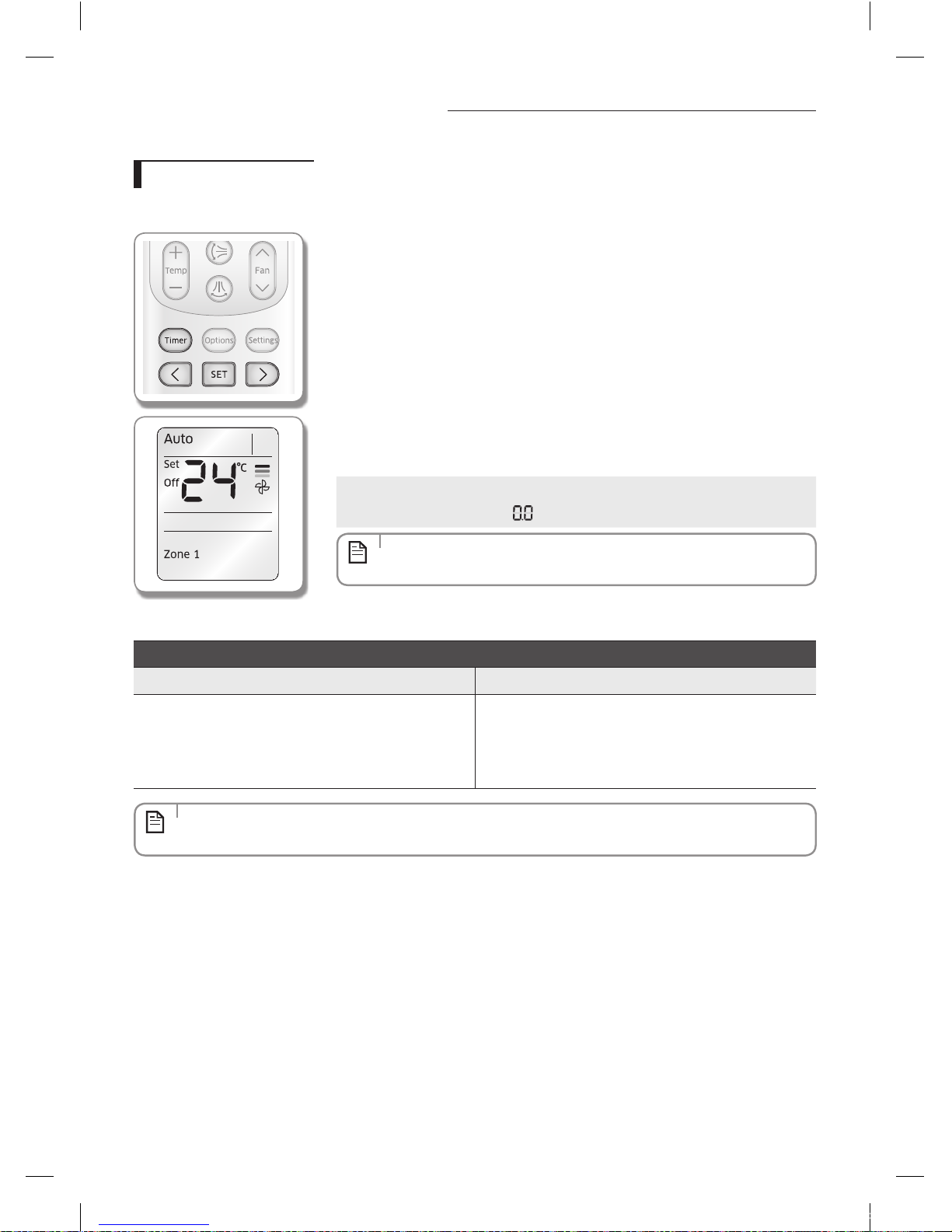

Setting the On/O timer
Setting the O timer
When the air conditioner is turned on
Remote controller display
1. Press the Timer button to select (Off).
- (Off) indicator will keep blinking and you can set the time.
2. Press the <or >button to set the time.
- You can set the time in half hour unit from 30minutes (0.5 on the display) ~
3hours and hour unit from 3 ~ 24hours.
- Time can be set from minimum 30 minutes to maximum 24 hours.
3. Press the SET button to complete the Off timer setting.
- (Off) indicator and the set time of the timer will be displayed on the remote
controller display.
- Off timer setting will be cancelled if you don't press the SET button within
10seconds after setting the time. Therefore, check for the (Off) indicator on the
remote controller display.
Cancel  Press the Timer button select (Off) press the <or >button 
set the timer to press the SET button.
• Only the latest setting timer will be applied between the Off Timer and
good’sleep off timer functions.
NOTE
Combining On timer and O timer
When the air conditioner is turned o When the air conditioner is turned on
When set time on On timer is shorter than Off timer
e.g. On timer: 3hours, Off timer: 5hours
• The air conditioner will be turned on after 3hours from the
moment you have set the timer and the air conditioner will
remain on for 2hours and then be turned off automatically.
When set time on On timer is longer than Off timer
e.g. On timer: 3hours, Off timer: 1hour
• The air conditioner will be turned off after 1hour from the
moment you have set the timer and will be turned on after
2hours from the moment it was turned off.
• Set time for the On timer and the Off timer should be different from each other.
• When the On timer or the Off timer is set, setting can be cancelled by pressing the Power button.
NOTE
MR-EH00_IB_04667A-01_EN.indd 14 2014-12-04 오전 10:29:07

ENGLISH-15
03 TIMER
Setting the good’sleep mode
For a comfortable sleep, the air conditioner will operate in 3 stages in order of‘Fall asleep Sound sleep Wake up’stages.
When the air conditioner is operating in Cool mode;
Remote controller display
1. Press the Timer button to select ( ).
- ( ) indicator will keep blinking and you can set the time.
2. Press the <or >button to set the time.
- You can set the time in half hour unit from 30minutes (0.5 on the display) ~
3hours and hour unit from 3 ~ 12hours.
- Time can be set from minimum 30minutes to maximum 12hours.
- Default time setting for the good'sleep mode is 8hours.
3. Press the SET button to complete the good'sleep mode setting.
- ( ) indicator and the set time of the good'sleep mode will be displayed on
the remote controller display.
- good'sleep mode will be cancelled if you don't press the SET button within
10seconds after setting the time. Therefore, check for the ( ) indicator on the
remote controller display.
Cancel  Press the Timer button select ( ) press the <or >button 
set the timer to press the SET button.
Additional options available in good'sleep mode
Temperature can be adjusted by 1°C(1°F) within the range of 18°C(65°F)~30°C(86°F).
MR-EH00_IB_04667A-01_EN.indd 15 2014-12-04 오전 10:29:07

ENGLISH-16
Setting the good’sleep mode
Temperature and Fan speed change in good’sleep mode
1. Fall asleep mode : Provides you with comfortable environment for a good sleep by rapid cooling and hypnagogue
expedition breeze.
2. Sound sleep mode : The sound sleep mode adjusts temperature and air flow in waves to maintain healthy skin
temperature while it aids deep sleep. According to the change of good’sleep operation hours, the sound sleep hour can
be longer or shorter.
3. Wake up from good’sleep mode : Provides you with the air flow that adjusts your body temperature to wake you up in a
fresh status.
• In good'sleep mode, the air conditioner will operate in Cool + ( ) mode for first 30 minutes. Fan speed and the
air flow direction will be adjusted automatically in good'sleep mode.
• Recommended set temperature is between25 °C(77°F) ~ 27°C (81°F) and 26°C(79°F) is the most ideal
temperature.
• If the set temperature is too low, you may feel cold during sleep or catch a cold.
• Optimal operation hour of good'sleep mode is 8 hours.Therefore, if the time is set too short or long, you may not
feel as comfortable as you would expect.
• If the good'sleep mode is set over 5 hours, Wake up stage will begin when 1 hour is remaining in the operation
time and the air conditioner will stop automatically.
• When the On timer and the good'sleep mode are set simultaneously, the air conditioner will only apply the
function that was set later.
• While good'sleep mode is operating, mode can be set additionally by pressing the Options button.
• If you press the Options button and select the Turbo/Quiet function, the good'sleep mode will be cancelled and
the selected mode will begin operation.
• If you press the Mode button, the good'sleep mode will be cancelled and the selected mode will begin
operation.
NOTE
MR-EH00_IB_04667A-01_EN.indd 16 2014-12-04 오전 10:29:07

ENGLISH-17
04 OPTIONS
Using the Turbo function
You can set the Turbo function to provide fast and powerful cooling (heating).
When the air conditioner is operating in Cool or Heat mode;
Remote controller display
1. Press the Options button.
2. Press the <, > or Options button until (Turbo) indicator starts to blink.
3. Press the SET button to set the Turbo function.
- (Turbo) (Turbo) indicator will be displayed on the remote controller display
and Turbo function will operate for 30 minutes.
Cancel  Press the Options button press the <, > or Options button to
make the (Turbo) indicator blink and press the SET button.
• Turbo function is only available in Cool/Heat mode.
 Heat mode operates with MR-EH00/MR-EH00U model only.
• If the Turbo function is selected while Quiet function is on, the Quiet
function will be cancelled.
• Air flow direction can be adjusted with every direction.
 Duct type model cannot adjust air flow direction up and down.
• Temperature and fan speed cannot be adjusted.
NOTE
OPTIONS
MR-EH00_IB_04667A-01_EN.indd 17 2014-12-04 오전 10:29:08

ENGLISH-18

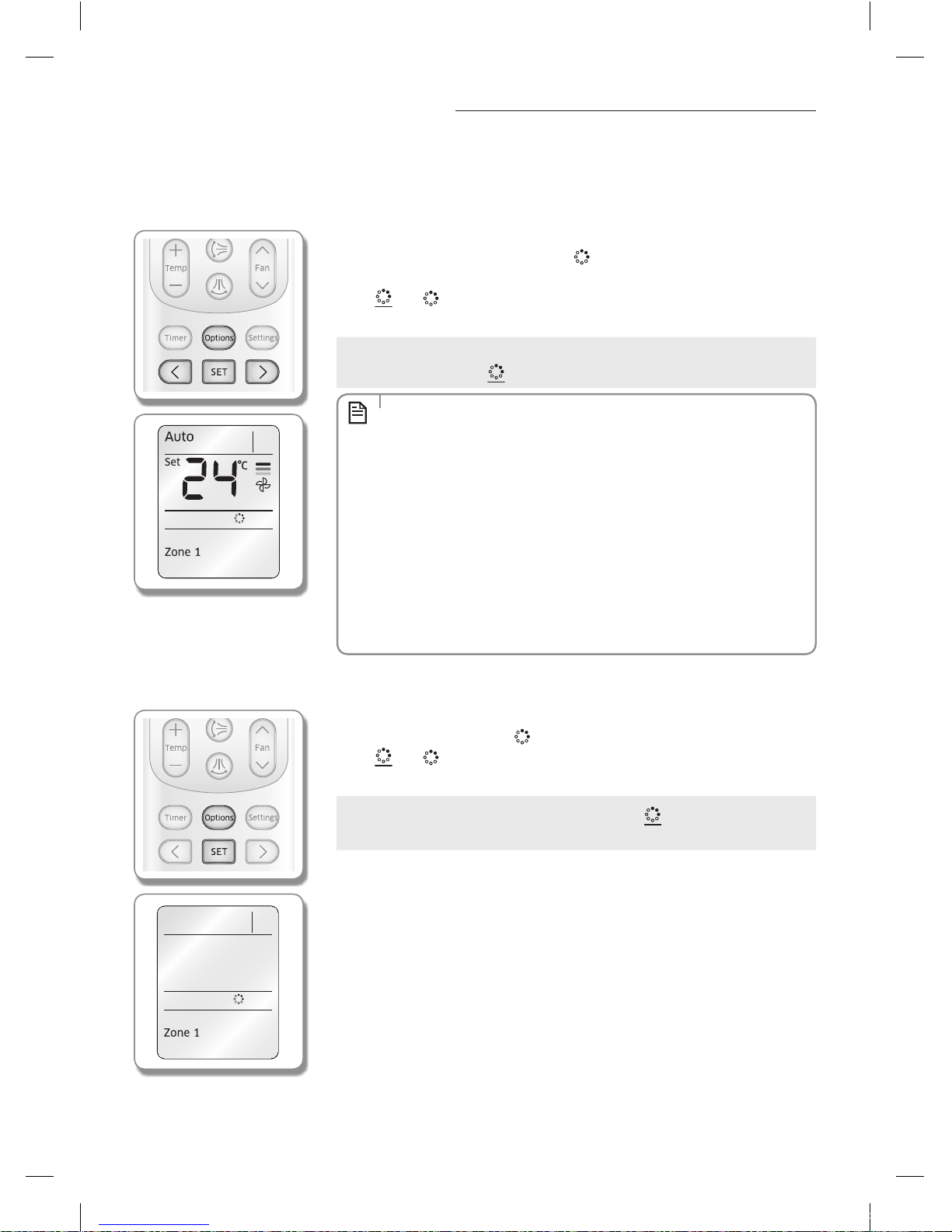

Using the Purity function
Purity function will remove harmful materials in the air to provide you clean and healthy environment.
You can select this function additionally while the air conditioner is in operation.
When the air conditioner is turned on
Remote controller display
1. Press the Options button.
2. Press the <, > or Options button until ( ) indicator starts to blink.
3. Press the SET button to set the Purity function.
- ( ) ( ) indicator will be displayed on the remote controller display and
Virus Doctor function will begin.
Cancel  Press the Options button press the <, > or Options button to
make the ( ) indicator blink and press the SET button.
• You may select the purity function additionally during Auto/Cool/Dry/
Heat mode and you can adjust the temperature.
 Heat mode operates with MR-EH00/MR-EH00U model only.
• If the purity function is selected additionally in fan mode, the temperature
cannot be adjusted.
• When the air conditioner and the purity function are turned on
simultaneously and you press the Power button, both air conditioner and
purity function will stop operation.
• You can still use the purity function when the On timer is set with the air
conditioner is turned off.
• There will not be much difference on energy consumption and operating
noise when the purity function is selected additionally while the air
conditioner is turned on.
NOTE
When the air conditioner is turned o
Remote controller display
1. Press the Options button.
2. Press the SET button when ( ) indicator blinks to begin purity function.
- ( ) ( ) indicator will be displayed on the remote controller display and
Virus doctor function will begin.
Cancel  Press the Options button to make the ( ) indicator blink and press
the SET button.
MR-EH00_IB_04667A-01_EN.indd 18 2014-12-04 오전 10:29:08

ENGLISH-19
04 OPTIONS
Using the Quiet function
You can reduce the noise generated from the indoor unit during Cool/Heat mode.
When the air conditioner is operating in Cool or Heat mode;
Remote controller display
1. Press the Options button.
2. Press the <, > or Options button until (Quiet) indicator starts to blink.
3. Press the SET button to set the Quiet function.
- (Quiet)(Quiet) indicator will be displayed on the remote controller display and
Quiet function will begin.
Cancel  Press the Options button press the <, > or Options button to
make the (Quiet) indicator blink and press the SET button.
Additional options available in Quiet function
In Cool mode
Temperature can be adjusted by 1°C(1°F) within the range of
18°C(65°F) ~ 30°C(86°F).
In Heat mode
Temperature can be adjusted by 1°C(1°F) within the range of
16°C(61°F) ~30°C(86°F).
 Heat mode operates with MR-EH00/MR-EH00U model only.
Fan speed is set to (Auto).
Air flow direction can be adjusted.
• Quiet function can be set only in Cool/Heat mode and if the Quiet
function is selected while Turbo function is on, the Turbo function will be
cancelled.
 Heat mode operates with MR-EH00/MR-EH00U model only.
NOTE
MR-EH00_IB_04667A-01_EN.indd 19 2014-12-04 오전 10:29:09
