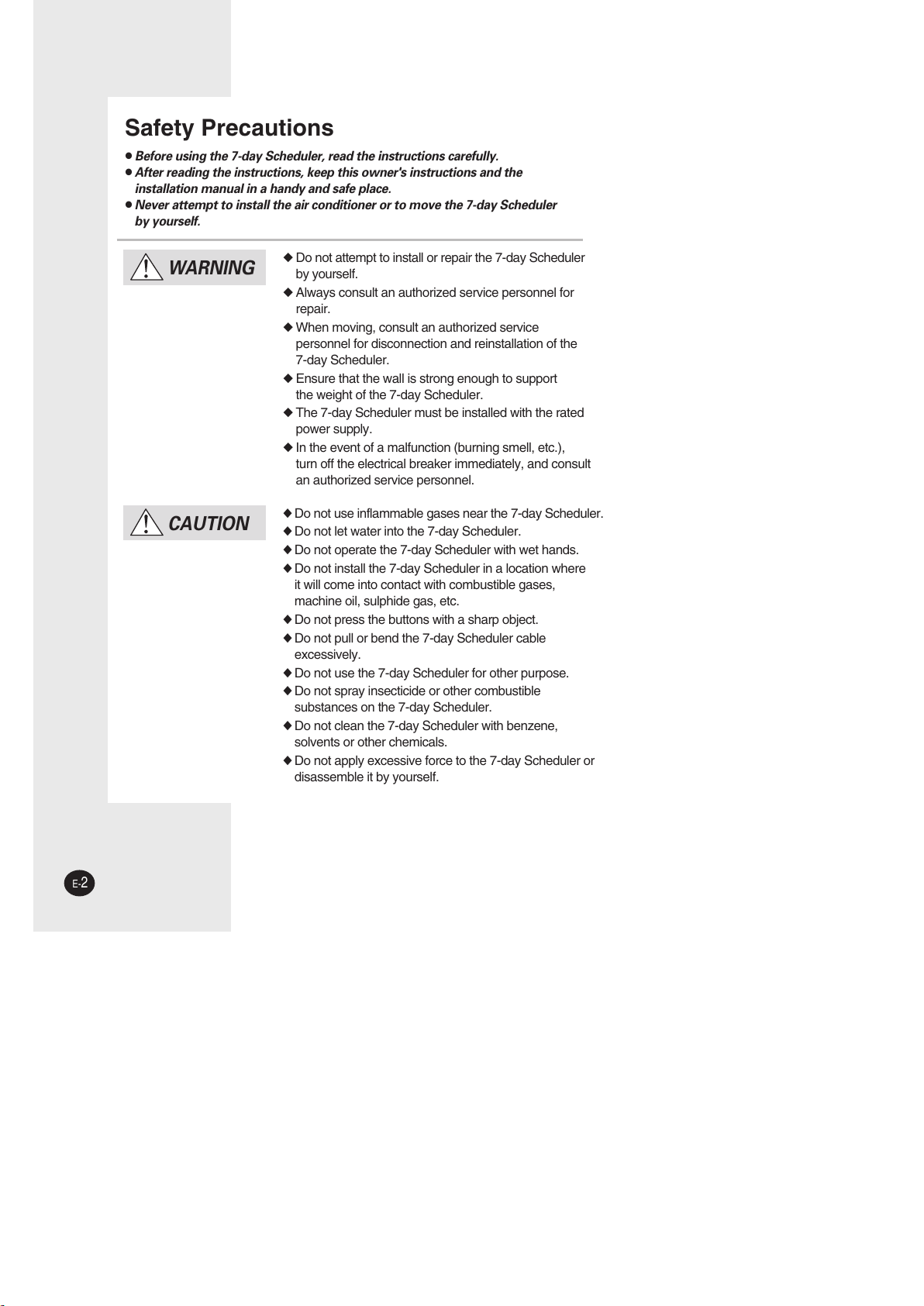

Safety Precautions
◆Do not attempt to install or repair the 7-day Scheduler
by yourself.
◆Always consult an authorized service personnel for
repair.
◆When moving, consult an authorized service
personnel for disconnection and reinstallation of the
7-day Scheduler.
◆Ensure that the wall is strong enough to support
the weight of the 7-day Scheduler.
◆The 7-day Scheduler must be installed with the rated
power supply.
◆In the event of a malfunction (burning smell, etc.),
turn off the electrical breaker immediately, and consult
an authorized service personnel.
WARNING
CAUTION ◆
Do not use inflammable gases near the 7-day Scheduler.
◆ Do not let water into the 7-day Scheduler.
◆ Do not operate the 7-day Scheduler with wet hands.
◆ Do not install the 7-day Scheduler in a location where
it will come into contact with combustible gases,
machine oil, sulphide gas, etc.
◆ Do not press the buttons with a sharp object.
◆ Do not pull or bend the 7-day Scheduler cable
excessively.
◆ Do not use the 7-day Scheduler for other purpose.
◆ Do not spray insecticide or other combustible
substances on the 7-day Scheduler.
◆ Do not clean the 7-day Scheduler with benzene,
solvents or other chemicals.
◆ Do not apply excessive force to the 7-day Scheduler or
disassemble it by yourself.
E-2
●
Before using the 7-day Scheduler, read the instructions carefully.
●
After reading the instructions, keep this owner's instructions and the
installation manual in a handy and safe place.
●
Never attempt to install the air conditioner or to move the 7-day Scheduler
by yourself.
MWR-BS00 IB_E_29808 10/24/08 19:19 Page 2

E-3
ENGLISH
Contents
◆ N
AME OF E ACH P ART
◆ G ETTING
S TARTED
◆ S
ETTING THE P RESENT D AY
◆ S ETTING THE P RESENT T IME
◆ S ETTING THE O PERATING D AY
◆ S ETTING THE O N T IME
◆ S ETTING THE O FF T IME
◆ C ANCELING THE O N T IME
◆ C ANCELING THE O FF T IME
◆ C ANCELING THE O PERATING D AY
◆ C HECKING Y OUR T IME S ETTINGS
◆ E XAMPLES OF H OW TO S ET THE S CHEDULES
◆ R ESETTING Y OUR 7- DAY S CHEDULER
◆ L
OCKING Y OUR 7- DAY S CHEDULER
4
5
6
7
8
9
10
11
12
13
14
15
17
17
MWR-BS00 IB_E_29808 10/24/08 19:19 Page 3

E-4
The 7-day Scheduler is installed on the wall.
Digital time display

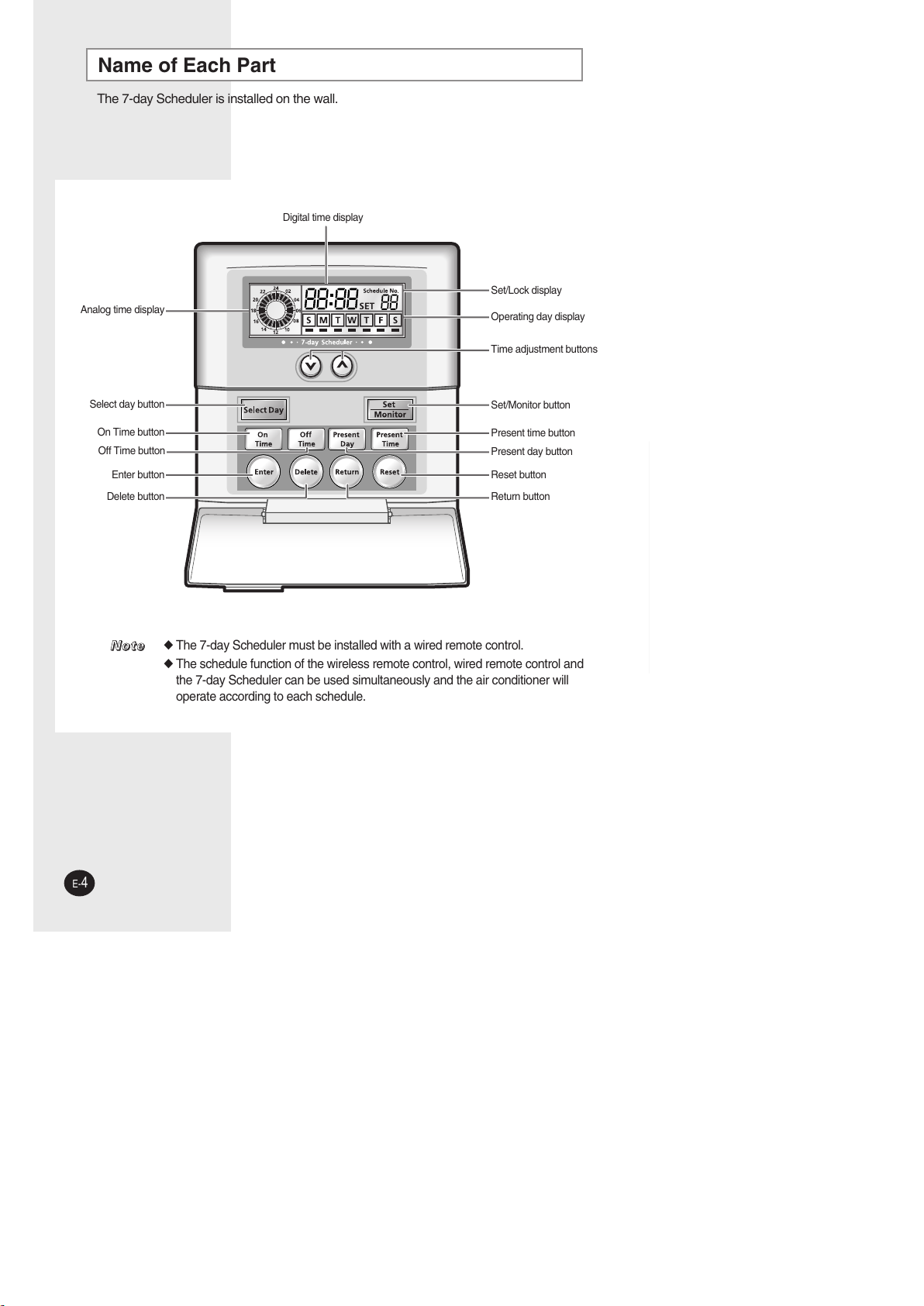

Name of Each Part
Analog time display
Select day button
On Time button
Off Time button
Enter button
Delete button
Set/Lock display
Operating day display
Time adjustment buttons
Set/Monitor button
Present time button
Present day button
Reset button
Return button
◆The 7-day Scheduler must be installed with a wired remote control.
◆The schedule function of the wireless remote control, wired remote control and
the 7-day Scheduler can be used simultaneously and the air conditioner will
operate according to each schedule.
NN
NNoo oott ttee ee
MWR-BS00 IB_E_29808 10/24/08 19:19 Page 4

ENGLISH
E-5

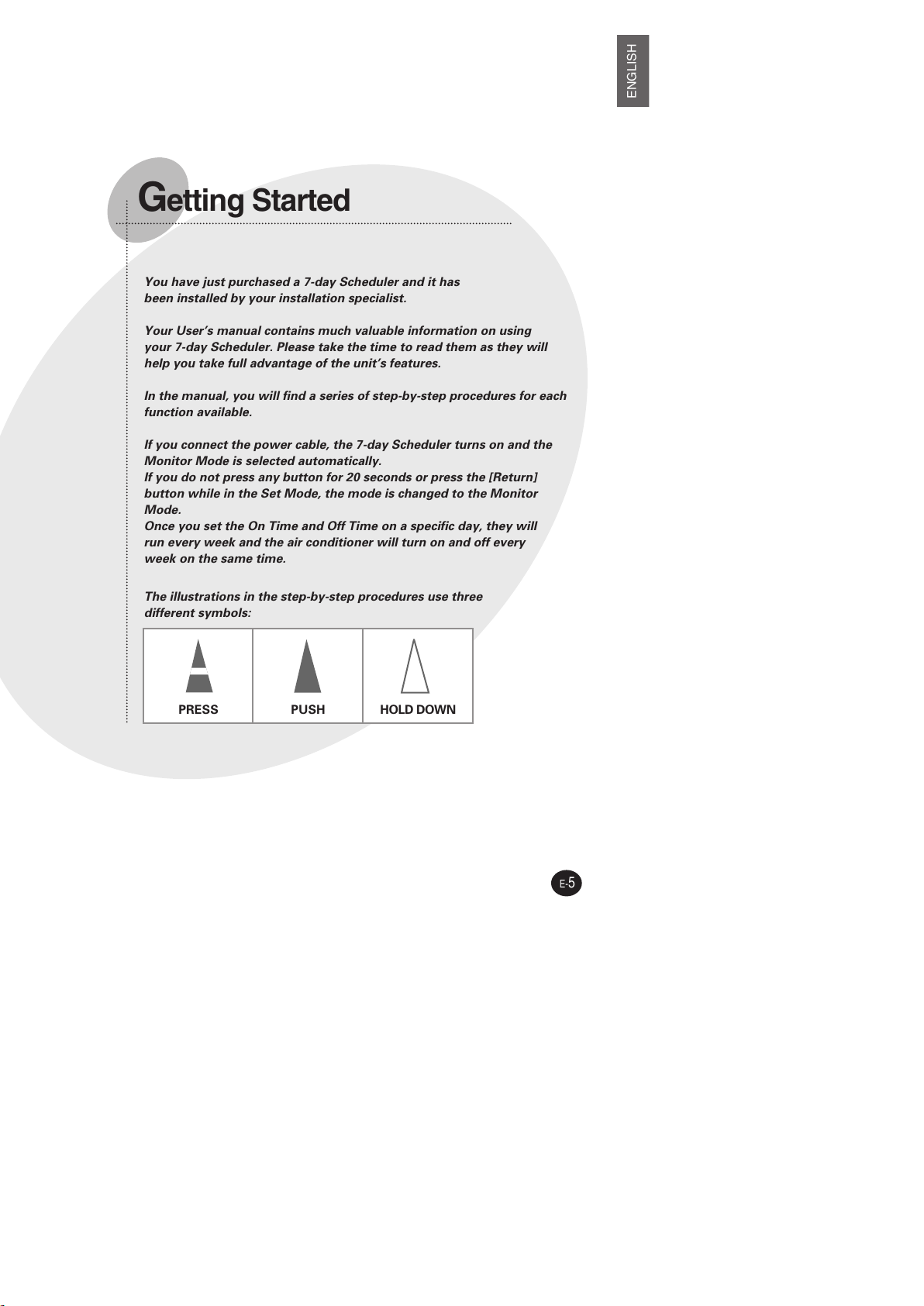

G etting Started
You have just purchased a 7-day Scheduler and it has
been installed by your installation specialist.
Your User’s manual contains much valuable information on using
your 7-day Scheduler. Please take the time to read them as they will
help you take full advantage of the unit’s features.
In the manual, you will find a series of step-by-step procedures for each
function available.
If you connect the power cable, the 7-day Scheduler turns on and the
Monitor Mode is selected automatically.
If you do not press any button for 20 seconds or press the [Return]
button while in the Set Mode, the mode is changed to the Monitor
Mode.
Once you set the On Time and Off Time on a specific day, they will
run every week and the air conditioner will turn on and off every
week on the same time.
The illustrations in the step-by-step procedures use three
different symbols:
PRESS PUSH HOLD DOWN
MWR-BS00 IB_E_29808 10/24/08 19:19 Page 5

E-6
If necessary, press the button for 3 seconds.
Result: :◆is displayed and the mode changes to
the Set Mode.
1
Before setting the On Time, Off Time and the operating
day, you should set the present day in advance.
Press the button to select the present day.
Result: ◆and flicker.
◆Each time you press the button,
moves to the right.
2
Press the button to complete the setting.
Result: ◆and stop flickering and the present
day is selected.
3
◆Press the or button to cancel it
during setting. You cannot cancel after
pressing the button.
NN
NNoo oott ttee ee
Setting the Present Day
MWR-BS00 IB_E_29808 10/24/08 19:19 Page 6

E-7
ENGLISH
Before setting the On Time, Off Time and the operating
day, you should set the present time in advance.
◆Press the or button to cancel it
during setting. You cannot cancel after
pressing the button.
NN
NNoo oott ttee ee
Press the button to select the present time.
Result: : ◆is displayed and flickers.
2
Press the buttons to set the hour and press
the button.
Result: :◆Each time you press the buttons,
the time is adjusted by one hour.
◆If you press the button, and
flicker.
3
Press the buttons to set the minute and press
the button.
Result: :◆Each time you press the buttons,
the time is adjusted by one minute.
◆If you press the button, stops
flickering and the set time is displayed.
4

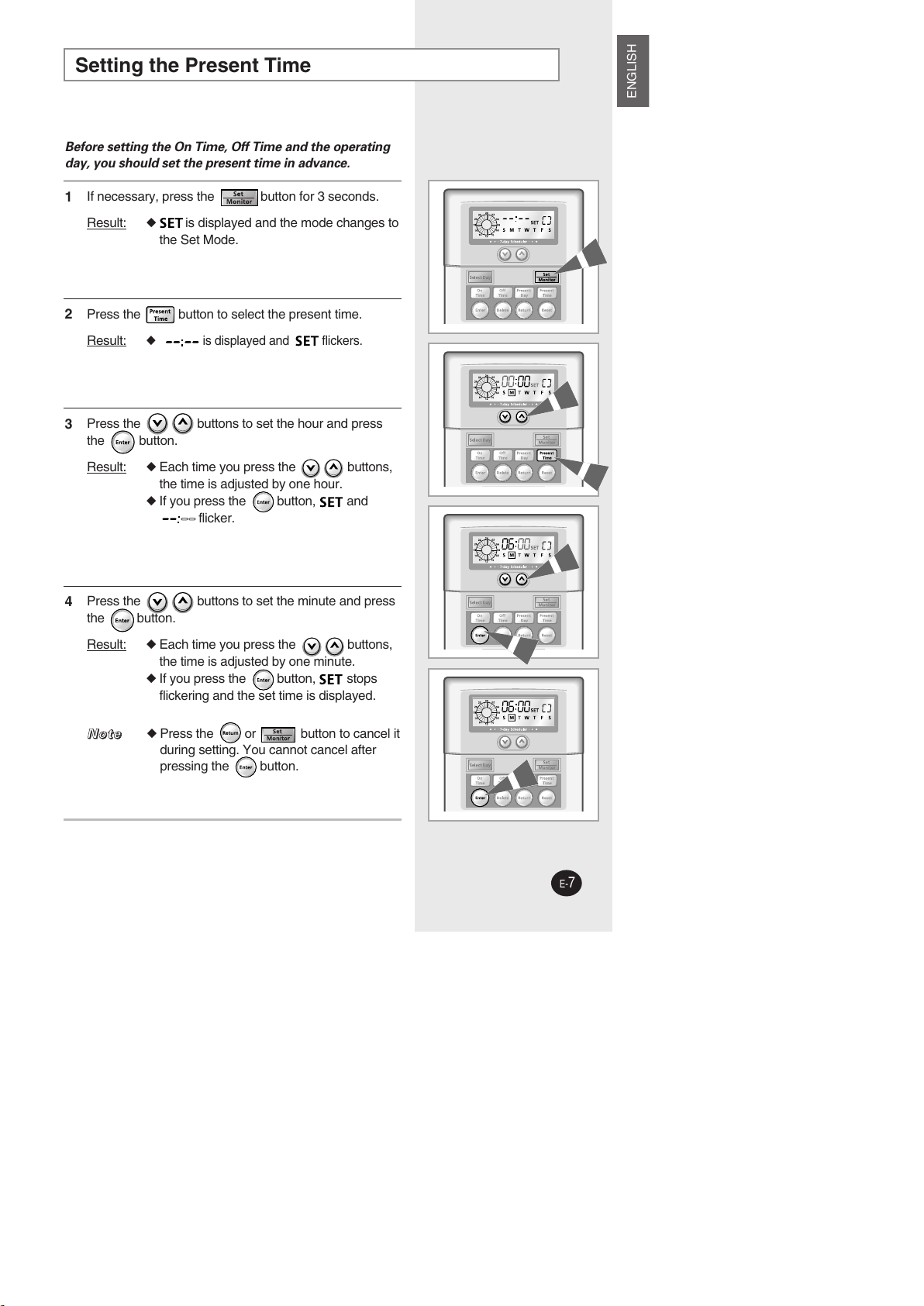

Setting the Present Time
If necessary, press the button for 3 seconds.
Result: :◆is displayed and the mode changes to
the Set Mode.
1
MWR-BS00 IB_E_29808 10/24/08 19:19 Page 7

E-8

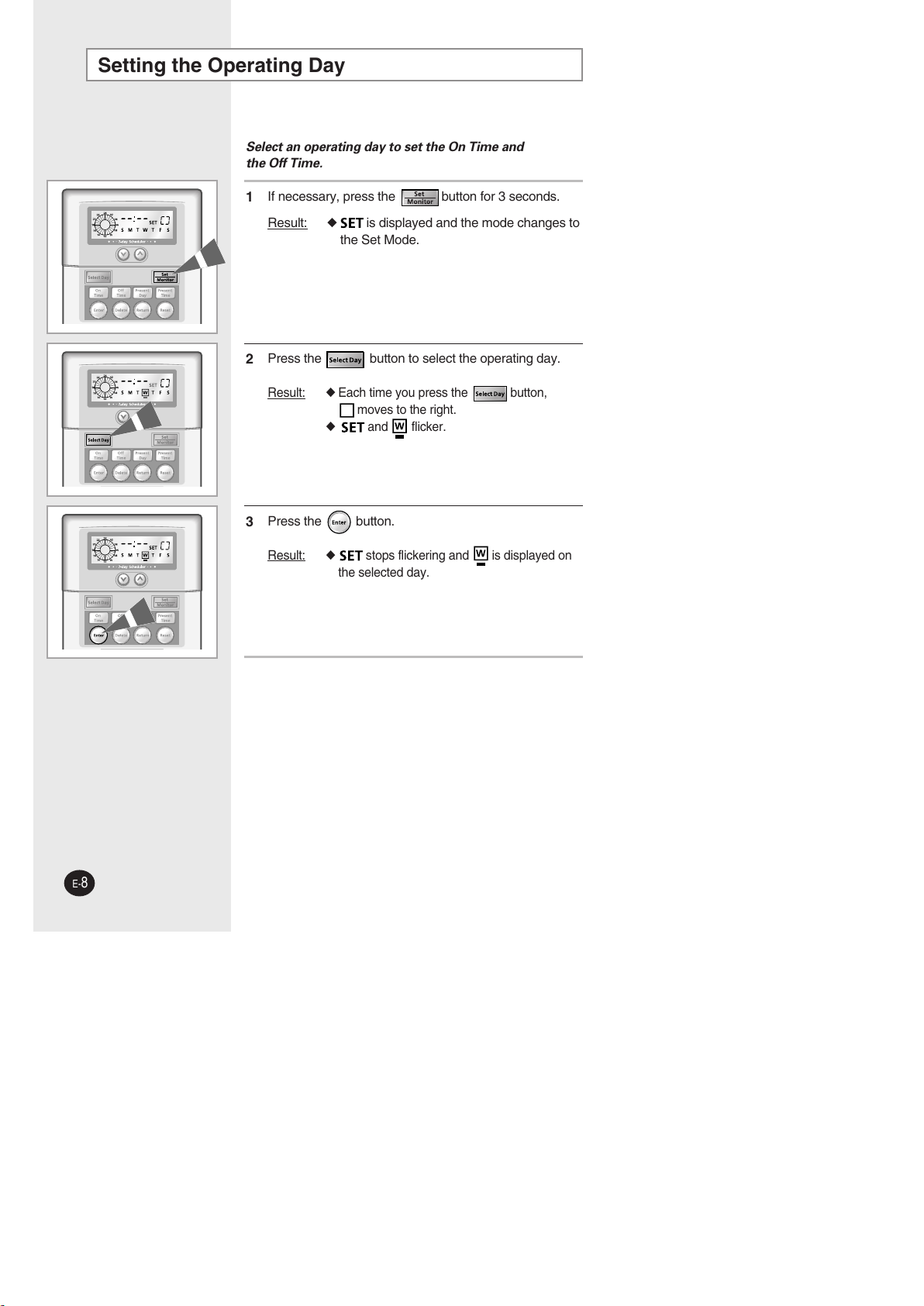

Setting the Operating Day
If necessary, press the button for 3 seconds.
Result: :◆is displayed and the mode changes to
the Set Mode.
1
Select an operating day to set the On Time and
the Off Time.
Press the button to select the operating day.
Result: ◆Each time you press the button,
moves to the right.
◆and flicker.
2
Press the button.
Result: ◆stops flickering and is displayed on
the selected day.
3
MWR-BS00 IB_E_29808 10/24/08 19:19 Page 8

ENGLISH
E-9
Setting the On Time
Set the On Time to turn on the air conditioner
automatically at the same day and time each week.
If necessary, press the button for 3 seconds.
Result: :◆is displayed and the mode changes to
the Set Mode.
1
Press the button.
Result: : ◆If there are no On Time set:
- is displayed and flickers.
◆If there is more than one On Time set:
- Each time you press the button,
the set times are displayed in order.
After displaying all the set times,
is displayed and flickers.
2
Press the buttons to set the hour and press
the button.
Result: :
◆Each time you press the buttons,
the time is adjusted by one hour.
The set time is displayed on the analog
time display.
3
Press the buttons to set the minute and press
the button.
Result: :
◆Each time you press the buttons,
the time is adjusted by one minute.
◆If you press the button, stops
flickering and the On Time is set.
4
◆When setting more than one On Time
continuously:
- Press the and press the
buttons to set the time.
Press the button. Press the
button until is displayed to set a
new On Time.
NN
NNoo oott ttee ee
MWR-BS00 IB_E_29808 10/24/08 19:19 Page 9

Press the buttons to set the hour and press
the button.
Result: :
◆Each time you press the buttons,
the time is adjusted by one hour.
The set time is displayed on the analog
time display.
3
Press the buttons to set the minute and press
the button.
Result: :
◆Each time you press the buttons,
the time is adjusted by one minute.
◆If you press the button, stops
flickering and the Off Time is set.
◆The respective hour segment flickers on the
analog display.
4

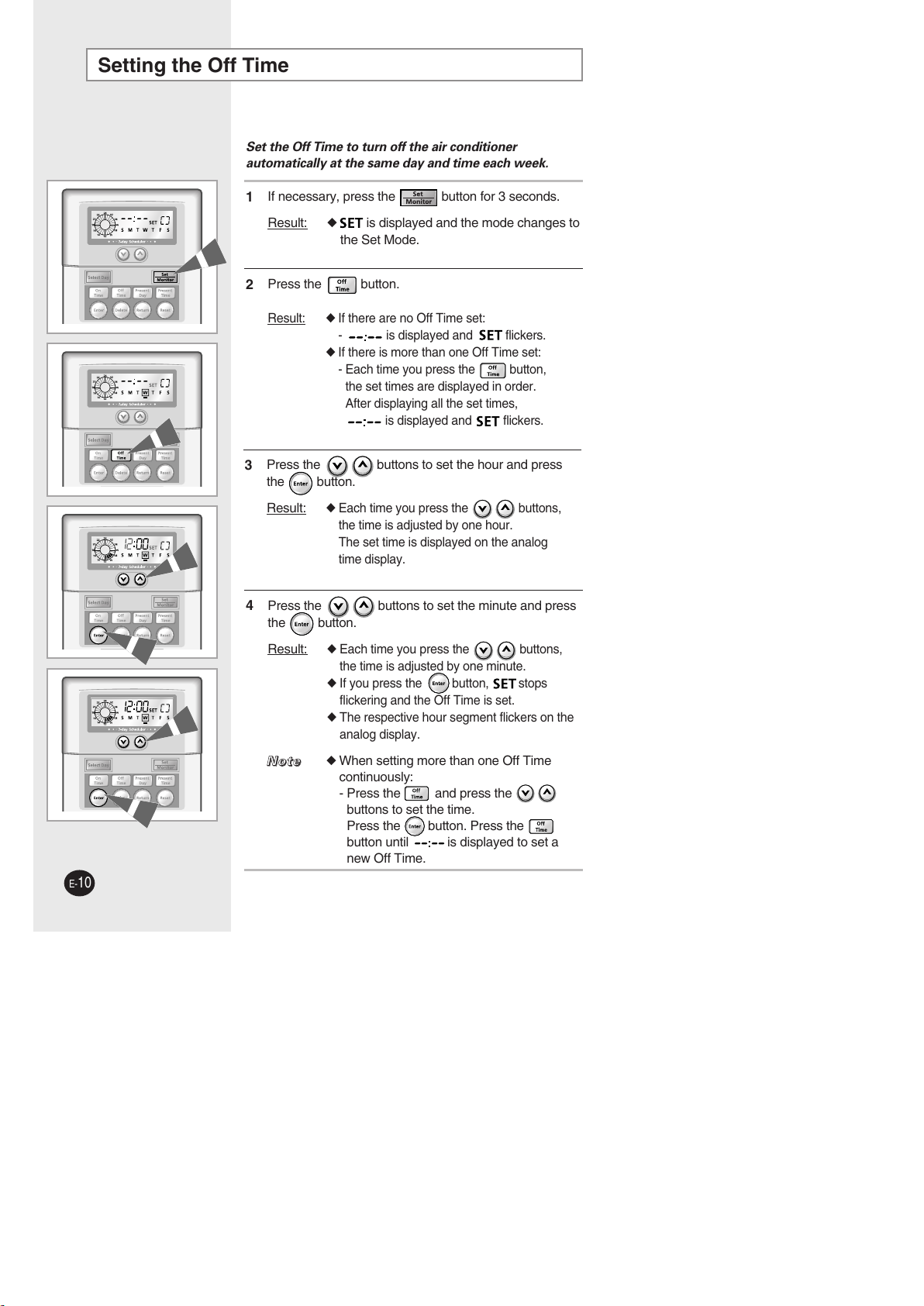

Setting the Off Time
If necessary, press the button for 3 seconds.
Result: :◆is displayed and the mode changes to
the Set Mode.
1
Set the Off Time to turn off the air conditioner
automatically at the same day and time each week.
Press the button.
Result: ◆If there are no Off Time set:
- is displayed and flickers.
◆If there is more than one Off Time set:
- Each time you press the button,
the set times are displayed in order.
After displaying all the set times,
is displayed and flickers.
2
E-10
◆When setting more than one Off Time
continuously:
- Press the and press the
buttons to set the time.
Press the button. Press the
button until is displayed to set a
new Off Time.
NN
NNoo oott ttee ee
MWR-BS00 IB_E_29808 10/24/08 19:19 Page 10
