Samsung AW07A0NEB User manual

H
SILGN
E
Window-type Room Air Conditioner (Cool)
Acondicionador de aire doméstico sistema de tipo ventana (Refrigeración)
Climatiseur de type Fenêtre (Refroidissement)
O ar Condicionado de Window-Type (Refrigeração)
Condizionatore d’aria per ambienti da finestra (Raffreddamento)
E S F P I
DB98-04664A(6)
LOÑ
AP
SE
S
I
AÇ
N
ARF
SÊU
G
UTR
OP
O
N
A
I
L
A
T
I
OWNER’S INSTRUCTIONS
MANUAL DE INSTRUCCIONES
MANUEL D’UTILISATION
MANUAL DE INSTRUÇÕES
ISTRUZIONI PER L’USO
AW07F0(1)(3)NAA/AB/BA/BB/BC/CA/DA/DB/EA/EB/EC
AW08F0(1)(3)NAA/AB/AC/AD
AW09F0(1)(3)NAA/BA/CA/DA/EA/EB
AW10F0(1)(3)DAA/BA/CA
AW12F0(1)(3)DAA/BA/CA/DA/EA/EB/EC
AW14F0(1)(3)MAA/AB/BA/CA/DA/EA
AW18F0(1)(3)MBA/BB/BC/BD/DA/EA/EB
AW18F0(1)(3)MCA/CB/CC
AWT18F0(1)(3)MBA/BB/DA/EA/EB
AW22F0(1)(3)MBA/CA/DA/EA
AW22F0(1)(3)MBB/CB/DB/EB
AW24F0(1)(3)MBA/CA/CB/CC/CD/DA/EA
AW24F0(1)(3)MBB/BC/BD/EB
AWT24F0(1)(3)MBA/CA/DA/EA
AWT24F0(1)(3)MBB/BC/EB/EC
AW07A(G)0(1)(3)NAA/AB/BA/BB/BC/CA/DA/DB/EA/EB/EC
AW08A(G)0(1)(3)NAA/AB/AC/AD
AW09A(G)0(1)(3)NAA/BA/CA/DA/EA/EB
AW10A(G)0(1)(3)DAA/BA/CA
AW12A(G)0(1)(3)DAA/BA/CA/DA/EA/EB/EC
AW14A(G)0(1)(3)MAA/AB/BA/CA/DA/EA
AW18A(G)0(1)(3)MBA/BB/BC/BD/DA/EA/EB
AW18A(G)0(1)(3)MCA/CB/CC
AWT18A(G)0(1)(3)MBA/BB/DA/EA/EB
AW22A(G)0(1)(3)MBA/CA/DA/EA
AW22A(G)0(1)(3)MBB/CB/DB/EB
AW24A(G)0(1)(3)MBA/CA/CB/CC/CD/DA/EA
AW24A(G)0(1)(3)MBB/BC/BD/EB
AWT24A(G)0(1)(3)MBA/CA/DA/EA
AWT24A(G)0(1)(3)MBB/BC/EB/EC

The following safety precautions must be taken when installing
and using your air conditioner.
Safety Precautions
1The air conditioner must be plugged into its own specific power source, which must be
installed in compliance with national wiring, earthing and safety regulations.
Depending on national regulations and your specific installation, you may need to install:
◆ A circuit breaker
For further information on electrical requirements, contact a professional electrician.
This device must be installed according to the national electrical rules.
2Make sure that the unit is correctly ventilated at all times;
do NOT place clothing or other materials over it.
4Do NOT insert anything between the air outlet blades, as the inner fan may be damaged
and you may be hurt. Keep children away from the unit.
5ALWAYS ensure that the power cable is in good condition.
Make sure that it is not walked on or damaged by items placed on or against it.
If the power cord is damaged in any way, it must be replaced by the manufacturer or its
service agent or a similarly qualified person in order to avoid a hazard.
6Do NOT attempt to repair the unit yourself. If it is damaged in any way, contact:
◆ An approved service center
◆ The outlet at which the air conditioner was purchased
7Do NOT place any obstacles in front of the unit.
3NEVER spill liquid of any kind into the unit.
Should this happen, unplug the unit and contact your installation specialist.
The manufacturer do not take the responsibility of the accident happened
because the air conditioner is not fixed firmly or installed securely, during
installing or using the product. In case you have difficulty in installation,
you must ask for an installation specialist help. The accident will be hap-
pened in case of installing improperly.
CC
CCAA AAUU UUTT TTII IIOO OONN NN
8The appliance is not intended for use by young children or infirm person without supervision;
young children should be supervised to ensure that they do not play with the appliance.
E-2

Contents
◆PREPARING YOUR AIR CONDITIONER
■Safety Precautions ......................................................................................... 2
■Air Conditioning Unit - Main Parts and Control Panel .................................... 4
◆OPERATING YOUR AIR CONDITIONER
■Cooling Your Room ........................................................................................ 5
■Airing Your Room ........................................................................................... 6
■Switching the Air Conditioner Off .................................................................... 6
■Adjusting the Air Flow Direction Horizontally .................................................. 7
■Adjusting the Air Flow Direction Vertically ...................................................... 7
■Selecting Energy Saving Mode (Only ✴✴✴✴F3/A3/G3✴✴✴ models) .......... 8
◆RECOMMENDATIONS FOR USE
■Operating Recommendation ........................................................................... 8
■Temperature and Humidity Ranges ................................................................ 8
■Cleaning Your Air Conditioner ........................................................................ 9
■Solving Common Problems ............................................................................ 11
■Technical Specifications ................................................................................. 12
◆INSTALLATION ....................................................................................................... 13
E-3
ENGLISH
CC
CCAA AAUU UUTT TTII IIOO OONN NN
The maximum permissible system impedance at the power junction box is 0.24 ohms.
Usually, the maximum permissible mains impedance will not be exceeded when the
branch to the power outlet is fed from a junction box with a rated current of 32A.
AW18✴✴
" The high inrush current of the starting compressor motor can have adverse effects to
the operation of other equipment under unfavorable mains conditions. This equipment
does not comply with the relevant technical standards for the limitation of voltage
fluctuations and flicker."
Before connecting this equipment to the power supply system, please report to your
supply authority and obtain the consent.
Do not connect other electric appliances to the same supply lines.
The illustrations in the step-by-step procedures use four different symbols:
PRESS PUSH IMPORTANT NOTE
☛
➢

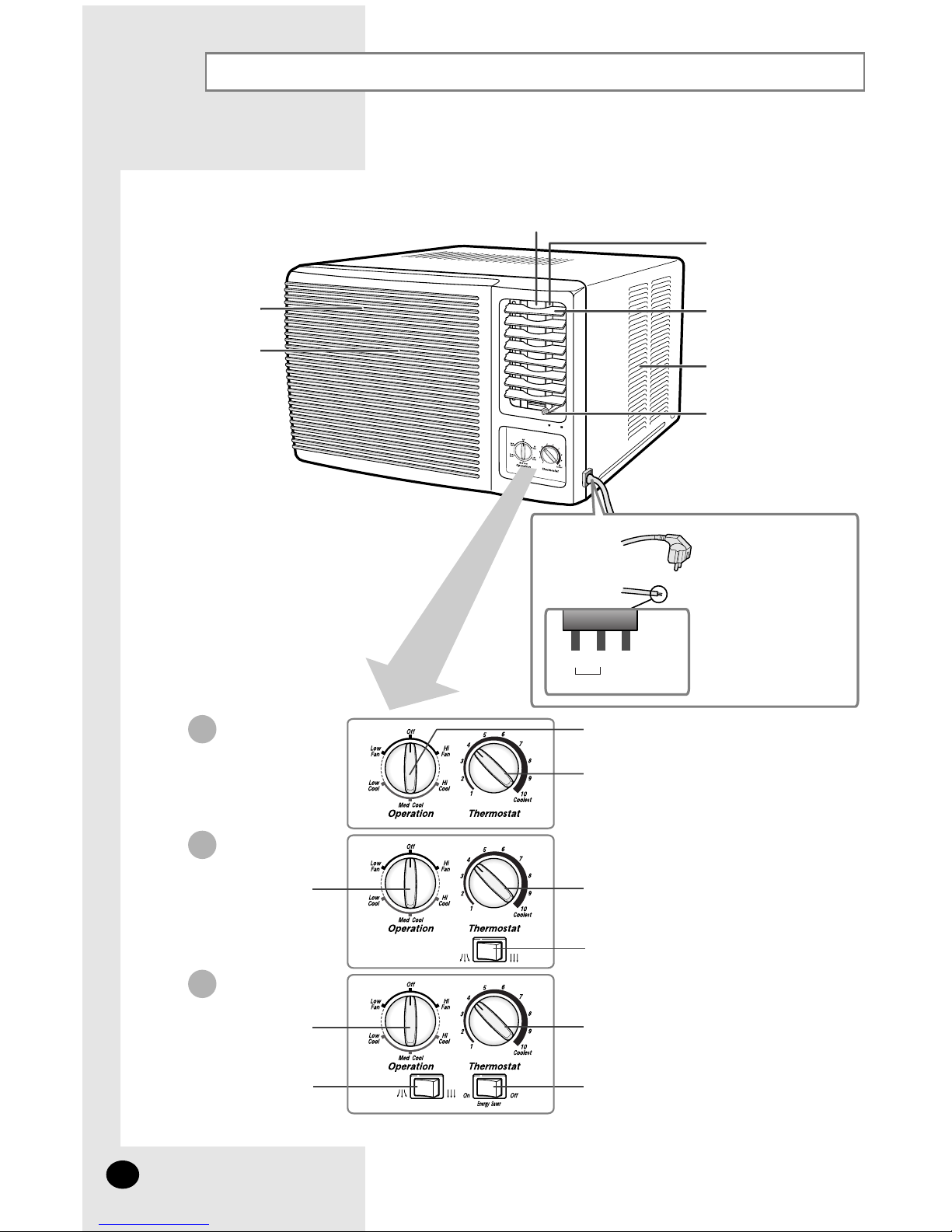

Air Conditioning Unit - Main Parts and Control Panel
Air filter
(The air filter is
located in inside.)
Air inlet (Inside)
Air outlet
Temperature
control dial
Operating mode
selection dial
Temperature
control dial
Operating mode
selection dial
Temperature
control dial
Air flow blade swing switch
Operating mode
selection dial
Energy Saver switch
Air flow blade swing
switch
Outer air flow blades
(up/down orientation)
Air inlet (Outside)
Ventilation lever
Inner air flow blades
(right/left orientation)
❄The design and shape are subject to
change according to the model.
E-4
✴✴✴✴F0/A0/G0✴✴✴
✴✴✴✴F1/A1/G1✴✴✴
✴✴✴✴F3/A3/G3✴✴✴

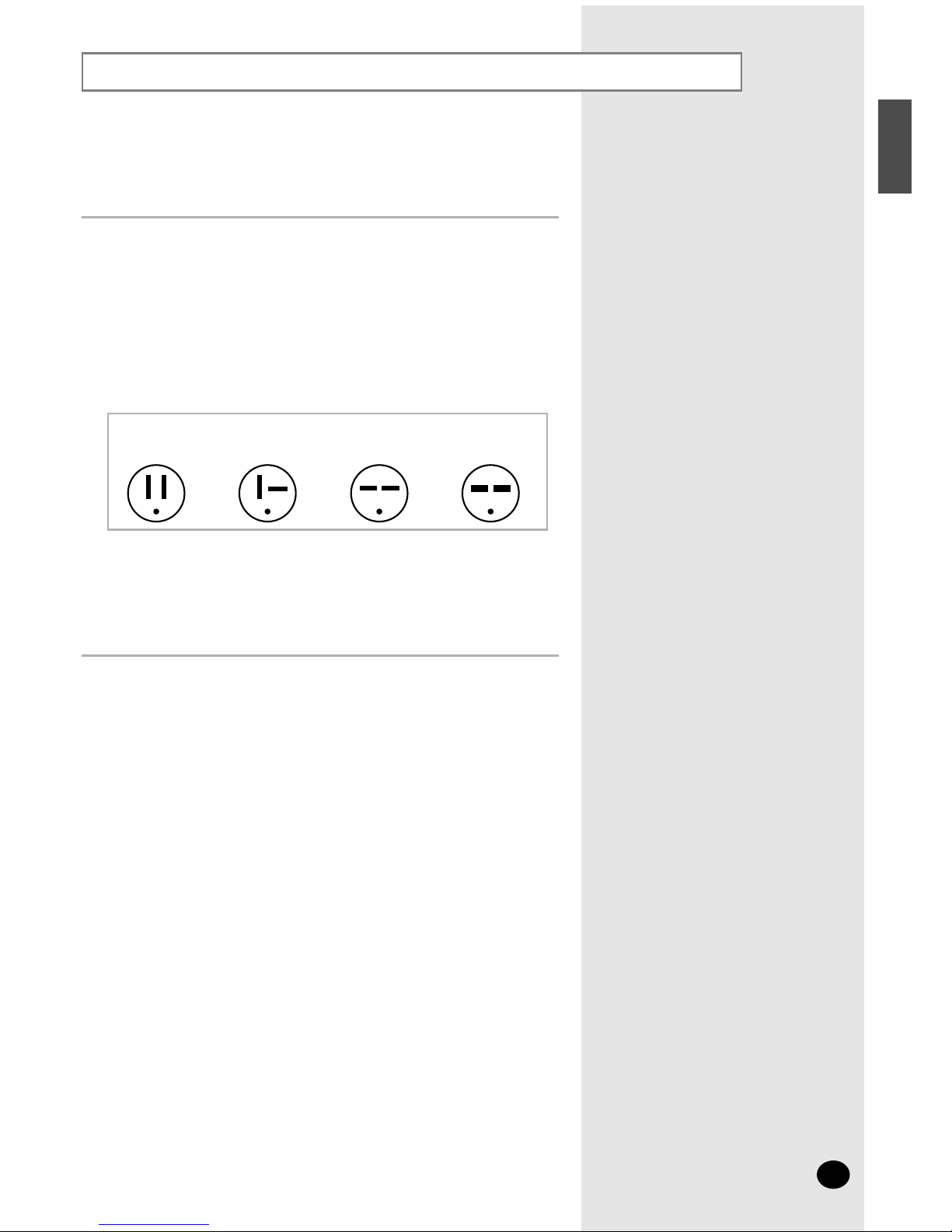

The type of the power plug
may differ according to the
type of local power supply.
◆The power plug may be not supplied
depending on the model.
Power plug
Power cable
Power cable connection
should be committed to
an installation engineer.
Blue Brown
Yellow/Green
Main Power Earth

Cooling Your Room
To cool your room with a... Set the operating mode
selection dial to...
High fan speed HI COOL
Between HIGH and LOW MED COOL
Low fan speed LOW COOL
Select the operating mode and fan speed.
You can change modes at any time.
You must select the Cool mode if you wish to lower the temperature
in your room. You can also set the fan speed.
1
2
To control the direction of the air flow, refer to page 7.
3
To adjust the temperature, turn the temperature control dial
to the desired position.
Possible temperatures: Between 18°C and 29°C inclusive.
➢
Result: ◆ The air conditioner starts up in Cool mode.
◆ The fan starts up at the speed selected.
Result: ◆ The air conditioner starts cooling if the room temperature is
higher than the selected temperature.
27˚C ~ 23˚C
23˚C
~ 18˚C
29˚C
~ 27˚C
E-5
ENGLISH

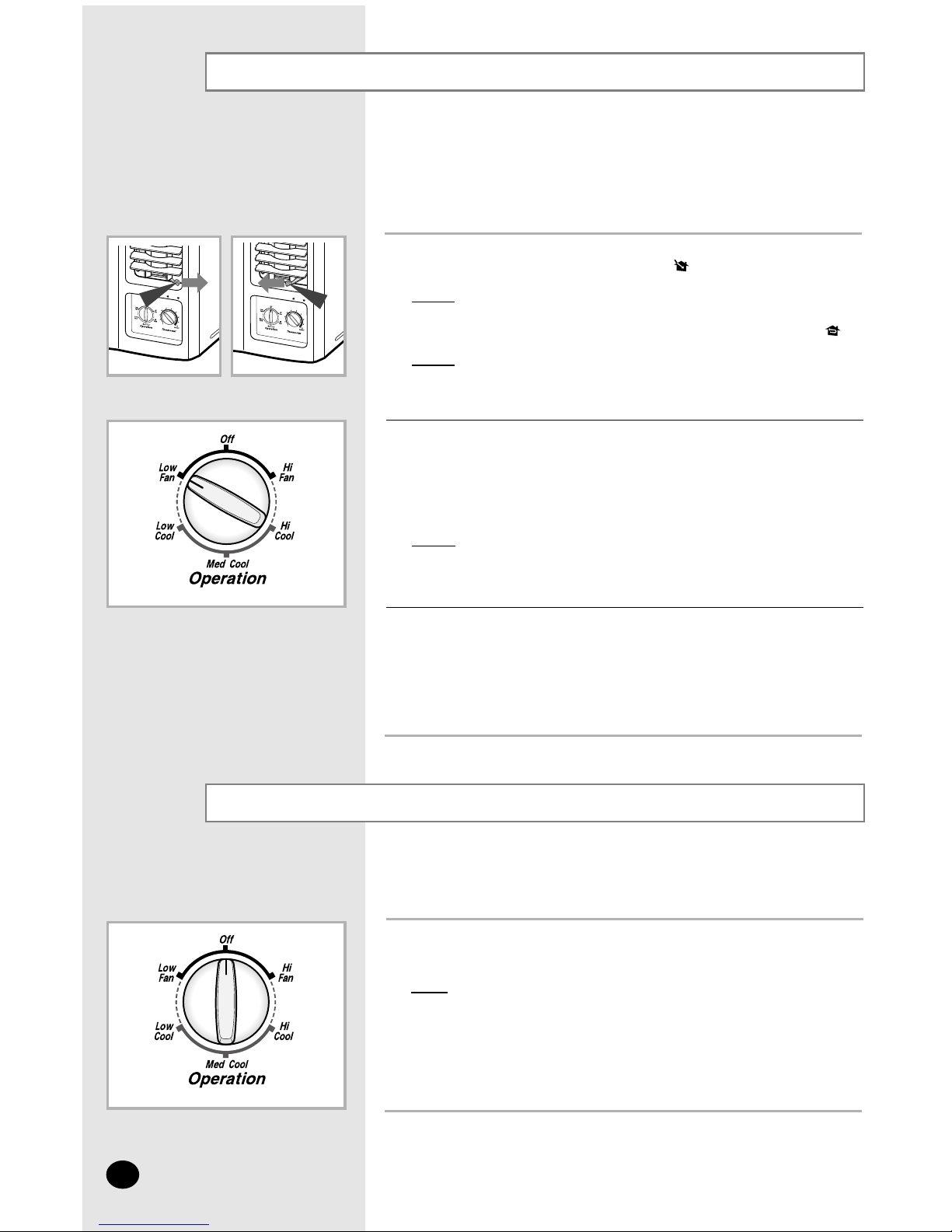

Airing Your Room
E-6
If the atmosphere in your room is stale, you can air it using
the Fan feature and if necessary, evacuate the stale air outside.
1
Set the operating mode selection dial to the HI FAN or LOW FAN
position.
HI FAN : The fan turns rapidly.
LOW FAN : The fan turns slowly.
Result: The air conditioner starts up in Fan mode.
2
To control the direction of the air flow, refer to page 7.
3
If you wish to evacuate stale air outside, push the ventilation lever on the front
of the unit to the right and the open position ( ).
Result: The air inside the room circulates and stale air is evacuated outside.
Otherwise, push the ventilation lever to the left and the closed position ( ).
Result: The air simply circulates inside the room.
➢
Switching the Air Conditioner Off
To switch the unit off, simply set the operating mode selection dial
to the OFF position.
Result:The air conditioner stops operating.
You can switch the air conditioner off whenever you want.
1

Adjusting the Air Flow Direction Horizontally
E-7
ENGLISH
Depending on the position of the unit in your room, you can adjust the
orientation of the inner air flow blades on the right-hand side of the
unit, thus increasing the efficiency of the air conditioner.
✦ ✴✴✴✴F1/F3/A1/A3/G1/G3✴✴✴ Models
✦ ✴✴✴✴F0/A0/G0✴✴✴ Models
1
To stop the blades moving left and right, set the air flow blade swing
switch to the position.
To stop the blades in a specific position and orient the air flow in
the corresponding direction, simply set the switch to the
position when the blades are in the desired position.
Hold the inner air flow blades, and adjust them to the desired direction.
2
Set the air flow blade swing switch to the position.
Result: The inner blades swing automatically left and right.
➢
Adjusting the Air Flow Direction Vertically
Again depending on the position of the unit in your room, you can adjust the
orientation of the outer air flow blades on the right-hand side of the unit.
RECOMMENDATION When...
Cooling
Adjust the blades to face...
Upwards.
Adjust the air flow blades to the desired position, by pushing them
upwards or downwards.
If you orient the air flow blades downwards and the unit operates
in Cool mode for long periods of time, dew may:
◆ Form on the surface of the blades
◆ Drip from the blades
➢

E-8
If you wish to save energy when using the air conditioner,
select the energy saving mode by using the Energy Saver switch.
This feature is normally used when the room is unoccupied.
1
To turn off the energy saving feature, set the Energy Saver switch to the
OFF position.
Result: The fan runs at all times, while the compressor cycles on and off.
2
To select the energy saving mode, set the Energy Saver switch to the ON
position.
Result:
The fan and compressor cycle on and off simultaneously.
This results in wider variations of room temperature and humidity.
If you want to run the air conditioner in Fan mode, do not turn the
Energy Saver switch on. The Fan mode will not operate when the
Energy Saver switch is in the ON position.
Selecting Energy Saving Mode (Only ✴✴✴✴F3/A3/G3✴✴✴ models)
If the air conditioner is used at... Then...
Higher temperature The automatic protection feature may be triggered
and the air conditioner stopped.
Lower temperature A water leakage or some other malfunction may happen
if the heat exchanger freezes.
Higher humidity levels Water may condense on and drip from the surface of the unit
if it is used for long periods.
The following table indicates the temperature and humidity ranges
within which the air conditioner can be used.
Here is a recommendation that you should follow when using your
air conditioner.
Topic Recommendation
If a power failure occurs when the air conditioner is
operating, the unit is switched off. When the power returns,
the air conditioner starts up again automatically.
Power failure
Operating Recommendation
Temperature and Humidity Ranges
➢
Cooling 21°C to 32°C approx. 21°C to 43°C approx. 80% or less
21°C to 54°C approx.(Middle East)
Mode Indoor Temperature Outdoor Temperature Indoor Humidity

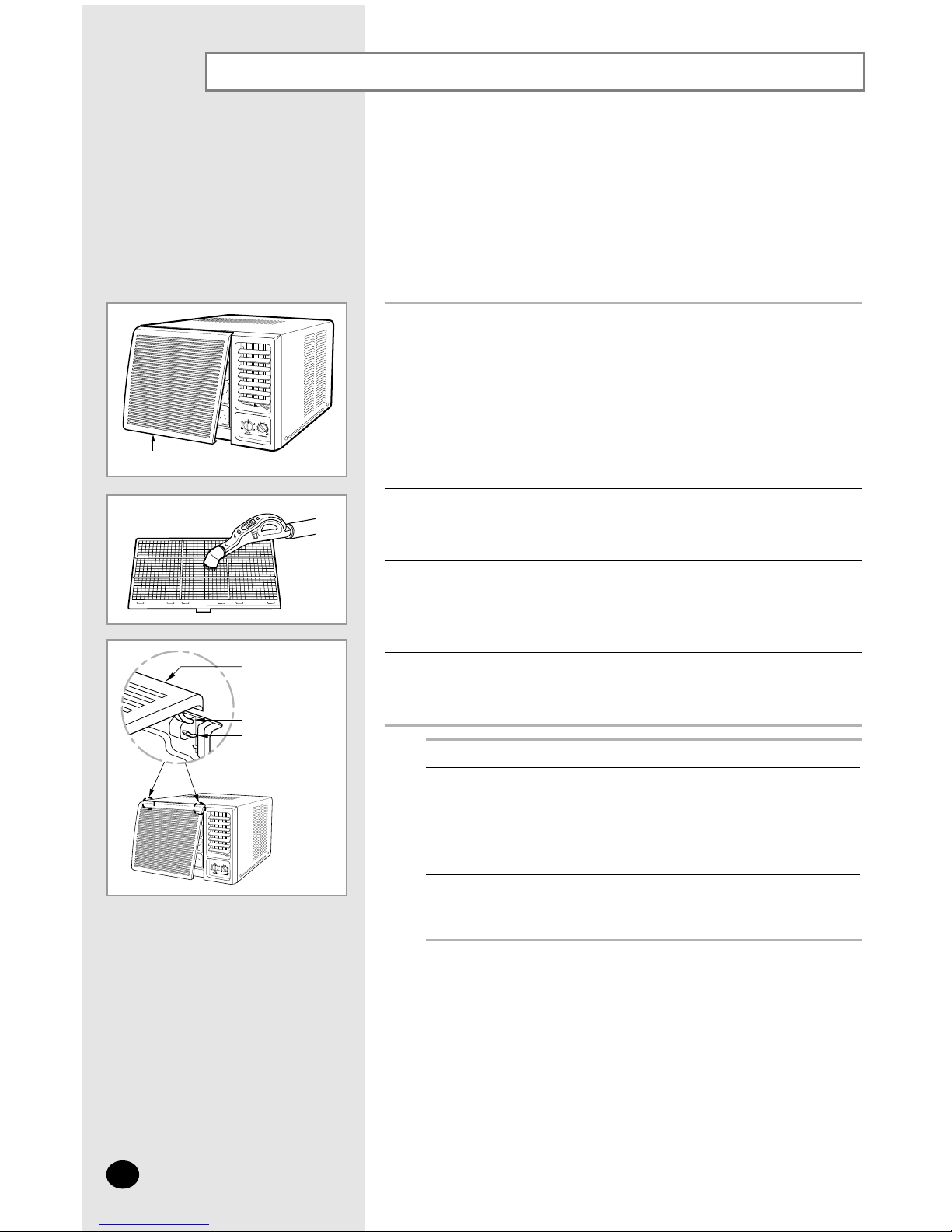

Cleaning Your Air Conditioner (✴✴✴✴F0/F1/F3✴✴✴ models)
E-9
ENGLISH
If you...
Will not be using the
air conditioner for a
long period of time
Have not used the air
conditioner for a long
period of time
Then...
◆ Set the operating mode selection dial
to “LOW FAN” and let it run of a few
hours to dry the inside of the air
conditioner thoroughly.
◆ Switch the air conditioner off and
unplug it from the wall socket.
◆ Clean the filter and outer surfaces.
Set the operating mode selection dial
to “LOW FAN” and let it run of a few
hours to dry the inside of the air
conditioner thoroughly.
Hold the air filter handle, slightly pull it to the left side and open the front grille. 1
Pull the air filter to the right side. 2
Remove all dust on the air filter with a vacuum cleaner or brush. 3
When you have finished, insert the air filter back into its original position. 4
Wipe the surface of the unit with a neutral detergent and then wipe it again
with dry cloth.
(Be sure not to use benzene, solvent or other chemical products.)
5
➢
The removal of the front grille makes it easier to clean the air
conditioner. Open the grille as much as possible.
➢
Be sure to clean the air filter periodically to maintain the air conditioner
in the best condition for a long period of time.
When cleaning the air conditioner, turn it off and pull out
the power plug.
IMPORTANT
Removal and Reassembly of the Front Grille
Grasp the lower part of the
front grille and the air filter
handle, then open the grille.
1
Remove the safety clip and
the front grille.
2
When reassembling the front
grille, you should install the
safety clip again.
3
For user's safety, a safety clip has been installed in the front grille.
Safety clip
CC
CCAA AAUU UUTT TTII IIOO OONN NN
The air conditioner has two or three
grille grooves depending on the model.

Cleaning Your Air Conditioner (✴✴✴✴A0/A1/A3/G0/G1/G3✴✴✴ models)
E-10
If you... Then...
Will not be using the ◆ Set the fan going for a few hours
air conditioner for a to dry the inside of the air conditioner
long period of time thoroughly.
◆ Switch the air conditioner off and
unplug it from the wall socket.
◆ Clean the filter and outer surfaces.
Have not used the air Set the fan going for a few hours to
conditioner for a long dry the inside of the air conditioner
period of time thoroughly.
To get the best possible use out of your air conditioner,
you must clean it regularly by two weeks to remove the dust on the air filter.
Before cleaning your air conditioner, ensure that it is
switched off and unplugged from the wall socket.
Open the front grille by pulling on the tabs of the unit.
The removal of the front grille makes it easier to clean the air
conditioner. After opening the front grille, lift it up as much as
possible, then pull down to release it.
1
Grasp the handle on the air filter and lift it slightly and then out to the front.
2
Remove all dust on the air filter with a vacuum cleaner or brush.
3
When you have finished, slide the air filter back into position.
4
Clean the outer surfaces with a damp cloth and mild detergent
(do NOT use benzene, solvents or other chemicals).
Wipe them dry with a clean, soft cloth.
5
☛
➢
➢
Front grille
Grille groove
Body guide
Front grille

Solving Common Problems
EXPLANATION / SOLUTION
◆ Check that the circuit breaker used for the air conditioner
has not been triggered.
◆ Check that the power cable is plugged into a wall socket and the
socket is switched on, if necessary.
◆ Check that the correct operating mode has been selected
(cooling or airing).
◆ Check that the correct operating mode has been selected.
◆ The room temperature may be too low.
◆ Dust may be blocking the air filter;
refer to page 9 or 10 for cleaning instructions.
◆ Check that there is no obstacle blocking the air flow into or out of the unit.
PROBLEM
The air conditioner does not
operate at all
The air conditioner does not
cool
◆ Check that the air conditioner has been switched on;
if necessary, turn the operating mode selection dial
; refer to page 7.
The air flow direction does not
change when you set the air
flow blade swing switch to the
position
◆ Air the room.
Odours are permeated in the
room during air conditioning
Before contacting the after-sales service, perform the following simple checks.
They may save you the time and expense of an unnecessary call.
E-11
ENGLISH

Technical Specifications
E-12
Design and specifications are subject to change without notice.
Model
✴✴✴✴✴✴✴
AA/AB/AC/AD
✴✴✴✴✴✴✴ BA/BB/BC/BD
✴✴✴✴✴✴✴ CA/CB/CC/CD
✴✴✴✴✴✴✴ DA/DB
✴✴✴✴✴✴✴ EA/EB/EC
Power Supply
115V~, 60Hz
220V~, 60Hz
230-208V~, 60Hz
200-220V~, 50Hz
220-240V~, 50Hz

Installation (for 60Hz)
E-13
ENGLISH
115V
15 AMP circuit
"parallel" type
230V/208V
20 AMP circuit
"perpendicular" type
230V/208V
15 AMP circuit
"tandem" type
230V/208V
30 AMP circuit
"tandem" type
1Electrical Requirements
For personal safety:
◆This appliance must be properly grounded.
◆Do not, under any circumstances, cut or remove the third grounding
prong from the power cord.
◆We recommend that you do not use an extension cord or an
adapter plug with this appliance.
◆Do not change the plug on the power cord of this appliance.
◆ Follow national electrical codes or local codes and ordinances.
◆If the electric supply provided does not meet the above
specifications, call a licensed electrician.
◆Aluminum house wiring may pose special problems -
consult a qualified electrician.
◆This unit requires a separate circuit, serving only this appliance.

Installation
Before installation, be sure to check the installation area
for the air conditioner, and drain hose.
Checkpoints prior to installation
Check the cabinet and front grille of the unit for any harmful defects
such as scratches.
1
Be sure to check the power supply.
- Refer to the specifications on the label attached to the unit.
2
Installation Conditions
As the unit is heavy, the wall or window of the installation area should
have sufficient strength and durability for operation of the air conditioner,
and for prevention of any vibration or noise.
If it is weak, reinforcement work should be performed separately.
1
It is advisable to install the air conditioner in the north or west side to
prevent the effect of direct sunlight.
When installing it in the south or east side due to unavoidable
circumstances, it is advisable to install the sunshade to prevent the
direct sunlight.
In this case, take care not to cause any hindrance to the flow of outside air.
2
When installing the air conditioner, be sure to obtain sufficient space on
the rear side of the unit for smooth flow of air.
When operating the air conditioner in closed areas such as inner building
with cooling operation, and result in trouble with the unit.
See the illustration below.
3
500mm 500mm
75mm
min.
300mm
500mm Fence, wall
or other
obstacle
150mm min.
“A”
Approx.3 ˚
Awning
750mm
➢ ◆ If the wall is greater than 150mm thick,
cut the wall back on a 45˚ angle if possible.
100mm or more
45˚45˚
Model
✴✴✴✴✴✴N✴✴
✴✴✴✴✴✴D✴✴
✴✴✴✴✴✴M✴✴
“A”
180mm
220mm
240mm
E-14
Outdoor Side
Indoor Side
◆The appliance must be fixed well by screw or similar method.

Installation of the Drain Tube
Fix the drain tube as shown in the figure.
Installation of the Drain Pan
The procedure for installing the drain pan should be determined by the
condition of the installing area.
◆ In the case of an area where the drain pan can not be directly
installed on the rear side of the unit after installing the air conditioner.
Example: High storage
◆ In the case of an area where the drain pan can be directly installed
on the rear side of the unit after installing the air conditioner.
Remove two screws on the lower, right and left sides of the unit.
4
Open the front grille ; refer to page 9 or 10.
1
Remove the screw located at the lower section of the front grille.
It is secured in the section depending on the model.
2
Remove the chassis from the cabinet.
5
Remove the rubber cap inserted into the basepan.
6
Fix the drain pan as shown in the figure, and then connect the drain hose.
(You can use any commercially-available drain hose.)
7
Install the cabinet at the specified area after installing the drain pan,
and then re-assemble it in the original condition.
8
Follow steps 6 and 7 only
1
Remove the front panel.
3-1 Press both sides of the cabinet in the direction of the arrow
as shown in the figure.
3-2 Pull the lower part of the front panel slightly forward.
(below three inches)
3-3 Lift the front panel upward.
3
Applying excessive force to remove the front panel may cause
damage to the tab ; be sure not to use excessive force.
☛
Rubber cap
Screws(2EA)
Gasket
Rear
Drain Tube
Front panel
Secure the front panel to the case by replacing the screw removed in
step 2. If a screw not removed in step 2, secure the panel with a
supplied screw.
➢
Bottom-Side View with
Drain Pan and Hose in Place
Rubber cap
Drain Hose
Rear
Drain Pan
Screw
E-15
ENGLISH
Screw

Printed in Korea
THIS AIR CONDITIONER IS MANUFACTURED BY:
ESTE ACONDICIONADOR DE AIRE HA SIDO FABRICADO POR:
CE CLIMATISEUR EST FABRIQUÉ PAR:
ESTE APARELHO DE AR CONDICIONADO É FABRICADO POR:
QUESTO CONDIZIONATORE D’ARIA È PRODOTTO DA:
