Samsung CLX 6210FX - Color Laser - All-in-One User manual

DIGITAL LASER MFP The keynote of Product
A4 Tandem CMFP to Maximize Office
Productivity
- Speed
CLX-6200ND,6200FX,6210FX(20/20 ppm)
CLX-6240FX(24/24 ppm)
- Resolution
2,400 X 600 dpi (effective output)
- CPU
CLX-6200ND,6200FX,6210FX(360MHz)
CLX-6240FX(533MHz)
- Memory
CLX-6200ND,6200FX,6210FX(128 MB)
CLX-6240FX(256MB)
- Duplex
- ADF (6200FX) , DADF(6200ND,6210FX,6240FX)
Manual
SERVICE
Basic Model :CLX-6210FX,6240FX
CLX-6240FX/XEF

ELECTRONICS
Samsung Electronics Co.,Ltd. August. 2007
Printed in Korea.
VERSION NO.:1.00CODE :
6240-FX0XEF
GSPN (Global Service Partner Network)
North America : service.samsungportal.com
Latin America : latin.samsungportal.com
CIS : cis.samsungportal.com
Europe : europe.samsungportal.com
China : china.samsungportal.com
Asia : asia.samsungportal.com
Mideast & Africa : mea.samsungportal.com

1. Precautions
1.1 Safety Warning 1-1
1.2 Caution for safety 1-2
1.3 ESD Precautions 1-5
1.4 Super Capacitor or Lithium Battery Precautions 1-5
2. Product spec and feature
2.1 Product Specifications 2-1
2.1.1 Product Overview 2-1
2.1.2 Specifications 2-2
2.2 System Overview 2-18
2.2.1 Main parts of system 2-21
2.2.2 H/W Configuration 2-32
3. Disassembly and Reassembly
3.1 General Precautions on Disassembly 3-1
3.2 Screws used in the printer 3-2
3.3 Disassembly Procedure 3-5
3.3.1 COVER Rev Exit & COVER L/R 3-5
3.3.3 COVER REAR & COVER MIDDLE REAR 3-8
3.3.4 SCAN Ass'y 3-9
3.3.5 DADF 3-10
3.3.6 Reverse Ass'y 3-11
3.3.7 COVER MIDDLE Ass'y 3-12
3.3.8 HVPS 3-13
3.3.9 Main Board 3-13
3.3.10 SMPS Board 3-14
Contents

3.3.11 Fuser Control Board 3-14
3.3.12 LSU 3-15
3.3.13 CRUM 3-16
3.3.14 Fuser Drive Ass'y 3-16
3.3.15 Pick up roller 3-17
4. Alignment & Troubleshooting
4.1 Alignment and Adjustments 4-1
4.1.1 Control Panel
(CLX-6200FX, CLX-6210FX, CLX-6240FX only) 4-1
4.1.2 Control Panel(CLX-6200ND only) 4-3
4.1.3 LED Function 4-4
4.1.4 Jam Removal 4-5
4.1.5 System setup 4-15
4.1.6 Error Message 4-49
4.2 Troubleshooting 4-54
4.2.1 Procedure of Checking the Symptoms 4-54
4.2.2 The cause and solution of image quality 4-55
4.2.3 The cause and solution of the paper feeding 4-67
4.2.4 Copy Problems 4-75
4.2.5 OPE Problems 4-78
4.2.6 Other Problems 4-79
5. Exploded Views & Parts List
Thumbnail 5-2
5.1 Main 5-4
5.2 Cover Unit 5-5
5.3 Front Cover 5-6
5.4 MP Tray 5-7
Continued

5.5 Middle Cover 5-8
5.6 Reverse Unit 5-9
5.7 Top Cover 5-10
5.8 Reverse Frame 5-11
5.9 Reverse Drive 5-12
5.10 Frame 5-13
5.11 Feed Drive 5-14
5.12 Fuser Unit 5-15
5.13 Fuser Drive 5-16
5.14 PTB 5-17
5.15 Scan Ass'y 5-18
5.16 Hinge Unit 5-19
5.17 OPE 3in1 5-20
5.18 OPE 4in1 5-21
5.19 Platen Ass'y 5-22
5.20 ADF Ass'y 5-23
5.21 Platen Cover ADF 5-24
5.22 ADF Lower 5-25
5.23 ADF Motor 5-26
5.24 DADF Ass'y 5-27
5.25 Platen Cover DADF 5-28
5.26 DADF lower 5-29
5.27 DADF Motor 5-30
5.28 Cassette 5-31
5.29 SCF Unit 5-32
5.30 SCF Cassette 5-33
Continued

6. System Diagram
6.1 Block Diagram 6-1
6.1.1 Block Diagram of CLX-6200 Series 6-1
6.1.2 Block Diagram of CLX-6420FX 6-2
6.2 Connection Diagram 6-3
6.3 Voltage Map 6-7
7. Reference Information
7.1 Tools for Troubleshooting 7-1
7.2 Acronyms and Abbreviations 7-2
7.3 Select a location for the printer 7-4
7.4 A4 ISO 19752 Standard Pattern 7-5
7.5 Model List 7-6
Continued

Service Manual
Precautions
1-1
Samsung Electronics
1. Precautions
In order to prevent accidents and to prevent damage to the equipment please read the precautions listed
below carefully before servicing the printer and follow them closely.
1.1 Safety Warning
(1) Only to be serviced by appropriately qualified service engineers.
igh voltages and lasers inside this product are dangerous. This printer should only be serviced by a suitably
trained and qualified service engineer.
(2) Use only Samsung replacement parts
There are no user serviceable parts inside the printer. Do not make any unauthorized changes or
additions to the printer, these could cause the printer to malfunction and create electric shock or fire hazards.
(3) Laser Safety Statement
The Printer is certified in the U.S. to conform to the requirements of D S 21 CFR, chapter 1 Subchapter J for
Class 1(1) laser products, and elsewhere, it is certified as a Class I laser product
conforming to the requirements of IEC 825. Class I laser products are not considered to be hazardous. The
laser system and printer are designed so there is never any human access to laser radiation above a Class I
level during normal operation, user maintenance, or prescribed service condition.
Warning >> Never operate or service the printer with the protective cover removed from Laser/Scanner assembly. The
reflected beam, although invisible, can damage your eyes. When using this product, these basic safety
pre cautions should always be followed to reduce risk of fire, electric shock, and injury to persons.
CAUTION - INVISIBLE LASER RADIATION 
W EN T IS COVER OPEN. 
DO NOT OPEN T IS COVER.
VORSIC T - UNSIC TBARE LASERSTRA LUNG, 
WENN ABDECKUNG GEÖFFNET. 
NIC T DEM STRA L AUSSETZEN.
ATTENTION - RAYONNEMENT LASER INVISIBLE EN CAS 
D’OUVERTURE. EXPOSITION DANGEREUSE 
AU FAISCEAU.
ATTENZIONE - RADIAZIONE LASER INVISIBILE IN CASO DI 
APERTURA. EVITARE L’ESPOSIZIONE AL 
FASCIO.
PRECAUCION - RADIACION LASER IVISIBLE CUANDO SE ABRE. 
EVITAR EXPONERSE AL RAYO.
ADVARSEL. - USYNLIG LASERSTRÅLNING VED ÅBNING, NÅR 
SIKKER EDSBRYDERE ER UDE AF FUNKTION. 
UNDGÅ UDSAETTELSE FOR STRÅLNING.
ADVARSEL. - USYNLIG LASERSTRÅLNING NÅR DEKSEL 
ÅPNES. STIRR IKKE INN I STRÅLEN. 
UNNGÅ EKSPONERING FOR STRÅLEN.
VARNING - OSYNLIG LASERSTRÅLNING NÄR DENNA DEL 
ÄR ÖPPNAD OC SPÄRREN ÄR URKOPPLAD. 
BETRAKTA EJ STRÅLEN. STRÅLEN ÄR FARLIG.
VARO! - AVATTAESSA JA SUOJALUKITUS O ITETTAESSA 
OLET ALTTIINA NÄKYMÄTTÖMÄLLE LASER-
SÄTEILYLLE ÄLÄ KATSO SÄTEESEEN.

Service Manual
Precautions
1-2
Samsung Electronics
1.2 Caution for safety
1.2.1 Toxic material
This product contains toxic materials that could cause illness if ingested.
(1) If the LCD control panel is damaged it is possible for the liquid inside to leak. This liquid is toxic. Contact with the skin
should be avoided, wash any splashes from eyes or skin immediately and contact your doctor. If the liquid gets into
the mouth or is swallowed see a doctor immediately.
(2) Please keep toner cartridges away from children. The toner powder contained in the toner cartridge may be harmful
and if swallowed you should contact a doctor.
1.2.2 Electric Shock and Fire Safety Precautions
Failure to follow the following instructions could cause electric shock or potentially cause a fire.
(1) Use only the correct voltage, failure to do so could damage the printer and potentially cause a fire or electric
shock.
(2) Use only the power cable supplied with the printer. Use of an incorrectly specified cable could cause the cable
to overheat and potentially cause a fire.
(3) Do not overload the power socket, this could lead to overheating of the cables inside the wall and could lead to
a fire.
(4) Do not allow water or other liquids to spill into the printer, this can cause electric shock. Do not allow paper
clips, pins or other foreign objects to fall into the printer these could cause a short circuit leading to an electric
shock or fire hazard..
(5) Never touch the plugs on either end of the power cable with wet hands, this can cause electric shock. When
servicing the printer remove the power plug from the wall socket.
(6) Use caution when inserting or removing the power connector. The power connector must be inserted com-
pletely otherwise a poor contact could cause overheating possibly leading to a fire. When removing the power
connector grip it firmly and pull.
(7) Take care of the power cable. Do not allow it to become twisted, bent sharply round corners or otherwise
damaged. Do not place objects on top of the power cable. If the power cable is damaged it could overheat and
cause a fire or exposed cables could cause an electric shock. Replace a damaged power cable immediately,
do not reuse or repair the damaged cable. Some chemicals can attack the coating on the power cable,
weakening the cover or exposing cables causing fire and shock risks.
(8) Ensure that the power sockets and plugs are not cracked or broken in any way. Any such defects should be
repaired immediately. Take care not to cut or damage the power cable or plugs when moving the machine.
(9) Use caution during thunder or lightening storms. Samsung recommend that this machine be disconnected from
the power source when such weather conditions are expected. Do not touch the machine or the power cord if it
is still connected to the wall socket in these weather conditions.
(10) Avoid damp or dusty areas, install the printer in a clean well ventilated location. Do not position the machine
near a humidifier. Damp and dust build up inside the machine can lead to overheating and cause a fire.
(11) Do not position the printer in direct sunlight. This will cause the temperature inside the printer to rise possibly
leading to the printer failing to work properly and in extreme conditions could lead to a fire.
(12) Do not insert any metal objects into the machine through the ventilator fan or other part of the casing, it could
make contact with a high voltage conductor inside the machine and cause an electric shock.

Service Manual
Precautions
1-3
Samsung Electronics
1.2.3 andling Precautions
The following instructions are for your own personal safety, to avoid injury and so as not to damage the printer
(1) Ensure the printer is installed on a level surface, capable of supporting its weight. Failure to do so could cause
the printer to tip or fall.
(2) The printer contains many rollers, gears and fans. Take great care to ensure that you do not catch your fingers,
hair or clothing in any of these rotating devices.
(3) Do not place any small metal objects, containers of water, chemicals or other liquids close to the printer which if
spilled could get into the machine and cause damage or a shock or fire hazard.
(4) Do not install the machine in areas with high dust or moisture levels, beside on open window or close to a
humidifier or heater. Damage could be caused to the printer in such areas.
(5) Do not place candles, burning cigarettes, etc. on the printer, these could cause a fire.
1.2.4 Assembly / Disassembly Precautions
Replace parts carefully, always use Samsung parts. Take care to note the exact location of parts and also
cable routing before dismantling any part of the machine. Ensure all parts and cables are replaced correctly.
Please carry out the following procedures before dismantling the printer or replacing any parts.
(1) Check the contents of the machine memory and make a note of any user settings. These will be erased if the
mainboard is replaced.
(2) Ensure that power is disconnected before servicing or replacing any electrical parts.
(3) Disconnect printer interface cables and power cables.
(4) Only use approved spare parts. Ensure that part number, product name, any voltage, current or temperature
rating are correct.
(5) When removing or re-fitting any parts do not use excessive force, especially when fitting screws into plastic.
(6) Take care not to drop any small parts into the machine.
(7) andling of the OPC Drum
- The OPC Drum can be irreparably damaged if it exposed to light.
Take care not to expose the OPC Drum either to direct sunlight or to fluorescent or incandescent room
lighting. Exposure for as little as 5 mins can damage the surface’s photoconductive properties and will result
in print quality degradation. Take extra care when servicing the printer. Remove the OPC Drum and store it in
a black bag or other lightproof container. Take care when working with the covers(especially the top cover)
open as light is admitted to the OPC area and can damage the OPC Drum.
- Take care not to scratch the green surface of OPC Drum Unit.
If the green surface of the Drum Cartridge is scratched or touched the print quality will be compromised.

Service Manual
Precautions
1-4
Samsung Electronics
1.2.5 Disregarding this warning may cause bodily injury
(1) Be careful with the high temperature part.
The fuser unit works at a high temperature. Use caution when working on the printer. Wait for the fuser to cool
down before disassembly.
(2) Do not put finger or hair into the rotating parts.
When operating a printer, do not put hand or hair into the rotating parts (Paper feeding entrance, motor, fan,
etc.). If do, you can get harm.
(3) When you move the printer.
This printer weighs 36.6 Kg(80.69 lbs) including with consumables. Use safe lifting and handling techniques.
Back injury could be caused if you do not lift carefully.
(4) Ensure the printer is installed safely.
The printer weighs 36.6 Kg(80.69 lbs), ensure the printer is installed on a level surface, capable of supporting
its weight. Failure to do so could cause the printer to tip or fall possibly causing personal injury or damaging the
printer.
(5) Do not install the printer on a sloping or unstable surface. After installation, double check that the printer is stable.

Service Manual
Precautions
1-5
Samsung Electronics
1.3 ESD Precautions
Certain semiconductor devices can be easily damaged by static electricity. Such components are commonly called
“Electrostatically Sensitive (ES) Devices”, or ESDs. Examples of typical ESDs are: integrated circuits, some field
effect transistors, and semiconductor “chip” components.
The techniques outlined below should be followed to help reduce the incidence of component damage caused by
static electricity.
Caution >>Be sure no power is applied to the chassis or circuit, and observe all other safety precautions.
1. Immediately before handling a semiconductor component or semiconductor-equipped assembly, drain off any
electrostatic charge on your body by touching a known earth ground. Alternatively, employ a commercially avail-
able wrist strap device, which should be removed for your personal safety reasons prior to applying power to the
unit under test.
2. After removing an electrical assembly equipped with ESDs, place the assembly on a conductive surface, such as
aluminum or copper foil, or conductive foam, to prevent electrostatic charge buildup in the vicinity of the assem-
bly.
3. Use only a grounded tip soldering iron to solder or desolder ESDs.
4. Use only an “anti-static” solder removal device. Some solder removal devices not classified as “anti-static” can
generate electrical charges sufficient to damage ESDs.
5. Do not use Freon-propelled chemicals. When sprayed, these can generate electrical charges sufficient to dam-
age ESDs.
6. Do not remove a replacement ESD from its protective packaging until immediately before installing it. Most
replacement ESDs are packaged with all leads shorted together by conductive foam, aluminum foil, or a compa-
rable conductive material.
7. Immediately before removing the protective shorting material from the leads of a replacement ESD, touch the pro-
tective material to the chassis or circuit assembly into which the device will be installed.
8. Maintain continuous electrical contact between the ESD and the assembly into which it will be installed, until com-
pletely plugged or soldered into the circuit.
9. Minimize bodily motions when handling unpackaged replacement ESDs. Normal motions, such as the brushing
together of clothing fabric and lifting one’s foot from a carpeted floor, can generate static electricity sufficient to
damage an ESD.
1. Exercise caution when replacing a super capacitor or Lithium battery. There could be a danger of explosion and
subsequent operator injury and/or equipment damage if incorrectly installed.
2. Be sure to replace the battery with the same or equivalent type recommended by the manufacturer.
3. Super capacitor or Lithium batteries contain toxic substances and should not be opened, crushed, or burned for
disposal.
4. Dispose of used batteries according to the manufacture’s instructions.
1.4 Super Capacitor or Lithium Battery Precautions

Service Manual
Product spec and feature
2-1
Samsung Electronics

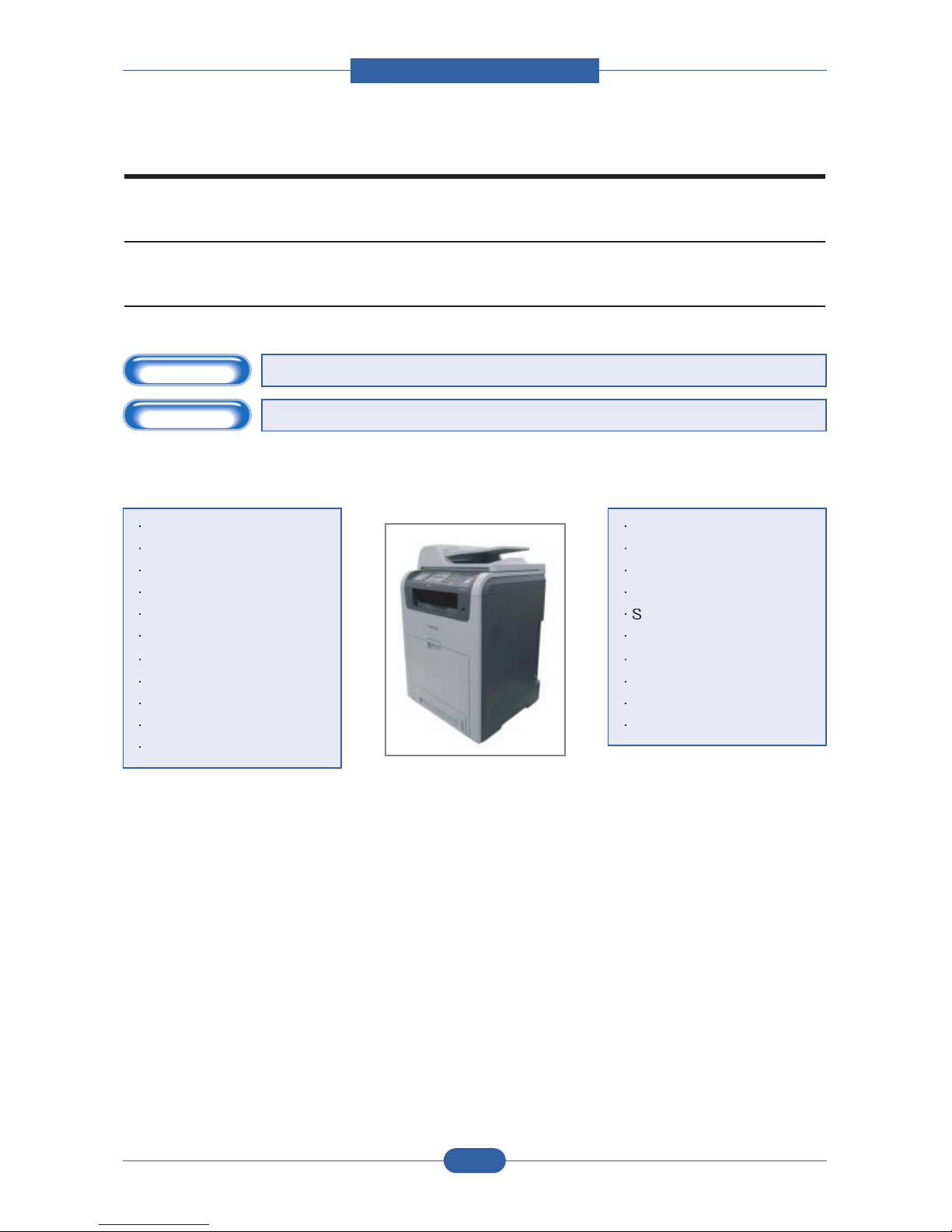

2. Product specification and feature
2.1 Product Specifications
2.1.1 Product Overview
Concept A4 Tandem CMFP to Maximize office Productivit
Target SMB (Office Work for Heav Color Print/Cop /Scan)
20/20ppm
2,400 effective output
360 MHz
128 M
SPL-C, PCL6/PS3
5.5K/5K (High)
250 CST, 100 MP
Duplex
ADF(6200FX)
DADF(6200ND,6210FX)
N/W
CLX-6200ND
CLX-6200FX,6210FX
24/24ppm
2,400 effective output
533 MHz
256 M
PL-C, PCL6/PS3
5.5K/5K (High)
250 CST, 100 MP
Duplex
DADF
N/W
CLX-6240FX

Service Manual
Product spec and feature
2-2
Samsung Electronics
2.1.2 Specifications
Product Specifications are subject to change without notice. See below for product specifications.
2.1.2.1 General Print Engine
Item CLX-6200ND/6200FX/6210FX CLX-6240FX
Engine SpeedSimplex&W : Up to 20 ppm in A4 (21 ppm in Letter) B&W : Up to 24 ppm in A4 (25 ppm in Letter)
Color : Up to 20 ppm in A4 (21 ppm in Letter)Color : Up to 24 ppm in A4 (25 ppm in Letter)
Duplex&W : Up to 10 ipm in A4 (10 ipm in Letter) B&W : Up to 12 ipm in A4 (12 ipm in Letter)
Color : Up to 10 ipm in A4 (10 ipm in Letter)Color : Up to 12 ipm in A4 (12 ipm in Letter)
Warmup time Less than 49 sec Less than 65 sec
FPOT ( &W) From Ready Less than 25 sec Less than 19 sec
From Idle Less than 65 sec Less than 45 sec
From Coldboot Less than 75 sec Less than 80 sec
FPOT (Color) From Ready Less than 25 sec Less than 19 sec
From Idle Less than 65 sec Less than 45 sec
From Coldboot Less than 75 sec Less than 80 sec
Resolution Optical 600 x 600 dpi 600 x 600 dpi
Support Max : 2,400 x 600 dpi effetive output Max : 2,400 x 600 dpi effetive output
Default : 1200 x 600 dpi Default : 1200 x 600 dpi

Service Manual
Product spec and feature
2-3
Samsung Electronics
2.1.2.2 Controller & S/W
Item CLX-6200ND/6200FX/6210FX CLX-6240FX
MPU 360 MHz 533 MHz
Memory Std. 128M 256 M
Max. 384M 768 M
Memory Expansion 1 Slot 1 Slot
Printer Languages SPL-C, PostScript3, PCL6 SPL-C, PostScript3, PCL6
Fonts 45 scalable and 1 bitmap PCL and 136 PS 45 scalable and 1 bitmap PCL and 136 PS
Driver Supporting OS Windows 2000/XP/2003/Vista(include 64bit) Windows 2000/XP/2003/Vista(include 64bit)
Various Linux OS including Red Hat 8.0~9.0, Various Linux OS including Red Hat 8.0~9.0,
Mandrake 9.2~10.1, SuSE 8.2~9.2 and Mandrake 9.2~10.1, SuSE 8.2~9.2 and
Fedora Core 1~4 Fedora Core 1~4
Mac OS X 10.3~10.4 and Universial Mac Mac OS X 10.3~10.4 and Universal Mac
Default Driver SPL-C (Samsung Printer Language Color) SPL-C (Samsung Printer Language Color)
Driver feature Watermark Watermark
Overlay Overlay
N-up printing N-up printing
Poster printing Poster printing
Duplex Duplex
Quality ( est/Normal/Draft) Quality ( est/Normal/Draft)
Color mode (Color, Gray scale) Color mode (Color, Gray scale)
Copies Setting (Window Only) Copies Setting (Window Only)
Color spec. Color spec.
Support Device color Support Device color
Service homepage connection Service homepage connection
WHQL Windows 2000/XP/2003/Vista (include 64bit) Windows 2000/XP/2003/Vista (include 64bit)
Language Korean, English, French, German, Italian, Korean, English, French, German, Italian,
Localization Spanish, Russian, Dutch, Finish, Swedish, Spanish, Russian, Dutch, Finish, Swedish,
Norwegian, Danish, S.Chinese, Polish, Norwegian, Danish, S.Chinese, Polish,
Hungarian, Slovenian, Romanian, ulgarian Hungarian, Slovenian, Romanian, ulgarian
Scan driver TWAIN Yes(Windows, Mac, Linux) Yes(Windows, Mac, Linux)
WIA Yes(Windows only) Yes(Windows only)
Application
Network Scan (Client) Yes (multi-folder) Yes (multi-folder)
PC-FAX 6200ND : N/A Yes (Mono Send Only, included in SmarThru
6200FX/6210FX : Yes (Mono Send Only, Office)
included in SmarThru Office)
PSU/ScanToPC US only US only
Smart Panel Yes Yes
Network Set IP, SAWS & SWS Set IP, SAWS & SWS
Management (Linux, Mac not support, SWAS 4.5 & SWS (Linux, Mac not support, SWAS 4.5 & SWS
need Iexplorer 5.0 or higher) need Iexplorer 5.0 or higher)
Embedded JMS HDD OPTION (N/A : 6200FX) Yes
SmarThru SmarThru Office 1.0 SmarThru Office 1.0
PDF Direct Print Yes Yes
Utility

Service Manual
Product spec and feature
2-4
Samsung Electronics
2.1.2.3 Interface
Item CLX-6200ND/6200FX/6210FX CLX-6240FX
Parallel N/A N/A
US US 2.0, US host 2.0(Scan to US , US print) US 2.0, US host 2.0(Scan to US , US print)
Hard Disk OPTION uilt-in 80G HDD
Network Ethernet 10/100 ase TX Ethernet 10/100 ase TX
Wireless 6200FX, 6200ND : N/A OPTION
only 6210FX : OPTION
LCD & utton 16 x 2 line LCD (Yellow ackLight) 16 x 2 line LCD ( ackLight) Yellow color
Foreign Device Interface Yes (EDI) Yes (EDI)
Item CLX-6200ND/6200FX/6210FX CLX-6240FX
Network Protocol TCP/IP,SNMPv3,HTTP1.1, IPP TCP/IP,SNMPv3,HTTP1.1, IPP
Network OS Windows 2000/XP(32/64bit)/2003 Windows 2000/XP(32/64bit)/2003
Server(32/64bit)/Vista Server(32/64bit)/Vista
Server(32/64bit) Server(32/64bit)
NetWare 5.x, 6.x NetWare 5.x, 6.x
Mac OS X 10.3~10.4 - TCP/IP Only Mac OS X 10.3~10.4 - TCP/IP Only
Various Linux OS including Red Hat 8.0~9.0, Various Linux OS including Red Hat 8.0~9.0,
Fedora Core 1~4, Mandrake 9.2~10.1, and Fedora Core 1~4, Mandrake 9.2~10.1, and
SuSE 8.2~9.2 SuSE 8.2~9.2
HP-UX, Solaris, SunOS, SCO UNIX HP-UX, Solaris, SunOS, SCO UNIX
Security N/A N/A

Service Manual
Product spec and feature
2-5
Samsung Electronics
Scan method Color CCD Color CCD
Scan Speed Linearity, Halftone about 15 sec at 300dpi,US 2.0,P4 3.0GHz, about 15 sec at 300dpi,US 2.0,P4 3.0GHz,
512M /Ltr 512M /Ltr
Gray about 20 sec at 300dpi,US 2.0,P4 3.0GHz, about 20 sec at 300dpi,US 2.0,P4 3.0GHz,
512M /Ltr 512M /Ltr
Color about 30 sec at 300dpi,US 2.0,P4 3.0GHz, about 30 sec at 300dpi,US 2.0,P4 3.0GHz,
512M /Ltr 512M /Ltr
Resolution Optical 1,200*600 dpi 1,200*600 dpi
Enhanced 4,800*4,800 dpi 4,800*4,800 dpi
Halftone 256levels 256levels
Scan Size
Max. Document Width Max.216mm Max.216mm
Effiective Scan Width Max 208mm(8.2") Max 208mm(8.2")
Max. Document Length Max.297mm(11.7") @platen, 356mm(14") Max.297mm(11.7") @platen, 356mm(14")
@DADF @DADF
Effiective Scan Length Max 289mm @platen, 348mm @DADFMax 289mm @platen, 348mm @DADF
Scan Depth Color Inernal : 36 bit, External : 24bit Inernal : 36 bit, External : 24bit
Mono - 1bit for Linearity & Halftone - 1bit for Linearity & Halftone
- 8 it for Gray scale - 8 it for Gray scale
Scan Function Scan to US , SM , FTP, Network,Email Scan to US , SM , FTP, Network,Email
Compatibility [Windows] [Windows]
- Windows 2000/2003/XP/Vista - Windows 2000/2003/XP/Vista
Various Linux OS including Red Hat 8.0~9.0, Various Linux OS including Red Hat 8.0~9.0,
Mandrake 9.2~10.1, SuSE 8.2~9.2 and Mandrake 9.2~10.1, SuSE 8.2~9.2 and
Fedora Core 1~4 Fedora Core 1~4
Mac OS X 10.3~10.4 and Universial Mac Mac OS X 10.3~10.4 and Universial Mac
Item CLX-6200ND/6200FX/6210FX CLX-6240FX
2.1.2.4 Scan

Service Manual
Product spec and feature
2-6
Samsung Electronics
2.1.2.5 Cop
Item CLX-6200ND/6200FX/6210FX CLX-6240FX
Copy Speed Simplex Copy 20cpm (A4) 24cpm (A4)
Speed(A4)
Duplex Copy 6200ND/6210FX : 6.6 image per sec 7.9 image per second (about 33% of simplex)
Speed (A4) (about 33% of simplex) 6200FX : N/A
FCOT ( &W) From Ready Less than 31 sec Less than 24 sec
From Idle Less than 71 sec Less than 50 sec
From Coldboot Less than 78 sec Less than 89 sec
FCOT (Color) From Ready Less than 37 sec Less than 30 sec
From Idle Less than 77 sec Less than 59 sec
From Coldboot Less than 85 sec Less than 95 sec
Zoom Range 25% to 400% for Platen25% to 100% for ADF 25% to 400% for Platen25% to 100% for ADF
Multi Copy 1~99 1~99
Original Type Text Scan: 600x600dpi(Otical 600x300dpi) , Scan: 600x600dpi(Otical 600x300dpi) ,
(Mono) Printing : 600x600dpi Printing : 600x600dpi
Text/Photo Scan: 600x600dpi(Otical 600x300dpi) , Scan: 600x600dpi(Otical 600x300dpi) ,
Printing : 600x600dpi Printing : 600x600dpi
Magazine Scan : 600x600dpi(Optical 600x300dpi) Scan : 600x600dpi(Optical 600x300dpi)
@ ADF, Printing : 600x600dpi @ ADF, Printing : 600x600dpi
Scan : 600x600dpi(Optical 600x600dpi) Scan : 600x600dpi(Optical 600x600dpi)
@ Platen, Printing : 600x600dpi @ Platen, Printing : 600x600dpi
Photo Scan : 600x600dpi(Optical 600x300dpi) Scan : 600x600dpi(Optical 600x300dpi)
@ ADF, Printing : 600x600dpi @ ADF, Printing : 600x600dpi
Scan : 1200x1200dpi(Optical 600x600dpi) Scan : 1200x1200dpi(Optical 600x600dpi)
@ Platen, Printing : 1200x1200dpi @ Platen, Printing : 1200x1200dpi
Original Type Text Scan:600x600dpi(Optical 300x300dpi) Scan:600x600dpi(Optical 300x300dpi)
(Color) Printing : 600x600dpi Printing : 600x600dpi
Text/Photo Scan:600x600dpi(Optical 300x300dpi) Scan:600x600dpi(Optical 300x300dpi)
Printing : 600x600dpi Printing : 600x600dpi
Magazine Scan : 600x600dpi(Optical 600x300dpi) Scan : 600x600dpi(Optical 600x300dpi)
@ ADF, Printing : 600x600dpi @ ADF, Printing : 600x600dpi
Scan : 600x600dpi(Optical 600x600dpi) Scan : 600x600dpi(Optical 600x600dpi)
@ Platen, Printing : 600x600dpi @ Platen, Printing : 600x600dpi
Photo Scan:600x600dpi(Optical 300x300dpi) Scan:600x600dpi(Optical 300x300dpi)
@ADF, Printing : 600x600dpi @ADF, Printing : 600x600dpi
Scan:1200x1200dpi(Optical 300x300dpi) Scan:1200x1200dpi(Optical 300x300dpi)
@Platen, Printing : 1200x1200dpi @Platen, Printing : 1200x1200dpi
Original Type Factory Default Text/photo Text/photo
Automatic ackground Suppression Yes Yes
Darkness Control 5 level 5 level
Collation Copy Yes Yes

Service Manual
Product spec and feature
2-7
Samsung Electronics
Item CLX-6200ND/6200FX/6210FX CLX-6240FX
Special Copy ID Card Copy Yes(Platen Only) Yes(Platen Only)
Auto fit Yes(Platen Only) Yes(Platen Only)
Margin Shift Yes Yes
ook Copy Yes Yes
Auto Suppression Yes Yes
Covers No No
Transparencies No No
Create ooklet No No
N-up copy 2-up, 4-up 2-up, 4-up
Clone Yes (Platen Only) Yes (Platen Only)
Poster Yes(Platen Only) Yes(Platen Only)
2.1.2.6 Fax
Item CLX-6200FX/6210FX CLX-6240FX
Compatibility ITU-T G3 ITU-T G3
Communication System PSTN/PA X PSTN/PA X
Modem Speed 33.6Kbps 33.6Kbps
TX Speed 3.6sec (Mono/Standard/ECM-MMR, 3sec (Mono/Standard/ECM-MMR,
ITU-T G3 No.1 standard) ITU-T G3 No.1 standard)
Compression MH/MR/MMR/J IG/JPEG MH/MR/MMR/J IG/JPEG
Color Fax Yes ( ut Memory Transmission & Any Yes ( ut Memory Transmission & Any
Reserved Transmission are not supported) Reserved Transmission are not supported)
ECM Yes Yes
Resolution Std 203 x 98 dpi 203 x 98 dpi
(Mono) Fine 203 x 196 dpi 203 x 196 dpi
S.Fine 300 x 300 dpi 300 x 300 dpi
Resolution(Color) 200 x 200 dpi 200 x 200 dpi
Scan speed 3.6 sec / Letter ( Mono, scan time ) 3sec / Letter ( Mono, scan time )
Telephone Handset No No
Features On hook Dial Yes Yes
Search Yes (Phone ook) Yes (Phone ook)
1-Touch Dial 30 30
Speed Dial 240 locations 240 locations
TAD I/F Yes Yes
Tone/Pulse Selectable in Tech Mode Selectable in Tech Mode
Pause Yes Yes
Auto Redial Yes Yes

Service Manual
Product spec and feature
2-8
Samsung Electronics
Item CLX-6200ND/6200FX/6210FX CLX-6240FX
Last Number Redial Yes Yes
Distinctive Ring Yes Yes
Caller ID No No
External Phone Yes Yes
Interface
Functions Mail ox No No
Voice Request No No
TTI Yes Yes
RTI Yes Yes
Polling No No
Earth/Recall No No
Auto Reduction Yes Yes
SMS No No
RDS Yes Yes
Report & Tx/Rx Journal Yes Yes
List Print out Confirmation 2 types available (with Image TCR, w/o 2 types available (with Image TCR, w/o
image TCR, Mono Only) image TCR, Mono Only)
Auto Dial List Yes Yes
System Data List List all user setting List all user setting
Sound Control Ring Volume Yes (Off, Low, MED, HIGH) Yes (Off, Low, MED, HIGH)
Key Volume Yes (On, Off) Yes (On, Off)
Speaker Yes (On, Off,Comm) Yes (On, Off,Comm)
Alarm Volume Yes (On, Off) Yes (On, Off)
Junk Fax barrier Yes Yes
Security Receive Yes Yes
Fax Memory ackup Yes (Serial flash) Yes, uilt-in HDD
Receive Mode Fax, TEL, Ans/Fax Fax, TEL, Ans/Fax
Capacity less than 4 M (200 Pages) (Mono) 4 M (320 Pages) (Mono)
Optional Memory No No
Max locations to store to 1 Group Dial 240 locations 240 locations
Fax Forward to FAX Yes (On/Off), both Sent and Received, Yes (On/Off), both Sent and Received,
Mono Only Mono Only
Fax Forward to e-mail Yes Yes
roadcasting up to 249 locations, Mono Only up to 249 locations, Mono Only
Delayed fax Yes (Tx only, Mono Only) Yes (Tx only, Mono Only)
Memory RX Yes Yes

Service Manual
Product spec and feature
2-9
Samsung Electronics
2.1.2.7 Paper Handling
Item CLX-6200ND/6200FX/6210FX CLX-6240FX
Standard Capa. 250-sheet Cassette Tray, 100 MP 250-sheet Cassette Tray, 100 MP
Max. Capa. 850 sheets @ 75g/ 850 sheets @ 75g/
Printing Max. Size 216 X 356((8.5" x 14") 216 X 356 (8.5" x 14")
Min. Size 76 x127mm (3" x 5") 76 x127mm (3" x 5")
Margin(T/ /L/R) 4 mm, 4 mm, 4 mm, 4 mm 4 mm, 4 mm, 4 mm, 4 mm
MP tray Capacity 100 sheets @ 75g/ 100 sheets @ 75g/
MP tray Sensing Empty sensingNo size sensor Empty sensingNo size sensor
Standard Cassette Capacity 250 sheets @ 75g/ 250 sheets @ 75g/
Standard Cassette Size sensor N/A N/A
User Interface Indicator Indicator
Sensing Empty sensing Empty sensing
SCF Cassette Capacity 500 sheets @ 75g/ 500 sheets @ 75g/
SCF Cassette Size sensor N/A N/A
User Interface Indicator Indicator
Sensing Empty sensing Empty sensing
Output Stacking FaceUp N/A N/A
Capacity FaceDown 180 sheets @ 75g/ in N/N 180 sheets @ 75g/ in N/N
Output Full sensing Yes Yes
Finishing N/A N/A
Duplex Supporting Std. Std.
ADF 6200ND/6210FX : DADF, 6200FX : ADF DADF
ADF Capacity 50 sheets @ 75g/ 50 sheets @ 75g/
Weight 6200ND/6210FX : 8.0kg, 6200FX : 7.0Kg 8.0kg
