Samsung Galaxy Tab GT-P6210 User manual

GSM TELEPHONE
GT-P6210
1. Safety Precautions
2. Specification
3. Product Function
4. Exploded View and Parts list
5. MAIN Electrical Parts List
6. Level 1Repair
7. Level 2Repair
8. Level 3Repair
9. Reference data
Notice: All functionality, features, specifications, and
other product information provided in this document,
including but not limited to, benefits, design, pricing,
components, performance, availability, and capabiliti
-es of the product are subject to change without
notice. Samsung reserves the right to alter this doc
-ument or the product described herein at anytime,
without obligation to provide notification of such
changes.
GSM TELEPHONE CONTENTS

This Service Manual is aproperty of Samsung Electronics Co.,Ltd.
Any unauthorized use of Manual can be punished under applicable
International and/or domestic law.
Samsung Electronics Co.,Ltd.
2011. 10. Rev.1.0
ⓒ

3. Operation Instruction and Installation
3-1
Confidential and proprietary-the contents in this service guide subject to change without prior notice.
Distribution, transmission, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohibited.
Main Function
•Android OS: Gingerbread
•3
MP AF with LED Flash, 2M FF
•7.0"
WSGA 16M TFT LCD (PLS_type)
•A-GPS /BT v3.0 USB v2.0 /WiFi (802.11 a/b/g/n) /OTG
•Recording definition: 720p / Playback at 720p resolution
•Sensors: Accelerometer, Electromagnetic, Gyro, Light, Proximity
•Additional :
-1.2
GHz Dual Core CPU
-Application store /Precise Motion UI
-Seamless Sharing Experience.

SAMSUNG Proprietary-Contents may change without notice
6. Level 1Repair
6-1
This Document can not be used without Samsung's authorization
6-1. S/W Download

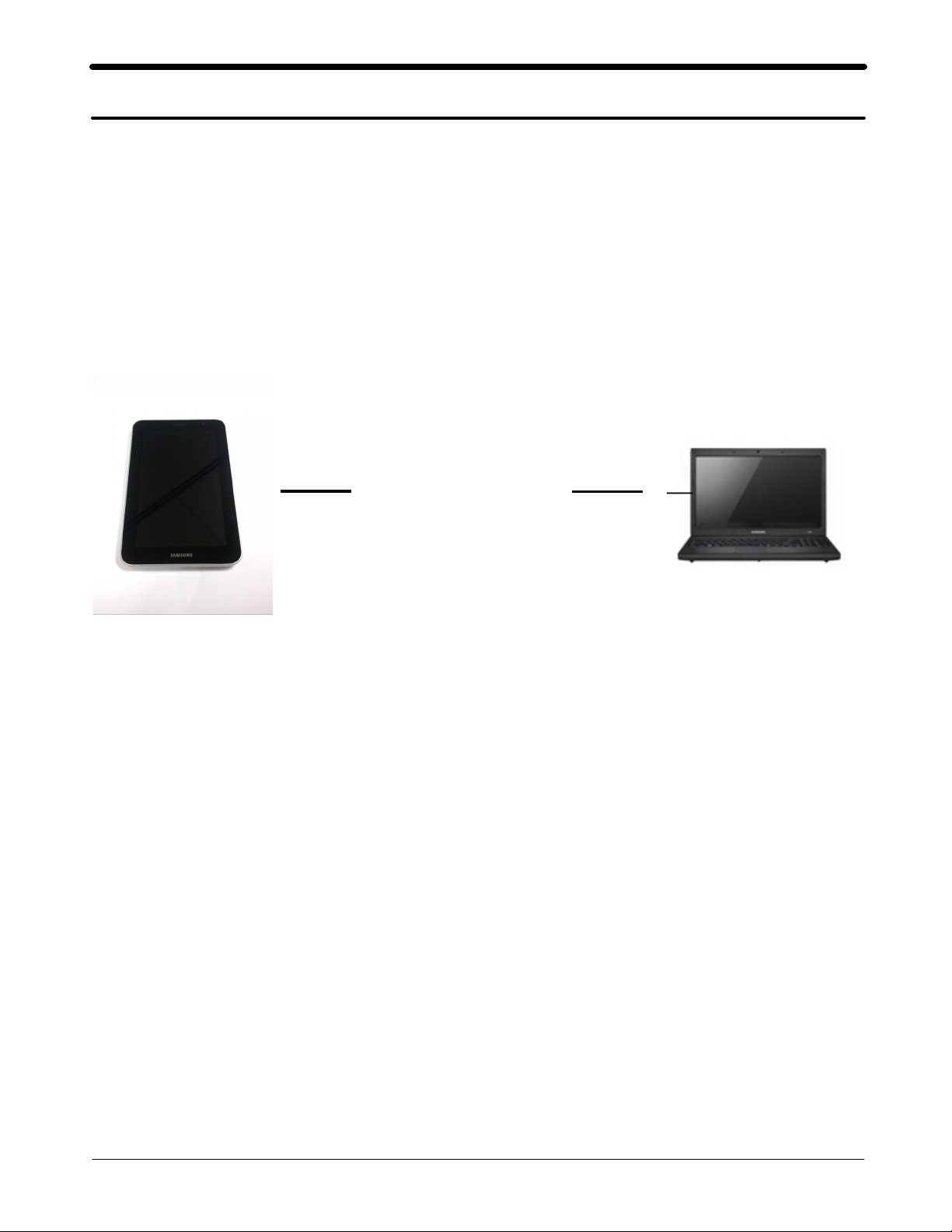

6-1-1. Pre-requisite for S/W Downloading
Downloader Program (Odin3 v1.85.exe)
GT-P6210 Mobile Phone
Data Link Cable (GH39-014408)
Binary files
Settings
Data Link Cable

SAMSUNG Proprietary-Contents may change without notice
Level 1Repair
6-2
This Document can not be used without Samsung's authorization

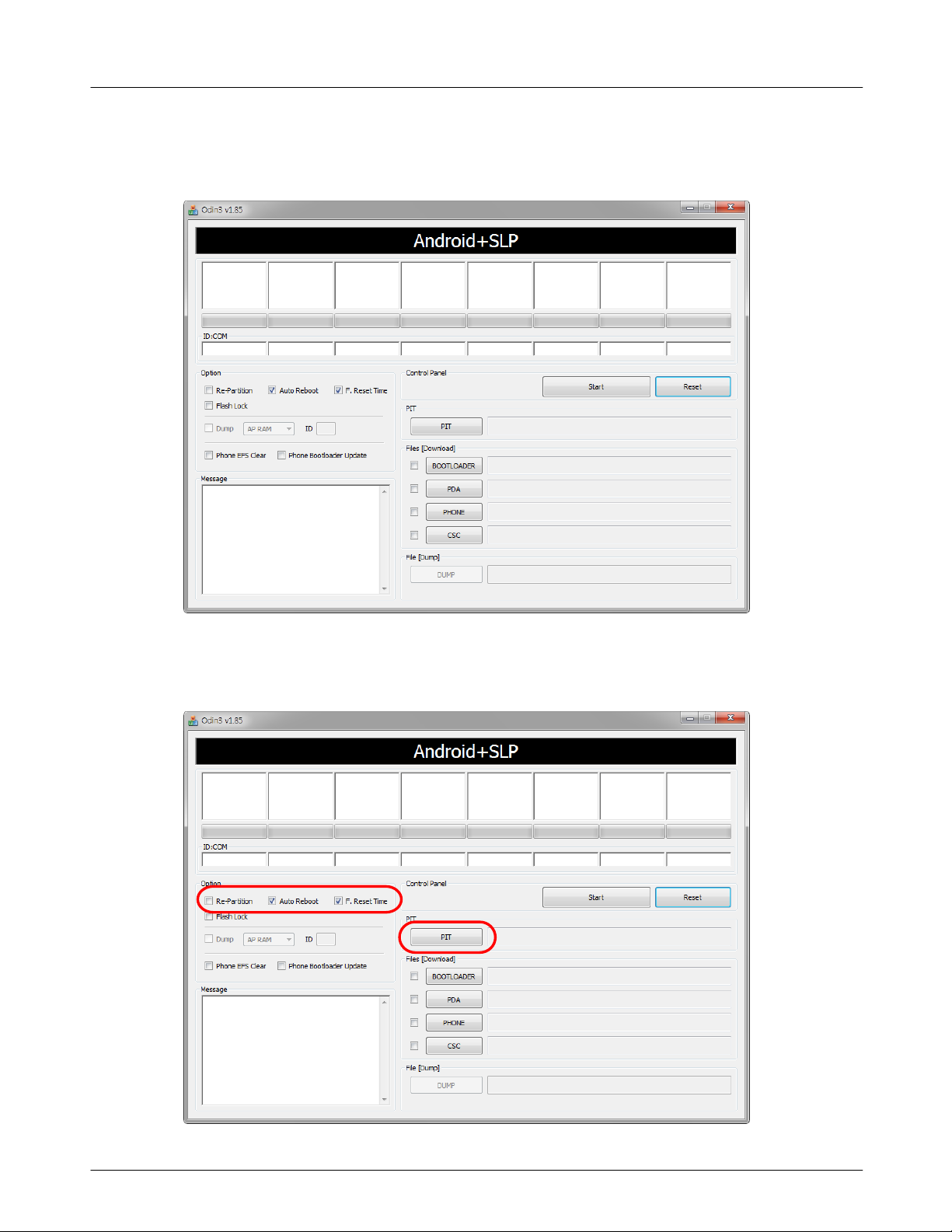

6-1-2. S/W Downloader Program
Load the binary download program by executing the
"Odin3 v1.85.exe" Run this file.
1.Option Selection
-Check Auto Reboot and F. Reset Time, then select PIT File

SAMSUNG Proprietary-Contents may change without notice
Level 1Repair
6-3
This Document can not be used without Samsung's authorization
2.Enter Device into Download Mode
-Press down on Volume Down button and power key at same time for 10 seconds
-Press down on Volume Up button to enter device into download mode

SAMSUNG Proprietary-Contents may change without notice
Level 1Repair
6-4
This Document can not be used without Samsung's authorization
3.Connect the Device to PC via Data Cable.
Make sure ID:COM box highlighted yellow that the device is connected to the PC.
4.Enable the check mark by click on the following options,
-Check BOOTLOADER, PDA and CSC Files

SAMSUNG Proprietary-Contents may change without notice
Level 1Repair
6-5
This Document can not be used without Samsung's authorization
5.Start downloading binary file into the device by clicking Start Button on the screen.
the green colored "PASS!" sign will appear on the upper-left box if the binary file
has been successfully downloaded into the device.
6. Disconnect the device from the Data cable.
7.Once the device boots up, confirm the downloaded version name and etc. :
*#1234#
Full Reset :
*2767*3855#

9. Reference Abbreviate
9-1
Confidential and proprietary-the contents in this service guide subject to change without prior notice.
Distribution, transmission, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohibited.
Reference Abbreviate
―AAC: AdvancedAudioCoding.
―AVC: AdvancedVideoCoding.
―BER: BitErrorRate
―BPSK: BinaryPhaseShiftKeying
―CA: ConditionalAccess
―CDM: CodeDivisionMultiplexing
―C/I: CarriertoInterference
―DMB: DigitalMultimediaBroadcasting
―두:EuropeanStandard
―ES: ElementaryStream
―ETSI: EuropeanTelecommunicationsStandardsInstitute
―MPEG: MovingPictureExpertsGroup
―PN: Pseudo-randomNoise
―PS: PilotSymbol
―QPSK: QuadraturePhaseShiftKeying
―RS: Reed-Solomon
―SI: ServiceInformation
―TDM: TimeDivisionMultiplexing
―TS: TransportStream

1. Safety Precautions
1-1
Confidential and proprietary-the contents in this service guide subject to change without prior notice.
Distribution, transmission, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohibited.
1-1. Repair Precaution
Before attempting any repair or detailed tuning, shield the device from RF noise or static
electricity discharges.
Use only demagnetized tools that are specifically designed for small electronic repairs,
as most electronic parts are sensitive to electromagnetic forces.
Use only high quality screwdrivers when servicing products. Low quality screwdrivers can
easily damage the heads of screws.
Use only conductor wire of the properly gauge and insulation for low resistance, because of
the low margin of error of most testing equipment.
We recommend 22-gauge twisted copper wire.
Hand-soldering is not recommended, because printed circuit boards (PCBs) can be easily
damaged, even with relatively low heat. Never use asoldering iron with apower rating of
more than 100 watts and use only lead-free solder with a melting point below 250°C (482°F).
Prior to disassembling the battery charger for repair, ensure that the AC power is disconnected.
Always use the replacement parts that are registered in the SEC system. Third-party replac
ement parts may not function properly.

Safety Precautions
Distribution, transmission, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohibited.
Confidential and proprietary-the contents in this service guide subject to change without prior notice.
1-2
1-2. ESD(Electrostatically Sensitive Devices) Precaution
Many semiconductors and ESDs in electronic devices are particularly sensitive to static discha
rge and can be easily damaged by it. We recommend protecting these components with cond
uctive anti-static bags when you store or transport them.
Always use an anti-static strap or wristband and remove electrostatic buildup or dissipate
static electricity from your body before repairing ESDs.
Ensure that soldering irons have AC adapter with ground wires and that the ground wires are
properly connected.
Use only desoldering tools with plastic tips to prevent static discharge.
Properly shield the work environment from accidental electrostatic discharge before opening
packages containing ESDs.
The potential for static electricity discharge may be increased in low humidity environments,
such as air-conditioned rooms. Increase the airflow to the working area to decrease the
chance of accidental static electricity discharges.

4. Exploded View and Parts List
4-1
Confidential and proprietary-the contents in this service guide subject to change without prior notice.
Distribution, transmission, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohibited.
4-1. Cellular phone Exploded View
QFR01
QCA02
QCA01
QJK01
QAR01
QAN02
QAN03
QMP01
QRE01
QCK01
QSP02
QME05
QSP01
QBA01
QCR03
QVK01
QME16
QCR96
QSD01

Exploded View and Parts List
Distribution, transmission, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohibited.
Confidential and proprietary-the contents in this service guide subject to change without prior notice.
4-2
Design LOC Description SEC CODE
QCR03 SCREW-MACHINE 6001-001811
QCR96 SCREW-MACHINE 6001-002259
QAN02 INTENNA-GT_P6200 BT+GPS GH42-03310A
QAN03 INTENNA-GT_P6210 MAIN CARRIER GH42-03405A
QBA01 BATTERY-4000MAH GH43-03615A
QVK01 KEY FPCB-SIDE (GT_P6200) GH59-11548A
QME05 ASSY ETC-30PIN CON (GT_P6200) GH59-11549A
QJK01 ASSY ETC-EARJACK FPCB(GT_P6200) GH59-11576A
QME16 UNIT-CON TO CON FPCB GH59-11578A
QAR01 ASSY ETC-SENSOR+RCV FPCB(GT_P6200) GH59-11590A
QSP01 MODULE-SPEAKER_R+MOTOR GH59-11602A
QSP02 MODULE-SPEAKER_L GH59-11603A
QMP01 A/S ASSY-PBA MAIN (COMM) GH82-06117A
QCA01 ASSY CAMERA-3M MODULE(GT-P6200) GH96-05368A
QCA02 ASSY CAMERA-2M 1/5" MODULE(GT-P6200) GH96-05435A
QFR01 MEA FRONT-OCTA LCD ASSY (SVC) GH97-13025A
QRE01 ASSY CASE-REAR_SVC_16GB(MA/USA) GH98-22113A
QSD01 PMO COVER-SD GH72-65200A
QCK01 PMO KEY-SIDE GH72-65204A
4-2. Cellular phone Parts list

5. MAIN Electrical Parts List
5-1
Confidential and proprietary-the contents in this service guide subject to change without prior notice.
Distribution, transmission, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohibited.
SEC CODE Design LOC Description
0401-001110 D701,D702 DIODE-SWITCHING
0403-001688 D505,ZD512,ZD701 DIODE-ZENER
0406-001239 D301,D302,D503,D504 DIODE-TVS
0406-001239 D506 DIODE-TVS
0406-001267 ZD300 DIODE-TVS
0406-001293 ZD402,ZD403 DIODE-TVS
0406-001375 ZD507,ZD508,ZD509 DIODE-TVS
0406-001375 ZD510,ZD511,ZD801 DIODE-TVS
0406-001413 ZD401,ZD404,ZD505 DIODE-TVS
0406-001413 ZD506 DIODE-TVS
0504-001113 Q601,TR501,TR703 TR-DIGITAL
0505-001518 Q801 FET-SILICON
0505-002353 U703 FET-SILICON
0505-002720 TR702 FET-SILICON
0505-002748 Q701,TR701 FET-SILICON
0601-002779 LED901 LED
0801-003031 U604 IC-CMOS LOGIC
0902-002766 UCP601 IC-MICROPROCESSOR
1001-001481 U502,U503,U507 IC-ANALOG SWITCH
1003-002216 U903 IC-LEVEL DRIVER
1107-002068 UME601 IC-FLASH MEMORY
1201-003308 U200 IC-GPS AMP
1202-001118 U409 IC-VOLTAGE COMP.
1202-001121 U501 IC-VOLTAGE COMP.
1203-004776 U605,U802 IC-POSI.FIXED REG.
1203-004819 U1002,U401,U402,U408 IC-POSI.FIXED REG.
1203-005244 U1109 IC-MULTI REG.
1203-005574 U1106 IC-POSI.FIXED REG.
1203-006159 U601 IC-DC/DC CONVERTER
1203-006392 U702 IC-POWER SUPERVISOR
1203-006493 U704 IC-BATTERY
1203-006766 U505 IC-VOL. DETECTOR
1203-006794 U504 IC-DC/DC CONVERTER
1203-006817 R6002,U508 IC-POSI.FIXED REG.
1203-006851 U701 IC-POWER SUPERVISOR
1203-006862 U904 IC-BACKLIGHT DRIVER

Main Electrical Parts List
Distribution, transmission, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohibited.
Confidential and proprietary-the contents in this service guide subject to change without prior notice.
5-2
SEC CODE Design LOC Description
1203-006874 U205 IC-MULTI REG.
1205-004004 U804 IC-SWITCH
1205-004055 U1104 IC-TRANSMITTER
1205-004174 U407 IC-CODEC
1205-004313 U801 IC-INTERFACE
1205-004391 U203 IC-BLUETOOTH
1205-004395 U204 IC-WIFI
1205-004396 U201 IC-GPS RECEIVER
1205-004429 U1001 IC-CONTROLLER
1209-002038 U1105 IC-SENSOR
1209-002041 U1101 IC-SENSOR
1209-002052 U1107 IC-SENSOR
1404-001221 TH601,TH602 THERMISTOR-NTC
1405-001091 VAR401,VAR402,VAR403 VARISTOR
1405-001091 VAR404 VARISTOR
1405-001200 VAR801,VAR802 VARISTOR
1405-001317 VAR701 VARISTOR
2007-000140 R529,R530,R629,R630 R-CHIP
2007-000143 R1004,R698,R699,R719 R-CHIP
2007-000143 R728 R-CHIP
2007-000147 R516 R-CHIP
2007-000148 R691,R717 R-CHIP
2007-000157 R317,R318,R319,R331 R-CHIP
2007-000157 R332,R333 R-CHIP
2007-000162 R532,R689,R718,R729 R-CHIP
2007-000162 R823 R-CHIP
2007-000165 R6004 R-CHIP
2007-000166 R514,R515 R-CHIP
2007-000167 R503 R-CHIP
2007-000170 R513 R-CHIP
2007-000172 R517,R518 R-CHIP
2007-000173 R1002 R-CHIP
2007-000758 R1001 R-CHIP
2007-001295 R809,R812,R813,R814 R-CHIP
2007-001295 R815,R816,R817,R818 R-CHIP
2007-001295 R819 R-CHIP

Main Electrical Parts List
Distribution, transmission, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohibited.
Confidential and proprietary-the contents in this service guide subject to change without prior notice.
5-3
SEC CODE Design LOC Description
2007-001306 R724 R-CHIP
2007-003010 R537,R538 R-CHIP
2007-003015 R523,R524 R-CHIP
2007-003029 R6005 R-CHIP
2007-007014 R511,R512 R-CHIP
2007-007092 R200,R201,R525 R-CHIP
2007-007131 R807 R-CHIP
2007-007135 R906 R-CHIP
2007-007137 R404,R405,R412,R413 R-CHIP
2007-007137 R658 R-CHIP
2007-007139 R693 R-CHIP
2007-007142 R520,R521,R522 R-CHIP
2007-007156 R417,R418,R735,R738 R-CHIP
2007-007156 R739 R-CHIP
2007-007310 R214 R-CHIP
2007-007312 R683,R686,R806 R-CHIP
2007-007318 R403,R406,R409,R415 R-CHIP
2007-007517 R634,R637,R681,R682 R-CHIP
2007-007529 R504 R-CHIP
2007-007573 R509,R638 R-CHIP
2007-007942 R407,R536 R-CHIP
2007-007981 R639 R-CHIP
2007-008043 R502 R-CHIP
2007-008052 R1102,R1103,R1105 R-CHIP
2007-008052 R619,R620,R621,R622 R-CHIP
2007-008052 R635,R636,R665,R677 R-CHIP
2007-008052 R678 R-CHIP
2007-008055 R1005,R1101,R1106 R-CHIP
2007-008055 R207,R625,R645,R646 R-CHIP
2007-008055 R653,R654,R657,R671 R-CHIP
2007-008055 R672,R674,R675,R676 R-CHIP
2007-008055 R692,R694,R907,R908 R-CHIP
2007-008055 U602 R-CHIP
2007-008167 R909 R-CHIP
2007-008211 R505,R506,R535,R910 R-CHIP
2007-008211 R911 R-CHIP

Main Electrical Parts List
Distribution, transmission, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohibited.
Confidential and proprietary-the contents in this service guide subject to change without prior notice.
5-4
SEC CODE Design LOC Description
2007-008263 R216 R-CHIP
2007-008275 R510 R-CHIP
2007-008312 R414 R-CHIP
2007-008401 R424,R425 R-CHIP
2007-008403 R501,R707 R-CHIP
2007-008419 R631,R632,R669,R670 R-CHIP
2007-008420 R684,R685,R912,R913 R-CHIP
2007-008483 R507,R508,R534,R734 R-CHIP
2007-008516 R600,R602,R617,R618 R-CHIP
2007-008516 R659,R663,R664,R666 R-CHIP
2007-008516 R668,R702,R703,R705 R-CHIP
2007-008516 R706,R802,R803 R-CHIP
2007-008531 R628 R-CHIP
2007-008588 R660,R661,R679,R680 R-CHIP
2007-008774 R539,R540,R903 R-CHIP
2007-008800 R427,R641,U603 R-CHIP
2007-009084 R416 R-CHIP
2007-009111 R428,R429,R611 R-CHIP
2007-009157 R612,R613,R615,R616 R-CHIP
2007-009157 R647 R-CHIP
2007-009171 R603,R604,R605,R606 R-CHIP
2007-009171 R607,R608,R609,R610 R-CHIP
2007-009212 R401 R-CHIP
2007-009314 R726,R727 R-CHIP
2007-009354 R204 R-CHIP
2007-009408 R430,R623,R624,R626 R-CHIP
2007-009408 R627 R-CHIP
2007-009793 R704 R-CHIP
2007-009794 R208 R-CHIP
2007-009805 R212,R213,R410 R-CHIP
2007-009964 R648,R656 R-CHIP
2007-009969 R402 R-CHIP
2007-010029 R633 R-CHIP
2007-010509 R722 R-CHIP
2007-010856 R742 R-CHIP
2203-000233 C209,C255,C258,C278 C-CER,CHIP

Main Electrical Parts List
Distribution, transmission, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohibited.
Confidential and proprietary-the contents in this service guide subject to change without prior notice.
5-5
SEC CODE Design LOC Description
2203-000233 C279 C-CER,CHIP
2203-000254 C770 C-CER,CHIP
2203-000386 C412,C413,C419,C420 C-CER,CHIP
2203-000425 C434,C438,C439 C-CER,CHIP
2203-000438 C246 C-CER,CHIP
2203-000489 C1114 C-CER,CHIP
2203-000725 C750 C-CER,CHIP
2203-001153 C409,C414,C415,C421 C-CER,CHIP
2203-001153 C435,C436,C437 C-CER,CHIP
2203-001239 C508,C509 C-CER,CHIP
2203-001437 C219 C-CER,CHIP
2203-002687 C766 C-CER,CHIP
2203-002709 C216 C-CER,CHIP
2203-005138 C647,C655 C-CER,CHIP
2203-005288 C218 C-CER,CHIP
2203-005682 C910 C-CER,CHIP
2203-005725 C229,C649,C650 C-CER,CHIP
2203-005727 C906 C-CER,CHIP
2203-005729 C247,C269,C408,C716 C-CER,CHIP
2203-005729 C724 C-CER,CHIP
2203-005732 C410 C-CER,CHIP
2203-005736 C201,C213 C-CER,CHIP
2203-005806 C205 C-CER,CHIP
2203-006048 C656,C771 C-CER,CHIP
2203-006121 C268 C-CER,CHIP
2203-006123 C270 C-CER,CHIP
2203-006190 C641,C763 C-CER,CHIP
2203-006194 C801 C-CER,CHIP
2203-006208 C726,C728,C729,C730 C-CER,CHIP
2203-006305 C239,C253,C256,C257 C-CER,CHIP
2203-006305 C273,C277,C282,C286 C-CER,CHIP
2203-006305 C287,C288,C289,C290 C-CER,CHIP
2203-006305 C291,C292,C298,C648 C-CER,CHIP
2203-006324 C904 C-CER,CHIP
2203-006348 C512,C704 C-CER,CHIP
2203-006399 C1107,C1108,C405 C-CER,CHIP

Main Electrical Parts List
Distribution, transmission, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohibited.
Confidential and proprietary-the contents in this service guide subject to change without prior notice.
5-6
SEC CODE Design LOC Description
2203-006399 C407,C440,C441,C442 C-CER,CHIP
2203-006399 C443 C-CER,CHIP
2203-006423 C1103,C1106,C1110 C-CER,CHIP
2203-006423 C1111,C206,C240,C243 C-CER,CHIP
2203-006423 C245,C249,C250,C261 C-CER,CHIP
2203-006423 C264,C272,C418,C601 C-CER,CHIP
2203-006423 C602,C606,C608,C611 C-CER,CHIP
2203-006423 C616,C635,C639,C640 C-CER,CHIP
2203-006423 C651,C653,C654,C659 C-CER,CHIP
2203-006423 C752 C-CER,CHIP
2203-006462 C285,C293 C-CER,CHIP
2203-006474 C623,C657 C-CER,CHIP
2203-006562 C1001,C1002,C1007 C-CER,CHIP
2203-006562 C1009,C1012,C1013 C-CER,CHIP
2203-006562 C510,C518,C519,C662 C-CER,CHIP
2203-006562 C663,C702,C703,C714 C-CER,CHIP
2203-006562 C761,C772,C776,C802 C-CER,CHIP
2203-006562 C803,C804 C-CER,CHIP
2203-006642 C634,C637 C-CER,CHIP
2203-006647 C426,C428 C-CER,CHIP
2203-006648 C431,C433,U405,U406 C-CER,CHIP
2203-006665 C297 C-CER,CHIP
2203-006668 C444,C445,C642,C643 C-CER,CHIP
2203-006681 C812 C-CER,CHIP
2203-006824 C762,C764 C-CER,CHIP
2203-006839 C1105,C1112,C1115 C-CER,CHIP
2203-006839 C1121,C251,C284,C416 C-CER,CHIP
2203-006839 C507,C713,C715 C-CER,CHIP
2203-006872 C203,C204,C217,C228 C-CER,CHIP
2203-006872 C425,C603,C604,C739 C-CER,CHIP
2203-006872 C740,C743,C744,C745 C-CER,CHIP
2203-006872 C907,C909 C-CER,CHIP
2203-006890 C725 C-CER,CHIP
2203-006979 C211,C774 C-CER,CHIP
2203-007133 C511,C765 C-CER,CHIP
2203-007194 C254,C266 C-CER,CHIP

Main Electrical Parts List
Distribution, transmission, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohibited.
Confidential and proprietary-the contents in this service guide subject to change without prior notice.
5-7
SEC CODE Design LOC Description
2203-007230 C711,C760 C-CER,CHIP
2203-007240 C665 C-CER,CHIP
2203-007270 C758,C759,C811 C-CER,CHIP
2203-007271 C1006,C1008,C1101 C-CER,CHIP
2203-007271 C1102,C1104,C1109 C-CER,CHIP
2203-007271 C207,C208,C238,C241 C-CER,CHIP
2203-007271 C244,C248,C252,C260 C-CER,CHIP
2203-007271 C267,C271,C283,C294 C-CER,CHIP
2203-007271 C295,C605,C607,C610 C-CER,CHIP
2203-007271 C622,C629,C638,C658 C-CER,CHIP
2203-007271 C735,C805,C806 C-CER,CHIP
2203-007279 C705,C707,C712,C727 C-CER,CHIP
2203-007279 C754,C756,C768,C769 C-CER,CHIP
2203-007279 C905 C-CER,CHIP
2203-007317 C344,C609,C612,C617 C-CER,CHIP
2203-007317 C619,C624,C626,C664 C-CER,CHIP
2203-007342 C813 C-CER,CHIP
2203-007391 C242 C-CER,CHIP
2203-007393 C520,C706,C708,C709 C-CER,CHIP
2203-007393 C710,C717,C718,C719 C-CER,CHIP
2203-007393 C720,C721,C722,C723 C-CER,CHIP
2203-007393 C732,C734,C738,C775 C-CER,CHIP
2203-007449 C1113,C1116,C1117 C-CER,CHIP
2203-007449 C1118,C1119,C1120 C-CER,CHIP
2203-007449 C1122,C417,C422,C423 C-CER,CHIP
2203-007449 C424,C427,C429,C430 C-CER,CHIP
2203-007449 C432,C503,C504,C513 C-CER,CHIP
2203-007449 C613,C614,C615,C618 C-CER,CHIP
2203-007449 C620,C621,C625,C627 C-CER,CHIP
2203-007449 C628,C630,C631,C632 C-CER,CHIP
2203-007449 C633,C636,C666,C667 C-CER,CHIP
2203-007449 C701,C733,C736,C737 C-CER,CHIP
2203-007449 C741,C742,C746,C747 C-CER,CHIP
2203-007449 C748,C749,C777,C901 C-CER,CHIP
2203-007449 C903,C908 C-CER,CHIP
2203-007634 C514,C515 C-CER,CHIP
