Samsung Galaxy W GT-I8150 User manual

GSM TELEPHONE
GT-I8150
1. Safety Precautions
2. Specification
3. Product Function
4. Exploded View and Parts list
5. MAIN Electrical Parts List
6. Level 1Repair
7. Level 2Repair
8. Level 3Repair
9. Reference data
Notice :
All functionality, features, specifications and other
product information provided in this document inclu
ding, but not limited to, the benefits, design, pricing,
components, performance, availability, and capabiliti
-es of the product are subject to change without
notice or obligation. Samsung reserves the right to
make changes to this document and the product
described herein, at anytime, without obligation on
Samsung to provide notification of such change.
GSM TELEPHONE CONTENTS

This Service Manual is aproperty of Samsung Electronics Co.,Ltd.
Any unauthorized use of Manual can be punished under applicable
International and/or domestic law.
Samsung Electronics Co.,Ltd.
2011. 09. Rev.1.0
ⓒ

SAMSUNG Proprietary-Contents may change without notice
7. Level 2Repair
7-1
This Document can not be used without Samsung's authorization
1) After pressing Connector once,Check the connect
status
1) Don't touch with FPCB contact point,
Press evenly to the entire actuator.
1) When assembling the BRACKET,be careful to avoiding
damage on TOUCH KEY connectors.
1) Beware of VGA CAMERA's direction when assembling,
and push the VGA Camera rubber after assembling.
12
4
1) Connect the Main Camera connector. 1) Place LCD starting from the Under
side of Front and push the outline of LCD
with hand lightly to attach it completely
2) Open TSP connector on LCD and
insert TSP FPCB alining with guide line
3) adhere insulating tape according to the
TSP IC guide line and press it gently and
evenly
1)LCD FPCB insert the right of the central hole
by BRACKET. And then Assemble and
BRACKET FRONT ASS'Y.
1) Place VGA CAMERA on it's position on
BRACKET.
2) Assemble VGA CAMERA RUBBER on it's
position guided by RIBs.
3
2
1
Assembling
2,3

SAMSUNG Proprietary-Contents may change without notice
7. Level 2Repair
7-2
This Document can not be used without Samsung's authorization

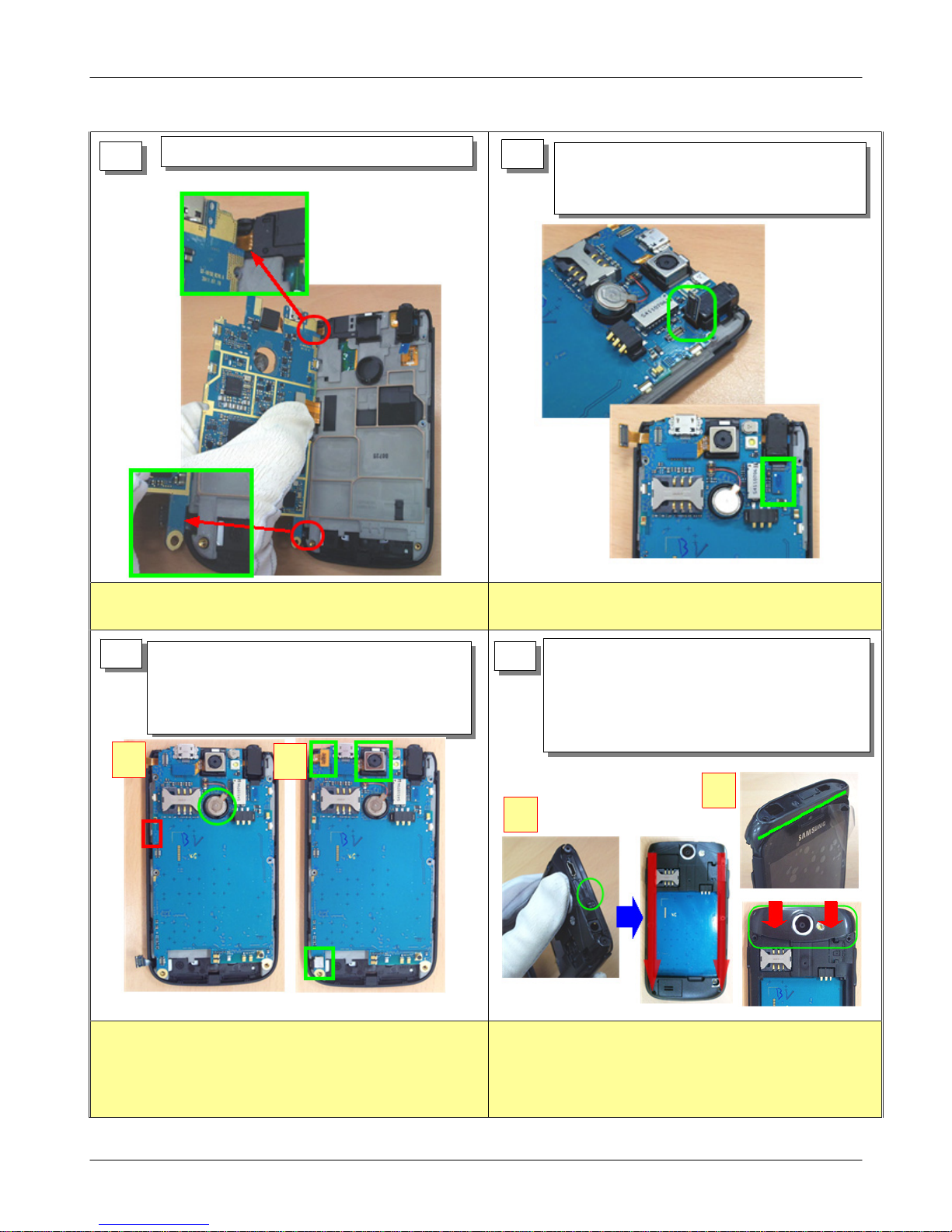

1) When assembling the LCD connector,The upper and
lower connector on the back of the PBA will be placed
1) Be careful the interference of EAR JACK connector
and Put the Connector once.
1) After assembling, Press the connector once for avoiding
lift status
1) Assembly with pressing the rear case around
5Mega CAMERA.
61) After EAR JACK FPCB put aside by hand,
Place PBA on it's position on BRACKET.
And then Connect the Ear jack FPCB
51) Connect the LCD FPCB CONNECTOR
71) After fixing to hook pressing PBA vertically,
Place Motor on inside slot of BRACKET
2) Assemble 5M CAMERA &SUB KEY
CONNECTOR.
1) After guise inspection of REAR, Assembling
Rear perpendicular to the Front ass'y
2) After guise inspection of COVER TOP,
Assembling Cover Top perpendicular at the
top of the FRONT
8
2
1
1
2

SAMSUNG Proprietary-Contents may change without notice
7. Level 2Repair
7-3
This Document can not be used without Samsung's authorization
1) Must assemble 2 parts of upper screws ahead
91) Screw 2point of the top
2) Screw 6point of the rear case.
Torque :
1.0 ~1.2 Kgf·cm

SAMSUNG Proprietary-Contents may change without notice
7. Level 2Repair
7-4
This Document can not be used without Samsung's authorization

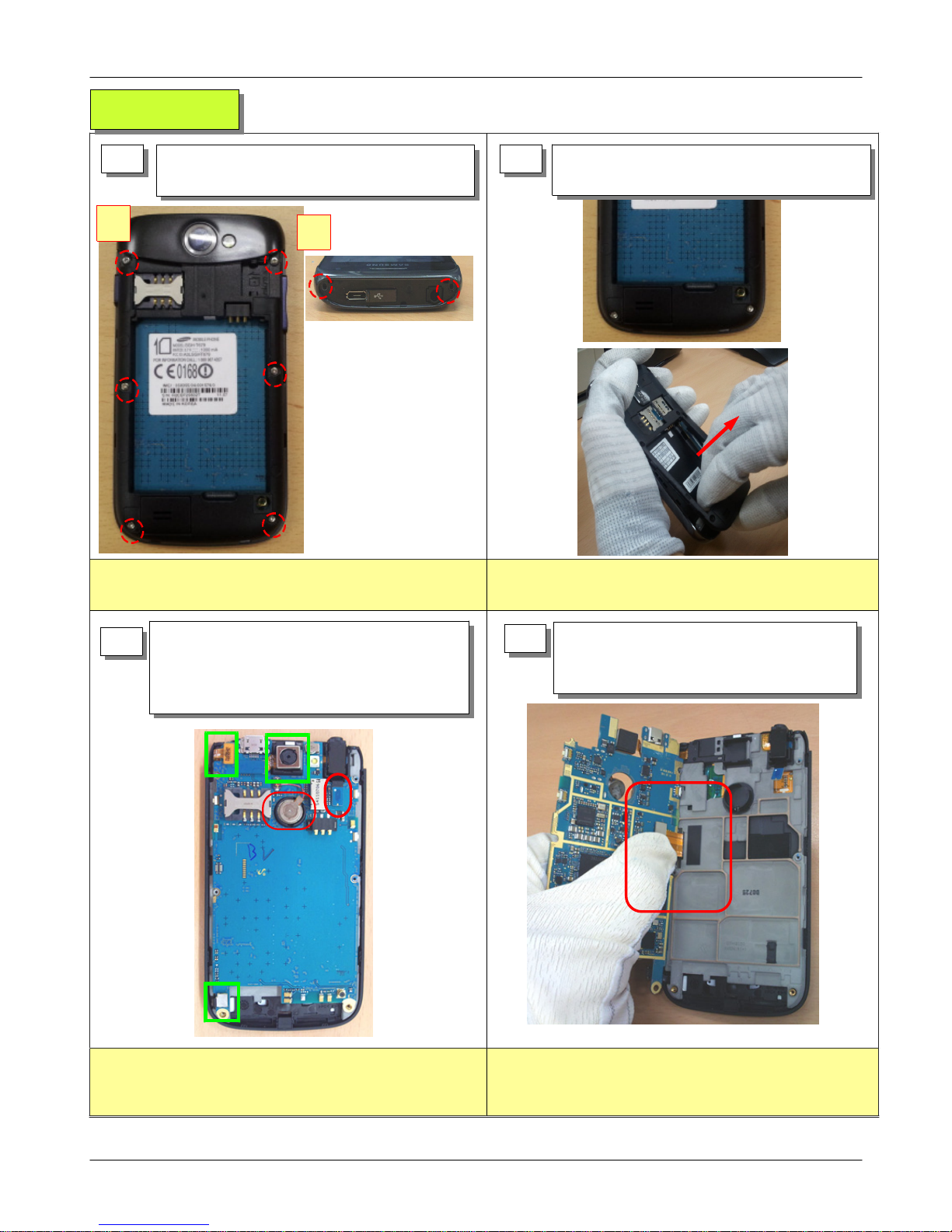

1) Unscrew without causing the damage or scratches on
the case.
1) If you use any tool to disassemble, be careful to avoid
to damage or scratch on the case.
1) When dismantle the camera connector, be careful to
avoiding damage on ANT connectors.
1) If you use tools to disassemble, avoid touching the
FPCB.
Disassembling
1) Unscrew 6screws of back panel
2) Unscrew 2screws of top deco
11) Pull back the rear case with holding bottom
side of battery.
2
31) Disassemble connectors of Camera and
Touch Key.
2) Disassemble connectors of Motor, Earjack
FPCB
41) Disassemble connectors of LCD FPCB
※Be careful not to climb on PBA of VGA
Camera &TOUCH KEY FPCB connetctor
12

SAMSUNG Proprietary-Contents may change without notice
7. Level 2Repair
7-5
This Document can not be used without Samsung's authorization

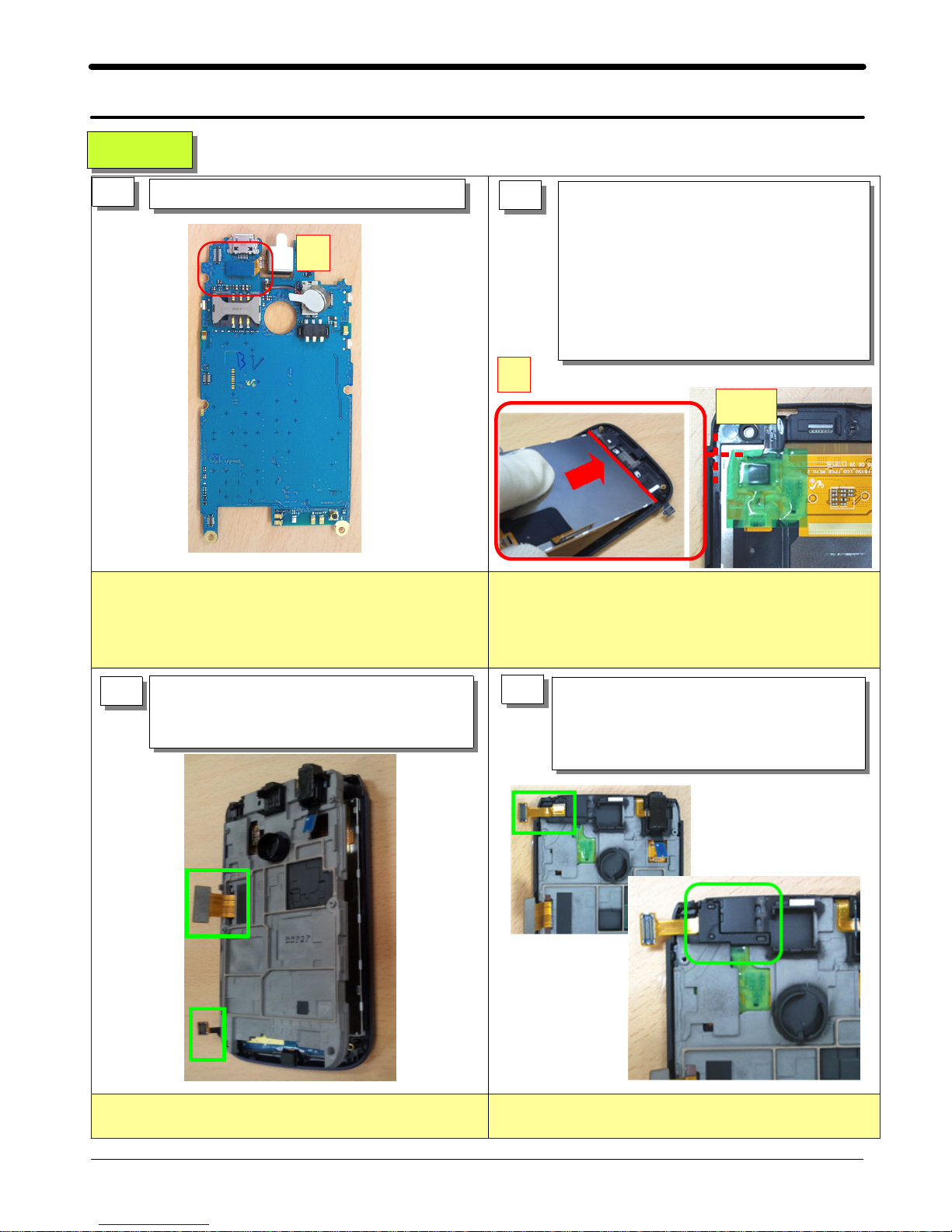

1) Be careful to avoid damaging antenna contacts when
hold tha PBA.
2) Micro USB connector overlaps with bottom of front
case. so don't pull the PBA up vertically.
1) When dismantle the BRACKET,be careful to avoiding
damage on TOUCH KEY connectors.
1) If you use any tool to disassemble, be careful to avoid
to damage on the parts
2) Be careful not to press the LCD FPCB &Part
5 6
7
1) Disassemble the Rubber of VGA Camera 1) Disassemble the LCD BRACKET
1) Remove the Insulation Tape from TSP IC
on the Front
1) Lift up from the bottom of the LCD FRONT,
Pressing the side of the LCD and then
separation LCD
8

SAMSUNG Proprietary-Contents may change without notice
5.a MAIN Electrical Parts List (HW REV0.7) 1_5
5-1
This Document can not be used without Samsung's authorization
Design LOC SEC CODE Description
D500,D501 0401-001141 DIODE-SWITCHING
D502,ZD500 0403-001688 DIODE-ZENER;
D400 0404-001317 DIODE-SCHOTTKY
D503,D504 0404-001504 DIODE-SCHOTTKY
D700 0404-001646 DIODE-SCHOTTKY
ZD704 0406-001286 DIODE-TVS
U505 0406-001369 DIODE-TVS
V600,V601,V602,V603 0406-001459 DIODE-TVS
V604,V605,ZD600 0406-001459 DIODE-TVS
ZD601,ZD602,ZD603 0406-001459 DIODE-TVS
ZD604,ZD605 0406-001459 DIODE-TVS
Q502 0504-000168 TR-DIGITAL
Q601,Q602 0505-001325 FET-SILICON
Q500 0505-002341 FET-SILICON
U705,U706 0801-003185 IC
U400 0801-003346 IC
U504 1001-001645 IC
U604 1003-002358 IC
UME300 1107-002051 IC-FLASH
U202 1201-002608 IC
PAM101 1201-003009 IC
U601 1201-003134 IC
PAM100 1201-003199 IC
U603 1202-001118 IC
U501 1202-001119 IC
U702 1202-001120 IC
U605 1203-002250 IC
U600,U602,U704 1203-004819 IC
U500 1203-005403 IC
U701 1203-005690 IC
U606 1203-005854 IC
U700 1203-006025 IC
U608 1203-006304 IC
U506 1203-006494 IC
U703 1203-006673 IC
U610 1203-006938 IC

SAMSUNG Proprietary-Contents may change without notice
Main Electrical Parts List
5-2
This Document can not be used without Samsung's authorization
Design LOC SEC CODE Description
U502 1203-007001 IC
U204 1204-003176 IC
U200 1205-004042 IC
UCP400 1205-004255 IC
U300 1205-004264 IC
U607 1209-002023 IC
U609 1209-002041 IC
TH500 1404-001651 THERMISTOR
L510 1405-001317 VARISTO
R510,R527,R533 2007-000138 R-CHIP
R206 2007-000139 R-CHIP
R603,R626 2007-000140 R-CHIP
R418,R442,R443,R705 2007-000141 R-CHIP
R300 2007-000143 R-CHIP
R314,R604,R706,R716 2007-000148 R-CHIP
R717 2007-000151 R-CHIP
R636 2007-000152 R-CHIP
R718,R719,R720,R721 2007-000157 R-CHIP
R722,R723 2007-000157 R-CHIP
R547,R635,R707,R708 2007-000162 R-CHIP
R623 2007-000166 R-CHIP
R702 2007-000167 R-CHIP
R503,R534,R600 2007-000170 R-CHIP
R637 2007-000173 R-CHIP
R505 2007-000249 R-CHIP
R430,R608,R621 2007-001291 R-CHIP
R106 2007-001298 R-CHIP
R107,R108 2007-001305 R-CHIP
R320 2007-001308 R-CHIP
R628 2007-003015 R-CHIP
R504 2007-007099 R-CHIP
R511,R713 2007-007107 R-CHIP
R200 2007-007132 R-CHIP
R319 2007-007136 R-CHIP
R609 2007-007137 R-CHIP
R318 2007-007142 R-CHIP

SAMSUNG Proprietary-Contents may change without notice
Main Electrical Parts List
5-3
This Document can not be used without Samsung's authorization
Design LOC SEC CODE Description
R601,R602 2007-007190 R-CHIP
R610 2007-007306 R-CHIP
R625 2007-007307 R-CHIP
R607 2007-007318 R-CHIP
R500,R502 2007-007334 R-CHIP
R414,R415,R456,R457 2007-007517 R-CHIP
R304,R429,R454,R455 2007-007741 R-CHIP
R709 2007-007875 R-CHIP
R613,R614,R617 2007-007942 R-CHIP
R611 2007-008045 R-CHIP
R315,R408,R409,R432 2007-008052 R-CHIP
R433,R434,R435,R472 2007-008052 R-CHIP
R473,R624 2007-008052 R-CHIP
R553 2007-008055 R-CHIP
R619 2007-008312 R-CHIP
R436 2007-008418 R-CHIP
R101,R102,R103,R207 2007-008419 R-CHIP
R419,R420,R552 2007-008419 R-CHIP
R305,R306,R307,R308 2007-008483 R-CHIP
R309,R310,R311,R312 2007-008483 R-CHIP
R403,R460,R461,R469 2007-008516 R-CHIP
R520,R542,R735 2007-008516 R-CHIP
R727,R730 2007-008531 R-CHIP
R412,R413,R448,R449 2007-008588 R-CHIP
R450,R451,R452,R453 2007-008588 R-CHIP
R712 2007-008721 R-CHIP
R506,R512,R513,R514 2007-009084 R-CHIP
R710,R714,R724 2007-009084 R-CHIP
R405,R406,R407,R437 2007-009157 R-CHIP
R440,R441,R446 2007-009157 R-CHIP
R421,R422 2007-009408 R-CHIP
R539,R540 2007-009766 R-CHIP
R704 2007-009801 R-CHIP
R201,R202,R203,R204 2007-010202 R-CHIP
R205 2007-010202 R-CHIP
R438 2007-010233 R-CHIP

SAMSUNG Proprietary-Contents may change without notice
Main Electrical Parts List
5-4
This Document can not be used without Samsung's authorization
Design LOC SEC CODE Description
R545 2007-010783 R-CHIP
C125,C164,C170,C241 2203-000233 C-CERAMIC,CHIP
C260 2203-000233 C-CERAMIC,CHIP
C648 2203-000254 C-CERAMIC,CHIP
C240,C726,L102 2203-000278 C-CERAMIC,CHIP
C639,C640,C657 2203-000386 C-CERAMIC,CHIP
C502 2203-000425 C-CERAMIC,CHIP
C129,C522 2203-000438 C-CERAMIC,CHIP
C104,C107,C114,C135 2203-000812 C-CERAMIC,CHIP
C215,C252,C301,C302 2203-000812 C-CERAMIC,CHIP
C605,C619 2203-000812 C-CERAMIC,CHIP
C611,C612,C614 2203-001153 C-CERAMIC,CHIP
C731 2203-001259 C-CERAMIC,CHIP
C146,C147 2203-001437 C-CERAMIC,CHIP
C130 2203-002443 C-CERAMIC,CHIP
C108 2203-002668 C-CERAMIC,CHIP
C562,C725 2203-002709 C-CERAMIC,CHIP
C237 2203-005057 C-CERAMIC,CHIP
C110 2203-005234 C-CERAMIC,CHIP
C242 2203-005281 C-CERAMIC,CHIP
C603,C604 2203-005344 C-CERAMIC,CHIP
C457,C458 2203-005382 C-CERAMIC,CHIP
C162 2203-005446 C-CERAMIC,CHIP
C576,C577 2203-005450 C-CERAMIC,CHIP
C724 2203-005481 C-CERAMIC,CHIP
C520 2203-005682 C-CERAMIC,CHIP
C121,C122,C123,C124 2203-005725 C-CERAMIC,CHIP
C235 2203-005729 C-CERAMIC,CHIP
C159 2203-005736 C-CERAMIC,CHIP
C330 2203-005806 C-CERAMIC,CHIP
C253 2203-006047 C-CERAMIC,CHIP
C223,C314,C333,C340 2203-006048 C-CERAMIC,CHIP
C341,C342,C343,C351 2203-006048 C-CERAMIC,CHIP
C523,C549,C560,C646 2203-006048 C-CERAMIC,CHIP
C325 2203-006120 C-CERAMIC,CHIP
C224 2203-006123 C-CERAMIC,CHIP

SAMSUNG Proprietary-Contents may change without notice
Main Electrical Parts List
5-5
This Document can not be used without Samsung's authorization
Design LOC SEC CODE Description
C705,C706,C707,C708 2203-006208 C-CERAMIC,CHIP
C717 2203-006208 C-CERAMIC,CHIP
C564,C572 2203-006260 C-CERAMIC,CHIP
C233,C234,C236,C239 2203-006305 C-CERAMIC,CHIP
C250,C251,C259 2203-006305 C-CERAMIC,CHIP
C561 2203-006324 C-CERAMIC,CHIP
C563 2203-006348 C-CERAMIC,CHIP
C230,C231,C232,C247 2203-006399 C-CERAMIC,CHIP
C304,C447,C518,C552 2203-006399 C-CERAMIC,CHIP
C600,C601,C613,C615 2203-006399 C-CERAMIC,CHIP
C616,C617,C624,C625 2203-006399 C-CERAMIC,CHIP
C626,C649,C660,C703 2203-006399 C-CERAMIC,CHIP
C704 2203-006399 C-CERAMIC,CHIP
C306,C307,C310,C311 2203-006423 C-CERAMIC,CHIP
C312,C315,C318,C331 2203-006423 C-CERAMIC,CHIP
C332,C337,C350,C641 2203-006423 C-CERAMIC,CHIP
C642 2203-006423 C-CERAMIC,CHIP
C220,C469,C609,C621 2203-006562 C-CERAMIC,CHIP
C643,C655 2203-006562 C-CERAMIC,CHIP
C249,C261 2203-006648 C-CERAMIC,CHIP
C245 2203-006674 C-CERAMIC,CHIP
C134,C163 2203-006753 C-CERAMIC,CHIP
C222,C226,C244,C467 2203-006839 C-CERAMIC,CHIP
C468,C470,C471,C500 2203-006839 C-CERAMIC,CHIP
C504,C505 2203-006839 C-CERAMIC,CHIP
C346,C347 2203-006841 C-CERAMIC,CHIP
C402,C403,C404,C405 2203-006844 C-CERAMIC,CHIP
C408,C409,C410,C411 2203-006844 C-CERAMIC,CHIP
C511,C575,C607,C608 2203-006844 C-CERAMIC,CHIP
C466 2203-006846 C-CERAMIC,CHIP
C303,C308,C309,C313 2203-006872 C-CERAMIC,CHIP
C503,C519,C610,C622 2203-006872 C-CERAMIC,CHIP
C728 2203-006872 C-CERAMIC,CHIP
C428,C433,C439,C444 2203-006890 C-CERAMIC,CHIP
C507,C721 2203-006890 C-CERAMIC,CHIP
C645,C652 2203-006979 C-CERAMIC,CHIP

SAMSUNG Proprietary-Contents may change without notice
Main Electrical Parts List
5-6
This Document can not be used without Samsung's authorization
Design LOC SEC CODE Description
C248 2203-006994 C-CERAMIC,CHIP
C229,C323,C327 2203-007210 C-CERAMIC,CHIP
C407,C631 2203-007240 C-CERAMIC,CHIP
C416,C554 2203-007269 C-CERAMIC,CHIP
C128,C263,C264 2203-007270 C-CERAMIC,CHIP
C571,C718,C719,C720 2203-007271 C-CERAMIC,CHIP
C727 2203-007271 C-CERAMIC,CHIP
C423,C515 2203-007279 C-CERAMIC,CHIP
C227,C228,C321,C328 2203-007317 C-CERAMIC,CHIP
C509,C528,C529,C531 2203-007317 C-CERAMIC,CHIP
C532,C533,C534,C536 2203-007317 C-CERAMIC,CHIP
C537,C538,C540,C541 2203-007317 C-CERAMIC,CHIP
C542,C544,C545,C546 2203-007317 C-CERAMIC,CHIP
C547,C548,C569 2203-007317 C-CERAMIC,CHIP
C647 2203-007369 C-CERAMIC,CHIP
C417,C418,C420,C421 2203-007391 C-CERAMIC,CHIP
C424,C426,C429,C430 2203-007391 C-CERAMIC,CHIP
C434,C435,C437,C438 2203-007391 C-CERAMIC,CHIP
C440,C441,C442,C443 2203-007391 C-CERAMIC,CHIP
C445,C448,C451,C452 2203-007391 C-CERAMIC,CHIP
C454,C455,C459,C462 2203-007391 C-CERAMIC,CHIP
C463,C464,C465,C729 2203-007391 C-CERAMIC,CHIP
C225,C319,C322,C324 2203-007449 C-CERAMIC,CHIP
C326,C329,C338,C339 2203-007449 C-CERAMIC,CHIP
C349,C651,C702 2203-007449 C-CERAMIC,CHIP
C573 2203-007456 C-CERAMIC,CHIP
C535,C539,C543 2203-007474 C-CERAMIC,CHIP
C150 2203-007754 C-CERAMIC,CHIP
C218 2203-007756 C-CERAMIC,CHIP
C221,C246,C653,C723 2203-007775 C-CERAMIC,CHIP
C102,C553,C555,C556 2203-007781 C-CERAMIC,CHIP
C558,C559,C565,C566 2203-007781 C-CERAMIC,CHIP
C510,C513,C514,C516 2203-007795 C-CERAMIC,CHIP
C527,C557,C574,C716 2203-007795 C-CERAMIC,CHIP
C722 2203-007795 C-CERAMIC,CHIP
C262 2203-008095 C-CERAMIC,CHIP

SAMSUNG Proprietary-Contents may change without notice
Main Electrical Parts List
5-7
This Document can not be used without Samsung's authorization
Design LOC SEC CODE Description
BAT500 2409-001238 CAPACITOR
L219 2703-001181 INDUCTOR-SMD
L104,L106,L132,L133 2703-001724 INDUCTOR-SMD
L100 2703-001737 INDUCTOR-SMD
L128,L129,L130 2703-001747 INDUCTOR-SMD
L112 2703-001749 INDUCTOR-SMD
L123 2703-001751 INDUCTOR-SMD
L222 2703-001786 INDUCTOR-SMD
L113,L117,L118,L126 2703-002170 INDUCTOR-SMD
L221 2703-002170 INDUCTOR-SMD
L108 2703-002176 INDUCTOR-SMD
L125 2703-002199 INDUCTOR-SMD
L105 2703-002204 INDUCTOR-SMD
L122,L127,L213 2703-002205 INDUCTOR-SMD
L210 2703-002207 INDUCTOR-SMD
C139 2703-002208 INDUCTOR-SMD
L109 2703-002268 INDUCTOR-SMD
L103 2703-002281 INDUCTOR-SMD
L101 2703-002314 INDUCTOR-SMD
L217,L218 2703-002367 INDUCTOR-SMD
L121 2703-002369 INDUCTOR-SMD
L134 2703-002596 INDUCTOR-SMD
L211 2703-002842 INDUCTOR-SMD
L300 2703-002858 INDUCTOR-SMD
L301,L302,L304 2703-002903 INDUCTOR-SMD
L135 2703-003004 INDUCTOR-SMD
L500 2703-003182 INDUCTOR-SMD
L701 2703-003347 INDUCTOR-SMD
L604 2703-003476 INDUCTOR-SMD
L704 2703-003485 INDUCTOR-SMD
L700 2703-003686 INDUCTOR-SMD
L214 2703-003698 INDUCTOR-SMD
L608 2703-003781 INDUCTOR-SMD
L511 2703-003911 INDUCTOR-SMD
L503,L504,L505,L506 2703-004025 INDUCTOR-SMD
L507 2703-004025 INDUCTOR-SMD

SAMSUNG Proprietary-Contents may change without notice
Main Electrical Parts List
5-8
This Document can not be used without Samsung's authorization
Design LOC SEC CODE Description
OSC200 2801-004589 CRYSTAL-UNIT
OSC500 2801-004836 CRYSTAL-UNIT
OSC400 2801-004841 CRYSTAL-UNIT
OSC501 2801-004902 CRYSTAL-UNIT
F700,F701,F702,F703 2901-001413 FILTER-EMI
F707,F708 2901-001413 FILTER-EMI
F704,F705,F706 2901-001604 FILTER-EMI
F100 2904-001651 FILTER-SAW
F201 2904-001743 FILTER-SAW
F200 2904-001752 FILTER-SAW
F102 2904-001847 FILTER-SAW
F101 2904-001850 FILTER-SAW
F202 2909-001330 FILTER-DUPLEXER
DPX101 2910-000114 FILTER
DPX100 2910-000136 FILTER
U201 2911-000168 FILTER
FEM100 2911-000184 FILTER
L401 3301-001438 CORE-FERRITEBEAD
L216,L502,L616 3301-001729 CORE-FERRITEBEAD
L303 3301-001787 CORE-FERRITEBEAD
L612,L615 3301-001789 CORE-FERRITEBEAD
L617,L624 3301-001885 CORE-FERRITEBEAD
L205,L206,L207,L208 3301-001895 CORE-FERRITEBEAD
L209 3301-001895 CORE-FERRITEBEAD
L600,L602,L603,L605 3301-002065 CORE-FERRITEBEAD
L606,L607,L610,L611 3301-002065 CORE-FERRITEBEAD
L613,L614,L619,L702 3301-002065 CORE-FERRITEBEAD
L703 3301-002065 CORE-FERRITEBEAD
TAC400,TAC401,TAC402 3404-001410 SWITCH-TACT
RFS100 3705-001731 CONNECTOR-COAXIAL
SIM300 3709-001669 CONNECTOR-CARD
CD700 3709-001681 CONNECTOR-CARD
HDC701 3711-006483 CONNECTOR-HEADER
CN501 3711-006863 CONNECTOR-HEADER
HDC700 3711-006882 CONNECTOR-HEADER
HDC702 3711-007071 CONNECTOR-HEADER

SAMSUNG Proprietary-Contents may change without notice
Main Electrical Parts List
5-9
This Document can not be used without Samsung's authorization
Design LOC SEC CODE Description
HDC602,JTAG300 3711-007173 CONNECTOR-HEADER
HDC600 3711-007467 CONNECTOR-HEADER
BTC500 3711-007667 CONNECTOR-HEADER
ANT100,ANT101,ANT200 3712-001378 CONNECTOR
ANT202,ANT600,ANT601 3712-001378 CONNECTOR
IFC500 3722-002871 JACK-PHONE
LED700 GH59-08444A Flash LED

SAMSUNG Proprietary-Contents may change without notice
Exploded View and Parts List
4-2
This Document can not be used without Samsung's authorization
Design LOC Description SEC CODE
QCR101 SCREW-MACHINE 6001-002005
QMO01 MOTOR DC-GT_I8150 GH31-00558A
QME01 KEY FPCB-GT_I8150 MIC PBA GH59-11318A
QAR01 MODULE-GT_I8150 RCV+SENSOR+MIC+EARJACK GH59-11337A
QME03 TOUCH/PANEL-GT_I8150 GH59-11348A
QSP01 MODULE-GT_I8150 SPK+INT GH59-11352A
QCA01 CAMERA MODULE-GT_I8150 5M AF GH59-11379A
QCA02 CAMERA MODULE-VGA 1/10" MODULE SF PC30 GH59-11380A
QBC00 PMO COVER-BATT GH72-65132A
QMP01 A/S ASSY-PBA MAIN(COMM)GT_I8150 GH82-06015A
QLC01 ELA MODULE-LCD(SHW-M135K) GH96-05056A
QFR01 ASSY CASE-FRONT GH98-21118A
QLB01 ASSY BRACKET-LCD GH98-21122A
QKP01 ASSY KEYPAD-HOME GH98-21123A
QDC02 ASSY DECO-TOP CAP GH98-21560A
QRE01 ASSY CASE-REAR GH98-21119A
QVO01 PMO KEY-VOLUME GH72-65125A
QCK02 PMO KEY-POWER GH72-65126A
QCD01 ASSY DECO-CAMERA GH98-21597A
QDC01 ASSY COVER-TOP GH98-21121A
QRF06 PMO COVER-USB GH72-65127A
4-2. Cellular phone Parts list

2. Specification
2-1
2-1. GSM General Specification
GSM850 EGSM 900 DCS1800 PCS1900 WCDMA21
00
WCDMA90
0
WCDMA19
00
Freq.
Band[MHz]
Uplink/
Downlink
824~849
869~894
880~915
925~960
1710~1785
1805~1880
1850~1910
1930~1990
1922~1977
2112~2167
880~915
925~960
1852~1907
1932~1987
ARFCN
range 128~251 0~124 &
975~1023 512~885 512~810
UL:9612~9
888DL:105
62~10838
UL:2712~2
863,DL:29
37 ~ 3088
UL:9262~9
538,DL:96
62~9938
Tx/Rx
spacing 45MHz 45MHz 95MHz 80MHz 190MHz 45MHz 80MHz
Mod. Bit
rate/
Bit Period
270.833kb
ps
3.692us
270.833kb
ps
3.692us
270.833kb
ps
3.692us
270.833kb
ps
3.692us
3.84Mcps 3.84Mcps 3.84Mcps
Time Slot
Period/
Frame
Period
576.9us
4.615ms
576.9us
4.615ms
576.9us
4.615ms
576.9us
4.615ms
FrameLeng
th:
10ms
Slotlength:
0.667ms
FrameLeng
th:
10ms
Slotlength:
0.667ms
FrameLeng
th:
10ms
Slotlength:
0.667ms
Modulation 0.3GMSK 0.3GMSK 0.3GMSK 0.3GMSK QPSKHQP
SK
QPSKHQP
SK
QPSKHQP
SK
MS Power 33dBm~5d
Bm
33dBm~5d
Bm
30dBm~0d
Bm
30dBm~0d
Bm
24dBm~-
50dBm
24dBm~-
50dBm
24dBm~-
50dBm
Power
Class
5pcl ~
19pcl 5pcl ~19
pcl 0pcl ~15 pcl 0pcl ~15 pcl 3(max+24dB
m)
3(max+24dB
m)
3(max+24dB
m)
Sensitivity -102dBm -102dBm -100dBm -100dBm -106.7dBm -103.7dBm -104.7dBm
TDMAMux8888888
Cell
Radius 35Km 35Km 2Km 2Km 2Km 2Km 2Km

Specification
2-2
2-2. GSM Tx Power Class
TX Power
control
level
GSM850
533±2
dBm
631±2
dBm
729±2
dBm
827±2
dBm
925±2
dBm
10 23±2 dBm
11 21±2 dBm
12 19±2 dBm
13 17±2 dBm
14 15±2 dBm
15 13±2 dBm
16 11±3 dBm
17 9±3dBm
18 7±3 dBm
19 5±3 dBm
TX Power
control
level
EGSM900
533±2
dBm
631±2
dBm
729±2
dBm
827±2
dBm
925±2
dBm
10 23±2 dBm
11 21±2 dBm
12 19±2 dBm
13 17±2 dBm
14 15±2 dBm
15 13±2 dBm
16 11±3 dBm
17 9±3dBm
18 7±3 dBm
19 5±3 dBm
TX Power
control
level
DCS1800
030±3
dBm
128±3
dBm
226±3
dBm
324±3
dBm
422±3
dBm
520±3
dBm
618±3
dBm
716±3
dBm
814±3
dBm
912±4
dBm
10 10±4 dBm
11 8±4 dBm
12 6±4 dBm
13 4±4 dBm
14 2±5 dBm
15 0±5 dBm
TX Power
control
level
PCS1900
030±3
dBm
128±3
dBm
226±3
dBm
324±3
dBm
422±3
dBm
520±3
dBm
618±3
dBm
716±3
dBm
814±3
dBm
912±4
dBm
10 10±4 dBm
11 8±4 dBm
12 6±4 dBm
13 4±4 dBm
14 2±5 dBm
15 0±5 dBm

SAMSUNG Proprietary-Contents may change without notice
3. Operation Instruction and Installation
3-1
This Document can not be used without Samsung's authorization
Main Features
•Android OS :Gingerbread
•HSPA+14.4 /5.76
•3.7” WVGA 16M TFT (C-Type, Multi Touch)
•5MP AF Camera w/Flash +VGA
•A-GPS, WiFi802.11 b/g/n, BT 3.0, USB 2.0
•Sensors :Accelerometer, Compass, Proximity
•Google Mobile Services, Samsung Apps
•Social Hub
