Samsung GT-B7300 User manual

GSM TELEPHONE
GT-B7300
1. Safety Precautions
2. Specification
3. Product Function
4. Array course control
5. Exploded View and Parts list
6. MAIN Electrical Parts List
7. Block Diagrams
8. PCB Diagrams
9. Chart of Troubleshooting
10. Reference data
11. Disassembly and Assembly
Instructions
GSM TELEPHONE CONTENTS

SAMSUNG Proprietary-Contents may change without notice
1. Safety Precautions
1-1
This Document can not be used without Samsung's authorization
1-1. Repair Precaution
●Repair in Shield Box, during detailed tuning.
Take specially care of tuning or test,
because specipicty of cellular phone is sensitive for surrounding interference(RF noise).
●Be careful to use akind of magnetic object or tool,
because performance of parts is damaged by the influence of manetic force.
●Surely use astandard screwdriver when you disassemble this product,
otherwise screw will be worn away.
●Use athicken twisted wire when you measure level.
Athicken twisted wire has low resistance, therefore error of measurement is few.
●Repair after separate Test Pack and Set because for short danger (for example an
overcurrent and furious flames of parts etc) when you repair board in condition of
connecting Test Pack and tuning on.
●Take specially care of soldering, because Land of PCB is small and weak in heat.
●Surely tune on/off while using AC power plug, because arepair of battery charger is
dangerous when tuning ON/OFF PBA and Connector after disassembing charger.
●Don't use as you pleases after change other material than replacement registered on SEC
System.
Otherwise engineer in charge isn't charged with problem that you don't keep this rules.

SAMSUNG Proprietary-Contents may change without notice
Safety Precautions
1-2
This Document can not be used without Samsung's authorization
1-2. ESD(Electrostatically Sensitive Devices) Precaution
Several semiconductor may be damaged easilly by static electricity. Such parts are called by
ESD(Electrostatically Sensitive Devices), for example IC,BGA chip etc. Read Precaution below.
You can prevent from ESD damage by static electricity.
●Remove static electricity remained your body before you touch semiconductor or parts with
semiconductor. There are ways that you touch an earthed place or wear static electricity
prevention string on wrist.
●Use earthed soldering steel when you connect or disconnect ESD.
●Use soldering removing tool to break static electricity. ,otherwise ESD will be damaged by
static electricity.
●Don't unpack until you set up ESD on product. Because most of ESD are packed by box
and aluminum plate to have conductive power,they are prevented from static electricity.
●You must maintain electric contact between ESD and place due to be set up until ESD is
connected completely to the proper place or acircuit board.

SAMSUNG Proprietary-Contents may change without notice
2. Specification
This Document can not be used without Samsung's authorization
2-1
GSM850 EGSM 900 DCS1800 PCS1900 W-CDMA
900
W-CDMA
2100
Freq.
Band[MHz]
Uplink/Downl
ink
824~849
869~894
880~915
925~960
1710~1785
1805~1880
1850~1910
1930~1990
882~913
927~958
1920~1980
2110~2170
ARFCN
range 128~251 0~124 &
975~1023 512~885 512~810 UL:2712~2863
DL:2937~3088
UL:9612~9888
DL:10562~
10838
Tx/Rx
spacing 45MHz 45MHz 95MHz 80MHz 45MHz 130MHz
Mod. Bit
rate/
Bit Period
270.833kb
ps
3.692us
270.833kb
ps
3.692us
270.833kb
ps
3.692us
270.833kb
ps
3.692us
3.84Mcps 3.84Mcps
Time Slot
Period/Frame
Period
576.9us
4.615ms
576.9us
4.615ms
576.9us
4.615ms
576.9us
4.615ms
Frame
length:10ms
Slot length:
0.667ms
Frame
length:10ms
Slot length:
0.667ms
Modulation 0.3GMSK 0.3GMSK 0.3GMSK 0.3GMSK QPSK
HQPSK
QPSK
HQPSK
MS Power 33dBm
~5dBm
33dBm
~5dBm
30dBm
~0dBm
30dBm
~0dBm
24dBm~
-50dBm
24dBm~
-50dBm
Power Class
4
(max
+33dBm)
4
(max
+33dBm)
1
(max
+33dBm)
1
(max
+33dBm)
3
(max +24dBm)
3
(max +24dBm)
Sensitivity -102dBm -102dBm -100dBm -100dBm -106.7dBm -106.7dBm
TDMA Mux 8 8 8 8
Cell Radius 35Km 35Km 2Km 2Km 2Km 2Km
2-1. GSM General Specification

SAMSUNG Proprietary-Contents may change without notice
This Document can not be used without Samsung's authorization
Specification
2-2
TX Power
control level
GSM850
GSM900
5 33±2 dBm
6 31±2 dBm
7 29±2 dBm
8 27±2 dBm
9 25±2 dBm
10 23±2 dBm
11 21±2 dBm
12 19±2 dBm
13 17±2 dBm
14 15±2 dBm
15 13±2 dBm
16 11±3 dBm
17 9±3dBm
18 7±3 dBm
19 5±3 dBm
TX Power
control level DCS1800
030±3
dBm
128±3
dBm
226±3
dBm
324±3
dBm
422±3
dBm
520±3
dBm
618±3
dBm
716±3
dBm
814±3
dBm
912±4
dBm
10 10±4 dBm
11 8±4dBm
12 6±4 dBm
13 4±4 dBm
14 2±5 dBm
15 0±5 dBm
2-2. GSM TX power class
TX Power
control level PCS1900
030±3
dBm
128±3
dBm
226±3
dBm
324±3
dBm
422±3
dBm
520±3
dBm
618±3
dBm
716±3
dBm
814±3
dBm
912±4
dBm
10 10±4 dBm
11 8±4dBm
12 6±4 dBm
13 4±4 dBm
14 2±5 dBm
15 0±5 dBm

SAMSUNG Proprietary-Contents may change without notice
3. Operation Instruction and Installation
3-1
This Document can not be used without Samsung's authorization
Main Function
-Slim Bar Design 3G MITS
-3.0Megapixel Camera
-3.0"WQVGA 262K Color TFT Screen
-External Memory microSD (T-Flash)
-Video Recording &Messaging
-Music Player(MP3/AAC/AAC+)
-FM Radio Support
-A-GPS Support
-Bluetooth Wireless Technology V2.0+EDR
-Multimedia Message Service (MMS) /SMS /E-mail
-Voice recorder
-Speaker Phone
-Java MIDP 2.0/ WAP2.0
-GSM/GPRS Class 10
-Quad-band(850/900/1800/1900MHz)
-WCDMA Dual(900/2100MHz)

SAMSUNG Proprietary-Contents may change without notice
4. Array course control
4-1
This Document can not be used without Samsung's authorization
4-1. Software Adjustments
Test Jig (GH99-36900A)
RF Test Cable (GH39-00985A) Adapter (GH99-38251A)
Test Cable (GH39-01290A)

SAMSUNG Proprietary-Contents may change without notice
Array course control
4-2
This Document can not be used without Samsung's authorization
4-2. Software Downloading
4-2-1. Downloading Binary Files
•Buckingham_LPFlash.nb0
•Buckingham_Bootloader.nb0
•CSC_GT-B7300XXIH2.csc
•Phone_B7300XXIH2.bin
•Buckingham Downloader v2.4.exe
4-2-2. Pre-requsite for Downloading
•Downloader Program :(
Buckingham Downloader v2.4.exe)
•Binary files
•GT-B7300 Mobile Phone
•USB cable

SAMSUNG Proprietary-Contents may change without notice
Array course control
4-3
This Document can not be used without Samsung's authorization

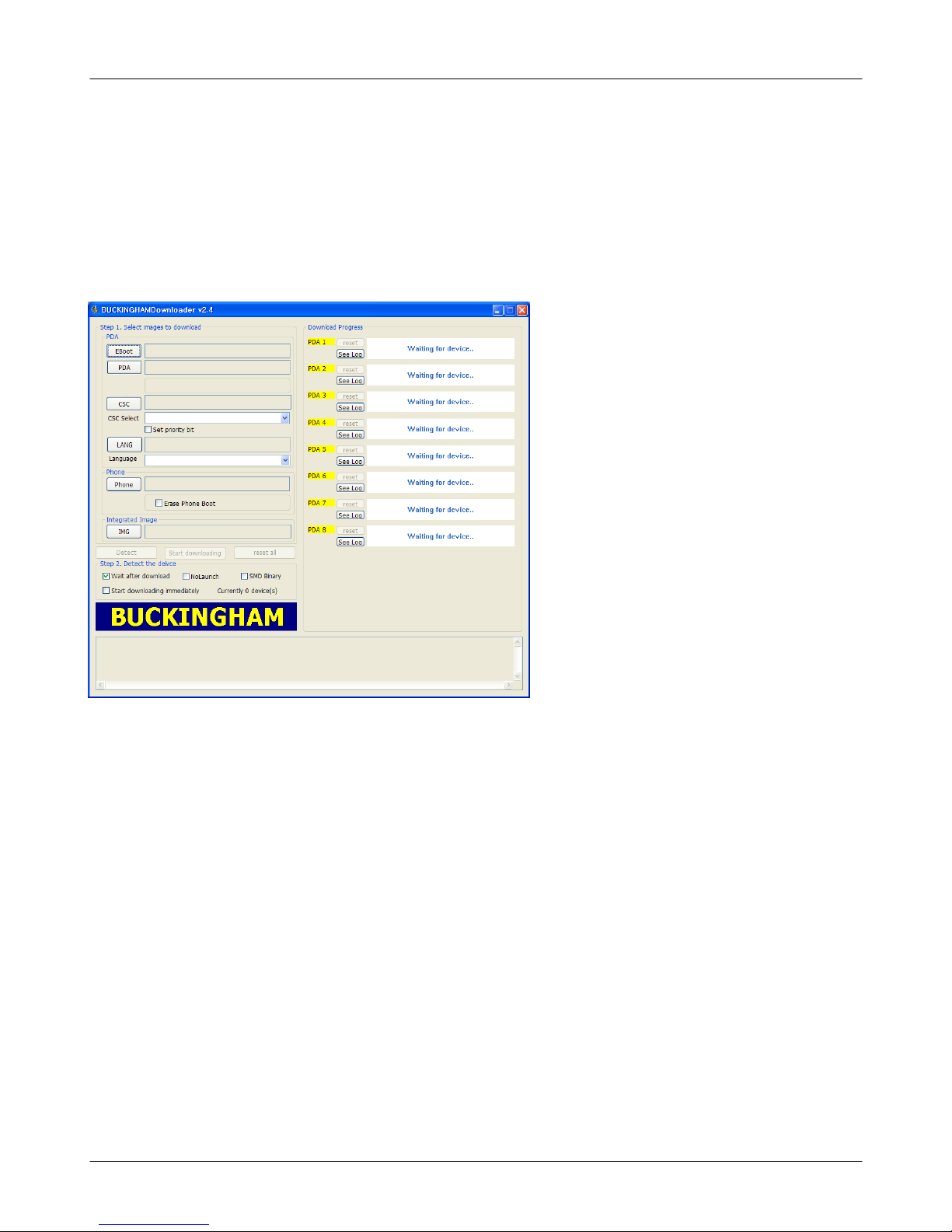

4-2-3. S/W Downloader Program
1-1
1) Load the binary download program by executing
the "Buckingham Downloader v2.4.exe"
2) Select the binary filesthat you want to download
-Press the "Eboot"button and select "Buckingham_Bootloader.nb0"
-Press the "PDA"button and select "Buckingham_LPFlash.nb0"
-Press the "CSC"button and select "CSC_GT-B7300XXIH2.csc"
-Press the "Phone"button and select "Phone_B7300XXIH2.bin"

SAMSUNG Proprietary-Contents may change without notice
Array course control
4-4
This Document can not be used without Samsung's authorization

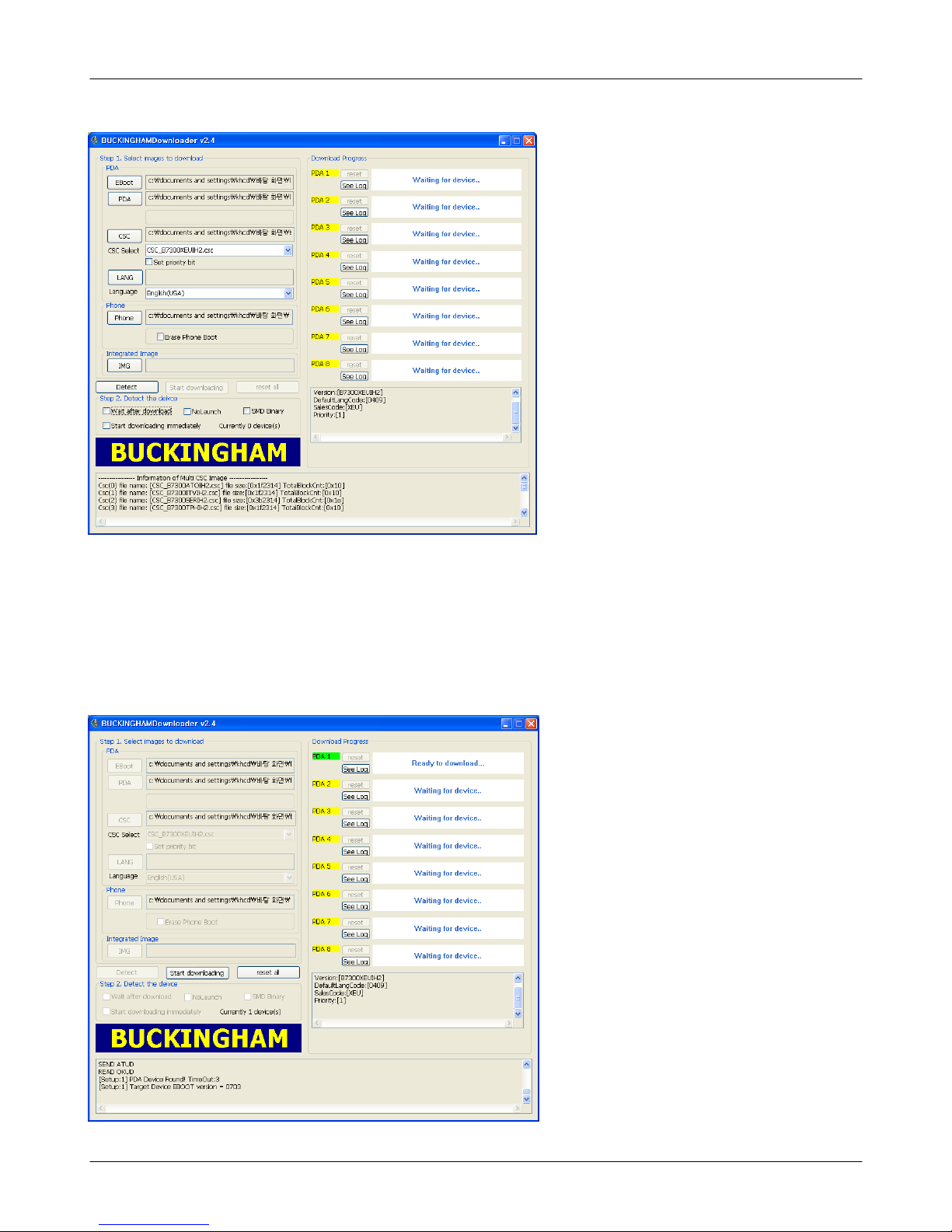

3) Press the "Detect"button and connect the Handset using by USB cable.
4) Turn on the device pressing by END Key.
5) Press the "Start downloading"button if the device found.

SAMSUNG Proprietary-Contents may change without notice
5. Exploded View and Parts List
5-1
This Document can not be used without Samsung's authorization
5-1. Cellular phone Exploded View
QFR01
QLC01
QME03
QME00
QCA02
QCA01
QSP01
QMP01
QRE01
QBC00
QST01
QKP01
QSH01
QSH02
QCR91
QME01
QIF01
QCK01
QVO01
QSD01
QCK02

SAMSUNG Proprietary-Contents may change without notice
Exploded View and Parts List
5-2
This Document can not be used without Samsung's authorization
Design LOC Description SEC CODE
QBC00 ASSY COVER-BATTERY GH98-14537A
QCA01 ASSY CAMERA-3M AF MODULE(GT-B7300) GH96-04048A
QCA02 ASSY CAMERA-CIF CAMERA GT-B7300 GH96-03885A
QCR91 SCREW-MACHINE 6001-002260
QKP01 ASSY KEYPAD-(OPEN/BLK) GH98-14365A
QLC01 ASSY LCD-3.0" WQVA GT-B3700C ASSY GH96-03847A
QME03 TOUCH/PANEL-GT-B7300 GH59-07742A
QMP01 ASSY PBA MAIN-GT-B7300 GH92-05977A
QSH01 ICT SHIELD-COVER AGH70-05182A
QSH02 ICT SHIELD-CAN GH70-05583A
QSP01 MODULE-SPK_MOT_RCV (GT-B7300) GH59-08026A
QST01 ASSY STYLUS PEN-RELOADED GH98-12411A
QFR01 ASSY CASE-FRONT GH98-13993A
QIF01 PMO COVER-IF GH72-54503A
QME00 ASSY MODULE-KEY PBA+BRACKET GH96-04137A
QME01 KEY FPCB-KEY PBA ASSY (GT-B7300) GH59-07768A
QRE01 ASSY CASE-REAR GH98-13994A
QSD01 PMO COVER-SD GH72-54504A
QVO01 PMO KEY-VOLUME IN GH72-54508A
QCK01 PMO KEY-CAMERA IN GH72-54510A
QCK02 PMO KEY-HOLD GH72-54512A
5-2. Cellular phone Parts list

SAMSUNG Proprietary-Contents may change without notice
6. MAIN Electrical Parts List
6-1
This Document can not be used without Samsung's authorization
Design LOC SEC CODE Description
D400 0401-001144 SUD492H
ZD401 0403-001749 PZU5.6B
ZD605 0404-001089 RB551V-30
D300 0404-001172 RB520S-30
D600 0404-001317 1PS79SB10
D500,D501,D502,D503 0406-001231 DF2S5.6FS(TPL3)
D504,D505,D700,D701 0406-001231 DF2S5.6FS(TPL3)
D702,D704,D705,ZD400 0406-001231 DF2S5.6FS(TPL3)
ZD702,ZD705,ZD714 0406-001231 DF2S5.6FS(TPL3)
ZD604 0406-001267 RCLAMP0521P
U608 0406-001369 RCLAMP3654P.TCT
D602,D603,D604 0406-001375 UCLAMP0501T
Q600 0504-001138 DTA114EM
TR300,TR400 0505-002088 2SK3541
U701,U702 0505-002268 NTJD4001NT1G
LED700 0601-001905 SSC-THBTGFR421
U302 0801-003016 NC7SV08L6X
U100 0801-003022 NC7SV04L6X
U304 0801-003200 NC7SZ00L6X
U300 0801-003265 74AUP1G74GM
U800 0801-003271 74AUP2G08GM
UCP800 0902-002440 SC36410A8N-A040
U400 1001-001394 NLAS5123MNR2G
U600 1001-001461 NLAST9431
U703 1001-001483 FSUSB31L8X
U601 1001-001580 FSA9480UCX
U605 1003-002047 ISA1000
U301,U801,U802 1003-002185 NLSV1T34AMX1TCG
PAM100 1201-002740 TQM7M5012
U200 1201-002856 ALM-1712-SG1
U501 1201-002864 MAX9877AERP-T
PAM101 1201-002889 SKY77186
PAM103 1201-002890 SKY77189
U402 1203-003924 XC61CN3202NR
U606 1203-004043 XC6401FF35ER

SAMSUNG Proprietary-Contents may change without notice
Main Electrical Parts List
6-2
This Document can not be used without Samsung's authorization
Design LOC SEC CODE Description
U603 1203-004571 RP150K002A-TR
U202 1203-004606 XC6401EE23DR
U500 1203-004806 RP100K281D-TR
U607 1203-004845 TPS61161DRVR
U203 1203-004925 RP103K301D-TR
U604 1203-005250 MIC5335-MGYMT
U401 1203-005434 MAX8674EWN+
U404 1203-005667 MAX8698EWO-T
U403 1203-005689 MAX8844YETD-T
U201 1204-003026 SI4709-B-GMR
U101 1205-003297 RTR6285
U303 1205-003467 AAT4285IJS-3-T1
U502 1205-003488 AK4671EG-L
UCP300 1205-003726 MSM6246
U700 1209-001823 KXSD9-2042
TH300,TH800 1404-001221 THERMISTOR;NCP15WB473J04RC
R100 2007-000138 RC1005J101CS
R108,R109 2007-000139 RC1005J221CS
R202 2007-000140 RC1005J102CS
R513 2007-000149 RC1005J123CS
R700,R820,R823 2007-000162 RC1005J104CS
R505 2007-001119 RC1005J681CS
R118 2007-001285 ERJ2GEJ5R6X
R107,R121,R122 2007-001290 RC1005J240CS
R104 2007-001291 RC1005J300CS
R702,R703 2007-001295 RC1005J390CS
R123,R603,R604 2007-001298 RC1005J510CS
R105,R106,R701 2007-001307 RC1005J181CS
R613 2007-001339 RC1005J184CS
R400 2007-003014 TSR16GJ244V
R120 2007-003022 TSR16GJ620V
R423 2007-007107 RC1005F1003CS
R418 2007-007132 RC1005F153CS
R313,R314,R819,R822 2007-007139 MCR01MZP5F4702
R116 2007-007309 MCR01MZP5F1202

SAMSUNG Proprietary-Contents may change without notice
Main Electrical Parts List
6-3
This Document can not be used without Samsung's authorization
Design LOC SEC CODE Description
R504 2007-007313 RK73H1ETP6801F
R103 2007-007317 RK73H1ETP2201F
R416 2007-007318 MCR01MZP5F1001
R405 2007-007480 RK73H1ETP1303F
R315 2007-007529 RK73H1ETP9102F
R403 2007-007698 RK73H1ETP5101F
R503 2007-007741 M5534204B10E0R
R614 2007-007798 RC1005F0100CS
R815 2007-007942 RC-1005F105CS
R607 2007-007943 RK73H1ETP5603F
R101,R306,R308,R329 2007-008045 ERJ1GEJ101C
R332,R333,R426,R602 2007-008045 ERJ1GEJ101C
R615,R704,R806,R812 2007-008045 ERJ1GEJ101C
R813,R814 2007-008045 ERJ1GEJ101C
R307 2007-008049 MCR006YZPJ202
R411,R412,R502,R811 2007-008052 ERJ1GENJ472X
R816,R817,R824,R825 2007-008052 ERJ1GENJ472X
R836,R837 2007-008052 ERJ1GENJ472X
R102,R204,R206,R207 2007-008055 ERJ1GENJ104X
R312,R321,R327,R331 2007-008055 ERJ1GENJ104X
R406,R414,R415,R417 2007-008055 ERJ1GENJ104X
R422,R805,R808,R809 2007-008055 ERJ1GENJ104X
R810,R832,R833,R834 2007-008055 ERJ1GENJ104X
R835,R838,R839,R841 2007-008055 ERJ1GENJ104X
R842,R843,R844,R845 2007-008055 ERJ1GENJ104X
R848 2007-008055 ERJ1GENJ104X
R419 2007-008117 ERJ2RKF2701X
R110,R111,R112,R113 2007-008419 ERJ1GEJ102C
R125 2007-008419 ERJ1GEJ102C
R309,R328 2007-008420 RMC 1/20 330JPA
R201,R303,R304,R408 2007-008516 ERJ1GEJ103C
R420,R421,R605,R800 2007-008516 ERJ1GEJ103C
R801,R803,R804 2007-008516 ERJ1GEJ103C
R826,R827 2007-008588 MCR006YZPJ222
R326 2007-008766 ERJ2RKF6041X

SAMSUNG Proprietary-Contents may change without notice
Main Electrical Parts List
6-4
This Document can not be used without Samsung's authorization
Design LOC SEC CODE Description
R616,R617,R618 2007-008774 ERJ1GEJ2R2C
R829,R830 2007-008798 MCR006YZPJ153
R205,R316 2007-009084 MCR006YZPJ105
R310 2007-009115 RC0603J240CS
R407,R410 2007-009155 MCR006YZPJ474
R413,R818 2007-009157 MCR006YZPF1003
R404 2007-009158 MCR006MZPF1503
R520 2007-009170 MCR006YZPJ184
R305 2007-009171 MCR006YZPJ513
R506 2007-009402 RC0603F152CS
R409 2007-009866 MCR006YZPF2003
R401 2007-009954 MCR006YZPF6802
R831 2007-009964 MCR01MZP5F44R2
R828 2007-010030 MCR01MZP5F6491
C1120,C1121,C131 2203-000233 GRP1555C1H101J
C141,C143,C234,C400 2203-000233 GRP1555C1H101J
C425 2203-000233 GRP1555C1H101J
C100,C107,C823 2203-000254 GRP155R71C103K
C1106,C1117,C531 2203-000278 GRP1555C1H100D
C415 2203-000359 GRP1555C1H151JD01E
C554,C606,C822,C824 2203-000386 GRP1555C1H150J
C102,C105,C108 2203-000438 GRP155R71H102K
C1127,C228 2203-000627 GRM1555C1H220J
C1101,C1109 2203-000679 GRP1555C1H270J
C1116,C1122 2203-000696 GRP1555C1H2R0C
C613 2203-000725 GRP155R71H392KA01E
C104,C1103 2203-000812 GRP1555C1H330J
C133,C134,C138,C167 2203-000812 GRP1555C1H330J
C196,C197,C215,C540 2203-000812 GRP1555C1H330J
C542,C544,C546,C548 2203-000812 GRP1555C1H330J
C549,C550,C620,C621 2203-000812 GRP1555C1H330J
C622 2203-000812 GRP1555C1H330J
C113 2203-000854 GRP1555C1H390J
C103,C551 2203-000995 GRP1555C1H470J
C144,C148,C555,C607 2203-001153 GRP1555C1H680J
C1107 2203-000550 GRM1555C1H200J

SAMSUNG Proprietary-Contents may change without notice
Main Electrical Parts List
6-5
This Document can not be used without Samsung's authorization
Design LOC SEC CODE Description
C625,C626 2203-001153 GRP1555C1H680J
C541,C543 2203-001259 GRP1555C1H8R0DZ01E
C829 2203-002709 C1005Y5V1C104ZT
C603,C604,C605 2203-003054 GRP1555C1H9R0C
C238 2203-005050 GRP1555C1H1R8CZ01E
C218,C219 2203-005053 GRP1555C1H3R9CZ01E
C830 2203-005138 04025C182KAT2A
C1131,C237,C111 2203-005234 GRP1555C1H1R2CZ01E
C235 2203-005288 GRP1555C1H1R0BZ01E
C123 2203-005390 CM05CG4R0B50AH
C119 2203-005393 GRP1555C1H5R0BZ01E
C121,C122,C137 2203-005395 C1005CG1H4R7BT
C118 2203-005446 GRP1555C1H2R7BZ01E
C110,C114,C166,C302 2203-005682 GRP0335C1E330JD01E
C538 2203-005682 GRP0335C1E330JD01E
C706,C707 2203-005683 GRP0335C1E8R0DD01E
C1118,C1130,C155 2203-005725 GRP0335C1E220JD01E
C162,C173,C176,C178 2203-005725 GRP0335C1E220JD01E
C182,C183,C184,C185 2203-005725 GRP0335C1E220JD01E
C186,C191,C703 2203-005725 GRP0335C1E220JD01E
C1110,C153,C160,C161 2203-005736 GRP0335C1E101JD01E
C188,C193 2203-005736 GRP0335C1E101JD01E
C206,C207 2203-005740 GRM0335C1E5R0C
C129,C190,C199,C308 2203-005806 GRP033R71C102KD01E
C313 2203-005806 GRP033R71C102KD01E
C106,C1123,C1128 2203-006048 GRM155R71A104K
C700 2203-006048 GRM155R71A104K
C507,C508 2203-006137 CL05B223KONC
C614 2203-006190 GRM155R60J224KE01E
C1114,C189,C330,C331 2203-006194 GRP033R70J103KA01E
C332,C402,C409,C411 2203-006194 GRP033R70J103KA01E
C520,C803 2203-006194 GRP033R70J103KA01E
C609 2203-006257 GRM155R60J474KE19E
C509,C514 2203-006260 GRM155R61A224KE19E
C201,C211 2203-006305 CM03CG100J25AH

SAMSUNG Proprietary-Contents may change without notice
Main Electrical Parts List
6-6
This Document can not be used without Samsung's authorization
Design LOC SEC CODE Description
C617 2203-006348 CV105X5R105K25AT
C510 2203-006379 GRP033R70J472KA01
C305,C306,C312,C316 2203-006399 GRM155R60J105KE19D
C321,C327,C328,C335 2203-006399 GRM155R60J105KE19D
C340,C408,C410 2203-006399 GRM155R60J105KE19D
C101,C1111,C115,C154 2203-006423 GRM33X5R104K6.3
C156,C177,C187,C194 2203-006423 GRM33X5R104K6.3
C304,C309,C311,C317 2203-006423 GRM33X5R104K6.3
C318,C326,C329,C333 2203-006423 GRM33X5R104K6.3
C334,C336,C338,C404 2203-006423 GRM33X5R104K6.3
C417,C418,C446,C504 2203-006423 GRM33X5R104K6.3
C505,C513,C800,C801 2203-006423 GRM33X5R104K6.3
C804,C806,C807,C808 2203-006423 GRM33X5R104K6.3
C809,C810,C811,C812 2203-006423 GRM33X5R104K6.3
C813,C814,C815,C816 2203-006423 GRM33X5R104K6.3
C817,C818,C819,C820 2203-006423 GRM33X5R104K6.3
C821,C827,C828 2203-006423 GRM33X5R104K6.3
C303 2203-006462 GRM033R60J333K
C537 2203-006556 GRM0335C1E470JD01D
C205,C214,C422,C423 2203-006562 CV05X5R105K10AH
C436,C437,C438,C439 2203-006562 CV05X5R105K10AH
C441,C442,C443,C502 2203-006562 CV05X5R105K10AH
C515,C518,C519,C525 2203-006562 CV05X5R105K10AH
C547,C553,C610,C611 2203-006562 CV05X5R105K10AH
C615,C616,C618 2203-006562 CV05X5R105K10AH
C826 2203-006626 GRM155R61A334KE15D
C128,C198 2203-006642 GRM033R71E331KA01D
C704 2203-006647 GRM033R60J473KE19D
C300 2203-006668 GRM033R61A222K
C435,C705 2203-006681 GRM155F51E104ZA01D
C535 2203-006707 GRM0335C1E4R7C
C341,C406,C427,C428 2203-006824 CV105X5R475K10AT
C429,C431,C432,C445 2203-006824 CV105X5R475K10AT
C517 2203-006824 CV105X5R475K10AT
C307,C440,C444,C503 2203-006838 CL05A225KQ5NSNC

SAMSUNG Proprietary-Contents may change without notice
Main Electrical Parts List
6-7
This Document can not be used without Samsung's authorization
Design LOC SEC CODE Description
C512 2203-006838 CL05A225KQ5NSNC
C414,C506 2203-006839 CL03A104KP3NNNC
C434,C521,C522,C523 2203-006841 CV05X5R105K16AH
C524,C526,C527,C528 2203-006841 CV05X5R105K16AH
C529,C530,C532,C533 2203-006841 CV05X5R105K16AH
C802 2203-006841 CV05X5R105K16AH
C202,C210,C212,C213 2203-006872 GRM155R60J225ME15D
C223,C419,C420,C421 2203-006872 GRM155R60J225ME15D
C1102,C401,C416,C426 2203-007165 CL05A475KQ5NRNC
C805 2203-007165 CL05A475KQ5NRNC
C511 2203-007210 CV03X5R224K06AH
C117,C130,C147,C209 2203-007270 CL10A106KP8NNNC
C403,C500,C501,C601 2203-007270 CL10A106KP8NNNC
C208,C221,C222,C405 2203-007271 CL05A225KP5NSNC
C407,C412,C413,C433 2203-007271 CL05A225KP5NSNC
TA400 2404-001474 F951A476MPALZTQ2
TA500 2404-001506 TCTP1A476M8R-D
L108 2703-001747 LL1005-FH4N7S
L109 2703-001748 LL1005-FH5N6S
L104,L107 2703-001990 LL1005-FH22NJ
L123,L124 2703-002170 CIH05T6N8JNC
L112,L113,L116 2703-002176 CIH05T2N7SNC
L110,L118 2703-002199 CIH05T12NKNC
L102,L103,L117,L119 2703-002200 CIH05T18NJNC
L126 2703-002200 CIH05T18NJNC
L120 2703-002203 CIH05T15NJNC
L106 2703-002204 CIH05T22NJNC
L121,L200 2703-002207 CIH05T3N3SNC
L114 2703-002208 CIH05T2N2SNC
L125 2703-002267 CIH05T4N7SNC
L105 2703-002314 CIH05T47NJNC
L605 2703-002767 VLF3010AT-220MR33
L122 2703-002842 LLV0603-F2N2S

SAMSUNG Proprietary-Contents may change without notice
Main Electrical Parts List
6-8
This Document can not be used without Samsung's authorization
Design LOC SEC CODE Description
L700,L701,L702,L703 2703-002955 MLG0603S33NJT
L101 2703-002961 MLG0603SR10JT
L603,L604 2703-003205 LQG15HS82NJ02
L400,L401,L402,L403 2703-003260 CIG21W2R2MNE
L404,L405 2703-003260 CIG21W2R2MNE
L602 2703-003534 LQM21PNR47MC0D
OSC800 2801-004543 DSX321G(12MHZ,10PPM)
OSC201 2801-004560 FCX-05(26MHZ,10PPM)
OSC200 2801-004749 FA-128(38.4MHZ,10PPM)
OSC400 2804-001700 SG-3040LC(32.768KHZ)
OSC500 2804-001796 CSC3M192000EEVRS00
OSC801 2804-001845 CSC6S480000BEVRS00
OSC100 2809-001345 KT3225P19200ACW28ZN
F701,F702,F703 2901-001361 ICVE31056E250R101FR
F707 2901-001409 ICVE10054E250R101FR
F704,F705,F706 2901-001470 ICVE10184E070R100FR
F700 2901-001525 ICVE10184E150R101FR
F501 2901-001552 EMIF06-MSD01C2
F104 2904-001756 SAFEB2G14FA0F00
F103 2904-001785 FAR-F5KA-897M50-D4DCHZ
F101 2904-001789 FAR-F6KA-1G9500-D4DGHZ
DUF102 2910-000065 SAYFP897MCA0B00
DUF100 2910-000070 SAYFP1G95AA0B00
F100 2911-000128 LMSP43QL-771
MIC500 3003-001138 SPU0410LR5H-QB
L600,L601 3301-001729 BLM15AG102SN1D
L100,L202,L501 3301-001756 BLM15HG102SN1D
L502,L606 3301-001885 BLM15HD182SN1D
L201 3301-001901 BLM18EG221SN1D
TAC700,TAC701,TAC702 3404-001303 LS12K2-T
TAC703,TAC704,TAC705 3404-001303 LS12K2-T
RFS100 3705-001503 KMS-560
HDC704 3708-002236 FF12-12A-R12BN-
CD500 3709-001580 MS110-C10B-C16-H
HDC703 3711-005345 14-5602-020-000-829
