Samsung GT-E1085L User manual

GSM TELEPHONE
GT-E1085L
GSM TELEPHONE CONTENTS
1. Safety Precautions
2. Specification
3. Product Function
4. Array course control
5. Exploded View and Parts List
6. Main Electrical Parts List
7. Block Diagrams
8. PCB Diagrams
9. Flow Chart of Troubleshooting
10. Reference data
11. Disassembly and Assembly
instructions

GSPN (Global Service Partner Network)
Country Web Site
North America service.samsungportal.com
Latin America latin.samsungportal.com
CIS cis.samsungportal.com
Europe europe.samsungportal.com
China china.samsungportal.com
Asia asia.samsungportal.com
Mideast &Africa mea.samsungportal.com
This Service Manual is aproperty of Samsung Electronics Co.,Ltd.
Any unauthorized use of Manual can be punished under applicable
International and/or domestic law.
Samsung Electronics Co.,Ltd.
2009. 07. Rev.1.0
ⓒ

SAMSUNG Proprietary-Contents may change without notice
2. Specification
This Document can not be used without Samsung's authorization
2-1
2-1. GSM General Specification
GSM850
Phase 1 PCS1900
Freq. Band[MHz]
Uplink/Downlink 824~849
869~894 1850~1910 1930~1990
ARFCN range 128~251 512~810
Tx/Rx spacing 45MHz 80MHz
Mod. Bit rate/
Bit Period 270.833kbps
3.692us 270.833kbps 3.692us
Time Slot
Period/Frame Period 576.9us
4.615ms 576.9us 4.615ms
Modulation 0.3GMSK 0.3GMSK
MS Power 33dBm~5dBm 30dBm~0dBm
Power Class 4
(max + 33dBm) 1 (max + 30dBm)
Sensitivity -102dBm -100dBm
TDMA Mux 88
Cell Radius 35Km 2Km

SAMSUNG Proprietary-Contents may change without notice
Specification
2-2
This Document can not be used without Samsung's authorization
2-2. GSM Tx Power Class
TX Power
control level GSM850
533±2
dBm
631±2
dBm
729±2
dBm
827±2
dBm
925±2
dBm
10 23±2 dBm
11 21±2 dBm
12 19±2 dBm
13 17±2 dBm
14 15±2 dBm
15 13±2 dBm
16 11±3 dBm
17 9±3dBm
18 7±3 dBm
19 5±3 dBm
TX Power
control level PCS1900
030±3
dBm
128±3
dBm
226±3
dBm
324±3
dBm
422±3
dBm
520±3
dBm
618±3
dBm
716±3
dBm
814±3
dBm
912±4
dBm
10 10±4 dBm
11 8±4dBm
12 6±4 dBm
13 4±4 dBm
14 2±5 dBm
15 0±5 dBm

SAMSUNG Proprietary-Contents may change without notice
3. Product Function
3-1
This Document can not be used without Samsung's authorization
Main Function
•GSM 850/1900
•1.43" CSTN
•FM RADIO
•SMS, MMS
•64Poly Melody
•Noise Cancellation
•JAVA

SAMSUNG Proprietary-Contents may change without notice
10. Reference data
10-1
This Document can not be used without Samsung's authorization
Reference Abbreviate
―ADC :Analog to Digital Converter
―AMPS :Advanced Mobile Phone System(analog IS-95)
―BGA :Ball Grid Array
―BPF :Band Pass Filter
―CDMA :Code Division Multiple Access
―DL :Downlink
―FTP :File Transfer Protocol
―GPS :Global Positioning System
―MMS :Multimedia Messaging Service
―PBA :Panel Board Assembly
―PCS :Personal Communication System
―PIM(S) :Personal Information Management (System)
―QPSK :Quadrature Phase Shift Keying
―RF :Radio Frequency
―RSS :Received Signal Strength
―SAW :Surface Acoustic Wave
―SMS :Short Message Service
―TCXO :Temperature Compensated Crystal Oscillator
―TSP :Touch Screen Panel
―UL :Uplink
―USB :Universal Serial Bus

SAMSUNG Proprietary-Contents may change without notice
1. Safety Precautions
1-1
This Document can not be used without Samsung's authorization
1-1. Repair Precaution
―Repair in Shield Box, during detailed tuning.
Take specially care of tuning or test, because the specification of cellular phone is sensitive for
surrounding interference(RF noise).
―Be careful to use akind of magnetic object or tool, because performance of parts is damaged by
the influence of magnetic force.
―Surely use astandard screwdriver when you disassemble this product, otherwise screw will be
worn away.
―Use athicken twisted wire when you measure level.
Athicken twisted wire has low resistance, therefore error of measurement is few.
―Repair after separate Test Pack and Set because for short danger (for example an overcurrent
and furious flames of parts etc) when you repair board in condition of connecting Test Pack and
tuning on.
―Take specially care of soldering, because Land of PCB is small and weak in heat.
―Surely tune on/off while using AC power plug, because arepair of battery charger is dangerous
when tuning ON/OFF PBA and Connector after disassembling charger.
―Don't use as you pleases after change other material than replacement registered on SEC System.
Otherwise engineer in charge isn't charged with problem that you don't keep this rules.

SAMSUNG Proprietary-Contents may change without notice
Safety Precautions
1-2
This Document can not be used without Samsung's authorization
1-2. ESD(Electrostatically Sensitive Devices) Precaution
Several semiconductor may be damaged easily by static electricity. Such parts are called by ESD
(Electrostatically Sensitive Devices), for example IC,BGA chip etc. Read Precaution below.
You can prevent from ESD damage by static electricity.
―Remove static electricity remained your body before you touch semiconductor or parts with
semiconductor. There are ways that you touch an earthed place or wear static electricity prevention
string on wrist.
―Use earthed soldering steel when you connect or disconnect ESD.
―Use soldering removing tool to break static electricity. Otherwise ESD will be damaged by static
electricity.
―Don't unpack until you set up ESD on product. Because most of ESD are packed by box and
aluminum plate to have conductive power,they are prevented from static electricity.
―You must maintain electric contact between ESD and place due to be set up until ESD is
connected completely to the proper place or acircuit board.

SAMSUNG Proprietary-Contents may change without notice
4. Array course control
4-1
This Document can not be used without Samsung's authorization
4-1. Software Adjustments
Test Cable (GH39-01160A)
Test Jig (GH99-36900A)
RF Test Cable (GH39-00985A) Adapter (GH99-38251A)

SAMSUNG Proprietary-Contents may change without notice
Array course control
4-2
This Document can not be used without Samsung's authorization
4-2. Software Downloading
4-2-1. Pre-requsite for Downloading
•Downloader Program(PNX4900 Downloader v1.0 For Lite)
•GT-E1085L Mobile Phone
•Data Cable
•JIG BOX
•Test Cable
•Serial Cable
•Binary files
4-2-2. S/W Downloader Program
■Load the binary download program by executing the
"PNX4900 Downloader v1.0 Lite "
1.Select the connected serial port and the rate of speed.

SAMSUNG Proprietary-Contents may change without notice
Array course control
4-3
This Document can not be used without Samsung's authorization
2.Select the Port, Baud Rate and Mode.
3.Select the START Botton, When Complete DL.Bootloader.

SAMSUNG Proprietary-Contents may change without notice
Array course control
4-4
This Document can not be used without Samsung's authorization

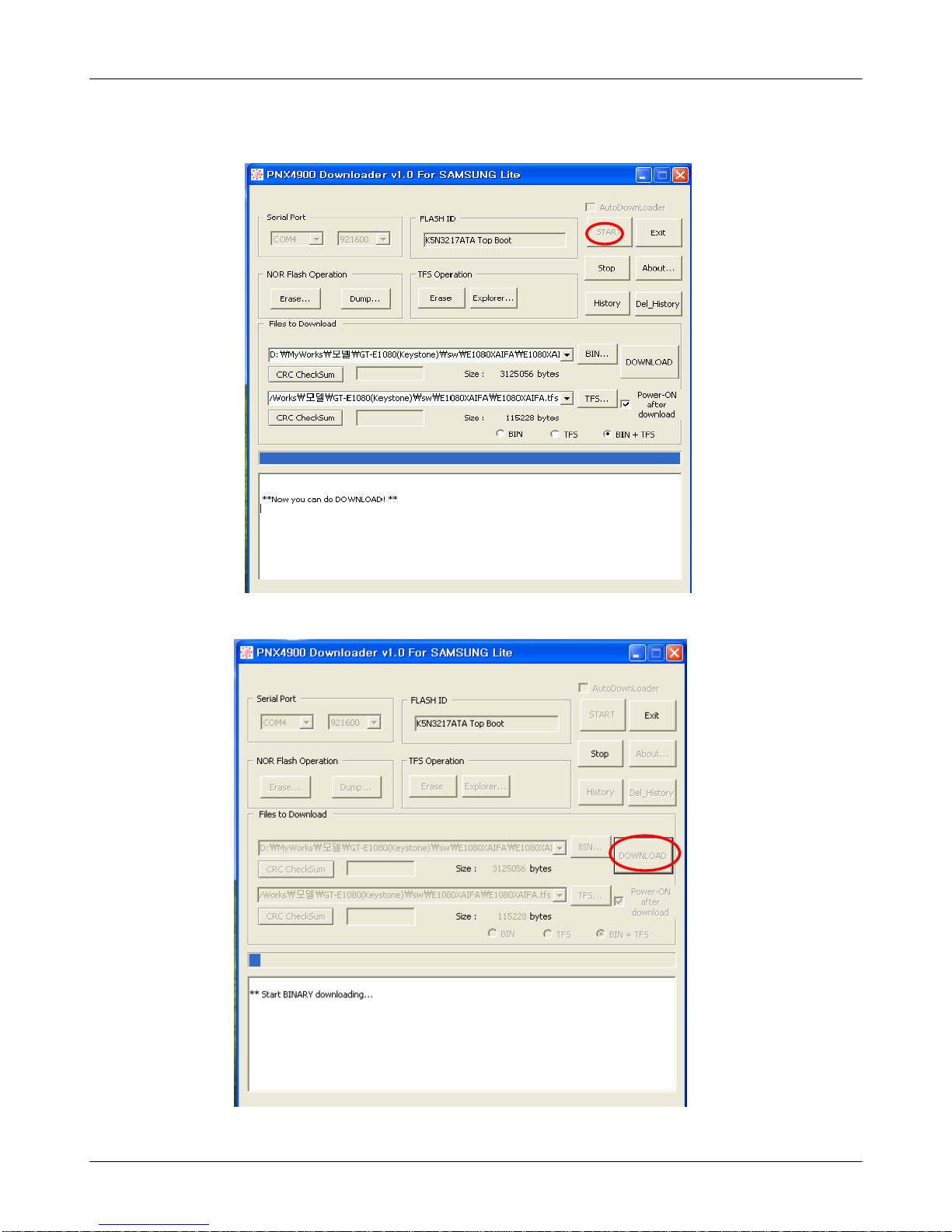

4.4.P
ress the "Start" button and connect the Handset, then press "확인".
5.Check the All Download &Calset ,Click the Download Botton,

SAMSUNG Proprietary-Contents may change without notice
Array course control
4-5
This Document can not be used without Samsung's authorization

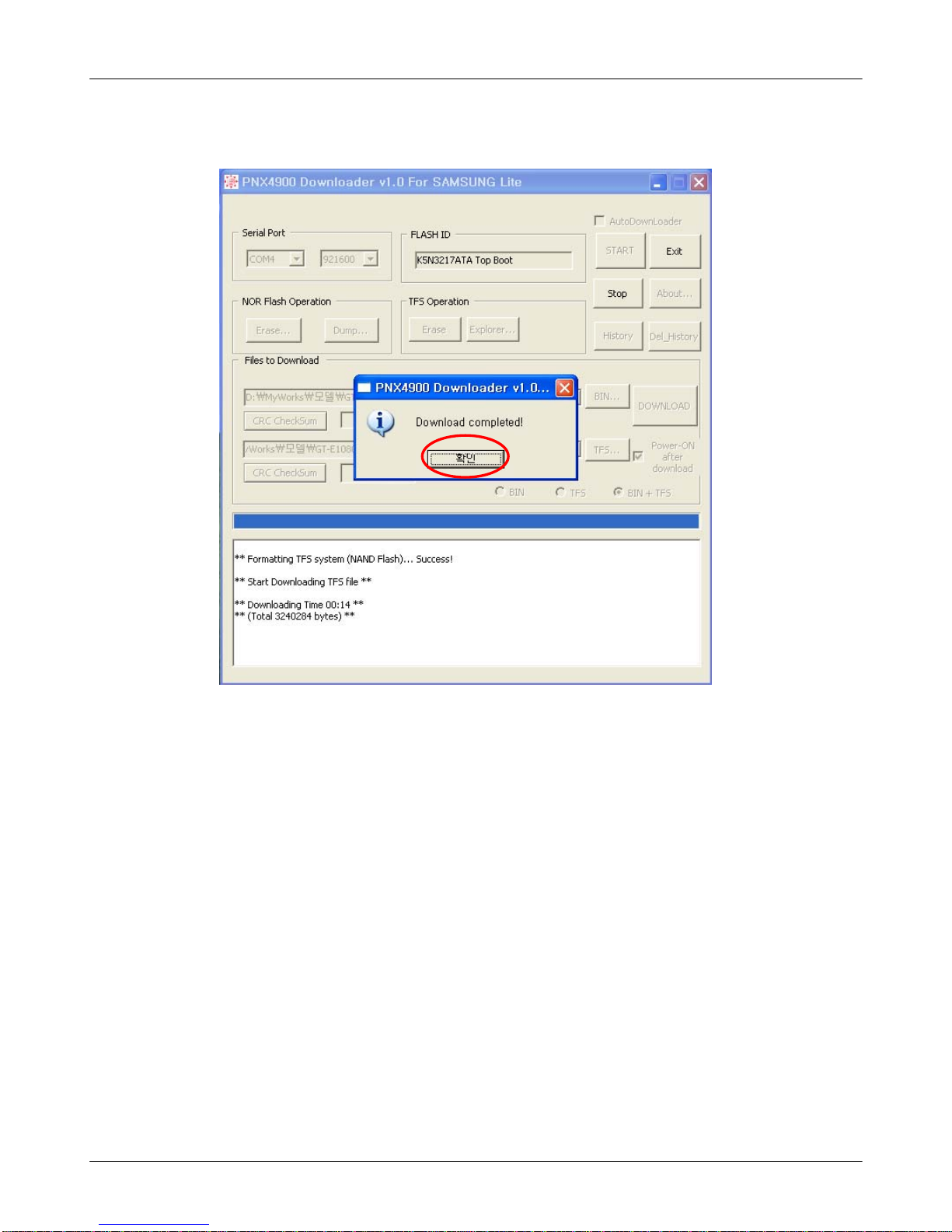

6.When downloading is complete, automatically the small window was showed up.
7.Confirm the downloaded version name and etc. :
*#1234#
Full Reset :
*0206*3855#

SAMSUNG Proprietary-Contents may change without notice
5. Exploded View and Parts List
5-1
This Document can not be used without Samsung's authorization
5-1. Cellular phone Exploded View

Exploded View and Parts List
5-1
This Document can not be used without Samsung's authorization
Design LOC Discription SEC CODE
QBC00 ASSY COVER-BATT GH98-13873A
QCR89 SCREW-TAPPING 6002-001428
QKP01 RMO KEY-ALL GH73-13125A
QLC01 ASSY LCD-1.43"STD CSTN PNL GH96-04008A
QME01 DOME SHEET-MAIN 22 KEY(GT-E1080) GH59-07942A
QMI01 MICROPHONE-ASSY-GT_E1080 GH30-00607A
QMO01 MOTOR DC-SCH-S369 GH31-00392A
QMP01 A/S ASSY-PBA MAIN (GT-E1085 SVC) GH82-03921A
QSH02 ICT SHIELD-CAN GH70-05509A
QSP01 SPEAKER 3001-002509
QRE01 ASSY CASE-REAR GH98-13871A
QIF01 PMO COVER-IF GH72-55325A
QFR01 ASSY CASE-FRONT(LTN) GH98-14489A
QMW02 PCT WINDOW-MAIN(FM) GH72-55989A
5-2. Cellular phone Parts list

SAMSUNG Proprietary-Contents may change without notice
6. MAIN Electrical Parts List
6-1
This Document can not be used without Samsung's authorization
SEC CODE Design LOC Description
0401-001110 D200 DIODE-SWITCHING
0401-001110 D201 DIODE-SWITCHING
0403-001547 ZD200 DIODE-ZENER
0406-001267 ZD300 DIODE-TVS
0406-001286 ZD301 DIODE-TVS
0406-001286 ZD302 DIODE-TVS
0406-001288 D301 DIODE-TVS
0406-001288 D302 DIODE-TVS
0406-001288 D303 DIODE-TVS
0406-001288 D304 DIODE-TVS
0601-002070 LED301 LED
0601-002070 LED302 LED
0601-002070 LED303 LED
0601-002070 LED304 LED
1003-001440 TR100 IC-RELAY DRIVER
1108-000239 UME200 IC-MCP
1201-002933 PAM100 IC-POWER AMP
1203-005512 U302 IC-POSI.FIXED REG.
1203-005686 U103 IC-DC/DC CONVERTER
1203-005957 U200 IC-VOL. DETECTOR
1204-002979 U100 IC-TUNER
1205-003679 UCP201 IC-MODEM
1404-001221 TH200 THERMISTOR-NTC
2007-000139 R301 R-CHIP
2007-000140 R101 R-CHIP
2007-000141 R300 R-CHIP
2007-000141 R306 R-CHIP
2007-000141 R312 R-CHIP
2007-000143 R105 R-CHIP
2007-000143 R106 R-CHIP
2007-000144 R208 R-CHIP
2007-000148 R102 R-CHIP
2007-000148 R103 R-CHIP
2007-000148 R200 R-CHIP
2007-000148 R201 R-CHIP
2007-000148 R217 R-CHIP

SAMSUNG Proprietary-Contents may change without notice
Main Electrical Parts List
6-2
This Document can not be used without Samsung's authorization
SEC CODE Design LOC Description
2007-000151 R109 R-CHIP
2007-000162 R110 R-CHIP
2007-000162 R209 R-CHIP
2007-000172 R207 R-CHIP
2007-000172 R303 R-CHIP
2007-000172 R304 R-CHIP
2007-000172 R305 R-CHIP
2007-000172 R307 R-CHIP
2007-000172 R308 R-CHIP
2007-000173 R309 R-CHIP
2007-000173 R310 R-CHIP
2007-000174 R311 R-CHIP
2007-001301 R206 R-CHIP
2007-001333 R210 R-CHIP
2007-003025 R108 R-CHIP
2007-008500 R203 R-CHIP
2203-000233 C105 C-CER,CHIP
2203-000386 C220 C-CER,CHIP
2203-000386 C323 C-CER,CHIP
2203-000425 C225 C-CER,CHIP
2203-000425 C228 C-CER,CHIP
2203-000585 C309 C-CER,CHIP
2203-000585 C310 C-CER,CHIP
2203-000585 C311 C-CER,CHIP
2203-000679 C303 C-CER,CHIP
2203-000696 C114 C-CER,CHIP
2203-000696 C116 C-CER,CHIP
2203-000812 C120 C-CER,CHIP
2203-000812 C121 C-CER,CHIP
2203-000812 C229 C-CER,CHIP
2203-000812 C316 C-CER,CHIP
2203-000812 C317 C-CER,CHIP
2203-001153 C328 C-CER,CHIP
2203-001153 U310 C-CER,CHIP
2203-001385 C118 C-CER,CHIP
2203-001385 C119 C-CER,CHIP

SAMSUNG Proprietary-Contents may change without notice
Main Electrical Parts List
6-3
This Document can not be used without Samsung's authorization
SEC CODE Design LOC Description
2203-002709 C209 C-CER,CHIP
2203-002709 C210 C-CER,CHIP
2203-002709 C230 C-CER,CHIP
2203-005052 C102 C-CER,CHIP
2203-005057 C112 C-CER,CHIP
2203-005057 C125 C-CER,CHIP
2203-005061 C106 C-CER,CHIP
2203-005482 C231 C-CER,CHIP
2203-005482 C301 C-CER,CHIP
2203-005482 C302 C-CER,CHIP
2203-005482 C321 C-CER,CHIP
2203-005482 C325 C-CER,CHIP
2203-006048 C100 C-CER,CHIP
2203-006048 C211 C-CER,CHIP
2203-006048 C212 C-CER,CHIP
2203-006048 C215 C-CER,CHIP
2203-006208 C201 C-CER,CHIP
2203-006208 C202 C-CER,CHIP
2203-006260 C103 C-CER,CHIP
2203-006260 C104 C-CER,CHIP
2203-006348 C223 C-CER,CHIP
2203-006399 C200 C-CER,CHIP
2203-006399 C203 C-CER,CHIP
2203-006399 C204 C-CER,CHIP
2203-006399 C205 C-CER,CHIP
2203-006399 C206 C-CER,CHIP
2203-006399 C214 C-CER,CHIP
2203-006399 C314 C-CER,CHIP
2203-006399 C315 C-CER,CHIP
2203-006562 C111 C-CER,CHIP
2203-006562 C312 C-CER,CHIP
2203-006562 C313 C-CER,CHIP
2203-006824 C207 C-CER,CHIP
2203-006824 C208 C-CER,CHIP
2203-006824 C227 C-CER,CHIP
2203-006841 C222 C-CER,CHIP

SAMSUNG Proprietary-Contents may change without notice
Main Electrical Parts List
6-4
This Document can not be used without Samsung's authorization
SEC CODE Design LOC Description
2203-006841 C226 C-CER,CHIP
2203-007270 C308 C-CER,CHIP
2203-007279 C109 C-CER,CHIP
2404-001377 C322 C-TA,CHIP
2703-001751 L104 INDUCTOR-SMD
2703-002170 L114 INDUCTOR-SMD
2703-002176 C115 INDUCTOR-SMD
2703-002201 L307 INDUCTOR-SMD
2703-002201 L308 INDUCTOR-SMD
2703-002201 L309 INDUCTOR-SMD
2703-002203 L103 INDUCTOR-SMD
2703-002367 L102 INDUCTOR-SMD
2703-002558 L110 INDUCTOR-SMD
2703-002586 L101 INDUCTOR-SMD
2703-002636 L109 INDUCTOR-SMD
2703-003184 L201 INDUCTOR-SMD
2703-003476 L301 INDUCTOR-SMD
2801-004805 OSC201 CRYSTAL-SMD
2801-004882 OSC200 CRYSTAL-SMD
2904-001885 F100 FILTER-SAW
3301-001158 L200 BEAD-SMD
3301-001885 L302 BEAD-SMD
3301-001885 L303 BEAD-SMD
3301-001885 L304 BEAD-SMD
3301-001885 L305 BEAD-SMD
3301-001885 L306 BEAD-SMD
3301-001912 L300 BEAD-SMD
3705-001503 RFS100 CONNECTOR-COAXIAL
3709-001488 SIM200 CONNECTOR-CARD EDGE
3710-002683 IFC300 SOCKET-INTERFACE
3711-006808 BTC200 HEADER-BATTERY
GH70-03276A SC100 ICT SHIELD-CAN CLIP
GH70-03276A SC101 ICT SHIELD-CAN CLIP
GH70-03276A SC102 ICT SHIELD-CAN CLIP

SAMSUNG Proprietary-Contents may change without notice
Main Electrical Parts List
6-5
This Document can not be used without Samsung's authorization
SEC CODE Design LOC Description
GH70-03276A SC103 ICT SHIELD-CAN CLIP
GH70-03276A SC104 ICT SHIELD-CAN CLIP
GH70-03276A SC105 ICT SHIELD-CAN CLIP
GH70-03276A SC106 ICT SHIELD-CAN CLIP
GH70-03276A SC107 ICT SHIELD-CAN CLIP
GH70-03276A SC108 ICT SHIELD-CAN CLIP
GH70-03276A SC109 ICT SHIELD-CAN CLIP
GH80-03320A R104 SOLDER-CREAM/SMT KOREA(FREE)
GH80-03320A R313 SOLDER-CREAM/SMT KOREA(FREE)
GH80-03320A R314 SOLDER-CREAM/SMT KOREA(FREE)
GH80-03321A R216 SOLDER-CREAM/DHDMR(FREE)
Please consult the GSPN website (Samsung Portal) for the most recent version of the product's part list.
