Samsung GT-E1150I User manual

GSM TELEPHONE
GT-E1150i
1. Safety Precautions
2. Specification
3. Product Function
4. Exploded View and Parts list
5. MAIN Electrical Parts List
6. Level 1Repair
7. Disassembly and Assembly
Instructions
8. Chart of Troubleshooting
9. Reference data
Notice :
All functionality, features, specifications and other
product information provided in this document inclu
ding, but not limited to, the benefits, design, pricing,
components, performance, availability, and capabiliti
-es of the product are subject to change without
notice or obligation. Samsung reserves the right to
make changes to this document and the product
described herein, at anytime, without obligation on
Samsung to provide notification of such change.
GSM TELEPHONE CONTENTS

SAMSUNG Proprietary-Contents may change without notice
1. Safety Precautions
1-1
This Document can not be used without Samsung's authorization
1-1. Repair Precaution
―Repair in Shield Box, during detailed tuning. Take specially care of tuning or test, because
specipicty of cellular phone is sensitive for surrounding interference(RF noise).
―Be careful to use akind of magnetic object or tool, because performance of parts is damaged by
the influence of magnetic force.
―Surely use astandard screwdriver when you disassemble this product, otherwise screw will be
worn away.
―Use athicken twisted wire when you measure level.
Athicken twisted wire has low resistance, therefore error of measurement is few.
―Repair after separate Test Pack and Set because for short danger (for example an overcurrent
and furious flames of parts etc) when you repair board in condition of connecting Test Pack and
tuning on.
―Take specially care of soldering, because Land of PCB is small and weak in heat.
―Surely tune on/off while using AC power plug, because arepair of battery charger is dangerous
when tuning ON/OFF PBA and Connector after disassembling charger.
―Don't use as you pleases after change other material than replacement registered on SEC System.
Otherwise engineer in charge isn't charged with problem that you don't keep this rules.

SAMSUNG Proprietary-Contents may change without notice
Safety Precautions
1-2
This Document can not be used without Samsung's authorization
1-2. ESD(Electrostatically Sensitive Devices) Precaution
Several semiconductor may be damaged easily by static electricity. Such parts are called by ESD
(Electrostatically Sensitive Devices), for example IC,BGA chip etc. Read Precaution below.
You can prevent from ESD damage by static electricity.
―Remove static electricity remained your body before you touch semiconductor or parts with
semiconductor. There are ways that you touch an earthed place or wear static electricity prevention
string on wrist.
―Use earthed soldering steel when you connect or disconnect ESD.
―Use soldering removing tool to break static electricity. ,otherwise ESD will be damaged by static
electricity.
―Don't unpack until you set up ESD on product. Because most of ESD are packed by box and
aluminum plate to have conductive power,they are prevented from static electricity.
―You must maintain electric contact between ESD and place due to be set up until ESD is
connected completely to the proper place or acircuit board.

2. Specification
2-1
2-1. GSM General Specification
GSM900
Phase 1
DCS1800
Phase 1
Freq.
Band[MHz]
Uplink/Downlink
880~915
925~960
1710~1785
1805~1880
ARFCN range 0~124 & 975~1023 512~885
Tx/Rx spacing 45MHz 95MHz
Mod. Bit rate/
Bit Period
270.833kbps
3.692us
270.833kbps
3.692us
Time Slot Period/Frame
Period
576.9us
4.615ms
576.9us
4.615ms
Modulation 0.3GMSK 0.3GMSK
MS Power 33dBm~5dBm 30dBm~0dBm
Power Class 5pcl ~ 19pcl 0pcl ~15
pcl
Sensitivity -102dBm -100dBm
TDMA Mux 8 8
Cell Radius 35Km 2Km

Speclflcation
2-2
TX Power
control level GSM900
5 33±3 dBm
6 31±3 dBm
7 29±3 dBm
8 27±3 dBm
9 25±3 dBm
10 23±3 dBm
11 21±3 dBm
12 19±3 dBm
13 17±3 dBm
14 15±3 dBm
15 13±3 dBm
16 11±5 dBm
17 9±5 dBm
18 7±5 dBm
19 5±5 dBm
TX Power
control level DCS1800
0 30±3 dBm
1 28±3 dBm
2 26±3 dBm
3 24±3 dBm
4 22±3 dBm
5 20±3 dBm
6 18±3 dBm
7 16±3 dBm
8 14±3 dBm
9 12±4 dBm
10 10±4 dBm
11 8±4dBm
12 6±4 dBm
13 4±4 dBm
14 2±5 dBm
15 0±5 dBm
2-2. GSM Tx Power Class

SAMSUNG Proprietary-Contents may change without notice
3. Operation Instruction and Installation
3-1
This Document can not be used without Samsung's authorization
Main Function
-GSM900 /DCS1800
- 1.43" CSTN
-SMS
-64Poly Melody

SAMSUNG Proprietary-Contents may change without notice
4. Exploded View and Parts List
4-1
This Document can not be used without Samsung's authorization

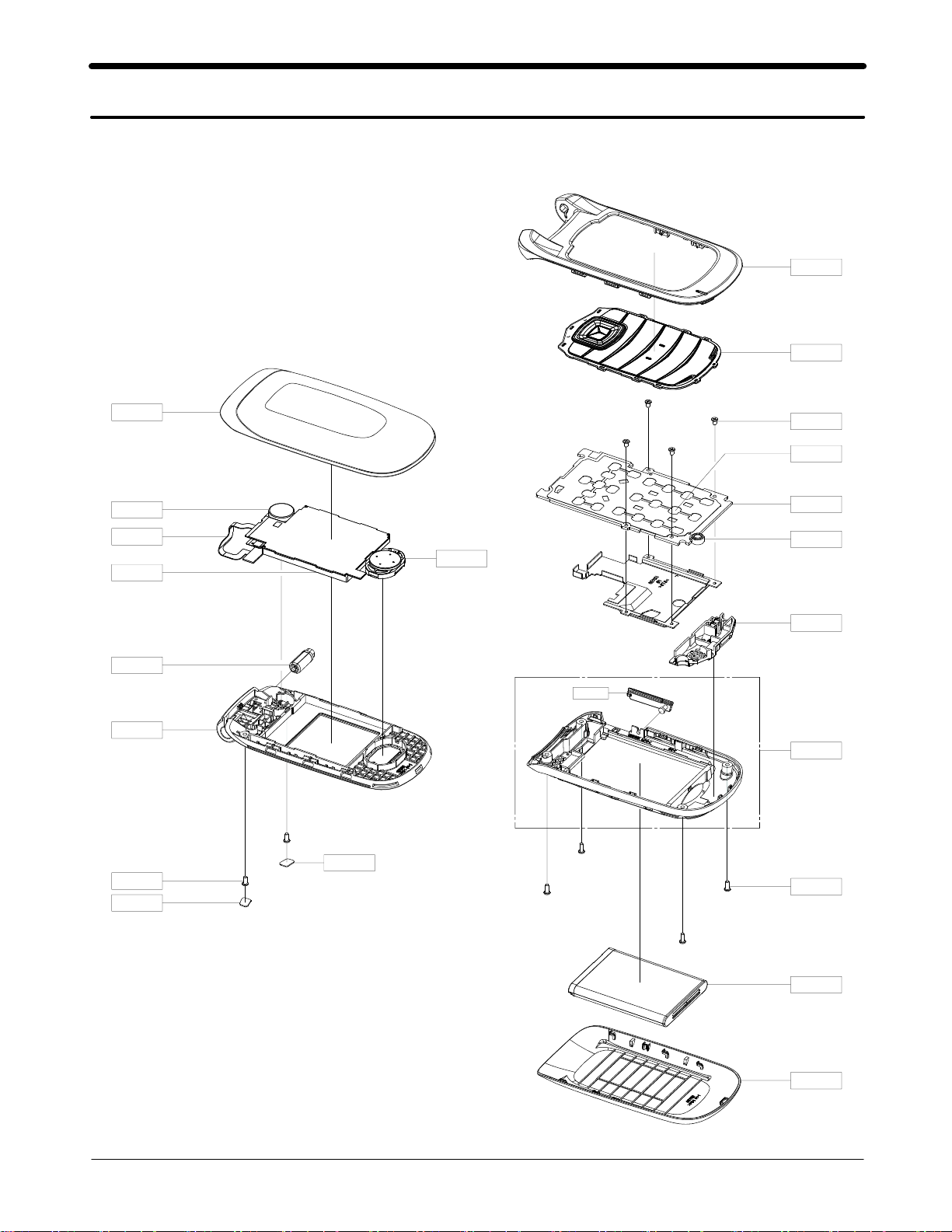

4-1. Cellular phone Exploded View
QFL01
QHI01
QME16
QLC01
QSC01
QCR03
QMO01
QFU01
QIF01
QRE01
QCR67
QBC00
QBA01
QFR01
QKP01
QCR92
QME01
QMI01
QAN02
QMP01
QSP01
QSC02

SAMSUNG Proprietary-Contents may change without notice
Exploded View and Parts List
4-2
This Document can not be used without Samsung's authorization
Design LOC Description SEC CODE
QSP01 SPEAKER 3001-002561
QCR03 SCREW-MACHINE 6001-001811
QCR67 SCREW-MACHINE 6001-002083
QCR92 SCREW-MACHINE 6001-002261
QMI01 MICROPHONE-ASSY-GTE1150(MAIN) GH30-00633A
QMO01 MOTOR DC-SGHZ130 GH31-00154C
QAN02 INTENNA-GT-E1150 (MEA) GH42-02240A
QBA01 INNER BATTERY PACK-800MAH,BLK,UNI,MAIN GH43-03241A
QME16 ASSY ETC-LCD CON TO CON GH59-08429A
QME01 DOME SHEET-GT-E1150 GH59-08433A
QKP01 RMO KEY-MAIN KEYPAD GH73-13683B
QSC01 TAPE-SCREW SHEET LGH74-46762B
QSC02 TAPE-SCREW SHEET RGH74-46763B
QMP01 A/S ASSY-PBA MAIN,GTE1150I,DBT,COMM,SVC GH82-05155A
QLC01 ASSY COMM HALB-LCD HOT BAR,SVC,GTE1150 GH96-04302A
QHI01 ASSY HINGE GH98-03590A
QBC00 ASSY COVER-BATT GH98-14976B
QFU01 ASSY CASE-UPPER GH98-14977B
QFL01 ASSY CASE-LOWER GH98-14978B
QFR01 ASSY CASE-FRONT GH98-14979B
QRE01 ASSY CASE-REAR GH98-14980B
QIF01 PMO COVER-IF GH72-57494B
4-2. Cellular phone Parts list

SAMSUNG Proprietary-Contents may change without notice
5-1
This Document can not be used without Samsung's authorization
5. MAIN Electrical Parts List
Design LOG SEC CODE Discription
ZD200 0403-001688 USFZ5.6V-RTK/H
D303,D304,ZD101 0406-001223 PG05DBTFC
ZD301,ZD302 0406-001286 PESD5V0L5UV
D200 0407-001002 DAN222TL
U200 0505-002223 NTHD4102PT1G
LED301,LED302,LED303 0601-002070 AOT-0603P-W03-BC
LED304,LED305,LED306 0601-002070 AOT-0603P-W03-BC
U301 1009-001037 BU52031NVX
UME200 1108-000217 K5N6433ATM-AD11
PAM100 1201-002931 RF7168
U104 1203-005485 MIC5365-3.0YMT
U103 1203-005686 AHK3292IGU-T1
UCP200 1205-003923 PNX4850ET
TH200 1404-001221 NCP15WB473J04RC
R317,R318 2007-000138 RC1005J101CS
R301 2007-000139 RC1005J221CS
R300,R306,R312,R313 2007-000141 RC1005J222CS
R208 2007-000144 RC1005J512CS
R200,R201 2007-000148 RC1005J103CS
R109 2007-000151 RC1005J153CS
R314 2007-000157 RC1005J473CS
R110,R209 2007-000162 RC1005J104CS
R303,R304,R305,R307 2007-000172 RC1005J100CS
R308,R311 2007-000172 RC1005J100CS
R309,R310 2007-000173 RC1005J220CS
R107 2007-001288 MCR01MZP5J180
R206 2007-001301 MCR01MZP5J680
R210 2007-001333 MCR01MZP5J183
R219 2007-010071 MCR10EZHFLR100
C323,C327,C348 2203-000386 GRP1555C1H150J
C225,C228 2203-000425 GRP1555C1H180J
C303,C306,C307,C309 2203-000585 GRP155R71H221KD01E
C310,C311 2203-000585 GRP155R71H221KD01E
C117,C120,C121,C218 2203-000812 GRP1555C1H330J
C229,C331,C332,C333 2203-000812 GRP1555C1H330J
C334,C338,C342,C343 2203-000812 GRP1555C1H330J
C344,C345,C347 2203-000812 GRP1555C1H330J

SAMSUNG Proprietary-Contents may change without notice
MAIN Electrical Parts List
5-2
This Document can not be used without Samsung's authorization
Design LOG SEC CODE Discription
C110 2203-001072 GRP1555C1H560JD01E
C351 2203-001153 GRP1555C1H680J
C324 2203-001239 GRP1555C1H820JD01E
C113 2203-003054 GRP1555C1H9R0C
C112 2203-005057 GRP1555C1H8R2CZ01E
C107,C114,C116 2203-005234 GRP1555C1H1R2CZ01E
C118,C119 2203-005281 GRP1555C1H1R5BZ01E
L111 2203-005288 GRP1555C1H1R0BZ01E
C235 2203-005344 GRM155R71E223KA61D
C209,C210,C211,C212 2203-006048 GRM155R71A104K
C215,C230,C231,C301 2203-006048 GRM155R71A104K
C302,C321,C325,C328 2203-006048 RM155R71A104K
C201,C202 2203-006208 CM105X5R475M06AT
C200,C203,C204,C205 2203-006399 GRM155R60J105KE19D
C206,C214,C329,C340 2203-006399 GRM155R60J105KE19D
C111,C125,C127,C313 2203-006562 CV05X5R105K10AH
C207,C208,C227 2203-006824 CV105X5R475K10AT
C109,C308 2203-007279 CV105X5R106M10AT
C234 2203-007425 CL10A225KA5LNNC
C322 2404-001424 TCSHS0J226MPAR
C123 2703-001178 LL1005-FH3N3S
L104 2703-002198 CIH05T10NJNC
L309,L310 2703-002201 CIH05T33NJNC
L103 2703-002203 CIH05T15NJNC
L110 2703-002204 CIH05T22NJNC
C115 2703-002208 CIH05T2N2SNC
L109 2703-002281 CIH05T5N6SNC
L201 2703-003184 CIG22W4R7MNE
OSC200 2801-004353 MS3V-T1R
OSC201 2801-004805 SQ3D02600C2LJA
F100 2904-001879 SFR942PY002
L200 3301-001158 BLM18PG300SN1D
L311 3301-001812 BLM15HD102SN1
L302,L303,L304,L306 3301-001885 BLM15HD182SN1D
L312 3301-001885 BLM15HD182SN1D
RFS100 3705-001503 KMS-560
SIM200 3709-001447 5000-6P-1.9S

SAMSUNG Proprietary-Contents may change without notice
MAIN Electrical Parts List
This Document can not be used without Samsung's authorization
5-3
Design LOG SEC CODE Discription
IFC300 3710-002683 HY20-AB0310
HDC300 3711-005981 14-5805-030-000-829
BTC200 3711-006228 2005-03-261A
Please consult the GSPN website (Samsung Portal) for the most recent version of the product's
part list.

SAMSUNG Proprietary-Contents may change without notice
6. Level 1Repair
6-1
This Document can not be used without Samsung's authorization
6-1. S/W Download
6-1-1. Pre-requsite for S/W Downloading
•Downloader Program (PNX4850 Downloader 0.3 For Cobble-i)
•GT-E1150i Mobile Phone
•Data Cable
•JIG BOX (GH99-36900A)
•RF Test Cable (GH39-00985A)
•JIG Cable (GH39-01160A)
•Adapter (GH99-38251A)
•Serial Cable
•Binary files

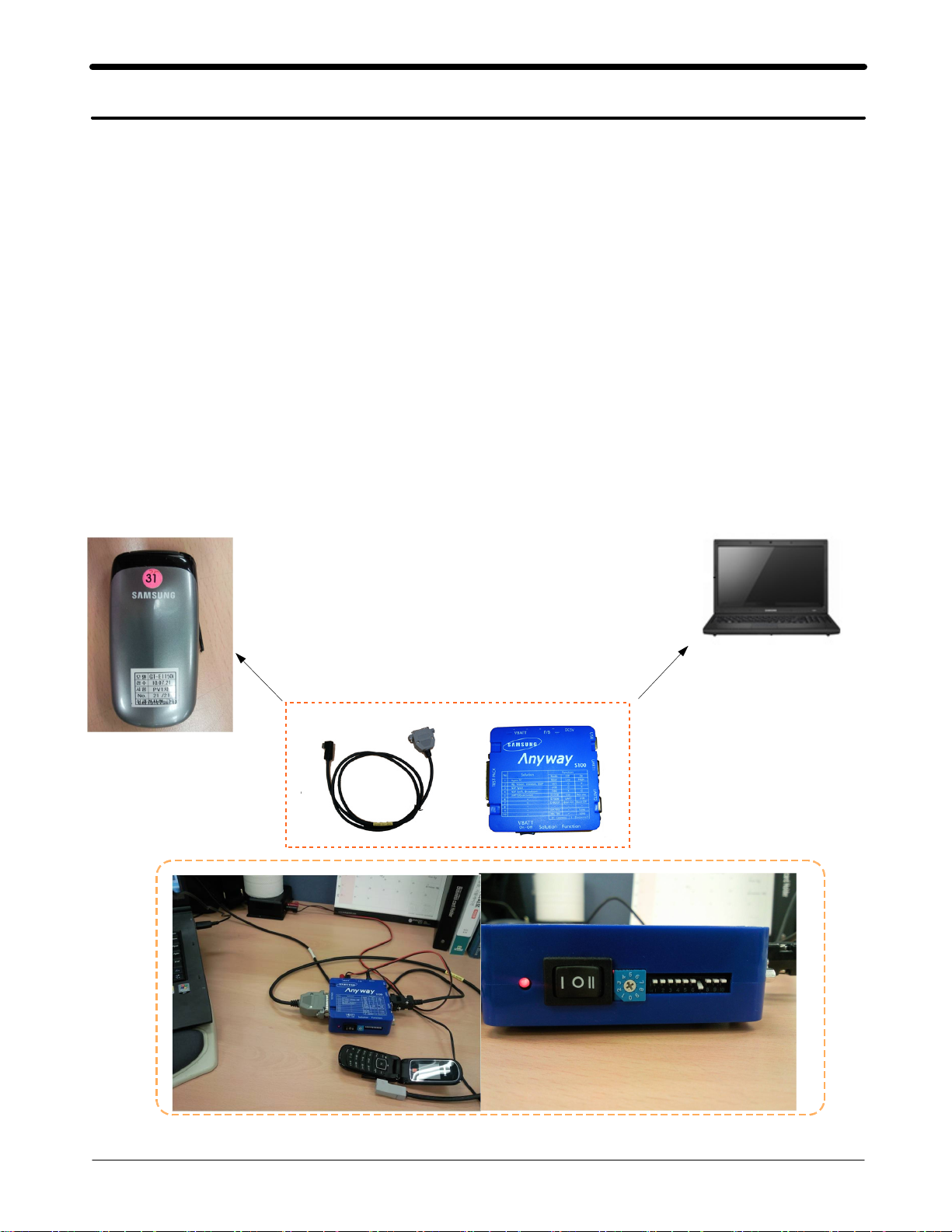

（Settings
Connect to ANYWAY JIG BOX
&JIG CABLE (Phone to JIG)

SAMSUNG Proprietary-Contents may change without notice
Level 1Repair
6-2
This Document can not be used without Samsung's authorization
6-1-2. S/W Downloader Program
｝Load the binary download program by executing the
"PNX4850 Downloader 0.3 For Cobble-i "enter this file.
1.Select the connected serial port and the rate of speed.

SAMSUNG Proprietary-Contents may change without notice
Level 1Repair
6-3
This Document can not be used without Samsung's authorization
2.Select the Binary in sequence of *.bin, *.lpd, *.tfs, *.csc
-If you want to download for *.tfs, *csc file, you must check the radio button of
BIN+TFS and check the box of "With common css"
Check

SAMSUNG Proprietary-Contents may change without notice
Level 1Repair
6-4
This Document can not be used without Samsung's authorization
3.Click the CRC CheckSum button and check the AutoDownLoader

SAMSUNG Proprietary-Contents may change without notice
Level 1Repair
6-5
This Document can not be used without Samsung's authorization

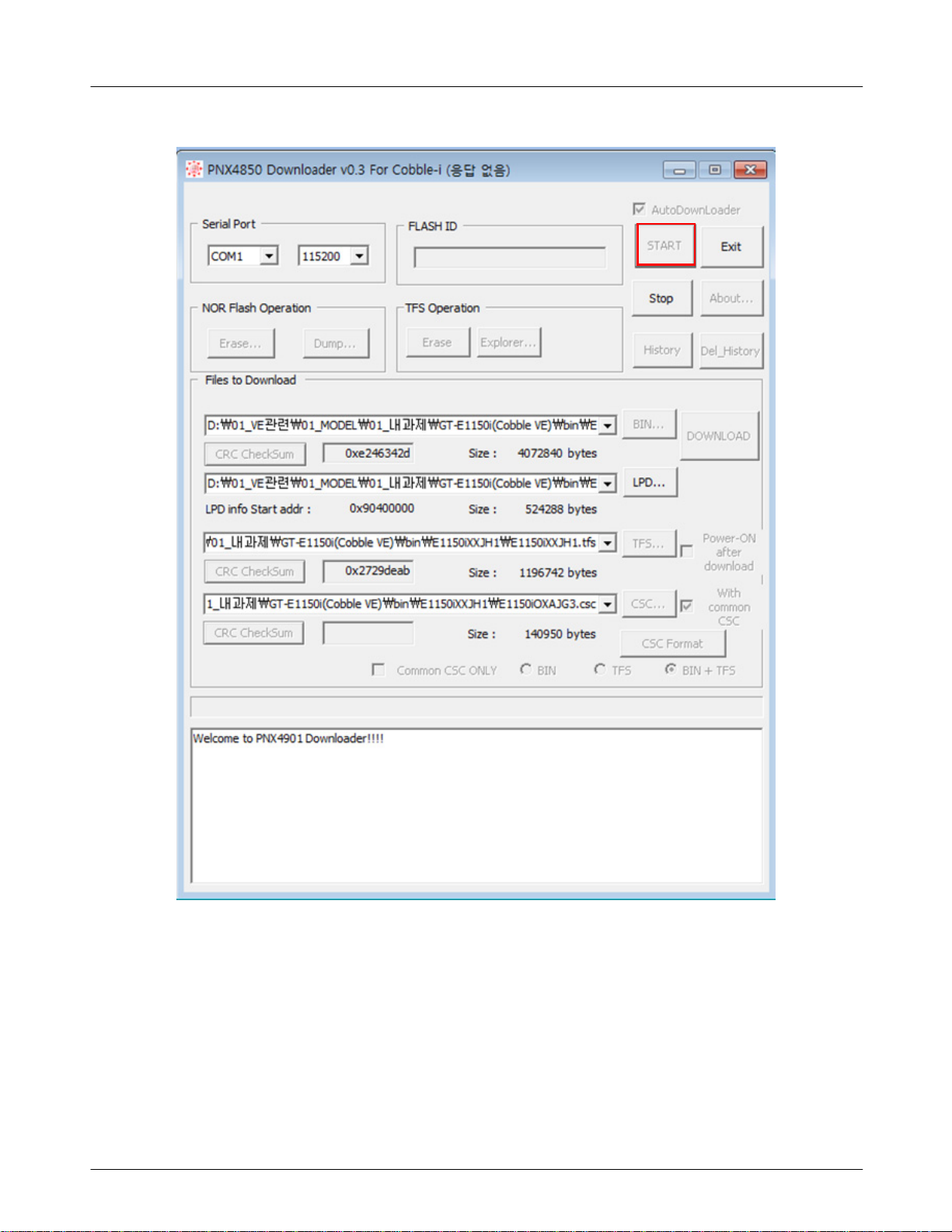

4Press the "Start" button.

SAMSUNG Proprietary-Contents may change without notice
Level 1Repair
6-6
This Document can not be used without Samsung's authorization

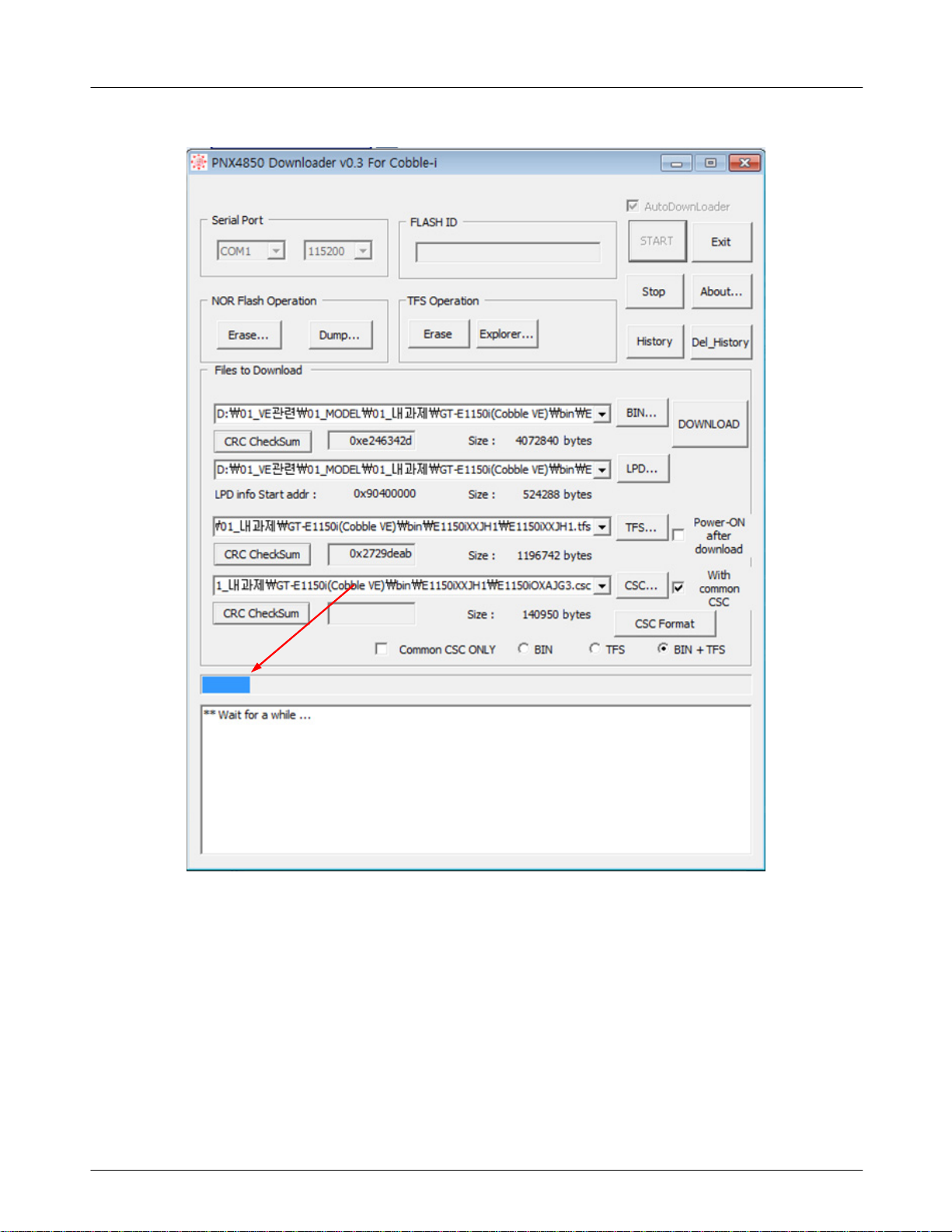

5.Connect the phone and power on the phone
-Progress the binary download.

SAMSUNG Proprietary-Contents may change without notice
Level 1Repair
6-7
This Document can not be used without Samsung's authorization

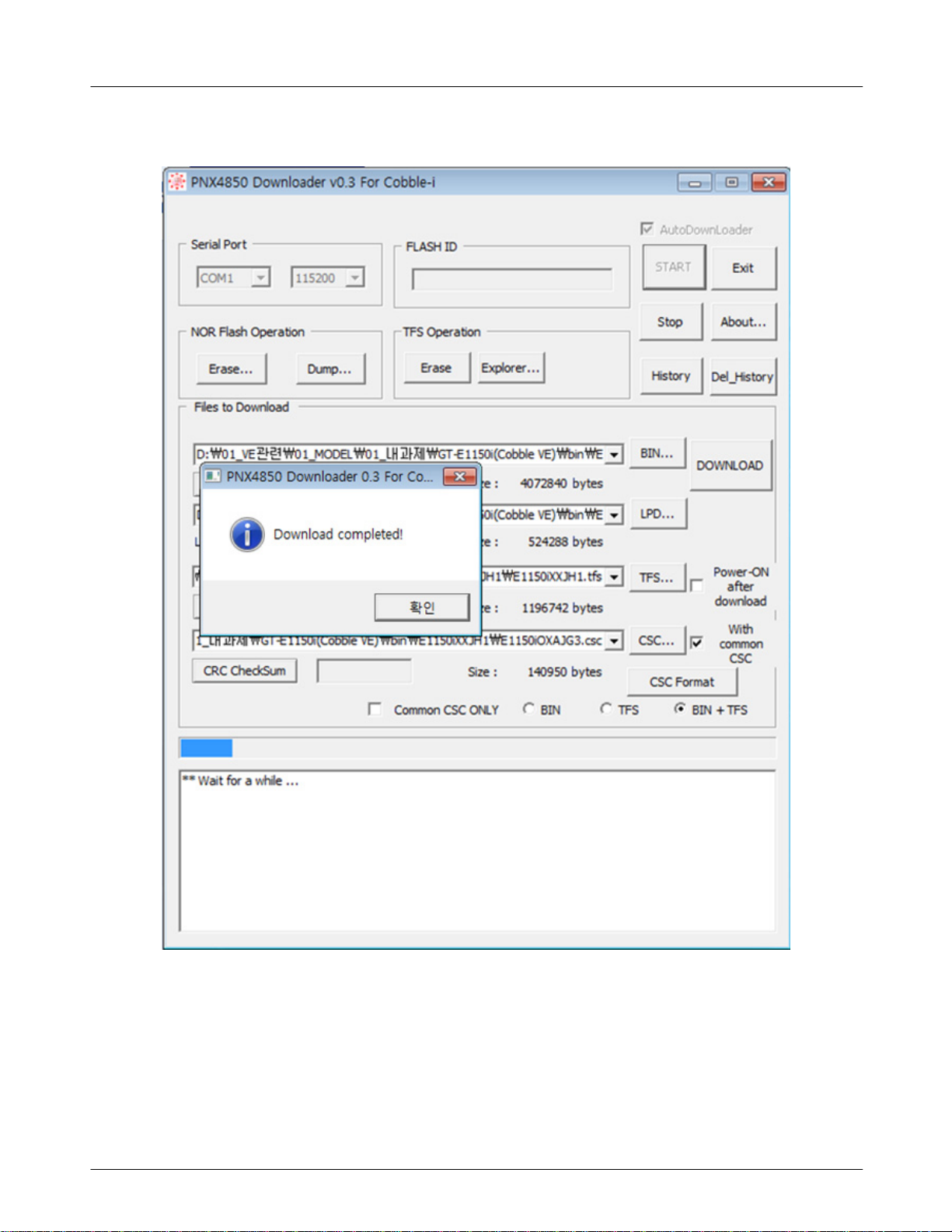

6.When downloading is complete, you can see "Download completed" message box.
7. Confirm the downloaded version name and etc. :
*#1234# or *#4986*2650468#
Full Reset :
*2767*3855#

SAMSUNG Proprietary-Contents may change without notice
7. Level 2Repair
7-1
This Document can not be used without Samsung's authorization

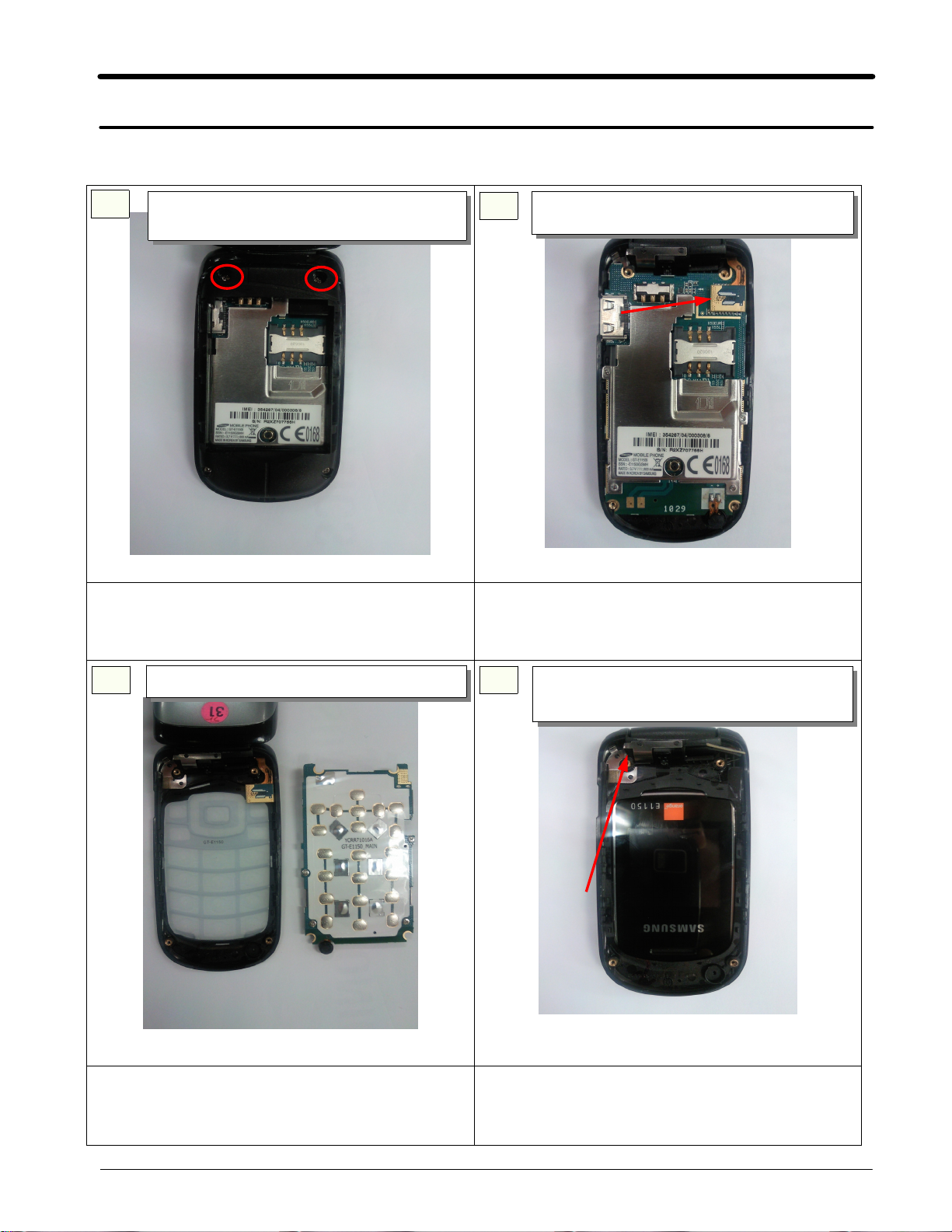

7-1. Disassembly and Assembly Instructions
7-1-1. Disassembly
（Caution
1) Be care of scratch and molding damage.
（Caution
1) Be care of scratch and molding damage.
2) Be care of damage to F-CPB
（Caution
1) Be care of damage to F-CPB..
（Caution
1) Be care of damage to F-CPB..
12
1) Unscrew the 4points.
2) Separate REAR from the FRONT ass'y
1) Separate the LCD FPCB Connector from
the PBA.
4
31) Separate the PBA from the FRONT ASS'Y 1) Push the hinge blow the point
2) Separate the Front from the upper ASS'Y

SAMSUNG Proprietary-Contents may change without notice
7. Level 2Repair
7-2
This Document can not be used without Samsung's authorization
56
（Caution
1) Be care of scratch and molding damage.
（Caution
1) Be care of scratch and molding damage.
2) Be care of damage to the LCD.
1) Remove the 2point screw cap and
unscrew 2point screw
1) Separate upper from the lower.
71) Separate the LCD MODULE from the
lower.
（Caution
1) Be care of the MOTOR and SPK wire
