Samsung GT-E2652W User manual

GSM TELEPHONE
GT-E2652W(GT-E2652 Common)
1. Safety Precautions
2. Specification
3. Product Function
4. Exploded View and Parts list
5. MAIN Electrical Parts List
6. Level 1Repair
7. Level 2Repair
8. Level 3Repair
9. Reference data
Notice :
All functionality, features, specifications and other
product information provided in this document inclu
ding, but not limited to, the benefits, design, pricing,
components, performance, availability, and capabiliti
-es of the product are subject to change without
notice or obligation. Samsung reserves the right to
make changes to this document and the product
described herein, at anytime, without obligation on
Samsung to provide notification of such change.
GSM TELEPHONE CONTENTS

SAMSUNG Proprietary-Contents may change without notice
1. Safety Precautions
1-1
This Document can not be used without Samsung's authorization
1-1. Repair Precaution
―Repair in Shield Box, during detailed tuning. Take specially care of tuning or test, because
specipicty of cellular phone is sensitive for surrounding interference(RF noise).
―Be careful to use akind of magnetic object or tool, because performance of parts is damaged by
the influence of magnetic force.
―Surely use astandard screwdriver when you disassemble this product, otherwise screw will be
worn away.
―Use athicken twisted wire when you measure level.
Athicken twisted wire has low resistance, therefore error of measurement is few.
―Repair after separate Test Pack and Set because for short danger (for example an overcurrent
and furious flames of parts etc) when you repair board in condition of connecting Test Pack and
tuning on.
―Take specially care of soldering, because Land of PCB is small and weak in heat.
―Surely tune on/off while using AC power plug, because arepair of battery charger is dangerous
when tuning ON/OFF PBA and Connector after disassembling charger.
―Don't use as you pleases after change other material than replacement registered on SEC System.
Otherwise engineer in charge isn't charged with problem that you don't keep this rules.

SAMSUNG Proprietary-Contents may change without notice
Safety Precautions
1-2
This Document can not be used without Samsung's authorization
1-2. ESD(Electrostatically Sensitive Devices) Precaution
Several semiconductor may be damaged easily by static electricity. Such parts are called by ESD
(Electrostatically Sensitive Devices), for example IC,BGA chip etc. Read Precaution below.
You can prevent from ESD damage by static electricity.
―Remove static electricity remained your body before you touch semiconductor or parts with
semiconductor. There are ways that you touch an earthed place or wear static electricity prevention
string on wrist.
―Use earthed soldering steel when you connect or disconnect ESD.
―Use soldering removing tool to break static electricity. ,otherwise ESD will be damaged by static
electricity.
―Don't unpack until you set up ESD on product. Because most of ESD are packed by box and
aluminum plate to have conductive power,they are prevented from static electricity.
―You must maintain electric contact between ESD and place due to be set up until ESD is
connected completely to the proper place or acircuit board.

2. Specification
2-1
2-1. GSM General Specification
GSM900
Phase 1
DCS1800
Phase 1 PCS1900
Freq.
Band[MHz]
Uplink/Downlink
880~915
925~960
1710~1785
1805~1880
1850~1910
1930~1990
ARFCN range 0~124 & 975~1023 512~885 512~810
Tx/Rx spacing 45MHz 95MHz 80MHz
Mod. Bit rate/
Bit Period
270.833kbps
3.692us
270.833kbps
3.692us
270.833kbps
3.692us
Time Slot
Period/Frame Period
576.9us
4.615ms
576.9us
4.615ms
576.9us
4.615ms
Modulation 0.3GMSK 0.3GMSK 0.3GMSK
MS Power 33dBm~5dBm 30dBm~0dBm 30dBm~0dBm
Power Class 5pcl ~ 19pcl 0pcl ~15
pcl 0pcl ~15 pcl
Sensitivity -102dBm -100dBm -100dBm
TDMA Mux 8 8 8
Cell Radius 35Km 2Km -

Speclflcation
2-2
2-2. GSM Tx Power Class
TX Power
control level GSM900
533±3
dBm
631±3
dBm
729±3
dBm
827±3
dBm
925±3
dBm
10 23±3 dBm
11 21±3 dBm
12 19±3 dBm
13 17±3 dBm
14 15±3 dBm
15 13±3 dBm
16 11±5 dBm
17 9±5 dBm
18 7±5 dBm
19 5±5 dBm
TX Power
control level DCS1800
030±3
dBm
128±3
dBm
226±3
dBm
324±3
dBm
422±3
dBm
520±3
dBm
618±3
dBm
716±3
dBm
814±3
dBm
912±4
dBm
10 10±4 dBm
11 8±4dBm
12 6±4 dBm
13 4±4 dBm
14 2±5 dBm
15 0±5 dBm
TX Power
control level PCS1900
030±3
dBm
128±3
dBm
226±3
dBm
324±3
dBm
422±3
dBm
520±3
dBm
618±3
dBm
716±3
dBm
814±3
dBm
912±4
dBm
10 10±4 dBm
11 8±4dBm
12 6±4 dBm
13 4±4 dBm
14 2±5 dBm
15 0±5 dBm

Speclflcation
2-3
TX Power
control level GSM900
827±3
dBm
925±3
dBm
10 23±3 dBm
11 21±3 dBm
12 19±3 dBm
13 17±3 dBm
14 15±3 dBm
15 13±3 dBm
16 11±5 dBm
17 9±5 dBm
18 7±5 dBm
19 5±5 dBm
TX Power
control level DCS1800
2 26±3 dBm
3 24±3 dBm
4 22±3 dBm
5 20±3 dBm
6 18±3 dBm
7 16±3 dBm
8 12±3 dBm
9 10±3 dBm
10 14±3 dBm
11 12±4 dBm
12 10±4 dBm
13 8±4dBm
14 6±4 dBm
15 4±4 dBm
2-3. GSM EDGE TX power class
TX Power
control level PCS1900
226±3
dBm
324±3
dBm
422±3
dBm
520±3
dBm
618±3
dBm
716±3
dBm
812±3
dBm
910±3
dBm
10 14±3 dBm
11 12±4 dBm
12 10±4 dBm
13 8±4dBm
14 6±4 dBm
15 4±4 dBm
Only in Master

SAMSUNG Proprietary-Contents may change without notice
3. Operation Instruction and Installation
3-1
This Document can not be used without Samsung's authorization
Main Function
•Tri Band 2G(EGSM900+DCS1800+PCS1900)
•GPRS Class12, EDGE Class12(Rx only)
•FM Radio
•Bluetooth v2.1 +EDR
•WIFI
•2.6''
QVGA 262k LCD
•1.3M
CMOS Camera
•MP3 Player
•3.5
mm EAR-JACK

SAMSUNG Proprietary-Contents may change without notice
4. Exploded View and Parts List
4-1
This Document can not be used without Samsung's authorization
4-1. Cellular phone Exploded View
QME03
QFR01
QLC01
QAR01
QMO01
QBR05
QSM01
QCR03
QST01
QCA01
QRE01
QCK02
QKP01
QME01
QCR72
QMP01
QSP01
QBA01
QBC00
QCK01
QVO01
QRF06

SAMSUNG Proprietary-Contents may change without notice
Exploded View and Parts List
4-2
This Document can not be used without Samsung's authorization
Design LOC Description SEC CODE
QAR01 AUDIO-RECEIVER 3009-001533
QCR03 SCREW-MACHINE 6001-001811
QCR72 SCREW-MACHINE 6001-002051
QMO01 MOTOR DC-SGH_P250 GH31-00454A
QBA01 INNER BATTERY PACK-1000MAH,BLK,ENG,EU GH43-03184A
QME03 TOUCH/PANEL-GT_E2652W GH59-10423A
QME01 DOME SHEET-GT_E2652W GH59-10507A
QCA01 CAMERA MODULE-SGH-T340 GH59-10511A
QSP01 MODULE-SPK/INTENNA (GT-E2652W) GH59-10548A
QSM01 ASSY ETC-COMBO (SIM+SD) GH59-10567A
QMP01 A/S ASSY-PBA MAIN (COMM) GH82-05507A
QLC01 ELA MODULE-LCD MODULE (GT-E2652W) GH96-05009A
QFR01 ASSY CASE-FRONT GH98-19019A
QBC00 ASSY COVER-BATT GH98-19021A
QBR05 ASSY BRACKET-SIM GH98-19022A
QKP01 ASSY KEYPAD GH98-19113A
QST01 ASSY STYLUS PEN GH98-19114A
QRE01 ASSY CASE-REAR GH98-19020A
QRF06 PMO COVER-USB GH72-62435A
QCK02 PMO KEY-HOLD GH72-62437A
QVO01 PMO KEY-VOLUME GH72-62438A
QCK01 PMO KEY-HOT GH72-62439A
4-2. Cellular phone Parts list

SAMSUNG Proprietary-Contents may change without notice
5. MAIN Electrical Parts List(2010.12.23)
5-1
This Document can not be used without Samsung's authorization
SEC CODE Design LOC Description
0403-001688 ZD600 DIODE-ZENER
0404-001172 D300,D302 DIODE-SCHOTTKY
0406-001286 ZD601 DIODE-TVS
0406-001361 ZD403 DIODE-TVS
0406-001369 U403 DIODE-TVS
0406-001375 ZD300 DIODE-TVS
0406-001413 ZD400,ZD402,ZD405 DIODE-TVS
0406-001413 ZD504,ZD505 DIODE-TVS
0407-001002 D301 DIODE-ARRAY
0501-002606 Q300 TR-SMALL SIGNAL
0502-001322 Q301 TR-POWER
0504-001140 Q302,Q304 TR-DIGITAL
0505-001165 Q303 FET-SILICON
1001-001488 U303 IC
1001-001607 U100 IC
1001-001635 U400 IC
1001-001645 U402 IC
1001-001692 U501 IC
1108-000355 UME200 MEMORY
1201-002944 U103 IC
1201-003111 U401 IC
1201-003147 PAM100 IC
1202-001068 U301 IC
1203-004792 U306 IC
1203-004807 U304 IC
1203-005244 U302 IC
1203-005580 U307 IC
1203-005855 U300 IC
1203-006604 U305 IC
1205-003517 U102 IC
1205-003931 U500 IC
1205-003998 U502 IC
1205-004030 UCP200 IC
1205-004076 U101 IC
1404-001224 TH200 THERMISTOR
1405-001298 C502,C503,C504,C505 VARISTOR

SAMSUNG Proprietary-Contents may change without notice
Main Electrical Parts List
5-2
This Document can not be used without Samsung's authorization
SEC CODE Design LOC Description
1405-001298 ZD404,ZD500,ZD501 VARISTOR
1405-001298 ZD502,ZD503,ZD506 VARISTOR
1405-001298 ZD602,ZD603 VARISTOR
2007-000138 R103,R106,R107,R300 R-CHIP
2007-000138 R310,R400,R411,R527 R-CHIP
2007-000138 R528,R613 R-CHIP
2007-000140 R109,R412,R519,R610 R-CHIP
2007-000141 R500,R501,R502,R523 R-CHIP
2007-000141 R524 R-CHIP
2007-000143 R115,R214,R215,R316 R-CHIP
2007-000143 R317,R319 R-CHIP
2007-000146 R201,R217 R-CHIP
2007-000148 R205,R305,R409,R410 R-CHIP
2007-000148 R521,R522,R604,R605 R-CHIP
2007-000148 R606,R607 R-CHIP
2007-000162 R117,R207,R208,R302 R-CHIP
2007-000162 R405,R530 R-CHIP
2007-000168 R602 R-CHIP
2007-000170 R309 R-CHIP
2007-000172 R414,R415 R-CHIP
2007-000242 R307,R404,R406 R-CHIP
2007-000831 R304 R-CHIP
2007-000932 R303 R-CHIP
2007-001119 R114,R403 R-CHIP
2007-001307 R116 R-CHIP
2007-002970 R407,R408 R-CHIP
2007-003015 R113 R-CHIP
2007-007001 R301 R-CHIP
2007-007015 R308 R-CHIP
2007-007136 R503,R504,R516 R-CHIP
2007-007142 R206 R-CHIP
2007-007798 R311,R320 R-CHIP
2007-007875 R315 R-CHIP
2007-008780 R306 R-CHIP
2007-009315 R525,R526 R-CHIP
2007-009794 R111 R-CHIP

SAMSUNG Proprietary-Contents may change without notice
Main Electrical Parts List
5-3
This Document can not be used without Samsung's authorization
SEC CODE Design LOC Description
2203-000233 C111,C519 C-CERAMIC,CHIP
2203-000254 C143,C160 C-CERAMIC,CHIP
2203-000278 C116 C-CERAMIC,CHIP
2203-000330 C112,C113,C138,C148 C-CERAMIC,CHIP
2203-000330 C223 C-CERAMIC,CHIP
2203-000386 C146,C411,C412,C513 C-CERAMIC,CHIP
2203-000386 C514 C-CERAMIC,CHIP
2203-000425 C222,C610 C-CERAMIC,CHIP
2203-000438 C117,C151,C207,C210 C-CERAMIC,CHIP
2203-000679 C410 C-CERAMIC,CHIP
2203-000696 C140 C-CERAMIC,CHIP
2203-000812 C126,C127,C129,C131 C-CERAMIC,CHIP
2203-000812 C191,C403,C406,C407 C-CERAMIC,CHIP
2203-000812 C413,C414,C506,C507 C-CERAMIC,CHIP
2203-000812 C508,C509,C515,C516 C-CERAMIC,CHIP
2203-000812 C605,C606,C607,C608 C-CERAMIC,CHIP
2203-001383 C121 C-CERAMIC,CHIP
2203-002443 C135,C149,C154,C226 C-CERAMIC,CHIP
2203-002487 C220,C231 C-CERAMIC,CHIP
2203-002668 C227 C-CERAMIC,CHIP
2203-002677 C130 C-CERAMIC,CHIP
2203-005050 C141,C142 C-CERAMIC,CHIP
2203-005052 C128 C-CERAMIC,CHIP
2203-005234 C133 C-CERAMIC,CHIP
2203-005281 C152 C-CERAMIC,CHIP
2203-005288 C110 C-CERAMIC,CHIP
2203-005382 C104 C-CERAMIC,CHIP
2203-005395 C139,C190 C-CERAMIC,CHIP
2203-005480 C221 C-CERAMIC,CHIP
2203-005481 C158,C203,C219 C-CERAMIC,CHIP
2203-005483 C228,C229 C-CERAMIC,CHIP
2203-005682 C401 C-CERAMIC,CHIP
2203-006048 C145,C200,C201,C205 C-CERAMIC,CHIP
2203-006048 C209,C213,C218,C225 C-CERAMIC,CHIP
2203-006048 C234,C237,C310,C400 C-CERAMIC,CHIP
2203-006048 C408,C409,C418,C501 C-CERAMIC,CHIP

SAMSUNG Proprietary-Contents may change without notice
Main Electrical Parts List
5-4
This Document can not be used without Samsung's authorization
SEC CODE Design LOC Description
2203-006048 C603 C-CERAMIC,CHIP
2203-006121 C132 C-CERAMIC,CHIP
2203-006138 C109 C-CERAMIC,CHIP
2203-006190 C202 C-CERAMIC,CHIP
2203-006257 C208,C214 C-CERAMIC,CHIP
2203-006260 C211,C232,C233 C-CERAMIC,CHIP
2203-006324 C216,C217,C417 C-CERAMIC,CHIP
2203-006399 C124,C212,C235,C236 C-CERAMIC,CHIP
2203-006399 C302,C303,C313,C415 C-CERAMIC,CHIP
2203-006399 C416,C419,C422,C500 C-CERAMIC,CHIP
2203-006399 C511,C512,C517,C609 C-CERAMIC,CHIP
2203-006423 C100,C102,C103,C107 C-CERAMIC,CHIP
2203-006423 C118 C-CERAMIC,CHIP
2203-006562 C204,C215,C301,C312 C-CERAMIC,CHIP
2203-006562 C315,C420,C421,C510 C-CERAMIC,CHIP
2203-006562 C604 C-CERAMIC,CHIP
2203-006647 C159 C-CERAMIC,CHIP
2203-006872 C101,C108,C120,C125 C-CERAMIC,CHIP
2203-006872 C144,C147,C306,C308 C-CERAMIC,CHIP
2203-006872 C309,C311 C-CERAMIC,CHIP
2203-007133 C206 C-CERAMIC,CHIP
2203-007240 C405 C-CERAMIC,CHIP
2203-007269 C230 C-CERAMIC,CHIP
2203-007271 C305 C-CERAMIC,CHIP
2203-007290 C162 C-CERAMIC,CHIP
2203-007317 C307,C402 C-CERAMIC,CHIP
2203-007687 C314 C-CERAMIC,CHIP
2203-007693 C424 C-CERAMIC,CHIP
2404-001381 C106,C300,C423,C602 C-TA,CHIP
2409-001172 BAT200 CAPACITOR
2703-000213 L123 INDUCTOR-SMD
2703-001180 L104 INDUCTOR-SMD
2703-001723 L112 INDUCTOR-SMD
2703-001729 L105 INDUCTOR-SMD
2703-001747 L190 INDUCTOR-SMD
2703-001752 L100 INDUCTOR-SMD

SAMSUNG Proprietary-Contents may change without notice
Main Electrical Parts List
5-5
This Document can not be used without Samsung's authorization
SEC CODE Design LOC Description
2703-002170 L114 INDUCTOR-SMD
2703-002176 L115,L119 INDUCTOR-SMD
2703-002199 L111,L113 INDUCTOR-SMD
2703-002204 L121 INDUCTOR-SMD
2703-002208 L102,L103,L106,L107 INDUCTOR-SMD
2703-002308 L118,L502,L503 INDUCTOR-SMD
2703-002369 L108,L117,L120 INDUCTOR-SMD
2703-003485 L300 INDUCTOR-SMD
2703-003781 L407 INDUCTOR-SMD
2703-003869 L201 INDUCTOR-SMD
2801-004339 OSC200 CRYSTAL-UNIT
2801-004896 OSC100,OSC201 CRYSTAL-UNIT
2901-001435 F600,F601,F602 FILTER-EMI SMD
2904-001884 F102 FILTER-SAW
2904-001944 F100 FILTER-SAW
2904-001946 F104 FILTER-SAW
3003-001136 MIC_400 MIC-CONDENSOR
3003-001138 MIC_401 MIC-CONDENSOR
3301-001812 L403,L406 CORE-FERRITE BEAD
3301-002000 L200 CORE-FERRITE BEAD
3301-002065 L400,L401,L402,L404 CORE-FERRITE BEAD
3301-002065 L405,L500,L501 CORE-FERRITE BEAD
3404-001152 HOLD,SIM_S/W,TAC_VD SWITCH-TACT
3404-001152 TAC_VU SWITCH-TACT
3705-001731 RFS100 CONNECTOR-COAXIAL
3709-001645 SIM500 CONNECTOR-CARD EDGE
3710-003355 SOC600 CONNECTOR-SOCKET
3711-005456 HDC600 CONNECTOR-HEADER
3711-007393 BTC600 CONNECTOR-HEADER
3711-007446 HDC601 CONNECTOR-HEADER
3711-007478 HEA500 CONNECTOR-HEADER
3712-001348 ANT100,ANT101 CONNECTOR
3722-003115 IFC400 JACK-PHONE
3722-003197 EAR400 JACK-PHONE
4709-001615 F105 RF-MODULE
4709-001905 F103 RF-MODULE

SAMSUNG Proprietary-Contents may change without notice
Main Electrical Parts List
5-6
This Document can not be used without Samsung's authorization
SEC CODE Design LOC Description
4709-001906 F101 RF-MODULE
GH70-04443A SC100,SC101,SC102 ONBOARD-CLIP-9
GH70-04443A SC103,SC104,SC105 ONBOARD-CLIP-9
GH80-03320A R211 PB-SHORT-1005
Please consult the GSPN website (Samsung Portal) for the most recent version of the product's
part list.

SAMSUNG Proprietary-Contents may change without notice
6. Level 1Repair
6-1
This Document can not be used without Samsung's authorization

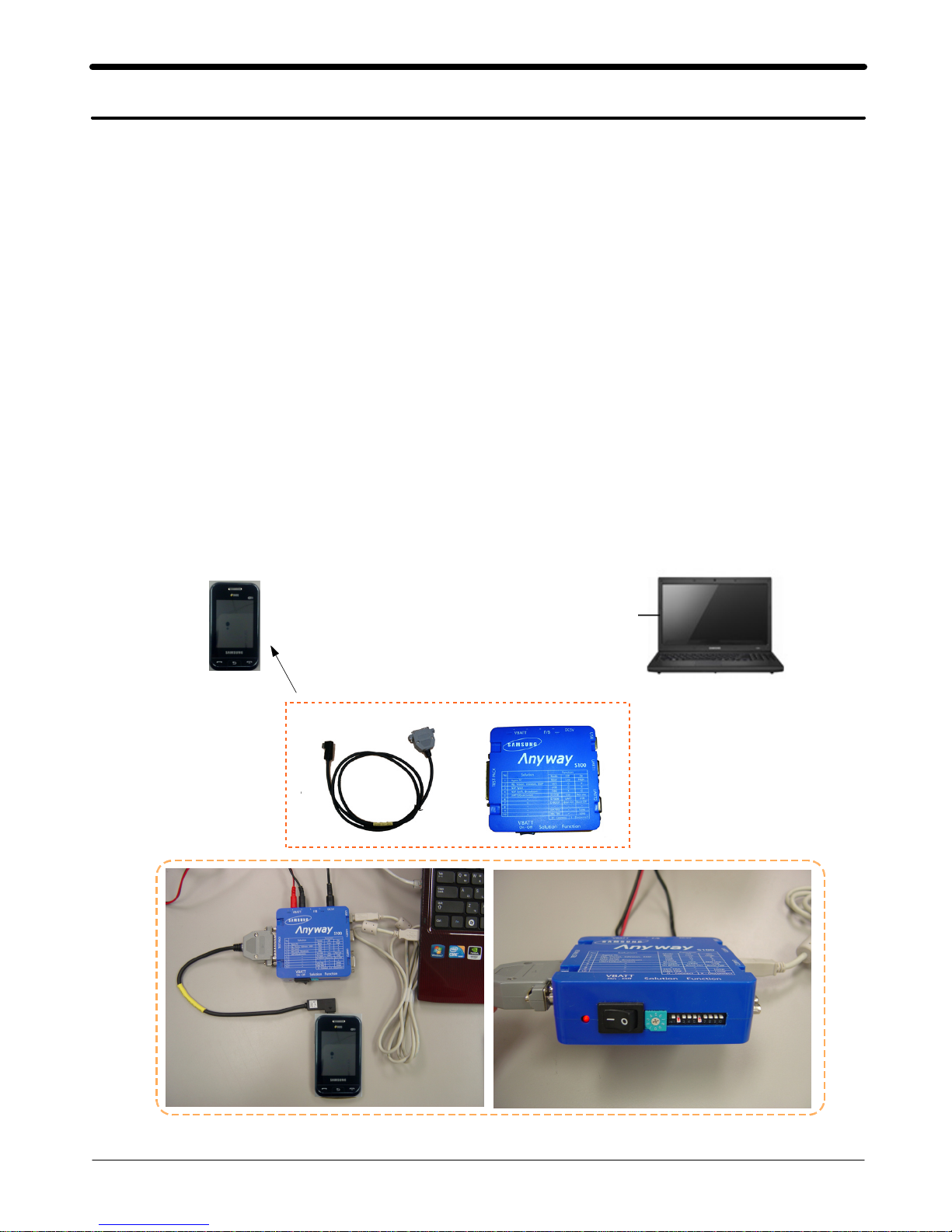

6-1. S/W Download
6-1-1. Pre-requsite for S/W Downloading
•Downloader Program (Flash tool_E2)
•GT-E2652W Mobile Phone
•Data Cable
•JIG BOX (GH99-36900A)
•RF Test Cable (GH39-00985A)
•JIG Cable (GH39-01339A)
•Adapter (GH99-38251A)
•Serial Cable
•Binary files
※Settings
Connect to ANYWAY JIG BOX
&JIG CABLE (Phone to JIG)

SAMSUNG Proprietary-Contents may change without notice
Level 1Repair
6-2
This Document can not be used without Samsung's authorization

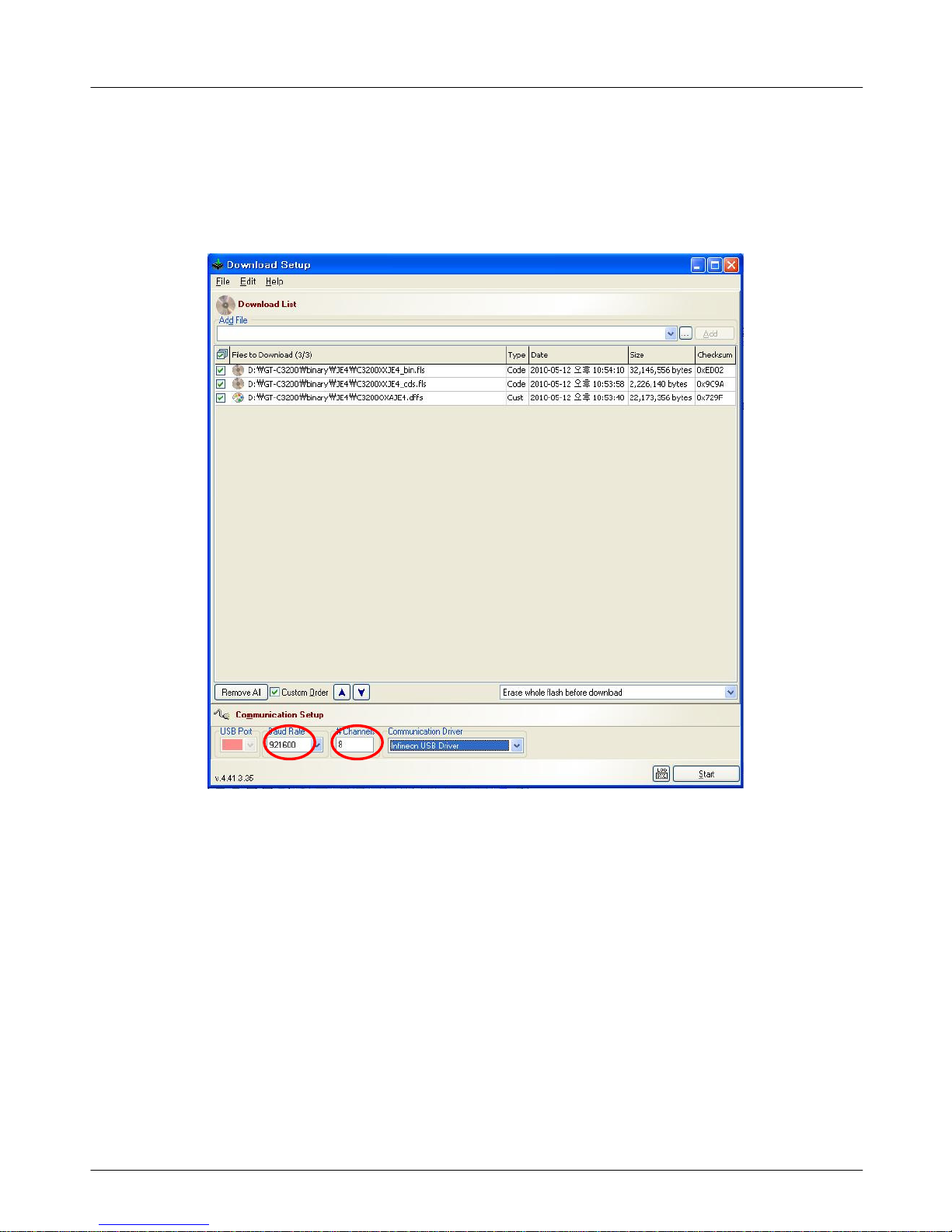

6-1-2. S/W Downloader Program
■Load the binary download program by executing the
"Flash tool_E2 "←enter this file.
1.Select the connected serial port and the rate of speed.

SAMSUNG Proprietary-Contents may change without notice
Level 1Repair
6-3
This Document can not be used without Samsung's authorization
2.Select communication driver as Infineon USB driver.

SAMSUNG Proprietary-Contents may change without notice
Level 1Repair
6-4
This Document can not be used without Samsung's authorization
3.Select the Binary in sequence of _bin, _cds, .dffs.

SAMSUNG Proprietary-Contents may change without notice
Level 1Repair
6-5
This Document can not be used without Samsung's authorization
4.P
ress the "Start" button.
5.Press Start USB1 and connect the Handset.
