Samsung GT-I9003 User manual

GSM TELEPHONE
GT-i9003
1. Safety Precautions
2. Specification
3. Product Function
4. Exploded View and Parts list
5. MAIN Electrical Parts List
6. Level 1Repair
7. Disassembly and Assembly
Instructions
8. Chart of Troubleshooting
9. Reference data
Notice :
All functionality, features, specifications and other
product information provided in this document inclu
ding, but not limited to, the benefits, design, pricing,
components, performance, availability, and capabiliti
-es of the product are subject to change without
notice or obligation. Samsung reserves the right to
make changes to this document and the product
described herein, at anytime, without obligation on
Samsung to provide notification of such change.
GSM TELEPHONE CONTENTS

SAMSUNG Proprietary-Contents may change without notice
1. Safety Precautions
1-1
This Document can not be used without Samsung's authorization
1-1. Repair Precaution
―Repair in Shield Box, during detailed tuning. Take specially care of tuning or test, because
specipicty of cellular phone is sensitive for surrounding interference(RF noise).
―Be careful to use akind of magnetic object or tool, because performance of parts is damaged by
the influence of magnetic force.
―Surely use astandard screwdriver when you disassemble this product, otherwise screw will be
worn away.
―Use athicken twisted wire when you measure level.
Athicken twisted wire has low resistance, therefore error of measurement is few.
―Repair after separate Test Pack and Set because for short danger (for example an overcurrent
and furious flames of parts etc) when you repair board in condition of connecting Test Pack and
tuning on.
―Take specially care of soldering, because Land of PCB is small and weak in heat.
―Surely tune on/off while using AC power plug, because arepair of battery charger is dangerous
when tuning ON/OFF PBA and Connector after disassembling charger.
―Don't use as you pleases after change other material than replacement registered on SEC System.
Otherwise engineer in charge isn't charged with problem that you don't keep this rules.

SAMSUNG Proprietary-Contents may change without notice
Safety Precautions
1-2
This Document can not be used without Samsung's authorization
1-2. ESD(Electrostatically Sensitive Devices) Precaution
Several semiconductor may be damaged easily by static electricity. Such parts are called by ESD
(Electrostatically Sensitive Devices), for example IC,BGA chip etc. Read Precaution below.
You can prevent from ESD damage by static electricity.
―Remove static electricity remained your body before you touch semiconductor or parts with
semiconductor. There are ways that you touch an earthed place or wear static electricity prevention
string on wrist.
―Use earthed soldering steel when you connect or disconnect ESD.
―Use soldering removing tool to break static electricity. ,otherwise ESD will be damaged by static
electricity.
―Don't unpack until you set up ESD on product. Because most of ESD are packed by box and
aluminum plate to have conductive power,they are prevented from static electricity.
―You must maintain electric contact between ESD and place due to be set up until ESD is
connected completely to the proper place or acircuit board.

2. Specification
2-1
2-1. GSM General Specification
GSM850 EGSM 900 DCS1800 PCS1900 WCDMA21
00 WCDMA90 0WCDMA19 00
Freq.
Band[MHz]
Uplink/
Downlink
824~849
869~894
880~915
925~960
1710~1785
1805~1880
1850~1910
1930~1990
1922~1977
2112~2167
880~915
925~960
1852~1907
1932~1987
ARFCN
range 128~251 0~124 &
975~1023 512~885 512~810
UL:9612~9
888DL:105
62~10838
UL:2712~2
863,DL:29
37 ~ 3088
UL:9262~9
538,DL:96
62~9938
Tx/Rx
spacing 45MHz 45MHz 95MHz 80MHz 190MHz 45MHz 80MHz
Mod. Bit
rate/
Bit Period
270.833kb
ps
3.692us
270.833kb
ps
3.692us
270.833kb
ps
3.692us
270.833kb
ps
3.692us
3.84Mcps 3.84Mcps 3.84Mcps
Time Slot
Period/
Frame
Period
576.9us
4.615ms
576.9us
4.615ms
576.9us
4.615ms
576.9us
4.615ms
FrameLeng
th:
10ms
Slotlength:
0.667ms
FrameLeng
th:
10ms
Slotlength:
0.667ms
FrameLeng
th:
10ms
Slotlength:
0.667ms
Modulation 0.3GMSK 0.3GMSK 0.3GMSK 0.3GMSK QPSKHQP
SK
QPSKHQP
SK
QPSKHQP
SK
MS Power 33dBm~5d
Bm
33dBm~5d
Bm
30dBm~0d
Bm
30dBm~0d
Bm
24dBm~-
50dBm
24dBm~-
50dBm
24dBm~-
50dBm
Power
Class
5pcl ~
19pcl 5pcl ~19
pcl 0pcl ~15 pcl 0pcl ~15 pcl 3(max+24dB
m)
3(max+24dB
m)
3(max+24dB
m)
Sensitivity -102dBm -102dBm -100dBm -100dBm -106.7dBm -106.7dBm -106.7dBm
TDMAMux8888888
Cell
Radius 35Km 35Km 2Km 2Km 2Km 2Km 2Km

Specification
2-2
2-2. GSM Tx Power Class
TX Power
control
level
GSM850
533±2
dBm
631±2
dBm
729±2
dBm
827±2
dBm
925±2
dBm
10 23±2 dBm
11 21±2 dBm
12 19±2 dBm
13 17±2 dBm
14 15±2 dBm
15 13±2 dBm
16 11±3 dBm
17 9±3dBm
18 7±3 dBm
19 5±3 dBm
TX Power
control
level
EGSM900
533±2
dBm
631±2
dBm
729±2
dBm
827±2
dBm
925±2
dBm
10 23±2 dBm
11 21±2 dBm
12 19±2 dBm
13 17±2 dBm
14 15±2 dBm
15 13±2 dBm
16 11±3 dBm
17 9±3dBm
18 7±3 dBm
19 5±3 dBm
TX Power
control
level
DCS1800
030±3
dBm
128±3
dBm
226±3
dBm
324±3
dBm
422±3
dBm
520±3
dBm
618±3
dBm
716±3
dBm
814±3
dBm
912±4
dBm
10 10±4 dBm
11 8±4 dBm
12 6±4 dBm
13 4±4 dBm
14 2±5 dBm
15 0±5 dBm
TX Power
control
level
PCS1900
030±3
dBm
128±3
dBm
226±3
dBm
324±3
dBm
422±3
dBm
520±3
dBm
618±3
dBm
716±3
dBm
814±3
dBm
912±4
dBm
10 10±4 dBm
11 8±4 dBm
12 6±4 dBm
13 4±4 dBm
14 2±5 dBm
15 0±5 dBm

SAMSUNG Proprietary-Contents may change without notice
3. Operation Instruction and Installation
3-1
This Document can not be used without Samsung's authorization
Main Function
•Android OS: Froyo
•HSDPA 7.2Mbps /HSUPA 5.76Mbps
•5
MP AF
•4.0"
TFT LCD, Full Touch (C-Type)
•A-GPS /BT v2.1 +EDR /USB v2.0 /WiFi (802.11 b/g/n)
•HD Recording (720p) /Full HD Playback (1080p)
•Sensors: Accelerometer, Compass, Proximity, Light
•TouchWiz 3.0 for Android, Multistage, Augmented Reality, Integrated phonebook with
SNS, IM, E-mail, Face Recognition, etc.

SAMSUNG Proprietary-Contents may change without notice
4. Exploded View and Parts List
4-1
This Document can not be used without Samsung's authorization

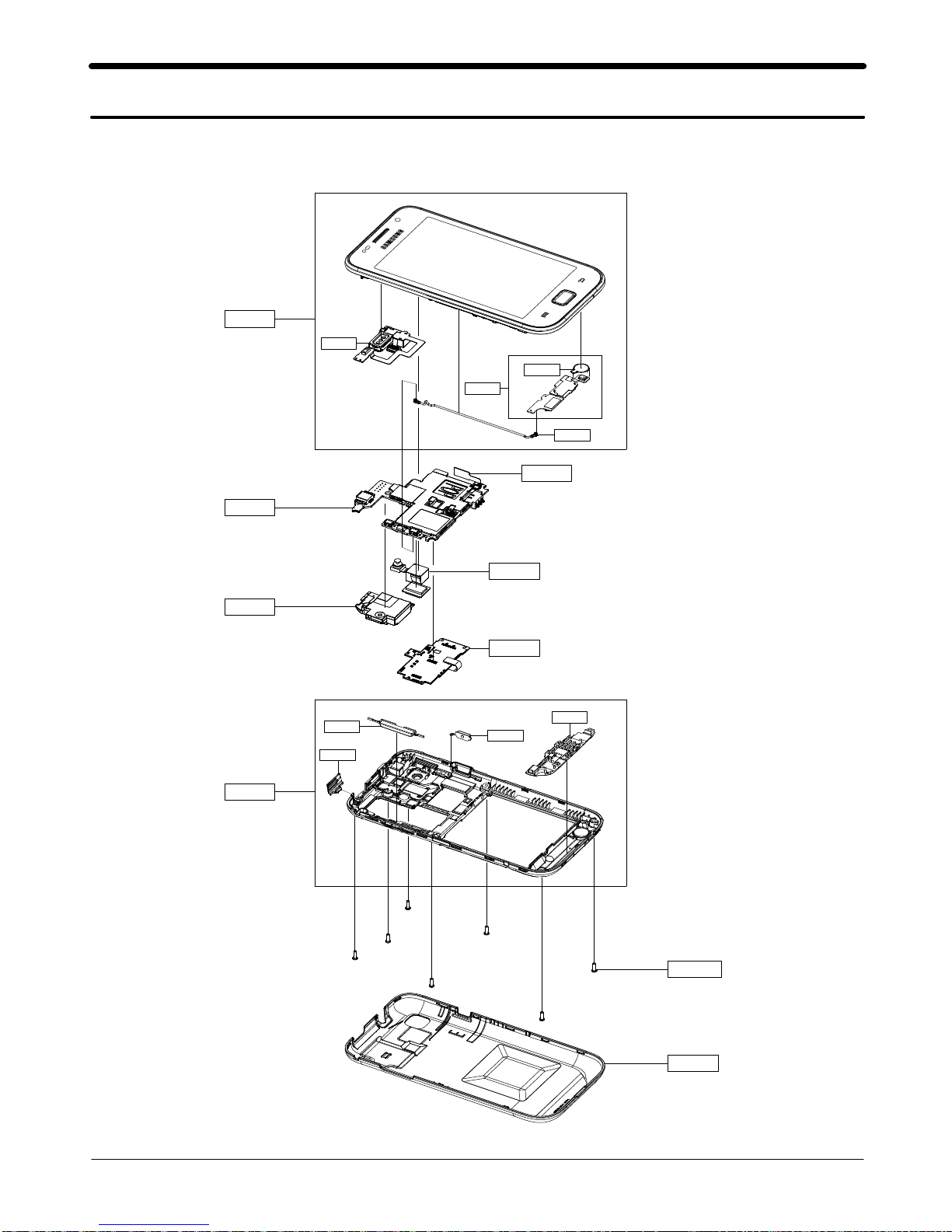

4-1. Cellular phone Exploded View
QFR01
QMP01
QSP01
QRE01
QCK01
QCR101
QBC00
QVK01
QCA01
QSM01
QCB01
QMO01
QAR01
QVO01
QMI01
QRF06
QAN02

SAMSUNG Proprietary-Contents may change without notice
Exploded View and Parts List
4-2
This Document can not be used without Samsung's authorization
Design LOC Description SEC CODE
QCR101 SCREW-MACHINE 6001-002005
QSP01 MODULE-SPEAKER GH59-09408A
QCA01 CAMERA MODULE-5M A/F CMOS (GT-I9008) GH59-09947A
QVK01 KEY FPCB-SIDE KEY(GT-I9003) GH59-10424A
QSM01 ASSY ETC-SIM/T-FLASH ASSY(GT_I9003) GH59-10518A
QMP01 A/S ASSY-PBA MAIN(COMM)GT-I9003 GH82-05486A
QBC00 ASSY COVER-BATT GH98-18749A
QRE01 ASSY CASE-REAR GH98-18750A
QAN02 INTENNA-MAIN_GT-I9003 GH42-02787A
QRF06 PMO COVER-USB GH72-62156A
QCK01 PMO COVER-POWER KEY GH72-62157A
QVO01 PMO COVER-VOL KEY V3 GH72-62808A
QFR01 MEA FRONT-SUPER LCD ASSY GH97-11829A
QCB01 CBF COAXIAL CABLE-SGH-T959 INT CABLE_(76 GH39-01438A
QAR01 MODULE-RCV+SENSOR FPCB(I9003) GH59-10401A
QMI01 ASSY ETC-MIC/MOTOR FPCB(GT-I9003) GH59-10425A
QMO01 MOTOR LINEAR VIBRATION-GTS8000 GH31-00475A
4-2. Cellular phone Parts list

SAMSUNG Proprietary-Contents may change without notice
5.a MAIN Electrical Parts List (HW REV1.0) 10_10
10-10
This Document can not be used without Samsung's authorization
Design LOC SEC CODE Description
D600, ZD601 0403-001688 DIODE-ZENER
D900 0404-001646 DIODE-SCHOTTKY
ZD600 0406-001369 DIODE-TVS
ZD400, ZD401, ZD402,
ZD403, ZD404 0406-001413 DIODE-TVS
ZD405 0406-001375 DIODE-TVS
D800 0407-001007 DIODE-ARRAY
TR800 0504-001113 TR-DIGITAL
Q600 0504-001138 TR-DIGITAL
U301 0505-002207 FET-SILICON
U801 0801-003016 IC-CMOS LOGIC
U501, U901 0801-003031 IC-CMOS LOGIC
U802 0801-003079 IC-CMOS LOGIC
U300 0801-003139 IC-CMOS LOGIC
U604, U805 0801-003346 IC-CMOS LOGIC
UCP700 0902-002708 IC-MICROPROCESSOR
U405 1001-001394 IC-ANALOG SWITCH
U600 1001-001580 IC-ANALOG MULTIPLEX
U304 1001-001581 IC-ANALOG SWITCH
U800 1001-001664 IC-ANALOG SWITCH
U906 1003-002047 IC-MOTOR DRIVER
U404, U903 1003-002358 IC-LEVEL DRIVER
UME300 1105-002068 IC-MOBILE SDRAM
UME500 1107-001937 IC-NAND FLASH
UCP700UP 1108-000409 IC-MCP
U100 1201-002999 IC-RF AMP
U403 1201-003081 IC-AUDIO AMP
U104 1201-003091 IC-POWER AMP
U106 1201-003092 IC-POWER AMP
U103 1201-003107 IC-POWER AMP
U102 1201-003144 IC-RF AMP

SAMSUNG Proprietary-Contents may change without notice
Main Electrical Parts List
5-2
This Document can not be used without Samsung's authorization
Design LOC SEC CODE Description
U200 1201-003168 IC-RF AMP
U400 1202-001036 IC-VOLTAGE COMP.
U902 1203-004339 IC-MULTI REG.
U907 1203-004793 IC-POSI.FIXED REG.
U500 1203-004818 IC-POSI.FIXED REG.
U108, U502 1203-004819 IC-POSI.FIXED REG.
U908 1203-004845 IC-DC/DC CONVERTER
U507 1203-005250 IC-MULTI REG.
U401 1203-005396 IC-POSI.FIXED REG.
U809 1203-005485 IC-POSI.FIXED REG.
U504 1203-005690 IC-DC/DC CONVERTER
U806 1203-005783 IC-BATTERY
U808 1203-006054 IC-MULTI REG.
U101 1203-006159 IC-DC/DC CONVERTER
U603 1203-006178 IC-MULTI REG.
U803 1203-006304 IC-POWER SUPERVISOR
U804 1203-006346 IC-RESET
U807 1203-006464 IC-POWER SUPERVISOR
U204 1204-003176 IC-TUNER
U105 1205-003949 IC-TRANSCEIVER
U201 1205-003966 IC-RECEIVER
UCP300 1205-003993 IC-MODEM
U905 1209-001877 IC-SENSOR
R114 1209-001998 IC-DETECTOR
U904 1209-002023 IC-SENSOR
TH300, TH800 1404-001221 THERMISTOR-NTC
V300,V301, V302, V303,
V304, V305, V306, V900,
V901, V902, V903, V904,
ZD612, ZD613
1405-001177 VARISTOR
V307, V600, V601,ZD610 1405-001200 VARISTOR

SAMSUNG Proprietary-Contents may change without notice
Main Electrical Parts List
5-3
This Document can not be used without Samsung's authorization
Design LOC SEC CODE Description
V400 1405-001294 VARISTOR
V800 1405-001298 VARISTOR
R800, R802, R808, R813 2007-000138 R-CHIP
R807 2007-000140 R-CHIP
R740 2007-000142 R-CHIP
R601 2007-000148 R-CHIP
R100 2007-000155 R-CHIP
R803, R805, R905 2007-000162 R-CHIP
R809 2007-000166 R-CHIP
R328 2007-000167 R-CHIP
R410, R412, R900 2007-000172 R-CHIP
R909 2007-000636 R-CHIP
R815 2007-008015 R-CHIP
R827 2007-007092 R-CHIP
R317 2007-003018 R-CHIP
R103 2007-003029 R-CHIP
R312, R819, R821 2007-007107 R-CHIP
R806 2007-007307 R-CHIP
R826 2007-007316 R-CHIP
R104 2007-007334 R-CHIP
R823 2007-007491 R-CHIP
R730 2007-007741 R-CHIP
R917 2007-007798 R-CHIP
R402, R606 2007-007943 R-CHIP
R315, R406, R600,
R611, R801 2007-008045 R-CHIP
R404, R405, R906, R907 2007-008049 R-CHIP
R408, R708, R709, R715
R716, R743, R746, R747,
R748, R810
2007-008052 R-CHIP

SAMSUNG Proprietary-Contents may change without notice
Main Electrical Parts List
5-4
This Document can not be used without Samsung's authorization
Design LOC SEC CODE Description
R500, R722, R724, R742,
R816, R822, R824, R908 2007-008055 R-CHIP
R106, R205, R731, R732,
R811, R812 2007-008419 R-CHIP
R415 2007-008478 R-CHIP
R330 2007-008483 R-CHIP
R327, R725, R726, R738,
R739, R902, R915, R916 2007-008516 R-CHIP
R109, R608, R609 2007-008531 R-CHIP
R817, R818 2007-008548 R-CHIP
R413 2007-008587 R-CHIP
R515 2007-008774 R-CHIP
R614 2007-008774 R-CHIP
R616 2007-008774 R-CHIP
R617 2007-008774 R-CHIP
R829 2007-008774 R-CHIP
R208 2007-008800 R-CHIP
R105, R614, R616, R617,
R829 2007-008806 R-CHIP
R401, R407 2007-009084 R-CHIP
R305, R502, R503, R504,
R505, R506, R511, R512,
R513, R514, R613
2007-009171 R-CHIP
R409, R411 2007-009201 R-CHIP
R329 2007-009323 R-CHIP
R318, R320, R321 2007-009354 R-CHIP
R700, R701, R702, R703,
R717, R718, R719, R720 2007-009408 R-CHIP
R107, R108, R302, R400,
R904 2007-009801 R-CHIP
R414 2007-010202 R-CHIP
C183, C213, C233, C258,
C807 2203-000233 C-CER,CHIP
C821 2203-000254 C-CER,CHIP

SAMSUNG Proprietary-Contents may change without notice
Main Electrical Parts List
5-5
This Document can not be used without Samsung's authorization
Design LOC SEC CODE Description
C801,C902 2203-000278 C-CER,CHIP
C405, C414 2203-000386 C-CER,CHIP
C911 2203-000725 C-CER,CHIP
C422 2203-000995 C-CER,CHIP
C401, C413 2203-001153 C-CER,CHIP
C259 2203-001385 C-CER,CHIP
C131, C403 2203-002709 C-CER,CHIP
C218 2203-005050 C-CER,CHIP
C214 2203-005281 C-CER,CHIP
C215 2203-005446 C-CER,CHIP
C185, C256 2203-005552 C-CER,CHIP
C104, C120, C121, C135,
C144, C163, C165 2203-005682 C-CER,CHIP
C102, C231 2203-005725 C-CER,CHIP
C118, C179, C824 2203-005727 C-CER,CHIP
C127, C326, C423 2203-005729 C-CER,CHIP
C110, C328, C419, C420 2203-005731 C-CER,CHIP
C111, C122, C600, U107 2203-005732 C-CER,CHIP
C149, C150, C170, C171,
C180, C181, C182 2203-005736 C-CER,CHIP
C137, C139 2203-005740 C-CER,CHIP
C187 2203-005777 C-CER,CHIP
C168 2203-005789 C-CER,CHIP
C148 2203-005792 C-CER,CHIP
C142, C164, C176 2203-005806 C-CER,CHIP
C310, C313, C502, C505,
C702, C704, C705, C706,
C707, C710, C711, C712,
C713, C717, C718, C719,
C720, C722, C753, C754,
C756, C757, C758, C759,
C829, C913
2203-006048 C-CER,CHIP
C124 2203-006090 C-CER,CHIP
C234 2203-006120 C-CER,CHIP

SAMSUNG Proprietary-Contents may change without notice
Main Electrical Parts List
5-6
This Document can not be used without Samsung's authorization
Design LOC SEC CODE Description
C106 2203-006123 C-CER,CHIP
C407, C408 2203-006137 C-CER,CHIP
C112, C114, C140 2203-006187 C-CER,CHIP
C701, C708 2203-006190 C-CER,CHIP
C129, C130, C152, C153,
C154, C155, C156, C157,
C158, C159, C160, C173,
C229, C751
2203-006194 C-CER,CHIP
C125, C402 2203-006208 C-CER,CHIP
C331, C334 2203-006260 C-CER,CHIP
C100, C825 2203-006305 C-CER,CHIP
C147 2203-006318 C-CER,CHIP
C835 2203-006324 C-CER,CHIP
C161, C235, C261, C700,
C703, C709, C716, C723,
C724, C726, C760, C761,
C802, C804, C805, C808,
C819, C820, C832,C833,
C834, C845, C846,C848,
C849, C850, C910
2203-006399 C-CER,CHIP
C117, C172, C200, C201,
C301, C303, C308, C336,
C721, C809, C810, C814,
C815, C817, C818, C903,
C904, C909
2203-006423 C-CER,CHIP
C320, C325 2203-006474 C-CER,CHIP
C128, C335, C404, C406,
C411, C412, C507, C508,
C806, C847, C888, C914
2203-006562 C-CER,CHIP
C178 2203-006604 C-CER,CHIP
C108 2203-006611 C-CER,CHIP
C409, C410 2203-006626 C-CER,CHIP
C752 2203-006647 C-CER,CHIP
C237, C238, C262, C762,
C800, C908 2203-006648 C-CER,CHIP
C103, C107, C166, C232 2203-006674 C-CER,CHIP
C133, C136 2203-006707 C-CER,CHIP
C510, C839, C840 2203-006824 C-CER,CHIP

SAMSUNG Proprietary-Contents may change without notice
Main Electrical Parts List
5-7
This Document can not be used without Samsung's authorization
Design LOC SEC CODE Description
C503, C504, C506, C906,
C907 2203-006838 C-CER,CHIP
C601 2203-006839 C-CER,CHIP
C822, C823, C837, C915 2203-006841 C-CER,CHIP
C210, C221, C222, C224,
C230, C257, C330, C803,
C811, C836, C838, C841,
C842, C843, C844
2203-006872 C-CER,CHIP
C828, C830 2203-006890 C-CER,CHIP
C151 2203-007210 C-CER,CHIP
C302 2203-007210 C-CER,CHIP
C304 2203-007210 C-CER,CHIP
C305 2203-007210 C-CER,CHIP
C318 2203-007210 C-CER,CHIP
C324 2203-007210 C-CER,CHIP
C329 2203-007210 C-CER,CHIP
C916 2203-007210 C-CER,CHIP
C516, C826 2203-007240 C-CER,CHIP
C175, C311, C312, C322,
C323 2203-007270 C-CER,CHIP
C255, C332, C511, C512,
C513, C514, C515, C905 2203-007271 C-CER,CHIP
C333 2203-007317 C-CER,CHIP
C141, C501, C714, C715,
C831 2203-007393 C-CER,CHIP
C186, C188, C300, C306,
C307, C309, C314, C317,
C319, C321, C337, C416,
C608, C609, C610, C611,
C851, C852, C853, C854,
C891, C892, C912, U305
2203-007449 C-CER,CHIP
C917 2203-007687 C-CER,CHIP
C604 2203-007693 C-CER,CHIP
C134, C162, TA500, TA80
02404-001381 C-TA,CHIP
TA401, TA600 2404-001496 C-TA,CHIP

SAMSUNG Proprietary-Contents may change without notice
Main Electrical Parts List
5-8
This Document can not be used without Samsung's authorization
Design LOC SEC CODE Description
TA402, TA602 2404-001506 C-TA,CHIP
TA400, TA801, TA802 2404-001572 C-TA,CHIP
L411 2703-001259 INDUCTOR-SMD
L900, L901 2703-002309 INDUCTOR-SMD
C132, C138, L103 2703-002793 INDUCTOR-SMD
C174 2703-002794 INDUCTOR-SMD
L205 2703-002815 INDUCTOR-SMD
L600, L601 2703-002842 INDUCTOR-SMD
C143, L108 2703-002858 INDUCTOR-SMD
L902 2703-002862 INDUCTOR-SMD
L101, U703 2703-002901 INDUCTOR-SMD
L104, L105, L109 2703-002903 INDUCTOR-SMD
C109, C145 2703-002906 INDUCTOR-SMD
L111, L112, L113 2703-002918 INDUCTOR-SMD
L100, L107 2703-002953 INDUCTOR-SMD
L406 2703-002961 INDUCTOR-SMD
L110 2703-003125 INDUCTOR-SMD
L801 2703-003347 INDUCTOR-SMD
L106 2703-003685 INDUCTOR-SMD
L502 2703-003770 INDUCTOR-SMD
L302, L303 2703-003869 INDUCTOR-SMD
L800, L802 2703-003911 INDUCTOR-SMD
C115 2703-004000 INDUCTOR-SMD
R113 2703-004001 INDUCTOR-SMD
OSC300, OSC801 2801-004339 CRYSTAL-SMD
OSC800 2804-001762 OSCILLATOR-CLOCK
OSC201 2804-001772 OSCILLATOR-CLOCK
OSC200 2809-001348 OSCILLATOR-TCXO
OSC100 2809-001358 OSCILLATOR-VCTCXO

SAMSUNG Proprietary-Contents may change without notice
Main Electrical Parts List
5-9
This Document can not be used without Samsung's authorization
Design LOC SEC CODE Description
F900, F901, F902, F903,
F904, F905 2901-001413 FILTER-EMI SMD
F500, F501, F502 2901-001604 FILTER-EMI SMD
F105 2904-001847 FILTER-SAW
F108 2904-001850 FILTER-SAW
F103 2904-001952 FILTER-SAW
F102 2904-001953 FILTER-SAW
F100 2904-001966 FILTER-SAW
F101 2904-001973 FILTER-SAW
F104 2910-000073 DUPLEXER-SAW
F106 2910-000081 DUPLEXER-SAW
F107 2910-000107 DUPLEXER-SAW
L201 3301-001534 BEAD-SMD
L204 3301-001659 BEAD-SMD
L206, L501 3301-001729 BEAD-SMD
L200 3301-001789 BEAD-SMD
L203, L400, L401, L404,
L407, L408, L409, L410 3301-001885 BEAD-SMD
L500, L603 3301-001912 BEAD-SMD
L300, L301 3301-001956 BEAD-SMD
L402, L403 3301-002058 BEAD-SMD
L405 3301-002065 BEAD-SMD
TAC600, TAC601 3404-001152 SWITCH-TACT
ANT102 3705-001448 CONNECTOR-COAXIAL
RFS100 3705-001731 CONNECTOR-COAXIAL
HDC700 3711-005550 HEADER-BOARD TO BOARD
BTC600 3711-006299 HEADER-BATTERY
HDC900 3711-006483 HEADER-BOARD TO BOARD
HDC500 3711-006865 HEADER-BOARD TO BOARD
HDC300 3711-006923 HEADER-BOARD TO BOARD
HDC400, HDC600 3711-007592 HEADER-BOARD TO BOARD

SAMSUNG Proprietary-Contents may change without notice
Main Electrical Parts List
5-10
This Document can not be used without Samsung's authorization
Design LOC SEC CODE Description
IFC601 3722-002867 JACK-MINI USB
BAT800 4302-001246 BATTERY-LI(2ND)
U210 4709-001899 BLUETOOTH MODULE
SC613, SC615, SC616,
SC617, SC620, SC621,
SC622, SC623, SC624
GH70-03951A ICT SHIELD-SHIELD CAN CLIP
SC601, SC603, SC604,
SC605, SC607, SC608,
SC610, SC611
GH70-04443A ICT SHIELD-CAN CLIP
SC614, SC618,
SC619, SC625 GH70-04828A IPR SHIELD-CAN CLIP
ANT200, ANT201,
ANT202, ANT203 GH71-08731A NPR CONTACT-CAM
C827 2203-000627 C-CER,CHIP
C816 2203-006257 C-CER,CHIP
Please consult the GSPN website (Samsung Portal) for the most recent version of the product's
part list.

SAMSUNG Proprietary-Contents may change without notice
6. Level 1Repair
6-1
This Document can not be used without Samsung's authorization
6-1. S/W Download
6-1-1. Pre-requisite for S/W Downloading
•Downloader Program(Odin3 v1.0.exe)
•GT-I9003 Mobile Phone
•Data Cable
•JIG BOX (GH99-36900A)
•RF Test Cable (GH39-00985A)
•JIG Cable (GH39-01290A)
•Adapter (GH99-38251A)
•Binary files

SAMSUNG Proprietary-Contents may change without notice
Level 1Repair
6-2
This Document can not be used without Samsung's authorization
6-1-2. S/W Downloader Program
■Load the binary download program by executing the
"Odin3 v1.0.exe "←Run this file.
1.Option Selection
-Check Re-Partition, Auto Reboot and F. Reset Time, then select PIT File
