Samsung SCH-1500 series User manual

SERVICE
PORTABLE CELLULAR
TELEPHONE
SCH-1500 Series
TALK END/
123
456
78
0
9
ABC DEF
MNOJKLGHI
PQRS
CLR OK MENU
TUV
OPER
WXYZ
Manual
PORTABLE CELLULAR TELEPHONE CONTENTS
1. General Introduction
2. Specification
3. Installation
4. Nam Programming
5. Product Support Tools
6. Circuit Description
7. Test Procedure
8. Trouble Shooting
9. Exploded Views and Parts List
10. PCB Diagrams
11. Electrical Parts List
12. Block & Circuit Diagrams

Samsung Electronics Co.,Ltd.
ELECTRONICS

1. General Introduction
The SCH-1500 DBDM phone functions as both analog phone working in AMPS (Advanced Mobile Phone
Service) mode and digital phone working in PCS (Personal Communication Service) mode.
The following standards and minimum performance standards shall be met or exceeded by each subscriber
unit.
Air Interface
The Subscriber Unit shall be Dual mode and Dual band in compliance with ANSI J-STD-008 and TIA/EIA IS-
95A(Analog).
ANSI J-STD-008 : Personal Station-Base Station Compatibility Requirements for 1.8 to 2.0 GHz CDMA PCS.
ANSI J-STD-018 : Recommended Minimum Performance Requirements for 1.8 to 2.0 GHz CDMA Personal
Stations.
CDG Ref. Document #27 : High Rate Speech Service Option for Wideband Spread Spectrum System.
TIA/EIA IS-96A : Speech Service Option 1 Standard for Dual mode Wideband Spread Spectrum Cellular
Systems.
TIA/EIA IS-125 : Recommended Minimum Performance standards for Digital Cellular Wideband Spread
Spectrum Speech Service Option1.
TIA/EIA IS-126-A : Mobile Station Loop back Service Option standard.
CDMA Receiver/Transmitter Specifications and Requirements
The Subscriber Unit shall comply with ANSI J-STD-008 and meet or exceed TIA/EIA IS-98A. The Subscriber
Unit shall comply with Personal Station Class II.
Analog Receiver/Transmitter Specifications and Requirements
The Subscriber Unit shall comply with TIA/EIA IS-95A and meet or exceed TIA/EIA IS-95. The Subscriber Unit
shall comply with Mobile Station Power Class III (600mW).
Samsung Electronics 1-1

1-2 Samsung Electronics
General Introduction
Memo

2. Specification
2-1 General
Frequency Range PCS Mode AMPS Mode
Transmitter : 1850 ~ 1910 MHz 824 ~ 849 MHz
Receiver : 1930 ~ 1990 MHz 869 ~ 894 MHz
Channel Spacing : 1.25 MHz 30 kHz
Number of Channels : 1200 832
Duplex Spacing : 80 MHz 45 MHz
Frequency Stability : (FRX - 80MHz) ± 150Hz ± 2.5 ppm
Operating Temperature : -30 oC ~ 60 oC
Operating Voltage
HHP : 7.2V DC (± 10%)
Hands-free : 13.7V DC (± 10%)
Size and Weight
including standard battery : 14.6 x 5.4 x 2.5 cm, 191 cc, 220 g (7.7 ounces)
including extended-life battery : 14.6 x 5.4 x 3.35 cm, 250 cc, 226 g (7.9 ounces)
Samsung Electronics 2-1

2-2 Samsung Electronics
Specification
2-2 AMPS Mode
TRANSMITTER
RF output power : 0.6 W (+2/ - 4 dB)
Carrier ON/OFF Conditions
ÒONÓ Condition : within ± 3 dB of specification output (in 2mS)
ÒOFFÓ Condition : below - 60 dBm (in 2mS)
Compressor
Compression Rate : 2:1
Attack Time : 3 mS
Recovery Time : 13.5 mS
Reference Input : Input level for producing a nominal ± 2.9 kHz peak
frequency deviation of transmitted carrier
Preamphasis : 6 dB/OCT within 0.3 ~ 3 kHz
Maximum Frequency Deviation
F3 of G3 : ± 12 kHz (± 10 %)
Supervisory Audio Tone : ± 2 kHz (± 10 %)
Signaling Tone : ± 8 kHz (± 10 %)
Wideband Data : ± 8kHz (± 10 %)
Post Deviation Limiter Filter
3.0 kHz ~ 5.9 kHz : above 40LOG (F/3000) dB
5.9 kHz ~ 6.1 kHz : above 35 dB
6.1 kHz ~ 15 kHz : above 40 LOG (F/3000) dB
Over 15 kHz : above 28 dB
Spectrum Noise Suppression
For All Modulation
f0+ 20 kHz ~ f0+ 45 kHz : above 26 dB
For Modulation by Voice and SAT
f0+ 45 kHz : above 63 + 10LOG (Py) dB
For Modulation by WBD (without SAT) and ST (with SAT)
f0+ 45 kHz ~ f0+ 60 kHz : above 45 dB
f0+ 60 kHz ~ f0+ 90 kHz : above 65 dB
f0+ 90 kHz ~ 2f0: above 63 + 10LOG (Py) dB
(where f0= carrier frequency,
Py = mean output power in watts)
Harmonic and Conducted Spurious Emissions : above 43 + 10 LOG (Py) dB

Samsung Electronics 2-3
Specification
Frequency Range Maximum Allowable EIRP
25 ~ 70 MHz -45 dBm
70 ~ 130 MHz -41 dBm
130 ~ 174 MHz -41 ~ -32 dBm
174 ~ 260 MHz -32 dBm
260 ~ 470 MHz -32 ~ -26 dBm
470 ~ 1 GHz -21 dBm
RECEIVER
DE-Emphasis : -6 dB/OCT within 0.3 ~ 3 kHz
Expander
Expansion Rate : 1:2
Attack Time : within 3 mS
Recovery Time : within 13.5 mS
Reference Input : Output level to a 1000 Hz tone from a carrier within ±
2.9 kHz peak frequency deviation
Sensitivity : 12 dB SINAD/-116 dBm
Intermodulation Spurious Response Attenuation : above 65 dB
RSSI Range : above 60 dB
Protection Against Spurious Response Interference : above 60 dB
In Band Conducted Spurious Emissions
Transmit Band : below -60 dBm
Receive Band : below -80 dBm
Out of Band Conducted Spurious Emissions : below - 47 dBm
Radiated Spurious Emissions

Specification
2-3 PCS Mode
TRANSMITTER
Waveform Quality : 0.944 or more
Open loop Power Control Range
-25 dBm : -60.5 dBm ~ 41.5 dBm
-65 dBm : -20.5 dBm ~ -1.5 dBm
-104 dBm : +15.0 dBm ~ +30.0 dBm
Minimum Tx Power Control : -50 dBm below
Closed Loop Power Control Range : ±24 dB
Maximum RF Output Power : 200 mW (+23 dBm)
Occupied Bandwidth : 1.23 MHz
Conducted Spurious Emissions @ 1.25 MHz : -42 dBc/30 KHz
RECEIVER
Rx Sensitivity and Dynamic Range : -104 dBm, FER=0.5% or less
(Rate Set 1) : -25 dBm, FER=0.5% or less
Conducted Spurious Emission
1930 ~ 1990 MHz : <-81 dBm
1850 ~ 1910 MHz : <-61 dBm
All Other Frequencies : <-47 dBm
Single Tone Desensitization : lower than 1%
Rx power = -101 dBm
Tone power = -30 dBm
Tone offset from carrier = ±1.25 MHz
Intermodulation Spurious Response Attenuation : lower than 1%
Rx power = -101 dBm
Tone power 1 = -43 dBm
Tone power 2 = -43 dBm
Tone 1 offset from carrier = ±1.25 MHz
Tone 2 offset from carrier = ±2.05 MHz
2-4 Samsung Electronics

Samsung Electronics 2-5
Specification
IN IDLE MODE
IN CONVERSATION MODE
1 Sxxxxx : SID (System Identification) toggle
Nxxxxx : NID (Network Identification) toggle
2 SIx : Slot cycle index (lowest between the system
and the phone will be used)
1. SI0 : Slot Index 0
2. SI1 : Slot Index 1
3. SI2 : Slot Index 2
3 Handset Status : 0 - NO SVC
1 - Synchronization
2 - Paging (Idle)
3 - Reg. Access state
4 - Traffic Initialization
5 - Waiting for order
6 - Waiting for answer
7 - Conversation state
8 - Exit
4 T-xx : Tx adjust, Value ranges from +63~0~63dB
5 Dxxx : Sector power in dBm
6 -xx : ec/lo
7 Pxxx : PN offset
8 CHxxxx : Channel number
9 TV : Tx vocoder rate (8 is full rate, 1 is 1/8th rate)
10 RV : Rx vocoder rate (8 is full rate, 1 is 1/8th rate)
11 xx : Walsh code used in traffic channel
12 System acquisition state

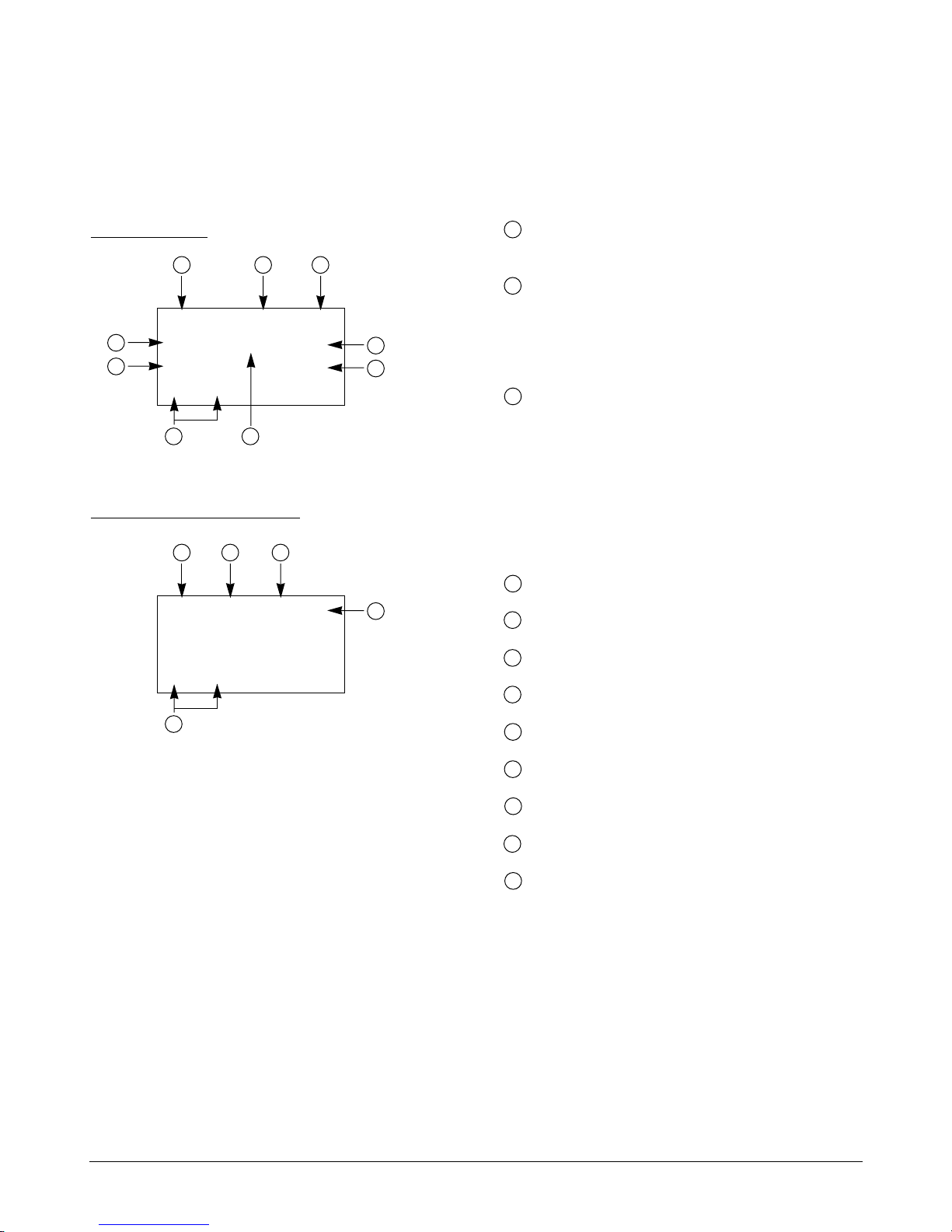

2-4 PCS Debug Display Information
To select debug display mode : Press [MENU] + [8] + [0], and press [0] + [4] + [0] + [7] + [9] + [3] or
press [0] + [0] + [0] + [0] + [0] + [0].
SIDxxxxx SIx x
T - xx Dxxx - xx
Pxxx CHxxxx
xx xx
1
4
7
6
8
5
12
2 3
TVx RVx xx x
T - xx Dxxx - xx
Pxxx CHxxxx
xx xx
9
3
12
10 11

Specification
2-6 Samsung Electronics
1 SIDxxxxx : AMPS Home System ID
2 PWRx : Power Level 0 ~ 7
3 SATx : Supervisory Audio Tone code (0 ~ 3)
4 x (Using Frequency Band) : A Band or B Band
5 RSSIxxx : RSSI value
6 CHxxx : Using Channel
7 Handset Status : 1 - Initialization state
2 - Idle state
3 - System Access state
4 - Voice channel state
8 System acquisition state
2-5 AMPS Debug Display Information
To select debug display mode : Press [MENU] + [8] + [0], and press [0] + [4] + [0] + [7] + [9] + [3] or
press [0] + [0] + [0] + [0] + [0] + [0].
SIDxxxxx x x
PWRx RSSIxxx
SATx CHxxxx
xx xx
1
2
3
5
6
8
7 4

3. Installation
3-1 Installing a Battery Pack
Figure 3-1 Charging the Phone and Battery
1. To attach the battery pack after charging, align it
with the phone about 1cm (1/2Ó) away from its
place so that the two arrows on the phone are
seen, the battery charge contacts pointing
downward.
2. Slide the battery pack upwards until it clicks
firmly into position. The phone is now ready to
be turned on.
3. To remove the battery pack, release it by
pressing the button on the rear of the phone.
4. Slide the battery pack downward about 1cm
(1/2Ó) and lift it away from the phone.
3-2 For Desk Top Use
1. Choose a proper location to install the charger
for desk top use.
2. Plug the power cord of the charger into an
appropriate wall socket. When the power is
connected correctly, the lamps turn on briefly.
3. To charge the battery pack, insert the battery
pack into the rear slot of the charger. The lamp
marked BAT on the front panel of the charger
lights up red.
4. If you do not wish to use the phone while
charging the battery, insert the phone with the
battery pack attached into the front slot of the
charger. The lamp marked PHONE on the front
panel of the charger lights up red.
Specifications using DTC
Battery Type Standard Battery Extended battery
(Li-Ion, 850mAH) (Li-Ion, 1350mAH)
Charging Time 3 hours 5 hours
SEC. code GH43-10114A GH43-10113A
Samsung Electronics 3-1
SCH-1500 MAIN STANDARD
BATTERY
PACK : BTL859S
EXTENDED
BATTERY PACK
: BTL1359L
DTC : DTC59
Press this button to release
the battery pack.

3-3 For Mobile Mount
3-3-1 Antenna
1. Choose a proper location to install the antenna.
¥The center of the roof top provides the best
performance.
¥The edge of the rear trunk also provides a
good performance. However, the antenna
should be higher than the roof of the car.
¥In case of on-glass antenna, you should align
the antenna base with the round plate to
connect the cables correctly.
2. Mount the antenna vertically, connect the
antenna cable.
3. Tighten the antenna nut fully.
3-3-2 Cradle
1. Choose a location where it is easy to reach and
does not interfere with the driverÕs safe
operation of the car.
2. Separate the two halves of the clamshell by
removing the two large slotted screws. See the
figure 3-2.
3. Drill holes and mount the lower half of the
clamshell by using the screws.
4. Place the cradle onto the remaining half of the
clamshell and assemble them by using the
screws.
5. Reassemble the two halves of the clamshell
together. Adjust the mounting angle and tighten
the two slotted screws.
3-2 Samsung Electronics
Installation
Figure 3-2 Cradle Installation
HHP ANTENNA
CLAM SHELL
MOUNT UPPER
CLAM SHELL
MOUNT LOWER
CRADLE
FIXED SCREW
CAR
HANDS
FREE BOX
56
40

Samsung Electronics 3-3
Installation
3-3-3 Hands-Free Box
1. Drill holes in a proper location for the hands-
free box, attach the mounting bracket by using
the screws. See the figure 3-3.
2. Install the hands-free box into the bracket.
3-3-4 Hands-Free Microphone
1. It is recommended to install the microphone
where it is 30-45 cm (12-18Ó) away from the
driver. Choose the location where is least
susceptible to interference caused by external
noise sources, ie, adjacent windows, radio
speakers, etc. Normal place is the sun visor.
2. Once the microphone has been correctly
positioned, connect the microphone wire to the
MIC jack on the hands-free box.
Figure 3-3 Hands-Free Box Installation
MOUNTING BRACKET
56
40

3-4 Samsung Electronics
Installation
3-3-5 Cables
1. Connect the cradle and the hands-free box with
the data cable. See the figure 3-4.
2. Connect the antenna cable to the RF jack of the
cradle.
3. Connect one of the power cable to the battery or
ignition terminal. Connect the red wire to the
battery (+) terminal, black wire to the vehicle
chassis. Then connect the battery (-) terminal to
the vehicle chassis.
4. Connect the other end of the power cable to the
PWR jack of the hands-free box.
Notes:
¥It is recommended to connect the power cable
directly to the battery to avoid power noise.
¥Make sure the connection between the battery (-)
terminal and vehicle chassis is made correctly.
¥Make sure the fuse having a proper capacity is
used on the power cable.
¥Make sure the cables do not pass over any sharp
metal edge that may damage it.
Figure 3-4 Cable Connections
1
ABC DEF
GHI
PQRS
TUV
WXYZ
OPER
JKL MNO
23
456
78
CLR OK MENU
9
*
0#
TALK
END/

4. NAM Programming
NAM features can be programmed as follows:
Notes:
- If you enter the NAM program mode, each item shows the currently stored data. Go to the next item by
pressing OK.
- You can modify the data by entering a new data.
- If you enter a wrong digit, press CLR to delete the last digit. Press and hold CLR to delete all digit.
- To scroll items backwards press the VOLUME button on the left side of the phone.
4-1 Single NAM
4-1-1 General Setup
LCD Display Key in Function
Menu, 5, 0Select NAM programming
6-digit code Enter random 6 digit code (MSL)
2Choose ÔGENERALÕ
Volume ¹Electronic Serial Number of the phone is displayed
Volume ¹Common Air Interface version is displayed
Volume ¹Station Class Mark displays the power class, transmission,
slotted class, dual mode.
Lock code, current status is displayed.
4-digit code -to change, enter new code.
OK -stores it.
Slot mode. ÔYesÕ indicates the slot mode.
mor i-changes the status.
OK -store it.
Slot mode index. The higher, the longer sleeping time.
0~ 7-to change, enter new one.
OK -stores it.
Samsung Electronics 4-1
Enter Lock
??????
ESN B0000000
CAI version1
SCM 10101010
Lock Code
0000
Slot Mode
No
Slot Index 2
SVC Menumi
1:Phone#
2:General
3:NAM

4-2 Samsung Electronics
NAM Programming
4-1-2 Phone #
LCD Display Key in Function
1Choose ÔPhone#Õ
Phone number
OK
Mobile ID
OK
SVC Menumi
1:Phone#
2:General
3:NAM
Phone #
1234567890
Mobile ID #
1234567890
4-1-3 Setting Up NAM
LCD Display Key in Function
Volume ¹NAM Programming Menu is displayed.
3Choose ÔSetup NAMÕ.
IMSI Mobile Country Code, current code is displayed.
Number -to change, enter new one.
OK -stores it.
IMSI Mobile Network Code, current code is displayed.
Number -to change, enter new one.
OK -stores it.
CDMA Access Overload Class, current status is displayed.
Class number -to change, enter new one.
OK -stores it.
SVC Menumi
1:Phone#
2:General
3:NAM
SVC Menumi
3:NAM
IMSI_MCC
310
IMSI_MNC 00
CDMA ACCOLC
0

Samsung Electronics 4-3
NAM Programming
LCD Display Key in Function
CDMA Home system ID, current status is displayed
mor i-changes the status
OK -stores it.
CDMA foreign SID, current status is displayed.
mor i-changes the system.
OK -stores it.
CDMA foreign NID, current status is displayed.
mor i-changes the system
OK -stores it.
SID written in the list, current status is displayed.
Number -to change, enter new one.
OK -store it.
NID written in the list, current status is displayed.
Number -to change, enter new one.
OK -stores it.
CDMA Home SID
Yes
CDMA fSID Yes
CDMA fNID Yes
HOME SID
1700
NID 1

4-4 Samsung Electronics
NAM Programming
4-2 Dual NAM
4-2-1 General Setup
LCD Display Key in Function
Menu, 5, 0Select NAM programming
6-digit code Enter random 6 digit code (MSL)
2Choose ÔGENERALÕ
Volume ¹Electronic Serial Number of the phone is displayed
Volume ¹Common Air Interface version is displayed
Volume ¹Station Class Mark displays the power class, transmission,
slotted class, dual mode.
Lock code, current status is displayed.
4-digit code -to change, enter new code.
OK -stores it.
Slot mode. ÔYesÕ indicates the slot mode.
mor i-changes the status.
OK -store it.
Slot mode index. The higher, the longer sleeping time.
0~ 7-to change, enter new one.
OK -stores it.
Enter Lock
??????
ESN B0000000
CAI version1
SCM 10101010
Lock Code
0000
Slot Mode
No
Slot Index 2
SVC Menumi
1:Phone#
2:General
3:NAM1
4:NAM2

Samsung Electronics 4-5
NAM Programming
4-2-2 Phone # NAM1
LCD Display Key in Function
1Choose ÔPhone#Õ
1Choose ÔNAM1Õ
Phone number
OK
Mobile ID
OK
4-2-3 Phone # NAM2
LCD Display Key in Function
1Choose ÔPhone#Õ.
2Choose ÔNAM2Õ.
Phone number
OK
Mobile ID
OK
SVC Menumi
1:Phone#
2:General
3:NAM1
4:NAM2
Phone #
1:NAM1
2:NAM2
Phone #
1234567890
Mobile ID #
1234567890
SVC Menumi
1:Phone#
2:General
3:NAM1
4:NAM2
Phone #
1:NAM1
2:NAM2
Phone #
1234567890
Mobile ID #
1234567890

4-6 Samsung Electronics
NAM Programming
4-2-4 Setting Up NAM1
LCD Display Key in Function
Volume ¹NAM Programming Menu is displayed.
3Choose ÔSetup NAM1Õ.
IMSI Mobile Country Code, current code is displayed.
Number -to change, enter new one.
OK -stores it.
IMSI Mobile Network Code, current code is displayed.
Number -to change, enter new one.
OK -stores it.
CDMA Access Overload Class, current status is displayed.
Class number -to change, enter new one.
OK -stores it.
CDMA Home system ID, current status is displayed
mor i-changes the status
OK -stores it.
CDMA foreign SID, current status is displayed.
mor i-changes the system.
OK -stores it.
CDMA foreign NID, current status is displayed.
mor i-changes the system
OK -stores it.
SID written in the list, current status is displayed.
Number -to change, enter new one.
OK -store it.
NID written in the list, current status is displayed.
Number -to change, enter new one.
OK -stores it.
SVC Menumi
1:Phone#
2:General
3:NAM1
4:NAM2
SVC Menumi
3:NAM1
IMSI_MCC
310
IMSI_MNC
00
CDMA ACCOLC
0
CDMA Home SID
Yes
CDMA fSID
Yes
CDMA fNID
Yes
HOME SID
1700
NID
1
